Bashan TDP-124D User manual
TDP Far Infrared Mineral Lamp
User Manual
Model: TDP-124D
INTRODUCTION
The TDP (Teding Diancibo Pu) Mineral Lamp is a
relatively new therapeutic device that treats
ailments by emitting far infrared light. This
method is being increasingly used by physical
therapists, chiropractors, acupuncturist, and
other healthcare professionals to help their
patients with chronic illness.
It is non-invasive, safe and easy to use. The far
infrared light or mid-IR wavelengths it emits can
loosen the fibrous tissues connecting the muscles
and organs. Blood can thus circulate more freely
in the smallest of vessels in the body by way of
microcirculation and promote healing.
Not only blood delivers fresh oxygen, nutrients, and healing enzymes into the body
cells, it also works to carry away toxins, dead cells, debris, and other waste. In this
way, the device stimulates the body to heal itself in a process similar to the healing
energy that radiates from the hands of a massage therapist.
HOW THE TDP LAMP WORKS
The mineral plate in the lamp head comprises an
iron plate that is about 1 millimeter in thickness.
It contains 33 trace elements in unique mineral
forms. The iron content of the plate helps the
heat spread uniformly across the panel.
The key component of the TDP Lamp is the min-
eral plate that is heated to 870 °F or 466 °C. This
device can emit far infrared radiation that ranges
from 2 to 25 micrometers. The minerals in the
mineral plate are ionized. The heat, radiation, and
electromagnetic waves of the lamp carry these ions into the human body. Each time
you suffer stress, anxiety, illnesses, injuries, or fatigue, your body needs minerals to
rebuild and rejuvenate itself. By using the channel of heat waves that are similar to
the natural energy of your body, the TDP lamp also called a Miracle Lamp can deliver
the essential minerals that your body needs for health, healing, and wellness.
Mineral Plate
1
WHAT YOU CAN GET FROM THE TDP LAMP
•Temporarily increase local blood circulation
•Temporarily relieve pain and stiffness associated with minor muscle and joint
SPECIFICATION
Model: TDP-124D
Dimension: 690*255*500 mm / 27.2*10*19.7 inch
Weight: 5 kg / 11 lb
Radiant Plate Diameter: 12.4 cm / 4.9 inch
Power Input Rating 110V, 60Hz, 250W
Electric Shock Protection Classification Class II
Water Proof Class IP22
Spectrum Range 5 - 25 microns
Temperature Range of Skin Surface Applied 40℃- 45℃/ 104℉- 113℉
Warming Up Time 15 - 20 minutes
Operating Time Maximum 60 minutes
Total Working Hours for Heating Lamp 1000 hours
2
TDP LAMP COMPONENTS
Lamp HeadSpring Arm Control Panel
3
OPERATION PROCEDURE
OPERATION ENVIRONMENT REQUIREMENTS
"POWER" indicator (green light) on.
Preheat for 15-20 minutes
Choose Timing Mode (15, 30, 45, 60)
Choose to "NO"
(means no time limitation)
Plug in power unit.
The device is on, rotate the
knob to "NO" position and
ready for preheating.
Choose traetment time (rotate the
knob to 15, 30, 45, 60), "WORK"
indicator (yellow light) on.
Rotate the knob to "OFF",
unplug the power cord.
The device will automatically turn off
when the timer reaches "OFF". Make
sure the knob is "OFF", unplug the
power cord.
OPERATION ENVIRONMENT REQUIREMENTS
Temperature 5℃- 40℃/ 41℉- 104℉
-
Relative Humidity ≤80% RH
Barometric Pressure 70kPa -106kPa
TRANSPORTATION AND STORAGE ENVIRONMENT REQUIREMENTS
Temperature -20℃- 50℃/ -4℉- 122℉
Relative Humidity ≤95% RH
Barometric Pressure 70kPa - 106kPa
NOTE: Make sure the lamp is used on flat place. If the lamp falls down, it will stop
operate. Turn it on again after stably placed.
4
CAUTIONS
•Infants, children or adults who have difficulties express cannot be given this
treatment.
•This device must not be used on patients with acute illness, open wound, fever,
cardiovascular disease, varicose veins, skin abnormalities, or tendency to bleed.
•This device should never be used on the head for patients who have hypertension.
•This device should never be used directly to eyes.
•People who cannot sense temperature sensitively are not encouraged to use this
device.
•People who have implants like pacemaker, silicone or metal cannot take this
treatment. It could cause internal burns.
•Pregnant people cannot use this device.
FAQ
This product is designed to protect your eyes from lights, it won't illuminate
when is on. You can tell from the lights on the control panel if the lamp works.
The green light indicates that the lamp is power on, and the yellow light indi-
cates the lamp is working.
How long is a proper treatment time?
How far is a proper distance between the skin and lamp head?
The lamp head doesn't turn red when it's on, is it broken?
It is recommended for a minimum of 40 minutes per treatment session on the
targeted area. The treatment time for a given session may vary depending on
the condition being treated. The maximum treatment time for one session is
suggested to be NO MORE THAN one hour, NO MORE THAN two sessions
one day. Contact us or your physician for advice before use.
The surface of human skin should remain around 40℃or 104℉. The distance
between the treated surface and heating head is suggested to be 8- 12 inches to
prevent possible burns. The distance can be adjusted when you feel too hot or
not warm enough.
5
Can I use this lamp on the face?
This device can be used on the face but make sure wear an eye mask or keep
your eyes close during treatment. Keep the lamp not too close to prevent pos-
sible burns. It is suggested to use it on face NO MORE THAN 30 minutes.
The component of connecting the heating plate in the lamp head is nick-
el-chromium wire. It determines the heating time of the lamp and needs 15 to
20 minutes to heat up. The mineral plate inside the lamp head can emit far
infrared radiation when it is heated to 870℉or 466℃. It makes the device
work better.
Why does the lamp take so long to heat up?
This device has a "NO" mode (means no time limitation) and a timing mode.
You could choose "NO" mode if you don't like the sound of a ticking clock.
Make sure rotate the knob to "OFF" and unplug the power cord after use.
I don't like the sound of ticking clock when I choose timing mode.
Is there a lifetime for the lamp or the mineral plate?
This product can operate over an extended period of time. And the mineral
plate needs to be replaced after 1,000 hours of use.
Where can we get replacement for mineral plate when 1,000 hours are up?
It is suggested to replace the lamp head directly after 1,000 hours of use. Con-
6
WARRANTY
We stand by the quality of our choice for TDP Lamp from BASHAN by offering a
twelve-month warranty.
If you are not satisfied with our product, feel free to contact us at support@fri-
care.com.
MORE CHOICE

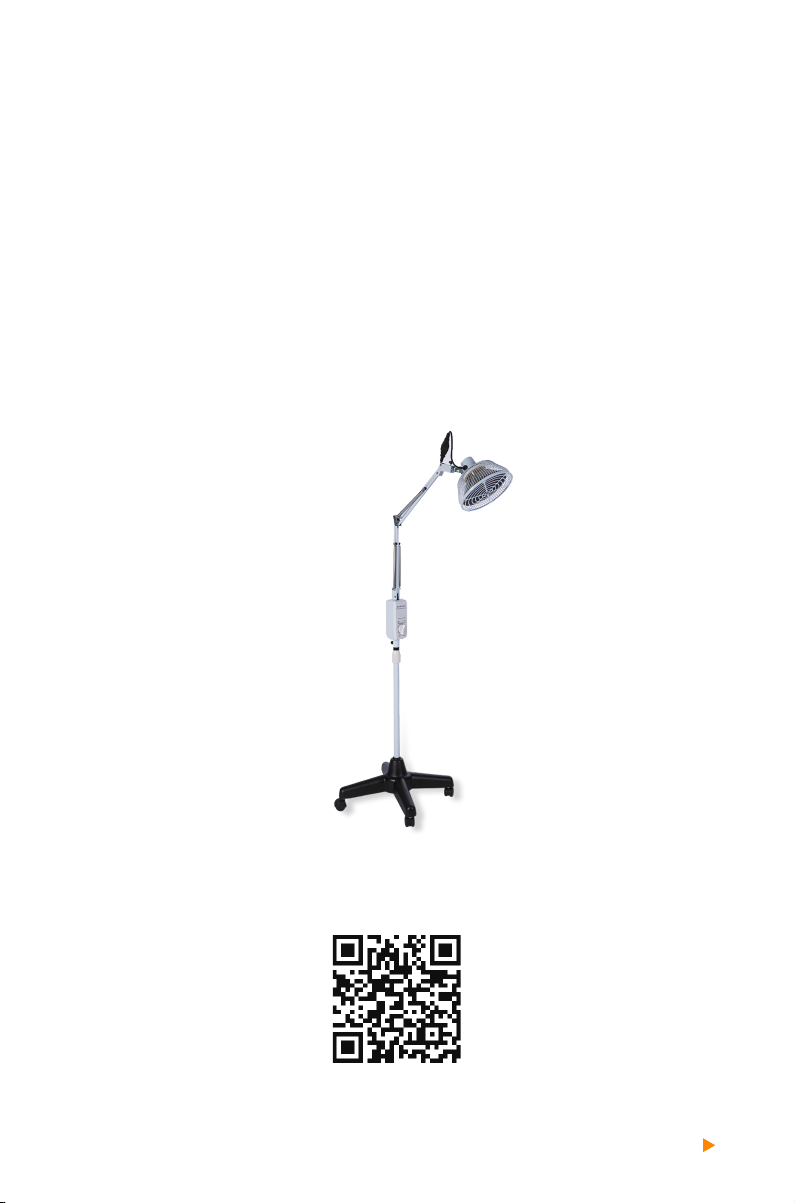

TDP Far Infrared Mineral Lamp (Model: TDP-166F)
https://www.amazon.com/dp/B07D73M7YZ
