Bass Habit Play PP600.1 G2 User manual

PP600.1 G2
PP1000.1 G2
Play Power Mono Amplifier User Manual

THANK YOU FOR PURCHASING BASS HABIT
Thank you for purchasing this Play Power Class D amplifier from Bass Habit. Please read
this manual in order to fully understand how to get the best result from this product and
ensure that the advices on how to look after the product and the safety precautions are
followed. We hope you enjoy using the product as much as we enjoyed creating it.
Before mounting and installing your new amplifier, please read through the whole user
manual. If you have any questions concerning your amplifier or any other Bass Habit
products, contact your nearest Bass Habit dealer/distributor.
UNPACKING
INCLUDED IN THE PACKAGING
• Mono amplifier
• Fuses (Only PP600.1 G2)
• Screws 4pcs
• Remote control
• Remote control cable
• User manual
• Bass Habit sticker

TABLE OF CONTENT
• SAFETY & WARRANTY
Caution
Warranty
What is not covered
Warning
International technical enquiries
• INSTRUCTIONS
Installation experience
Choosing amplifier mounting locations
Installation precautions
Step 1) Power connections
Step 2) Speaker connections
Step 3) Signal connections
• CONTROL PANEL
Input level control (GAIN)
Bass boost control (BASS BOOST)
LPF crossover (LPF)
HPF crossover (HPF)
Remote level control (REMOTE)
Power status & Protection LED
Line input
Bridge mode (Linked)
Side panel
• SPECIFICATIONS
PP600.1 G2
PP1000.1 G2
• TROUBLESHOOTING
No sound / No active POWER LED
Noise or Distorted sound / Low output
Amplifier Protection mode (PROTECT)

SAFETY & WARRANTY
CAUTION
Never connect any speaker lead to the car chassi. This can cause severe damage to your car audio setup.
Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
Use caution when working near the fuel/hydraulic lines and electrical wiring.
Observe the correct polarity when wiring. Improper phasing may cause a loss of bass response.
Ensure that no moving parts get caught on the subwoofer or grill.
WARRANTY
All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The
warranty is valid from the date of the original receipt as proof of purchase (warranty period differs depending on
local warranty laws and policies). Contact your international Bass Habit dealer or distributor concerning specific
procedure for your country’s warranty policies.
WHAT IS NOT COVERED
• Damage to product due to improper installation.
• Subsequent damage to other components.
• Damage caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation.
• Damage through negligence, missuse, accident or abuse. Repeated returns for the same fault may be
considered as abuse.
• Any cost or expense related to the removal and/or abuse. Repeated returns for the same fault may be
considered as abuse.
• Damage caused by amplifier clipping or distortion.
• Items repaired or modified by any unauthorised repair facility.
• Return shipping on non-defective items.
• Products returned without a return authorisation number.
• Damage to product due to use of sealant.
WARNING
Bass Habit equipment is capable of sound pressure levels that can cause permanent damage to your hearing and
those around you. Please use common sense when listening to your audio system and practice safe sound. Keep
the volume at a level so you can still hear outside noise. Failure to do this may result in an accident. Bass Habit
recommends caution when listening at a high volume. For safety and enjoyable listening, the sound should be clear
without distortion.
INTERNATIONAL TECHNICAL ENQUIRIES
For international technical support please contact the dealer/distribution agent for your country.
DO NOT EXPOSE THIS PRODUCT TO EXCESSIVE DAMP OR MOISTURE
- Doing so may result in shock or damage to the product.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL
- Failure to do so may result in electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS
- Failure to make the correct connections may result in permanent damage to the product.
DO NOT USE ANY FUNCTIONS THAT MAY TAKE YOUR CONCENTRATION AWAY FROM DRIVING YOUR VEHICLE
- Do not setup your amplifier whilst driving. Doing so may result in an accident. For prolonged interaction
with the product, make sure that your vehicle is stationary and parked in a safe location.
- 4 -

INSTRUCTIONS
INSTALLATION EXPERIENCE
Installation of Bass Habit amplifiers may require experience with a variety of mechanical procedures including
cable wiring, drilling, etc. This manual only provides general installation and operation instructions. If you have any
reservations about your installation skills, please contact your local authorized Bass Habit dealer for help.
CHOOSING AMPLIFIER MOUNTING LOCATIONS
Choose a mounting location in an area where the amplifier will not be damaged, and where the amplifier is not
covered up. Mount the amplifier so that it remains dry - never mount an amplifier outside the vehicle or in the
engine compartment. Amplifier cooling is essential for proper amplifier operation. If the amplifier is to be installed
in an enclosed space, make sure there is sufficient air circulation for the amplifier to cool itself. When mounting the
amplifier under a seat, ensure that it is clear of all moving parts and does not affect the seat functionality. Make
sure that the amplifier is mounted securely using nuts and bolts or the supplied mounting screws.
INSTALLATION PRECAUTIONS
NOTE! Proceed only if you are a qualified installer, otherwise let your dealer do it.
• Always wear protective eyewear when using tools.
• Turn off all stereo and other electrical devices before you begin.
• Disconnect the (-) negative lead from your vehicle’s battery.
• Keep the amplifier in the package until final installation, and always rest it upwards.
• Never use force when installing a amplifier.
• Locate all fuel lines, brake lines, oil lines and electrical cables when planning your installation.
• Check clearances on both sides of a planned mounting surface before drilling any holes or fixing screws.
• When routing cables, keep input-signal cables away from power cables and speaker wires.
• When making connections, make certain all cables are secure and properly insulated.
- 5 -

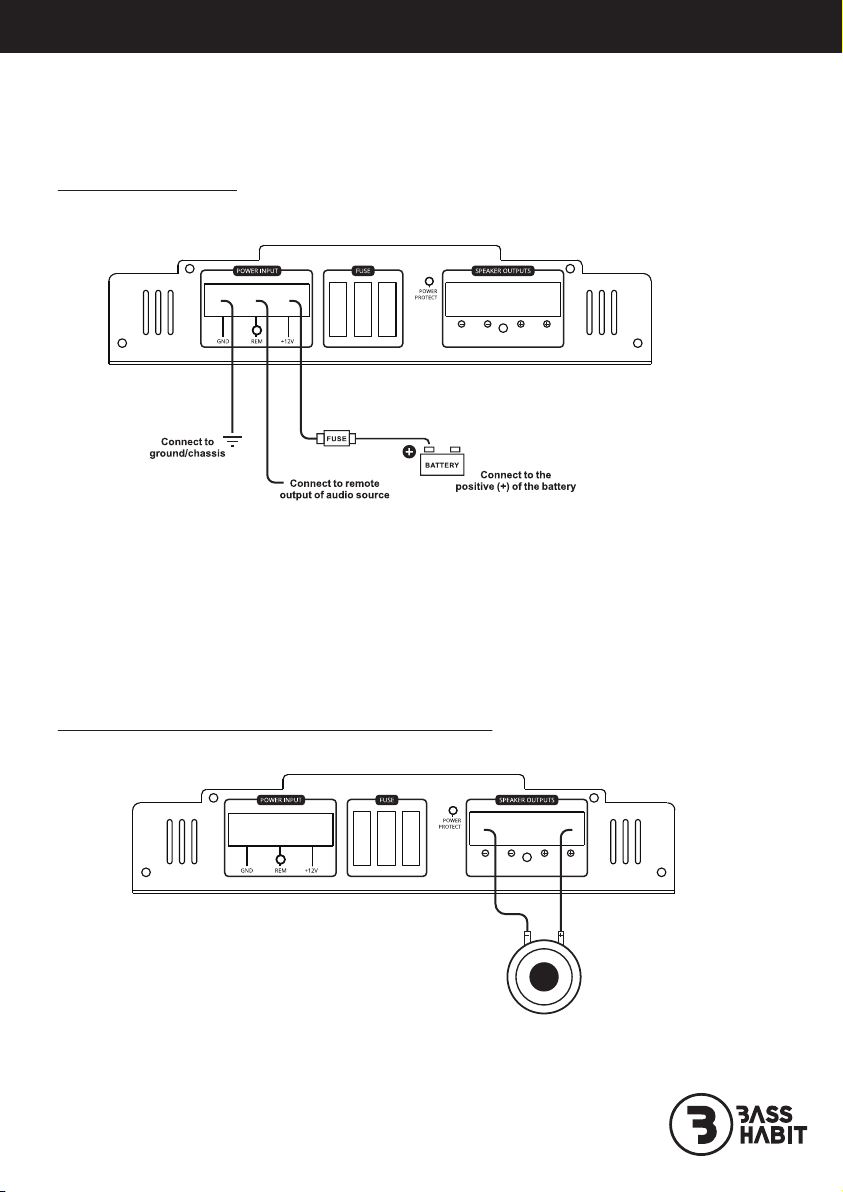

STEP 1) POWER CONNECTIONS
The Bass Habit Play Power amplifiers are capable of delivering extremely high power levels and require a heavy-
duty and reliable connection to the vehicle’s electrical system. To get the very best performance out of your Bass
Habit Play Power amplifier, carefully follow the instructions below:
GROUND CONNECTION (GND):
Connect the amplifiers Ground (GND) terminal to a solid point on the vehicles metal chassis, as close to the
amplifiers as possible. Scrape away any paint from this location; use a star-type lock washer to secure the connec-
tion. Minimal ground wire recommended size:
• PP600.1 G2: 4 awg/ 20mm²
• PP1000.1 G2: 4 awg/ 20mm²
POWER CONNECTION (+12V):
Connect a wire directly to the vehicles positive battery terminal, and install an appropriate fuse and holder within
30cm/12” from the battery terminal. Keep the fuse uninstalled at the time for routing and connecting the power
wire. Be sure to use grommets whenever routing wires through the firewall or other metal parts. When routing/
connecting is done, installation of the fuse into fuse holder can be finalised.
Minimal power wire recommended size:
• PP600.1 G2: 4 awg/ 20mm²
• PP1000.1 G2: 4 awg/ 20mm²
REMOTE CONNECTION (REM):
Connect the amplifiers Remote (REM) terminal to the source unit Remote turn on lead using a minimum of
0.75mm²/18 gauge wire. If your source unit does not have a turn on connection, connect the amplifier (REM)
terminal through a power switch button which can provide a +12V signal.

STEP 1) POWER CONNECTIONS
- 6 -
POWER CONNECTIONS
STEP 2) SUBWOOFER CONNECTIONS
Subwoofer output connections should be made using a minimum of 16 awg / 1.25mm² wire. The terminal accepts
up to 8 awg/10mm². Minimum total allowed impedance load is 1 Ohm mono.
MONO CHANNEL SUBWOOFER SYSTEM (1 SUBWOOFER)
min. 1 Ohm

- 7 -
min. 2 Ohm min. 2 Ohm

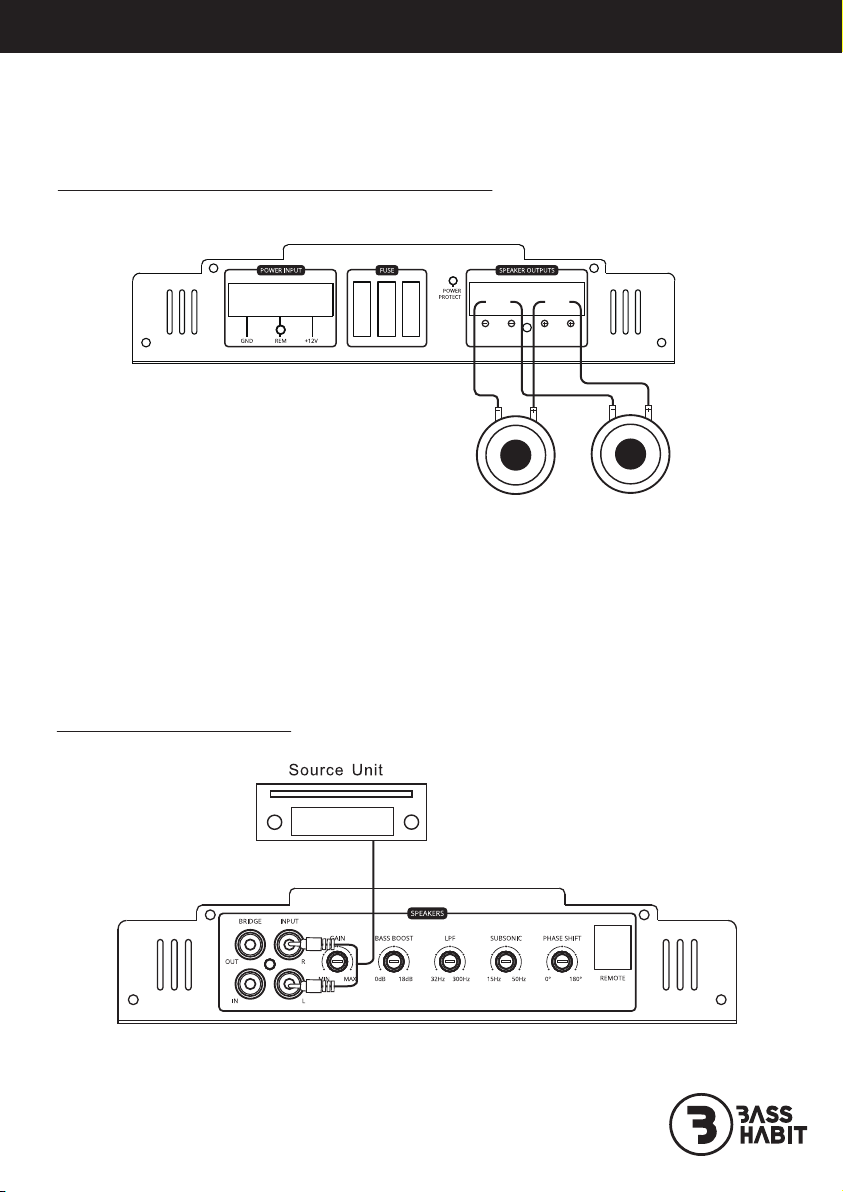

MONO CHANNEL SUBWOOFER SYSTEM (2 SUBWOOFER)
STEP 3) SIGNAL CONNECTIONS
Use high quality RCA jacks cable to make sure that you get the full audio experience.
The Signal on BRIDGE OUT is the same as FRONT INPUT.
SIGNAL CABLE CONNECTIONS
STEP 2) SUBWOOFER CONNECTIONS

- 8 -
Bass Habit Play Power mono amplifiers are constructed to be used for subwoofers.
Input level control (GAIN):
GAIN control is seamless adjustable between 0.2V - 6V.
Tips for adjusting the GAIN control correctly:
- Initially turn the GAIN control to minimum (counter clockwise).
- On the source unit, increase the volume control to the 3/4 of maximum volume.
- Slowly increase the GAIN control until you hear slight distortion in the subwoofers.
- Then reduce the GAIN slightly until distortion is no longer heard.
Bass Boost control (BASS BOOST):
PP600.1 G2 adjustable between 0-18dB (@ 45Hz)
PP1000.1 G2 adjustable between 0-12dB and 30-80Hz
Please use the BASS BOOST knob with care, excessive use can damage you system!
LPF Crossover (LPF):
The low pass filter is seamless adjustable between 40Hz - 180Hz (PP1000.1 G2), 32-300Hz
(PP600.1 G2). When using a subwoofer, set the start frequency cut point at 60Hz and adjust
to your own preferences.
Subsonic Crossover:
The high pass filter is seamless adjustable between 15Hz-50Hz. The Subsonic filter can be
used for removing the deepest bass notes from the subwoofer, get a tighter and more
rhythmical sound.
Line Input:
Connect the line outputs from your source unit and connect to the Line L and R inputs.
Power status & Protection LED:
• POWER = Power LED lights up when the amplifier is turned on. Normally during the start-up
sequence the POWER and PROTECT lights will flash as a selft test procedure.
• PROTECT = Protect LED light flashing or solid. This light is an indicator of the protect mode
status, see the trouble shooting section of the manual for more information.
While listening to music, adjust the gain/crossover/subsonic/bass boost for the least perceived
distortion from the subwoofers, allowing them to reproduce as much bass as possible.
CONTROL PANEL

- 9 -
Bridge In/Output (BRIDGE IN/OUT)
Two separeate Bass Habit Play Power mono amplifier G2 (same model) can be linked to power
a minimum 2 Ohm subwoofer setup for increased power output. Follow these instructions
carefully, if not carried out correctly you may permanently damage your products.
The power cables on both amplifiers need to be of the same size and quality. Consult your
local Bass Habit dealer to make sure that you have the right size cables and fuses.
The settings on the main amplifier (AMP1 in the illustration) will be operational, the settings on
the linked amplifier (AMP2 in the illustration) will not.
Use a high quality RCA cable to connect the two amplifiers, the link connects from the BRIDGE
OUT on AMP1 to BRIDGE IN on AMP2.
Connect as the Illustration. Bridge the negative (-) speaker connectors on each amplifier and
connect AMP1negative speaker terminal to AMP2 negative speaker terminal.
Bridge the positive (+) speaker connector and connect the speaker cables to your subwoofer
setup. IMPORTANT: The minimum load is 2 Ohm, this only possible with two (2) Bass
Habit PP600.1 G2 or 1000.1 G2. Note: PP600.1 can NOT be linked with PP1000.1
AMP 1 AMP 2
AMP 1 AMP 2
Total subwoofer
setup min. 2 Ohm
BRIDGE CONNECTION PP600.1 G2

- 10 -
BRIDGE CONNECTION PP1000.1 G2
AMP 1 AMP 2
AMP 1 AMP 2
Total subwoofer
setup min. 2 Ohm

- 11 -

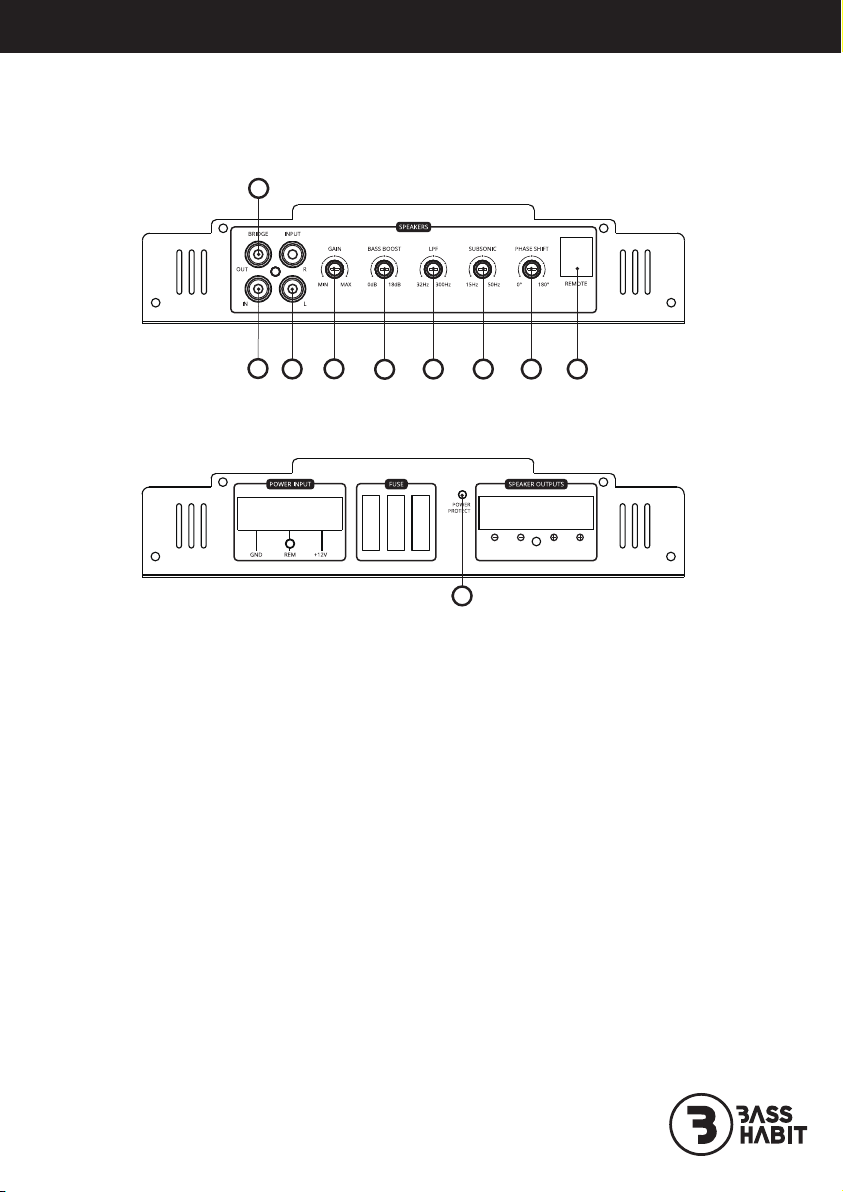

1) BRIDGE OUT RCA out
2) BRIDGE IN RCA in
3) INPUT RCA input
4) GAIN Gain control, input signal adjustment 0.2V-6V
5) BASS BOOST 0-18dB (45Hz)
6) LPF Low Pass Filter 32-300Hz (12dB/Oct)
7) SUBSONIC 15-50Hz (12dB/Oct)
8) PHASE Phase shift adjustable 0-180 deg
9) REMOTE Remote control input
10) POWER/PROTECT Power indicator (Green/Red)
1
2345
56789
10
SIDE PANEL PP600.1 G2

- 12 -
1) PROTECT Protect indicator (Red)
2) POWER Power indicator (Green)
3) REMOTE Remote control input
4) INPUT RCA input
5) BRIDGE IN RCA in
6) BRIDGE OUT RCA out
7) GAIN Gain control, input signal adjustment 0.2V-6V
8) LPF Low Pass Filter 40-180Hz (12db/Oct)
9) SUBSONIC Subsonic 15-50Hz (12db/Oct)
10) BASS BOOST FREQ. FREQ 30-80Hz (12dB/oct)
11) BASS BOOST LEVEL LEVEL 0-12dB
SIDE PANEL PP1000.1 G2
1
234510 11
9
8
7
6
SPEAKER OUTPUTS
REM+12V GND
POWER INPUT

- 13 -
Component
Number of channels
Power output @ 1 ohm
Power output @ 2 ohm
Power output @ 4 ohm
Class D amplifier
1 channel (mono)
1x600W RMS *
1x380W RMS *
1x180W RMS *
SPECIFICATIONS
Class D amplifier
1 channel (mono)
1x1000W RMS *
1x650W RMS *
1x380W RMS *
Power output MAX
S/N
1200W MAX
>85dB
Frequency response 15Hz - 300Hz
Subsonic crossover
Low Pass Filter
Bass Boost
15Hz - 50Hz
32Hz - 300Hz
0dB - 18dB
Bass Boost frequency 45Hz
2000W MAX
>85dB
15Hz - 180Hz
15Hz - 50Hz
40Hz - 180Hz
0dB - 12dB
30-80Hz
PP600.1 G2 PP1000.1 G2
Input adjustment 0.2V - 6V 0.2V - 6V
Operation voltage 10V - 16V 10V - 16V
Fuse rating 3x25A -
Protect Circuit protection Circuit protection
* RMS Power @ 14.4 V, THD 1%

- 14 -
Symptom
No sound
/ No active POWER LED
Check / Control
• Check and measure voltage at +12V and REM terminals
(allowed working range is 10-16V DC).
• Check and measure ground connections.
• Check external fuse.
• Check input signal and cables from source unit.
• Check speaker wires and terminals.
TROUBLESHOOTING
Noise or Distorted sound
/ Low output
• Check crossover/input level/control knobs and switches.
• Check ground connections of all installed audio equipment,
(source unit, dsp etc.).
• Check speaker wires for possible short circuit.
• Check impedance load of the speaker/speakers according to
the manual.
• Check speaker connections for proper polarity.
Amplifier Protection mode
(PROTECT)
• Check impedance load of the speaker/speakers according to
the manual.
• Check chassis ground connections.
• Check speaker wires for possible short circuit.
• Check power input voltage
(allowed working range is 10-16V DC).
• Check RCA input voltage (allowed range is 0.2-6V).
• Check RCA cable for possible short circuit.

The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to
separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste:
dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste authority.
Winn Scandinavia reserves for possible typos, factual or numeric errors that may have been printed on any
products, package designs, user manuals and/or other included accessories.
Products marked with the RoHS symbol complies with the relevant provisions of the RoHS Directive for the European
Union. In common with all Electrical and Electronic Equipment (EEE) the product should not be disposed of as
household waste. Alsternative arrangements may apply in other jurisdictions.
The product with the CE mark indicates that it has passed the correspondning conformity assessment procedure and
the manufacturer’s declaration of conformity, and it complies with the relevant EU directives, and is used as a pass for
the product to be allowed to enter the European Community market. Relevant directives require industrial products
to be affixed with the CE mark. Those that do not have the CE mark shall not be marketed.
Winn Scandinavia AB
Elementvägen 15, 702 27 Örebro
Sweden
www.winnscandinavia.com
