Bass BEACH – Sound System User manual
BEACH –Sound System
2012_V2 Page 1 von 6
Owner’s Manual
"BEACH –Sound System"
Art. Nr. 00-48100/00-48101
Steinbach VertriebsgmbH, 4311 Schwertberg, Austria, www.steinbach.at
BEACH –Sound System
2012_V2 Page 2 von 6
Basic safety precautions should always be followed, including the following: Failure to follow instructions can
cause severe and/or fatal injury.
In this manual, the callout boxes, CAUTION, IMPORTANT and ADVICE have the following meanings:
This heading is used when injury or accidents may occur if the operating instructions, work instructions, work pro-
cedures, etc. are either NOT strictly adhered to, or not carried out all.
This heading is used when damage to the device may occur if the operating instructions, work instructions, work
procedures, etc. are either NOT strictly adhered to, or not carried out all.
This heading is used to call attention to special details or information.
ADVICE
IMPORTANT
CAUTION
BEACH –Sound System
2012_V2 Page 3 von 6
Table of Contents:
Owner’s Manual "BEACH –Sound System" Art. Nr. 00-48100/00-48101.......................................................... 1
1Safety Instruction.......................................................................................................................................... 3
2Diagram:........................................................................................................................................................ 4
2.1.1 Batterie Power Installation:................................................................................................................ 4
2.1.2 Speaker Unit Operation..................................................................................................................... 5
3Service Processing....................................................................................................................................... 6
1 Safety Instruction
1. All safety and operating instruction should be read before operating this appliance.
BEACH –Sound System
2012_V2 Page 4 von 6
2. This safety and operating instructions manual should be retained for future reference.
3. Disconnect the AC plug when this appliance is not in use.
4. Clean this appliance with a damp cloth. Disconnect the AC plug before cleaning. Do not use liquid
cleaners or aerosol cleaners.
5. Do not install this appliance near any heat sources such as radiators, heat registers, stoves or other
apparatus that produce heat.
6. Expose the product under strong sunlight for long time may cause overheating and potential dam-
age to the products and audio devices. Keep the product away from this environment.

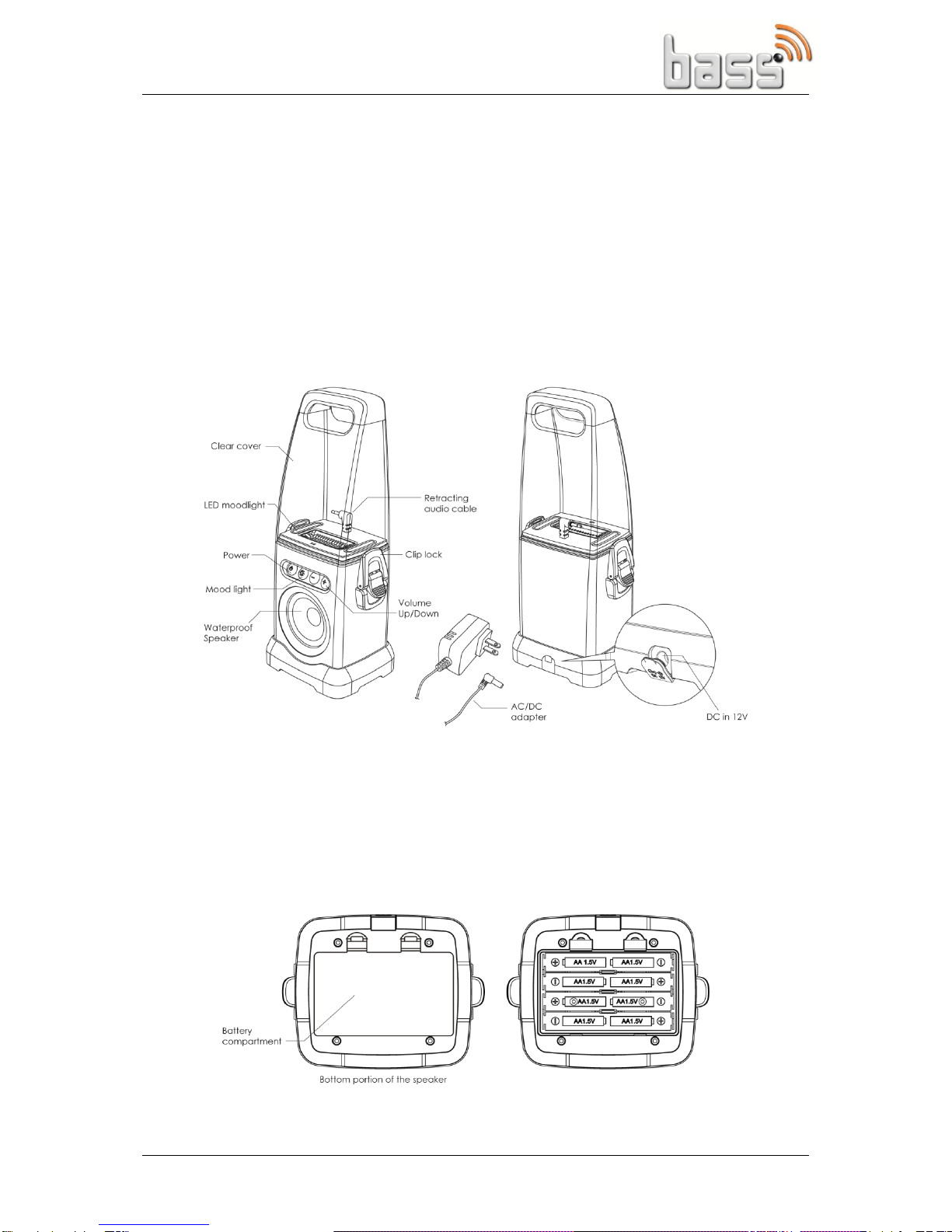

2 Diagram:
2.1.1 Batterie Power Installation:
1. To operate the battery power, gently turns the speaker unit over and open the battery door.
2. Install 8pcs of “AA” batteries as per the polarity marks at the battery compartment.
3. Close the battery door
Option: AC/DC adaptor in DC output 12V.
BEACH –Sound System
2012_V2 Page 5 von 6
● Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (nickel metal hydride).
● Do not mix old and new batteries.
● Rechargeable batteries are only to be charged under adult supervision (if removable).
● Exhausted batteries are to be removed.
● Only batteries of the same or equivalent type as recommended are to be used.
● Batteries are to be installed with the correct polarity.
● Clean the battery contacts and also those of the device prior to battery installation.
● Remove batteries if they are not to be used for an extended period of time.
2.1.2 Speaker Unit Operation
1. Pull down the clips and open the clear lid.
2. Put iPod / iPhone/ mp3 player on to the docking panel.
3. Extend the retractable audio cable with 3.5mm stereo plug located on the top panel of speaker unit
and connect it to the output jack of iPod/iPhone/ mp3 player.
4. Do not fully extend the cable until ready to react.
5. Switch the iPod/ iPhone/mp3 player on and ready to play the music.
6. Press the button (power) once, the audio source will play in music.
7. Press buttons either “+” or “-“for controlling the volume sound level.
8. Shut the clear cover properly.
9. Press the button “ ” (brightness) once if necessary. The blue light glows on both sides of top
panel. Press once again, the blue light will turn off..
CAUTION
BEACH –Sound System
2012_V2 Page 6 von 6
To retract the audio cable, pull it until it is fully extended and then allow it to
draw back into the base.
If at any time in the future you should need to dispose of this product please note that: Waste
electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical
and Electronic Equipment Directive).
3 Service Processing
For technical information, missing parts or in the case of a complaint, please contact our customer
service:
Steinbach VertriebsgmbH
Aistingerstrasse 2
4311 Schwertberg
AUSTRIA
Tel. Austria: (0820) 200 100 113 (0,145€ per minute from all networks)
Tel. Germany: (0180) 5 405 100 113 (0,14€ per minute from landline, mobile radio max. 0,42€ per
minute)
e-mail: service@steinbach.at
www.steinbach.at
