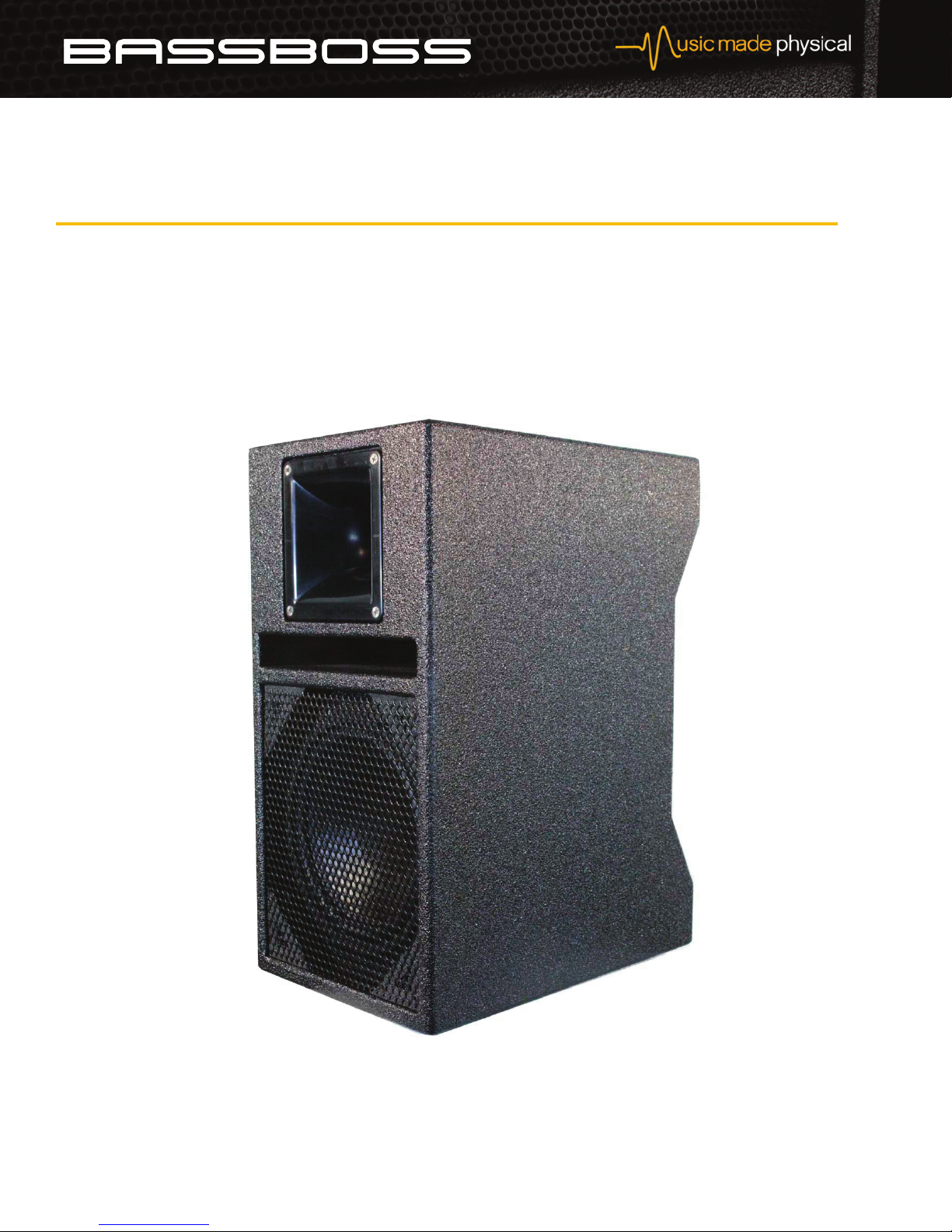

BassBoss SV8 Powered MicroMain User manual

SV8 Powered MicroMain
wner’s Manual
www.bassboss.com
©®2016 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free

TABLE F C NTENTS
verview..................................................................................... 3
Technical Specifications............................................................ 4
Safety Information..................................................................... 5
Setup Instructions..................................................................... 6
Trouble Shooting....................................................................... 6
Warranty..................................................................................... 7
FCC Compliance Notice............................................................. 8
Need more assistance? Support is available via phone or email.
Email: suppor[email protected]
Phone: [phone] toll free or 512-368-3268
Web Site: www.bassboss.com
SV8 Powered MicroMain
wner’s Manual

Page 3
The SV8 delivers remarkable bass performance and
outstanding sound quality, in keeping with BASSB SS
tradition.This single 8"loudspeaker compares to others' 12"
loudspeakers for response and output.The cabinet is made in
the USA from 15mm Baltic Birch. Every effort was made to
deliver full, rich, smooth sound from a very compact enclosure.
The SV8 is suitable for use as a studio monitor and is equally at
home in a live environment. t provides extremely flat frequency
response with a neutral character for critical monitoring duties
and it’s capable of remarkably high output, especially for its size.
A pair of SV8s delivers extremely high fidelity sound with the
added bonus of high output plus the flexibility to extend their
output even further by adding a subwoofer or two.
A large port, positioned clear of the woofer grill, provides deep
response without port compression or air velocity noise at high
levels.The high-frequency horn is mounted to its own baffle to
eliminate reflections from side-walls and is mounted clear of
the grill to ensure uncompromised sound quality. The rear-
mounted amplifier is protected by a set of integrated handles,
which make carrying the boxes a breeze and provide clean,
elegant lines to the enclosure.A standard 35mm die-cast zinc
pole socket is provided in the bottom of the enclosure and
there are four 3/8" threaded fly points also provided.
The digital processor in the amplifier provides 4 presets, which
allow the speaker to be used as a full-range system, as a
satellite for a small subwoofer or as a main speaker with a
larger subwoofer. Preset 1 has the SV8 in full-range mode,
offering frequency response to 40Hz with limiters engaged to
prevent overdriving. Preset 2 offers slightly more SPL and
response to 60Hz. Preset 3 provides another step up in SPL with
the high-pass filter moved to 80Hz. Preset 4 offers the highest
peak SPL with the high-pass filter set at 100Hz. Presets 3 and 4
are recommended when the SV8 is used with a subwoofer.
SV8 Powered MicroMain
• Compact, High Fidelity, High Output
• B oad F equency Range
• Long Th ow
• Rotatable High F equency Ho n
• Use as Main, Fill o Monito
• Studio Monito s, Gyms, Restau ants, Venues

Page 4
Performance
Loudspeaker Description: Wide dispersion compact full-range speaker
Frequency Response (±3 dB): 50 - 19,000 Hz
Maximum Sustained Output: 117dB SPL, 1m, 2pi, half-space
Short-term peak Output: 123 dB
Nominal Dispersion (°H x °V): 120 x 15
Enclosure Type: 2-way full-range. Direct radiating Vented LF section, horn-loaded HF section
Transducers, LF: 2 x 8 inch diameter (200 mm) neodymium motor woofers with 2 inch (51mm) diameter copper winding voice coil
Transducer, HF: 1 x 1.7 inch (44mm) diaphragm neodymium motor compression driver on 1 inch throat isophasic wave guide
Cabinet Construction: 15 mm Baltic Birch plywood. Equipped with 6 handles. ncludes 4 internally braced fly points; 35mm pole socket mount
Suspension Points: 8 x 3/8 inch - 16 TP internally braced threaded mounting points
Dimensions (HxWxD): 22.5 inches (57cm) high x 18 inches (45.75cm) deep x 10.75 inches (27.3cm) wide front and 8.5 inches (21.5cm) wide
rearNet Weight: 42 lbs (19 kg)
Shipping Weight: 48 lbs (21.7kg)
Exterior Finish: Weatherproof bonded high-pressure polyurethane
Grill: Perforated, powder coated steel
Physical
Stacking Bracket: Adjustable bracket set, mounts second cabinet inverted for near-perfect summed response, provides splay-angle
adjustment from 0 to 8 degrees
Shoulder Eye Bolts: For use when flying cabinets vertically
Side-pull Anchors For use when flying 2 cabinets connected by Stacking Bracket
Cover: Heavy-duty padded nylon transport cover
Online nformation: www.bassboss.com/SV8
Amplification: 1500 Watt Two Channel Powersoft Class D
DSP: ntegrated comprehensive DSP for High-pass, Low-pass, time alignment, EQ and limiting
Electrical Connectors,Amplifier: Neutrik Powercon in and through
Electrical Connector, Mains: NEMA5-15 (Edison) or Powercon loop-through jumper (for use above subwoofer) on request
Voltage Operating Range: 90-250V. Auto-sensing, auto switching universal supply
Current Draw, Nominal: 3A @ 1/8 power
Controls: Level control from +12dB to -12dB, preset selector button
Display: LEDs for Power/ready, Signal, Clip and Protect. LED indicating selected preset
Signal nput Connector: XLR-F
Signal Output Connector: XLR-M pass-through
Power
Optional

Page 5
SAFETY INF RMATI N
mportant information regarding safety and the use of your loudspeakers:
Never stand in the immediate vicinity of loudspeakers driven at a high level.Professional loudspeaker systems are capable of causing a sound
pressure level detrimental to human health. Seemingly non-critical sound levels (from approx. 95 dB SPL) can cause hearing damage if
people are exposed to it over a long period. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is
exposed to these levels should use adequate protection devices.
When a transducer capable of producing high sound levels is being used,it is therefore necessary to wear ear plugs or protective earphones.
See the manual technical specifications to know the maximum sound pressure level.
n order to prevent accidents when setting up the loudspeakers or loudspeaker stands, make sure they are standing on a firm surface.
Ensure that all additional hardware, fixings and fasteners used for installation or mobile deployment are of an appropriate size and load
safety factor.
Pay attention to the manufacturers' instructions and to the relevant safety guidelines.
Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
Regularly check all load bearing bolts in the mounting devices.
Caution: Loudspeakers produce a static magnetic field even if they are not connected or are not in use. Therefore make sure when erecting
and transporting loudspeakers that they are nowhere near equipment and objects which may be impaired or damaged by an external
magnetic field. A distance of 3 feet (1m) should be maintained between loudspeakers and sensitive equipment such as CRT monitors or
magnetic storage media.
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.
Contact your dealer or BASSBOSS support if the product is not functioning properly.
BASSBOSS strongly recommends this product be installed by a qualified, professional installer who can ensure correct installation and certify
that is is installed in compliance with the regulations in force.
The entire audio system must comply with the current local standards and regulations regarding electrical systems.
IMP RTANT N TES
To prevent the occurrence of noise on signal cables,use shielded cables only. Avoid routing signal cables close to equipment that produces
high-intensity electromagnetic fields such as transformers,power cables and loudspeaker wires. Do not coil excess power cable. Do not coil
or wrap power cables and signal cables together.

Page 6
SET UP INSTRUCTI NS
1. Place loudspeaker in the desired location. Ensure that it is secure and stable.
2. Rotate the input attenuator knob counterclockwise to the lowest setting.
3. Connect signal via the XLR input jack.
4. Connect the amplifier module’s power supply cord using the blue PowerCON connectors.To insert, align the indexing tabs on the PowerCON
connector, insert it into the socket and rotate clockwise until the latch catches.
5. Connect the electrical plug to a power source.
6. Select the desired preset via the PGM SEL button.
7. Rotate the input attenuator clockwise to achieve the desired sound level.
The SV8 compact full-range loudspeaker’s DSP is supplied with 4 presets. All four presets contain limiter settings to ensure safe operation of
the unit. The presets are accessed in sequence via the preset select button on the rear of the unitA green LED indicates the active preset. The level knob
provides a range of control from OFF to +12dB within each preset.
Preset Functions:
Preset 1: Standalone Full-Range Operation.45Hz high-pass filter with bass boost EQ and conservative limiting.Recommended for use when no sub is available.
Preset 2: ntermediate Stand-Alone setting,60Hz high-pass with slight bass boost and limiting.Recommended for use with a single sub or when subwoofers
are separated from SV8s.
Preset 3: ntermediate High-output setting. 85Hz high-pass with limiting and no LF EQ. Recommended for use when subwoofers are co-located with SV8s.
Preset 4: Maximum Output Setting, 100Hz highpass,minimal limiting and no LF EQ. Recommended for use when outdoors and/or when multiple or larger
subwoofers are present.
Presets 2, 3 and 4 allow the SV8s to be combined with various subwoofer configurations and allow the sound to be tailored to different environments. t is
recommended to listen to the presets and choose the one that works best in each environment.
System Setup Addendum:
When connecting multiple loudspeakers in a system, signal can be passed through from one powered loudspeaker to another using balanced,shielded XLR
cables. No processing is applied to the signal as it passes through from the input to the output connectors in each loudspeaker. Signal can be routed in any
sequence because each loudspeaker receives a full-range signal and applies the necessary processing in order to operate as part of the overall system. t is
recommended to run signal to the nearest box first and patch to the next nearest box in sequence.
TR UBLESH TING
f after following the above instructions for setup you have no output from the loudspeakers, please check the following:
Verify that the green power (PWR) LED is on. f not, check the following:
1. s the power cord plugged into a live outlet?
2. s the Neutrik PowerCON connector rotated into the locked position?
f the power LED is on, check the following:
s the green “signal present” LED (S G) illuminating? f not:
1. s the signal cable connected to the input?
2. s the signal cable connected to an operating output at the other end?
3. s the signal flowing to the input? Check the integrity of the cable.

Page 7
Thanks for your BASSB SS purchase!
WARRANTY INF RMATI N
Beyond ensuring your satisfaction,our extensive "Sound Defense" transferable warranty which covers all BASSBOSS products.
STANDARD CABINET WARRANTY
BASSBOSS loudspeaker cabinet integrity,including all joinery,fasteners,handles and wood,is warranted against defects in materials and workmanship for a period
of six years from the date of purchase.This warranty does not cover items that are intended to wear and can be replaced if worn or damaged.Examples of items
not covered by this warranty are cabinet feet,grills and the finish or coating applied to the cabinet.
ENHANCED C MP NENT WARRANTY
BASSBOSS self-powered loudspeaker amps and electronic components are covered against failures due to defects in materials and/or workmanship for a period
of three years from the date of purchase. Speaker drivers and burned or open voice coils in subwoofers are covered for two years.
UR SUPP RT
t is our goal to provide trouble-free loudspeakers.That objective begins as part of the design phase and continues on through to any service you may require.
n order to be able to provide the lowest possible failure rate, the best possible warranty service and the fastest turn-around time, we request that you contact
us immediately if you notice any problem with your system, and before you attempt any repairs. We can provide the best and fastest solution if we know the
details of the problem before any repair attempts are made. Often BASSBOSS technicians can troubleshoot problems that may arise and no repair or further
service will be necessary.
Warranty support is a service,and part of that service includes helping you prevent failures and minimize repair and shipping costs. Please do not ship products
without first obtaining a return authorization number by calling 512-368-3268 (855-822-7770 toll-free) or by emailing suppor[email protected]. BASSBOSS
service technicians will provide assistance and instructions on shipping and packaging requirements specific to your service needs.
WARRANTY LIMITATI NS
During the warranty period, if your loudspeaker malfunctions or fails due to any defect in components or manufacturing, the failed parts will be repaired or
replaced.This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse.Warranty coverage will be determined upon
inspection by BASSBOSS personnel. This warranty does not cover labor other than that authorized and performed by BASSBOSS personnel. Service will be
performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility.
Purchaser is responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty. This warranty is rendered void if
service, repairs and/or modifications are attempted or made by anyone not specifically authorized byBASSBOSS to perform said services.Please contact BASSBOSS
or your local BASSBOSS dealer before attempting any repairs and before shipping parts in for service.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For more information concerning BASSBOSS
service and warranty policies please contact us at 512-36-3268 or [phone] toll-free.
EXP RT WARRANTY
BASSBOSS products can be purchased worldwide. n countries without local BASSBOSS distributors, product requiring service must be shipped back to the US
for warranty repairs. n most cases, the entire cabinet will not need to be shipped. Generally only the individual affected parts will need to be shipped to the
factory for servicing. Please contact BASSBOSS before attempting any repairs and before shipping parts in for service.
SHIPPING AND PACKAGING
Please package your returns safely and securely. BASSBOSS does not cover damage that occurs in transit. Freight insurance is recommended.

Page 8
www.bassboss.com
©®2016 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free
FCC C MPLIANCE N TICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUT ON: Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment gener- ates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. f this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• ncrease the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
EC DECLARATI N F C NF RMITY
Manufacturer:
BASSBOSS 9501 Cargo Ave Ste 600 Austin TX 78719
We declare that under our sole responsibility the product: SV8 MicroMain
ntended use: Professional Audio Loudspeaker
Are in conformity with the provisions of the following EC Directives,including all amendments,and with national legislation
implementing these directives:
• 2006/95/EC Low Voltage Directive
• 2004/108/EC Electromagnetic Compatibility Directive
• 2002/95/CE RoHs Directive
