Baumatic BMM201SS User manual

e 1
BMM201SS 20 Litre
built-in microwave
oven

User Manual for your Baumatic
BMM201SS
20 Litre microwave oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 06/07/09
2

3
Contents
Environmental note 4
Important safety information 5 – 9
Specifications 10 – 13
Product and aperture dimensions 10
Product specifications 10
Electricaldetails 11
Description of the appliance 11
Controlpanel 12
Theturntable 12
Thefunctionselectordial 13
Usingyourmicrowave 14 – 24
Settingtheclock 14
Beforefirstuse 14-15
Cookingfood 15-16
Quickstart 16
Duringoperation 16
Defrostingbytime(manual) 17
Defrosting by weight (automatic) 18
Autocookingfunction1 19
Autocookingfunction2 20
Safetylock 20
Microwave cooking guidelines 21
Materials you can use in a microwave oven 22
Materials not to be placed in a microwave oven 23
Defrosting guidelines 23 – 24
Cooking tables 24
Cooking vegetables 24
Cookingfish 24
Defrosting 25
Cleaning and maintenance 26 - 27
The appliance exterior 26
The appliance interior 26
Rotating plate and rotating base 26
General cleaning advice 26 - 27
Installation 27-33
Electrical connection 28 - 29
Aperture and ventilation requirements 29 - 30
Built under installation requirements 30 – 31
Installing the oven into a housing unit 31 - 33
Troubleshooting 33 – 35
Contactdetails 36

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
eneral Information
or housing unit (see the section
liance when the turntable and
nly use ovenware that is suitable for being used in a
microwave should be wiped dry
le materials. If left unattended, they could pose a
your microwave oven, if you
by Baumatic and outlined in this manual should be
the microwave, to
ambient temperature
of the room it is located in, whilst in use.
b
G
oThis appliance is designed for domestic household use. It can
NOT be used as a freestanding microwave and must be built in
to a standard kitchen cabinet
entitled “Installation” below).
oYou should only operate the app
turntable support are in position.
oYou should o
microwave.
oTo prevent corrosion occurring due to moisture/condensation,
the cavity and the door of the
after each use of the appliance.
oThe appliance must not be left unattended if you are heating or
cooking food in containers that are made of paper, plastic or
other flammab
fire hazard.
oIf you notice smoke coming from the appliance, you should keep
the door of the microwave closed and then disconnect it from
your mains supply. DO NOT use
think it is not operating correctly.
Installation
oIMPORTANT: Only the built in/built under installation
sanctioned
followed.
A separate building in kit will be supplied withoallow you to complete a built in installation.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the

6
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
Service
oYour microwave complies with all relevant safety standards. In
order for it to continue to operate safely, only an engineer that
is approved by the Baumatic Customer Care Department
should work on the appliance.
oIMPORTANT: It is dangerous for a non qualified person to work
on the appliance, in particular if they remove the cover that
provides protection against exposure to microwave energy.
oIf you notice that the door seal, door surfaces, power cord and
plug are damaged. You should stop using the appliance,
disconnect it from the mains supply and contact the Baumatic
Customer Care Department.
oOnly genuine Baumatic spare parts should be fitted to your
appliance. These can be obtained from the Baumatic Spares
Department.

7
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
oDO NOT place anything between the door and the door frame.
oDO NOT store anything that is flammable inside of the
microwave. When it is switched on, the items could catch fire.
oDO NOT switch the appliance on if there is no food or liquid
inside of the microwave. If you run the microwave whilst it is
empty, there is a chance that it will overload.
oThe door seals and the door surfaces should ALWAYS be kept
clean and free from debris.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oIMPORTANT: This appliance should only be operated by adults.
You SHOULD NOT allow young children to use the microwave
without supervision. Older children should only operate the
appliance if they have been thoroughly instructed on how to use
the microwave and the consequences of improper usage.
General Safety
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in.
oDo not use the appliance to dry paper, textiles or animals.
oDo not install the appliance next to curtains or soft furnishings.
oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is
the chance of spontaneous combustion.
oDo not boil eggs or similar foods in their shells, otherwise they
may burst. It is possible to poach eggs in your microwave,
providing you prick the yolks first.
oDo not attempt to lift or move cooking appliances by using the
oven door, as this may cause damage to the appliance or result
in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
8

9
Declaration of conformity
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.

Specifications
Product dimensions Aperture dimensions
(including frame kit)
Height: 390 mm Height: 380 mm
Width: 595 mm Width: 560 mm (min)
Depth: 325 mm Depth: 320 mm (min)
Product specifications
o4 power levels
oControl knob operation
oSafety lock
oInterior light
oMechanical timer with audible signal
oDefrosting by time mode
oDefrosting by weight mode
oStainless steel exterior and interior
oMirror glass door
oCapacity: 20 litres
oMicrowave output: 800 W
10

Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 1.20 kW
Mains Supply Lead: 3 x 1.5 mm²
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the microwave oven door and looking on the right
hand side of the chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

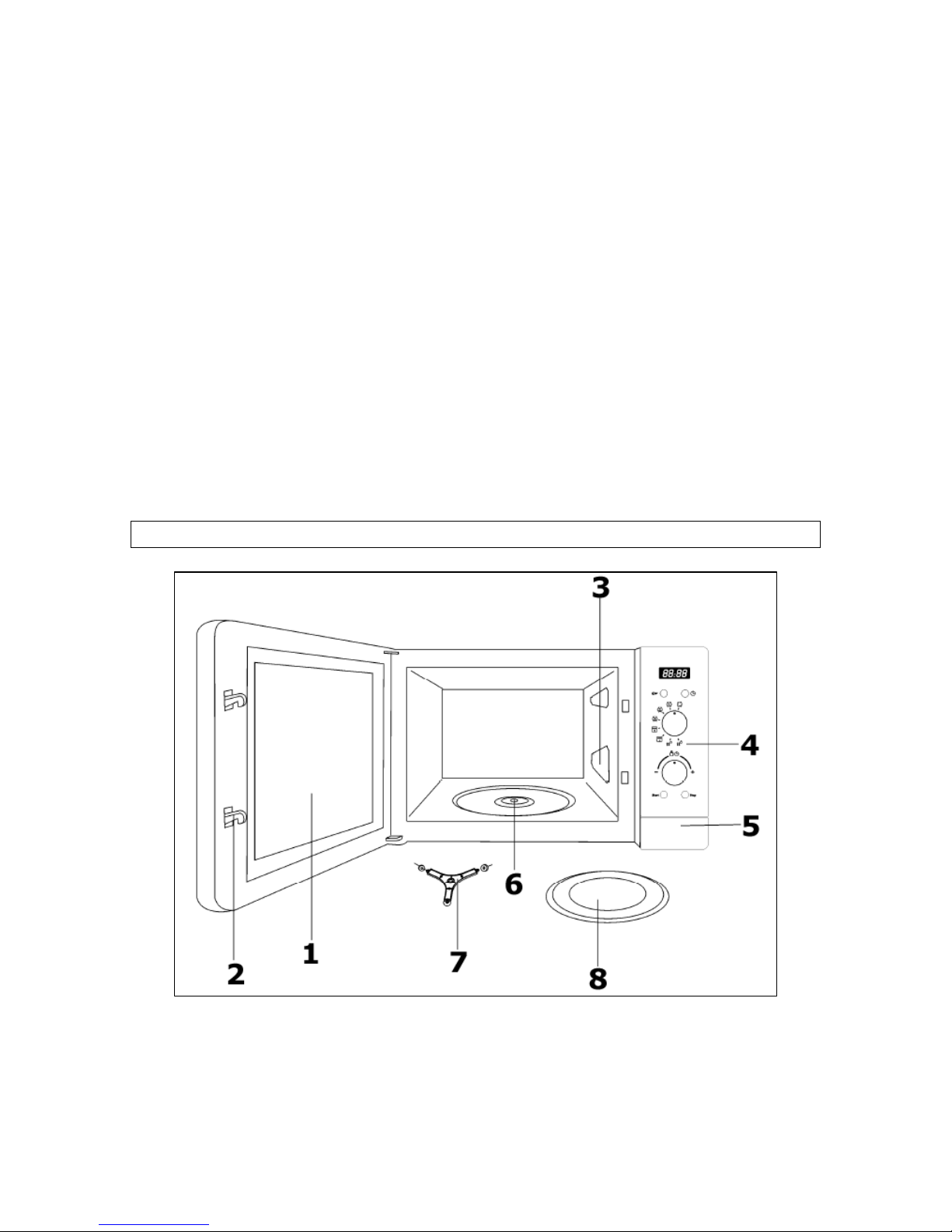

Description of the appliance
1) Viewing window
2) Door catch
3) Wave guide cover
4) Control panel
5) Door open button
6) Slot for rotating base
7) Rotating base
8) Rotating plate
11

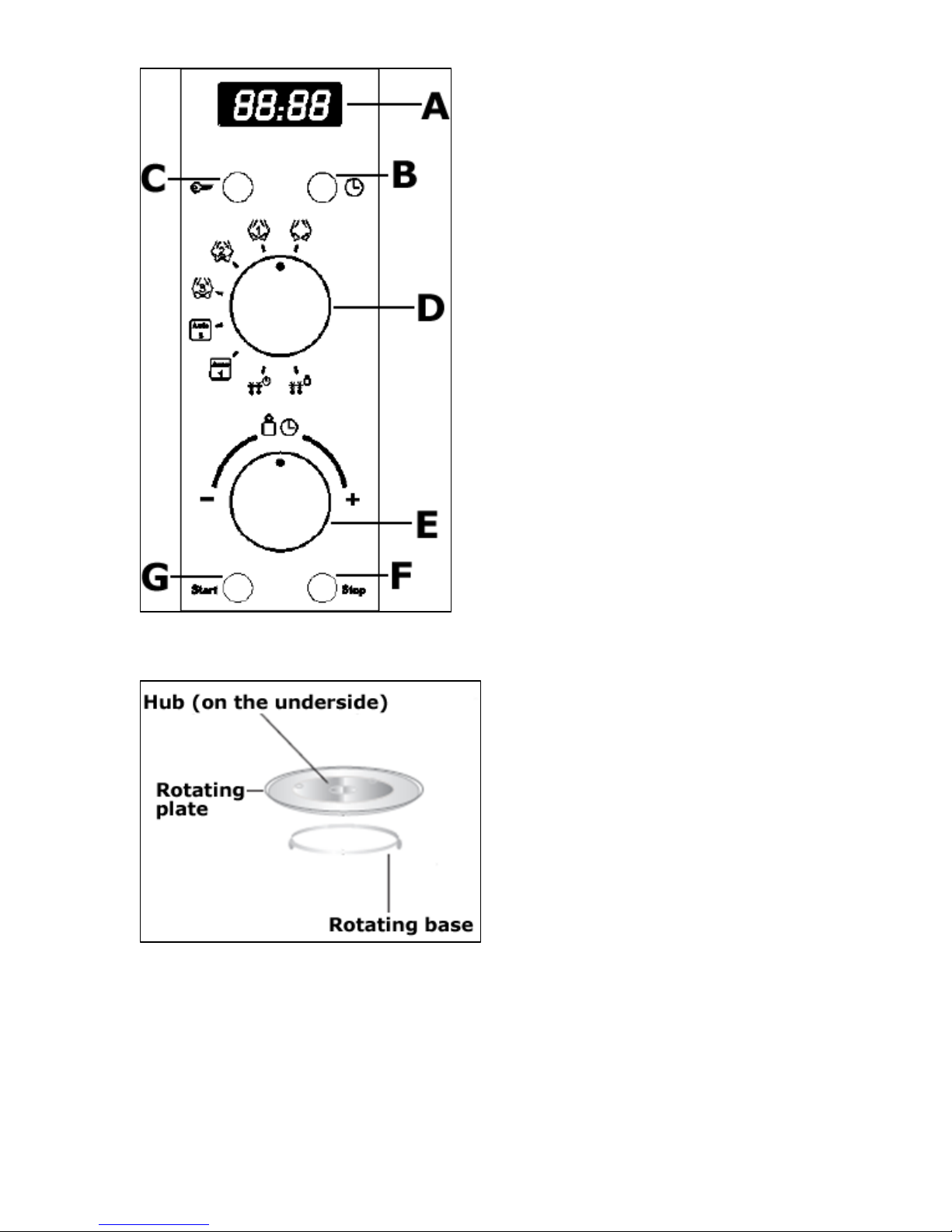

Control panel
A) LED display
B) Clock button
C) Safety lock button
D) Function selector dial
E) Adjustment dial
F) Stop button
G) Start button
The turntable
oNever place the rotating
plate upside down.
oThe rotating plate and
rotating base MUST always
be used during cooking.
oAll food and food
containers must ALWAYS
be placed on the rotating
plate during cooking.
oIf the rotating plate or rotating base cracks or breaks, it must be
replaced immediately. Genuine Baumatic parts can be obtained
from the Baumatic Spares Department.
12

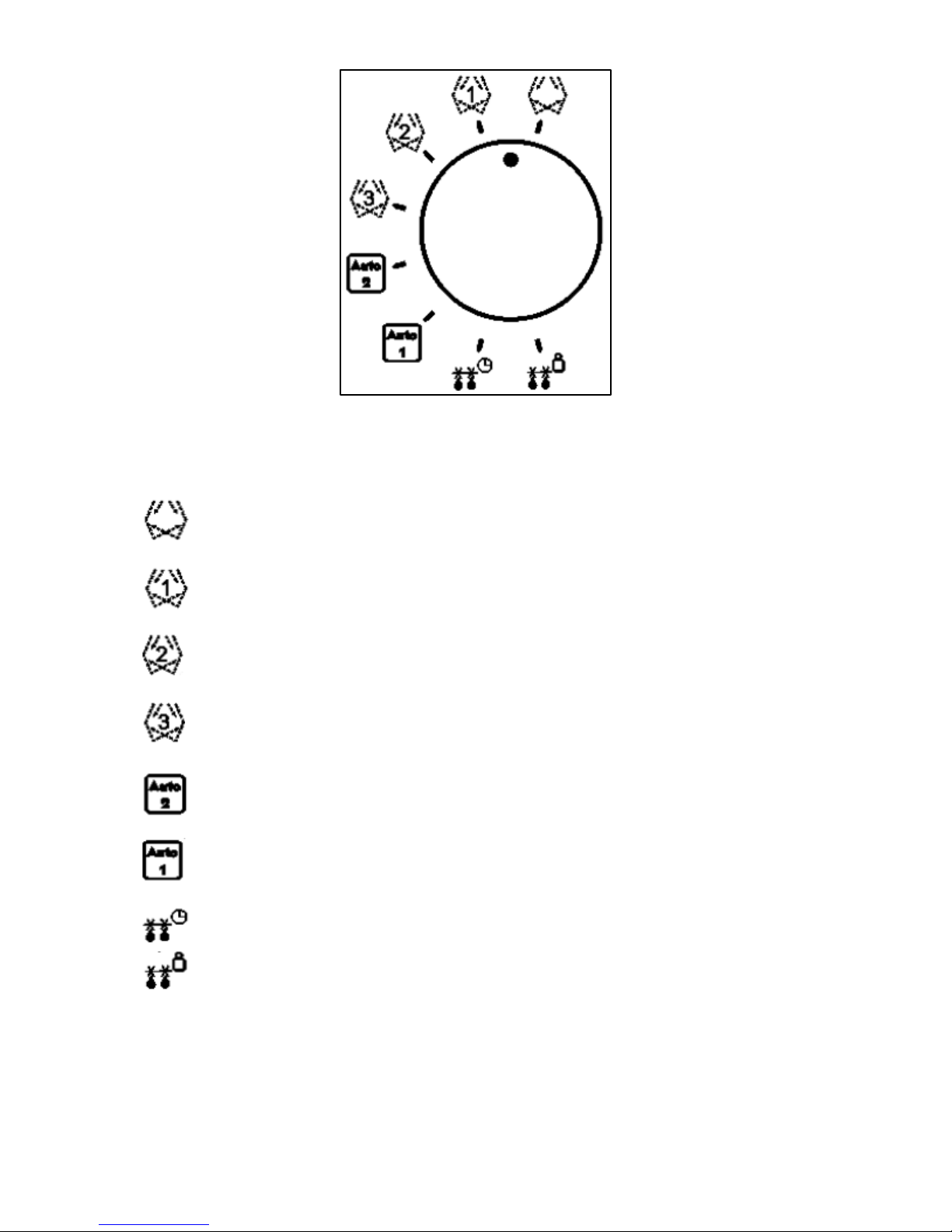

The function selector dial
oThe function selector dial should be used to set the cooking
function that you wish to use.
13
Should be used to keep food warm, power level 130 W.
Low power level of 320 W.
Medium power level of 615 W.
High power level of 800 W.
Auto cooking function 2, suitable for cooking potatoes in water.
Auto cooking function 1, suitable for defrosting and heating
approximately 300 – 400 grams of pre-cooked food.
Defrost by time function.
Defrost by weight function.

Using your microwave
Setting the clock
oWhen your microwave is
connected to the power supply, it
is necessary to set the clock to
the correct time of day.
oPress the clock button (B) until
the numbers on the LED display
(A) start to flash.
oUse the adjustment dial (E) to set
the hour time.
oPress the clock button to confirm
the hour time. The minute digits
will flash.
oUse the adjustment dial to adjust
set the minute time.
oPress the clock button to confirm the minute time.
oIMPORTANT: Once the time of day is set, if you briefly press
the clock button, then the time will disappear from the LED
display. To restore the time of day to the LED display, press the
clock button briefly again.
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should place a cup that is
half filled with water in the microwave.
oSet the microwave on its highest power level for 2 minutes.
oThe oven cavity and outside of the appliance should be cleaned
with warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used. The appliance should be
thoroughly dried afterwards.
14

oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.

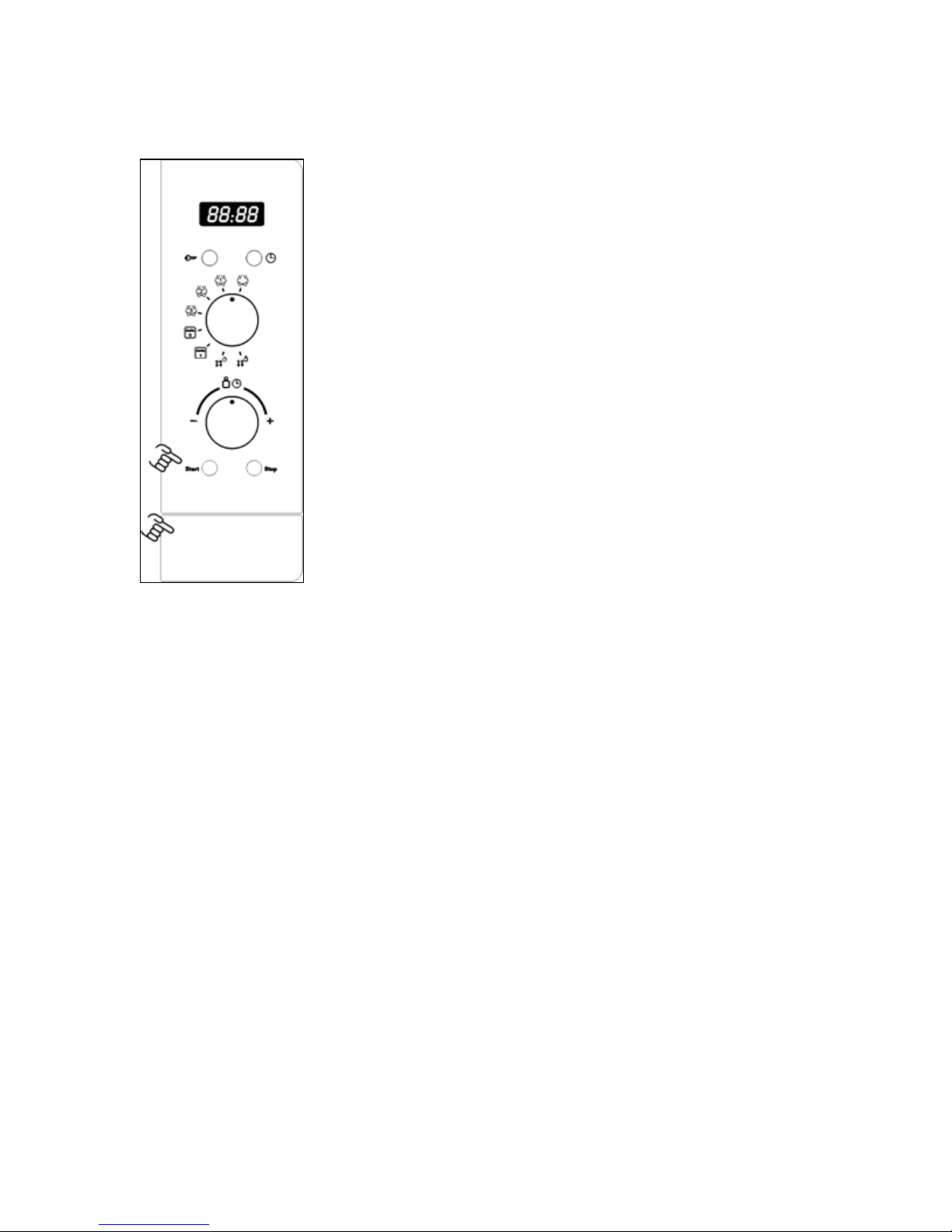

Cooking food
oOnce the clock has been set, your microwave
is then ready to use.
oUse the door button (5) to open the door of
the microwave.
oCheck that the rotating plate and rotating
base are correctly assembled in the cavity.
oPlace whatever you are cooking in the centre
of the microwave cavity and then close the
microwave door. IMPORTANT: You should
make sure that the door of the microwave is
shut securely.
oTurn the function selector dial to the cooking
function that you require.
oUse the adjustment dial (E) to set the cooking time that you
require.
oPress the start button (G) and your microwave will start to heat.
oAt the end of the cooking time, your microwave will give an
audible signal and the LED display will show the word “END”.
oThe audible signal will be repeated every 30 seconds, until the
door is opened.
oUse the door button to open the door of the microwave.
oIMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
oAfter the food has been removed from the microwave, you
should make sure that the door is closed.
15

oYou may hear a cooling fan operate for a period of time
afterwards, until the inside of the microwave has cooled
sufficiently. During this period of time, the microwave light will
remain on. The cooling fan will switch off automatically.

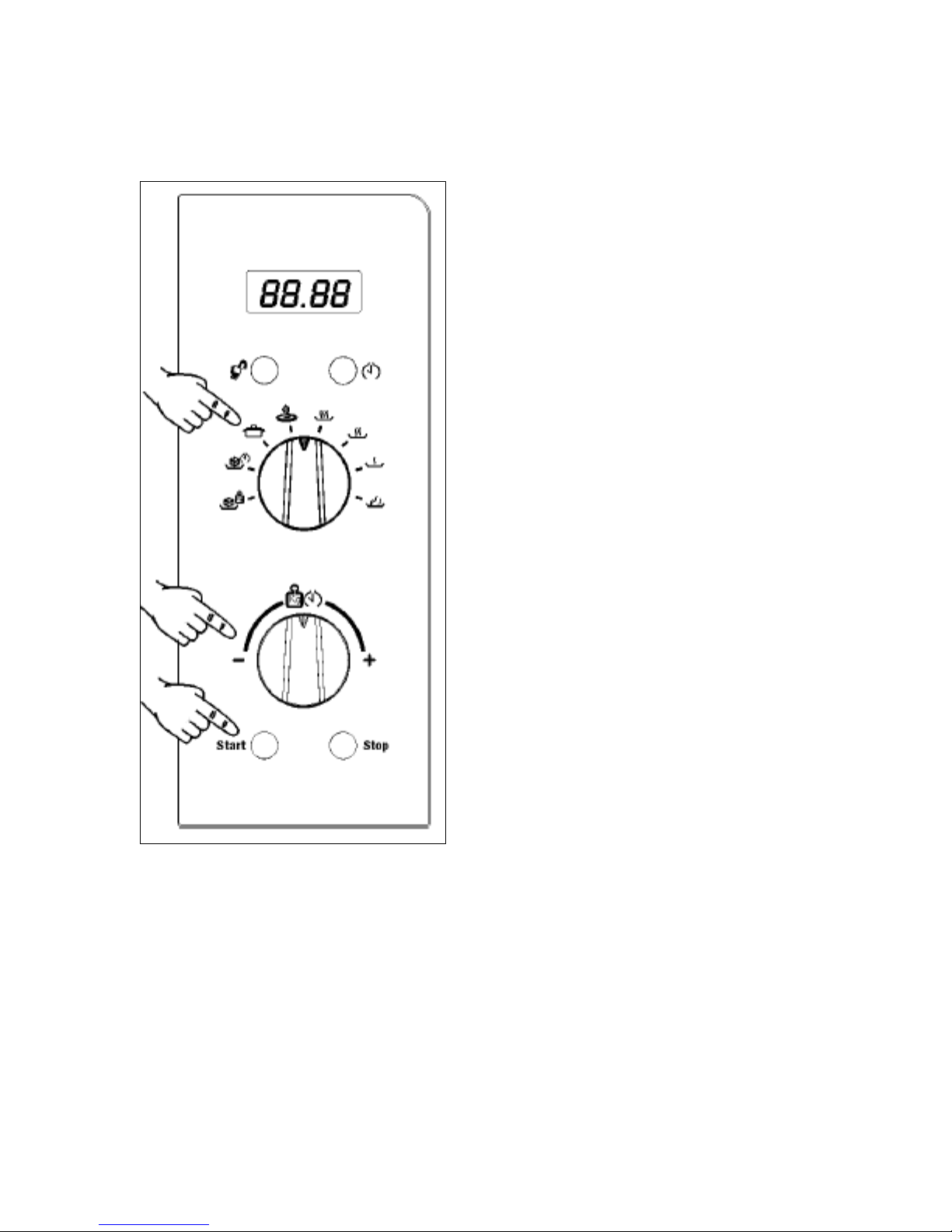

During operation
oIf you press the door button
(5) then the door will open
and the production of
microwaves will cease
automatically. Alternatively
you can press the stop button
(F).
oThe timer will stop and the LED
display (A) will continue to
show the remaining cooking
time.
oWhilst the door is open, it is
possible to stir the food stuffs
that you are cooking or adjust
its position on the rotating
plate.
oYou can change the cooking
function by turning the
function selector dial (D).
oYou can change the operation
time by turning the adjustment
dial (E).
oIf you press the stop button twice, this will cancel the cooking
process. The appliance will give an audible signal and the LED
display will return to showing the time of day.
16

Defrosting by time (manual)
oUse the door button (5) to open the
door of the microwave.
oCheck that the rotating plate and
rotating base are correctly assembled
in the cavity.
oPlace whatever you are defrosting in
the centre of the microwave cavity and
then close the microwave door.
oIMPORTANT: You should make sure
that the door of the microwave is shut
securely.
oTurn the function selector dial to the
defrost by time symbol .
oUse the adjustment dial (E) to set the
defrosting time that you require.
oPress the start button (G) and your microwave will start to
defrost the food.
oAt certain points in the defrosting process, the microwave will
give an audible signal and the LED display will have the word
“turn” flashing on it. When this occurs, you should open the door
of the microwave and turn the food over.
oAt the end of the defrosting time, your microwave will give an
audible signal and the LED display will show the word “END”.
17

Defrosting by weight (automatic)
oUse the door button (5) to open the
door of the microwave.
oCheck that the rotating plate and
rotating base are correctly assembled
in the cavity.
oPlace whatever you are defrosting in
the centre of the microwave cavity
and then close the microwave door.
oIMPORTANT: You should make sure
that the door of the microwave is shut
securely.
oTurn the function selector dial to the
defrost by weight symbol .
oUse the adjustment dial (E) to set the
weight of the food that you are
defrosting.
oThe microwave will automatically calculate the required
defrosting time.
oPress the start button (G) and your microwave will start to
defrost the food.
oAt certain points in the defrosting process, the microwave will
give an audible signal and the LED display will have the word
“turn” flashing on it. When this occurs, you should open the door
of the microwave and turn the food over.
oAt the end of the defrosting time, your microwave will give an
audible signal and the LED display will show the word “END”.
18

Auto cooking function 1
This cooking function is suitable for defrosting and heating packaged or
precooked foods, such as cannelloni, macaroni, gnocchi etc.
oUse the door button (5) to open the
door of the microwave.
oCheck that the rotating plate and
rotating base are correctly assembled in
the cavity.
oPlace whatever you are defrosting and
heating in the centre of the microwave
cavity and then close the microwave
door.
oIMPORTANT: You should make sure
that the door of the microwave is shut
securely.
oTurn the function selector dial to the
auto cooking function 1 symbol .
oUse the adjustment dial (E) to set the
cooking time that you require.
oPress the start button (G) and your microwave will start to cook.
oAt certain points in the defrosting process, the microwave will
give an audible signal and the LED display will have the word
“turn” flashing on it. When this occurs, you should open the door
of the microwave and turn the food over.
oAt the end of the defrosting time, your microwave will give an
audible signal and the LED display will show the word “END”.
19

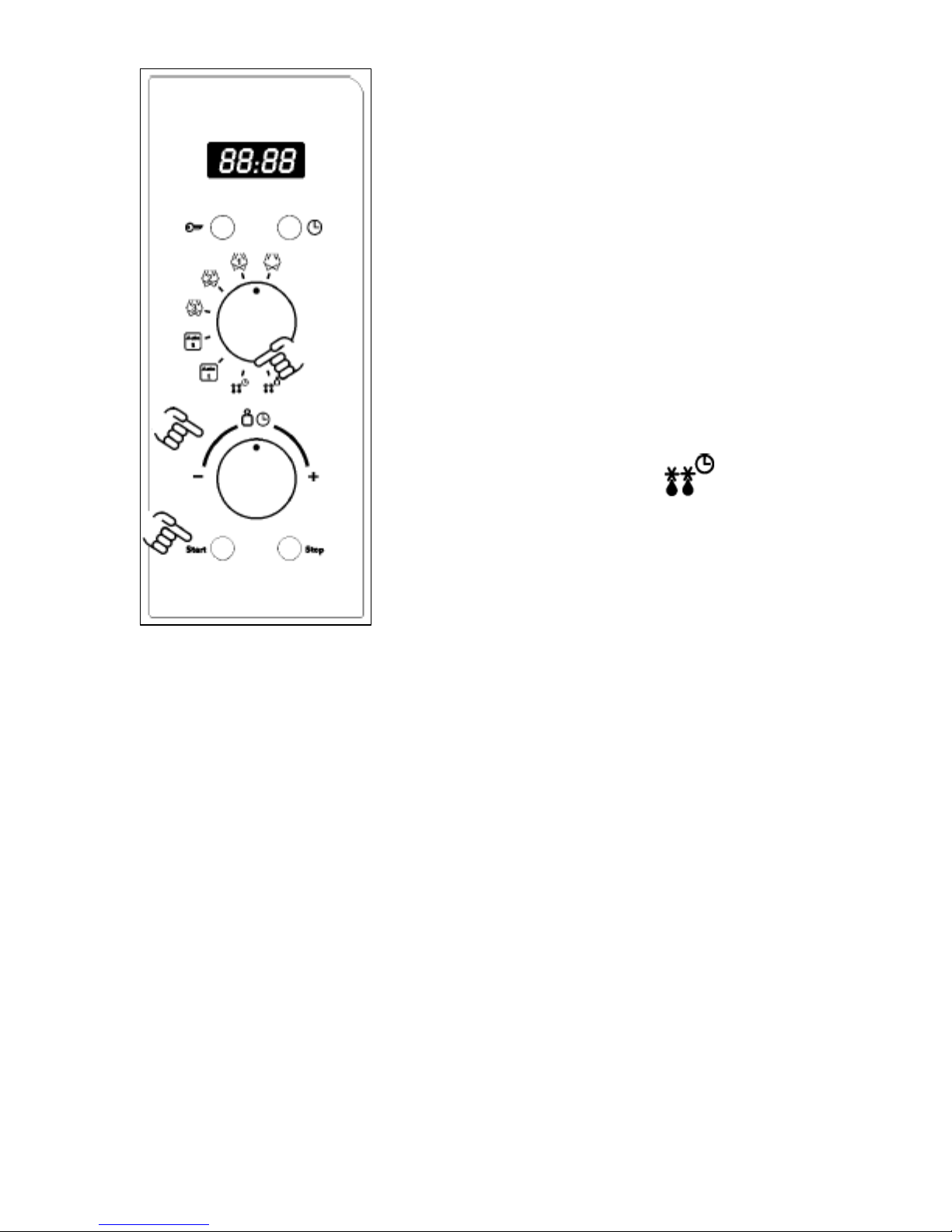

Auto cooking function 2
This cooking function is suitable for cooking approximately 500 grams
of potatoes (in water).
oUse the door button (5) to open the door of
the microwave.
oCheck that the rotating plate and rotating
base are correctly assembled in the cavity.
oPlace the potatoes and water in a heat
resistant container and then place it in the
centre of the microwave cavity and then
close the microwave door.
oIMPORTANT: You should make sure that the
door of the microwave is shut securely.
oTurn the function selector dial to the auto
cooking function 2 symbol .
oPress the start button (G) and your microwave will start to cook.
oAt the end of the cooking time, your microwave will give an
audible signal and the LED display will show the word “END”.
Safety lock
oWhen the microwave is not heating, it is possible to switch on
the safety lock.
oPress and hold down the safety lock button (C) for 3 seconds.
oThe LED display (A) will show 4 horizontal bars and flashing
decimal points.
oUntil the safety lock is switched off, all buttons on the microwave
will be disabled.
oTo switch off the safety lock, press and hold down the safety lock
button for 3 seconds. The LED display will return to showing the
time of day.
20
