Baumatic BMG200SS User manual

User Manual for your Baumatic 1
BMG200SS 20 Litre
combination microwave
oven with grill

User manual for your Baumatic
BMG200SS
20 Litre combination
microwave oven with grill
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 03/09/12
2

3
Contents
Environmental note 4
Important safety information 5 – 9
Specifications 10 – 14
Product and aperture dimensions 10
Product specifications 10 - 11
Electricaldetails 11
Descriptionoftheappliance 12
Controlpanel 13
Theturntable 13-14
LEDdisplay 14
Usingyourmicrowave 15 – 29
Settingtheclock 15
Before first use 15
Microwavecooking 16
Microwave power level chart 17
Timesetting 17
Quickstartfunction 18
Grillcooking 18-19
Grillfunctionchart 19
Auto defrost 19 – 20
Defrostprogramchart 20
Defrostguide 21
Autocooking 22
Autocookingchart 23
Delaystartfunction 23-24
Multi-sequence cooking 25 - 26
Safetylock 26
Microwave cooking guidelines 26 – 27
Materials you can use for microwave cooking 27 - 28
Materials you cannot use for microwave cooking 28
Utensilstable 29
Cleaning and maintenance 29 – 30
The appliance exterior 29
The appliance interior 29
Turntable and turntable support 30
General cleaning advice 30
Installation 30 – 35
Electrical connection 31 – 32
Installing the microwave into a housing unit 32 – 35
Troubleshooting 36 – 37
Baumaticconsumables 38
Contact details 39

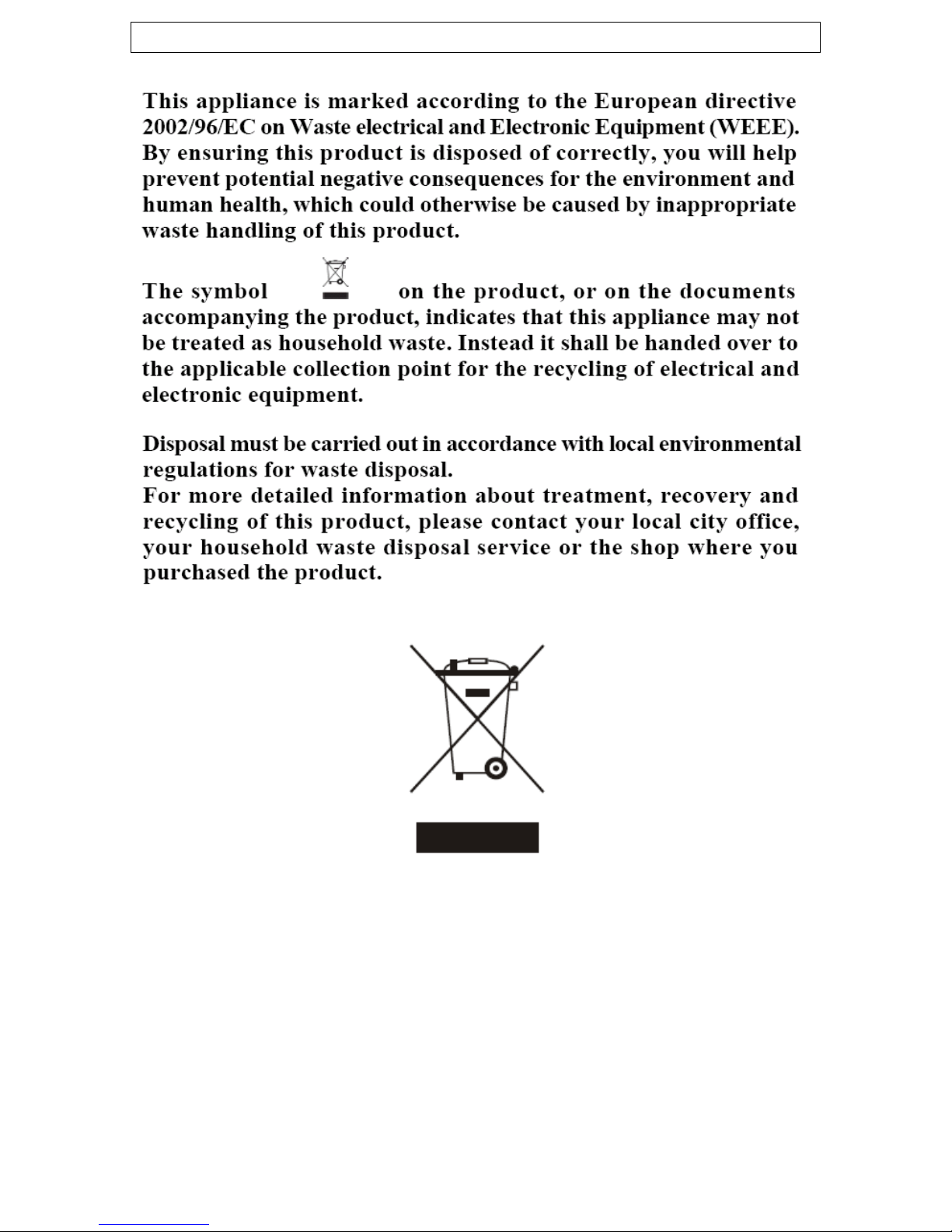

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Customer Care
Department.
General Information
oThis appliance is designed for domestic household use. It can
NOT be used as a freestanding microwave and must be built in
to a standard kitchen cabinet or housing unit (see the section
entitled “Installation” below).
oYou should only operate the appliance when the turntable and
turntable support are in position.
oYou should only use ovenware that is suitable for being used in a
microwave.
oTo prevent corrosion occurring due to moisture/condensation,
the cavity and the door of the microwave should be wiped dry
after each use of the appliance.
oThe appliance must not be left unattended if you are heating or
cooking food in containers that are made of paper, plastic or
other flammable materials. If left unattended, they could pose a
fire hazard.
oIf you notice smoke coming from the appliance, you should keep
the door of the microwave closed and then disconnect it from
your mains supply. DO NOT use your microwave oven, if you
think it is not operating correctly.
Installation
oIMPORTANT: Only the built in/built under installation
sanctioned by Baumatic and outlined in this manual should be
followed.
oA separate building in kit will be supplied with the microwave, to
allow you to complete a built in installation.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
5

6
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
Service
oYour microwave complies with all relevant safety standards. In
order for it to continue to operate safely, only an engineer that
is approved by the Baumatic Customer Care Department
should work on the appliance.
oIMPORTANT: It is dangerous for a non qualified person to work
on the appliance, in particular if they remove the cover that
provides protection against exposure to microwave energy.
oIf you notice that the door seal, door surfaces, power cord and
plug are damaged. You should stop using the appliance,
disconnect it from the mains supply and contact the Baumatic
Customer Care Department.
oOnly genuine Baumatic spare parts should be fitted to your
appliance. These can be obtained from the Baumatic Spares
Department.

7
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
oDO NOT place anything between the door and the door frame.
oDO NOT store anything that is flammable inside of the
microwave. When it is switched on, the items could catch fire.
oDO NOT switch the appliance on if there is no food or liquid
inside of the microwave. If you run the microwave whilst it is
empty, there is a chance that it will overload.
oThe door seals and the door surfaces should ALWAYS be kept
clean and free from debris.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oIMPORTANT: This appliance should only be operated by adults.
You SHOULD NOT allow young children to use the microwave
without supervision. Older children should only operate the
appliance if they have been thoroughly instructed on how to use
the microwave and the consequences of improper usage.
General Safety
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in.
oDo not use the appliance to dry paper, textiles or animals.
oDo not install the appliance next to curtains or soft furnishings.
oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is
the chance of spontaneous combustion.
oDo not boil eggs or similar foods in their shells, otherwise they
may burst. It is possible to poach eggs in your microwave,
providing you prick the yolks first.
oDo not attempt to lift or move cooking appliances by using the
oven door, as this may cause damage to the appliance or result
in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
8

9
Declaration of conformity
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.

Specifications
Product dimensions Aperture dimensions
(including frame kit)
Height: 381 mm Height: 360 mm
Width: 595 mm Width: 560 mm
Depth: 339 mm Depth: 550 mm
Product specifications
8 functions: Popcorn (85g)
Popcorn (100g)
Pizza
Beverage (250ml)
Beverage (500ml)
Potato (450g)
Potato (650g)
Fish (450g)
10

11
o5 power levels
oLED full programmer with temperature and function display
oPushbutton operation
oInternal light
oQuick start function
oSafety lock
oAudible signal at the end of cooking
oStainless steel interior
oDefrost by weight
oCapacity: 20 litres
oMicrowave output: 800 W
oGrill output: 800 W
Standard accessory
oGrill rack
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 8 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 1.28 kW
Mains Supply Lead: 3 x 1.5 mm²
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the microwave oven door and looking on the right
hand side of the chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Description of the appliance
1) Microwave oven door
2) Microwave door latch
3) Microwave oven cavity
4) Rotating axis
5) Glass turntable
6) Rotating ring
7) Microwave door release button
8) Outer control panel
9) Inner control panel
10) Microwave oven housing
11) Waveguide cover (inside)
IMPORTANT: You should NEVER
remove the waveguide cover.
12

Control panel
1) Microwave power
button
2) Grill.combi button
3) Preset.clock
button
4) Time.weight
button
5) Auto defrost
button
6) Auto cooking
button
The turntable
oNever place the glass
tray upside down.
oThe glass tray and
turntable ring assembly
MUST always be used
during cooking.
oAll food and food
containers must ALWAYS
be placed on the glass
tray during cooking.
13

oIf the glass tray or turntable ring assembly cracks or breaks, it
must be replaced immediately. Genuine Baumatic parts can be
obtained from the Baumatic Spares Department.

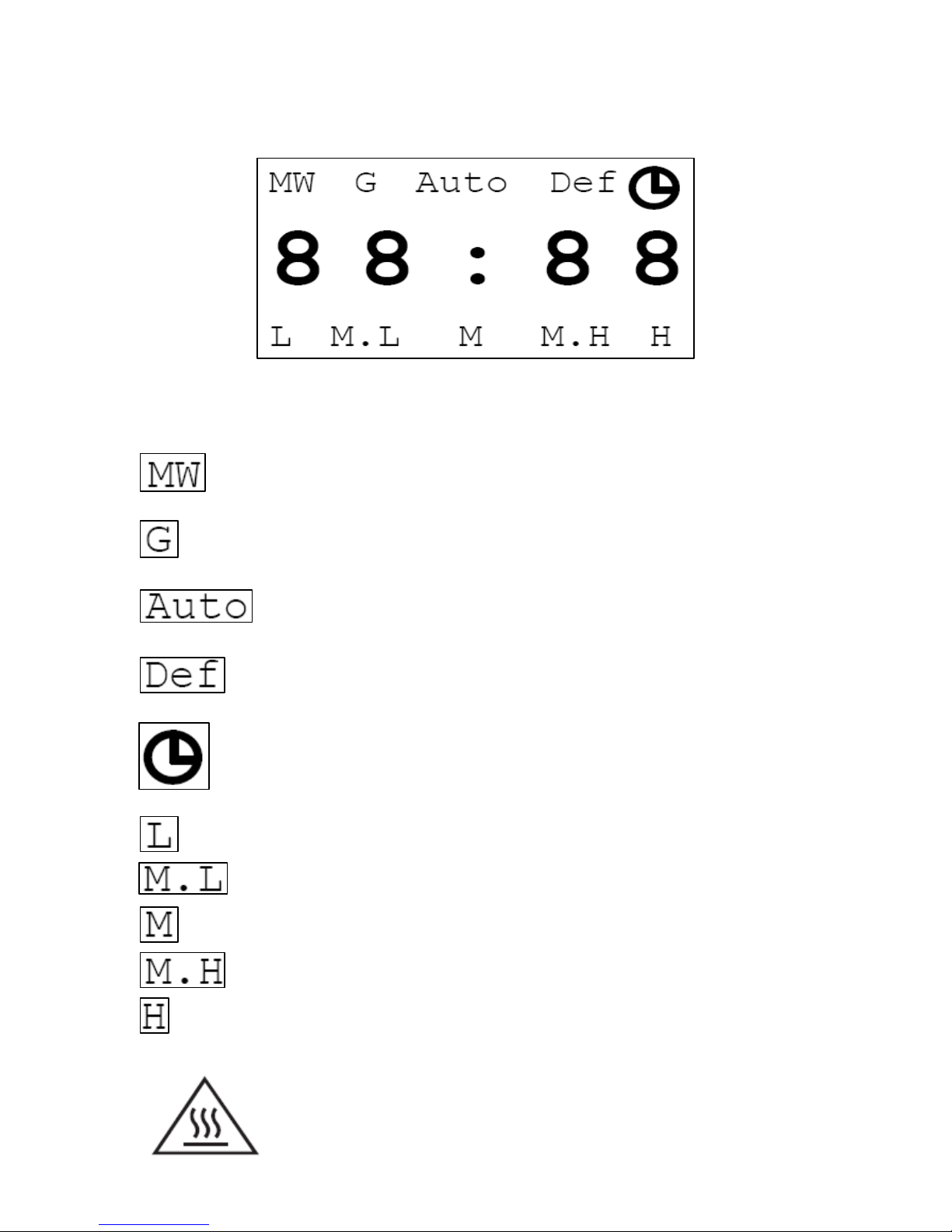

LED display
oThe LED display will show the time of day, or if the microwave is
in use, it will show the cooking time.
Indicates that the microwave cooking function has been
selected
Indicates that the grill cooking function has been selected
Indicates that an AUTO program has been selected
Indicates that a defrost program has been selected
Indicates a timer function has been set
Low heat
Medium low heat
Medium heat
Medium high heat
High heat
WARNING: The accessible surface may be hot
during operation and for a period of time
afterwards.
14

15
Using your microwave
Setting the clock
oWhen your appliance is connected to the power supply for the
first time, the LED display will flash.
oPress the Preset.Clock button (3) to enter the time setting
mode.
oUse the Time.Weight button (4) to set the current hours of the
day.
oPress the Preset.Clock button (3) again to confirm the hours
programmed.
oThen use the Time.Weight button (4) to set the current minutes
of the day.
oPress the Preset.Clock button (3) to confirm the minutes set or
wait for 5 seconds and the programmed numbers will go steady.
The time of day will now be set.
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should place a cup that is
half filled with water in the microwave.
oSet the microwave on its highest power level for 2 minutes.
oThe oven cavity and outside of the appliance should be cleaned
with warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used. The appliance should be
thoroughly dried afterwards.
oWhen the microwave is connected to the power supply, the LED
display will flash 3 times. It will then flash " : " to prompt you to
input a cooking function and time.

16
Microwave cooking
oUse the door release button to open the door of the microwave.
oCheck that the turntable shaft, turntable ring assembly and glass
tray are correctly assembled in the cavity.
oPlace whatever you are cooking in the centre of the microwave
cavity.
oPress the Stop.Clear button once when the colon flashes on the
LED display.
oSelect the required microwave power by pressing the microwave
power button (1) repeatedly.
oYou can then set the desired cooking time by pressing the
Time.Weight button (4) or the Auto Cooking button (6). The
maximum time that can be set is 60 minutes.
oClose the microwave oven door and press the Instant Start
button to begin cooking. The LED display will count down to
show the remaining cooking time.
oIf you turn the food during the cooking process, press the door
release button to turn the food. Close the door again and press
the Instant Start button to continue the cooking procedure.
oIf you wish to remove the food before the preset time, you must
press the Stop.Clear button once to clear the preset program to
avoid unintended operation during next use.
oAt the end of the cooking time, the LED display will show “End”
and 3 beeps will sound to prompt you to remove the food from
the microwave. If you do not press the Stop.Clear button once or
open the door, the beep will sound every 3 minutes.
oIMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
oAfter the food has been removed from the microwave, you
should make sure that the door is closed.
IMPORTANT: Never use the grill rack during microwave
cooking.
IMPORTANT: Never operate the microwave empty.

17
Microwave power level chart
Power level Suggested use
100P High power
100% microwave
power
For quick and thorough cooking such as
meat and vegetables.
80P Medium high
power
80% microwave
power
For medium express cooking, such as eggs,
fish, rice and soup.
60P Medium power
60% microwave
power
For steaming food.
40P Medium low power
40% microwave
power
For defrosting food.
20P Low power
20% microwave
power
For keeping food warm.
Time setting
oWhen the Auto Cooking button (6) is pressed, the display will
show a cooking time of 10 seconds. Each press of this button will
increase the time by a further 10 seconds.
oOnce the time reaches 5 minutes, each press will increase the
time by 30 seconds. When 10 minutes is reached, each press will
increase the time by 1 minute.
oThe maximum cooking time that can be set is 60 minutes.
oWhen the Time.Weight button (4) is pressed, the display will
show a cooking time of 60 minutes. Each press of this button will
decrease the time by 1 minute.
oOnce the time reaches 10 minutes, each press will decrease the
time by 30 seconds. When 5 minutes is reached, each press will
decrease the cooking time by 10 seconds.
oThe minimum cooking time that can be set is 10 seconds.

18
Quick Start cooking function.
The Quick Start function allows the user to heat food instantly, without
using preset conditions. This function will cook whatever is placed
inside the oven on full power for as long as specified.
oUse the door release button to open the door of the microwave.
Check that the turntable shaft, turntable ring assembly and glass
tray are correctly assembled in the cavity.
oPlace whatever you are cooking in the centre of the microwave
cavity.
oPress the Stop.Clear button (2) once when the colon flashes on
the LED display.
oPress the Quick Start button (1) to start cooking. The default
cooking time is 1 minute.
NOTE: Each additional press of the Quick Start button will increase the
cooking time by 10 seconds.
Grill cooking
oUse the door release button to open the door of the microwave.
oCheck that the turntable shaft, turntable ring assembly and glass
tray are correctly assembled in the cavity.
oPlace whatever you are cooking in the centre of the microwave
cavity.
oPress the Stop.Clear button once when the colon flashes on the
LED display.
oSelect the required cooking function by pressing the Grill.Combi
button (2).
oYou can then set the desired cooking time by pressing the
Time.Weight button (4) or the Auto Cooking button (6). The
maximum time that can be set is 60 minutes.
oClose the microwave oven door and press the Instant Start
button to begin cooking. The LED display will count down to
show the remaining cooking time.
oIf you turn the food during the cooking process, press the door
release button to turn the food. Close the door again and press
the Instant Start button to continue the cooking procedure.

19
oIf you wish to remove the food before the preset time, you must
press the Stop.Clear button once to clear the preset program to
avoid unintended operation during next use.
oAt the end of the cooking time, the LED display will show “End”
and 3 beeps will sound to prompt you to remove the food from
the microwave. If you do not press the Stop.Clear button once or
open the door, the beep will sound every 3 minutes.
oIMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
oAfter the food has been removed from the microwave, you
should make sure that the door is closed.
Grill function chart
Grill
function Suggested use
G The grill heating element will only be utilised during
operation time. Ideally suited for grilling thin meats or
pork, sausage and chicken wings as good browning can be
obtained.
C1 Combination of grill and microwave cooking. This utilises
the properties of microwave penetration so thick food is
ideally suited to this function. The centre of the food can
be cooked well and a brown crust obtained by the grill.
C2 Same as C1 but a longer working time.
Auto defrost
oUse the door release button to open the door of the microwave.
oCheck that the turntable shaft, turntable ring assembly and glass
tray are correctly assembled in the cavity.
oPlace whatever you are defrosting in the centre of the microwave
cavity.
oPress the Stop.Clear button once when the colon flashes on the
LED display.
oSelect the required defrost function by pressing the Auto Defrost
button (5).

20
oYou can then set the weight of the food by pressing the
Time.Weight button (4) repeatedly. The microwave will
determine the appropriate length of defrosting time according to
the program and weight selected.
oClose the microwave oven door and press the Instant Start
button to begin cooking. The LED display will count down to
show the remaining cooking time.
oHalf way through the defrosting process a beep will sound 3
times to prompt you to turn the food over. Open the door and
turn the food over, shielding the warm portion. Close the door
again and press the Instant Start button to continue defrosting.
If you do not turn the food, the defrosting cycle will continue
until the end of the countdown time.
oIf you wish to remove the food before the preset time, you must
press the Stop.Clear button once to clear the preset program to
avoid unintended operation during next use.
oAt the end of the cooking time, the LED display will show “End”
and 3 beeps will sound to prompt you to remove the food from
the microwave. If you do not press the Stop.Clear button once or
open the door, the beep will sound every 3 minutes.
oAfter the food has been removed from the microwave, you
should make sure that the door is closed.
Defrost program chart
Defrost
program Weight options (kg) Suggested use
D1 2.0, 1.8, 1.6, 1.4, 1.2,
1.0, 0.9, 0.8, 0.7, 0.6,
0.5, 0.4, 0.3, 0.2, 0.1
For defrosting meat with a
weight range between 0.1
kg and 2.0 kg.
D2 3.0, 2.8, 2.6, 2.4, 2.2,
2.0, 1.8, 1.6, 1.4, 1.2,
1.0, 0.8, 0.6, 0.4, 0.2
For defrosting poultry with a
weight range between 0.2
kg to 3.0 kg.
D3 0.9, 0.8, 0.7, 0.6, 0.5,
0.4, 0.3, 0.2, 0.1 For defrosting seafood with a weight range between 0.1
kg to 0.9 kg.
