Bazooka EL1500 User manual

Dear customer,
Congratulations on your purchase of a Bazooka EL high-performance amplifier. At
Bazooka, we are fanatics about accurate music reproduction. Your selection of our
products for your sound system indicates that quality sound is also important to you
too. At SAS, we take great pride in manufacturing revolutionary audio products,
and through the years of engineering expertise, hand craftsmanship and critical
testing procedures, we have created the EL high-performance series of amplifiers.
We hope that you will take as much pride in owning and using one of these high-
quality audio products as we do designing and manufacturing them.
When properly installed and operated, your Bazooka EL amplifier will give you
years of clean uninterrupted sound reproduction. Therefore, we urge you to take a
few minutes to carefully read through this manual. It will explain all of the features
of your EL amplifier and help insure trouble free installation.
Sound can be deceiving. Over time your hearing comfort level adapts to higher
volumes of sound. What may have sounded normal can actually be too loud and
harmful to your hearing. Guard against this by setting your equipment at a safe
level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear comfortably, clearly
and without distortion.
Once you have established a comfortable “sound level”, make a note of
this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being damaged and
allow you to enjoy listening to music throughout your lifetime.
1

SAFETY PRECAUTIONS
Fuse amplifiers power wire at the battery.
Be sure to fuse the power wire within 12” of the car's battery. This will protect the
car's battery in case of a short circuit between the power amplifier and battery.
THIS IS A MUST, the amplifier's built-in fuse will only protect the power amplifier
not the car's battery!
Use hi h rade wire connectors.
To ensure maximum power transfer and secure safe connections, it is recommended
to use high grade barrier spades (for connection at amplifier) and terminal rings
(for connection at battery).
Do not run any wires underneath vehicle.
Exposed wires have a chance of being cut or damaged. It is best to run all wires
through the vehicle under the carpet and/or side panels. This lends to a cleaner
installation and less risk of damage.
Use caution when mountin amplifier.
Remember there are many electrical wires, gas lines, vacuum lines, brake lines as
well as a gas tank in the automobile. Make sure you know where they are when
mounting the amplifier to avoid puncturing lines, shorting wires or drilling holes in
the gas tank.
Run si nal wires away from electrical wires.
To avoid possibility of induced noise from the car's electrical system (i.e. popping
noises or engine noise), run wires away from the car's electrical wiring.
Make all round wires as short as possible and at the same point.
In order to reduce the chance of ground loops (i.e. engine noise), make the
grounding wire as short as possible to reduce the wire's resistance. Also, when
using multiple components, make sure all units are grounded at the same point.
Avoid sharp ed es when runnin the wires.
To avoid the possibility of power, signal or speaker shorts, be careful not to allow
the amplifiers wires to come in contact with sharp edges. Use a grommet to protect
the wire when running through the fire wall .
2

FEATURES AND BENEFITS
DC Offset Protection
This circuit protects the output of the amplifier against DC voltage. If for some
reason DC voltage is detected at the output stage, the amplifier will shut down
protecting the speakers from direct current.
Short Circuit Protection
The circuit protects the amplifier from damage due to a short found in the speakers
or wiring. If one of the speakers or its wiring comes in contact with ground, the
amplifier will shut down. To resume normal operation, correct the problem and
turn the head unit off, then back on. The amplifier will reset and play again.
Thermal Protection
To protect the amplifier circuitry against damage caused by prolonged exposure to
high temperatures, a thermal protection circuit is activated if the amplifier reaches
excessively high operating temperature. Once the thermal circuit is activated, the
amplifier will shut down to cool off. The amplifier will automatically turn back on
once it cools down to a safe operating temperature.
Power Indicator
The diagnostic L.E.D. Illuminates green when the amplifier is on and receiving
power.
Tri Mode Capable
If so desired, the amplifier may be run in stereo and mono at the same time. For
example, this feature would allow you to run a pair of mid and tweeters in stereo
and a sub-woofer mono.
Built-in Crossover
The “EL”amplifiers include a built-in variable **high and low pass crossovers. The
crossover features a variable frequency selection (60Hz ~ 400Hz) for precise high or
low pass filtering. **Except EL1500 which has a 40 ~ 120Hz low pass filter.
Auxiliary Output
The “EL”amplifiers include a auxiliary output for a daisy chain connection of an EL
BazookadAmplified Bass Tube.
Power and Speaker Distribution Blocks
Heavy gauge bare wire distribution blocks are provided for maximum power and
signal transfer with minimal resistance.
3

Bass Boost
For added low frequency performance the amplifiers are equipped with a variable
0~12 dB bass boost @ 45Hz.
Line Out (EL 1500 Only)
One set of full range line outputs have been provided for convenient connection to
additional amplifiers in the system.
Power Fusin
This protects the amplifier against short circuits and excessive current.
Remote Turn-on
Automatically turns amplifier on when connected to the head unit's remote
output. The amplifier will turn on and off with the head unit to save current
consumption. This control also operates the reset circuit for the amplifier's
protection. It must be connected with the head unit in order to reset protection
circuits.
Adjustable Input Sensitivity
Allows you to fine-tune the level matching between your source and the power
amplifier.
Hi h Level Input ( EL260, El460, EL2100 AND EL2150)
Allowing for integration with “Factory Sound Systems”.
Stable To 2 Ohm Stereo Mode
Stability to 2 ohm in stereo mode, 4 ohms bridged. The EL 1500 is stable to 2 ohms
mono.
4

MOUNTING LOCATION
Before you start the installation, it will be necessary to find a mounting location for
the amplifier. Find a location in which the amplifier will receive adequate
ventilation in order to dissipate the heat it develops during operation. Two popular
mounting locations are in the trunk or under the seat.
Select the location in which you wish to mount the amplifier. Use caution when
mounting amplifier, there are many wires, gas lines, vacuum lines, brake lines as
well as a gas tank in the automobile. Make sure you know where they are when
mounting the amplifier to avoid puncturing lines, shorting wires or drilling holes in
the gas tank. Once you are ready, use a pencil to mark the mounting holes in the
bottom panel. After you have marked the locations of the holes move amplifier out
of the way and drill small starter holes to make the tapping screws easier to install.
Use provided screws to tighten down the amplifier.
5
POWER
BASS
BOOST
BASS
BOOST
12dB
12dB 0dB
0dB
X-OVER
X-OVER
400Hz
400Hz 60Hz
60Hz
LEVEL
INPUT
HI INPUT HI INPUT
REMOTE
CH1
CH2
CH3
CH4
MAXMIN
LEVEL
MAXMIN
FILTER
LOW
FLAT
HI
FILTER
LOW
FLAT
HI

SPEAKERS
BRIDGED
AUX
OUTPUT
+12V REM
20A 20A
AUX
7.5A 20A
AMP
GND
Connect the amplifier to the car's battery.
At times, the amplifier will need to draw large levels of current that cannot be
provided by any circuit in the car's fuse box. We recommended using an 4 to 8
gauge power wire for your connections depending on the amplifier and length of
the wire. Strip one end of the wire to connect to the terminal on the amplifier
marked +12V. Loosen screw terminal and connect bare wire and tighten. Use
caution to make sure no stray wire stands come in contact with surrounding
terminals causing short circuits. Run the wire directly to the positive terminal of the
car's battery. Make sure to use an in-line fuse within 12” of the car's battery to
protect the electrical system and amplifier against short circuits and/or power
surges.
Connect the round terminal of the amplifier to the car's chassis.
For the ground connection, use an 4 to 8 gauge wire (black) to connect to the
terminal marked GND and then connect it to the car's chassis. Try to keep the
length of the cable as short as possible, preferably less than 6". Also make sure that
the point on the car where the connection is to be made is free of paint and dirt.
Connect the remote terminal of the amplifier to a switchable +12V source.
This connection allows the amplifier to be turned on and off with the power control
of the radio. If the radio has a REMOTE output terminal, connect it to the
amplifier's terminal marked REMOTE (using a 16 gauge wire or heavier). Now
when the radio is turned on, the amplifier will automatically turn on. This
connection can also be made to the radio’s Power Antenna wire.
IMPORTANT! Before making any connections, disconnect the car’s battery until the
installation is completed to avoid possible damage to the electrical system.
6
POWER CONNECTIONS
CAR BATTERY
+12V
CAR BATTERY
+12V
-
+
94.7
RADIO'S REMOTE
TURN-ON OUTPUT
RADIO'S REMOTE
TURN-ON OUTPUT
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
(NOT PROVIDED)
(NOT PROVIDED)

POWER
BASS
BOOST
BASS
BOOST
12dB
12dB 0dB
0dB
X-OVER
X-OVER
400Hz
400Hz 60Hz
60Hz
LEVEL
INPUT
HI INPUT HI INPUT
REMOTE
CH1
CH2
CH3
CH4
MAXMIN
LEVEL
MAXMIN
FILTER
LOW
FLAT
HI
FILTER
LOW
FLAT
HI
7
SIGNAL CONNECTIONS
POWER
BASS
BOOST
12dB
0dB
X-OVER
400Hz60Hz
LEVEL
INPUT
HI INPUT
REMOTE
R
L
MAXMIN
FILTER
LOW
FLAT
HI

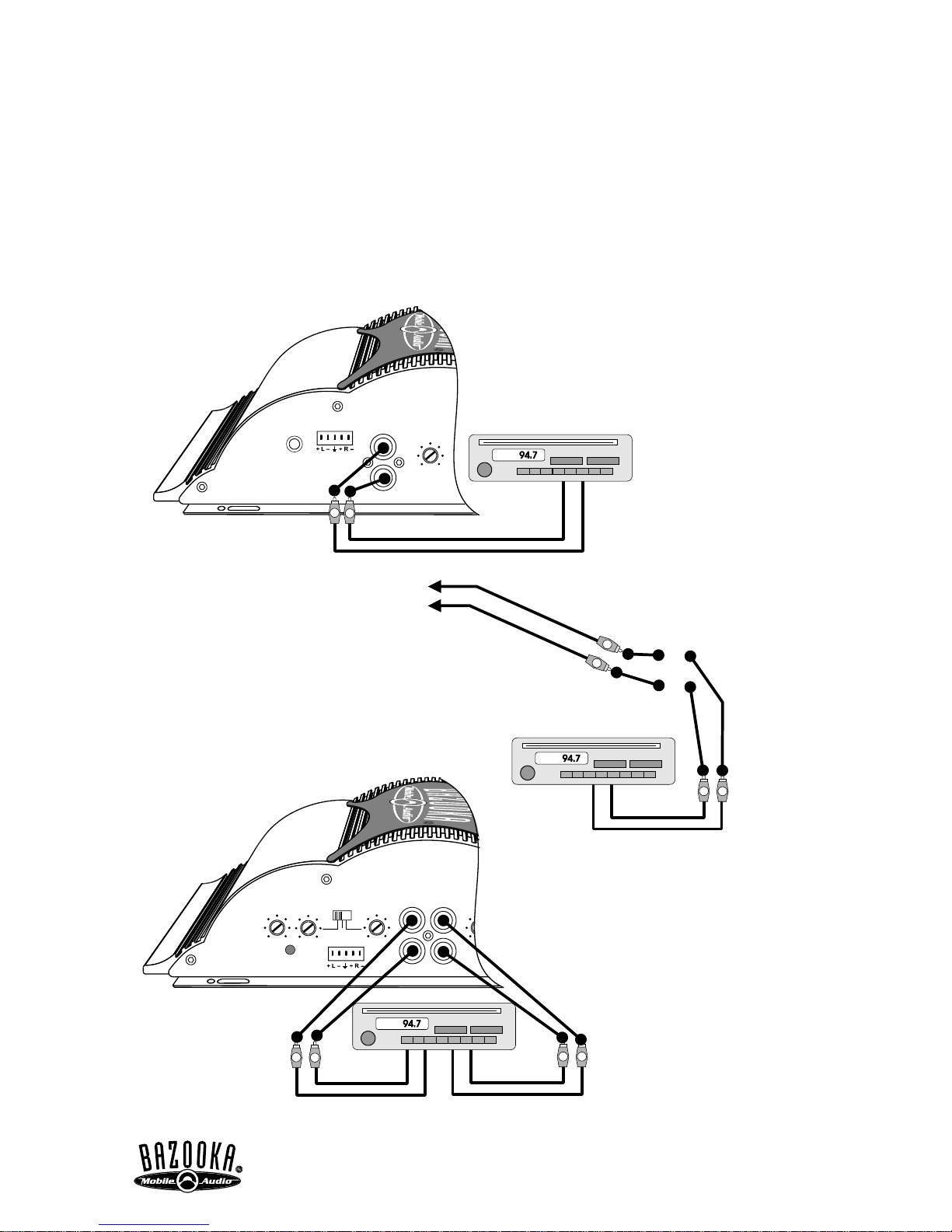

EL1500 SIGNAL CONNECTIONS
L
EL260, 2100 and 2150
SIGNAL CONNECTIONS
FRONT REAR
RL
R
L
EL260, 2100 and 2150
SIGNAL CONNECTIONS
L
R
L
R
Optional full range line out connection
to additional amplifiers in the system.
Connect the RCA output of the head unit (AM/FM cassette player, CD, or DAT) to
the RCA input terminals of the amplifier.
To make these connections, we recommend high quality RCA cables, which are
available at your local car audio retailer. Run signal wires away from electrical wires
to avoid possibility of induced noise from the car's electrical system (i.e. popping
noises or engine noise). Please note that when making these connections the signal
inputs correspond with the speaker outputs. For example: If you connect the
radios front right RCA to “CH 1” .......then speaker output “CH 1” will operate the
front right speaker.
R

POWER
BASS
BOOST
12dB0dB
X-OVER
400Hz60Hz
LEVEL
INPUT
HI INPUT
REMOTE
R
L
MAXMIN
FILTER
LOW
FLAT
HI
POWER
BASS
BOOST
12dB0dB
X-OVER
400Hz60Hz
LEVEL
INPUT
HI INPUT
REMOTE
R
L
MAXMIN
FILTER
LOW
FLAT
HI
8

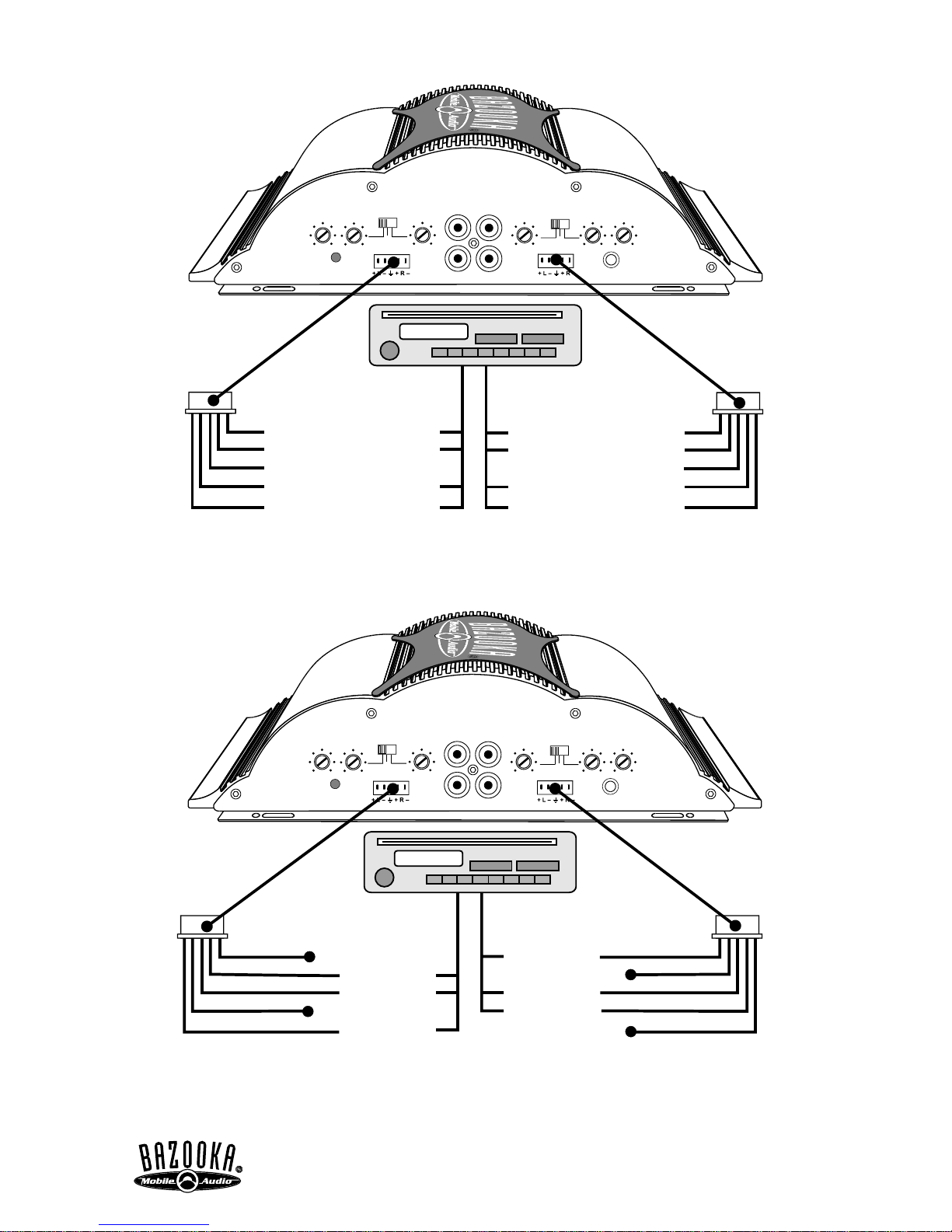

High Level inputs have been included to connect the amplifier to a radio without
low-level outputs (i.e. factory radio). This connection will allow you to connect
directly to the speaker output of the radio with out the need of an external adapter.
Determine the type of radio you have and make one of the following
connections.
HIGH LEVEL CONNECTIONS (OPTIONAL)
CAUTION! Before making any connections determine the type of radio to avoid
possible damage to amplifier and/or radio.
TWO CHANNEL CONNECTIONS:
FLOATING GROUND RADIO (MOST COMMON TYPE)
RIGHT +
RIGHT +
RIGHT -
RIGHT -
LEFT -
LEFT -
LEFT +
LEFT +
GREEN
GREEN
GREEN/BLACK
GREEN/BLACK
(NOT USED)
(NOT USED)
GRAY/BLACK
GRAY/BLACK
BLACK
BLACK
GRAY
GRAY
94.7
GREEN
GREEN
BLACK
GRAY/BLACK NOT USED
GRAY/BLACK NOT USED
GREEN/BLACK NOT USED
GREEN/BLACK NOT USED
GRAY RIGHT +
RIGHT +
LEFT +
LEFT +
GROUND
94.7
94.7
TWO CHANNEL CONNECTIONS:
COMMON GROUND RADIO

GRAY
GRAY
BLACK
BLACK
GRAY/BLACK (NOT USED)
GRAY/BLACK (NOT USED)
WHITE
WHITE
RIGHT +
RIGHT +
LEFT +
LEFT +
GROUND
GROUND
WHITE
WHITE
BLACK
BLACK
GRAY/BLACK (NOT USED)
GRAY/BLACK (NOT USED)
WHITE/BLACK (NOT USED)
WHITE/BLACK (NOT USED)
WHITE/BLACK (NOT USED)
WHITE/BLACK (NOT USED)
GRAY RIGHT +
RIGHT +
LEFT +
LEFT +
GROUND
GROUND
POWER
BASS
BOOST
BASS
BOOST
12dB
12dB 0dB
0dB
X-OVER
X-OVER
400Hz
400Hz 60Hz
60Hz
LEVEL
INPUT
HI INPUT HI INPUT
REMOTE
CH1
CH2
CH3
CH4
MAXMIN
LEVEL
MAXMIN
FILTER
LOW
FLAT
HI
FILTER
LOW
FLAT
HI
9
EL460 CONNECTIONS:
COMMON GROUND RADIO
94.7
94.7
EL460 CONNECTIONS:
FLOATING GROUND RADIO (MOST COMMON TYPE)
RIGHT +
RIGHT +
RIGHT -
RIGHT -
LEFT -
LEFT -
LEFT +
LEFT +
GRAY
GRAY
GRAY/BLACK
GRAY/BLACK
(NOT USED)
(NOT USED)
WHITE/BLACK
WHITE/BLACK
BLACK (GROUND)
BLACK (GROUND)
WHITE
WHITE
RIGHT +
RIGHT +
RIGHT -
RIGHT -
LEFT -
LEFT -
LEFT +
LEFT +
GRAY
GRAY
GRAY/BLACK
GRAY/BLACK
(NOT USED)
(NOT USED)
WHITE/BLACK
WHITE/BLACK
BLACK (GROUND)
BLACK (GROUND)
WHITE
WHITE
94.7
94.7
POWER
BASS
BOOST
BASS
BOOST
12dB
12dB 0dB
0dB
X-OVER
X-OVER
400Hz
400Hz 60Hz
60Hz
LEVEL
INPUT
HI INPUT HI INPUT
REMOTE
CH1
CH2
CH3
CH4
MAXMIN
LEVEL
MAXMIN
FILTER
LOW
FLAT
HI
FILTER
LOW
FLAT
HI

SPEAKER
+12V REM
15A
15A 15A15A
FUSE GND
EL1500 SPEAKER CONNECTIONS
4 Ohm Speaker
(2 Ohm Minimum)
4 Ohm Speaker
(2 Ohm Minimum)
Make the speaker connections using speaker wire that is at least 16 gauge or
heavier.
As with any audio component, proper phasing of the amplifier and speakers is
essential for strong bass response. When connecting, make sure that positive (+)
from the amplifier is connected to the positive (+) of the speaker, and the same for
negative (-).
SPEAKER CONNECTIONS
BRIDGED
CH 1 CH 2
CH 4
CH 3
AUX
OUTPUT +12V REM GND
20A
AUX
7.5A 20A
AMP
+
-
+
-
+
- +
-
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
FOUR CHANNEL SPEAKER CONNECTIONS
10
TWO CHANNEL
SPEAKER CONNECTIONS
SPEAKERS
BRIDGED
AUX
OUTPUT
+12V REM
20A
GND
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
+
-
+
-

BRIDGED
CH 1 CH 2
CH 4
CH 3
AUX
OUTPUT +12V REM GND
20A
AUX
7.5A 20A
AMP
+
-
+
-
+
- +
-
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
SPEAKERS
BRIDGED
AUX
OUTPUT
+12V REM
20A 20A
AUX
7.5A 20A
AMP
GND
+
4 Ohm Speaker
4 Ohm Speaker
TWO CHANNEL BRIDGED SPEAKER CONNECTIONS
FOUR CHANNEL BRIDGED SPEAKER CONNECTIONS
SPEAKER CONNECTIONS (BRIDGED)
The EL amplifiers are capable of being bridged in a mono configuration. This
feature allows you the flexibility of using the amplifier to drive a ** subwoofer or a
center channel. In this configuration the amplifier sums the right and left channel
to deliver one channel (mono) output.
Please note: in order for the amplifier to sum right and left signal information, both
right and left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher.
Any lower than 4 Ohms will cause the amplifier to overheat and possibly cause
11

SPEAKERS
BRIDGED
AUX
OUTPUT
+12V REM
20A 20A
AUX
7.5A 20A
AMP
GND
CAUTION! In Tri- mode operation, the amplifier must see a 2 Ohm load or higher for
the stereo satellites and no lower than 4 Ohms for the subwoofer(s). Any lower than the
above mentioned impedance will cause the amplifier to overheat and possibly cause
permanent damage to the amplifier.

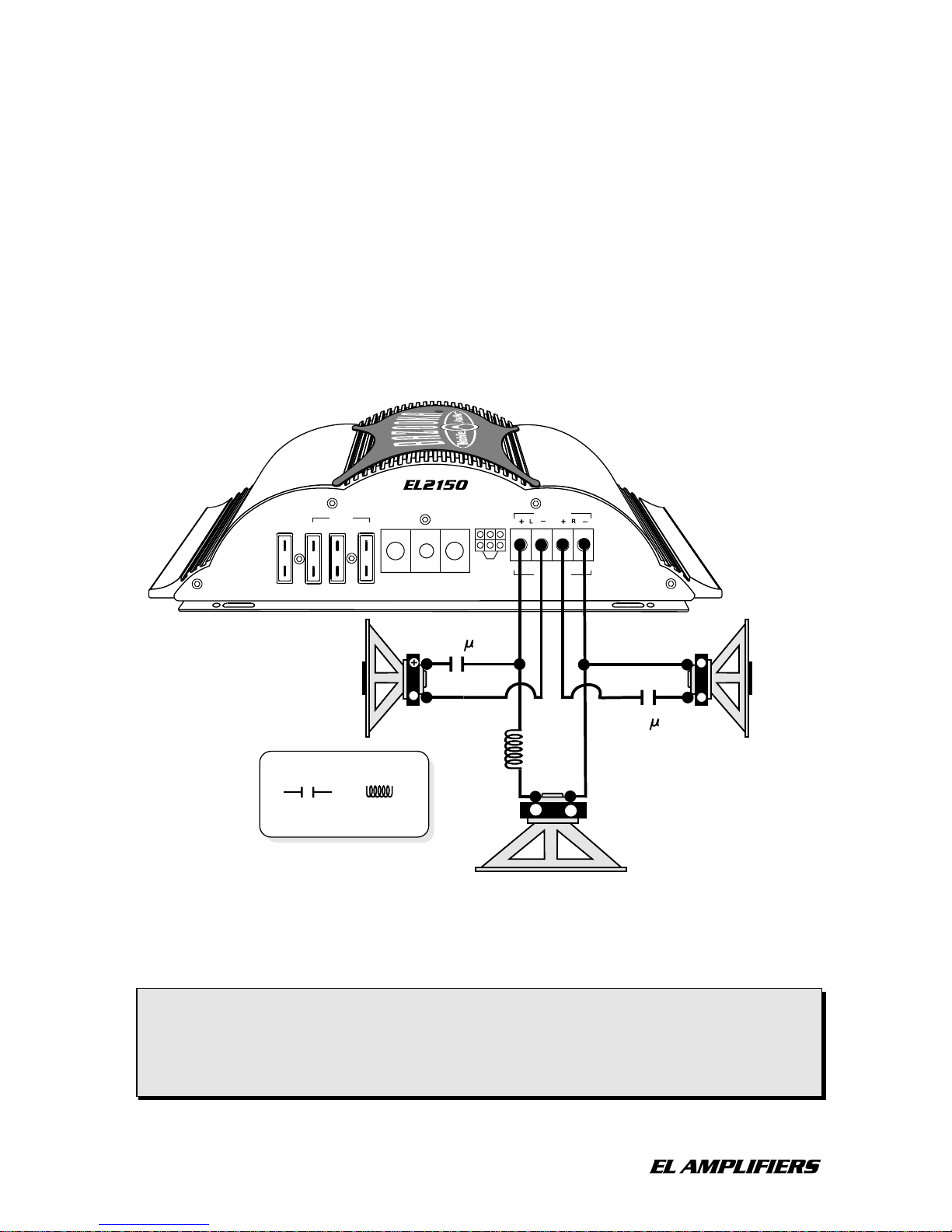

SPEAKER CONNECTIONS (TRI-MODE)
NON-POLAR
CAPACITOR
NON-POLAR
CAPACITOR
INDUCTOR
(COIL)
INDUCTOR
(COIL)
LEGEND
LEGEND
F100
+
-
F100
+
-
-
4mH
4mH
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
12
The amplifier is capable of running in a Mono / Stereo mode. This feature gives the
amplifier the ability to run stereo satellites (midbass & tweeter) simultaneously with
a mono subwoofer.
These connections are more complicated because they require the use of passive
crossover networks (Not provided) to divide the frequencies to the speakers. We
have included a sample diagram for 4 Ohm connections. If you wish to use multiple
speakers to achieve a lower impedance and higher power, it is strongly
recommended that you seek professional advice from your BAZOOKAdretailer
before attempting to make these connections.
Please Note: In the Tri-mode configuration, the amplifier’s built-in crossover must
be set to the ”FLAT” position so the speakers receive full range output.

POWER
BASS
BOOST
12dB
0dB
X-OVER
400Hz60Hz
LEVEL
INPUT
HI INPUT
REMOTE
R
L
MAXMIN
FILTER
LOW
FLAT
HI
REMOTE BASS CONTROL MODULE (OPTIONAL)
Before connecting the remote, it will be necessary to find a mounting location that
will be easy to access for adjustment. Once you select your mounting location, you
will need to run the control wire from the remote to the amplifier. To avoid
possibility of induced noise from the car's electrical system (i.e. popping noises or
engine noise), run the cable from the remote to the amplifier away from the car's
electrical wiring.
Please note: Once the remote is plugged in, it overrides the bass boost on the
amplifier and becomes the primary bass adjustment.
13
MAX
MIN

.
(Please note: If you intend to use the amplifier in the Tri-mode configuration, it is
necessary to set the crossover control to the “FLAT” setting in order to receive full
range output)
The “EL” amplifiers are equipped with a built-in variable crossover network
allowing you to select the crossover type (i.e. Low-Pass or Hi-Pass) and the desired
crossover point. For example if you wish to drive a pair of subwoofers, you can
select the “Low Pass” setting on the amplifier to filter out high frequencies. This
will send only low frequencies to your subwoofers (see example settings below).
The crossover point should be determined by the speakers operating range. Please
refer to speaker manufactures recommended crossover point.
Select the crossover type on the
amplifiers side panel.
(Low-pass is selected in this example for subwoofers)
You can add up to 12dB bass boost by
increasing the Bass Boost control.
Select the crossover point
for your speakers.

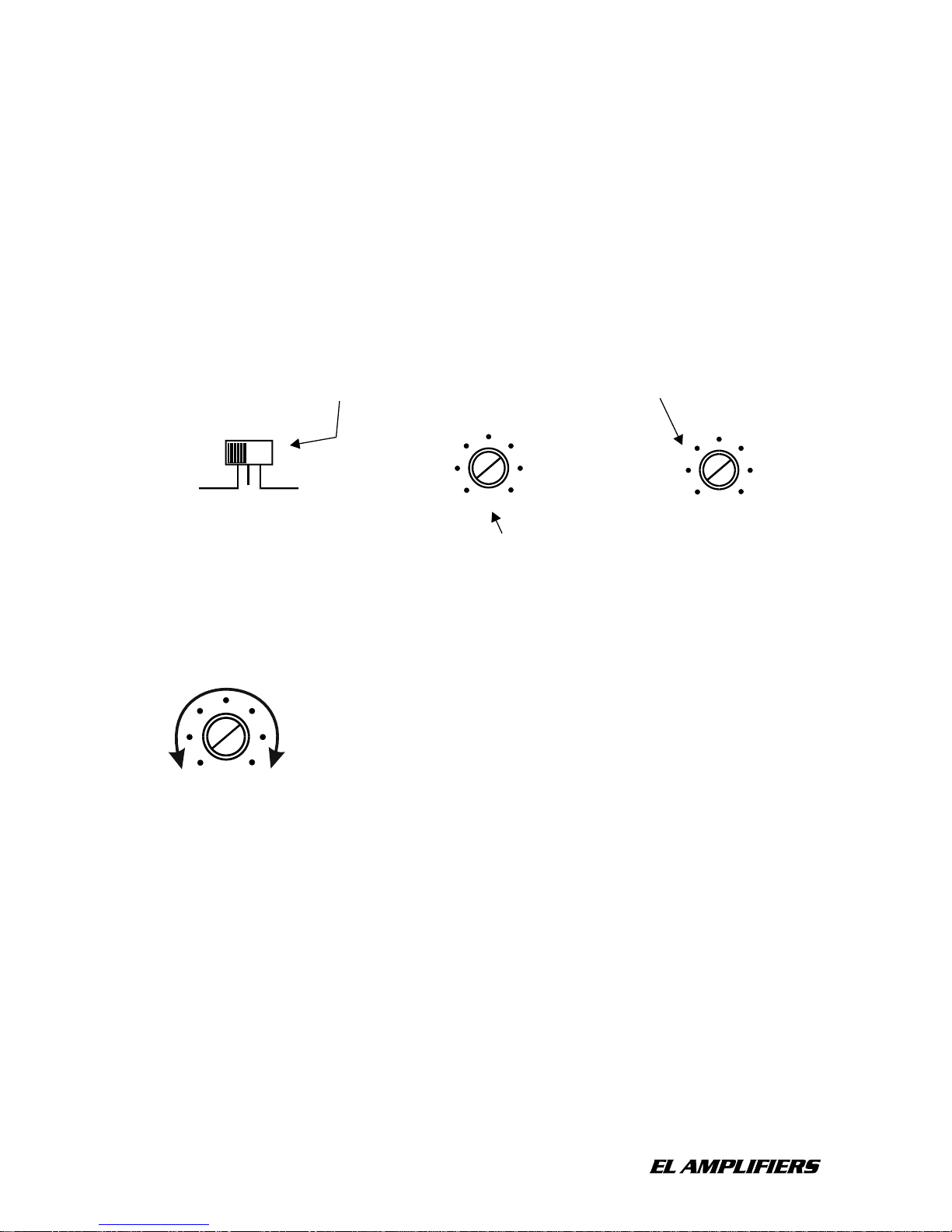

ADJUSTING THE X-OVER AND BASS
Fine tune the amplifier's input sensitivity.
The gain sensitivity control for the “EL”
amplifier is located on the side panel. This gain control
has been included to allow adjustment to properly
match the output of the radio. This is one of the most
misunderstood adjustments. By rotating the control in
the clockwise direction, the amplifier‘s input will
become more sensitive and the music will play louder.
This is not a volume control and you will not get more power out of the amplifier in
the maximum position! It may seem to deliver more output, but actually the
system is only playing louder faster as you turn the volume control on the radio.
Ideally, to properly level match the system the goal is to achieve maximum output
from the amplifier without distortion at about 3/4 of the volume control.
To determine if the amplifier’s gain is set properly, turn the system on and slowly
increase the volume control. You should be able to use about 3/4 volume before
the system gets loud but not distorting. It is very important when making these
adjustments that you do not over drive the speakers (at point of distortion) this will
cause permanent damage to the speakers. If you are unable to achieve 3/4 volume
before distortion you will need to adjust gain control (in this case you would reduce
the gain). The gain controls should be adjusted very slowly. It may help to have
another person to assist you by adjusting the gain controls while you listen for
distortion.
FINE TUNE THE SYSTEM
14
LEVEL
MAXMIN
X-OVER
400Hz
60Hz
FILTER
LOW
FLAT
HI
BASS
BOOST
12dB
0dB

TROUBLE SHOOTING THE SYSTEM
We have put together this trouble-shooting guide if you experience problems after
installing the amplifier. Please keep in mind that the majority of problems incurred
are caused by improper installation and not the equipment itself. In addition, there
are many components in the system that could cause various signal problems such as
inducted electrical noise and engine noise.
Before you can properly address the problem, you must first find the component
that is causing the problem. This will take patience and a process of elimination.
LOOK FOR.... SOLUTION
No Output
Blown fuse Replace
Bad RCA Cable(s) Replace
+12V at power terminal Check connection
+12V at remote terminal Check connection
Grounding point clean and tight Check for ground w/meter
Head Unit's fader not in center position Set to center position
Low Output
Check level adjustments Re-adjust
Bad RCA cable(s) Replace
Improper level matching Re-adjust
Engine Noise
Grounding points are clean and tight Check for ground w/meter
Ground all components at same point Ground at same point
Try different grounding point Change for better ground
Bad RCA cable(s) Replace
Use High Quality shielded RCA cables Rejects inducted noise
Low Vehicle charging system and/or battery Fix and/or replace
Red Protection L.E.D. Illuminated
Speaker short Check speakers connection
for short circuit
Speaker grounding out Make sure speaker wires
do not touch chassis ground
Impedance too low Check speaker impedance
(Min 2 ohm Stereo, 4 Mono)
Overheating Check mounting location
for Adequate air Circulation
Speaker impedance too low
15

SPECIFICATIONS
EL260 EL2100 EL2150
Size (L x W x H) 8
Max Power 300W 500W 750W
Output Power @ 14.4 VDC :
4 ohm 70W x 2 115W x 2 160W x 2
2 ohm 95W x 2 165W x 2 230W x 2
Bridged 4ohm 190W x 1 330W x 1 460W x 1
Frequency Response + - 1dB 20Hz-22KHz 20Hz-22KHz 20Hz-22KHz
S/N Ratio (A-weight) >90dB >90dB >90dB
THD with 80k filter .03% .03% .03%
Low Input Level 200mV-6V 200mV-6V 200mV-6V
Hi Input Level 1.0V-10.0V 1.0V-10.0V 1.0V-10.0V
Battery Voltage Range 10.5VDC-15.0VDC 10.5VDC-15.0VDC 10.5VDC-15.0VDC
Crossover S/W for 1+2 channel HP/FULL/LP HP/FULL/LP HP/FULL/LP
Variable Hi-Low Pass Range 60Hz-400Hz 60Hz-400Hz 60Hz-400Hz
Crossover Slope 12dB/Oct 12dB/Oct 12dB/Oct
Bass EQ at FULL/LP 0-12dB @ 45Hz 0-12dB @ 45Hz 0-12dB @ 45Hz
Unbalanced Input (RCA Jack) Yes Yes Yes
Jack for Remote Control Yes Yes Yes
Aux Fuse Holder & Fuse 7.5A 7.5A 7.5A
Amplifier Fuse & Holder 1 x 20A 2 x 20A 3 x 20A
Max Power 600W 600W 600W
Output Power @ 14.4 VDC :
4 ohm 350W x 1 65W x 4 65W x 4
2 ohm 500W x 1 85W x 4 85W x 4
Bridged 4ohm N/A 175W x 2 175W x 2
Frequency Response + - 1dB 20Hz-200Hz 20Hz-22KHz 20Hz-22KHz
S/N Ratio (A-weight) >90dB >90dB >90dB
THD with 80k filter .03% .03% .03%
Low Input Level 200mV-6V 200mV-6V 200mV-6V
Hi Input Level 1.0V-10.0V 1.0V-10.0V 1.0V-10.0V
Battery Voltage Range 10.5VDC-15.0VDC 10.5VDC-15.0VDC 10.5VDC-15.0VDC
Crossover S/W for 1+2 channel LP HP/FULL/LP HP/FULL/LP
Variable Hi-Low Pass Range 40Hz-200Hz 60Hz-400Hz 60Hz-400Hz
Crossover Slope 12dB/Oct 12dB/Oct 12dB/Oct
Bass EQ at FULL/LP *0-12dB @ 45Hz 0-12dB @ 45Hz 0-12dB @ 45Hz
Unbalanced Input (RCA Jack) Yes Yes Yes
Jack for Remote Control Yes Yes Yes
Aux Fuse Holder & Fuse 7.5A 7.5A 7.5A
Amplifier Fuse & Holder 4 x 15A 3 x 20A 3 x 20A
tainless Steel screws,
Stainless Steel end plates, marine coated circuit board, gold plated connectors,
salt, fog and UV tested.
Due to continuing product improvement, specifications subject to change without notice.
115115315
/ ” x 10 / ” x 2 / ” 10 / ” x 10 / ” x 2 / ” 15 / ” x 10 / ” x 2 / ”
248448448
EL1500 EL460 **MA460
115115115
Size (L x W x H) 12 / ” x 10 / ” x 2 / ” 12 / ” x 10 / ” x 2 / ” 12 / ” x 10 / ” x 2 / ”
248248248
* Low-pass Only
** Marine version of the EL 460, additional features include: S
16

17
LIMITED WARRANTY
Southern Audio Services, Inc., warrants all products to be free from defects in material
and workmanship for a period of one (1) year from the date of purchase; the Reference
Series is warranted for a period of two (2) years from date of purchase. In the event the
product is not as warranted, SAS’ sole obligation shall be to repair or replace the
defective product at SAS’ option: SAS limits its obligation under any implied warranties
under state laws to a period not to exceed the limited warranty period. SAS and its
authorized BAZOOKA® dealers specifically disclaim liability for any incidental or
consequential damages. Some states do not allow limitations on how long an implied
warranty lasts, and some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may have other rights, which vary from
state to state.
What is covered: This warranty covers all defects in materials or workmanship (parts and
labor) in the product.
What is not covered: This warranty does not cover the following:
1. Damages occurring during shipment of the product to SAS for repair
(Claims must be presented to the carrier).
2. Damages caused by accident, abuse, negligence, misuse or improper
Operation o r installation.
3. Damages caused by an act of God, including without limitation, fire, flood
Storm or other acts of nature.
4. Any product, which has a serial number, defaced, altered, modified, or
removed.
5. Any product that has been altered or modified without SAS’ consent.

18
How to obtain warranty services:
1. You are responsible for delivery of the product to an authorized BAZOOKA® dealer
or contact SAS at 1-800-THE TUBE for a Return Authorization number. The Return
Authorization number must be clearly written on the outside of the box. Freight must
be prepaid to SAS. Warranty replacement parts will be returned freight prepaid. The
entire enclosure may be returned for warranty service, but return will be freight collect.
2. You must provide proof of the date of purchase of the product. If proof of purchase
is not provided, original date of manufacture will be used to determine warranty period.
3. You must package the product securely to avoid damage during shipment.
4. After acquiring a Return Authorization number, ship to the address below. Please
complete this section and retain for your records.
Model(s) purchased ____________________________________________________________
Serial number(s) _______________________________________________________________
Date Purchased ________________________________________________________________
Dealer’s name _________________________________________________________________

Manual By
www.extremeconcepts.com
EL MANUAL REV 3.3.01
