BCP SKY3722 User manual

SKY3722 + SKY3723 + SKY3724 + SKY3725Ver. 3
INSTRUCTION
MANUAL
Ride-On Quad ATV XL

Pg. 2
Thank you for choosing us! Since 2002, Best
Choice Products has been bringing customers
high-quality products at the absolute lowest
price. With everything ranging from instruments
and toys to furniture and outdoor, we’ve got
your everyday living essentials covered. We’re
centered around a customer-first philosophy –
with free shipping, exceptional customer
service, and a catalog sourced with you in mind.

Pg. 3
Please retain these instructions for future reference.
SAFETY
BATTERY WARNINGS
This vehicle must be assembled by an adult who has read and understood the instructions in this manual.
Keep the packaging and bags away from children and dispose of all packaging before use. Always use
common sense and safe practices when operating this vehicle. This product contains or emits chemicals
known in the state of California to cause cancer or birth defects or other reproductive harm.
NOTE: For best performance, only use this vehicle on flat and hard surfaces.
Age Range: 3 to 8 years old
Weight Capacity: 100 lbs.
The following safety hazards may result in serious injury or death:
• This product contains small parts. Keep children away during assembly. Make sure to remove all
packaging material and parts from underneath the vehicle body.
•Never open the battery. Batteries contain lead and lead compounds (acids) that are toxic and corrosive,
and known to the state of California to cause cancer and reproductive harm.
•Limbs, hair, and clothing can get caught in moving parts. Always wear shoes, keep limbs away from
moving parts, and do not wear loose clothing while operating this vehicle.
•This vehicle does not have brakes or braking capability. Do not leave a child unattended during
operation. Do not use this in a location that may require braking capability, as this could result in loss of
control, which may cause serious injury or death.
•Use of this vehicle near streets, motor vehicles, steps, bodies of water, sloped surfaces, hills, wet areas,
flammable vapors, in alleys, at night, or in the dark could result in an unexpected accident.
•Use of this vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand, or gravel may result in
an unexpected accident such as tipping over, and could damage the electrical system or battery.
•Do not operate this vehicle in an unsafe manner. Examples include but are not limited to:
- Pulling the vehicle with another vehicle or similar device
- Allowing more than one rider
- Pushing the user
- Traveling at an unsafe speed
The following safety hazards may result in serious injury or death:
•Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire or
explosion. Only use the supplied battery and charger.
•Use of the rechargeable battery and charger for any other product may result in overheating, fire, or
explosion. Never use the supplied rechargeable battery and charger with another product.
•Explosive gases are created during charging. Charge the battery in a well-ventilated area. Do not charge
the battery near heat or flammable materials.
•Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact
between the terminals. Picking up the battery by the wires or charger can cause damage to the battery
and may result in a fire. Always pick up the battery by its case or handles.
•Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and
keep the battery dry. Contact or exposure to battery leakage (lead acid) may cause serious injury. If
contact or exposure occurs immediately call your physician. If the chemical is on the skin or in the eyes,
flush with cool water for 15 minutes. If the chemical was swallowed, immediately give the person water or
milk. Do not give water or milk if the patient is vomiting or has a decreased level of alertness. Do not
induce vomiting.
•Battery posts, terminals, and related accessories contain lead and lead compounds (acid) – chemicals
known to the State of California to cause cancer, reproductive harm, and are toxic and corrosive. Never
open the battery.
•Tampering or modifying the electric circuit system may cause a shock, fire or explosion and permanently
damage the system. Exposed wiring and circuitry in the charger may cause electric shock. Always keep
the charger housing closed.

Pg. 4
USER WARNINGS
SPECIFICATIONS
The following safety hazards may result in serious injury or death:
•Never leave a child unattended.
•Always sit in the seat when using this vehicle.
•Keep your hands, hair, and clothes away from moving parts.
•Always wear shoes when operating this vehicle.
•Only one rider is allowed on the vehicle at a time.
•Children under 3 years of age cannot use the vehicle.
•Only drive on level ground.
•Do not go near swimming pools or other bodies of water, drop-os, or up and down steep inclines.
•Do not drive the vehicle into loose dirt, mud, sand, fine gravel, or on wet surfaces.
•Do not drive the vehicle on streets or near cars.
Overall Dimensions
Weight
Weight Capacity
Age Range
Max Speed
Charging Time
Run Time
Battery Type
Fuse
Motor
Charger
Materials
44.5"(L) x 30"(W) x 29.5"(H)
52.9 lbs.
100 lbs.
3 – 8 years old
4 mph.
8 – 10 hours
1 – 2 hours
12V 7AH
5A/10A/13A/15A (Recoverable fuse)
Single drive motor 12V (Rotational Speed:9000r/min)
Single drive motor 12V (Rotational Speed:6000r/min)
Steering motor 12V (Rotational Speed:9000r/min)
Input: 120V
Output: DC 12V 1000MA
PP Plastic, Metal

Pg. 5
HARDWARE
PARTS
1
A
E
BC
1 PCS
1 PCS
1 PC
2 PC 2 PC
REAR AXLE
HANDLEBARS
FRONT WHEEL
F
1 PC
INSTRUMENT COVER
REAR WHEEL
G
1 PC
CHARGER
D
4 PC
HUB CAP
H
1 PC
SEAT
PLASTIC SPANNER
(PROVIDED)
METAL SPANNER
(PROVIDED)
PHILLIPS
SCREWDRIVER
TOOLS REQUIRED
APPROXIMATELY
45 MIN.
ASSEMBLY
2 PERSON
ASSEMBLY
100 LBS
CAPACITY
LBS

Pg. 6

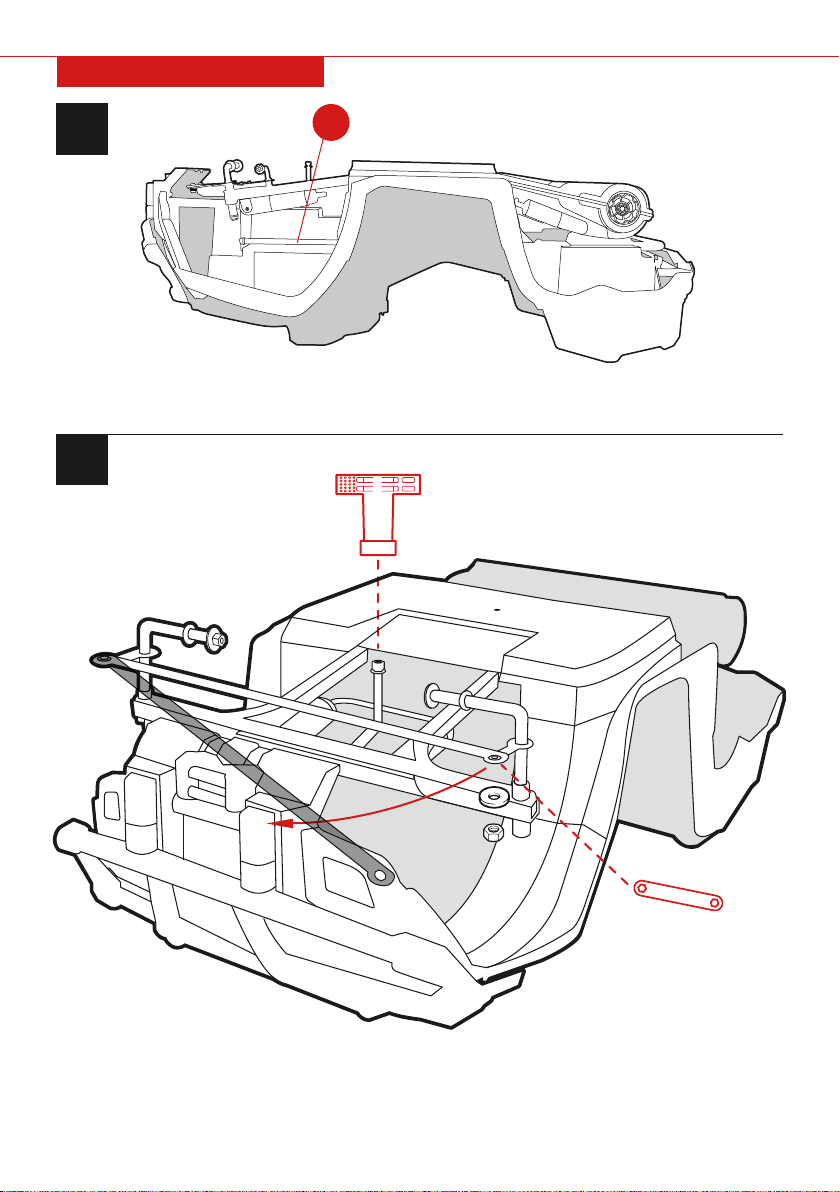

Flip the vehicle over and lay it on a level surface. Remove all the parts from the interior of the car.
Note: the part A rear axle is secured within the vehicle with zip ties.
PRODUCT ASSEMBLY
Use the plastic spanner to remove the nut and washer from the center steering column. Use the metal
spanner to remove the nut and washer on the hinge of the axle, then swing the axle around so it faces the
other direction.
2
1A
Please retain these instructions for future reference.

Pg. 7
Position the front shocks into the designated slot; they will lock into place. Replace the nut and washer
on the steering column and tighten using a plastic spanner.
While swinging the axle around, lift up the front shocks and slide the axle onto the center steering
column. Use the metal spanner to replace the nut and washer on the hinge of the axle.
3

Pg. 8
PRODUCT ASSEMBLY
Remove the nut and washer from one side of the front axle. Slide on a part B front wheel and position
it between the two washers. Use the plastic spanner to tighten the nut. Repeat on the other side. Snap
a part D hub cap onto each wheel.
Lift the rear shocks and position them into the designated slot; they will lock into place. Remove nuts and
washers from of part A rear axle and slide it through the rear gear box. Slide on a part C rear wheel and
secure it with a washer and nut. Repeat on the other side. Snap a part D hub cap onto each wheel.
5
4
B
DBD
D
C
A
Washer Washer
DC
Lift
Lock

Pg. 9
Within the seat, connect the red wire to the red
terminal on the battery.
Place the part H seat in position and secure it with
a part 1 screw.
Flip the assembly right side up. Press on the part E handlebars and it will lock in place. Press on the
part F instrument panel.
PRODUCT ASSEMBLY
8
7
6EF
1
H

CHARGING INSTRUCTIONS & WARNINGS:
CARING FOR YOUR RIDE-ON
DASHBOARD DIAGRAM
Pg. 10
FORWARD/
REVERSE
• Charging socket is located behind the seat. Insert one end of the part G charger into the charging socket
and plug the other end into a wall outlet.
• Charge the battery at least 12 hours before initial use.
• On average, you will need to charge the battery between 8 and 12 hours. Do not charge the battery for
more than 20 hours. Failure to charge the battery as directed could cause permanent damage to the
battery and void the warranty.
• Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain
completely.
• Check the battery and charger (supply cord, connector) for wear and damage before charging. Do not
charge the battery if damage has occurred.
• Only an adult who has read and understood the safety warnings should handle, charge and recharge the
battery.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap.
• Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop.
• Music Switch: plays music included with the vehicle.
PEDAL
HIGH/LOW
SPEED
HEADLIGHTS
POWER SWITCH
MUSIC SWITCH
HORN

MP3 FUNCTIONS
TROUBLESHOOTING
Reason
Low battery
Electrical protection
Switch not in the correct position
Battery connectors disconnected
Low battery
Overloaded vehicle
Uneven or sloped road
Loose connection to motor
Battery connectors disconnected
Charger not connected to socket
or outlet
Battery does not have a full charge
Normal
Problem
Battery is warm and
makes a slight noise while
charging
Slow speed
Vehicles shakes while
driving
Battery does not last
Battery does not recharge
Vehicle does not move
Solution
Fully charge the battery
Stop use for several minutes and restart
Completely press in switches
Plug in battery connectors
Fully charge the battery
Reduce the weight on the vehicle
Drive on flat pavement
Ensure the motor is properly connected to
the battery
Plug in battery connectors
Completely plug in the charger
Fully charge the battery
Normal
• USB port: play music from a USB drive
• AUX input: plug in music player to play music
• MicroSD port: play music from a MicroSD card
• : play/pause music
• : short press to play to the next song, long press to increase volume
• : short press to play the previous song, long press to decrease volume
• MODE: press to toggle between USB, MicroSD, FM radio, and normal music mode.
• FM Radio: press the to automatically seek a radio station. Press the to seek the next radio
station. Press the to return to the previous radio station.
USB PORT
MICROSD
PORT
AUX INPUT
PREVIOUS/VOLUME —
PLAY/PAUSE
NEXT/VOLUME +
MODE
Pg. 11

ASSEMBLY IS COMPLETE!
All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the
item is returned in its original product packaging and all accessories from its original shipment are included. All
returned items will receive a full refund back to the original payment method. All returned items will not be charged
a re-stocking fee.
All returned items require an RA (Return Authorization) number, which can only be provided by a Best Choice
Products Customer Service Representative when the return request is submitted. Items received without an RA
may not be accepted or may increase your return processing time. Once an item has been received by Best Choice
Products, refunds or replacements will be processed within 5 business days.
All returns must be shipped back to the Best Choice Products Return Center at the customer’s expense. If the
reason for return is a result of an error by Best Choice Products then Best Choice Products will provide a pre-paid
shipping label via email. Boxes for return shipping will not be provided by Best Choice Products, and is the
customer’s responsibility to either use the original shipping boxes or purchase new boxes.
Pictures may be required for some returns to ensure an item is not damaged prior to its return. Items returned are
not considered undamaged until they are received by Best Choice Products and verified as such. All damages to
items are the customer’s responsibility until the item has been received by and acknowledge by Best Choice
Products as undamaged.
