BDI CORRIDOR User manual

CORRIDOR®6521
DESK
LET’S GET STARTED.
INSTRUCTION MANUAL
DESIGN MATTHEW WEATHERLY

BDIUSA.COM | 3NEED ASSISTANCE? customerservic[email protected]
Congratulations on the purchase of your Corridor Desk 6521 from BDI. Your desk has
been designed to provide a lifetime of enjoyment. This manual will provide you with
assembly instructions and other helpful information that will ensure that you get the
most out of your product. Please save it for future reference.
Your Corridor Desk has been engineered for simple assembly. Please follow these
directions carefully to prevent any damage.
Should you need further assistance, contact BDI at [e-mail].
ENJOY!

4 | BDIUSA.COM CORRIDOR 6521
HARDWARE AND COMPONENTS
HARDWARE AND COMPONENTS
Unpack and identify the parts listed below. The assembly workspace should be a non-marring
surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at
customerservic[email protected]om.
Do not use power tools for assembly of this product.
For all other concerns, please contact your BDI retailer.
PART # T1
DESCRIPTION Hex Wrench
QUANTITY 1
PART # H7
DESCRIPTION Barrel Nut
QUANTITY 4
PART # H11
DESCRIPTION Bumper
QUANTITY 5
PART # T2
DESCRIPTION Leveler
Wrench
QUANTITY 1
PART # H8
DESCRIPTION M6 x 15mm
Screw
QUANTITY 4
PART # H12
DESCRIPTION M4 x 35mm
Screw
QUANTITY 4
PART # H1
DESCRIPTION M6 x 15mm
Screw
QUANTITY 3
PART # H9
DESCRIPTION M6 x 60mm
Screw
QUANTITY 6
PART # H13
DESCRIPTION Leveler
QUANTITY 4
PART # H5
DESCRIPTION M6 x 40mm
Screw
QUANTITY 6
PART # H10
DESCRIPTION M6 x 87mm
Screw
QUANTITY 2
TOOL REQUIRED
(NOT INCLUDED)
Phillips Screwdriver

BDIUSA.COM | 5NEED ASSISTANCE? customerservic[email protected]
PART # A1
DESCRIPTION Drawer Assembly
QUANTITY 1
PART # A3
DESCRIPTION Right Leg
QUANTITY 1
PART # C1
DESCRIPTION Glass Panel
QUANTITY 1
PART # A2
DESCRIPTION Left Leg
QUANTITY 1
PART # A4
DESCRIPTION Wire Management Trough
QUANTITY 1
PART # C10
DESCRIPTION Modesty Panel
QUANTITY 1
HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS
PART # C11
DESCRIPTION
Wire
Management
Lid
QUANTITY 1
PART # C12
DESCRIPTION Removable
Side Panel
QUANTITY 2
PART # C13
DESCRIPTION Center
Drawer Liner
QUANTITY 1
PART # C14
DESCRIPTION Side Drawer
Liner
QUANTITY 2

6 | BDIUSA.COM CORRIDOR 6521
STEP 1. ATTACH THE BASE
STEP 1. ATTACH THE BASE
ASSEMBLY
ASSEMBLY
STEP 1. ATTACH WIRE MANAGEMENT TROUGH
STEP2. INSTALL LEGS & LEVELERS
ASSEMBLY
ASSEMBLY
Aligning the colored dots on the same side, attach
(A4) Wire Management Trough to (C10) Modesty
Panel using (H1) Screw and (T1) Hex Wrench.
NOTE: Keep screws loose until Step 6.
Match colored dot on (A3) Right Leg with colored
dot on Modesty Panel Assembly and attach using
(H5) Screws and (T1) Hex Wrench.
NOTE: Keep screws loose until Step 4.
Repeat to attach (A2) Left Leg to Modesty Panel
Assembly. Install (H13) Levelers to the bottom of
(A2 & A3) Legs. With the help of another person,
turn desk upright onto its base.
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H1-SCREW 3
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H5-SCREW 6
H13-LEVELER 4
A4
H1
H1
H1
C10
Colored
dots
A4
C10
A2
A3
H13
H13
H13
H13
H5
H5
Colored
dot

BDIUSA.COM | 7NEED ASSISTANCE? customerservic[email protected]

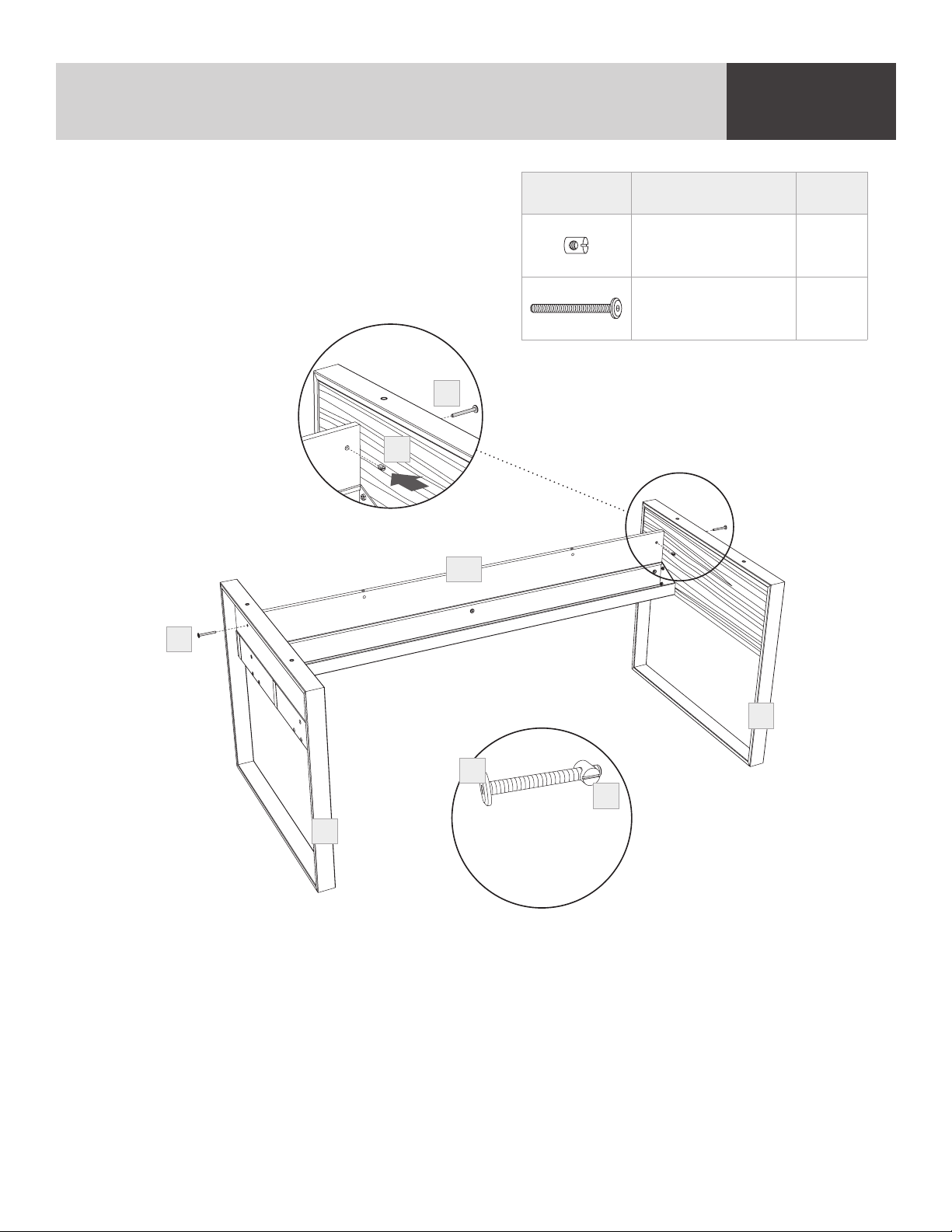

STEP 3. SECURE LEG ASSEMBLY
Insert (H7) Barrel Nut into holes of (C10) Modesty
Panel with the elongated slot sitting horizontally, and
secure with (H9) Screw through side of (A2 & A3) Legs.
NOTE: Keep screws loose until Step 4.
ASSEMBLY
PART/DESCRIPTION QTY
H7-BARREL NUT 2
H9-SCREW 2
Elongated slot
in (H7) Barrel
Nut aligns with
(H9) Screw
C10
A3
A2
H7
H9
H9
H7
H9

8 | BDIUSA.COM CORRIDOR 6521
STEP 1. ATTACH THE BASESTEP 4. INSTALL DRAWER ASSEMBLYASSEMBLY
Secure (A1) Drawer Assembly to Leg Assembly
using (H8) Screw and (T1) Hex Wrench. Insert (H7)
Barrel Nut into holes of (C10) Modesty Panel with
the elongated slot sitting vertically, and secure with
(H10) Screw through top of (A1) Drawer Assembly.
Fully tighten all Screws that have been installed in
previous steps using (T1) Hex Wrench.
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H7-BARREL NUT 2
H8-SCREW 4
H10-SCREW 2
Elongated slot in
(H7) Barrel Nut aligns
with (H10) Screw
H7
H10
H10
H10
H8
H8
H8
H8
A1
H7
H7
H7
C10
A1

BDIUSA.COM | 9NEED ASSISTANCE? customerservic[email protected]
PART/DESCRIPTION QTY
H11-BUMPER 5
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H9-SCREW 4

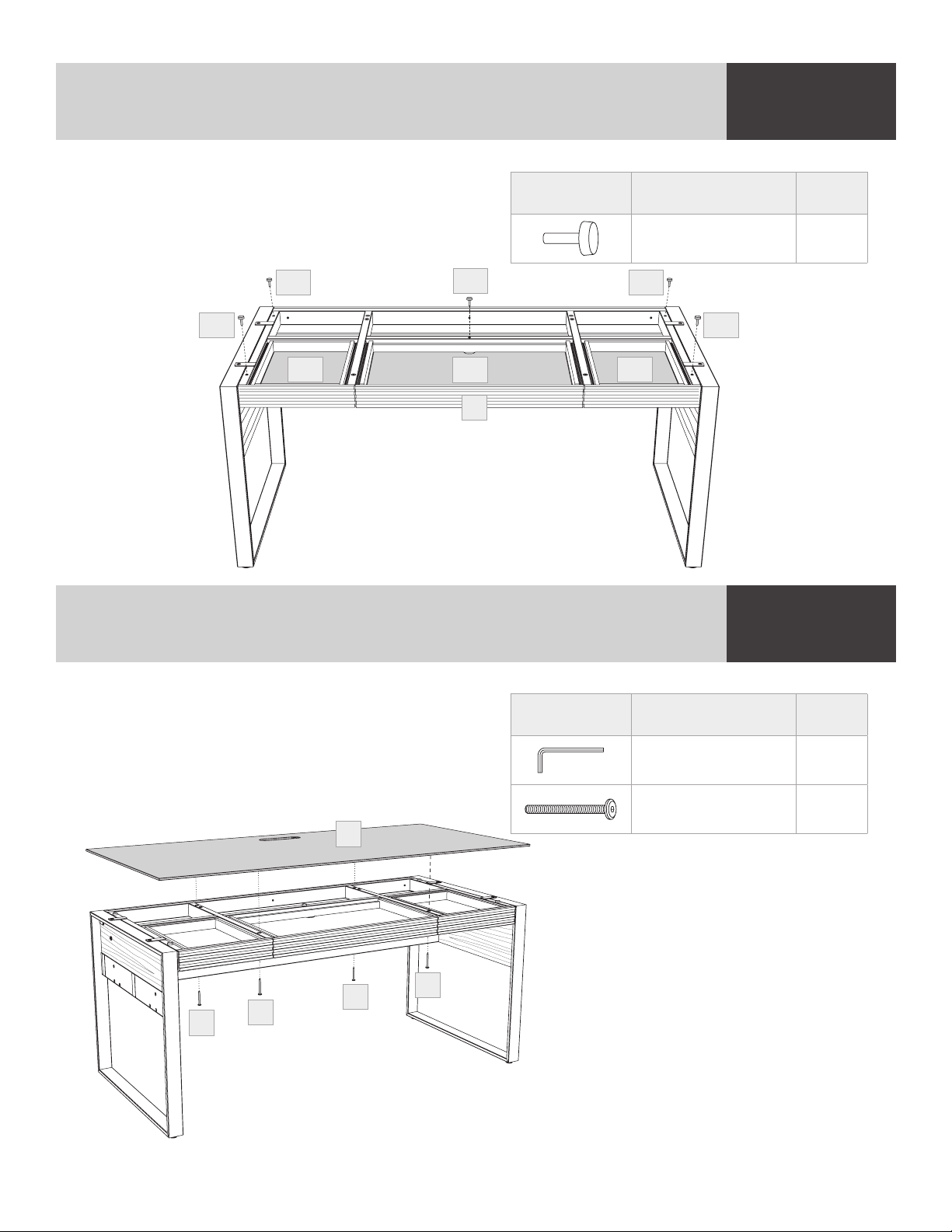

STEP 5. INSTALL BUMPERS & INSERT DRAWER LINERS
STEP 6. INSTALL GLASS PANEL
Insert (H11) Bumpers in the center hole and outer
holes of (A1) Drawer Assembly. With the fabric side
facing up, insert (C13) Center Drawer Liner into the
center drawer and (C14) Side Drawer Liners into
both side drawers.
With the help of another person gently lower (C1)
Glass Panel onto (A1) Drawer Assembly and fasten
into place using (H9) Screw and (T1) Hex Wrench.
DO NOT OVERTIGHTEN!
ASSEMBLY
ASSEMBLY
A1
H11 H11H11
H11 H11
C13
C14 C14
C1
H9 H9
H9 H9

10 | BDIUSA.COM CORRIDOR 6521
FINE TUNING
Place AC power strip/surge protector (not included) into (A4) Wire Management Trough.
To level your Corridor Desk, dial down one or more levelers with the (T2) Leveler Wrench until you
attain a level stance.

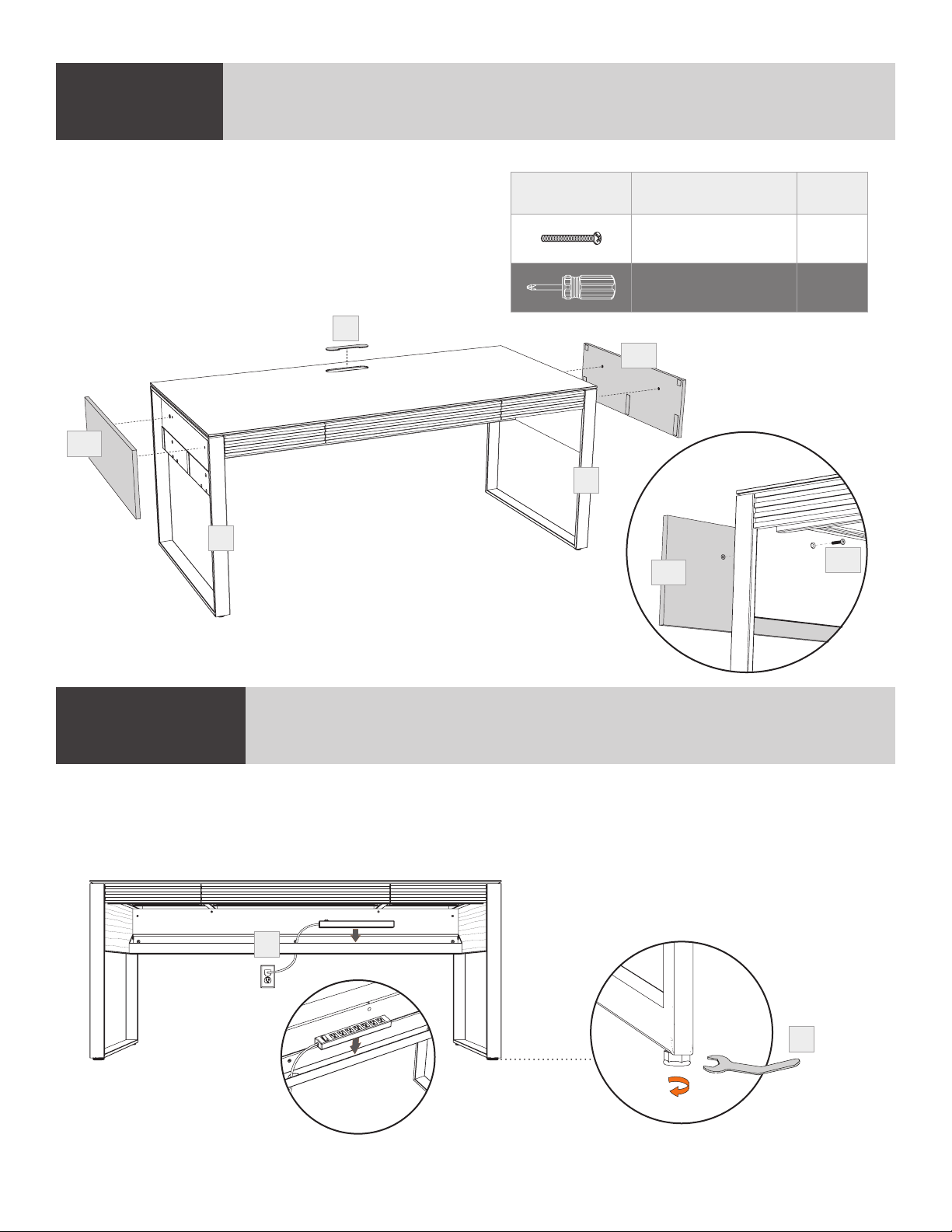

STEP 1. ATTACH THE BASESTEP 7. INSTALL REMOVABLE SIDE PANELSASSEMBLY
Place (C11) Wire Management Lid into opening
in (C1) Glass Panel. Attach (C12) Removable Side
Panels to (A2 & A3) Legs using (H12) Screws and
a Phillips Screwdriver (not included) ensuring the
top edge of the (C12) Removable Side Panel sits
against the top inside edge of (A2 & A3) Legs.
PART/DESCRIPTION QTY
H12-SCREW 4
NOT INCLUDED
Phillips Screwdriver 1
A3
A2
C11
C12
C12
C12 H12
A4
T2
