SIZE: DRAWN BY:

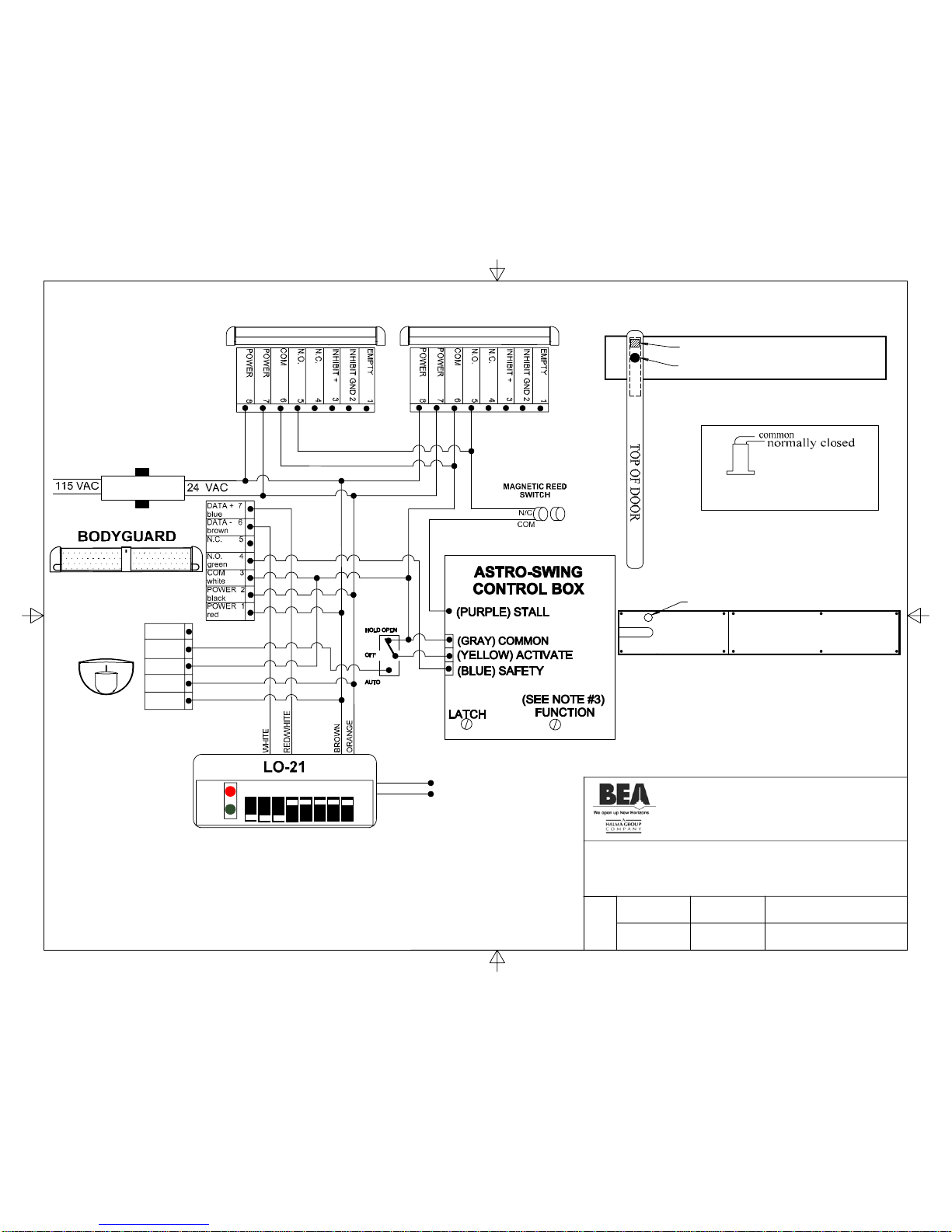

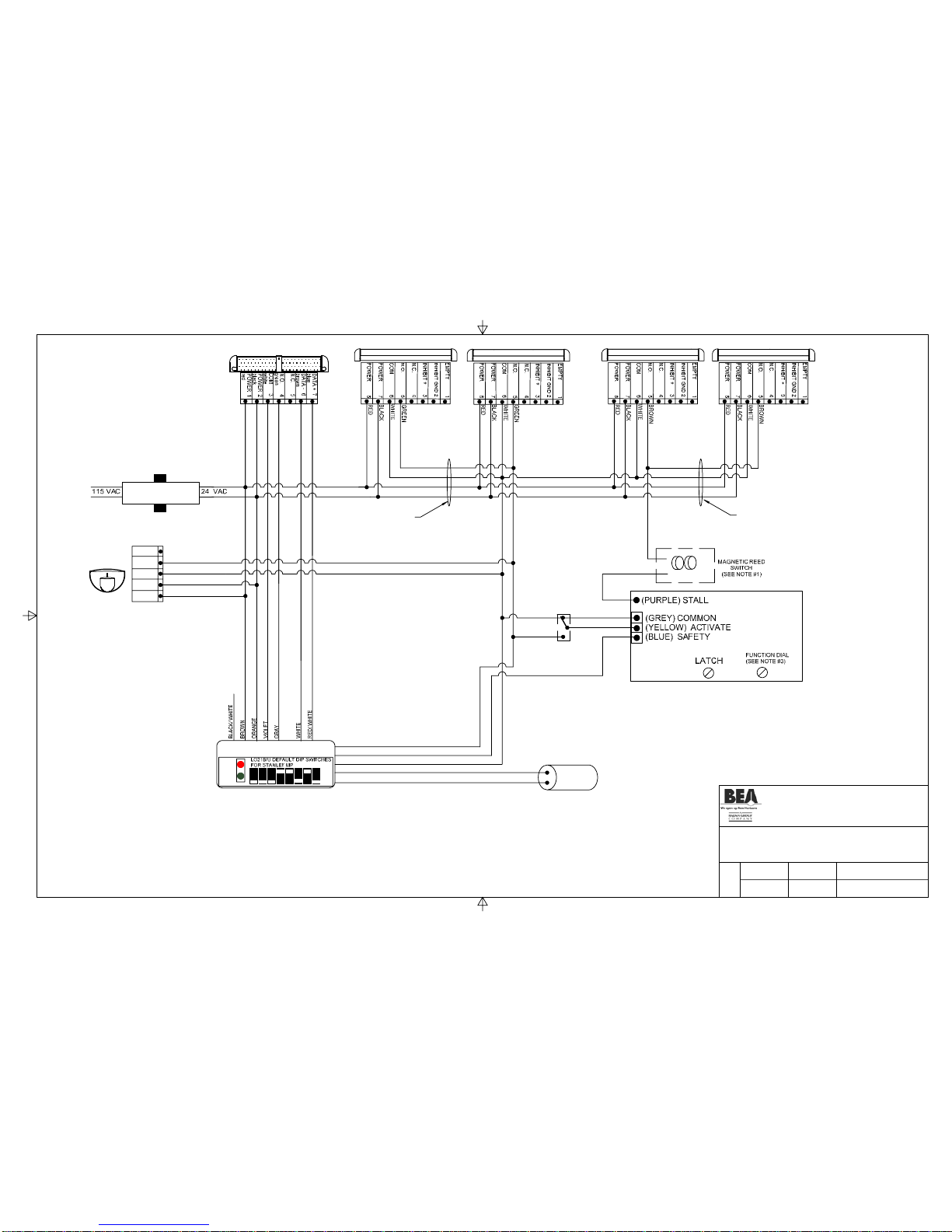

TITLE: DOROMATIC ASTROSWING WITH SAFETY
SIDE SUPERSCAN CUT-OFF SWITCH
A
NOTES: 1) POSITION DOOR AT 90 DEGREES, DRAW LINES ON BOTTOM OF HEADER TO INDICATE DOOR WHEN OPEN.
2) REED SWITCH MUST BE ACTIVATED BY MAGNET FROM 70 DEGREES THRU 90 DEGREES. THIS SWITCH WILL OPEN
THE SUPERSCAN CIRCUIT TO ELIMINATE GUIDE RAIL AND WALL INTERFERENCE.
3) ON PUSH OR INSWING SURFACE APPLIED HEADERS WITH VISABLE ARMS, USE SAME REED SWITCH IN HEADER,
WITH MAGNET POSITION ON TOP OF HEADER.
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX: (412) 249-4101
EMAIL: www.beasensors.com
REV BY:
KJG KJG 80.0074.03
SCALE: DATE:
NONE 07 AUG 05
PART NO:
SHEET
1 OF 1
TOP VIEW OF HEADER AND DOOR AT 90 DEGREES
MAGNET OR MAGNETIC TAPE
SHAFT
OPENS WITH MAGNET IN AREA
NORMALLY CLOSED REED SWITCH
BOTTOM VIEW OF HEADER

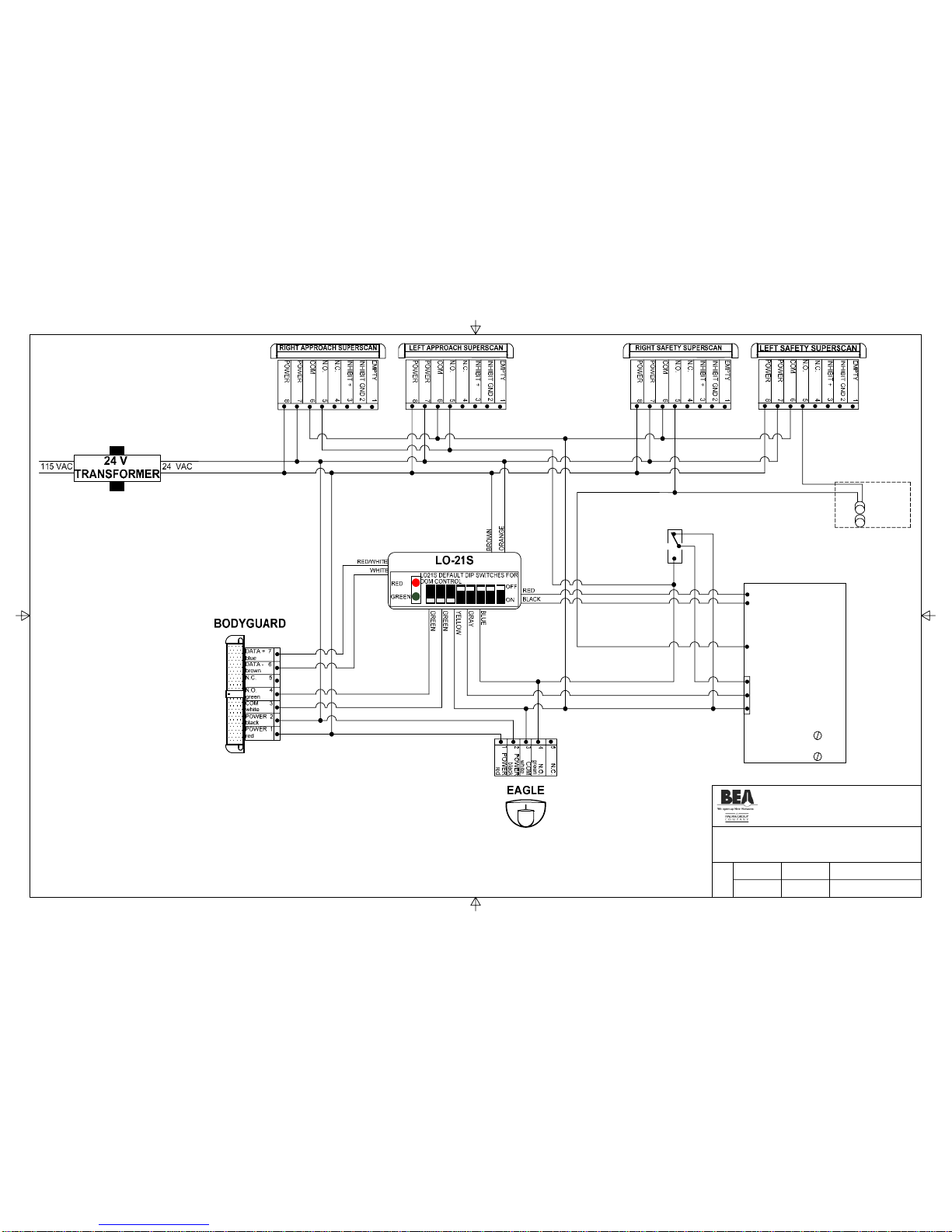

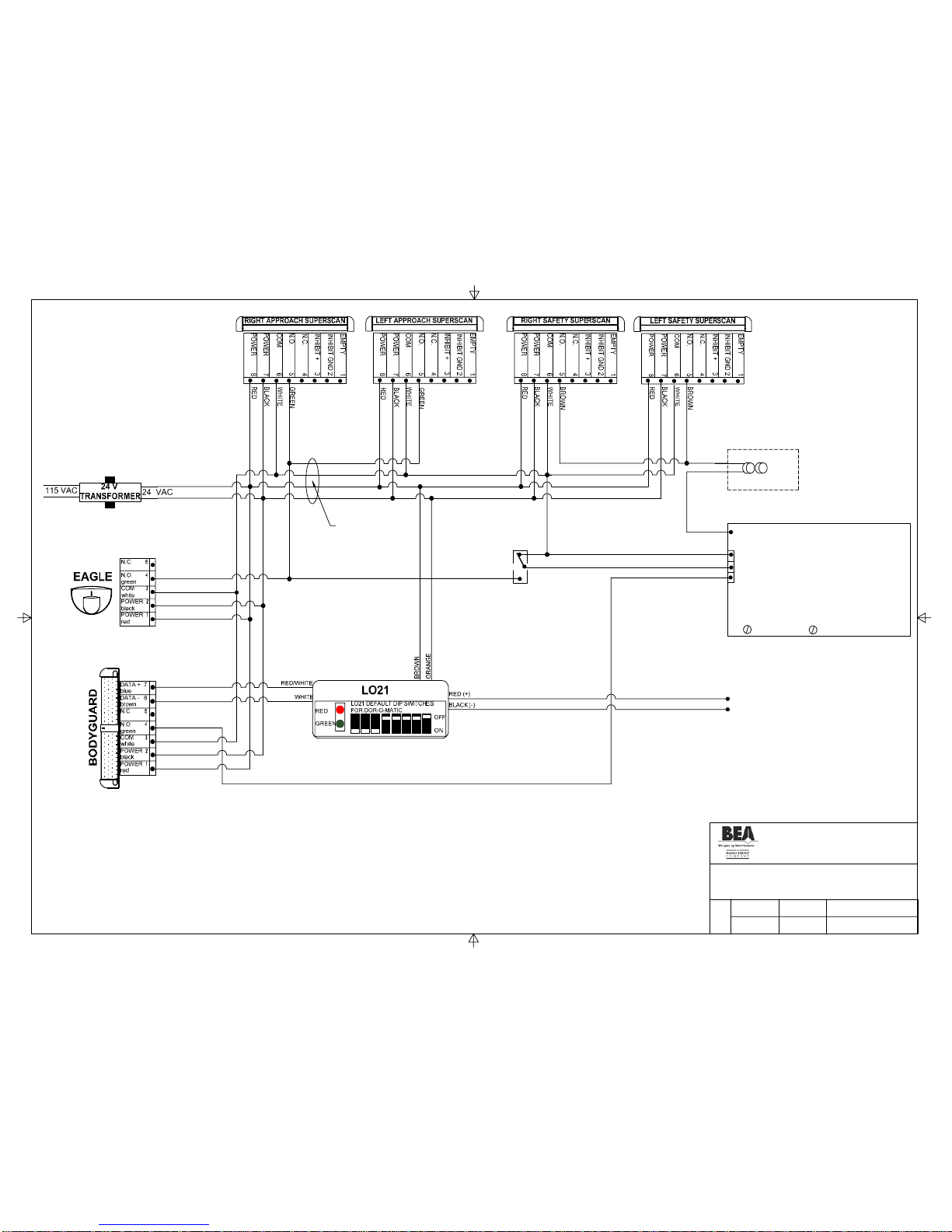

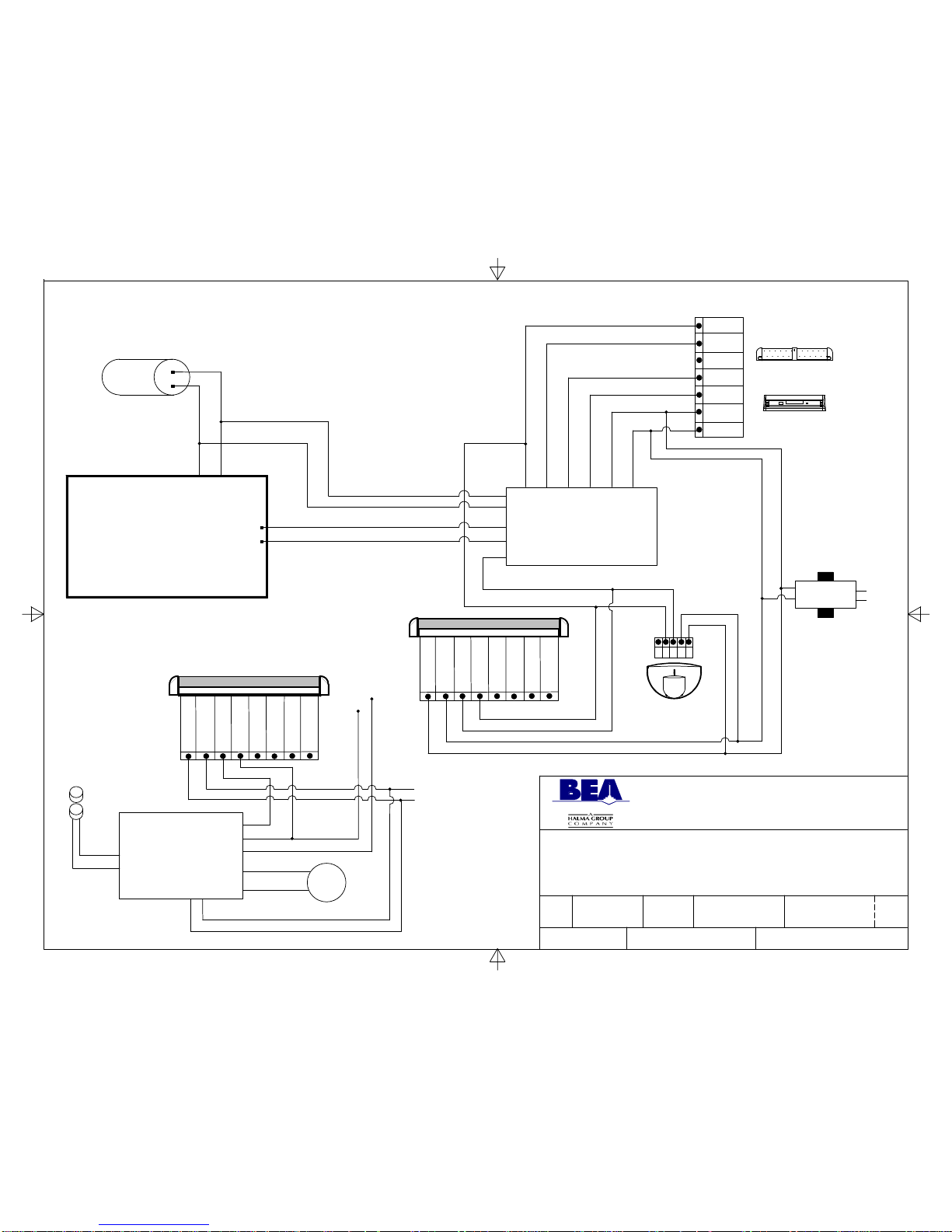

24 V
TRANSFORMER
EAGLE N.C. 5
N.O. 4
green
COM 3
white
POWER 2
black
POWER 1
red
RED
GREEN OFF
ON
LO21 DEFAULT DIP SWITCHES RED
BLACK
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
RED +
BLACK - MASTER MOTOR (VOLTAGE)
RIGHT SIDE SAFETY SUPERSCAN LEFT SIDE SAFETY SUPERSCAN
