Beacon Lighting Lucci air AIRFUSION PEREGRINE Service manual

v1.1-EU (1/2021)
LUCCI
AIRFUSION PEREGRINE
DC CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

AIRFUSION PEREGRINE Installation Instructions
1 | P a g e
CONTENTS
GB
Installation instruction manual .......................................................................................... 2
D
Installationsanleitung ........................................................................................................ 16
F
Guide d’installation............................................................................................................ 31
E
Manual de instrucciones de instalación............................................................................. 46
I
Manuale delle istruzioni di installazione............................................................................. 61
NL
Installatiehandleiding.......................................................................................................... 75
EL
Εγχειρίδιο οδηγιών εγκατάστασης .....................................................................................90
Contact:
Beacon International Ltd
Hong Kong Head Office: Room 05, 18/F, Kimberland Center, 55 Wing Hong Street, Cheung Sha Wan Kowloon, Hong Kong
Tel [phone] Fax [phone]
China showroom / Office: 11/Fl, Guzhen Lighting Building B, Mid Zhongxing Road, Guzhen, Zhongshan, GuangDong, China.
Tel: [phone] Fax: [phone]
[email protected]
www.beaconinternational.com
Beacon Lighting Europe GmbH
Campus Fichtenhain 42, 47807 Krefeld, Germany
TEL [phone] FAX [phone]
[email protected]
www.beaconlighting.eu

AIRFUSION PEREGRINE Installation Instructions
2 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power
which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and
silent operation.
Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to
65% more energy than ceiling fans with traditional AC motors.
Silent operation – This DC fan motor is programmed with a stabilised current which efficiently reduces motor
noise.
Low operating temperature – The DC power is managed effectively which brings down the motor operating
temperature to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the
longevity of the motor.
6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes
complete with a 6 speed remote, which gives a greater choice of comfort levels.
SAFETY PRECAUTIONS
1. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Cleaning and maintenance shall not be undertaken by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
4. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water
and get into the food chain, damaging your health and well-being.
5. The structure to which the fan is to be mounted must be capable of supporting a weight of 18 kg.
6. The fan should be mounted so that the blades are at least 2.3m above the floor.
7. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of 2
walls. This fan is not waterproof. When installed in an alfresco area, the ceiling fan must be positioned in
a location protected from water, wind, dust and salt. Exposure to these elements will void the warranty.
Mounting the fan in a situation where it is subject to water or moisture is dangerous and may increase the
risk of damage, injury or electrical shock.

AIRFUSION PEREGRINE Installation Instructions
3 | P a g e
8. Must be assembled and installed by a licensed electrician.
9. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
10. The replacement of parts of the safety suspension system device shall be performed by the manufacturer,
its service agent or suitably qualified persons.
11. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.

AIRFUSION PEREGRINE Installation Instructions
4 | P a g e
PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts，you should have the following:
1.
Mounting bracket x1 set
6.
Mounting bracket screws x2 Blades
screws x7 pcs
2.
Fan assembly x1 set
7.
Balance kit x1 set
3.
Bottom cover x1 pcs
8.
Receiver x1
4.
LED lamp x1 pcs
9.
Light kit extension cable x1
(For use with extension down rod)
5.
Blades x3 pcs
10.
Remote controller x1 set
Fig. 1

AIRFUSION PEREGRINE Installation Instructions
5 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 18
kg, with two long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig.
2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 13 degree angled ceiling installation. (Fig. 3)
Fig. 2
18 KG
Fig. 3
13°

AIRFUSION PEREGRINE Installation Instructions
6 | P a g e
Fig. 4

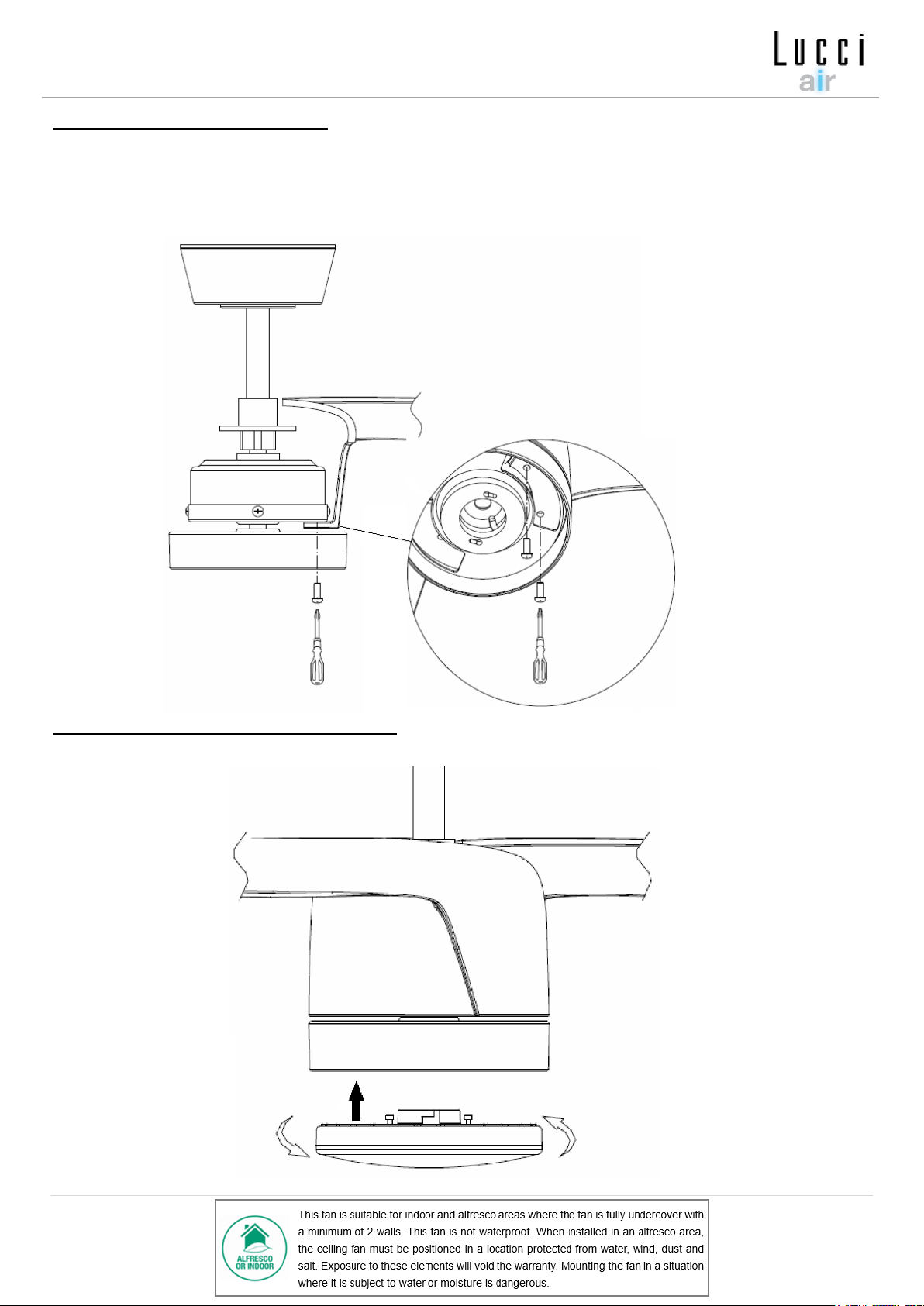

INSTALLATION OF BLADE (Fig. 4)
1. Install the fan blade to the fan assembly by tightening the 2 screws.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
Take care not to over tighten the screws, as this can damage the blades
2. Repeat the same process for the other blades.
INSTALLATION OF Lamp (optional) (Fig. 5)
•Install the lamp on the fan assembly then secure it by turning clockwise.
Fig. 5

AIRFUSION PEREGRINE Installation Instructions
7 | P a g e
Fig. 6
INSTALLATION OF Bottom cover (Fig. 6)
•If no lamp is required, Install the bottom cover to the fan assembly then secure it by turning clockwise.
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 7)
ELECTRICAL WIRING DIAGRAM THE FAN
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8)
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN
ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN
PROGRAMMING THE REMOTE AND RECEIVER TO PAIR TOGETHER.
NOTE: Ensure the motor earth wire is connected to the single earthing terminal block “1” in the
diagram below (Fig. 8).
Fig. 7

AIRFUSION PEREGRINE Installation Instructions
8 | P a g e

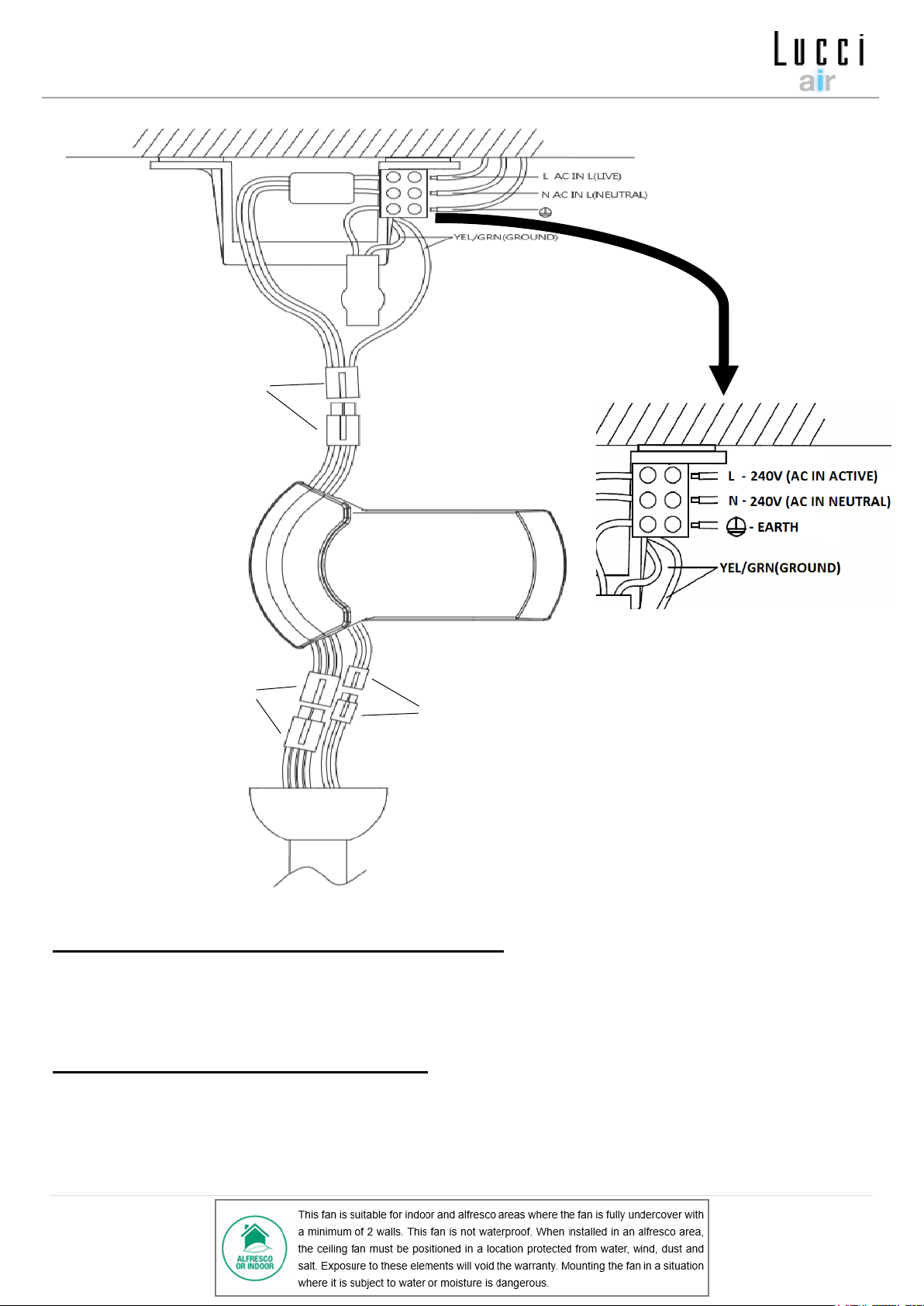

From mains supply to mounting bracket terminal block: (Fig. 8)
1. Connect the live supply wire to the “L” terminal of the terminal block on the mounting bracket.
2. Connect the neutral supply wire to “N” terminal of the terminal block on the mounting bracket.
3. Connect earth wire to the earth terminal of the terminal block on the mounting bracket.
From mounting bracket to receiver and motor: (Fig. 8)
4. Connect the supply wiring from the mounting bracket to the input of the DC motor driver/receiver.
5. Connect the output wires of DC motor driver/receiver to the input wires of the fan motor and the light kit.
Fig. 8
Mounting
Bracket
Connect together
Connect together
Connect together
Fan assembly
Receiver

AIRFUSION PEREGRINE Installation Instructions
9 | P a g e
Fig. 9

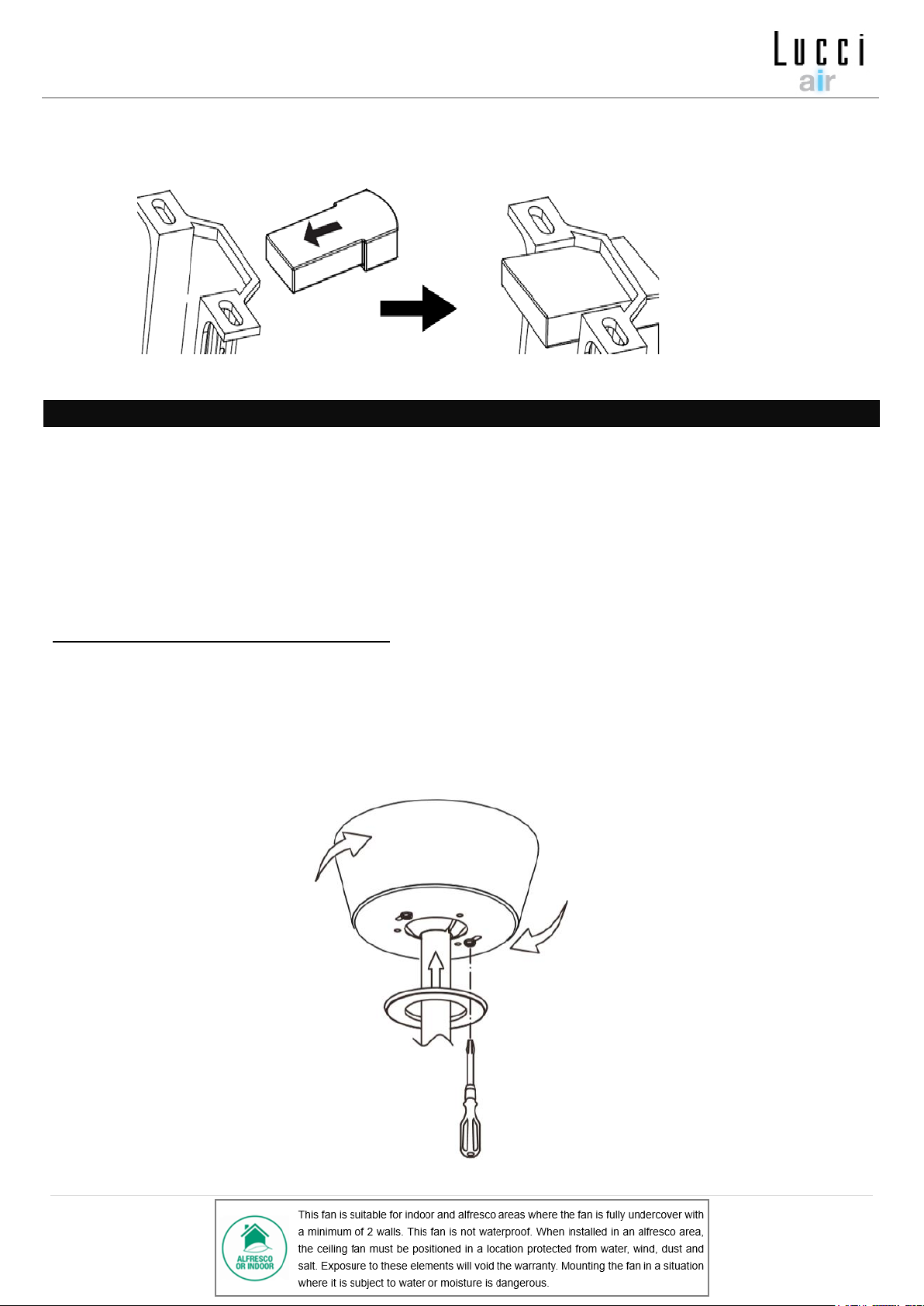

Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the mounting bracket.
Take care not to damage or loosen any of the wiring. (Fig. 9).
FINISHING THE INSTALLATION
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan
wiring via the quick connector plug.
NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity
test from the fan’s accessible metal body back to the earth terminal at the terminal
block on the mounting bracket.
INSTALLATION OF THE CANOPY (Fig. 10)
1. Loosen the 2 screws at the bottom of the mouthing bracket.
2. Slide the canopy up to the mounting bracket and align the key holes on the canopy with the screws on the
mounting bracket. Turn the canopy until it locks into place with the narrow section of the key holes and
secure it by tightening the two screws. Avoid damaging the electrical wiring prepared previously.
3. Slide the canopy cover ring up to the canopy and click in to cover the canopy cover screws.
Fig. 10
Fig. 10

AIRFUSION PEREGRINE Installation Instructions
10 | P a g e
INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 11)
USING YOUR CEILING FAN
NOTE: The remote and receiver will need to be paired after the installation of the ceiling fan.
NOTE: When two or more ceiling fans are installed in one location, please refer to the
instruction on the next page.
BATTERY INSTALLATION Fig. 12
BEFORE USING THE REMOTE TRANSMITTER
1 pc 3V CR2032 battery is required to operate the remote control.
1. Battery CR2032 is pre-installed in the remote. For first time use of the remote, remove the battery film before use.
(Fig. 12 a)
1. Locate a suitable wall to fix the remote control holder with the 2 screws. (Fig.11a).
2. Slide the remote into the holder to rest the remote. (Fig. 11b)
Fig. 11b
Fig. 11a
Battery film
Battery film
Fig. 12a

AIRFUSION PEREGRINE Installation Instructions
11 | P a g e

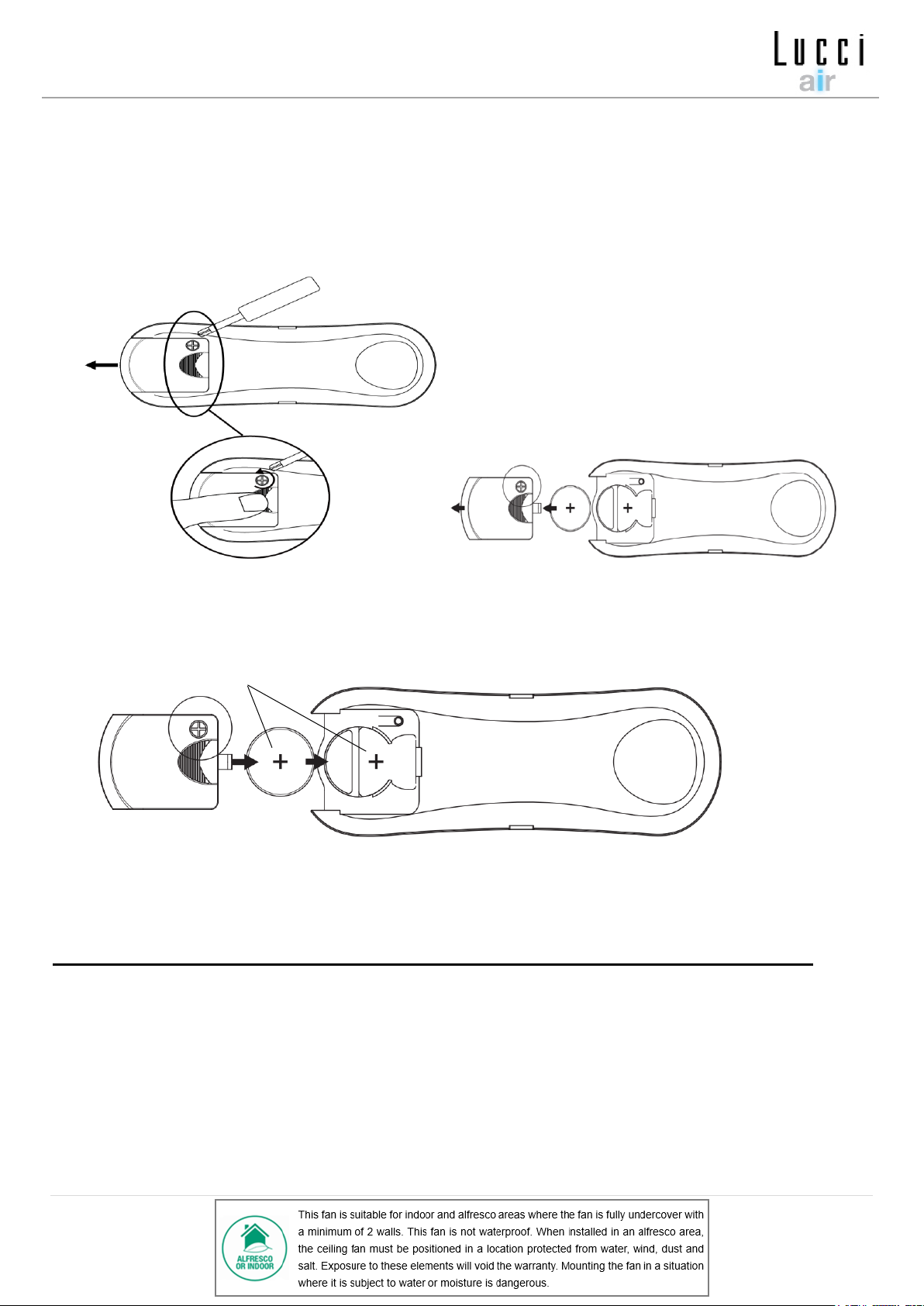

BATTERY REPLACEMENT FOR THE REMOTE TRANSMITTER
1. To replace a new battery, Press the top of the battery compartment cover and loosen the screw in the same time
further to remove the battery compartment cover (Fig. 10 b).
Note: Screw does not come apart from the battery compartment cover. Do not force the screw and battery
compartment cover apart.
2. Slide to remove the battery compartment cover from the back of the remote, to access the battery (Fig. 12b)
3. Install a new 3V CR2032 DC battery in the compartment. Please make sure the polarity of the battery is
correct. (Fig. 12c)
4. Install the battery compartment cover back onto the remote and secure by re-tightening the screw.
PAIRING REMOTE & RECEIVER – WHEN 1 DC CEILING FAN IS INSTALLED IN ONE LOCATION
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for the fan.
NOTE: Ensure power to the receiver is ON prior to pairing the remote with the receiver.
•Turn OFF the mains supply to the fan by on/off wall switch.
•Install the batteries into the remote. Please make sure the polarity of the battery is correct.
•Turn ON the power to the receiver.
Fig. 12b
Please make sure the polarity of
the battery is correct.
Fig. 12c

AIRFUSION PEREGRINE Installation Instructions
12 | P a g e
•Press and hold the “ ” button on the remote for 3-5 seconds within 30 seconds of switching the power
ON to the receiver of the ceiling fan.
If the fan has light kit attached, the light will flash on and off to indicate the paring process is activated.
•Turn ON the fan and change the speed of the ceiling fan via the remote to check the operation and
successful paring.
•If pairing has been unsuccessful, repeat these set of steps again.
PAIRING REMOTE & RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE
LOCATION
When two or more fans are located near each other, you may want to have the remote/receiver for each fan
set to a different code, so that the operation of one fan does not affect the operation of the other fan/s.
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for each fan.
NOTE: Ensure power to the receiver is ON prior to pairing the remote with the receiver.
Remote / Receiver pairing for Ceiling fan 1:
•Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.
•Install the 3V DC battery in the compartment. Please make sure the polarity of the battery is correct.
(Fig.12)
•Turn on the power to receiver 1. Keep the power OFF to receiver 2. (Each ceiling fan must have its own
isolation switch, so that only the ceiling fan that needs to be paired with the remote will be ON).
•Press and hold the “ ” button of remote 1 for 3-5 seconds within 30 seconds of switching the power ON
to the receiver of ceiling fan 1.
If the fan has light kit attached, the light will flash on and off to indicate the paring process is activated.
•Turn ON and change the speed of the ceiling fan 1 by the remote to check the operation and successful
paring.
•If pairing has been unsuccessful, repeat these set of steps again.
Remote / Receiver paring for Ceiling fan 2:
•Turn off the mains supply to the receivers of both ceiling fans 1 and 2.
•Install the 3V DC battery in the compartment. Please make sure the polarity of the battery is correct.
(Fig.12)
•Turn on the power to receiver 2. Keep the power OFF to receiver 1. (Each ceiling fan must have its own
isolation switch, so that only the ceiling fan that needs to be paired with the remote will be ON).
•Press and hold the “ ” button of remote 2 for 3-5 seconds within 30 seconds of switching the power ON
to the receiver of ceiling fan 2.
If the fan has light kit attached, the light will flash on and off to indicate the paring process is activated.
•Turn ON and change the speed of ceiling fan 2 by the remote to check the operation and successful
pairing.
•If pairing has been unsuccessful, repeat these set of steps again

AIRFUSION PEREGRINE Installation Instructions
13 | P a g e
Remote Control Buttons (Fig. 13)
1 - FAN SPEED CONTROL BUTTON:
There are 6 available speeds. “I” button is for the lowest speed, and “VI” button is for
the fastest speed.
NOTE: when you turn on the fan for the first time or switch the main power to the
controller, you need to start the fan on high “VI” speed first and then choose a lower
speed. A 5-10 seconds is required to allow the DC fan to respond to the remote each
speed or fan direction selections.
2 - FAN OFF BUTTON:
Press the button to turn the fan off.
3 - REVERSE FUNCTION BUTTON:
Press the button to activate the reverse running function. The fan must be operating
to activate the reverse function.
4 - LIGHT CONTROL BUTTON:
Press the button to turn the light ON/OFF.
The LED light has a 3-step dimmable function which is controlled by an ON/OFF switch.
When the LED light is ON and at 100% brightness, press the light button “ON and then OFF within 5
seconds”, to dim the LED light. Repeat pressing ON and then OFF within 5 seconds to dim further in the
following sequence: 100% brightness → 50% brightness → 20% brightness → 100% brightness.
To switch back to 100% brightness at any stage, turn OFF the luminaire, and then wait after 5 seconds turn
ON the luminaire, it will reset to 100% brightness.
REPAIRING THE REMOTE & RECEIVER PAIRING – WHEN 1 CEILING FAN IS INSTALLED
•If the remote and receiver lose control after installation or during use, the pairing of the remote and the
receiver must be repaired.
•Below are the operating symptoms and the steps to repair the pairing of the remote and receiver.
Symptoms:
•Loss of control - Fan is only running at high speed after installation
•Loss of control - No reverse function after installation
•Loss of control - Remote cannot communicate with receiver
Repairing Steps:
A. Switch OFF the main power to ceiling fan for 30 seconds.
B. Press and hold the “ ” button on the remote for 3-5 seconds within 30 seconds of switching the power
ON to the receiver of the ceiling fan.
C. Turn ON and change the speed of the ceiling fan via the remote to check the operation and successful
paring.
Fig. 13

AIRFUSION PEREGRINE Installation Instructions
14 | P a g e
THE RECEIVER PROVIDES THE FOLLOWING LEVEL OF PROTECTION:
•Lock position: the receiver has a built in safety feature to protect against obstruction during operation.
The motor will be locked from operation and will disconnect from power after 30 seconds of interruption.
Please remove obstacles before re-starting. To reset, simply turn off the power supply to the fan motor
and re-start.
•Over 80W protection: when the receiver detects power consumption which is greater than 80W, the
receiver power will be stopped and operation will immediately discontinue. Turn the receiver power on
after 5 seconds to restart the fan.
AFTER INSTALLATION
NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet.
If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of afew centimetres
is quite acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod
are secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to
the instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should
the ceiling fan become un-balanced again. Store your balancing kit away after installation for future use if
required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan
motor noise. This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new
fan disappear during this time.
The manufacturer’s warranty covers actual faults that maydevelopand NOT minor complaints suchas hearing
the motor run –All electric motors are audible to some extent.
CARE & CLEANING
NOTE: Always turn OFF the power at the mains switch before performing any maintenance
or attempting to clean your fan.
•Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush
or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or the
blades and create the possibility of an electrical shock.
•Ensure that the fan does not come in contact with any organic solvents or cleaners.
•To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
•The motor has a permanently lubricated ball bearing so there is no need to oil.

AIRFUSION PEREGRINE Installation Instructions
15 | P a g e
SAFETY PRECAUTIONS FOR BATTERY
-WARNING – Keep new and used batteries away from children.
-CAUTION –Do not ingest battery—Chemical burn hazard.
-Always use 3V CR2032 DC battery type with this ceiling fan remote controller.
-Ensure the batteries are inserted with the correct polarity.
-To prevent false operation during battery insertion or replacement, this ceiling fan must be disconnected
from the supply mains.
-Remove batteries from the product when not in use for long periods of time.
-Batteries must be removed from the remote transmitter before it is discarded.
-Dispose of exhausted batteries immediately and safely (so they cannot be retrieved by children). Batteries
can still be dangerous. Contact your local council to safely dispose of the battery.
-Regularly check the product and make sure the battery box lid is correctly secured. If the battery
compartment does not close securely, stop using the product and keep it away from children.
-If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention. If you suspect your child has swallowed or inserted a button battery, call the emergency
number of your country if you are in Europe for fast, expert advice.
-Battery Leaks: Battery contains chemicals and should be treated as any chemical would. Take precautions
when handling leaked battery chemicals. Battery chemicals should not be placed near the eyes or
ingested. call the emergency number of your country if you are in Europe for fast, expert advice.
TECHNICAL INFORMATION
Fan
56’’ DC fan - PEREGRINE
Fan Models
LD-PERE -FAN / SKU# 213280 , 213281,213282
Rated Voltage
220-240V~ 50Hz
Rated Wattage (Motor)
38W
Rated wattage (Lamp)
GX53 (SKU#121354; SKU#121359 ) , Max.12W (SKU#121354 included)
Battery for remote
3V CR2032 (Included)
Weight
4.5 kg
Canopy Dimensions
H:55mm Dia:142mm
WARRANTY INFORMATION
IN EUROPE – If you are a European customer please contact the retail outlet where the fan was purchased
for warranty service.

AIRFUSION PEREGRINE Installation Instructions
16 | P a g e
VIELEN DANK FÜR IHREN KAUF
Vielen Dank, dass Sie sich für einen der neuesten energiesparenden Deckenventilatoren entschieden haben.
Dieser Ventilator läuft mit Gleichstrom. Dadurch ist er äußerst energieeffizient, während gleichzeitig die
Luftbewegung mit hohem Volumen und der geräuscharme Betrieb erhalten bleiben.
Energieeinsparung – Der Gleichstrommotor ist die neueste Technologie im Ventilatordesign. Sein
hocheffizienter Motor spart bis zu 65 % mehr Energie als Deckenventilatoren mit herkömmlichen
Wechselstrommotoren.
Geräuscharmer Betrieb – Dieser Gleichstrom-Ventilatormotor wurde mit stabilisiertem Strom programmiert,
wodurch das Motorgeräusch effizient reduziert wird.
Niedrige Betriebstemperatur – Die Gleichstromleistung wird effektiv verwaltet, wodurch die
Motorbetriebstemperatur auf weniger als 50 ℃ sinkt. Dies führt zu einem viel kühleren Motor als ein Standard-
Wechselstromventillator und erhöht die Lebensdauer des Motors.
Fernbedienung mit 6 Stufen – Normale Wechselstrom-Deckenventilatoren haben normalerweise nur 3
Stufen, dieser Gleichstromventilator wird mit einer Fernbedienung mit 6 Stufen ausgeliefert, wodurch eine
größere Auswahl an Komfortstufen vorhanden ist.
SICHERHEITSVORKEHRUNGEN
1. Dieses Gerät kann von Kindern ab 8 Jahren sowie Personen mit eingeschränkten physischen,
sensorischen oder geistigen Fähigkeiten oder Mangel an Erfahrung und Wissen im Umgang mit dem
Gerät verwendet werden, wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs unterwiesen
wurden und die daraus resultierenden Gefahren verstanden haben. Die Reinigung und Wartung dürfen
nicht durch Kinder ohne Aufsicht erfolgen.
2. Kinder müssen beaufsichtigt werden, um sicherzustellen, dass sie nicht mit dem Gerät spielen.
3. In die feste Verkabelung muss ein allpoliger Trennschalter gemäß den örtlichen Verkabelungsvorschriften
eingebaut werden.
4. Entsorgen Sie elektrische Geräte nicht als unsortierten Siedlungsabfall, nutzen Sie separate
Sammelstellen. Wenden Sie sich an Ihre Gemeindeverwaltung, um Informationen über die verfügbaren
Sammelsysteme zu erhalten. Wenn Elektrogeräte auf Deponien entsorgt werden, können gefährliche
Stoffe in das Grundwasser eindringen und in die Nahrungskette gelangen, was Ihrer Gesundheit und
Ihrem Wohlbefinden schadet.
5. Die Struktur, an der der Ventilator montiert werden soll, muss ein Gewicht von 18 kg tragen können.
6. Der Ventilator sollte so montiert werden, dass sich die Flügel mindestens 2,3 m über dem Boden befinden.
7. Dieser Ventilator ist für Innen- und Außenbereiche geeignet, sofern er geschützt – vollständig von einem

AIRFUSION PEREGRINE Installation Instructions
17 | P a g e
Dach bedeckt und durch mindestens zwei Wände geschützt – betrieben wird. Dieser Ventilator ist nicht
wasserfest. Im Freien muss der Deckenventilator an einem Ort installiert werden, der vor Wasser, Wind,
Staub und Salz geschützt ist. Andernfalls erlischt die Garantie. Die Montage des Ventilators unter
Bedingungen, unter denen er Wasser oder Feuchtigkeit ausgesetzt ist, ist gefährlich und kann das Risiko
von Schäden, Verletzungen oder Stromschlägen erhöhen.
8. Das Produkt muss von einem qualifizierten Elektriker zusammengebaut installiert werden.
9. WARNUNG: Bei ungewöhnlichen Unwucht- oder oszillierenden Bewegungen ist der Deckenventilator
sofort außer Betrieb zu nehmen und der Hersteller, sein Servicepartner oder entsprechend qualifizierte
Personen zu kontaktieren.
10. Der Austausch von Teilen der Sicherheitsaufhängung ist vom Hersteller, seinem Servicepartner oder
entsprechend qualifizierten Personen durchzuführen.
11. Die Befestigungsmittel zur Befestigung an der Decke, wie z. B. Haken oder andere Vorrichtungen, sind
mit einer ausreichenden Festigkeit zu befestigen, um dem 4-fachen Gewicht des Deckenventilators
standzuhalten; die Montage des Aufhängungssystems muss vom Hersteller, seinem Servicepartner oder
entsprechend qualifizierten Personen durchgeführt werden.

AIRFUSION PEREGRINE Installation Instructions
18 | P a g e
TEILELISTE
•Packen Sie Ihren Deckenventilator vorsichtig aus. Entfernen Sie alle Teile und Beschläge.
•Breiten Sie alle Komponenten auf einer glatten Fläche aus und vergewissern Sie sich vor der Montage,
dass keine Komponenten fehlen. Falls Teile fehlen, bringen Sie das komplette Produkt zwecks
Überprüfung oder Austausch zum Einkaufsort zurück.
•Prüfen Sie, ob der Deckenventilator während des Transports beschädigt wurde. Benutzen/Installieren Sie
kein Produkt, das in irgendeiner Weise beschädigt zu sein scheint. Bringen Sie das komplette Produkt
zwecks Überprüfung, Reparatur oder Austausch zum Einkaufsort zurück.
•Überprüfen Sie alle Teile. Sie sollten Folgendes haben:
1.
1 Halterungsset
6.
2 Schrauben für Montagehalterung 7 Stck.
Schrauben für Flügel
2.
1 Ventilatorbaugruppe
7.
1 Gewichteset zum Auswuchten
3.
1 Untere Abdeckung
8.
1 Empfänger
4.
1 Stck. LED-Lampe
9.
1 Verlängerungskabel für Beleuchtungssatz
(Zur Verwendung mit
VerlängerungsDeckenstange)
5.
3 Flügel
10.
1 Fernbedienungssatz
Abb. 1

AIRFUSION PEREGRINE Installation Instructions
19 | P a g e
MONTAGE DES VENTILATORS
BENÖTIGTE WERKZEUGE:
- Kreuzschlitz-/ Flachkopf-Schraubendreher
- Zange
- Einstellbarer Schraubenschlüssel
- Trittleiter
- Seitenschneider
- Verkabelung, Versorgungskabel gemäß den örtlichen und nationalen Verkabelungsvorschriften und -
bestimmungen
MONTAGE DER HALTERUNG
•Der Deckenventilator muss mit einem Abstand von 300 mm von der Flügelspitze bis zum nächsten Objekt
oder den Wänden installiert werden.
•Fixieren Sie mithilfe der zwei mitgelieferten langen Schrauben die Halterung mit dem Baldachin an einem
Deckenbalken oder einem Deckenträger, der mindestens eine Last von 18 kg tragen kann. Stellen Sie
sicher, dass mindestens 30 mm der Schraube in die Halterung eingeschraubt sind. (Abb. 2)
HINWEIS: Die mitgelieferten Befestigungsschrauben sind nur für Holzkonstruktionen geeignet. Für
andere Konstruktionen als Holz MUSS der entsprechende Schraubentyp verwendet werden. Stellen
Sie sicher, dass die verwendeten Schrauben für die Montagefläche und die Umgebung geeignet sind.
MONTAGE AN EINER DACHSCHRÄGE
Dieses Ventilator-Aufhängungssystem unterstützt die Montage des Ventilators an einer Schräge von maximal
13 Grad. (Abb. 3)
Abb. 2
18 kg
Abb. 3
13°
DECKENTRÄGER MUSS EINE
TRAGFÄHIGKEIT VON BIS ZU 18
KG AUFWEISEN.
HINWEIS: DIESES BILD DIENT NUR ZUR ERKLÄRUNG UND
ZEIGT NICHT DIE TATSÄCHLICHE HALTERUNG.
