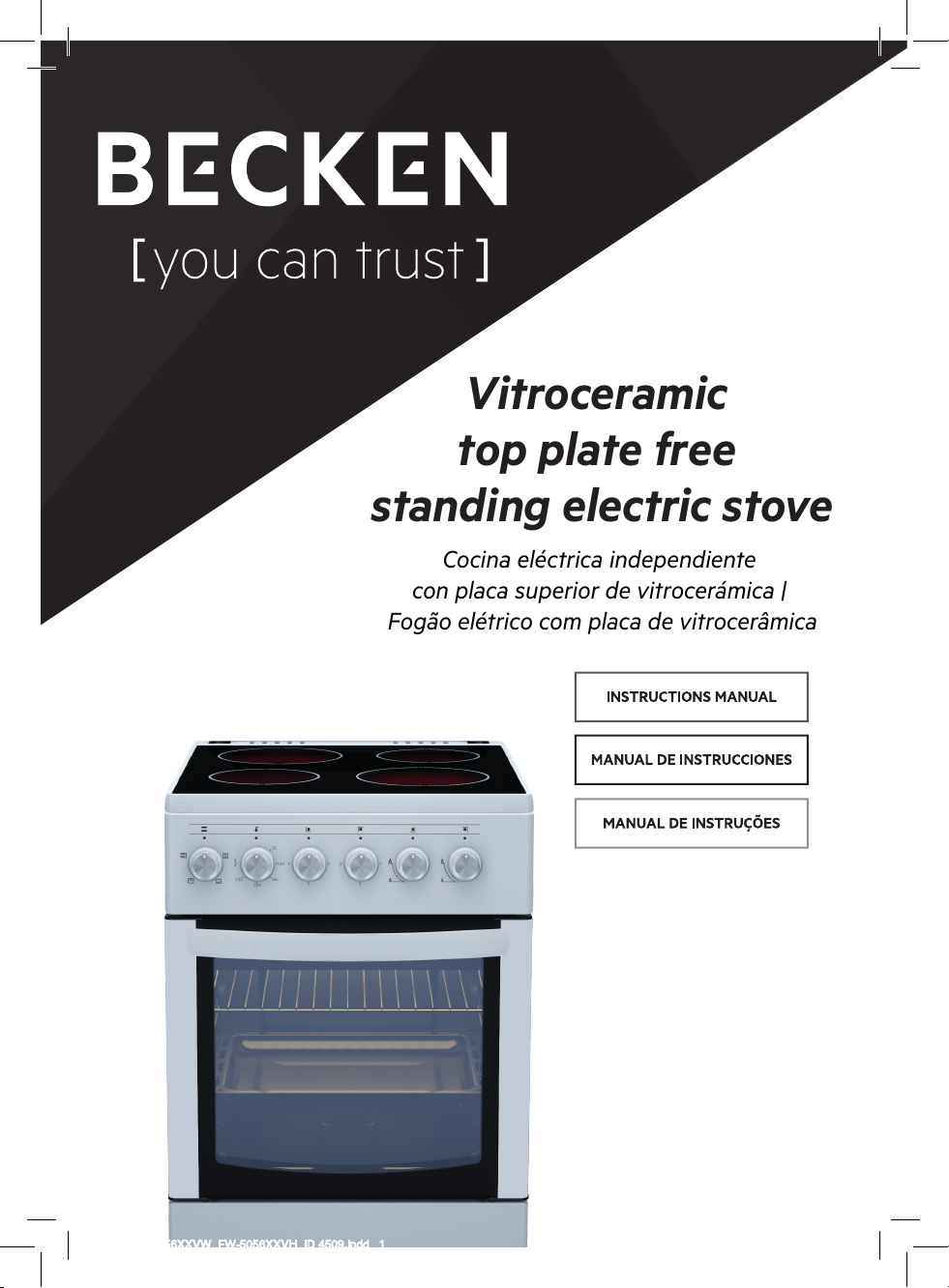

Becken BFE4915WH User manual

Vitroceramic
top plate free
standing electric stove
Cocina eléctrica independiente
con placa superior de vitrocerámica |
Fogão elétrico com placa de vitrocerâmica
BFE4915 WH
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 1 19/08/2019 12:19

Dear client,
Thank you for purchasing this product.
The quality of this appliance has been certified by several
laboratory tests. This instructions manual is provided to
simplify the use of the appliance as well as to guarantee a
safe use.
Please read carefully the instructions and safety measures
described in this manual.
We sincerely hope you will be satisfied when using your new
appliance.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 2 19/08/2019 12:19

3
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
INDEX
1. SAFETY INSTRUCTIONS 4
1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6
2. OPERATING INSTRUCTIONS 12
2.1. Product Description 12
2.2. Product Usage 13
2.3. Maintenance 20
2.4. Troubleshooting 21
3. TECHNICAL SPECIFICATIONS 23
4. POSTSALE SERVICE 27
5. ENVIRONMENTAL PROTECTION 27
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 3 19/08/2019 12:19

4
1. SAFETY INSTRUCTIONS
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning: to avoid the risk of electric shock, do not
remove the cover. The interior does not contain
any parts that can be repaired by the user. Ask for
assistance from the Customer Support Service.
Important Warnings
Before using your appliance read this instructions manual
carefully and keep it in a safe place as you may need to
consult it in the future.
Before turning on your appliance, and to ensure a safe and
correct operation, do not use if:
• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.
To avoid hazards or deterioration of your appliance through
incorrect use it is advisable to read these instructions thoroughly.
Your appliance may not be used for other purposes than the
ones intended and solely for household use. Any damage
resulting from using the appliance outside this scope, any
incorrect use, as well as any manual modications to the product
will not be covered and automatically voids the warranty.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 4 19/08/2019 12:19

5
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
Assistance
In case of malfunction, take your appliance to the Customer
Support Service for assistance.
This appliance can be used by children from the age of 8
and by people with reduced physical, sensorial or mental
capabilities and/or lack of experience and knowledge if they
have been given instructions on using the appliance safely
and if they understand the hazards involved. Children may
not play with the appliance. Cleaning and maintenance must
not be carried out by children without supervision.
These instructions are also available at
www.suporteworten.pt
1.1. Power Supply
Make sure the main voltage is compatible with the
appliance’s. If this is not the case please consult the
Customer Support Service.
1.2. Power Cord and Other Cables
Do not tangle the cord or pull it to disconnect the appliance.
Also, keep the cord away from warm surfaces.
Never use the appliance if it has a damaged cable or socket.
Take it to the Customer Support Service for replacement.
1.3. Humidity and Water
Do not use your appliance in humid places. Do not allow
the appliance to become wet under any circumstances
as this may be dangerous. To avoid fire hazard or electric
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 5 19/08/2019 12:19

6
shock do not expose your appliance to humidity or water.
Furthermore, do not place your appliance under water (e.g.
for cleaning).
1.4. Cleaning
Before cleaning, be sure to switch o the appliance and
remove the plug from the main power supply. Always allow
the unit to cool down before cleaning.
To clean the exterior of the product use a dry soft cloth only.
1.5. General Precautions
• Please follow the instructions in the user manual which will
help you to properly install and operate this product and
enjoy its advanced features. Please keep the instructions
for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried
out by authorized professionals.
• Any damage caused by manual modifications to the
product is not covered by the warranty.
• If this product is used for other purposes than the ones
originally intended, or if it is not correctly connected, the
product may become damaged and the warranty will be
voided.
• Pieces of packaging (plastic bags, polystyrene etc.) must
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 6 19/08/2019 12:19

7
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
not be left within reach of children, as they are potentially
dangerous. Please dispose of packaging thoughtfully by
the appropriate means.
• WARNING: this appliance must be earthed!
• Please find all required information regarding your stove’s
power and ratings on the rating label located behind the
appliance.
• Ensure that the electricity supply is o before installing
your appliance.
• Ensure that the appliance is o before replacing the lamp
to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its services agent or similar qualified persons
in order to avoid hazard.
• Usage of your appliance creates moisture and heat in the
room; make sure your kitchen is well ventilated.
• Keep your stove’s electrical cable away from hot areas; do
not let it touch the appliance. Keep them away from sharp
sides and heated surfaces.
• Prolonged intensive use of the appliance may call for
additional ventilation, for example increasing the level of
mechanical ventilation where present.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 7 19/08/2019 12:19

8
• When the stove is hot, never touch the stove glass with
bare hands.
• This appliance is for cooking purposes only. It must not
be used for other purposes like heating a room. All our
appliances are only for domestic use, not for commercial
use.
• Before using your appliance, keep curtains, paper or
flammable items away from it. Do not keep combustible or
flammable things in or near the appliance.
• Use oven mitts. Do not touch hot surfaces.
• Do not transport the stove holding it by its door handle.
• Do not use the stove in any potentially explosive
atmosphere.
• f the current rate of the fuse in your installation is less than
16 Amp, have a qualified electrician fit a16 Amp fuse.
• When the oven is being used, some parts may become hot;
children should be kept away and supervised at all times.
• Do not splash cool water onto an oven tray or inside the
oven when the oven surface is still hot. Rising steam may
cause burns and a sudden temperature exchange may
cause damages on the surface of the stove.
• WARNING: accessible parts may become hot during use.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 8 19/08/2019 12:19

9
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
Young children should be kept away.
• WARNING: the appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children under the age of 8 should be
kept away unless continuously supervised.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass given they can scratch the
surface which may result in the glass shattering.
• This appliance is produced in accordance with the safety
regulations. Incorrect use will harm people and damage the
stove.
• The stove must be supplied via a suitable double pole
isolating switch, with a minimum contact separation of
3 mm in all poles placed in a readily accessible position
adjacent to the stove.
• Children should be supervised to ensure they do not play
with the stove. Never let them play with the stove.
• The stove may be located in a kitchen, a kitchen/diner or
bed/sitting room but not in a room containing a bath or
shower.
• Caution: glass lids may shatter when heated. Turn o all
burners before shutting the lid. Any spillage should be
removed from the lid before opening.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 9 19/08/2019 12:19

10
• In models with a digital timer, you will to reset your digital
timer rightly following a power cut. Otherwise, your stove
will not operate.
• Caution: accessible parts may be hot when the grill is in
use. Young children should be kept away.
• Do not put flammable, combustible, explosive liquid able
or deformable by heat any material in the stove against
possible risk of danger even if your appliance is not in use.
• Bread may catch fire if the toasting time is too long. Close
supervision is necessary during toasting.
• When cleaning the fan guard panel (optional), the stove
must be switched o before removing the guard. After
cleaning it, the guard must be replaced in its correct
position into the stove.
• WARNING: before obtaining access to terminals, all supply
circuits must be disconnected.
• WARNING: unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch o the appliance
and then cover flame e.g. with a lid or a fire blanket.
• WARNING: danger of fire: do not store items on the
cooking surfaces.
• WARNING: if the surface is cracked, switch o the
appliance to avoid the possibility of electric shock.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 10 19/08/2019 12:19

11
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
• The appliance is not intended to be operated by means of
an external timer or separate remote-control system.
• WARNING: this stove is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
• The glass ceramic can be damaged by objects falling onto it.
• If the surface is cracked, switch o the appliance to
avoid the possibility of electric shock, for hob surfaces of
glassceramic or similar material which protect live parts.
• When the stove is being used, some parts may become hot,
even when you the knobs have been turned on. Children
should be kept away and supervised at all times.
• Do not touch to cooking vitroceramic hob zone a few
minutes after use until you are sure the surface is cold.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 11 19/08/2019 12:19

12
2. Operating Instructions
2.1. Product Description
Appliance Symbols:
Closed
Top heating element
Stove & grill heating element
Grill heating element
Oven lamp
Stove heating element
Grill & turnspit
Turbo fan
Turnspit
1. Stove
2. Command panel
3. Wire grid
4. Tray
5. Cavity
6. Bottom cover
7. Door handle
8. Stove door
9. Command knobs
10. Bottom shelve
11. Middle down shelve
12. Middle top shelve
13. Top shelve
14. Oven lamp
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 12 19/08/2019 12:19

13
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
2.2. Product usage
This user manual is prepared for more than one model. Some of the
features specified in the Manual may not be available in your appliance.
INSTALLATION
• The adjustment conditions for this appliance are stated on the rating
label.
• Your stove requires a 32-40 Ampere supply. If necessary, installation
by a qualified electrician is recommended.
• Electrical connection of the stove should only be made to earthed
connections/sockets installed in compliance with local regulations. If
there are no earthed connections/sockets in place where the stove
will be installed, contact immediately a qualified electrician to install.
The manufacturer is not responsible for damages due to the stove
not being connected to an earth system.
• Your stove is for use with 230 V / 400 V AC, 50–60 Hz or 220-240 V
/ 380-415 V AC, 50-60 Hz electric supply. If your supply is dierent
from the specified value, contact the Customer Support Service.
• When placing your stove on its location, ensure that it is at the
counter level. Bring it to the counter level by adjusting the feet if
necessary.
• Some models are supplied without a plug-an-lead set. In this case,
use a flexible cable suitable for connection to mono phase: H05 VV-F
3G 2,5 mm2, H05 VV-F 3G 4 mm2 or for 3 phase: H05 VV-F 5G 1.5
mm2.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 13 19/08/2019 12:19

14
Connection schemes
WALL FIXING
(*) Optional
Before using the stove, in order to ensure its safe use, fix it to the
wall using the chain and hooked screw supplied. Ensure the hook is
screwed into the wall securely
WARNING!
In order to prevent the stove from tipping over, you will need to secure
the stove according to the instructions for installation.
CONSUMER UNIT
FUSE SWITCH (32A)
JUNCTION BOX
Live
phase
Neutral Neutral Neutral
Earth Earth Earth
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 14 19/08/2019 12:19

15
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 15 19/08/2019 12:19

16
USAGE
Before using the stove, remove all flammable tapes, Styrofoam or any
other packaging materials. Also remove the user manual and other
flammable materials from inside of stove.
USAGE AND DESCRIPTION OF HOB SECTION FOR VITROCERAMIC
For ring control
1. You can operate the hob with the ring switches on the stove’s
control panel. This switch regulates the energy supply in order to
reach a desired temperature set by you.
2. In order to achieve a good cooking result, the bottom of the pans
should be as thick and flat as possible.
3. The bottom of the pans and the cooking zones should have the
same size. If possible, always place lids on the pans. Always place
cookware on the cooking zone before switching them on. Switch
the cooking zones o before the end of the cooking time, to take
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 16 19/08/2019 12:19

17
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
advantage of residual heat.
4. Turn the knob clockwise to turn them on. The temperature set
by the knob position on the line will gradually increase up to max
(single zone).
5. For a dual cooking zone, the first ring will work like a single zone;
the second ring will start work when turned with a little bit extra
force clockwise to the “max” end area of the ring sign. When you
turn it counter-clockwise, the first ring will work as maximum
range and the second ring’s power will reduce up to you desire
temperature.
6. At the “0” position, all the rings are o.
STOVE DESCRIPTION
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 17 19/08/2019 12:19

18
Using an electrical stove:
1. When your stove is operated first time, you might sense an odour
from the heating elements being used for the first time. In order
to get rid of this, operate them at 250 ºC for 45-60 minutes while
empty.
2. The stove control knob should be positioned to the desired value;
otherwise, the stove will not operate.
3. The thermostat control knob should be positioned to the desired
temperature value.
4. The timer control knob should be positioned to the desired timing
value. When the end of the set cooking time is reached, you will
heard a “bing” sound from the timer and the stove will stop its
operate. If you want to use the stove without the timer control, turn
the timer control knob to the manual position, indicated with the
symbol (optional).
5. When the oven is being used, its door should not be opened
frequently. Otherwise, heat circulation may be imbalanced and the
cooking results may change.
6. You should preheat the oven for 5-10 min before using it.
Table of cooking times:
Woburner Temperature
(°C)
Rack
position
Cooking
time (min.)
Creamed cake 150 - 170 2 30 - 35
Pastry 200 - 220 2 35 - 45
Biscuit 160 - 170 3 20 - 25
Cookie 160 – 170 3 20 - 35
Cake 160 - 180 2 25 - 35
Braided cookie 200 - 220 2 30 - 40
Filo pastry 180 - 220 2 35 - 45
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 18 19/08/2019 12:19

19
EN
Vitroceramic top plate free standing electric stove | Cocina eléctrica independiente con
placa superior de vitrocerámica | Fogão elétrico com placa de vitrocerâmica
Savoury pastry 160 - 180 2 20 - 30
Lamb meat 200 - 230 1 90 - 120
Veal 200 - 230 1 90 - 120
Mutton 210 - 230 1 90 - 120
Chicken (pieces) 210 - 230 1 75 - 100
Fish 190 - 210 2 40 - 50
Note: results may vary according to area voltage and material’s quality,
amount of food and temperatures. Using a cake mould while for baking
cakes provides better results.
USING THE TURNSPIT
(*) Optional
If your stove has a turnspit option please follows recommendations
below.
Install the turnspit hook to the fixing hole on the stove cavity. Put the
desired food to be cooked on the turnspit and lock with the forks and
screws. İnstall the turnspit on the turnspit motor as shown below and
operate the turnspit system using the command knob on the control
panel.
TURNSPIT
HOOK
FORK AND
SCREWS
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 19 19/08/2019 12:19

20
2.3. Maintenance
1. Disconnect the stove from the socket.
2. While the oven is operating or shortly after it starts operating, it will
be extremely hot. Avoid touching its heating elements.
3. Never clean its interior, panel, lid, trays and all other oven parts
using tools like hard brushes, a cleaning mesh or a knife. Do not use
abrasive, scratching agents and detergents.
4. After cleaning the interior of the oven with a soapy cloth, rinse it and
then dry it thoroughly with a soft cloth.
5. Clean the glass surfaces with a special glass cleaning agent.
6. Do not clean the oven with steam cleaners.
7. Before opening the oven’s top lid, clean any spilled liquid from the lid.
Before closing the lid, ensure that the stove table is cooled enough.
8. Never use flammable agents like acid, thinner and gasoline when
cleaning your oven.
9. Do not wash any part of your oven in dishwasher.
Removing the oven door:
Changing the oven lamp:
Let the stove’s cavity and grill burner or heating elements cool down.
Cut o the stove’s electrical connection before changing the lamp.
Replace it with a 15-25 W, 300 ºC temperature resistant lamp.
Becken FW-5056XXVW_FW-5056XXVH_ID 4509.indd 20 19/08/2019 12:19
