Beef eater Bsh158sa User manual

AUSTRALIA / NEW ZEALAND

Assembly and Operating Instructions INTEGRATED

SERIES

BSH158SA, BSL158SA

2

CONTENTS

General warnings ��3

Integrated barbecue product description ��4

Parts ��5

Gas specifications ��6

Leak test procedure ��7

Universal LPG and propane installation ��8

Installation warnings ��10

Installation instructions ��11

Dimensions ��13

Gas requirements ��14

Assembling the barbecue ��14

Hotplate configuration ��15

Operating instructions ��16

Lid safety lid – slimline lid only ��17

Cleaning and care ��17

Maintenance ��19

Troubleshooting ��20

Accessories ��20

Notes ��21

Warranty ��23

Please read the user manual carefully and store in a handy

place for later reference�

The symbols you will see in this booklet have these

meanings:

WARNING

This symbol indicates information concerning your

personal safety.

WARNING

CAUTION

This symbol indicates information on how to avoid

damaging the appliance.

TIPS & INFORMATION

IMPORTANT

This symbol indicates tips and information about use

of the appliance.

ENVIRONMENTAL TIPS

ENVIRONMENT

This symbol indicates tips and information about

economical and ecological use of the appliance.

Dear customer,

Congratulations and thank you for choosing our barbecue�

We are sure you will find it a pleasure to use� Before you use

the barbecue, we recommend that you read through the

relevant sections of this manual, which provide a description

of your appliance and its functions�

To avoid the risks that are always present when you use

an appliance, it is important that the appliance is installed

correctly and that you read the safety instructions carefully to

avoid misuse and hazards�

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners�

After unpacking the appliance, please check it is not

damaged� If in doubt, do not use the appliance but contact

your local customer care centre�

This appliance complies with requirements of Australian

Standards AS4563�

CONDITIONS OF USE

These important notes apply to your appliance, failure to

adhere to these conditions of use may affect your ability to

make a claim under the manufacture’s warranty.

• This appliance MUST be installed and serviced only

by a qualified licensed person�

• This product is intended for installation and use at a

domestic residence only� This product is not intended for

commercial use�

• This product is not suitable for installation or use in

marine craft, caravans or recreational vehicles�

• This product must be installed in accordance with these

instructions, the requirements of AS/NZS 5601�1 and in

accordance with local authority�

• This product must be installed, operated and maintained

as per the instructions�

• Ventilation holes in the unit must not be obscured by the

installation�

Please ensure you read the instruction manual fully

before you call for service, or a full service fee could

be applicable.

Record model and serial number here:

Model number: ��

Serial number: ��

PNC: ��

CONTENTSCONGRATULATIONS

3SAFETY

Please read the user manual carefully and store in a handy

place for later reference�

TIPS & INFORMATION

IMPORTANT

Important – check for any damages or marks.

If you find the barbecue is damaged or marked, you must

report it within 7 days if you wish to claim for damage/

marks under the manufacturer’s warranty. This does not

affect your statutory rights.

ENVIRONMENTAL TIPS

ENVIRONMENT

Information on disposal for users

• Most of the packing materials are recyclable. Please

dispose of those materials through your local recycling

depot or by placing them in appropriate collection

containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method

of disposal.

WARNING

This appliance must be serviced only by a qualified licensed

person.

Improper installation, adjustment, alteration or

maintenance can cause injury or property damage and

may affect your ability to claim under the manufacturer’s

warranty.

Please contact your nearest Electrolux Service Department

for additional information or assistance for an approved

installer.

NOTE: This manual must remain with the owner for future

reference�

TIPS & INFORMATION

IMPORTANT

Flame Failure - Auto Shut Off Safety System

Operating Instructions

For added gas safety, your barbecue is fitted with Flame

Failure Technology� This safety system will shut off the gas

supply to an individual burners if the flame goes out for any

reason�

How It Works

Flame Failure Technology switches gas off to an individual

burner if the flame goes out� During normal operation the

burner flame is in contact with the sensor probe� If the flame

is blown out by a strong breeze for example, the control

valve will shut off the gas supply to the burner to avoid a

continuous gas leak�

WARNING

• Do not lean over barbecue when lighting.

• Do not leave the barbecue unattended when alight.

• Do not delay lighting once the gas has been turned on.

• Do not store or use aerosol cans in the vicinity of the

barbecue.

• Do not store flammable liquids in the vicinity of the

barbecue.

• Do not use caustic or abrasive based cleaners on the

barbecue.

• Do not attempt to dismantle or adjust the control

valves.

• Do not attempt to dismantle or adjust the regulator.

• Do not test for leaks with a naked flame.

• Do not modify the construction of this appliance or

modify the injector orifice size.

• Do not obstruct any ventilation of the barbecue.

• Do not allow children to operate or play near the

barbecue.

Failure to adhere to the above warnings may cause injury

or property damage and affect your ability to make a claim

under the manafacturer’s warranty.

WARNING

CAUTION

This barbecue is supplied set up for Natural Gas and

is labelled accordingly. A Universal LPG and propane

conversion kit is included if required. Conversion of this

unit to Universal LPG or propane must be carried out by a

qualified licensed person and a Certificate of Compliance

must be issued to the owner at the completion of the

installation and conversion.

IMPORTANT SAFETY INSTRUCTIONS

4PRODUCT DESCRIPTION

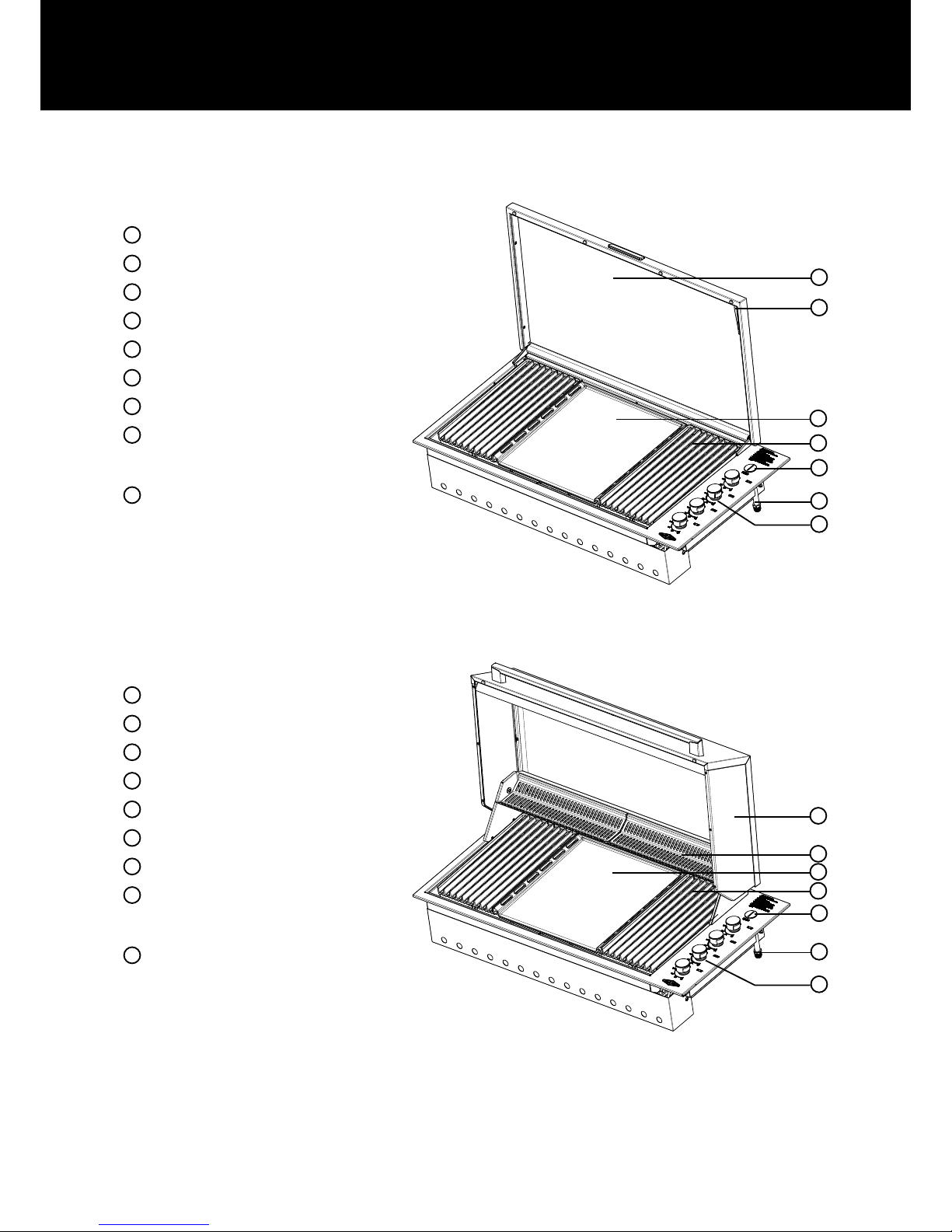

PRODUCT DESCRIPTION

1 Pivotting leg

2 Slimline lid

3 Battery cover

4 Gas connection point

5 Burner controls

6 Cast Iron Grill

7 Cast Iron Hotplate

8 Removable oil reservoir located at front of

cooking surface

(not illustrated)

9 Flame tamers x 2 located under grills

(not illustrated)

10 Roasting hood

11 Warming racks

12 Battery cover

13 Gas connection point

14 Burner controls

15 Cast Iron Grill

16 Cast Iron Hotplate

17 Removable oil reservoir located at front of

cooking surface

(not illustrated)

18 Flame tamers x 2 located under grills

(not illustrated)

Integrated barbecue with slimline lid BSL158SA

Integrated barbecue with roasting hood BSH158SA

1

10

3

12

6

15

7

11

4

13

5

14

2

16

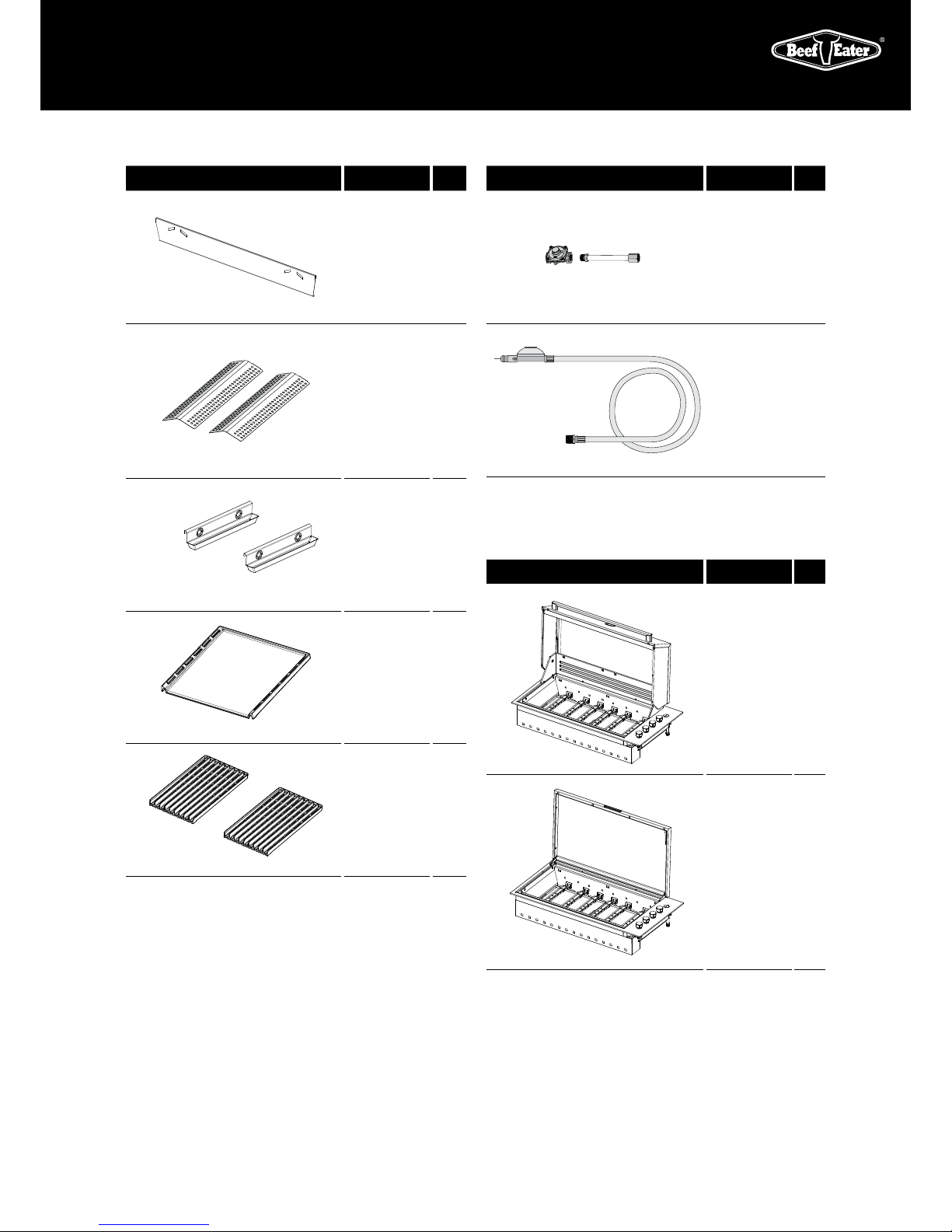

5PARTS

PARTS

DESCRIPTION QTY

Rear heat

shield

1

Flame

tamers

2

Oil reservoirs 2

Cast Iron

plate

1

Cast iron grill 2

DESCRIPTION QTY

Natural gas

regulator and

installation

pipe

1

Universal

LPG hose

and regulator

assembly

1

1 Plastic bag, containing this instruction book,

labels, 1 fibre washer, match holder

and chain

EITHER

Roasting

hood

and base

assembly

1

Slimline lid

and base

assembly

1

6

GAS SPECIFICATIONS

GAS TYPE NATURAL

GAS

UNIVERSAL

LPG PROPANE

Maximum gas

consumption

67�2 MJ/h 64�0 MJ/h 71�0 MJ/h

Injector office

diameter

1�75mm 0�90mm 0�95mm

Number of

injectors

666

Regulator

pressure

1�00 kPa 2�75 kPa 2�75 kPa

NOTES:

• This appliance MUST be installed and serviced only by a

qualified licensed person�

• This product must be installed as per the instructions

which requires the installation of venting to enable

the barbecue to operate correctly� Failure to provide

adequate ventilation for supply of air to the appliance

may result in poor burner performance or excessive

heat build-up within the mounting enclosure�

• Ventilation holes in the unit must not be obscured by the

installation�

Failure to adhere to these installation instructions may

affect your ability to make a claim under the manufacturer’s

warranty�

Natural gas installation

This barbecue is set up for Natural Gas and is labelled

accordingly� A Universal LPG and Propane conversion kit is

included if required�

Connecting the appliance to an NG gas supply

Componets supplied in a bag for NG are:

• 1 x Natural gas regulator

• Natural gas installation pipe

• 2 x sealing washers

1� Fitting the Natural Gas installation

• Fit the pipe ensuring the blue sealing washer is in

place� Do not over-tighten�

2� Fitting the regulator

• Fit the regulator ensuring the blue sealing washer

is in place and the arrow indicating gas flow is

correct� Do not over-tighten�

3� Fit the hose

• Connect to consumer piping

- The NG regulator inlet has a 1/2” parallel pipe thread�

- The inlet of the NG regulator may be connected to

consumer piping using a suitable hose assembly if

required�

408mm

46mm

137mm

Preparing the unit for Natural Gas connection to mains

Natural gas connection to be made by a licenced gas fitter�

Regulator – ensure

arrow is pointing in the

right direction

Consumer piping

Sealing washer

Natural Gas

installation pipe

Barbecue gas inlet

Sealing washer

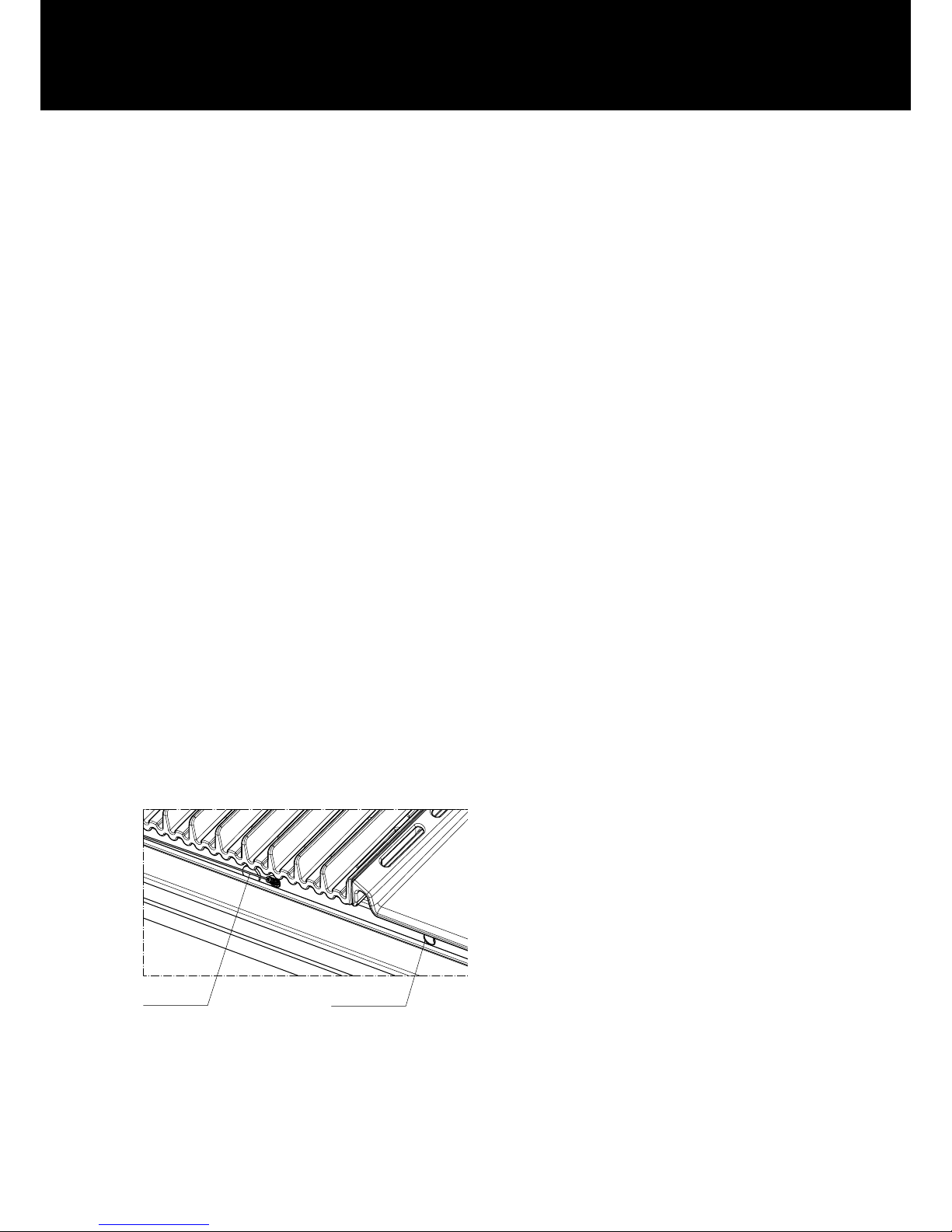

7LEAK TEST PROCEDURE

LEAK TEST PROCEDURE

• Ensure all gas valves are in the ‘OFF’ position�

• In a small container, mix a solution of water and

detergent or soap�

• After connection of the hose, turn on the gas supply at

the gas bottle or mains as appropriate�

• Using a brush apply the solution to the gas connection

points and look for bubbles forming�

• Bubbling will indicate a leak�

• Turn off the gas supply and re-tighten the joint� Repeat

the leak test�

• If the leak persists, turn off the gas at the isolation

valves and contact a licensed gas fitter to correct�

Leak test procedure

Leak test

points

Check hose

for signs of

abrasions, cracks

or leaks

8

UNIVERSAL LPG AND PROPANE INSTALLATION

NOTE: Conversion of this unit to Universal LPG or Propane

must be carried out by a qualified licensed person and a

Certificate of Compliance must be issued to the owner on

completion of the installation and conversion� Conversion of

the barbecue by unlicenced persons may result in improper

functioning of the appliance, injury, property damage and

may affect your ability to make a claim under under the

manafacturer’s warranty�

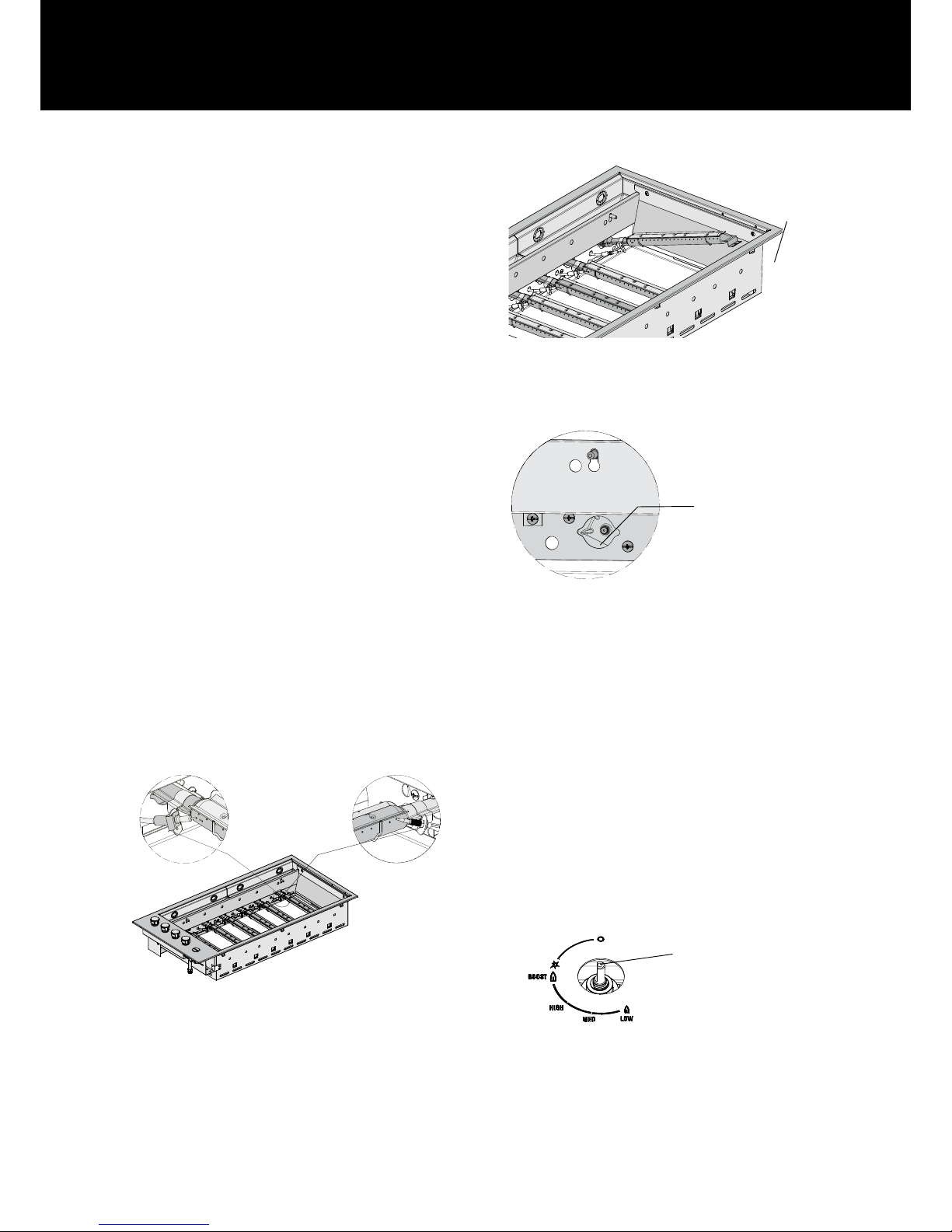

Converting the unit to Universal LPG or Propane gas

This barbecue is set up for Natural gas and is labelled

accordingly� A Universal LPG and Propane conversion Kit is

supplied with the product�

The components in the kit are:

• Brass adaptor

• Sealing washer

• Small plastic bag containing:

– 6 x 0�9 brass injectors (Universal LPG)

• Small plastic bag containing:

– 6 x 0�95 brass injectors (Propane)

• Universal LPG sticker

• Propane sticker

1. Replace ‘gas type’ sticker

• Locate ‘Natural gas’ sticker located on the barbecue

gas inlet and remove it� Put either the Universal LPG or

propane sticker in it’s place�

2. Change the injectors

• Remove spark electrode and thermocouple from the

burner�

• Release the burner from the retaining bracket by lifting

as shown�

• Unscrew Natural gas injectors and replace with

either Universal LPG or Propane injectors�

Universal LPG injectors have 0�90mm diameter

orifice� Propane Gas injectors have 0�95mm diameter

orifice� All injectors are marked with the orifice size�

• Install burner and re-attach the spark electrode and

thermocouple�

• Repeat for the other 5 burners

NOTE: The final step in the conversion of the barbecue to

either Universal LPG or Propane is the adjustment of the

turndown setting�

This can only be completed after the barbecue has been

connected to a supply of gas� Refer to ‘Connection to Universal

LPG and Propane Gas Supply’ detailed in next section�

3. Adjust the turndown setting on the valve

• Light each burner and rotate the control knob to the

lowest setting, then remove the knob from the valve

shaft, and remove the grommet�

• Using a small flat-blade screwdriver adjust the

turndown adjustment screw to achieve a small steady

flame on the burner�

Turndown screw

• Replace the knob

• Recheck the operation of the burner at maximum and

turndown

• Repeat procedures for all valves�

Remove 1�75mm injector

and install 0�90mm injector

for Universal LPG gas or

0�95mm for Propane gas�

Remove burner to

access injector

9

UNIVERSAL LPG AND PROPANE INSTALLATION

This barbecue is set up for Natural Gas and is labelled

accordingly� A Universal LPG or Propane Gas conversion Kit

is supplied if required�

Connecting the appliance to an Universal LPG or Propane

gas supply

The appliance may be supplied Universal LPG or Propane

from either:

• A 9 kg portable cylinder, or

• A remote supply of via fixed pipe work�

Connecting to a Portable 9kg Universal LPG or Propane

cylinder

The components required are

• Universal LPG hose and regulator assembly to suit

9kg cylinder

• Brass adapter

• Sealing washer

To assemble the connection (refer diagram below):

• Connect the brass adapter to the barbecue gas inlet with

the sealing washer in place to seal the connection�

• Connect the Universal LPG hose and regulator to the

brass adaptor�

• Connect the POL fitting at the inlet of the regulator to

the valve on the Universal LPG cylinder�

• Leak test all connections in the assembly as described

under LEAK TEST PROCEDURE�

Gas bottle safety information

• This appliance is designed to use a 9kg (20 lbs)

gas cylinder�

• The gas cylinder must be made and marked in

accordance with specifications for Universal LPG or

Propane cylinders�

• It is recommended to turn off the cylinder valve when

the appliance is not in use�

• Gas cylinders must be stored in an approved housing out

of reach of children�

• When disconnecting the gas bottle ensure that all the

control valves are in the ‘OFF’ position�

• Remove the bottle from any housing in which it may

be stored before disconnection�

• When reconnecting the hose to the bottle, ensure

that all connections are tight before replacing in the

storage compartment�

• Carry out a leakage check as detailed below after

each reconnection�

Connecting to a remote supply of Universal LPG or

Propane

The components required to make this type of connection

are available as an accessory and can be purchased either

on the Electrolux spare parts website or by contacting the

Electrolux Customer Service Centre� Refer to Accessories

section on page 20�

Never connect the barbecue to an unregulated gas supply�

Ensure that the supply pressure at the inlet of the barbecue

is 2�75kPa�

Electrolux strongly recommends installation of a manual

shut-off valve, or hose assembly with a certified quick

connect that is accessible with the appliance installed, so

that the appliance may be isolated from gas in the event of

an emergency or for servicing�

The components required are:

• Brass test point adapter

• Sealing washer

To assemble the connection:

• Connect the brass test point adapter to the barbecue

gas inlet with the arrow on the adapter oriented

according to direction of gas flow, with the sealing

washer in place to seal the connection�

• The inlet to the adapter has a standard internal ½” pipe

thread and can connect to any standard external ½”

tapered threaded connection� This connection is sealed

with any thread tape or sealing compound that

is suitable for gas connections� Connect the fixed

Universal LPG or Propane pipe work to the inlet of the

test point adapter by any suitable means in accordance

with requirements of AS 5601�

• Leak test all connections in the assembly as described

under LEAK TEST PROCEDURE�

Barbeque gas

inlet

Sealing washer

Brass adaptor

LPG hose and

regulator

10

UNIVERSAL LPG AND

PROPANE INSTALLATION

INSTALLATION WARNINGS

UNIVERSAL LPG AND PROPANE INSTALLATION

After connecting the barbecue to an Universal LPG gas

supply,test the operation of the appliance:

• Check that all burners ignite (refer OPERATING

INSTRUCTIONS)�

• Check the operation of the burners at both maximum

and turndown�

Barbecue gas inlet

Sealing washer

Test point adaptor

– ensure arrow is

pointing correct

direction

Supply hose with 1/2”

tapered thread

– sealed with thread tape

or compound suitable for

gas connection�

WARNING

• This appliance may be installed outdoors, under cover,

or in an outdoor kitchen or outdoor living area.

• Outdoor areas where this appliance is located may

be enclosed by blinds, partitions or similar for the

purpose of weatherproofing.

• This appliance must not be installed or used in a boat,

caravan or recreational vehicle.

• This appliance must not be installed or used inside an

inadequately ventilated building. Building ventilation

must comply with Clause 5.13 of AS/NZS 5601.1. This

is to prevent the possibility of fire, carbon monoxide

poisoning or asphyxiation

11

INSTALLATION INSTRUCTIONS

Installation warnings

The mounting enclosure

• The barbecue requires a non-combustible barrier under

the barbecue to prevent excessive temperatures being

accessed� The barrier panel is to be placed at least

30mm under the base of unit�

• The benchtop that supports the barbecue must

be constructed from non-combustible material�

Suitable materials include masonry, granite, marble,

Hardiplank®, Villaboard® over a metal frame, or tiles on

a non-combustible substrate�

• This appliance requires venting� The vent opening can

be in either of two alternative locations – Front wall

below the bench, or the non-combustible barrier under

the barbecue� Refer to diagrams {on next page} for vent

specification and location alternatives�

• This appliance can be mounted either in an island type

bench or a bench with a splashback� Please read the

specific requirements for each mounting situation�

• For Universal LPG use, cabinetry below the barbecue

must have low level venting to prevent the possibility of

Universal LPG accumulating�

• Clearances to parts of the supporting structure must be

in accordance with the following diagrams:

Choosing a location

When planning the location and preparing the installation

structure for this appliance note the following:

• This appliance is Certified to AS 4563, and Clause 6�10�2

of AS/NZS 5601�1 is applicable�

• Requirements in these instructions for clearances

to combustible materials also apply to combustible

materials that have non-combustible materials attached

to their surface�

• This appliance must be installed such that no part of

the appliance is in contact with or within 10mm of any

combustible material�

• The minimum clearance to a vertical wall or splashback

above bench level and behind the barbecue that is made

from combustible material is 450mm for a model with a

roasting hood and 250mm for a slimline lid model�

• The vertical clearance above the cooking surface to any

combustible materials must be at least 1000mm�

• The minimum clearance to a vertical wall above bench

level made from a combustible material is 250mm on

the left and right hand side�

• When using Universal LPG in an enclosure ventilation

must be provided� Gas is highly explosive and can cause

serious injury and damage to property if allowed to

accumulate and then be ignited�

• This barbecue is intended to be built into a benchtop

with a minimum depth (front to rear) of 600 mm�

• Avoid windy positions as this will affect cooking

performance and burner efficiency� If this situation

cannot be avoided some shielding may be necessary�

INSTALLATION INSTRUCTIONS

12

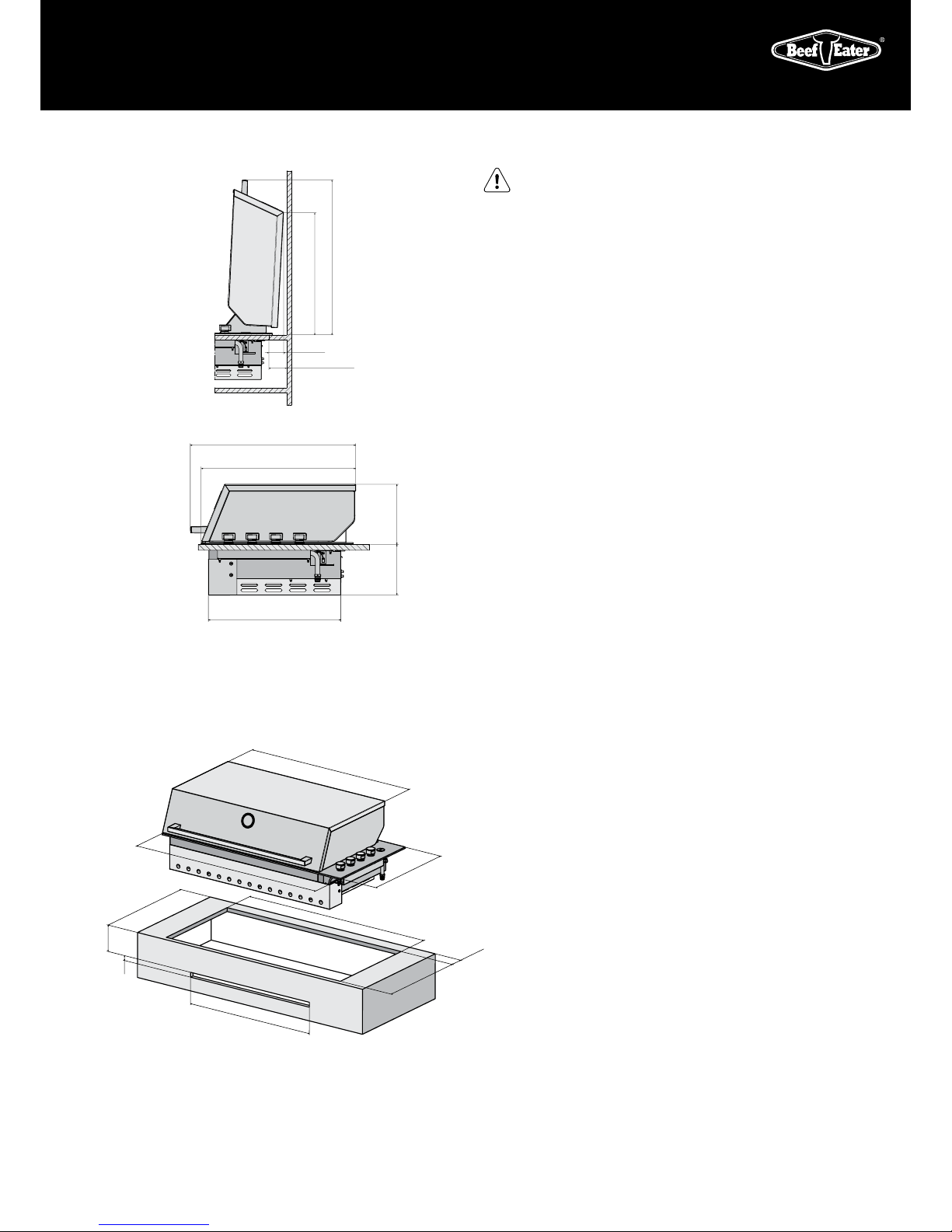

DIMENSIONS

Benchtop must be non-

combustible material

This side wall can be

combustible material

Non-combustible barrier –

at least 30mm between barrier and

base of the appliance

This side wall can be

combustible material

Benchtop

must be

non-combustible

Rear panel must

be non-combustible

This front wall can

be combustible

material

The minimum dimension is:

• The minimum dimension to a

non-combustible rear wall is 40mm

Non-combustible barrier – at least

30mm between barrier and base of

the appliance

549mm

71mm minimum

from cutout

Bench width 600mm minimum

540mm

464mm

177mm 42mm

250 min

10 min

600 min benchtop width

40 min

30 min

250 min

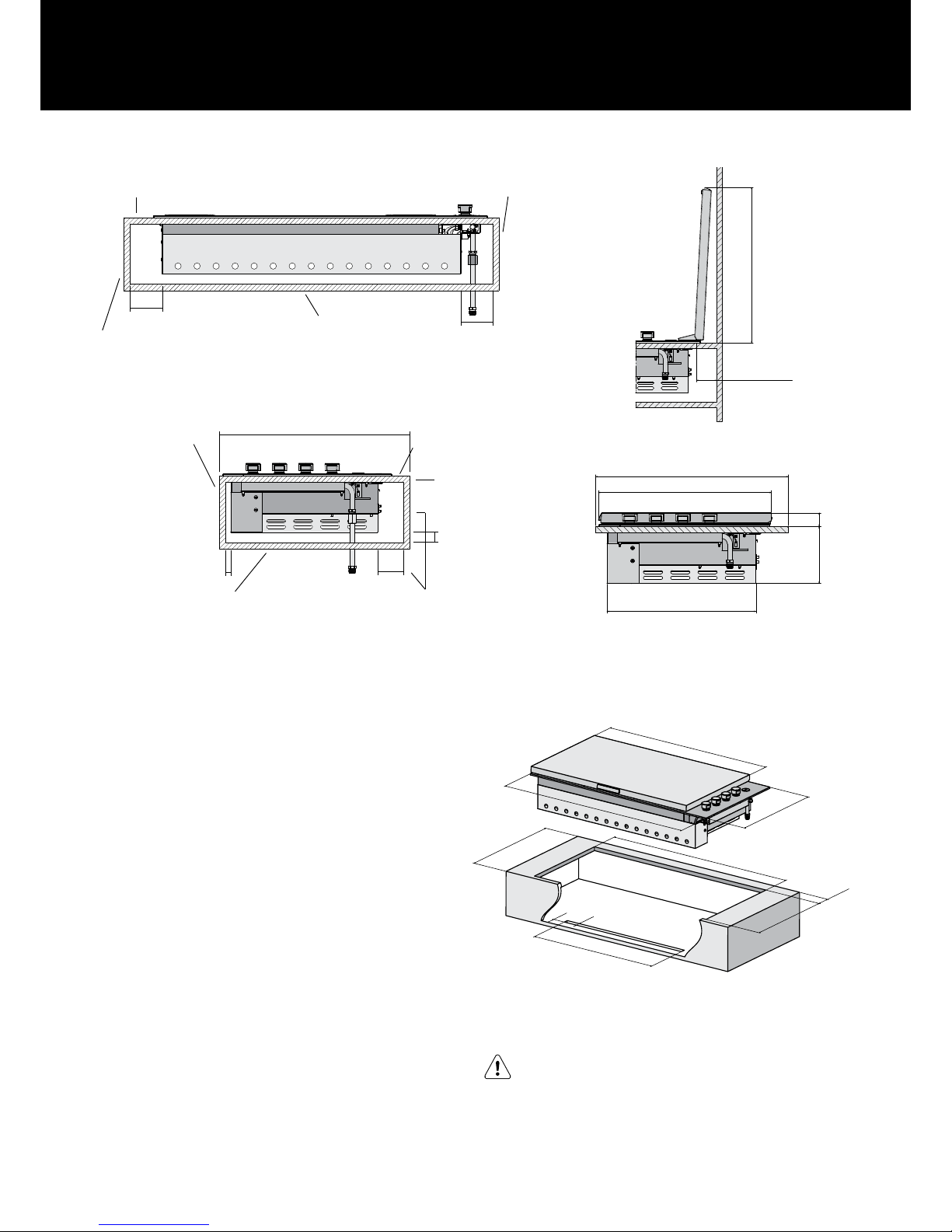

Island style installation

(example shown with barbecue with slimline line)

WARNING!

This appliance requires venting. An open area as indicated must

be allowed for. A suitable grille can be fitted if desired. This vent

area is to allow air into the enclosure for the correct combustion

of gases and for the correct exhausting of the products of

combustion. The vent must be no less than 700mm x 25mm.

Alternate vent location in base of enclosure

(front panel cut away for clarity)

928�5mm

1053mm

700mm

1025mm

502mm

71mm

Min�

25mm

50mm

Bench width

600mm Min

13

DIMENSIONS

580mm

540mm

464mm

212mm177mm

615mm

485mm

71mm minimum

from cutout

59mm

Installation in a bench with splashback

(example shown with barbecue with roasting hood)

924mm

700mm

1053mm

1025mm

502mm

600mm

135mm

25mm

71mm Min�

540mm

WARNING!

This appliance requires venting. An open area as indicated

must be allowed for. A suitable grille can be fitted if desired.

This vent area is to allow air into the enclosure for the

correct combustion of gases and for the correct exhausting

of the products of combustion. The vent must be no less

than 700mm x 25mm.

Installing in a bench with a splashback

• The splashback must be made from a non-combustible

material unless it is at least 450mm from the appliance�

• Clearances between the barbecue and a combustible

splashback are 250mm for the slimline lid model and

450mm for the roasting hood model�

• The minimum depth (front to rear) of the mounting

bench is 600mm�

• The bench cut-out size required is 1025mm x 502mm�

Refer to diagram above to left�

• For roasting hood models there is a specific clearance

required at the back of the barbecue between the

splashback and the bench cut-out of 71mm minimum�

This is to allow clearance for the hood to open�

Island style installation

• If this appliance is installed in an island mount,

it can be centrally positioned� provided all other

instructions regarding clearances to combustible

materials are followed� Special attention should be given

to the overalll size of the island top to consider the hood

open and the overhang� Please see illustration�

• The cut-out size required is 1025mm x 502mm�

Refer to diagram�

14

GAS REQUIREMENTS

ASSEMBLING THE BARBECUE

Natural Gas requirements

• The enclosure must be constructed so that access can

be gained to the Natural Gas regulator at all times�

•

For pipe sizing requirements for supply pipe refer to

AS/NZS 5601�1�

Universal LPG Requirements

WARNING!

• If an LPG bottle is to be stored in the enclosure

under the barbecue unit, it must be isolated from the

barbecue unit with a non-combustible panel�

The enclosure must comply with the requirements of

AS/NZS 5601�1�

•

AS/NZS 5601�1 ventilation requirements for cylinder

storage are:

Where of sheet metal or similar impervious construction

there shall be ventilation openings at the top and bottom

of the enclosure or recess, each opening providing a free

area of at least 200cm

2

for every cylinder enclosed�

• For Universal LPG installations having enclosed

cabinetry below the separation panel that does not

contain a gas bottle, low level venting must be installed�

This is to allow the gas which is heavier than air to

escape from the enclosure in the situation where

there may be a leak� A minimum opening of 200cm2

is required�

Setting up the barbecue

Setting up the barbecue in mounting enclosure

• A match holder with attached chain has been included

with the instruction manual� This is provided for manual

ignition in the event the automatic ignition does

not work� The free end of chain is required to be

permanently fixed to the installation in a location that

enables the match holder to reach each burner (refer to

page 15 for manual lighting instructions)�

1� Remove all components from box�

2� Attach heat shield to rear of unit by inserting the

three top tabs into the rear holes and sliding the

shield down�

3� Install flame tamers (under grills) and fix back edge of flame

tamer into the heat shield panel�

4� Fit oil reservoirs at front of barbecue�

15

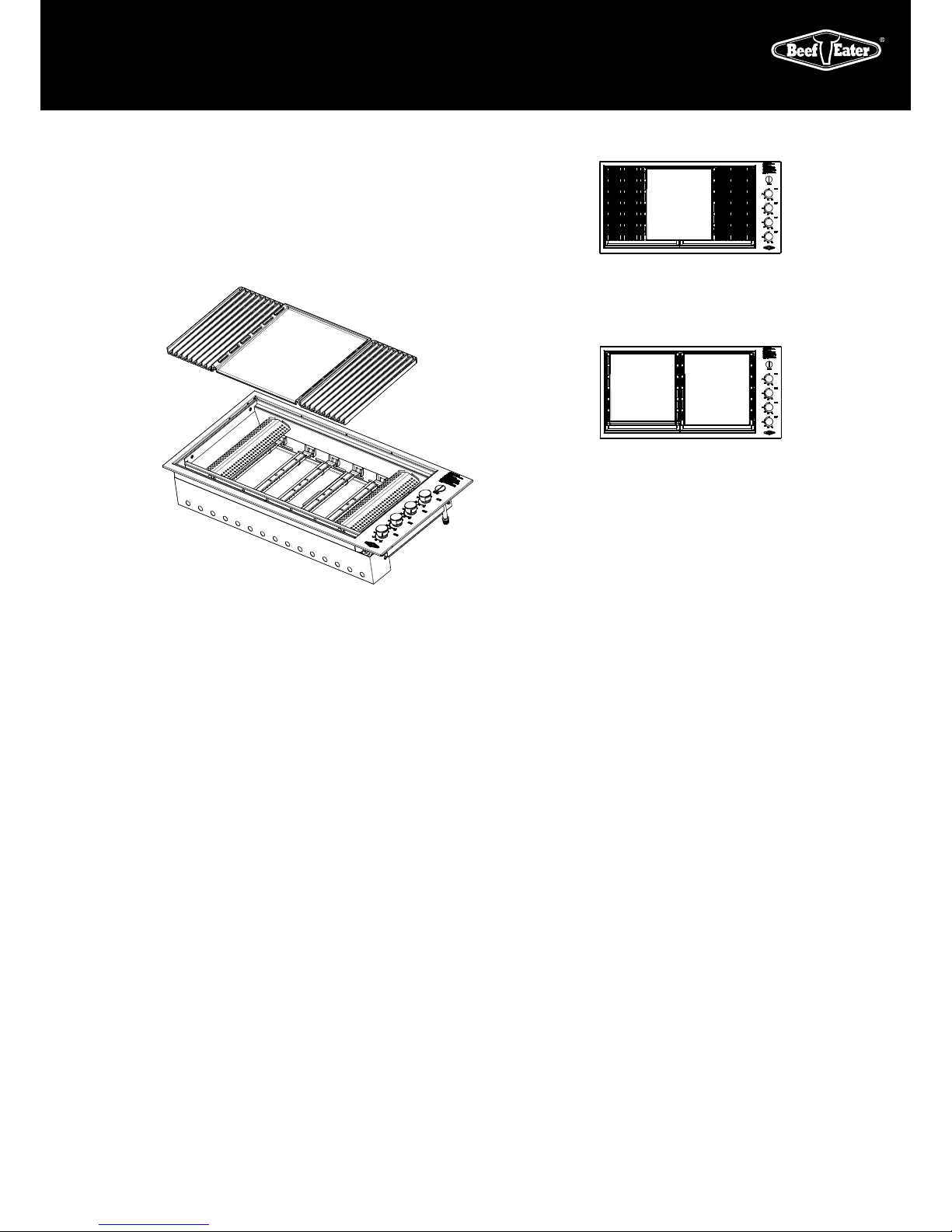

HOTPLATE CONFIGURATION

Recommended configuration: Hotplate in centre�

Recommended for roasting and grilling and offer the

optimal heat distribution across the cooking surface�

Non-recommended configuration: two Hotplates�

This may cause damage to the appliance as well as

excessive temperatures in surrounding surfaces and

reduced roasting performance (if roasting hood is

fitted)�

5. Install hotplates and grills as shown, ensuring that

the flame tamers are located under the grills.

NOTE: ensure that grill assemblies are orientated correctly

so that the surface of the grill is sloping forward to allow oil to

drain into oil reservoirs�

16

OPERATING INSTRUCTIONS

Control functions

Before lighting the barbecue:

• Check that all hoses and gas fittings are tight�

• Open the slimline lid or the roasting hood�

NOTE: The slimline lid is designed as a cover for weather

protection� The lid is not designed to be used as a cooking

hood�

• Check all control knobs are in the ‘OFF’ position�

• Ensure that the cooking surfaces are clean�

• Turn the gas isolation valve ‘ON’�

Lighting instructions

• Do not attempt to light burners with the cooking

surfaces covered�

• Read instructions before lighting�

• To light a burner, depress the knob and rotate

to ‘BOOST’�

• Hold for 3 seconds, release and check the flame�

• If burner did not light, turn knob to the ‘OFF’ position�

Allow gas to disperse, then repeat lighting procedure�

Manual lighting

• If, in the event of the automatic ignition system not

working, the barbecue can be lit manually�

• To light manually, fit a 40mm match to match holder

provided� Pass lit match through viewing holes below the

front of cooking plates down towards the burner, then

rotate the knob to ‘BOOST’ to ignite� If ignition fails turn

the control valve off and allow several minutes for the

gas to disperse before attempting to light again�

• Once alight, repeat for other burners as required�

Preheating

For best cooking results it is recommended to preheat the

barbecue prior to cooking�

• This barbecue is fitted with high power burners� In

most conditions it will only be necessary to preheat the

barbecue for 5 minutes before cooking can commence�

• As with most things, experience will familiarise you

with the time required to achieve the desired cooking

temperature�

• If the barbecue is fitted with slimline lid, it is advisable to

remove the slimline lid in windy conditions�

• If the unit does not operate correctly refer to

troubleshooting section on page 18�

Cooking methods:

Direct cooking / grilling

• For best cooking results testing has shown that once

preheated burners can be reduced to a Medium to Low

setting to maintain satisfactory cooking temperatures�

• If burners are left to run too hot there will be excessive

smoking during the cooking process and subsequent

burning of the food being prepared� This may also result

in excessive flaring of the fat being emitted from the

food�

Indirect cooking / roasting

• For barbecue models fitted with a roasting hood, it is

recommended that once preheated only use the two

outer burners on a low setting to maintain satisfactory

cooking temperatures�

• Using more than two burners is not recommended

as hood can overheat and may cause damage to the

appliance� The temperature gauge indicates the desired

range of roasting temperatures�

To turn the burners off

• When the cooking is complete, rotate the knob

fully clockwise so the pointer is positioned at the

off position�

Match holder Viewing holes

17

LID SAFETY – SLIMLINE ONLY CLEANING AND CARE

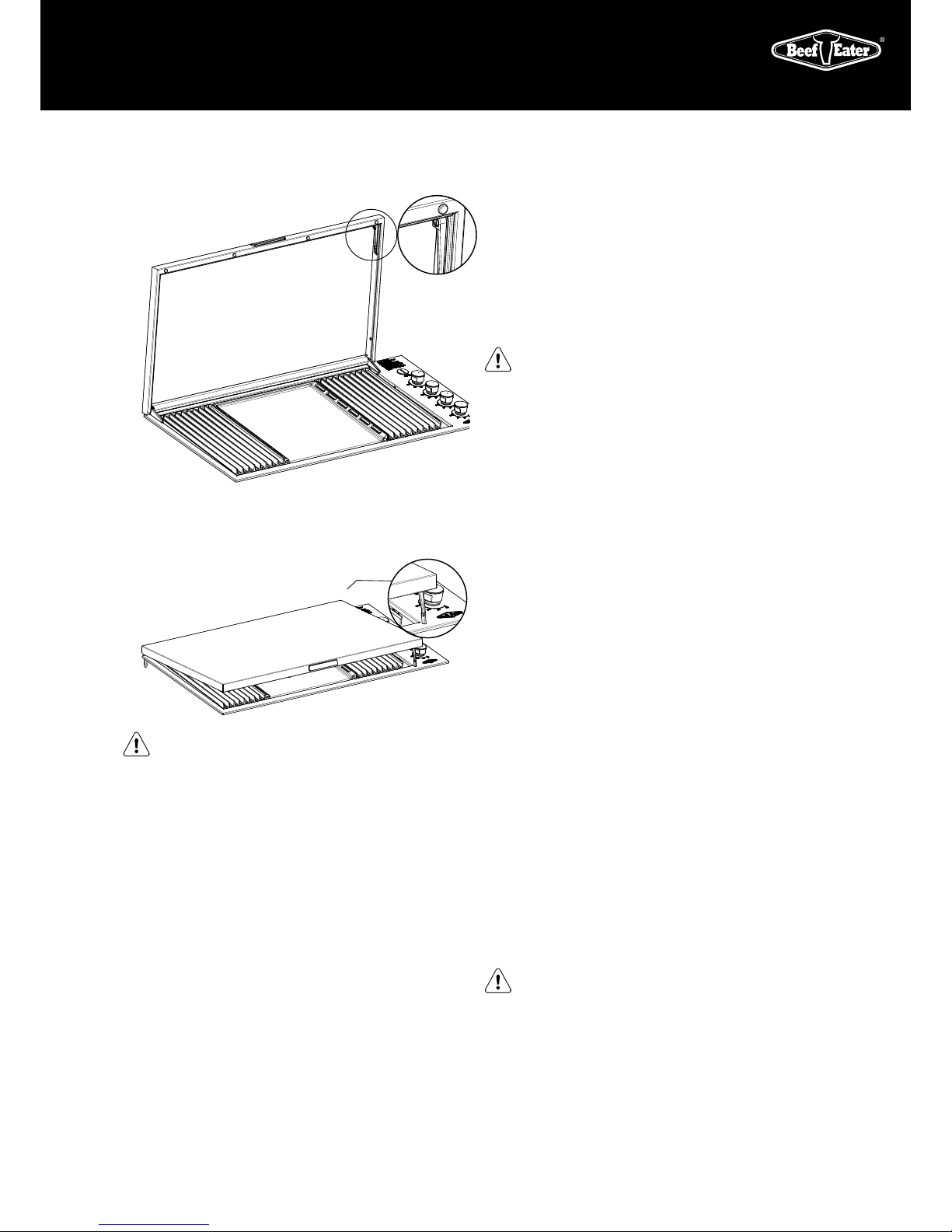

LID SAFETY – SLIMLINE ONLY

To ensure that the user remembers to turn off the gas before

closing the lid, a pivoting safety leg has been fitted�

Pivoting safety leg

When closing the lid the safety leg will pivot forward and rest

against the trim surface to prevent the lid closing�

After ensuring the gas has been turned off, to fully close

the lid, the leg needs to be rotated backwards�

Pivoting safety leg

WARNING!

THE SLIMLINE LID MUST NOT BE CLOSED WHEN THE

BURNERS ARE OPERATING.

Closing the lid during burner operation can cause

discolouration and damage to the lid and barbecue unit.

Any damage caused to the unit by closing the lid during

the burner operation will not be claimable under your

manufacturer’s warranty.

The BeefEater Integrated barbecue has been constructed

from select grade stainless steel which, if not cared for, may

discolour over time� To keep your barbecue looking its best

we recommend that the cooking surfaces are cleaned after

every use�

The cleaning and care instructions are essential for the

proper functioning and operation of your appliance over

time� Failure to adhere to these care instructions may affect

your ability to make a claim under the manufacturer’s

warranty�

WARNING!

Please ensure that your barbecue is switched off and has

cooled down before following the instructions below.

Cast Iron plates

The cooking plates and grills have a porcelain enamel coating�

NOTE: Many food acids, juices, marinades and sauces

contain highly acidic elements that will slowly attack

the surface of the cast iron if not removed immediately after

cooking�

After use remove all the solid material from the cooking

surface using a brass bristled barbecue brush or plastic

bristled scourer� Wipe off the remaining grease with paper

toweling� Gently wash the surfaces with a cloth or a sponge

and a mild detergent and hot water� Dry the components

immediately and coat the cooking surface with a light layer

of cooking oil� This protects the surface when not in use� Do

not clean the cooking surface in a dishwasher�

Intensive cleaning cycle

Suitable for cast Hotplate and cast grills only!

In instances when the cooking surface becomes heavily

soiled and harder to clean, the barbecue can be set-up for

an intensive cleaning cycle�

To do this you must have the hood/lid fully open and remove

any stainless steel attachments such as the warming racks�

Turn all the burners on and set all controls to ‘BOOST’�

After approximately 30 minutes, this should turn any baked

on food or grease to ash� Once the surface has cooled, the

residual ash can be wiped clean with a damp cloth�

After cleaning, lightly season the cast MaxiPlate and cast

grills with cooking oil�

WARNING!

The hood or lid must be fully open during the

cleaning process.

Failure to do so can result in damage to the stainless steel

surfaces and to the barbecue unit.

18

CLEANING AND CARE

Other stainless steel surfaces

CAUTION!

Do not use abrasive or caustic cleaners, scourers or metal

scrapers on these stainless steel surfaces as they may

permanently scratch and damage your barbecue. Take

particular care around the control knob graphics and

instructions.

• Wash all stainless steel components, including the

slimline lid, the roasting hood and control knobs with

a soft dishcloth using hot soapy water�

• The barbecue interior can be wiped down with a soft

cloth in hot soapy water� The rear panel of the interior

is removable for easy cleaning�

• Ensure that all surfaces are dried with a clean

dry cloth�

CAUTION!

Take extra care (particularly when cleaning on and around

the control knobs) to ensure that water and soapy residue

do not enter the control panel, where the valves are or into

the burners. Care should also be taken not to disturb the

spark electrode and thermocouple.

A distance of 5mm should be maintained between it and

the burners (see diagram below).

Cleaning inside the barbecue

The inside of the burner box should be regularly cleaned to

prevent any build up of food residue�

To access the burner box remove the cooking plates and

flame tamers and rear heat shield panel� The burners can

then be removed (refer page 8 “Changing Injectors”)� The

heat shield panels in the base of the burner box can then be

lifted out for cleaning purposes�

Ensure all oil and food particles are removed� After cleaning

complete, re-assemble ensuring the burner is correctly

located over the injector�

5mm

Cleaning the oil reservoirs

The Integrated barbecue has a unique oil management

system which uses channels to drain all oil to the front

into easily removed reservoirs and should be cleaned after

each use�

• To remove reservoirs, pull upwards from the front of the

barbecue and dispose of the contents of the catchment

responsibly� Rinse oil reservoirs in warm soapy water�

The reservoirs can be placed in the dishwasher if

desired�

IMPORTANT!

Special note on “tea staining”

Sometimes stainless steel surfaces are affected by a brown

discolouration called tea staining� This usually occurs in

areas which use high heat and can be easily removed using

specialised stainless steel cleaners� For best results, we

recommend that specialised cleaners be used regularly on

all stainless steel components�

IMPORTANT!

Special note on stainless steel

The stainless steel panels may distort while in use but will

return to normal when cold�

Please note that environmental conditions need to be taken

into account with regards to the maintenance required on

your product� In particular units installed in humid climates

or seaside locations will be more susceptible to surface

corrosion/discolouration over time� In these conditions

BeefEater strongly recommends cleaning and drying your

barbecue after every use and covering it when not in use to

minimise exposure to the elements� Surface corrosion can

be removed by using a specialized stainless steel cleaner�

19

MAINTENANCE

The ignition system

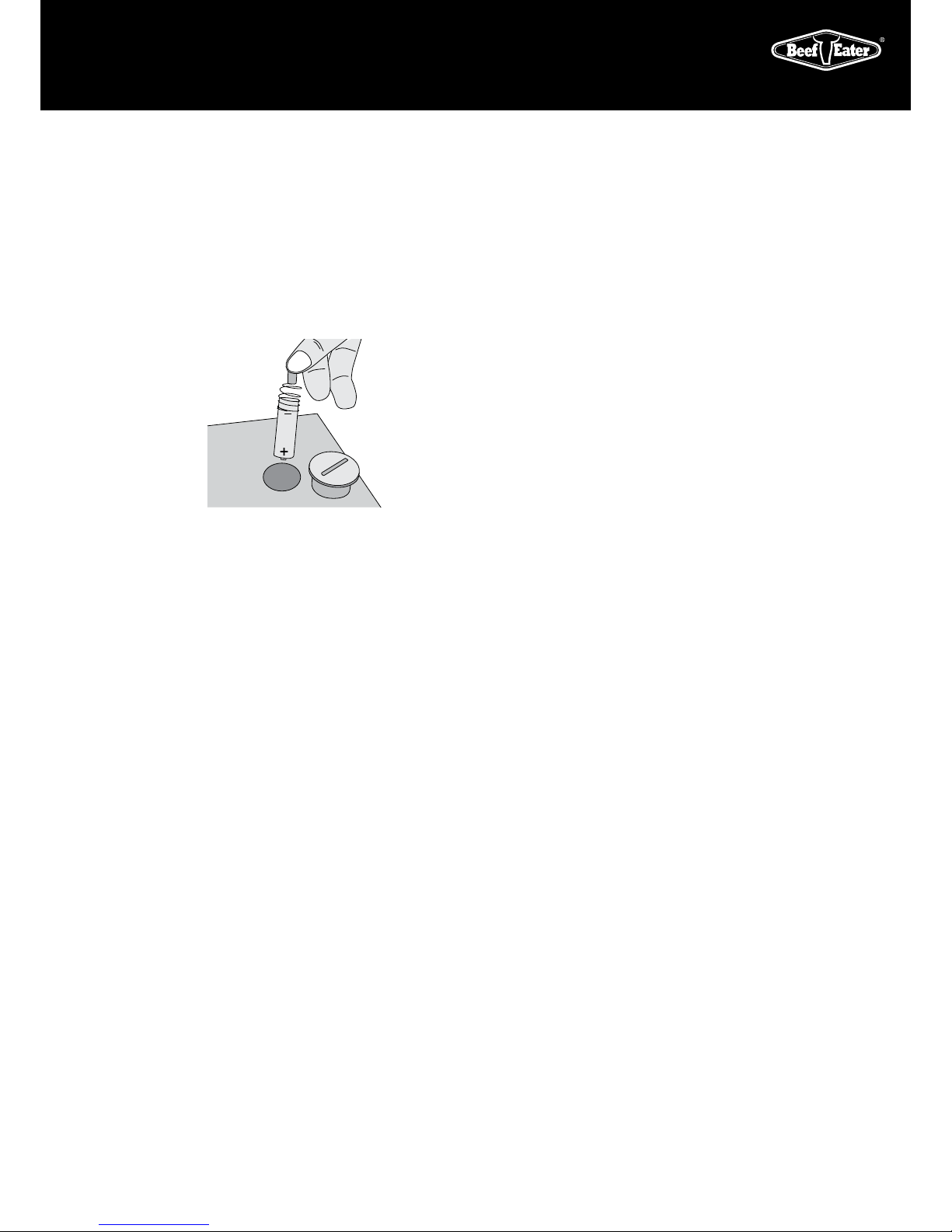

To change the battery rotate the cover anti-clockwise

to release� Lift off the cover to access spring and battery�

Lift out the spring and battery� Replace with a new AA battery

and replace the cover� Test by depressing the knob and an

audible ‘clicking’ sound should be heard�

NOTE: Ensure that the battery has been placed in the

correct orientation�

Air vents

The mounting enclosure air vents should be checked prior

to each use, to ensure they are clear of any obstructions that

may affect the free flow of air�

Stainless steel burners

Burners should be checked at least once per year and

cleaned as necessary� Inspect burners to ensure no residues

have been deposited and gas ports are clear�

20

TROUBLESHOOTING

ACCESSORIES

PROBLEM POSSIBLE

CAUSE

REMEDY

Barbecue

won’t light

No gas Check isolation valve is

ON�

Gas bottle empty -

refill or change gas bottle�

Ignition

system not

working

Check battery - should

hear a clicking noise when

the knob is depressed�

Replace battery�

Manually light the

barbecue�

Ignition

electrode wet

or dirty

Gently clean and dry

electrode ensuring

position is correct�

Flame not

staying on

when kob is

released

Knob not

held down

long enough

for flame

safeguard to

engage

Repeat lighting procedure

and hold knob down for

5 seconds

Port blockage

adjacent to

thermocouple

Check the flame is

present and the tip of the

thermocouple is heated by

the flame

Excess smoke

being emitted

from the

cooking area

Gas valve set

too high

Turn gas valves down or

turn off selected burners�

Smell of gas

DO NOT

ATTEMPT TO

LIGHT THE

APPLIANCE

Gas leak Turn off gas at the

isolation valves�

Check for leaks,

tighten joints�

If problem persists call

Electrolux Service�

Oil not

draining into

removable

reservoirs

Incorrect

orientation

of plate and

grills�

Plate and grill

not clean

Ensure plate and grills are

assembled as shown on

page 14�

Follow cleaning procedure

for cast iron plates as

detailed on page 16�

Too hot when

roasting

Incorrect

burner

settings

When roasting only

use 2 outer burners on

a low setting� Check

temperature gauge and

adjust accordingly to

achieve desired roasting

temperature�

Too hot when

grilling

Incorrect

burner

settings

Once preheated, only

use a low burner

setting� Running “Boost”

will quickly achieve

temperatures in excess of

400°C and will char food

on contact� This should

be avoided�

To order any of the following accessories and spare parts, or

for more information on any other suitable accessories for this

product, please contact the Electrolux Customer Service Centre�

ACCESSORIES

standard inclusions+

gas conversion kit

- Universal LPG & Propane

optional extras *

weatherproof cover

(for model BSH158SA and BSL158SA)

+ Standard inclusion with the product but can also be purchased

separately via the Electrolux Customer Service Centre�

* Sold separately via the Electrolux Customer Service Centre�

For the full range of accessories please visit beefeaterbbq�com

Beef Eater BSH158SA User manual

Popular Grill manuals by other brands
