Beef Eater BS28130 User manual

Assembly and
Operating Instructions
FOR OUTDOOR USE ONLY
GLASS DOOR
REFRIGERATOR
BS28130, BS28200
AUSTRALIA / NEW ZEALAND

2 3CONTENTS SAFETY
Please read the user manual carefully and store in a handy
place for later reference.
TIPS & INFORMATION
IMPORTANT
Important – check for any damages or marks
If you find the barbecue is damaged or marked, you must
report it within 7 days if you wish to claim for damage/marks
under the manufacturer’s warranty. This does not affect
your statutory rights.
ENVIRONMENTAL TIPS
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
WARNING
This appliance must be serviced only by a qualified
licensed person.
Improper installation, adjustment, alteration or
maintenance can cause injury or property damage and
may affect your ability to claim under the manufacturer’s
warranty.
Please contact your nearest BeefEater Service
Department for additional information or assistance
for an approved installer.
Note to the installer
This manual must remain with the owner for future reference.
This outdoor display fridge has been designed to be built-in in
a cabinet or similar “Outdoor Kitchen” arrangement.
This appliance is intended to be used in household and similar
applications only.
Before starting the installation, consideration should be given
to how the installation is to be carried out, ensuring
• Adequate space and clearances.
• Preventing exposure to the elements.
• Preventing any exposure to direct sun light.
• Availability of earthed power.
• The mechanical strength of supporting structures.
The installation work must be undertaken by a qualified and
competent person in conformity to the rules concerning
connection of electric power and wiring rules.
The manufacturer does not accept any liability for any
damage or injury caused by improper installation.
Before connecting to the mains supply ensure that the mains
voltage corresponds with the voltage on the outdoor display
fridge’s rating label.
Make sure the electric plant of your house is correctly
earthed.
When installed, the outdoor display fridge must be
positioned to ensure no moisture ingress into the appliance
or the appliance compartment.
• Before carrying out any kind of maintenance or cleaning,
disconnect the outdoor display fridge from the mains
supply.
• The appliance must not be operated or left out in the
weather. Do not expose the outdoor display fridge to rain
or wet conditions.
• This appliance is not intended (including children) with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• There shall be adequate ventilation of the area when the
outdoor display fridge is used, and vents provided must
be kept clear, clean and open.
• There is a fire risk if cleaning is not carried out in
accordance with the instructions, or if damage occurs to
cooling system.
• Always ensure the outdoor display fridge is kept at
the correct settings for the required operation of the
appliance.
• Do not use cooking utensils to handle things inside,
or clean the interior of the outdoor display fridge, as
damage to liners may result.
• During use rear of appliance becomes hot. Care should
be taken to avoid touching elements at rear of the
outdoor display fridge.
• Children should never be allowed to sit or stand on any
part of the appliance.
• Use this appliance only for its intended use.
• This appliance is intended for household use only. It is
designed to be used in sheltered areas only and must
not be exposed to the elements.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended.
TIPS & INFORMATION
IMPORTANT
The outdoor display fridge must never operate in direct
sunlight. The outdoor display fridge will not operate to
specifications if sunlight penetrates the glass doors.
Prolonged exposure to direct sunlight inside the outdoor
display fridge will result in increased temperature, excessive
energy consumption, and even premature component
failure, and will not be covered by warranty.
Important safety instructions .......................................................3
Before using for the first time ......................................................5
Electrical control ..........................................................................6
Operating the light ........................................................................8
Warranty .....................................................................................11
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have these
meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety.
WARNING
CAUTION
This symbol indicates information on how to avoid damaging
the appliance.
TIPS & INFORMATION
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about economical
and ecological use of the appliance.
Dear customer,
Congratulations and thank you for choosing our outdoor
display fridge. We are sure you will find it a pleasure to use.
Before you use the outdoor display fridge, we recommend
that you read through the relevant sections of this manual,
which provide a description of your appliance and its
functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully to
avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
This appliance complies with requirements of relevant
Australian Standards.
Conditions of use
These important notes apply to your appliance, failure to
adhere to these conditions of use may affect your ability to
make a claim under the manufacture’s warranty.
• This appliance must be serviced only by a qualified
licenced person.
• This product is intended for personal, domestic or
household use only, not commercial use.
• This product is intended for outdoor use only.
• This product must be installed, operated and maintained
as per the instructions.
• Ventilation holes in the unit must not be obscured by the
installation.
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number: ...............................................................................
Serial number: ................................................................................
PNC: ................................................................................................
IMPORTANT SAFETY INSTRUCTIONSCONTENTSCONGRATULATIONS
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual
is extremely important for health and safety. Failure
to strictly adhere to the requirements in this manual
may result in personal injury, property damage
and affect your ability to make a claim under the
BeefEater manufacturer’s warranty provided with
your product. Products must be used, installed and
operated in accordance with this manual. You may
not be able to claim on the BeefEater manufacturer’s
warranty in the event that your product fault is due to
failure to adhere this manual.

4 5SAFETY
IMPORTANT SAFETY INSTRUCTIONS
SAFETY
BEFORE USING FOR THE FIRST TIME
TIPS & INFORMATION
IMPORTANT
Before switching your BeefEater outdoor display fridge on
for the first time, read the information in this user manual
carefully. This manual contains important information
relating to the assembly, operation and maintenance of the
appliance.
Please keep this booklet in a safe place for future reference.
If you ever sell your BeefEater outdoor display fridge, hand
this user manual to the new owner.
The manufacture does not accept responsibility for any
damages that may arise due to non-observation of these
instructions. The user is liable for any material damage
or bodily injury (product liability) cause by using the
refrigerator carelessly or failing to follow instructions.
• Do not use damaged appliance. If you are in any doubt,
consult a suitably qualified technician.
• Connection and installation of your BeefEater outdoor
display fridge are to be carried out in strict compliance
with the instructions in this manual.
• For safety, the appliance must be properly earthed in
accordance with specifications
• Do not damage any parts of the appliance which carry
refrigerant by piercing, perforating, crushing, twisting or
scraping. If the refrigerant comes into contact with the
eyes, it may cause serious eye injury.
• Always remember to unplug the appliance before
cleaning. Never unplug your appliance by pulling on the
power cable. Always grip plug firmly and pull straight
out from the socket. Always check that the plug and
cable are undamaged.
• All repairs must be carried out by a qualified technician.
Inadequate repairs may be dangerous. Never try to
repair the outdoor display fridge yourself.
• Should the cover of the interior light or fan fall off or
break, switch the outdoor display fridge off immediately
and replace the cover.
• Ensure your chosen location has a flat and stable
surface. The unit may be leveled by turning either or
both of the adjustable feet in the front corners. Check
the unit is level using a spirit level.
• Do not obstruct or cover the ventilation aperture.
• Make sure there is a suitable power Outlet (240 volts,
10 amps outlet) with proper grounding to power the
refrigerator.
Disposal of Old Appliances
Be sure to make any locks unusable, remove any door(s) and
discard separately.
WARNING
WARNING
Chemical hazard: do not allow children to play with the
old appliance.
Contact your local authority for disposal procedures.
Do not position this appliance with its rear panel directly
against a wall. For good circulation and operating efficiency,
the ventilation grilles must never be blocked.
Remove all packaging and place the BeefEater outdoor
display fridge on a stable, secure flat surface. Position the
BeefEater outdoor display fridge away from heat sources,
where the unit is well-ventilated and protected from
moisture, or extremes of heat or cold. The outdoor display
fridge may not function properly if the ambient temperature
rises above 40° for prolonged periods of time.
When installed in a BeefEater Outdoor Kitchen, ensure the
vents behind the outdoor display fridge are clear, clean and
not obstructed from the other side, such that air circulation
is enabled.
Do not use an extension lead. If the mains cable will not
reach the nearest socket, either rearrange your installation
layout or ask a qualified electrician to fit a new socket.
If power is cut off, wait for at least 5 mins before plugging the
unit in again to avoid damaging the compressor.
Do not place combustible, explosive or volatile articles,
corrosive acid or alkali, or liquid in glass containers into the
BeefEater outdoor display fridge. Always exercise caution if
adjusting the temperature.
TIPS & INFORMATION
IMPORTANT
Allow the outdoor display fridge to stand still and upright for
8 hours before plugging it into the power.
Preparation
Position the Shelf-Supports inside the racks on the sides as
illustrated below, at your required level, and then place the
shelves firmly on the supports.
The maximum load for a shelf is 40kg.
NOTE: check that the refrigerator is functioning correctly
before installing shelves and filling it.
Cleaning
1. Unplug your BeefEater outdoor display fridge from
power source and remove any items from inside. It is
best to place these temporarily in another refrigerator.
2. Wash the inner compartment with warm water and
neutral mild detergent. DO NOT allow the control panel,
cables or plug to get wet.
Before disposing of an old appliance, make sure it is
switched off and safe. Unplug the appliance and break any
locks in order to avoid becoming trapped.
NOTE: refrigeration system contains gas and refrigerants
which require specialised waste disposal. Some vulnerable
materials in a refrigerator can be recycled .Contact your
local waste disposal depot for proper disposal of an old
appliance and contact your local authority or dealer if you
have any questions.
Please ensure the cooling systems and tubes of your
refrigerator are not damaged prior to disposal.
You can contribute to environmental awareness by insisting
on an appropriate non-polluting method of disposal.
Disposal of Packaging
Do not allow children to play with the packaging, and
dispose of plastic bags safely.
The cardboard may be broken or cut into smaller pieces
and recycled. Any wrapping cover is made of polyethylene.
The polyethylene pads and padding contain no fluorochloric
hydrocarbons, and as such are most suitable for adequate
recycling.
WARNING
WARNING
R600a refrigerant warning
This appliance contains flammable R600a refrigerant. Avoid
safety hazards by carefully installing, handling, servicing and
disposing of this appliance.
• Ensure that the tubing of the refrigerant circuit is not
damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least 1m3
per 8g of refrigerant. The amount of refrigerant in the
appliance can be found on the rating plate inside the
appliance.
• If you are unsure of the refrigerant check the rating
plate inside the refrigerator compartment.
• It is a hazardous for everyone other than an Authorised
Service Person to service this appliance. In Queensland
Australia the Authorisation Service Person MUST hold a
Gas Work Authorisation for hydrocarbon refrigerants to
carry out servicing or repairs which involve the removal
of covers.
• Keep ventilation openings in the appliance enclosure or
in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
TIPS & INFORMATION
IMPORTANT
NEVER use corrosive detergents, wire blasters, or abrasive
scourers to clean your BeefEater outdoor display fridge.
NEVER use metal or sharp implements to scrape any part of
the fridge.
3. Dry all surface thoroughly.
4. To ensure trouble-free operation the condenser should
be cleaned every three months where appropriate using
a vacuum hose. The condenser is located behind lower
grill of the cabinet. In exceptionally dusty
TIPS & INFORMATION
IMPORTANT
It is recommended that areas around the condenser are
cleaned more often.
5. Use mild soapy water to clean the gasket and seals
around the door.
6. The external surfaces of the fridge can be cleaned with
warm water and mild detergent, or with a suitable
Stainless-Steel cleaning material.

6 7

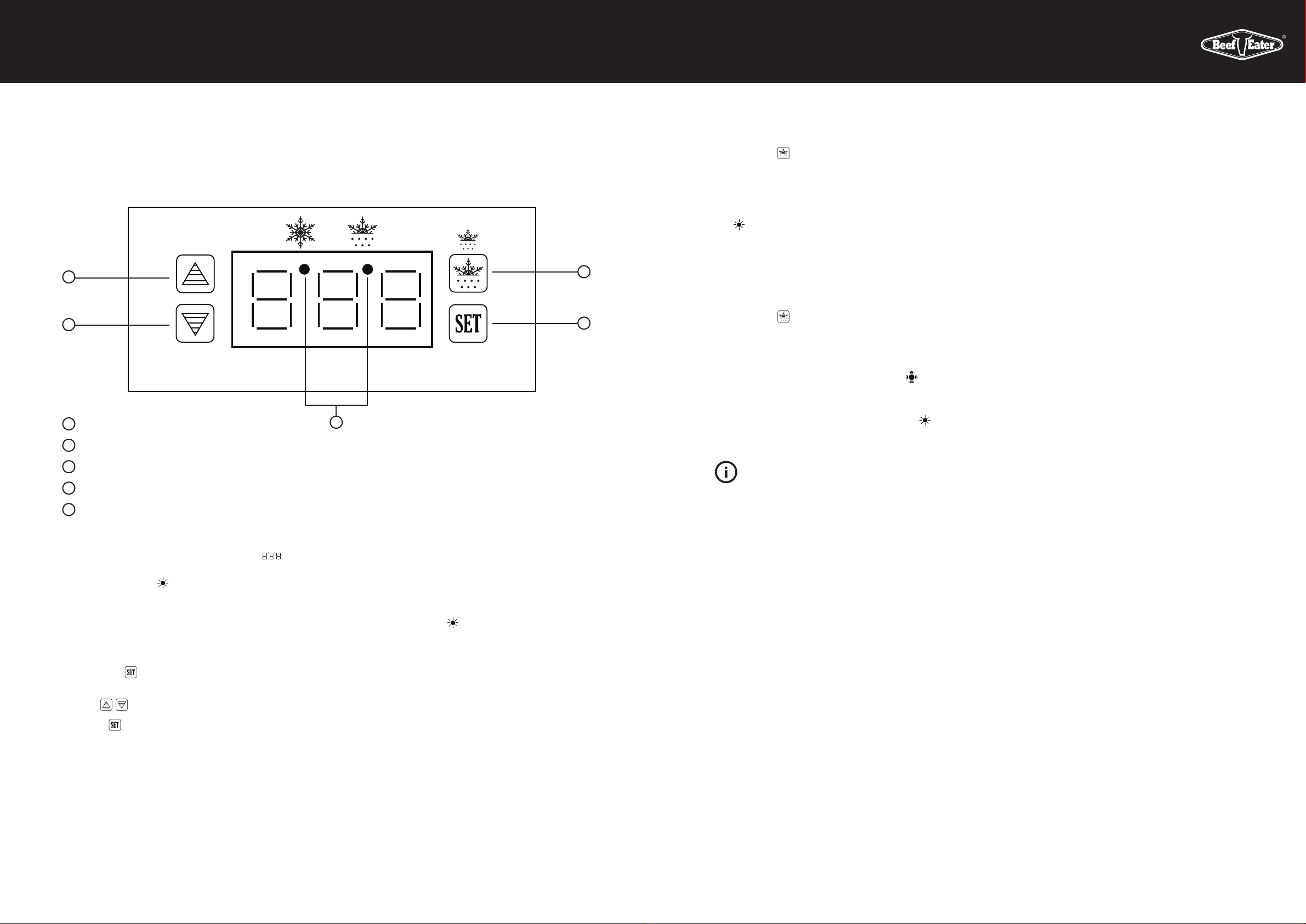

The electric controller is located outside the unit on the
bottom, right-hand side front plinth.
It looks like this:
During normal operation the controller display will
show the temperature inside the refrigerator.
A small indicator light will illuminate under the ‘cooling’
symbol to confirm the fridge is in its normal cooling mode,
and compressor is running.
Operation of the controller
To set the desired temperature of the fridge
• Press the button once. A ‘beep’ will sound, and the
display will start to flash.
• Use buttons to set to the desired temperature.
• Press again to complete the operation, or just leave
it for 5–10 seconds, and the display will revert back to
showing internal temperature, while new settings saved.
ELECTRIC CONTROL
ELECTRIC CONTROL
ELECTRIC CONTROL
ELECTRIC CONTROL
5
2
1
4
3
1 DOWN control
2 UP control
3 SET control
4 DEFROST control
5 Indicator lights
NOTE: The fridge is built to automatically defrost and prevent
any ice forming on the Evaporator.
It will automatically run a ‘Defrost cycle for 20min once every
8 hours.
When in a ‘Defrost’ cycle, the indicator light will illuminate
under the ‘Defrost’ symbol
To manually activate ‘Defrost’ cycle
• Press the button and hold it. a ‘beep’ will sound as
soon as pressed.
• Hold button pressed for 10 – 20 seconds, until a second
‘beep’ can be heard.
• The indicator light will now illuminate under the ‘defrost’
symbol and the fridge is into ‘defrost’ cycle.
• ‘Defrost’ will run for 20mins, and then automatically
revert to normal operation.
To manually change back to normal operating mode from
the ‘defrost’ mode
• Press the button again, a ‘beep’ will sound.
• Hold button pressed for 10 – 20 seconds, until a second
‘beep’ is heard.
• Both indicator lights under the ‘defrost’ symbol and
under the ‘cooling’ symbol will now flash
while the fridge is gearing up to switch back to normal
operation.
• After 5 – 20 minutes, only the indicator light will
illuminate under the ‘cooling’ symbol to confirm the
fridge is back in its normal cooling mode.
TIPS & INFORMATION
IMPORTANT
• The fridge will go through a normal periodical
defrosting cycle, and a manual defrosting operation is
only require in most extreme cases. It is better to avoid
if not necessary.
• While in the ‘defrost’ mode, the fridge cooling power
is reduced working. The automatic cycles ensure the
defrosting is done in the most efficient manner, a when
required. It is not recommended to leave the fridge in
the manually set defrost mode for prolonged periods of
time.
NOTE: The controller allows you to choose a desired
operating temperature of between -2°C and 8°C.
BeefEater do not recommend to operate the fridge on
settings of below 4°C, as such setting will cause content of
the fridge to freeze, and will result in unnecessary strain on
the cooling systems, and undue high energy consumption.
It is advisable to keep the cover over the controller closed
when not being accessed, so no unintended operation or
damage will occur.
In normal operation the controller turns the compressor off
at the set temperature and back on after the temperature
had risen a few degrees. As such, the reading in the
controller is always a couple of degrees above set-point
and that is perfectly okay.
When the temperature was reached and the compressor is
in its ‘off’ cycle, no indicator light will illuminate.

8 9
OPERATING THE LIGHT
USING YOUR BARBECUE
Internal fridge light
The light inside the fridge can be turned On and Off using the
light switch found on the right-hand side internal wall of the
fridge.
Replacing Lamps
Your BeefEater outdoor display fridge is using long-life,
energy-saving LED light tube. Should you need to replace
this light, please contact your nearest BeefEater stockist or
service agent for a suitable replacement part.
To change the light tube:
1. Unplug the power plug and ensure the light switch is off.
2. Remove the screws on both end of the light cover.
3. Take off the lamp cover, pull out the wires slightly.
4. Gently pull out the connector at the end of the light tube.
5. Insert the connector into the new lamp, place the lamp
cover and fasten it.

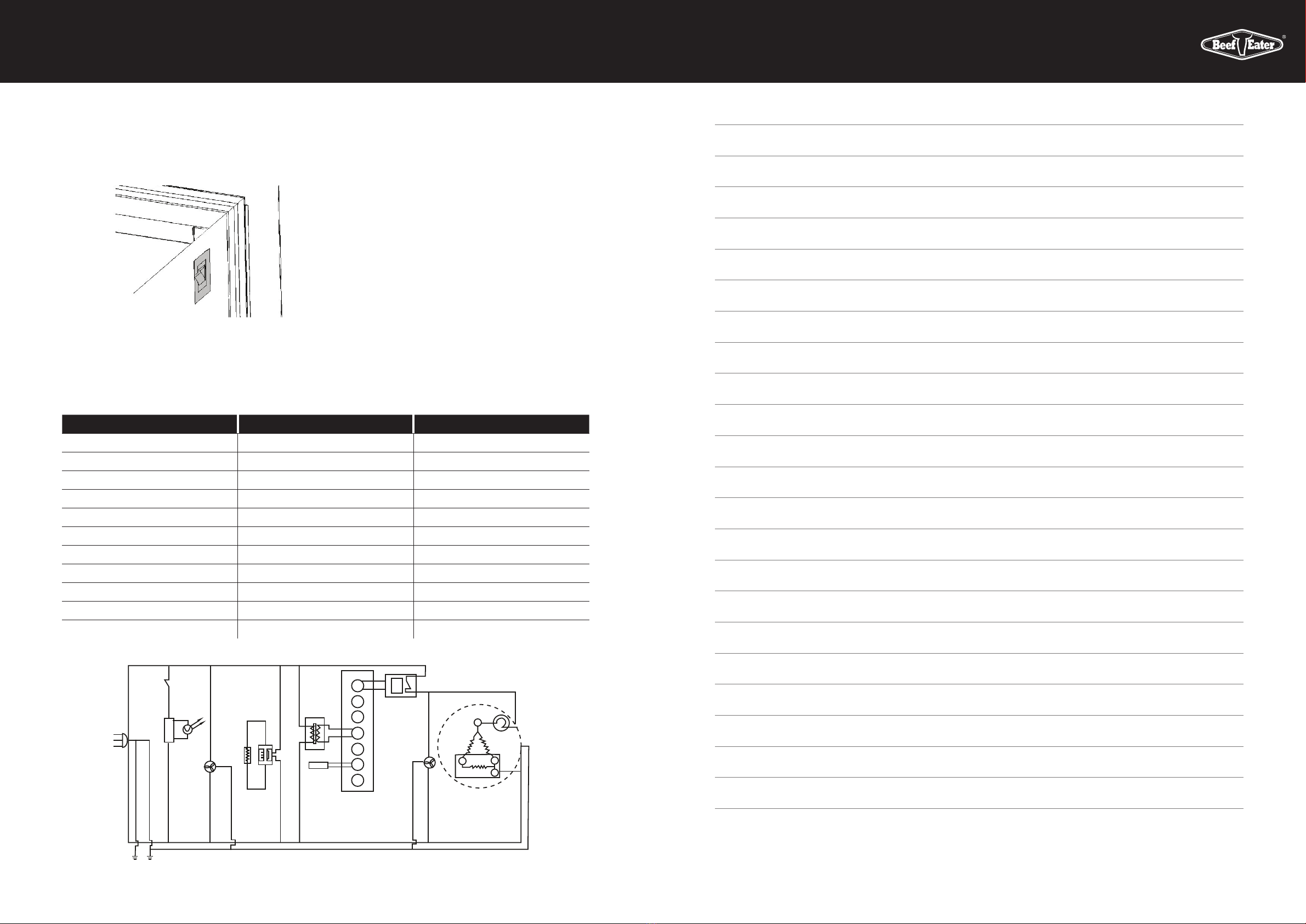

Technical Information
NOTE: Your BeefEater outdoor display fridge is built to
eliminate any fog accumulating on the glass doors, so vision
through the doors is never obstructed. This is achieved by
heating the outer surface of the door slightly, and as such it
is normal for the door to feel slightly warm for the touch.
MODEL BS28130 BS28200
Climate class 5M2 5M2
Storage volume 118L 190L
Protection class I I
Voltage 220-240v, 50Hz 220-240v, 50Hz
Input power 182w 213w
Light bulb power 3.3w 2.5w
Input current 0.95A 1.2A
IP Rating IPX4 IPX4
Refrigerant R600a/55g R600a/68g
Dimensions 840x555x520mm 840x855x520mm
Foaming agent Cyclopentane Cyclopentane
Power
Plug
Switch
Inner
lamp
Evaporator
Fan
Condenser
Fan
Temperature
controller
Compressor
Relay
YL GN
Heater
Transformer
Transformer
Heat
sensor
1
2
3
4
5
6
7
AC/DC
L
E
N
NOTES
NOTES

10 11NOTES
NOTES
WARRANTY
This document sets out the terms and conditions of the product
warranties for BeefEater Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘BeefEater’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
 (e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.Speciccomponentsarewarrantedagainstmanufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor – Further 3 years parts only,
• External Condenser – Further 3 years parts only
• Evaporator – Further 3 years parts only
• Drier – Further 3 years parts only
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
 (a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
 (c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
 (b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: BEEFEATER REFRIGERATORS
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
AUSTRALIA
ELECTROLUX HOME PRODUCTS
163 O’Riordan Street, Mascot NSW 2020
electrolux.com.au
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE 13 13 50
For the cost of a local call (Australia only)
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
(New Zealand only)
NEW ZEALAND
ELECTROLUX (NZ) Limited
3-5 Niall Burgess Road, Mount Wellington
electrolux.co.nz
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE 0800 10 66 20
(New Zealand only)
BFridgeFreezer_Warr_May17

AUSTRALIA
phone: [phone]
fax: [phone]
email: [e-mail]
web: beefeaterbbq.com
NEW ZEALAND
phone: [phone]
fax: [phone]
email: [e-mail]
web: beefeaterbbq.com
For more information on all BeefEater products, or for
dimension and installation information, call into your
retailer, phone or email our customer care team or visit
our website:
Beefeater. We are part of the Electrolux Family.
To add a touch of professional inspiration to
your home, visit electrolux.com.au
© 2018 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
BMAN_Fridge_Nov18
