Beko BDIS38120A User manual

Dishwasher
User’s Manual
BDIS38120A
150 0077 0100_BEKO_45E9_EN/ 24-03-22.(17:38)
Dishwasher
User’s Manual

Explanation of symbols
Throughout this User Manual the following symbols are used:
C
Important information or useful
hints about usage.
A
Warning for hazardous
situations with regard to life and
property.
B
Warning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by the local
authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been manufactured
with high quality and state-of-the-art technology. Therefore, please read this entire
user manual and all other accompanying documents carefully before using the product
and keep it as a reference for future use. If you handover the product to someone else,
give the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
This product was manufactured using the latest technology in environmentally friendly conditions.

CONTENTS
1 INSTRUCTIONS FOR SAFETY
AND ENVIRONMENT 4
General safety .......................................4
Intended use..........................................4
Children’s safety....................................5
Disposing of packaging material ........5
Transportation of the product ............5
Compliance with WEEE Directive and
Disposing of the Waste Product .........6
Compliance with RoHS Directive........6
Package information ............................6
2 DISHWASHER 7
Overview ................................................7
Fan drying system.................................8
Technical specications.......................8
3 INSTALLATION 9
Appropriate installation location .......9
Connecting water supply.....................9
Connection to the drain .................... 10
Adjusting the feet.............................. 10
Aquasafe+ ...........................................11
Electrical connection..........................11
Initial use..............................................11
4 PREPARATION 12
Tips for energy saving........................12
Water softening system ....................12
Adjusting the water softening
system ..................................................12
Adding salt ...........................................15
Detergent.............................................15
Adding Liquid/Gel Detergent and
Rinse Aid ..............................................16
Powder Detergents ........................... 19
Tablet detergents .............................. 20
Cutlery basket .................................... 23
Collapsible lower basket tines ......... 23
Collapsible lower basket tines ......... 24
Lower basket bottle wire.................. 25
Upper basket rack .............................. 25
Adjusting the height of the upper
basket .................................................. 26
Collapsible upper basket wires.........27
Ceiling cutlery basket.........................27
5 OPERATING THE PRODUCT28
Programme Selection / Programme
Cancel key............................................ 29
Function Keys ..................................... 29
Preparing the machine...................... 29
Programme selection ........................ 29
Auxiliary functions .............................31
Scheduling the washing time .......... 34
Starting the programme................... 34
Cancelling the programme ............... 35
Salt indicator ( ) .............................. 35
Rinse Aid indicator ( )..................... 35
End of programme ............................. 35
Adjusting the amount of rinse aid... 35
Water cut-o warning....................... 36
Overowing warning......................... 36
InnerClean........................................... 36
6 MAINTENANCE AND
CLEANING 37
Cleaning the outer surface of the
product .................................................37
Cleaning the interior of the machine37
Cleaning the lters .............................37
Cleaning the hose lter..................... 38
Cleaning the impellers ...................... 39
Lower impeller.................................... 39
Upper impeller ................................... 39
7 TROUBLESHOOTING 40

4 Dishwasher / User’s Manual/44 EN
instructions for safety and environment
1
This section contains safety
instructions that will help to get
protected from risk of personal
injury or property damage. Failure
to follow these instructions shall
void all warranties.
General safety
•Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will
cause electrical parts to
overheat. This will cause
problems with your product.
•Do not operate the product
if the power cable / plug is
damaged! Call the Authorised
Service Agent.
•Connect the product to a
grounded outlet protected
by a fuse complying with
the values in the “Technical
specifications” table. Do
not neglect to have the
grounding installation made
by a qualified electrician. The
manufacturer shall not be
liable for any damages that
will arise when the product
is used without grounding
in accordance with the local
regulations.
•The water supply and
draining hoses must be
securely fastened and remain
undamaged.
•Unplug the product when not
in use.
•Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
•Never touch the plug with
wet hands! Never unplug by
pulling on the cable, always
pull out by grabbing the plug.
•The product must be
unplugged during installation,
maintenance, cleaning and
repairing procedures.
•Always have the installation
and repairing procedures
carried out by the Authorised
Service Agent. Manufacturer
shall not be held liable for
damages that may arise from
procedures carried out by
unauthorised persons.
•Never use chemical solvents
in the product. They bring
forth the risk of explosion.
•When you pull the upper and
lower baskets out completely,
the door of the product will
bear all the weight of the
baskets. Do not put other
loads on the door; otherwise,
the product may tilt.
•Never leave the door of
the product open apart
from loading and unloading
procedures.
•Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of hot
steam when you open the
door.
Intended use
•This product has been
designed for domestic use.
•It must be used to do the
domestic type dishes only.

Dishwasher / User’s Manual 5/ 44 EN
instructions for safety and environment
•This appliance is intended
to be used in household and
similar applications such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
•Only dishwasher safe
detergents, rinse aids and
additives must be used.
•The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
•The service life of your
product is 10 years. During
this period, original spare
parts will be available to
operate the product properly.
•This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical,sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be
made by children without
supervision.
Chldren’s safety
•Electrical products are
dangerous for the children.
Keep children away from the
product when it is in use. Do
not let them to tamper with
the product.
•Do not forget to close the
door of the product when
leaving the room where it is
located.
•Store all detergents and
additives in a safe place
away from the reach of the
children.
Dsposng of
packagng materal
Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured from
recyclable materials. Dispose
of them properly and sort in
accordance with recycled waste
instructions. Do not dispose
of them with normal domestic
waste.
Transportaton of the
product
A
If you need to move the
product, do it in upright
position and hold from
the rear side. Slanting
the product onto its
front side may cause the
electronic parts in it get
wet and damaged.

6 Dishwasher / User’s Manual/44 EN
instructions for safety and environment
1. Unplug the product before
transporting it.
2. Remove water drainage and
water supply connections.
3. Drain the remaining water in
the product completely.
Complance wth
WEEE Drectve and
Dsposng of the
Waste Product
This product complies with
EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high quality
parts and materials which can be
reused and are suitable for
recycling. Do not dispose of the
waste product with normal
domestic and other wastes at the
end of its service life. Take it to
the collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities to
learn about these collection
centers.
Complance wth RoHS
Drectve
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package nformaton
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.

Dishwasher / User’s Manual 7/ 44 EN
Dishwasher
2

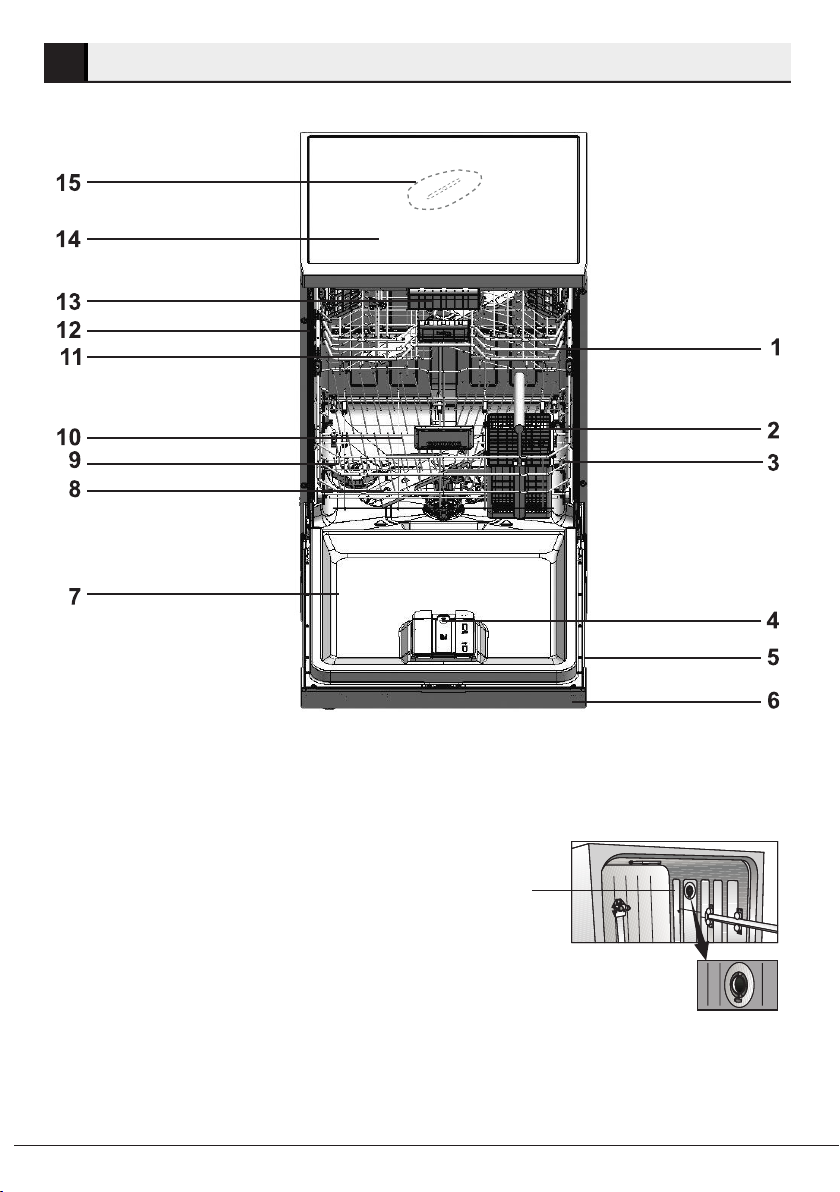

Overvew
1. Upper basket
2. Cutlery basket
3. Lower basket
4. Automatic Liquid/Gel Detergent and Rinse Aid Dosing System
5. Type Label
6. Control panel
7. Door
8 Lower impeller
9. Salt reservoir lid
10. Filters
11. Upper impeller
12. Upper basket rail
13. Upper cutlery basket ( depends on model )
14. Upper table ( depends on model )
15. Ceiling impeller ( depends on model )
16. Fan drying system ( depends on model )
16
3-

8 Dishwasher / User’s Manual/44 EN
Dishwasher
Techncal specfcatons
Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the safety
rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.03-1.0
Mpa)
C
Technical specifications may be changed without prior notice to improve the
quality of the product.
C
Figures in this manual are schematic and may not match the product exactly.
C
Values stated on the markings of the product or in the printed documents
accompanying the product are obtained in the laboratory on basis of the
relevant standards. Depending on operational and environmental conditions of
the product, these values may vary.
Note for test institutions:
Data required for performance tests shall be provided upon request. Requests can be
e-mailed to the following address:
dishw[email protected]
Do not forget to provide the code, stock and serial numbers of the product to be tested in
your request e-mail along with your contact information. Code, stock and serial numbers of
the product may be found on the type label attached to the side wall of the door.
Fan dryng system
(depends on model)
Fan drying system ensures efficient drying of your dishes.
It is normal to hear a different sound than that of washing cycle during fan operation.

Dishwasher / User’s Manual 9/ 44 EN
3Installation
Refer to the nearest Authorised Service
Agent for installation of your product. To
make the product ready for use, make sure
that the electricity, tap water supply and
water drainage systems are appropriate
before calling the Authorised Service Agent.
If they are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
C
Preparation of the location and
electrical, tap water and waste
water installations at the place
of installation is the customer's
responsibility.
B
Installation and electrical
connections must be carried
out by the Authorised Service
Agent. Manufacturer shall
not be held responsible
for damages arising from
processes carried out by
unauthorised persons.
A
Prior to installation, visually
check if the product has any
defects on it. If so, do not have
it installed. Damaged products
cause risks for your safety.
C
Make sure that the water inlet
and discharge hoses are not
folded, pinched or crushed
while pushing the product into
its place after installation or
cleaning procedures.
When placing the product, pay attention
not to damage the floor, walls, piping, etc.
Do not hold the product by its door or panel
to move it.
Approprate nstallaton
locaton
•Place the product on a solid and flat
floor that has sufficient load carrying
capacity! The product must be
installed on a flat surface in order for
the door to be closed comfortably and
securely.
•Do not install the product at places
where temperature may fall below 0ºC.
•Place the product at least 1 cm away
from the edges of other furniture.
•Place the product on a rigid floor. Do
not place it on a long pile rug or similar
surfaces.
B
Do not place the product on the
power cable.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product in a place close to
the tap and the drain hole. Select the
installation location by considering
that it will not be changed after the
connections are made.
Connectng water supply
C
We recommend attaching a
filter on the house/apartment
supply water inlet to protect
the machine from damages
that may arise from impurities
(sand, dirt, rust, etc.) coming
from the urban water supply
system or from your own water
system as well as to prevent
complaints such as yellowing or
sludge accumulation at the end
of washing.

10 Dishwasher / User’s Manual/44 EN
Installation
Permitted water temperature:
up to 25°C ( 60°C for products
equipped with Aquasafe+; please
refer toAquasafe+ section )
The dishwasher may not be connected to
open warm water devices or flow-through
water heaters.
•Do not use old or used water inlet
hose on the new product. Use the new
water inlet hose supplied with the
product.
•Connect the water inlet hose directly
to the water tap. Pressure coming
from the tap should be minimum 0.3
and maximum 10 bars. If the water
pressure exceeds 10 bars, a pressure
relief valve should be installed in
between.
•Open the taps completely after making
the connections to check for water
leaks.
C
Use a screw-on hose connector
to connect the water inlet hose
to a water tap with a ¾ inch
external thread. If required, use
a filter insert to filter deposits
from the pipes.
A
For your safety, close the water
inlet tap completely after the
washing programme is over.
Connecton to the dran
Water discharge hose can directly be
connected to the drain hole or sink’s drainage.
The length of this connection must be min. 50
cm and max. 100 cm from the floor. A discharge
hose longer than 4 meters causes dirty
washing.
Attach the water discharge hose to the
drainpipe without bending it. Tightly fix the
water discharge hose to the drainpipe in
order to prevent any dislocation of the water
discharge hose during operation of the product.
min 300*
min 120*
max 1000 *
min 500 *
* mm
C
Drainpipe must be connected
to the sewage system and it
should not be connected to any
surface water.
Aquasafe+
(depends on model)
The Aquasafe+ system protects against water
leaks that may occur at the hose inlet.Water
contact with the valve box of the system must
be avoided to prevent damage to the electrical
system. If the Aquasafe+ system is damaged,
unplug the product and call the Authorised
Service Agent.
A
As the hose set contains
electrical connections and
assemblies, never shorten
or lengthen the hose with
extension hoses.
