INTRODUCTION 1
1. IMPORTANT SAFETY INSTRUCTIONS 1
1.1 INSPECT THE DISHWASHER 2
2. TOOLS WHICH MAY BE NEEDED 3
3. MATERIALS WHICH MAY BE NEEDED 3
4. MATERIALS SUPPLIED 4
4.1 PARTS SUPPLIED 4
4.2 MANUAL BAG 4
4.3 DISHWASHER PARTS BAG 1 4
4.4 DISHWASHER PARTS BAG 2 4
4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4
5. DISHWASHER SPECIFICATIONS 5
5.1 TECHNICAL FEATURES 5
6. ENCLOSURE PREPARATION 6
6.1 ELECTRICAL PREPARATION 6
6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 6
6.3 ADJUSTING HEIGHT 8
6.4 INSTALLING THE SIDE TRIM STRIPS 9
6.5 PREPARING THE WATER CONNECTION (A) 9
6.6 DRAIN PREPARATION 10
6.7 STEAM PROTECTION FOIL 11
7. PLACEMENT OF DISHWASHER INTO THE OPENING 12
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 12
7.2 READJUSTING FOOT LEVELS 14
7.3 ADJUSTING THE MOVABLE TOE KICK 14
7.4 FIXING THE CABINET TO THE COUNTER 16
7.5 PREPARING THE TIMBER DOOR 17
7.6 PREPARING THE PRODUCT DOOR 18
7.7 INSTALLING THE TIMBER DOOR 19
7.8 FIXING THE TIMBER DOOR 19
7.9 FIXING THE TIMBER DOOR 20
7.10 ADJUSTING THE KICK PLATE 20
7.11 CONNECTION 22
8. INSTALLER CHECKLIST 23
9. SELF HELP HINTS: 23
To prevent accidents, which could cause serious injury or death, as well as
machine damage read these instructions before installation and / or use.

1USA
INTRODUCTION
Please read ths nstallaton manual and
partcularly the safety nstructons completely
and carefully. They wll save you tme and
effort and help to ensure optmum dshwasher
performance.
Be sure to observe all lsted warnngs and
cautons. Look partcularly for the cons wth
exclamaton marks nsde. The nformaton con
also wll provde mportant references.



WARNING:
Indcates a potentally hazardous stuaton
whch, f not avoded, could result n death or
serous njury.
CAUTION:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n njury. It may
also be used to alert aganst unsafe practces.
NOTICE:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n damage to
the dshwasher, the table-ware, the equpment
or the envronment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addton to these nstructons, the dshwasher
shall be nstalled:
•In accordance with all local codes or, in
absence of a local code,
•In the United States, with the National
Electric Code,
•In Canada, with the Canadian Electric
Code C22.1-latest edition/Provincial and
Municipal codes and/or local codes.
NOTICE :
Read these nstallaton nstructons completely
before nstallng and follow them carefully. Save
these nstallaton nstructons and pass them on
to any future user.
WARNING
When installing the dishwasher, follow
basic precautions, including the
following:
•The dishwasher could only be converted
from cord-connected to permanently
connected by an authorized service
representative. (If needed contact your
dealer to schedule an authorized service
agent for conversion with an appropriate
conversion kit)
•Installation and repair should be performed
by a qualified installer. Work by unqualified
persons could be dangerous and may void
the warranty.
NOTICE :
The dshwasher should be nstalled by an
nsured lcensed plumber, contractor or traned
nstaller. Installaton performed by persons
other than ths could result n mproper
nstallaton and property damage.
•Do not operate the appliance if damaged,
malfunctioning, partially disassembled or if
it has missing or broken parts.
•Also follow the safety instructions of the
user manual.
•To reduce the risk of electric shock, fire, or
injury to persons, the installer must ensure
that the dishwasher is completely enclosed
at the time of installation.
•Only connect the dishwasher to the power
supply when all installation and plumbing
work is complete.
•If the dishwasher is installed in a location
that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.),
you must drain all the water from the
dishwasher’s interior. Water system

2USA
ruptures that occur as a result of freezing
are not covered by warranty.
•Dishwasher must be secured to adjacent
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
•Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher is
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167 °F) or
higher. These requirements must be met
to prevent injury and machine damage.
Consult a qualified electrician if in doubt.
•Do not use any extension cord or portable
outlet device to connect the dishwasher to
a power supply.
•Ensure that any plastic wrappings, bags,
small pieces etc. are disposed of safely and
kept out of the reach of children. Danger of
suffocation!
•Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being stored for
disposal.
•Old appliances may contain materials that
can be recycled. Please contact your local
recycling authority about the possibility of
recycling these materials.
NOTICE :
•The dishwasher drain hose must be
installed with a drain loop at least 28”
(710mm) off the cabinet floor; otherwise
the dishwasher may not drain properly.
•This dishwasher is intended for residential
use only, and should not be used in
commercial establishments.
•New installation - If the dishwasher is a
new installation, most of the work must be
done before the dishwasher is moved into
place.
•Replacement - If the dishwasher is
replacing another dishwasher, check
the existing dishwasher connections for
compatibility with the new dishwasher,
and replace parts as necessary.
1.1 INSPECT THE DISHWASHER
After unpackng the dshwasher and pror to
nstallaton, thoroughly nspect the dshwasher
for possble freght or cosmetc damage. Report
any damage mmedately.
NOTICE :
•Cosmetic defects must be reported within
10 days of installation.
•Do not discard any bags or items that come
with the original package until after the
entire installation has been completed.

3USA

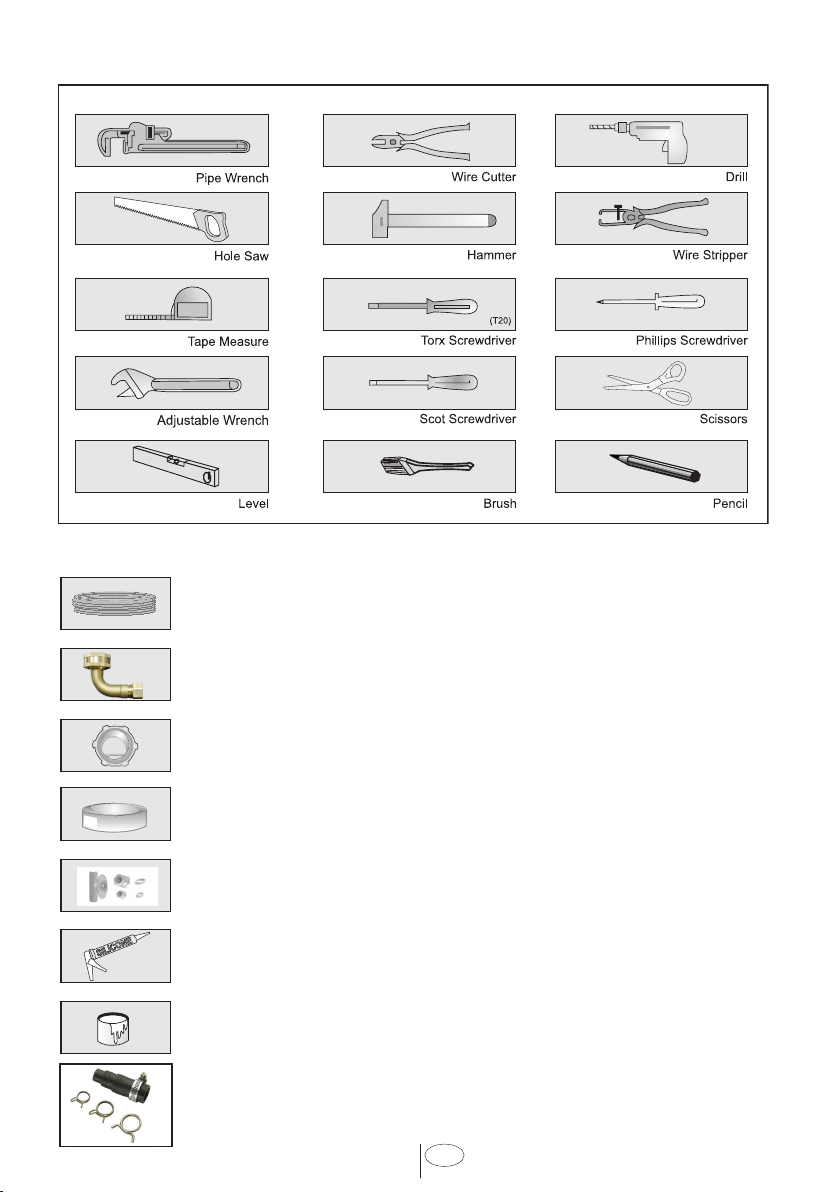

2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Addtonal materals may be requred to comply wth local codes)
Hot Water Supply Lne - Mnmum 3/8” O.D. copper tubng or metal braded
dshwasher supply lne.
Elbow wth 3/4” N.P.T. female thread for dshwasher sde, and szed to ft your
water supply lne (copper tubng/compresson fttng, or braded hose) on the other
sde. Dshwasher connecton s 3/4" male.
UL lsted condut connector or stran relef.
Teflon tape or other ppe thread compound to seal plumbng connectons.
Shut-off valve and fttngs approprate for hot water supply lne (copper tubng/
compresson fttng, or braded hose).
Slcone
Glue
Dshwasher Dscharge Hose Adaptor

4USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dshwasher wll
come n several plastc bags.
Check your parts bags shown to
make sure you have all the parts
as lsted to the left.
4.2 MANUAL BAG
The dshwasher comes wth a
manual bag contanng:
•User manual,
•Installation manual
4.3 DISHWASHER
PARTS BAG 1
Ths dshwasher bag comes wth
the followng parts:
a. Sde Trm Strps (Left)
b. Sde Trm Strps (Rght)
d. Screws Ø 1/8” x 5/8” (Ø 3.5
mm x 14 mm)
e. Mountng Bracket Left
f. Mountng Bracket Rght
h. Screw Clamp
k. Toe Kck Bracket - Left
l. Toe Kck Bracket – Rght
n. Tmber Centerng
o. Tmber Centerng Screw
p. Toe Kck
s. Template
t. Hook and loop fastener
v. Screws Ø 1/8” x 5/8” (Ø 3.5mm
x 14mm)
z. Steam Protecton Fol
x. Screws Ø 3/16” x 1/4” (Ø 4mm
x 6mm)
4.4 DISHWASHER
PARTS BAG 2
(MODEL DEPENDING)
In addton to the manual bag
and the dshwasher parts bag
(dshwasher models whch can
accept a wooden ktchen door)
also come wth a door panel
nstallaton kt whch contans:
y. Screws 4mm x 36 mm =
3/16th x 1-7/16th
yy. Screws Ø 3/16” x 13/4” (Ø
4mm x 43mm)
4.5 PARTS
ATTACHED TO
THE REAR OF THE
DISHWASHER
a. Sde Trm Strps (Left)
b. Sde Trm Strps (Rght)
x4
x2












































v.
x.

5USA
5. DISHWASHER SPECIFICATIONS
5.1 TECHNICAL FEATURES
Permissible water pressure
4.35 - 145 ps (0.3 - 10 bars)
Electrical connection
120 V (volts), 12 A (amps), 60Hz (hertz)
Total power
1400 W (watts)
Heater power
1100 W (watts)
NOTICE :
Because we contnually strve to mprove our products, we may change our specfcatons and desgn
wthout pror notce.
Ths devce corresponds to the followng drectves:
UL 749 Household Dshwasher drectve.

6USA
6. ENCLOSURE PREPARATION
6.1 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected
to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or
breaker rated for 15 amperes.

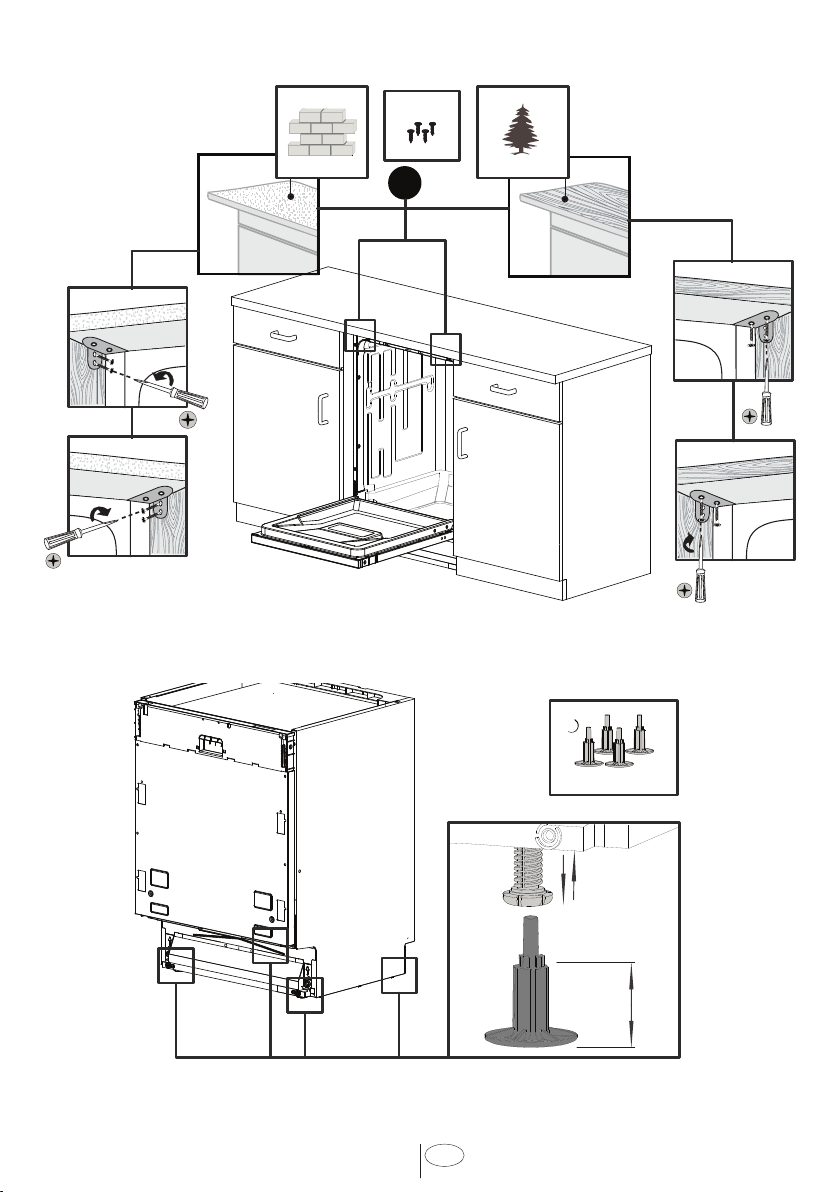

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS
e-f)

7USA
?
d)
(+50mm)
j
+ 50 max
50

8USA
WARNING
Dishwasher must be secured to adjacent
cabinetry using the mounting brackets
provided. Failure to do this may cause damage
to property or bodily injury.
Place the two mountng brackets nto the top corners
of the dshwasher.
Fx the mountng brackets ( A ) to the top corners of the
dshwasher, wth the screws suppled.
Bend sdes of mountng brackets ( B ) n order to fx from
sdes (f necessary).

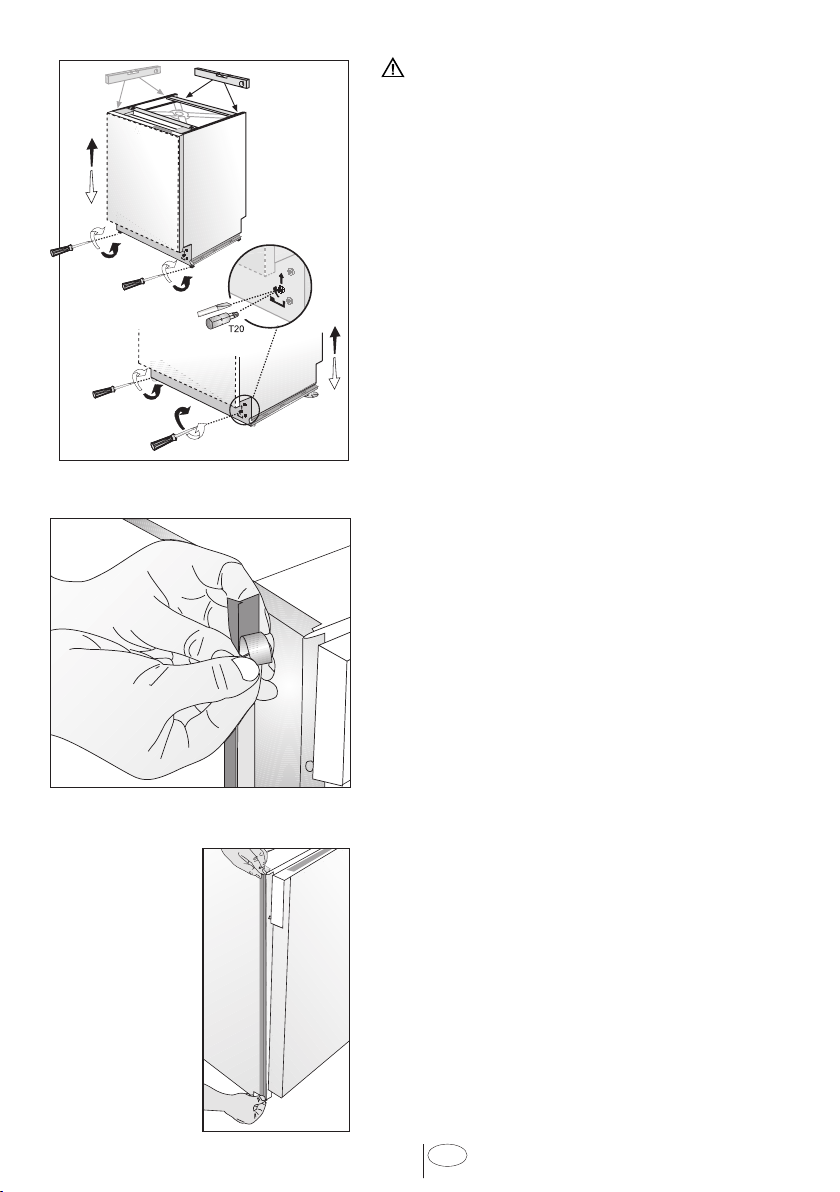

6.3 ADJUSTING HEIGHT
If the heght of the enclosure s 337/8” to 357/8” (861
mm - 911mm) adjust supports as shown n the fgure.
Suppled ( 4 )
Adjust the front foot level wth the adjustng wrench
to balance and rase the dshwasher to the enclosure
heght.
Adjust the rear foot level wth a screwdrver to balance
and rase the dshwasher to the enclosure heght.



9USA
NOTICE :
•Make sure the dishwasher is plumb and notice dishwasher can be placed with a small clearance
under the counter top.
•Turning the screwdriver in the direction of the black arrows will bring the dishwasher back feet
up.
•Turning the screwdriver in the direction of the white arrows will take the dishwasher rear feet
down.

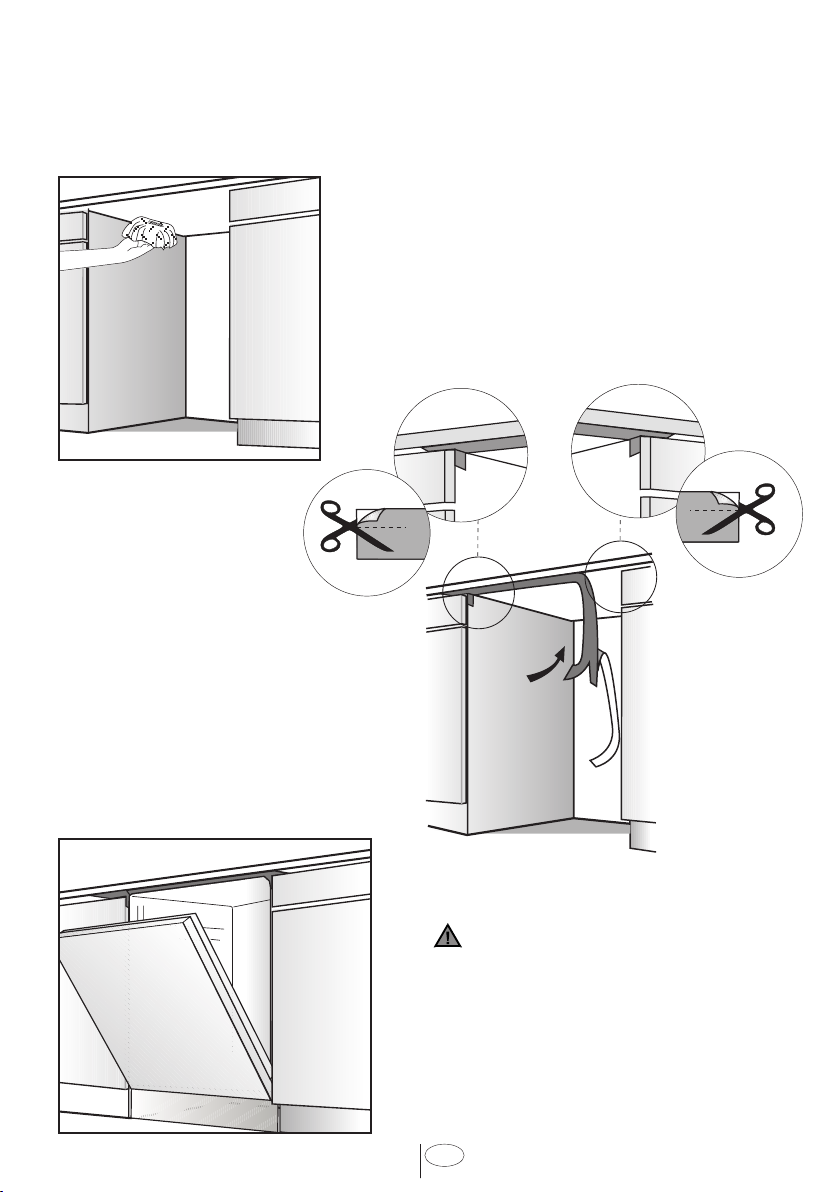

6.4 INSTALLING THE SIDE TRIM STRIPS
Remove the adhesve tape (Fgure A ).
Place the trm strps on the front edge of the sde walls (Fgure B ).
NOTICE :
•Make sure you use the correct trim strip since there is a left and right side strip. The flexible
material should be facing forward (Figure B ).

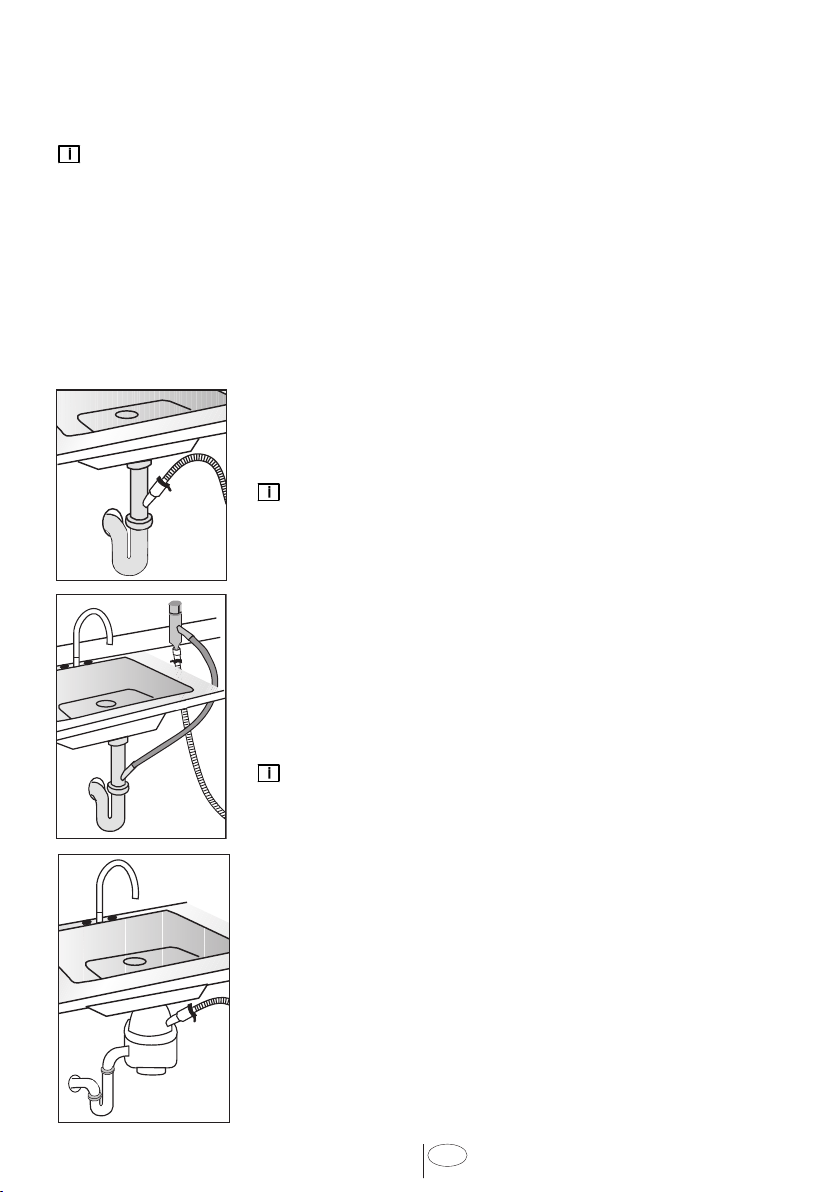

6.5 PREPARING THE WATER CONNECTION (A)
Install an easly accessble shut-off valve (not suppled) n the water supply lne. All solder
connectons must be made before the water lne s connected to the dshwasher’s water nlet valve.
Water can also be suppled to the dshwasher by usng a flexble braded hose lne.
Check wth your plumbng supply sources for the proper hose and elbow and necessary fttngs for
the water supply lne. Ths materal s not suppled, and must be purchased separately.
WARNING
Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.
If the dishwasher is installed in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin etc.), you must drain all the water from the
dishwasher’s interior. Water system ruptures that occur as a result of freezing are
not covered by warranty.

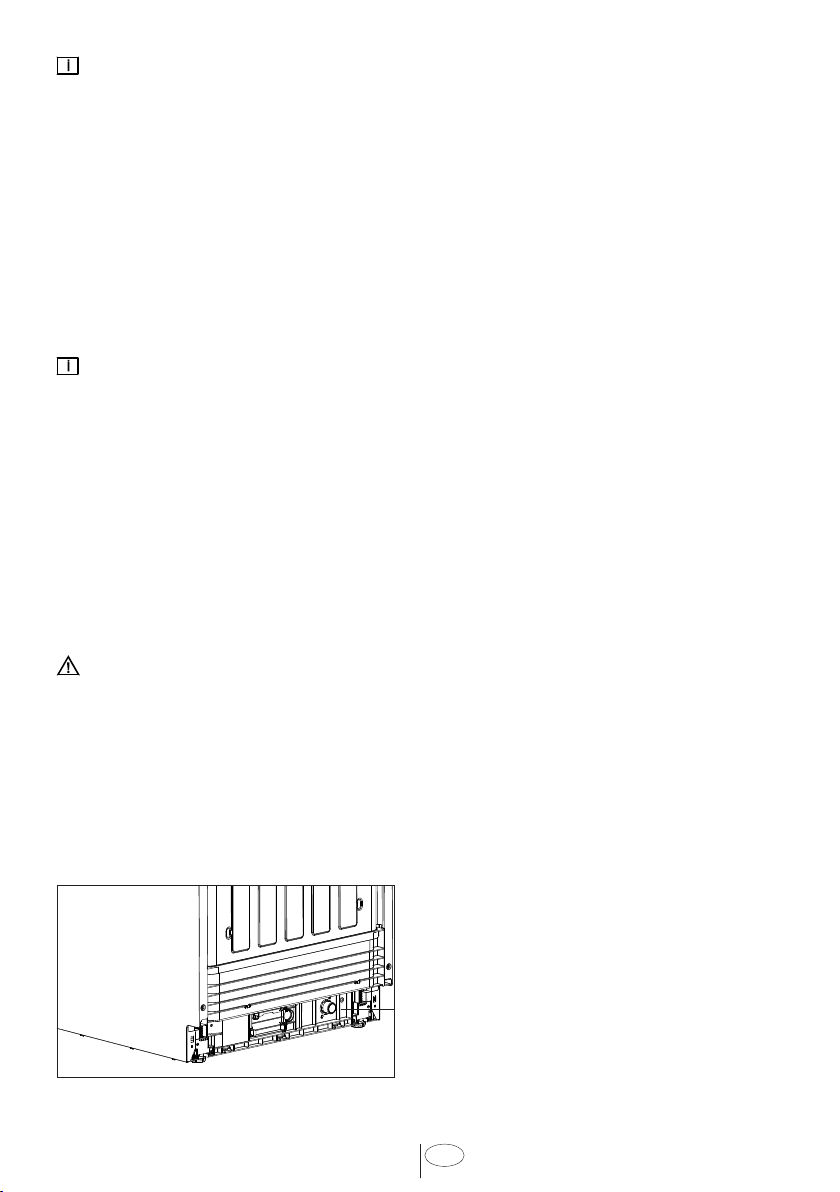

Water Connection

10 USA
6.6 DRAIN PREPARATION
The dshwasher dran hose may be connected to the dran plumbng n one of three ways (Fgure A ,
B , C ).
NOTICE :
•Either one of the above methods must be used or the dishwasher will not operate properly.
•A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole
plugged.
•The total length of the drain hose is 763/4” (1950mm). If a hose extension is required, a
drainage hose of equal quality must be used.
•The maximum length must not exceed 157 ½” (4000mm). Otherwise, the cleaning process is
negatively influenced.
6.6.1 UNDER THE SINK DRAIN
Install a Y-branch tal ppe. (Fgure A )
NOTICE :
You must add a loop at least 28” (710mm)
above the floor of the cabnet and above
the dran connecton n the dran hose to
prevent waste water from not dranng
properly, and causng ether poor washng
results or a bad odor.
6.6.2 INSTALLING AN AIR GAP
If the local ordnance requres an ar gap
(Fgure B ).
NOTICE :
Check wth local ordnance for type of ar
gap requred.
6.6.3 DISPOSAL
Remove the dran connecton plug
before attachng the dran hose from the
dshwasher.
Every dsposal has a hook up for a
dshwasher; consult your dsposer manual
for correct connecton. (Fgure C )




11 USA
6.7 STEAM PROTECTION FOIL
Steam wll form nsde the dshwasher durng operaton. At the end of the cycle, when the
dshwasher door s opened, t s requred to use a steam protecton fol to prevent any steam from
collectng on the undersde of the counter top.
6.6.2 FITTING THE PROTECTION FOIL
Before applyng the steam protecton fol to the
undersde of the countertop, clean the area wth a
damp cloth (as shown n Fgure A ). Once the area dres,
apply the steam protecton fol.
CAUTION
Steam protecton fol must be appled where
the steam escapes when door s frst opened.
Failure to install the steam protection foil
during installation can lead to damage to
the cabinets and countertop.
The steam protecton fol
wll be appled at the locaton
where the hot steam escapes
when you frst open the door
(as shown n Fgure B ).



12 USA
7. PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dshwasher nto the openng and get ready to connect all hoses and electrcal
connectons.
CAUTION
Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the above figure.
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
7.1.1 DRAIN HOSE CONNECTION
Connect the dran hose to the dran plumbng.
1. Use the suppled rubber connecton hose and dran hose clamps to connect the dshwasher dran
hose to the plumbng dran connecton.
2. Use the sprng clamp to secure the rubber connecton hose to the dshwasher dran hose. Use the
screw clamp to secure
the rubber connecton
hose to the plumbng
dran connecton.

13 USA
Note that the marks on the rubber connecton
hose should be on the dran hose sde
7.1.2 WATER SUPPLY
CONNECTION
Water supply may be connected to the
dshwasher n one of two ways:
•With metal braided hose.
•With copper tubing.
CAUTION
•Hot water supply line: Use minimum
3/8” O.D. copper tubing or metal braided
dishwasher supply line.
•Temperatures required for soldering and
sweating will damage the dishwasher’s
water inlet valve so if any such operation
is needed, keep the heat source min. 77/8”
(200mm) away from the dishwasher’s
water inlet valve.
•There should not be any sharp bends in the
water line that may restrict the water flow.
•Teflon tape or pipe tread compound must
be used for sealing the connection. Before
connecting the copper water supply line to
the dishwasher, flush it with hot water to
clear any foreign material.
NOTICE :
After connectons are made turn on the water
supply to check for leaks.
7.1.3 ELECTRICAL CONNECTION
WARNING
•Make sure the voltage and frequency listed
on the data plate correspond with the
household electrical supply. This data must
correspond to prevent injury and machine
damage. Consult a qualified electrician if
in doubt.
•Only connect the dishwasher to the mains
when all installation and plumbing work is
complete.
•Do not use any extension cord or portable
outlet device to connect the dishwasher to
a power supply.
•The power-supply receptacle for the
appliance shall be installed in a cabinet
or on a wall adjacent to the undercounter
space in which the appliance is to be
installed.
•The access hole of the supply cord to the
installation compartment must be smooth
and rounded and it must be large enough
for the attachment plug to pass through.
The longest dimension of the opening
shall not be more than 1,5” (38 mm).If the
partition is metal, it needs to be covered
with an edge protector.
•Care must be taken when the appliance
is installed or removed, to reduce the
likelihood of damage to the power-supply
cord.
7.1.4 GROUNDING INSTRUCTIONS
Ths applance must be grounded. In the event
of a malfuncton or breakdown, groundng wll
reduce the rsk of electrc shock by provdng
a path of least resstance for electrc current.
Ths applance s equpped wth a cord havng
an equpment-groundng conductor and a
groundng plug. The plug must be plugged
nto an approprate outlet that s nstalled and
grounded n accordance wth all local codes and
ordnances. Ths applance must be connected
to a grounded metal, permanent wrng system,
or an equpment-groundng conductor must be
run wth the crcut conductors and connected
to the equpment-groundng termnal or lead on
the applance.
WARNING
Improper connecton of the equpment-
groundng conductor can result n a rsk of
electrc shock. Check wth a qualfed electrcan
or servce representatve f you are n doubt
whether the applance s properly grounded. Do
not modfy the plug provded wth the applance,
f t wll not ft the outlet, have a proper outlet
nstalled by a qualfed electrcan.

14 USA
7.2 READJUSTING FOOT
LEVELS
Now that the dshwasher s n the
cabnet you must readjust the feet to
brng the dshwasher up to the requred
heght and attach t underneath the
countertop.
1. Readjust the front foot levels wth
adjustng wrench to balance the
dshwasher and rase t up under the
countertop, make sure the unt s level.
2. Readjust the rear foot levels wth a
screwdrver to balance the dshwasher
and rase t to the requred heght usng
the brackets suppled.
3. Attach the dshwasher underneath
the countertop wth the four screws
suppled (Ø 1/8” x 1/8” - Ø 3.5mm x
14mm). Make sure you do not go through
the top of the countertop or damage
grante.



7.3 ADJUSTING THE MOVABLE TOE KICK
Now that you have successfully nstalled the dshwasher, you need to attach
the toe kck to the dshwasher. The two pece toe kck can be adjusted to the
heght and depth needed for your ktchen. Be sure to use the slotted toe kck
n the front and the other behnd t. They slde nto each other.
1. Insert the movable toe kck brackets nto the channel ( A ).
2. Make sure that the plastc tab to the left of the “L” openng on the
dshwasher has not closed the channel you wll push the bracket through.
NOTİCE :
Be sure to notce there s a left and a rght bracket.
Adjust the toe kck brackets forward or backwards so that they wll algn wth
the ktchen toe kck ( B ).

15 USA




















Lock the toe kck brackets as shown wth the plastc tab n the
fgure C by pushng the plastc tab on the dshwasher nto the
teeth of the bracket ( C ).
3. Now attach the toe kck to the bracket wth the two (Ø
3/16
” x
1/4
” - Ø 4mm x 6mm) screws and the caps provded as follows.
If the enclosure heght s below 33
1/16
” (840mm) use only “o”
labelled toe kck (toe kck wthout slots). Installaton should be
done followng the steps llustrated n the Fgures A, B and C
respectvely.
1. Bend tabs on toe kck (o) nwards ( A ).
2. Secure toe kck to brackets wth screws (t) as shown n the
supply bags ( B ).
3. Attach caps (s) as shown n the supply bags ( C ).
If the enclosure heght s above 33
1/16
” (840mm) use “o” and “p”
labelled toe kcks together. Make sure the slotted toe kck “p” s on
the outsde so you can adjust heght of the toe kck. Installaton
should be done followng the steps llustrated n the fgures A, B
and C respectvely.
1. Algn the toe kck (o) and (p) ( A ).
2. Secure toe kcks to brackets wth screws (t) after adjustng the
heght of the slotted toe kck (p) ( B ).
3. Attach caps (s) as shown n the supply bags ( C ).
If the enclosure heght s above 34
1/4
” (870mm) use “o” and “r”
labelled toe kcks together. Make sure the slotted toe kck “r” s on
the outsde so you can adjust heght of the toe kck. Installaton
should be done followng the steps llustrated n the fgures A, B
and C respectvely.
1. Algn the toe kck (o) and (r) ( A ).
2. Secure toe kcks to brackets wth screws (r) after adjustng the
heght of the slotted toe kck (t) ( B ).
3. Attach caps (s) as shown n the supply bags ( C ).

16 USA

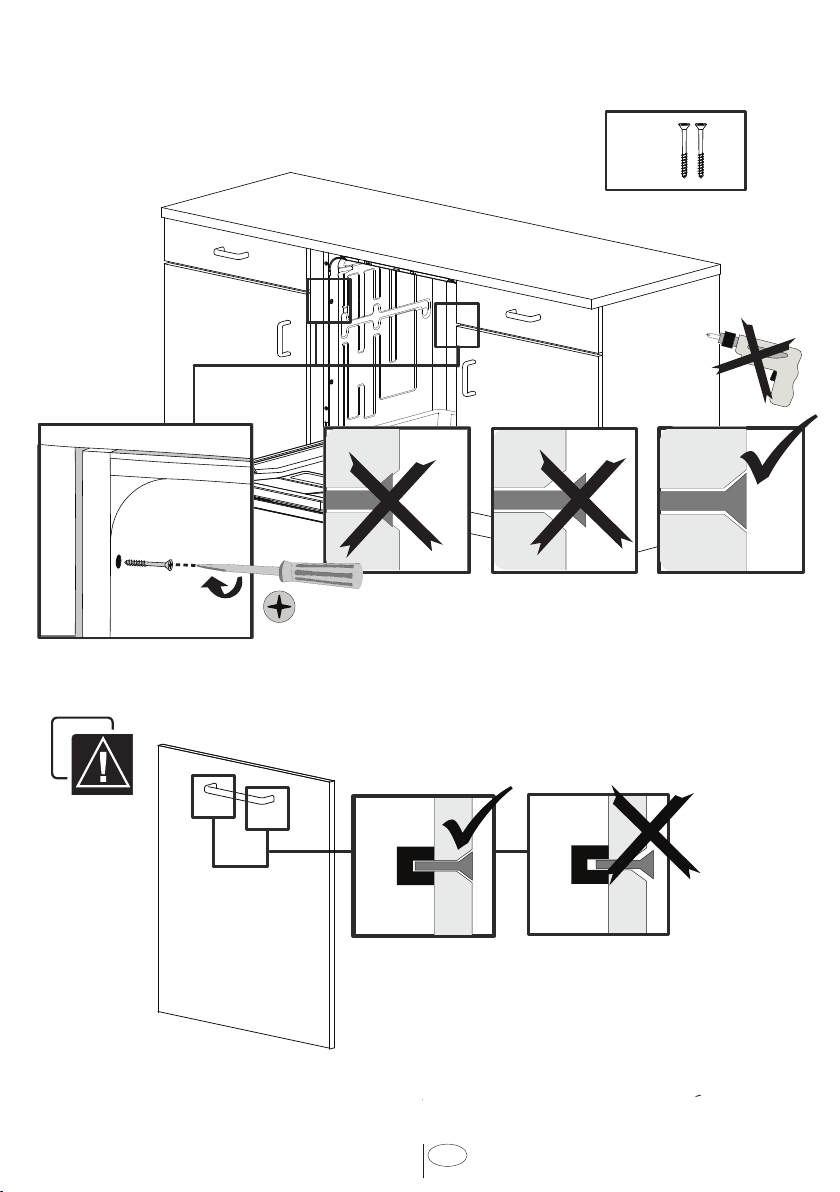

7.4 FIXING THE CABINET TO THE COUNTER
(y)

17 USA
7.5 PREPARING THE TIMBER DOOR
X =
?
X
==
Mid. Point
==
Mid. Point
Heght (h) : Heght of the wooden door 28” (720mm)
Wdth : 17 ½” to 17 ¾” (442 mm - 448 mm)
Thckness : ¾ “ (19mm)
Weght (max) : 5,5 Kg / 12,1 lbs
Weght (max)
5.5 Kg 12,1 lb
o) s)
n)
t)
