INTRODUCTION 1
1. IMPORTANT SAFETY INSTRUCTIONS 1
1.1 INSPECT THE DISHWASHER 2
2. TOOLS WHICH MAY BE NEEDED 3
3. MATERIALS WHICH MAY BE NEEDED 3
4. MATERIALS SUPPLIED 4
4.1 PARTS SUPPLIED 4
4.2 MANUAL BAG 4
4.3 DISHWASHER PARTS BAG 1 4
4.4 DISHWASHER PARTS BAG 2 4
4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4
5. DISHWASHER SPECIFICATIONS 5
5.1 TECHNICAL FEATURES 5
6. ENCLOSURE PREPARATION 6
6.1 ELECTRICAL PREPARATION 6
6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 6
6.3 ADJUSTING HEIGHT 9
6.4 INSTALLING THE SIDE TRIM STRIPS 10
6.5 PREPARING THE WATER CONNECTION (A) 10
6.6 DRAIN PREPARATION 11
6.7 STEAM PROTECTION FOIL 12
7. PLACEMENT OF DISHWASHER INTO THE OPENING 13
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 13
7.2 READJUSTING FOOT LEVELS 16
7.3 ADJUSTING THE MOVABLE TOE KICK 16
7.4 FIXING THE CABINET TO THE COUNTER 18
7.5 PREPARING THE TIMBER DOOR 19
7.6 PREPARING THE PRODUCT DOOR 20
7.9 INSTALLING THE TIMBER DOOR 21
7.10 FIXING THE TIMBER DOOR 21
7.11 FIXING THE TIMBER DOOR 22
7.12 ADJUSTING THE KICK PLATE 22
7.13 CONNECTION 23
8. INSTALLER CHECKLIST 24
9. SELF HELP HINTS: 24
To prevent accidents, which could cause serious injury or death, as well
as machine damage read these instructions before installation and / or
use.

1USA
INTRODUCTION
Please read ths nstallaton manual
and partcularly the safety nstructons
completely and carefully. They wll save you
tme and effort and help to ensure optmum
dshwasher performance.
Be sure to observe all lsted warnngs and
cautons. Look partcularly for the cons wth
exclamaton marks nsde. The nformaton
con also wll provde mportant references.



WARNING:
Indcates a potentally hazardous stuaton
whch, f not avoded, could result n death
or serous njury.
CAUTION:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n njury.
It may also be used to alert aganst unsafe
practces.
NOTICE:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n damage
to the dshwasher, the table-ware, the
equpment or the envronment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addton to these nstructons, the
dshwasher shall be nstalled:
•In accordance with all local codes or, in
absence of a local code,
•In the United States, with the National
Electric Code,
•In Canada, with the Canadian Electric
Code C22.1-latest edition/Provincial
and Municipal codes and/or local codes.
NOTICE :
Read these nstallaton nstructons
completely before nstallng and follow
them carefully. Save these nstallaton
nstructons and pass them on to any
future user.
WARNING
When installing the dishwasher,
follow basic precautions, including
the following:
•The dishwasher could only be
converted from cord-connected
to permanently connected by an
authorized service representative.
(If needed contact your dealer to
schedule an authorized service agent
for conversion with an appropriate
conversion kit)
•Installation and repair should be
performed by a qualified installer.
Work by unqualified persons could be
dangerous and may void the warranty.
NOTICE :
The dshwasher should be nstalled by an
nsured lcensed plumber, contractor or
traned nstaller. Installaton performed
by persons other than ths could result n
mproper nstallaton and property damage.
•Do not operate the appliance if
damaged, malfunctioning, partially
disassembled or if it has missing or
broken parts.
•Also follow the safety instructions of
the user manual.
•To reduce the risk of electric shock,
fire, or injury to persons, the installer
must ensure that the dishwasher is
completely enclosed at the time of
installation.
•Only connect the dishwasher to the
power supply when all installation and
plumbing work is complete.

2USA
•If the dishwasher is installed in a
location that experiences freezing
temperatures (e.g. in a vacation home,
cabin, etc.), you must drain all the
water from the dishwasher’s interior.
Water system ruptures that occur as
a result of freezing are not covered by
warranty.
•Dishwasher must be secured to
adjacent cabinetry using the brackets
provided. Failure to do this may cause
damage to property or bodily injury.
•Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher
is designed for an electrical supply
of 120 V (volts), 60 Hz (hertz), AC,
connected to a dishwasher-dedicated,
properly grounded electrical circuit
with a fuse or breakers rated for 15
amperes. Electrical supply conductors
shall be a minimum of # 16 AWG
copper wire rated at 75 °C (167 °F) or
higher. These requirements must be
met to prevent injury and machine
damage. Consult a qualified electrician
if in doubt.
•Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
•Ensure that any plastic wrappings,
bags, small pieces etc. are disposed
of safely and kept out of the reach of
children. Danger of suffocation!
•Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding
it. Ensure that the appliance presents
no danger to children while being
stored for disposal.
•Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about
the possibility of recycling these
materials.
NOTICE :
•The dishwasher drain hose must be
installed with a drain loop at least
28” (710mm) off the cabinet floor;
otherwise the dishwasher may not
drain properly.
•This dishwasher is intended for
residential use only, and should not be
used in commercial establishments.
•New installation - If the dishwasher is
a new installation, most of the work
must be done before the dishwasher is
moved into place.
•Replacement - If the dishwasher is
replacing another dishwasher, check
the existing dishwasher connections
for compatibility with the new
dishwasher, and replace parts as
necessary.
1.1 INSPECT THE DISHWASHER
After unpackng the dshwasher and pror
to nstallaton, thoroughly nspect the
dshwasher for possble freght or cosmetc
damage. Report any damage mmedately.
NOTICE :
•Cosmetic defects must be reported
within 10 days of installation.
•Do not discard any bags or items that
come with the original package until
after the entire installation has been
completed.

3USA
2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Addtonal materals may be requred to comply wth local codes)
Hot Water Supply Lne - Mnmum 3/8” O.D. copper tubng or metal braded
dshwasher supply lne.
Elbow wth 3/4” N.P.T. female thread for dshwasher sde, and szed to
ft your water supply lne (copper tubng/compresson fttng, or braded
hose) on the other sde. Dshwasher connecton s 3/4” male.
UL lsted condut connector or stran relef.
Teflon tape or other ppe thread compound to seal plumbng connectons.
Shut-off valve and fttngs approprate for hot water supply lne (copper
tubng/compresson fttng, or braded hose).
Slcone
Glue
Dshwasher Dscharge Hose Adaptor

4USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dshwasher wll
come n several plastc bags.
Check your parts bags shown
to make sure you have all the
parts as lsted to the left.
4.2 MANUAL BAG
The dshwasher comes wth a
manual bag contanng:
•User manual,
•Installation manual
4.3 DISHWASHER
PARTS BAG 1
Ths dshwasher bag comes
wth the followng parts:
a. Sde Trm Strps (Left)
b. Sde Trm Strps (Rght)
d. Screws Ø 1/8” x 5/8” (Ø 3.5
mm x 14 mm)
e. Mountng Bracket Left
f. Mountng Bracket Rght
g. Sprng Clamp
h. Screw Clamp
j. Rubber Connector
k. Toe Kck Bracket - Left
l. Toe Kck Bracket – Rght
n. Tmber Centerng
o. Tmber Centerng Screw
p. Toe Kck
s. Template
t. Hook and loop fastener
v. Sde centerng
z. Steam Protecton Fol
4.4 DISHWASHER
PARTS BAG 2
(MODEL DEPENDING)
In addton to the manual bag
and the dshwasher parts bag
(dshwasher models whch
can accept a wooden ktchen
door) also come wth a door
panel nstallaton kt whch
contans:
y. Screws 4mm x 36 mm =
3/16th x 1-7/16th
yy. Screws Ø 3/16” x 13/4” (Ø
4mm x 43mm)
4.5 PARTS
ATTACHED TO
THE REAR OF THE
DISHWASHER
a. Sde Trm Strps (Left)
b. Sde Trm Strps (Rght)
x4
x2

5USA
5. DISHWASHER SPECIFICATIONS
TALL TUB MODELS
STANDART TUB MODELS



6USA
5.1 TECHNICAL FEATURES
Permissible water
pressure
4.35 - 145 ps (0.3 - 10 bars)
Electrical connection
120 V (volts), 12 A (amps), 60Hz (hertz)
Total power
1400 W (watts)
Heater power
1100 W (watts)
NOTICE :
Because we contnually strve to mprove our products, we may change our specfcatons
and desgn wthout pror notce.
Ths devce corresponds to the followng drectves:
UL 749 Household Dshwasher drectve.

7USA
6. ENCLOSURE PREPARATION
6.1 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC,
connected to a dishwasher-dedicated, properly grounded electrical circuit
with a fuse or breaker rated for 15 amperes.
6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS
e-f)
STANDART TUB MODELS

8USA
?
d)

9USA
(+50mm)
j
+ 50 max
50
WARNING
Dishwasher must be secured to adjacent cabinetry using the mounting
brackets provided. Failure to do this may cause damage to property or
bodily injury.
(Depends on model)
Tghten the plugs on both
sdes of your machne (v)
TALL TUB MODELS ONLY

10 USA
Place the two mountng brackets nto the top
corners of the dshwasher.
Fx the mountng brackets ( A ) to the top corners
of the dshwasher, wth the screws suppled.
Bend sdes of mountng brackets ( B ) n order to
fx from sdes (f necessary).
6.3 ADJUSTING HEIGHT
If the heght of the enclosure s 337/8” to 357/8”
(861 mm - 911mm) adjust supports as shown n
the fgure.
Suppled ( 4 )
Adjust the front foot level wth the adjustng
wrench to balance and rase the dshwasher to the
enclosure heght.
Adjust the rear foot level wth a screwdrver to
balance and rase the dshwasher to the enclosure
heght.
NOTICE :
•Make sure the dishwasher is plumb and
notice dishwasher can be placed with a small
clearance under the counter top.
•Turning the screwdriver in the direction of
the black arrows will bring the dishwasher
back feet up.
•Turning the screwdriver in the direction of
the white arrows will take the dishwasher
rear feet down.



11 USA
6.4 INSTALLING THE SIDE TRIM STRIPS
Remove the adhesve tape (Fgure A ).
Place the trm strps on the front edge of the sde walls (Fgure B ).
NOTICE :
•Make sure you use the correct trim strip since there is a left and right side strip. The
flexible material should be facing forward (Figure B ).
6.5 PREPARING THE WATER CONNECTION (A)
Install an easly accessble shut-off valve (not suppled) n the water supply lne. All solder
connectons must be made before the water lne s connected to the dshwasher’s water
nlet valve. Water can also be suppled to the dshwasher by usng a flexble braded hose
lne.
Check wth your plumbng supply sources for the proper hose and elbow and necessary
fttngs for the water supply lne. Ths materal s not suppled, and must be purchased
separately.
Water Connection

12 USA
WARNING
Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.
If the dishwasher is installed in a location that experiences freezing
temperatures (e.g. in a vacation home, cabin etc.), you must drain all the
water from the dishwasher’s interior. Water system ruptures that occur as a
result of freezing are not covered by warranty.
6.6 DRAIN PREPARATION
The dshwasher dran hose may be connected to the dran plumbng n one of three ways
(Fgure A , B , C ).
NOTICE :
•Either one of the above methods must be used or the
dishwasher will not operate properly.
•A hose that attaches to a sink spray can burst if it is installed
on the same water line as the dishwasher. If your sink has
one, it is recommended that the hose be disconnected and
the hole plugged.
•The total length of the drain hose is 763/4” (1950mm). If a
hose extension is required, a drainage hose of equal quality
must be used.
•The maximum length must not exceed 157 ½” (4000mm).
Otherwise, the cleaning process is negatively influenced.
6.6.1 UNDER THE SINK DRAIN
Install a Y-branch tal ppe. (Fgure A )
NOTICE :
You must add a loop at least 28” (710mm) above the floor of
the cabnet and above the dran connecton n the dran hose to
prevent waste water from not dranng properly, and causng
ether poor washng results or a bad odor.
6.6.2 INSTALLING AN AIR GAP
If the local ordnance requres an ar gap (Fgure B ).
NOTICE :
Check wth local ordnance for type of ar gap requred.
6.6.3 DISPOSAL
Remove the dran connecton plug before attachng the dran
hose from the dshwasher.
Every dsposal has a hook up for a dshwasher; consult your
dsposer manual for correct connecton. (Fgure C )




13 USA
6.6.1 UNDER THE SINK DRAIN (ALTERNATIVE)
•
•
•
•

Due to the local bu�ld�ng code requ�rements, some d�shwasher �nstallat�ons requ�re hook�ng
up d�scharge hose to an a�r gap located next to the s�nk �n k�tchens. S�nce the connect�on
d�ameter �s d�fferent than standard d�scharge hose connect�ons, please use the connector
p�ece prov�ded w�th the mach�ne w�th �nstruct�ons �llustrated.
6.6.1 DESAGÜE DEBAJO DEL FREGADERO (ALTERNATIVO)
•
•
•
•

Deb�do a los requ�s�tos del cód�go de construcc�ón local, algunas �nstalac�ones de
lavavaj�llas requ�eren conectar la manguera de descarga a un espac�o de a�re s�tuado junto
al fregadero en las coc�nas. Dado que el d�ámetro de la conex�ón es d�ferente al de las
conex�ones de manguera de descarga estándar, ut�l�ce la p�eza de conex�ón sum�n�strada
con la máqu�na que cont�ene las �nstrucc�ones que se �lustran a cont�nuac�ón.

14 USA
6.7 STEAM PROTECTION FOIL
Steam wll form nsde the dshwasher durng operaton. At the end of the cycle, when
the dshwasher door s opened, t s requred to use a steam protecton fol to prevent any
steam from collectng on the undersde of the counter top.
6.6.2 FITTING THE PROTECTION FOIL
Before applyng the steam protecton fol to the
undersde of the countertop, clean the area wth
a damp cloth (as shown n Fgure A ). Once the
area dres, apply the steam protecton fol.
CAUTION
Steam protecton fol must be appled
where the steam escapes when door s frst
opened. Failure to install the steam
protection foil during installation can
lead to damage to the cabinets and
countertop.
The steam protecton
fol wll be appled at the
locaton where the hot
steam escapes when you
frst open the door (as
shown n Fgure B ).



15 USA
7. PLACEMENT OF DISHWASHER INTO THE OPENING

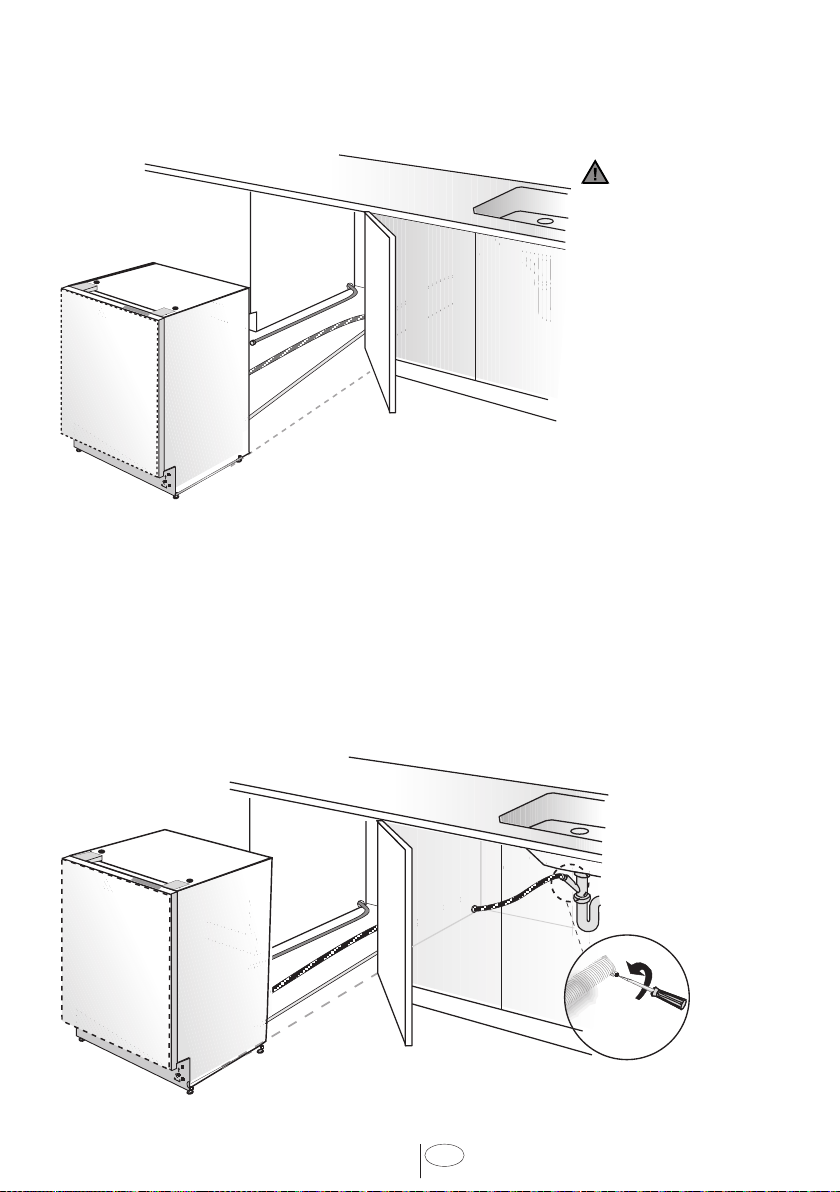

Now place the dshwasher nto the openng and get ready to connect all hoses and
electrcal connectons.
CAUTION
Make sure all hoses
are pulled through
the side opening
of the cabinet, no
hoses are kinked
and all slack is taken
out as shown in the
above figure.
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
7.1.1 DRAIN HOSE CONNECTION
Connect the dran hose to the dran plumbng.
1. Use the suppled rubber connecton hose and dran hose clamps to connect the
dshwasher dran hose to the plumbng dran connecton.
2. Use the sprng clamp to secure the rubber connecton hose to the dshwasher dran
hose. Use the screw clamp to secure the rubber connecton hose to the plumbng dran
connecton.
Note that the marks
on the rubber
connecton hose
should be on the
dran hose sde

16 USA
7.1.2WATER SUPPLYCONNECTION
Water supply may be connected to the
dshwasher n one of two ways:
•With metal braided hose.
•With copper tubing.
CAUTION
•Hot water supply line: Use minimum
3/8” O.D. copper tubing or metal
braided dishwasher supply line.
•Temperatures required for soldering
and sweating will damage the
dishwasher’s water inlet valve so if
any such operation is needed, keep
the heat source min. 77/8” (200mm)
away from the dishwasher’s water
inlet valve.
•There should not be any sharp bends
in the water line that may restrict the
water flow.
•Teflon tape or pipe tread compound
must be used for sealing the
connection. Before connecting the
copper water supply line to the
dishwasher, flush it with hot water to
clear any foreign material.
NOTICE :
After connectons are made turn on the
water supply to check for leaks.
7.1.3 ELECTRICAL CONNECTION
WARNING
•Make sure the voltage and frequency
listed on the data plate correspond
with the household electrical supply.
This data must correspond to prevent
injury and machine damage. Consult a
qualified electrician if in doubt.
•Only connect the dishwasher to
the mains when all installation and
plumbing work is complete.
•Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
•The power-supply receptacle for
the appliance shall be installed in a
cabinet or on a wall adjacent to the
undercounter space in which the
appliance is to be installed.
•The access hole of the supply cord to
the installation compartment must
be smooth and rounded and it must
be large enough for the attachment
plug to pass through. The longest
dimension of the opening shall not be
more than 1,5” (38 mm).If the partition
is metal, it needs to be covered with an
edge protector.
•Care must be taken when the
appliance is installed or removed, to
reduce the likelihood of damage to the
power-supply cord.
7.1.4 GROUNDING INSTRUCTIONS
Ths applance must be grounded. In the
event of a malfuncton or breakdown,
groundng wll reduce the rsk of electrc
shock by provdng a path of least
resstance for electrc current. Ths
applance s equpped wth a cord havng
an equpment-groundng conductor
and a groundng plug. The plug must be
plugged nto an approprate outlet that
s nstalled and grounded n accordance
wth all local codes and ordnances. Ths
applance must be connected to a grounded
metal, permanent wrng system, or an
equpment-groundng conductor must
be run wth the crcut conductors and
connected to the equpment-groundng
termnal or lead on the applance.

17 USA
WARNING
Improper connecton of the equpment-
groundng conductor can result n a rsk
of electrc shock. Check wth a qualfed
electrcan or servce representatve f
you are n doubt whether the applance s
properly grounded. Do not modfy the plug
provded wth the applance, f t wll not ft
the outlet, have a proper outlet nstalled by
a qualfed electrcan.
