Beko CFG4582DS User manual

Refrigerator
User manual
EN /
CFG4582DS - CFG4582DW
58 9977 0000/AA

A
A
A
C
SUPPLIER’S NAME MODEL IDENTIFIER (*)
INFORMATION
C
The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/
Please read these instructions first before using your appliance
Thank you for choosing a Beko appliance.
Please take some time to read this user manual before using your appliance,
to ensure you know how to safely operate the controls and functions.
Carefully follow all unpacking and installation instructions to ensure the
appliance is correctly connected and fitted prior to use.
Please write your product model and serial number on the last page of this
user manual, and store in a safe location close to the appliance for easy future
reference.
This user manual may also be applicable for several other models. Differences
between models will be listed.
If you have any questions or concerns, please call our Customer Service Team
or find help and information online at www.beko.co.uk
The following symbols are used in the user guide:
Hazard that may result in death or injury.
NOTICE A hazard that may cause material damage to the product or its
surroundings
Important information or useful tips on operation.
Read the user manual.
Risk of fire / Flammable materials

EN
3
1 Your refrigerator 4
2 Warnings 5
Electrical requirements...........................6
Warning! This appliance must be
earthed..........................................................6
Energy saving tips..................................... 7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Compliance with rohs directive: .........8
Package information................................8
3 Installation 9
Points to be paid attention to when
the relocation of the refrigerator.......9
Electrical connection ...............................9
Disposing of the packaging.................10
Disposing of your old refrigerator ....10
Placing and Installation.........................10
Adjusting the legs................................... 11
Chiller Compartment.............................. 11
Changing the illumination lamp ....... 11
4 Preparation 12
Reversing the doors...............................13
5 Using your appliance 14
Cooling .........................................................14
Storing Frozen Food ...............................15
Freezing Fresh Food...............................15
Placing the food.......................................15
Defrosting of the appliance ................15
Take out the bottom door shelf .......16
6 Maintenance and
cleaning 20
Protection of plastic surfaces .......... 20
7 Troubleshooting 21

EN
4
1Your refrigerator
C Fgures that take place n ths nstructon manual are schematc and may not
correspond exactly wth your product. If the subject parts are not ncluded n the
product you have purchased, then t s vald for other models.
Congratulations on your choice a Beko quality Appliance which has been
designed to give you service for many years.
4
*5
*2
3
6
7
8
9
10
11
12*
*13
*1
*
*May not be available in all models
1. Adjustable door shelves
2. Water dispenser filling tank
3. Egg section
4. Water dispenser reservoir
5. Bottle shelf
6. Adjustable Front Feet
7. Freezing and Storage (store fresh
food to be frozen lower down)
8. Freezer fan
9. Salad Crisper
10. Chiller compartment
11. Adjustable shelves
12. Wine rack
13. Thermostat knob

EN
5
2Warnings
• Do not connect your
appliance to the electricity
supply until all packing and
transit protectors have been
removed.
• If transported horizontally
leave to stand upright for at
least 4 hours before switching
on to allow compressor oil to
settle
• If you are discarding an old
refrigerator with a lock or latch
fitted to the door, disable the
lock/latch, ensure that it is left
in a safe condition to prevent
the entrapment of young
children.
• This fridge/freezer must
only be used for its intended
purpose i.e the storing and
freezing of edible foodstuff.
• Do not dispose of the
appliance on a fire. At Beko,
the care and protection
of our environment is an
ongoing commitment. This
appliance which is among
the latest range introduced
is particularly environment
friendly. Your appliance
contains non CFC / HFC
natural substances in the
cooling system (Called
R600a) and in the insulation
(Called cyclopentane) which
are potentially flammable if
exposed to fire. Therefore,
take care not to damage, the
cooling circuit / pipes of the
appliance in transportation
and in use. In case of damage
do not expose the appliance
to fire or potential ignition
source and immediately
ventilate the room where the
appliance is situated.
• We suggest you contact your
local authority for disposal
information and facilities
available.
• To obtain the best possible
performance and trouble free
operation from your appliance
it is very important to carefully
read these instructions.
• On delivery, check to make
sure that the product is not
damaged and that all the parts
and accessories are in perfect
condition.
• Ensure that the plug remains
readily accessible. Do not use
multiple adapter or extension
cable.
• Failure to observe these
instructions may invalidate
your right to free service
during the guarantee period.
• Keep ventilation openings, in
the appliance enclosure or in
the built-in structure, clear of
obstruction.
• Do not damage the refrigerant
circuit.
• Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.

EN
6
• We suggest you keep these
instructions in a safe place for
easy reference.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be
made by children without
supervision.
• Children should be supervised
to ensure that they do not
play with the appliance.
Electrical requirements
Before you insert the plug into
the wall socket make sure that
the voltage and the frequency
shown on the rating plate inside
the appliance corresponds to
your electricity supply.
Rating label is on the left hand
side of fridge inner liner.
We recommend that this
appliance be connected to the
mains supply via a suitable
switched and fused socket. The
appliance must be positioned
so that the plug is accessible.
WARNING:
When positioning the
appliance ensure the supply
cord is not trapped or damaged.
Should the mains lead of the
appliance become damaged or
should it need replacing at any
time, it must be replaced by a
special purpose made mains
lead which can only be obtained
from a Beko authorised service
agent.
Warning! This appliance
must be earthed
If the fitted moulded plug is
not suitable for your socket,
then the plug should be cut
off and an appropriate plug
fitted. Destroy the old plug
which is cut off as a plug with
bared cord could cause a shock
hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this
appliance incorporates a 13
A fuse. Should the fuse need
to be replaced an ASTABEAB
approved BS 1362 fuse of the
same rating must be used. Do
not forget to refit the fuse
cover. In the event of losing the
fuse cover the plug must not be
used until a replacement fuse
cover has been fitted.
Colour of the replacement
fuse cover must be the same
colour as that visible on the pin
face of the plug. Fuse covers
are available from any good
electrical store.

EN
7
Important! Fitting A
Different Plug
1. As the colours of the wires
in the mains lead of this
appliance may not correspond
with the coloured markings
identifying the terminals in
your plug proceed as follows:
(See diagram).
2. Connect the green-yellow
or green (Earth) wire to the
terminal in the plug marked
‘E’ or with the symbol or
coloured green and yellow or
green.
3. Connect the blue (Neutral)
wire to the terminal in the plug
marked ‘N’ or coloured black.
4. Connect the brown (Live) wire
to the terminal in the plug
marked ‘L’ or coloured red.
5. With alternative plugs a 13
A fuse must be fitted either
in the plug or adaptor or in
the main fuse box. If in doubt
contact a qualified electrician.
Energy saving tips
1. Ensure your appliance is
installed in a well ventilated
area.
2. Ensure the time between
buying chilled/frozen food
and placing them in your
appliance is kept at minimum,
particularly in summer. We
recommend you use a cool
bag or a special carrier bag to
carry perishable food.
3. Do not leave the door (s) of
your appliance open longer
than necessary and ensure
they are closed properly after
each opening.
4. Defrost frozen food in the
fridge compartment, so that
frozen food acts as an ice pack
to assist cooling in the fridge.
5. Energy consumption of this
appliance is measured while
freezer compartment is
loaded without use of top
shelf lid and the drawers
except the bottom drawer.
It is advised that freezer
compartment is loaded
without use of drawers except
the bottom drawer in order
to achieve maximum loading
capacity.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
8
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE
Directive (2012/19/
EU). This product
bears a classification
symbol for waste
electrical and electronic
equipment (WEEE).This product
has been manufactured with
high quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and other
wastes at the end of its service
life. Take it to the collection
center for the recycling of
electrical and electronic
equipment. Please consult your
local authorities to learn about
these collection centers.
Compliance with rohs
directive:
The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful and
prohibited materials specified
in the Directive.
Package information
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.

EN
9
3Installation
BThe manufacturer will not be liable
for any event caused by disregarding
the information supplied in this user
manual.
Points to be paid attention
to when the relocation of
the refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should be
bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges
are intended to keep the distance
which will ensure the air circulation
between your refrigerator and the
wall. (The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give
rise to noise, even if the compressor
is not running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in
compliance with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

EN
10
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is the risk
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw away
on packaging pick up spots designated
by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator
without giving any harm to the
environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut off the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed
is not wide enough for the refrigerator
to pass through, then carefully remove
the doors of your refrigerator and pass
it sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on the
materials such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.
5. This product cannot be used in
rooms where the temperature drops
below 5°C.
6. Your product requires adequate
air circulation to function efficiently.
If the product will be placed in an
alcove, remember to leave at least 5
cm clearance between the product
and the ceiling, rear wall and the side
walls.If the product will be placed
in an alcove, remember to leave at
least 5 cm clearance between the
product and the ceiling, rear wall and
the side walls. Check if the rear wall
clearance protection component is
present at its location (if provided
with the product). If the component
is not available, or if it is lost or fallen,
position the product so that at least
5 cm clearance shall be left between
the rear surface of the product and
the wall of the room. The clearance
at the rear is important for efficient
operation of the product.

EN
11
WARNING:
Do not locate extension
sockets or charging
transformers/power supplies or
Lithium-Iron battery operated
products adjacent to the compressor
as they could overheat.
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the refrigerator will
facilitate this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose
of this lamp is to assist the user to
place foodstuffs in the refrigerator/
freezer in a safe and comfortable
way.The lamps used in this appliance
have to withstand extreme physical
conditions such as temperatures
below -20 °C.
(only chest and upright freezer)
Chiller Compartment
With the help of 0 °C compartment
you can keep your wrapped meat
and fish food 2-3 times longer than a
standard fridge compartment.
Do not store fruits and vegetables in
this compartment.
The condenser of your appliance is located on the back as shown below.
In order to achieve better energy efficiency with lower energy consumption,
please pull the condenser towards yourself as illustrated in picture below.
*may not be available in all models
PULL
PULL
better energy
efficiency
initial position
MİN
55 mm

EN
12
4Preparation
• For a freestanding appliance;
‘this refrigerating appliance is not
intended to be used as a built-in
appliance.
• Your refrigerator should be installed
at least 30 cm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 5
cm away from electrical ovens and
should not be located under direct
sunlight.
• This appliance is equipped with
'Freezer Guard' which ensures that
at the advised setting [4 - four on
the control] the frozen food in the
freezer will not defrost even if the
ambient temperature falls as low
as -15 °C. So you may then install
your appliance in a garage or an
unheated room without having
to worry about frozen food in the
freezer being spoilt. However at low
ambient temperatures mentioned
above,fridge contents are likely to
freeze,so check and consume food
in the fridge accordingly. When the
ambient temperature returns to
normal, you may change the setting
to suit your needs.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be
installed side by side, there should
be at least 2 cm distance between
them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the
initial six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it until it reaches set
temperature.
• If there is a power failure do not
open the door. Frozen food should
not be affected if the failure lasts
for less than 15 hours. If the failure
is longer, then the food should
be checked and either eaten
immediately or cooked and then re-
frozen.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• For temporary storage of larger
items in the freezer the shelves/
baskets can be removed as required.
• Food contact with the temperature
sensor in the freezer compartment
may increase energy consumption
of the appliance. Thus any contact
with the sensor(s) must be avoided.
• In some models, the instrument
panel automatically turns off 5
minutes after the door has closed.
It will be reactivated when the door
has opened or any key pressed.
• Due to temperature change as
a result of opening/closing the
product door during operation,
condensation on the door/body
shelves and the glass containers is
normal especially in Summer.

EN
13
Reversing the doors
Proceed in numerical order
1
3
2
67
8
5
4
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
• Since hot and humid air will not directly penetrate into your product when the
doors are not opened, your product will optimize itself in conditions sufficient
to protect your food. Functions and components such as compressor, fan,
heater, defrost, lighting, display and so on will operate according to the needs to
consume minimum energy under these circumstances.
Scan to watch video showing how
to reverse doors.

EN
14
5Using your appliance
The operating temperature is
regulated by the temperature control.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
1=Lowest cooling setting (Warmest
setting).
5=Highest cooling setting (Coldest
setting).
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
Please note that there will be different
temperatures in the cooling area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended to
close the door again as soon as possible
after use.
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in
the room (e.g. exposing to sunlight).
• You may adjust the varying interior
temperature due to such reasons
by using the thermostat.
Cooling
Food storage
The frdge compartment s for the
short-term storage of fresh food and
drnks.
Store mlk products n the ntended
compartment n the cooler/freezer.
Bottles can be stored n the bottle
holder or n the bottle shelf of the
door.
Raw meat s best kept n a
polyethylene bag n the compartment
at the very bottom of the cooler/
freezer.
Allow hot foods and beverages to
cool to room temperature pror to
placng them n the cooler/freezer.
• Attenton
Store concentrated alcohol only
standng uprght and tghtly closed.
• Attenton
Do not store explosve substances or
contaners wth flammable propellant
gases (canned cream, spray cans etc.)
n the freezer. There s a danger of
exploson.

EN
15
Storing Frozen Food
Prepacked commercally frozen
food should be stored n accordance
wth the frozen food manufacturer’s
nstructons for a frozen food
storage compartment.
To ensure that the hgh qualty
acheved by the frozen food
manufacturer and the food retaler s
mantaned, the followng should be
remembered:
1. Put packets in the freezer as
quickly as possible after purchase.
2. Ensure that contents are
labelled and dated.
3. Do not exceed “Use By”, “Best
Before” dates on the packaging.
If there s a power falure do not open
the door. Frozen food should not be
affected f the falure lasts for less
than 20 hrs. If the falure s longer,
then the food should be checked and
ether eaten mmedately or cooked
and then re-frozen.
Freezing Fresh Food
Please observe the followng
nstructons to obtan the best results.
Do not freeze too large a quantty at
any one tme. The qualty of the food
s best preserved when t s frozen
rght through to the core as quckly as
possble.
Do not exceed the freezng capacty
of your applance n 24 h whch s
4 kg (8.8 lb)Placng warm food nto
the freezer compartment causes the
refrgeraton compressor to operate
contnuously untl the food s frozen
sold. Ths can temporarly lead to
excessve coolng of the refrgeraton
compartment.When freezng fresh
foodturnthethermostatknobtowards
MAX. Small quanttes of food up to
1/2 kg. (1 lb) can be frozen wthout
havng to rotate the temperature
control knob.
Youmay placefresh foodtobe frozen
n any part of the freezer.
Take specal care not to mx already
frozen food and fresh food.
Placing the food
Egg tray Egg
Fridge
compartment
shelves
Food in pans,
covered plates
and closed
containers
Fridge
compartment
door shelves
Small and
packaged food or
drinks (such as
milk, fruit juice
and beer)
Crisper Vegetables and
fruits
Defrosting of the appliance
Theapplancedefrostsautomatcally.
Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.

EN
16
Usng the water
dspenser
*May not be available in all models
CIt is normal for the first few
glasses of water taken from
.the dispenser to be warm
CIf the water dispenser is
not used for a long period
of time, dispose of first few
glasses of water to obtain
.fresh water
1. Push in the lever of the
water dispenser with your glass.
If you are using a soft plastic cup,
pushing the lever with your hand
will be easier.
2. After filling the cup up
to the level you want, release the
lever.
CPlease note, how much
water flows from the
dispenser depends on
how far you depress the
lever. As the level of water
in your cup / glass rises,
gently reduce the amount
of pressure on the lever
to avoid overflow. If you
slightly press the arm, the
water will drip; this is quite
normal and not a failure.
1
24
3
Take out the bottom door
shelf
1. Hold the shelf both hands from
sides
2. Pull up left side while right stand still
3. Pull towards left side oneself slowly
until shelf remove from door plastic
pin
4. Head to shelf left to remove
compeletly
CThis take out order only
for lowermost door shelf.

EN
17
Fllng the water
dspenser's tank
Water tank filling reservoir is located
inside the door rack.
1. Open the cover of the tank.
2. Fill the tank with fresh drinking
water.
3. Close the cover.
CDo not fill the water
tank with any other liquid
except for water such as
fruit juices, carbonated
beverages or alcoholic
drinks which are not
suitable to use in the water
dispenser. Water dispenser
will be irreparably damaged
if these kinds of liquids are
used. Warranty does not
cover such usages. Some
chemical substances and
additives contained in these
kinds of drinks/liquids may
damage the water tank.
CUse clean drinking water
only.

EN
18
CCapacity of the water tank
is 3 litres; do not overfill.
Cleanng the
water tank
1. Remove the water filling
reservoir inside the door rack.
2. Remove the door rack by holding
from both sides.
3. Grab the water tank from both
sides and remove it with an angle
of 45°C.
4. Remove the cover of the water
tank and clean the tank.
CComponents of the water
tank and water dispenser
should not be washed in
dishwasher.

EN
19

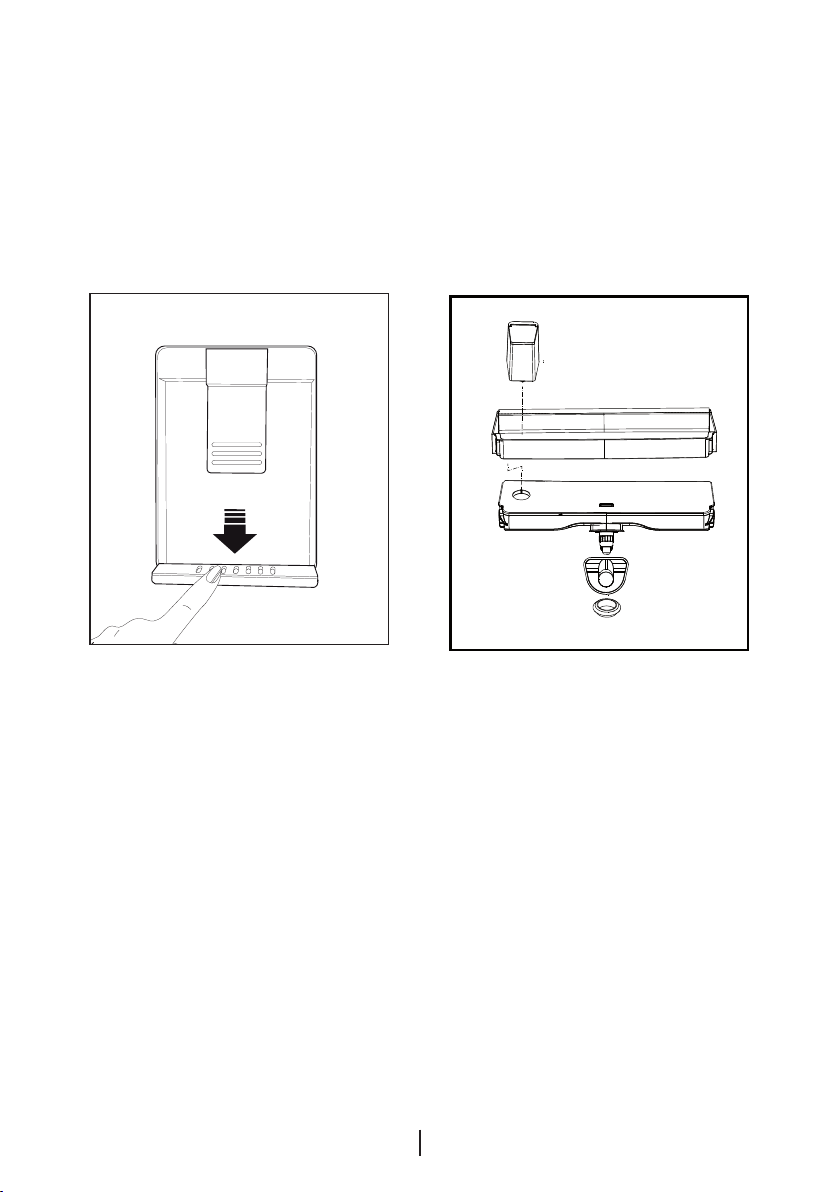

Drp tray
Water that dripped while using the
water dispenser accumulates in the
spillage tray.
Remove the plastic filter as shown in
the figure.
With a clean and dry cloth, remove the
water that has accumulated.

EN
20
6Maintenance and cleaning
ANever use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
BNever use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish
for cleaning.
B For non-No Frost products,
water drops and frosting up to a
fingerbreadth occur on the rear wall
of the Fridge compartment. Do not
clean it; never apply oil or similar
agents on it.
BOnly use slightly damp microfiber
cloths to clean the outer surface
of the product. Sponges and other
types of cleaning cloths may scratch
the surface.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to
be used for a long period of time,
unplug the power cable, remove all
food, clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
ATo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
ANever use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
ADo not use sharp, abrasive tools,
soap, household cleaning agents,
detergents, kerosene, fuel oil,
varnish etc. to prevent removal and
deformation of the prints on the
plastic part. Use lukewarm water
and a soft cloth for cleaning and
then wipe it dry.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your refrigerator
in unsealed containers as they
damage the plastic surfaces of your
refrigerator. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part
of the surface at once with warm
water.
