Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a 1st-class
manufacturing facility and checked under the most meticulous quality control
procedures, will provide you with years of good service.
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
1 Your refrigerator 4
2 Warnings 5
Electrical requirements........................... 7
Warning! This appliance must be
earthed.......................................................... 7
Energy saving tips.....................................8
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Compliance with rohs directive: .......10
Package information..............................10
3 Installation 11
Points to be considered when re-
transporting your refrigerator........... 11
Before operating your refrigerator.. 11
Electric connection................................. 11
Disposing of the packaging.................12
Disposing of your old refrigerator ....12
Placing and Installation.........................12
Transportation Instructions................13
Changing the illumination lamp .......14
Installation Instructions .......................14
4 Before operating 16
Final Check .................................................16
5 Using your refrigerator 17
Temperature Control And
Adjustment ................................................17
Thermostat setting button.................17
Storing Frozen Food ...............................18
Freezing Fresh Food...............................18
Making Ice Cubes.....................................18
Defrosting ..................................................18
6 Maintenance and
cleaning 20
7 Do's and Don'ts 21
Problem Solvıng...................................... 22
8 Guarantee Details 23
9 How To Obtain Service 24

EN
4
1Your refrigerator
CFigures that take place in this instruction manual are schematic and
may not correspond exactly with your product. If the subject parts are not
included in the product you have purchased, then it is valid for other models.
Congratulations on your choice of a Beko quality Appliance which has been
designed to give you service for many years.
1. Adjustable door shelves
2. Egg section
3. Bottle shelf
4. Adjustable Front Feet
5. Freezing and Storage (store
fresh food to be frozen lower down)
6. Freezer compartment
7. Chiller compartment
8. Adjustable shelves
9. Wine rack
10. Thermostat knob
4
5
6
7
8
9
*10
*1
*3
*2
*

EN
5
2Warnings
• Do not connect your
appliance to the
electricity supply until
all packing and transit
protectors have been
removed.
• If transported
horizontally leave to
stand upright for at
least 4 hours before
switching on to allow
compressor oil to settle
• If you are discarding an
old refrigerator with a
lock or latch fitted to the
door, disable the lock/
latch, ensure that it is
left in a safe condition to
prevent the entrapment
of young children.
• This fridge/freezer
must only be used for its
intended purpose i.e the
storing and freezing of
edible foodstuff.
• Do not dispose of the
appliance on a fire.
At Beko, the care
and protection of our
environment is an
ongoing commitment.
This appliance which is
among the latest range
introduced is particularly
environment friendly.
Your appliance
contains non CFC / HFC
natural substances
in the cooling system
(Called R600a) and
in the insulation
(Called cyclopentane)
which are potentially
flammable if exposed
to fire. Therefore, take
care not to damage,
the cooling circuit /
pipes of the appliance
in transportation
and in use. In case of
damage do not expose
the appliance to fire
or potential ignition
source and immediately
ventilate the room
where the appliance is
situated.
• We suggest you contact
your local authority for
disposal information
and facilities available.
• See Installation
Instructions on page
11 for information on
suitable location.

EN
6
• To obtain the best
possible performance
and trouble free
operation from your
appliance it is very
important to carefully
read these instructions.
• On delivery, check to
make sure that the
product is not damaged
and that all the parts
and accessories are in
perfect condition.
• Ensure that the
plug remains readily
accessible. Do not use
multiple adapter or
extension cable.
• Failure to observe
these instructions may
invalidate your right to
free service during the
guarantee period.
• Keep ventilation
openings, in the
appliance enclosure or
in the built-in structure,
clear of obstruction.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• Do not use electrical
appliances inside
the food storage
compartments of
the appliance, unless
they are of the type
recommended by the
manufacturer.
• We suggest you keep
these instructions in
a safe place for easy
reference.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe
way and understand
the hazards involved.
Children shall not play
with the appliance.
Cleaning and user
maintenance shall not
be made by children
without supervision.

EN
7
• Children should be
supervised to ensure
that they do not play
with the appliance.
Electrical
requirements
Before you insert
the plug into the wall
socket make sure that
the voltage and the
frequency shown on the
rating plate inside the
appliance corresponds to
your electricity supply.
Rating label is on the
left hand side of fridge
inner liner.
We recommend that this
appliance be connected
to the mains supply
via a suitable switched
and fused socket. The
appliance must be
positioned so that the
plug is accessible.
WARNING:
When positioning the
appliance ensure the
supply cord is not trapped
or damaged.
Should the mains lead
of the appliance become
damaged or should it
need replacing at any
time, it must be replaced
by a special purpose
made mains lead which
can only be obtained
from a Beko authorised
service agent.
Warning! This
appliance must be
earthed
If the fitted moulded
plug is not suitable for
your socket, then the
plug should be cut off
and an appropriate plug
fitted. Destroy the old
plug which is cut off as
a plug with bared cord
could cause a shock
hazard if inserted into a
socket elsewhere in the
house.
Themouldedplugonthis
appliance incorporates
a 13 A fuse. Should the
fuse need to be replaced
an ASTABEAB approved
BS 1362 fuse of the same
rating must be used. Do
not forget to refit the
fuse cover. In the event of
losing the fuse cover the
plug must not be used
until a replacement fuse
cover has been fitted.

EN
8
Colour of the
replacement fuse cover
must be the same colour
as that visible on the pin
face of the plug. Fuse
covers are available from
any good electrical store.
Important! Fitting A
Different Plug
1. As the colours of the
wires in the mains
lead of this appliance
may not correspond
with the coloured
markings identifying the
terminals in your plug
proceed as follows: (See
diagram).
2.Connect the green-
yellow or green (Earth)
wire to the terminal
in the plug marked ‘E’
or with the symbol
or coloured green and
yellow or green.
3.Connect the blue
(Neutral) wire to the
terminal in the plug
marked ‘N’ or coloured
black.
4.Connect the brown
(Live) wire to the
terminal in the plug
marked ‘L’ or coloured
red.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP
5.With alternative plugs a
13 A fuse must be fitted
either in the plug or
adaptor or in the main
fuse box. If in doubt
contact a qualified
electrician.
Energy saving tips
1. Ensure your appliance
is installed in a well
ventilated area.
2.Ensure the time
between buying chilled/
frozen food and placing
them in your appliance
is kept at minimum,
particularly in summer.
We recommend you use
a cool bag or a special
carrier bag to carry
perishable food.

EN
9
3.Do not leave the door (s)
of your appliance open
longer than necessary
and ensure they are
closed properly after
each opening.
4.Defrost frozen
food in the fridge
compartment, so that
frozen food acts as an
ice pack to assist cooling
in the fridge.
5.Energy consumption
of this appliance is
measured while freezer
compartment is loaded
without use of top shelf
lid and the drawers
except the bottom
drawer. It is advised that
freezer compartment
is loaded without use
of drawers except the
bottom drawer in order
to achieve maximum
loading capacity.
Compliance with
WEEE Directive and
Disposing of the
Waste Product:
This product
complies with EU
WEEE Directive
(2012/19/EU).
This product
bears a classification
symbol for waste
electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and
materials which can be
reused and are suitable
for recycling. Do not
dispose of the waste
product with normal
domestic and other
wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment.
Please consult your local
authorities to learn
about these collection
centers.

EN
10
Compliance with rohs
directive:
The product you have
purchased complies
with EU RoHS Directive
(2011/65/EU). It does
not contain harmful and
prohibited materials
specified in the Directive.
Package information
Packaging materials
of the product are
manufactured from
recyclable materials in
accordance with our
National Environment
Regulations. Do not
dispose of the packaging
materials together
with the domestic or
other wastes. Take
them to the packaging
material collection points
designated by the local
authorities.

EN
11
3Installation
BPlease remember that the
manufacturer shall not be held
liable if the information given in the
instruction manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper
and etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be must
be adequate and the rules of
transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the
refrigerator dry and can the air
circulate freely in the rear of it?
2. Please install the 2 plastic
wedges as illustrated in the figure.
Plastic wedges will provide the
required distance between your
refrigerator and the wall in order
to allow the air circulation. (The
illustrated figure is only an example
and does not match exactly with your
product.)
3. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
4. Plug the refrigerator into the
wall outlet. When the fridge door is
open, the fridge compartment interior
light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in
compliance with national
regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal
to your mains voltage.
• Extension cables and multiway
plugs must not be used for
connection.

EN
12
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is danger
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions. Do not dispose
of them along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator
without giving any harm to the
environment.
• You may consult your authorised
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make
them inoperable in order to protect
children against any danger.
Placing and Installation
AIf the entrance door of the
room where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then
carefully remove the doors of your
refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with
the wall. If the floor is covered with a
carpet, your product must be elevated
2.5 cm from the floor.
4. Place your refrigerator on an
even floor surface to prevent jolts.
5. This appliance is equipped
with 'Freezer Guard' which ensures
that at the advised setting [4 - four
on the control] the frozen food in the
freezer will not defrost even if the
ambient temperature falls as low as
-15 °C. So you may then install your
appliance in a garage or an unheated
room without having to worry about
frozen food in the freezer being
spoilt. However at low ambient
temperatures mentioned above,
fridge contents are likely to freeze,
so check and consume food in the
fridge accordingly. When the ambient
temperature returns to normal, you
may change the setting to suit your
needs.

EN
13
Transportation
Instructions
1. The appliance should be
transported only in a vertical upright
position. The packing as supplied
must be intact during transportation.
2. If during the course of
transport the appliance has to be
transported horizontally, it must only
be laid on its right hand side when
standing in the frontof the appliance.
After bringing it to upright position,it
must not be operated for at least 4
hours to allow the system to settle.
3. Failure to comply with the
above instructions could result in
damage occuring to the appliance.
The manufacturer will not be held
responsible if these instructions are
disregarded.
4. The appliance must be
protected against rain, moisture and
other atmospheric influences.
5. When positioning your
appliance take care not to damage
your flooring, pipes, wall coverings
etc. Do not move the appliance by
pulling by the door or handle.
6. Empty any water in the drain
tray before moving. See section
‘Defrosting’ and ‘Care & cleaning’ for
further information.
7. Make sure that the defrost
water pipe at the back of the product
is fixed to the plastic evaporating pan
on the top of the compressor, to avoid
defrost water spillage on the floor.
8. The appliance must be
protected against rain, moisture and
other atmospheric influences.
Important: Care must be taken
whle cleanng / carryng the
applance to avod touchng the
bottom of the condenser metal wres
at the back of theapplance as you
mght njure your fngers and hands.
Important:Ths applance s not
desgned for stackng wth any
otherapplance.When postonng
your applance, take care not to
damage your floorng, ppes,wall
coverngs etc.
Important: Care must be taken
whle cleanng / carryng the applance
to avod touchng the bottom of the
condenser metal wres at the back of
the applance as you mght njure your
fngers and hands.
Do not attempt to st or stand on top
of your applance as t s not desgned
for such use. You could njure yourself
or damage the applance.
Important: Make sure that mans
cables notcaughtunder theapplance
durng and after carryng / movng
the applance, to avod the mans
cable becomng cut or damaged.”Do
not allow chldren to play wth the
applance or tamper wth the controls.
Beko declnes to accept any lablty
should the nstructons not be
followed.

EN
14
Installation Instructions

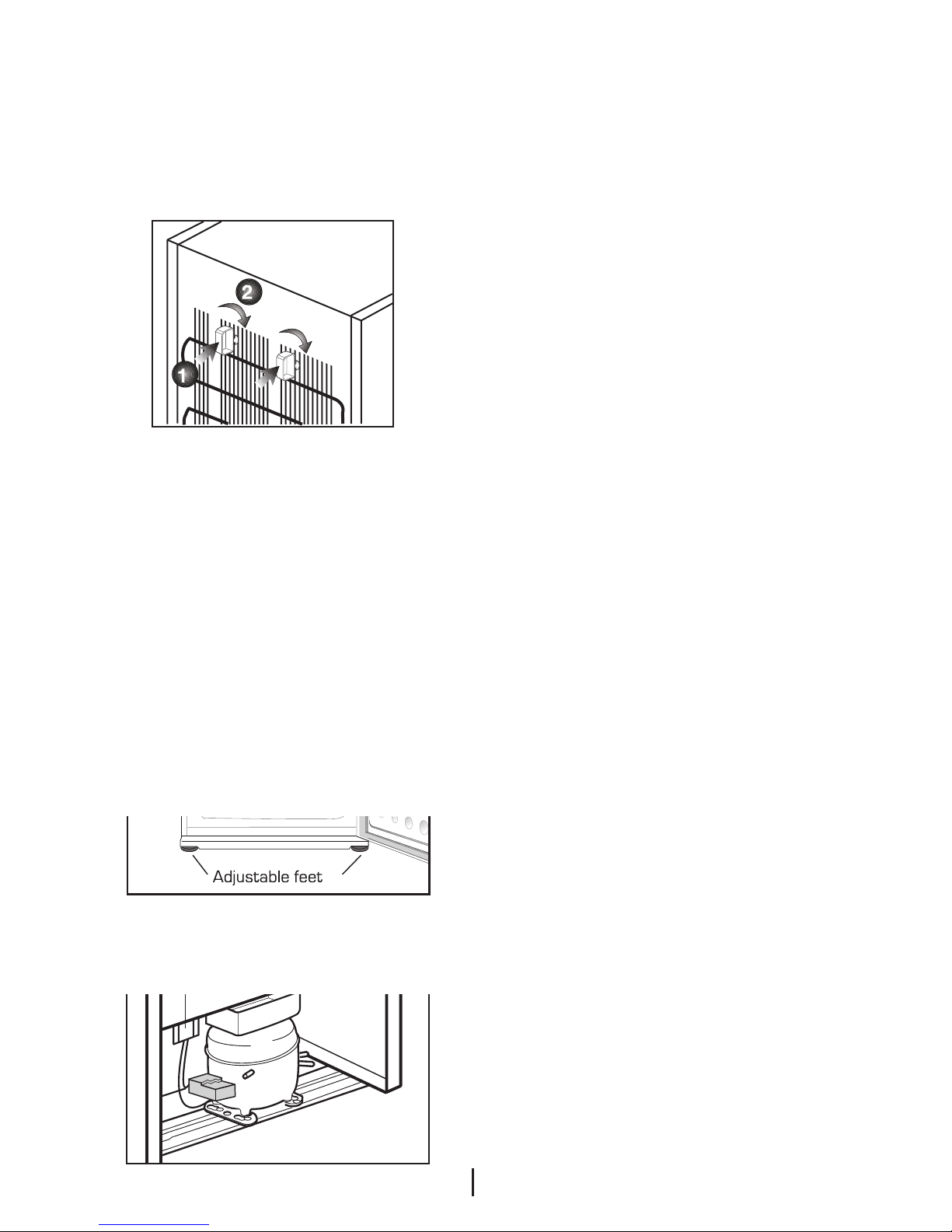

1. Fited the two plastic wall
spacers supplied onto the condenser
at the back of the appliance by
rotating 1/4 turn.
Plug receptacle
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer
in a safe and comfortable way.
2. Locate the appliance on a
smooth surface.
3. To ensure it is standing upright
adjust the two front feet by turning
clockwise or anti-clockwise, until it is
in firm contact with the floor. Correct
adjustment of feet avoids excessive
vibration and noise.
4. A special receptacle is supplied
to store the mains plug during transit.
The receptacle is fixed at the back
of the cabinet on the side of the
compressor. Gently remove the plug
from the receptacle. Never pull the
mains cord, you may damage the
appliance. In case of transportation,
ensure you locate the plug in the
receptacle provided to avoid transit
damage.I believe we should say
somewhere that you can install in a
garage or outhouse.
5. The space in the room where
the appliance is installed must not be
smaller than 10 cubic metres.

EN
15

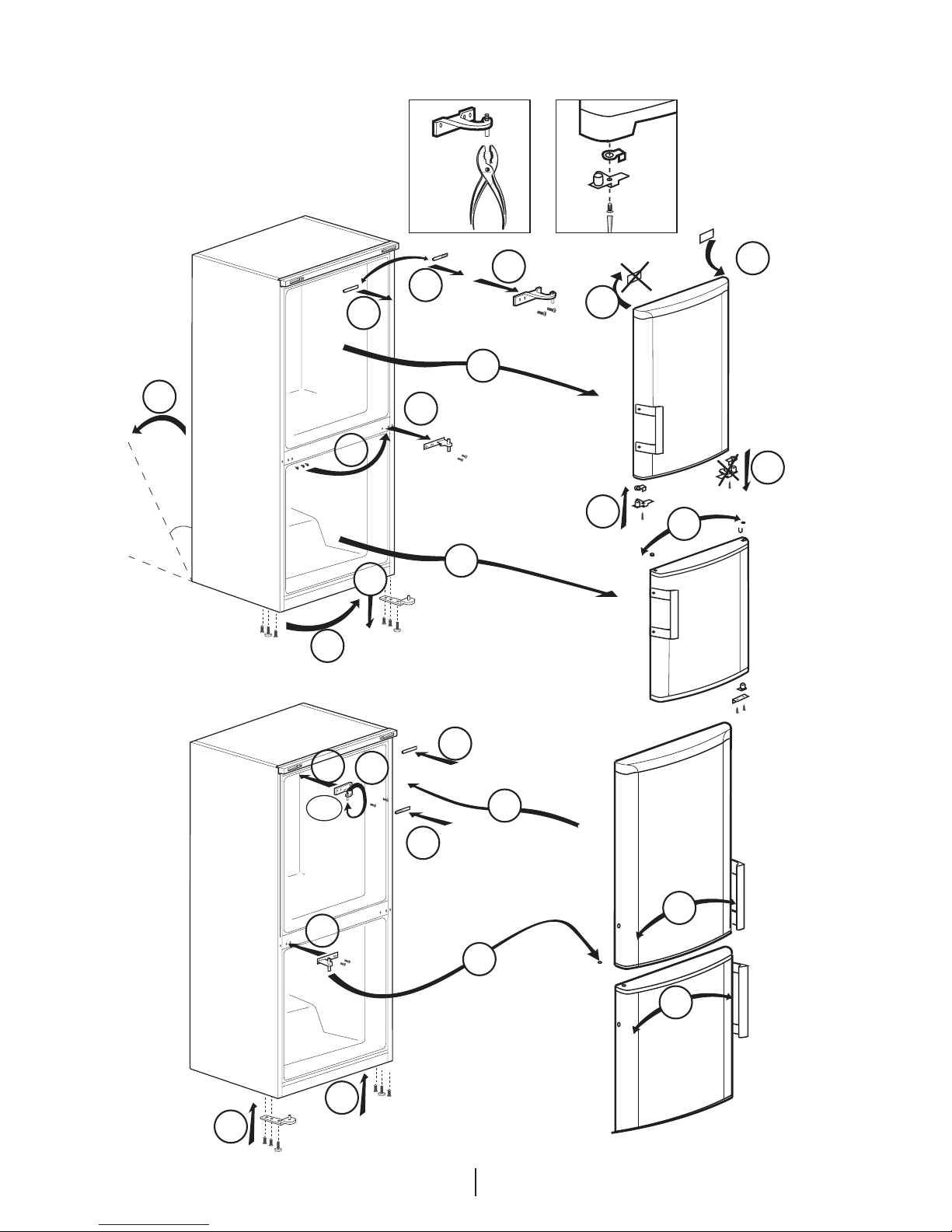

1
17
1
20
11
13 9
2
10
5
3
20
20
8
18
17
19
14
12
16
21
21
45°
180°
(8) (13)
6
4
15

EN
16
4Before operating
Final Check
Before you start using the fridge/
freezer check that:
1. The feet have been adjusted
for perfect levelling.
2. The interior is dry and air can
circulate freely at the rear of the
cabinet.
3. Clean the interior as
recommended under “CLEANING AND
CARE.”
4. Insert the plug into the wall
socket and switch on the electricity
supply.
5. When the door is open the
fridge interior light will come on.
6. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running
or not which is quite normal.“Due
to operation of the fan inside the
frost free freezer compartment,
overall noise level is slightly higher
in comparison to non-frost free
appliances. This is quite normal and is
not a fault.”
7. Set the setting knob half way
between min and max.
8. Front edges of the cabinet may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
9. “Do not load the appliance
immediately it is switched on. Wait
until the correct storage temperature
has been reached. We recommend
that you check the temperature
with an accurate thermometer
(see; Temperature Control and
Adjustment)”

EN
17
Temperature Control And
Adjustment
The operating temperature is
regulated by the temperature control.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
1=Lowest cooling setting
(Warmest setting).
5=Highest cooling setting
(Coldest setting).
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
Please note that there will be
different temperatures in the cooling
area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of foods kept
inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
Thermostat setting button
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in
the room (e.g. exposing to sunlight).
• You may adjust the varying interior
temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
indicates the cooling degrees.
• If the ambient temperature is higher
than 25°C, turn the thermostat
button to maximum position.
• If the ambient temperature is lower
than 25°C, turn the thermostat
button to minimum position.
5 Using your refrigerator

EN
18
Storing Frozen Food
Prepacked commercally frozen
food should be stored n accordance
wth the frozen food manufacturer’s
nstructons for a frozen food
storage compartment.
To ensure that the hgh qualty
acheved by the frozen food
manufacturer and the food retaler s
mantaned, the followng should be
remembered:
1. Put packets n the freezer as
quckly as possble after purchase.
2. Ensure that contents are labelled
and dated.
3. Do not exceed “Use By”, “Best
Before” dates on the packagng. If
there s a power falure do not open
the door. Frozen food should not be
affected f the falure lasts for less
than 21 hrs. If the falure s longer,
then the food should be checked and
ether eaten mmedately or cooked
and then re-frozen.
Freezing Fresh Food
Please observe the followng
nstructons to obtan the best results.
Do not freeze too large a quantty at
any one tme. The qualty of the food
s best preserved when t s frozen
rght through to the core as quckly as
possble.
Do not exceed the freezng capacty
of your applance n 24 h whch s 5 kg
Placng warm food nto the freezer
compartment causes the refrgeraton
compressor to operate contnuously
untl the food s frozen sold. Ths can
temporarly lead to excessve coolng
of the refrgeraton compartment.
When freezng fresh food turn the
control toward MAX. Small quanttes
of food up to 1/2 kg. (1 lb) can be
frozen wthout havng to rotate the
temperature control.
Install in room 5C to +32C .
You may place fresh food to be frozen
n any part of the freezer.
Take specal care not to mx already
frozen food and fresh food.
Making Ice Cubes
Fll the ce - cube tray 3/4 full wth
water and place t n the Ice Bank.
Loosen frozen trays wth the handle
of a spoon, never use sharp edged
objects such as knves, forks. Store
ce-cubes n the Ice Bank.
Note: If freshly made ce cubes are
not consumed for several weeks
and stored n Ice Bank, they wll
slowly reduce n sze and eventually
dsappear completely.
Defrosting
A) Fridge Compartment
The frdge compartment defrosts
automatcally. The defrostng water
runs to the dran tube va a collecton
contaner at the back of the applance
(1). (see dagram) Durng defrostng
water droplets may form at the back
of the frdge compartment where
concealed evaporator s located.
Some droplets may reman on the
lner and refreeze when defrostng s
completed. Do not allow tems n the
frdge to touch the back wall as the
water droplets wll make them wet.
Do not use ponted or sharp edged
objects such as knves, forks to remove
the droplets whch have frozen.

EN
19
If at any tme the defrost water does
not dran from the collecton channel,
check to ensure that no food partcles
have blocked the dran tube. The dran
tube can be cleared by pushng the
specal plastc plunger provded down
the dran tube (2). If the frost layer
reaches about 1/4”(7 mm), reduce
the settng (.e. from 4 to 1) to restart
automatc defrostng.
12
B) Freezer Compartment
The freezer compartment defrosts
automatcally.
Warnings!
• The fan inside the freezer
compartment circulates cold air.
Never insert any object through the
guard. Do not allow children to play
with the freezer fan.
• Never store products that contain
inflammable propellant gas (eg
dispensers, spray cans etc.) or
explosive substances.
• Don’t cover the shelves with any
protective materials, which may
obstruct air circulation.
• Do not allow children to play with
the appliance or tamper with the
controls.
• Maximum frozen food storage
volume is achieved without using
the drawers and the upper shelf
cover provided in the freezer
compartment. Energy consumption
of your appliance is declared while
the freezer compartment is fully
loaded on shelves without the use
of the drawers and upper shelf
cover. Use the given wire shelf at the
bottom of the freezer compartment
for a better energy consumption
performance.
• It is recommended that you place
foodstuffs on top shelf of freezer for
initial freezing.
• It is advised that provided cold
packs are used as described below
prior to using quick freeze function.
It improves storage and quıck -
freezing performance of your freezer
compartment.
wire shelf

EN
20
6Maintenance and cleaning
• We recommend that you switch off
the appliance at the socket outlet
and pull out the mains plug before
cleaning.
• Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish
for cleaning.
• Use luke warm water to clean the
cabinet of the appliance and wipe it
dry.
• Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
• Make sure that no water enters the
lamp housing.
• If the appliance is not going to be
used for a long period of time switch
it off, remove all food, clean it and
leave the door ajar.
• Any dust that gathers on the
condenser, which is located at the
back of the appliance, should be
removed once a year with a vacuum
cleaner.
• Check door seals regularly to ensure
they are clean and free from food
particles.
• Removal of door tray
• To remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
• To remove a freezer drawer, pull
it as far as possible, and then tilt
it upwards, and then pull it out
completely.
• To remove the freezer flap door, first
open the door 3” and then gently
pull it off. Make sure that the flap is
in place before closing the freezer
door.
• Make sure that the special plastic
container (drain tray) at the back of
the appliance which collects defrost
water is clean at all times. If you
want to remove the tray to clean it
follow the instructions below :
• Switch off at the socket outlet and
pull out the mains plug.
• Push the lug down with the tip of
a screw driver & pull out with a jerk
movement
• Clean the drain tray and wipe it dry.
• Reassemble reversing the sequence
and operations.
• Avoid spillage of food particularly
small items like rice, peas, beans
through the fan guard as they
may cause the cooling system to
block and therefore operate less
efficiently.
ANever use cleaning agents or
water that contain chlorine to clean
the outer surfaces and chromium
coated parts of the product. Chlorine
causes corrosion on such metal
surfaces.
