Beko DNE 27001 KL User manual

DNE 27001 KL
DNE 27000 KL
Refrigerator
Réfrigérateur

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product bears the selective sorting symbol for waste electrical and
electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling

EN
2
CONTENTS
1 Your refrigerator 3
2 Important Safety
Warnings 4
Intended use ..................................... 4
General safety ................................... 4
Child safety........................................ 6
HCA Warning .................................... 6
Things to be done for energy saving .. 7
3 Installation 8
Points to be considered when re-
transporting your refrigerator ............. 8
Before operating your refrigerator ...... 8
Disposing of the packaging ............... 9
Disposing of your old refrigerator ....... 9
Placing and Installation ...................... 9

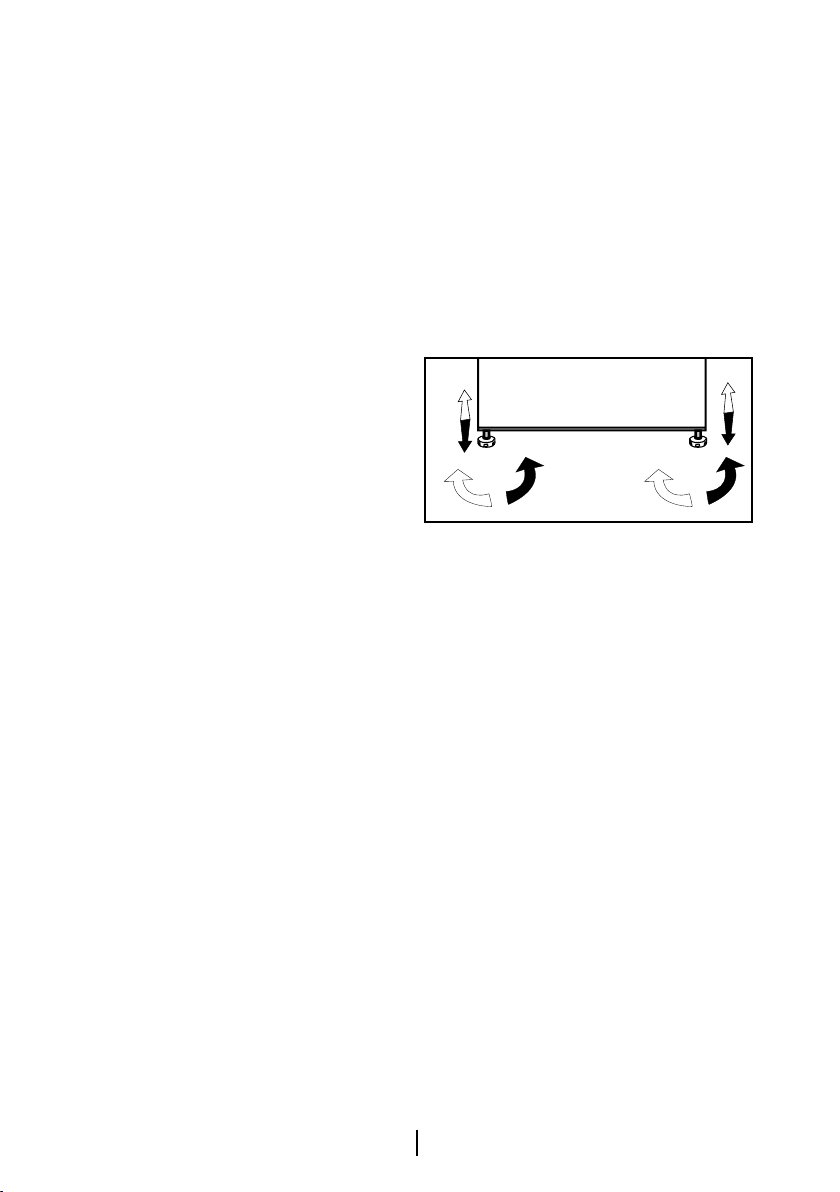

Adjusting the legs ............................ 10
Reversing the doors ........................ 11
Reversing the doors ........................ 12
4 Preparation 13
5 Using your refrigerator 14
Fridge compartment thermostat setting
button ............................................ 14
Freezer compartment thermostat
setting button ................................. 15
Making ice ....................................... 15
6 Maintenance and
cleaning 16
Protection of plastic surfaces .......... 16
7 Recommended solutions
for the problems 17

EN
3
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1- Freezer compartment shelf
2- Ice container
3- Fridge compartment temperature
setting button
4- Adjustable body shelves
5- Illumination lens
6- Crisper cover
7- Crisper
8- Adjustable legs
9- Freezer compartment door shelf
10- Egg tray
11- Fridge compartment door shelf
12- Key
13- Freezer compartment
14- Fridge compartment
1Your refrigerator
3
1
2
4
4
5
6
7
8
4
13
14
11
11
10
9
11
12
12

EN
4
2Important Safety Warnings
Please review the following
information. If these are not followed,
personal injury or material damage
may occur. Otherwise, all warranty and
reliability commitments will become
invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
• This product is designed for domestic
use.
• It should not be used outdoors. It is
not appropriate to use it outdoor even
if the place is covered with a roof.
General safety
• When you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorized services.
• Do not eat cone ice cream and ice
cubes immediately after you take
them out of the freezer compartment!
(This may cause frostbite in your
mouth.)
• Do not put bottled and canned
liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes of
your refrigerator. In such cases, the
vapor might get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the cooling circuit,
where the refrigerant is circulating,
with drilling or cutting tools. The
refrigerant that might blow out when
the gas channels of the evaporator,
pipe extensions or surface coatings
are punctured may cause skin
irritations and eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Repairs of the electrical appliances
must only be made by qualified
persons. Repairs performed by
incompetent persons may create a
risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Flammable items or products that
contain flammable gases (e.g.
spray) as well as the explosive
materials should never be kept in the
appliance.

EN
5
• Do not use mechanical devices
or other means to accelerate the
defrosting process, others than those
recommended by the manufacturer.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Do not operate a damaged
refrigerator. Consult your service if
you have any doubts.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact the authorized service when
there is a power cable damage and
etc. so that it will not create a danger
for you.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is designed solely for
storing food. It should not be used for
any other purposes.
• The label that describes the technical
specification of the product is
located on the inner left part of the
refrigerator.
• Do not hook up the refrigerator to
electronic energy saving systems as it
may damage the product.
• If the refrigerator has blue light do not
look at the blue light through optical
devices.
• If the power supply is disconnected
in manually controlled refrigerators
please wait for at least 5 minutes
before reconnecting the power.
• This product manual should be
passed to the next owner of the
refrigerator if the owner changes.
• When moving the refrigerator make
sure that you do not damage the
power cord. In order to prevent
fire the power cord should not be
twisted. Heavy objects should not
be placed on the power cord. When
the refrigerator is being plugged do
not handle the power outlet with wet
hands.
• Do not plug the refrigerator if the
electric outlet is loose.
• Do not splash water directly on the
outer or inner parts of the refrigerator
due to safety.
• Do not spray inflammable materials
such as propane gas etc near
refrigerator due to the risk of fire and
explosion.
• Do not place objects filled with water
on top of the refrigerator as it may
result in electric shock or fire.
• Do not overload the refrigerator with
excess food. The excess food may
fall when the door is opened resulting
in injuring you or damaging the
refrigerator. Do not place objects on
top of the refrigerator as the objects

EN
6
may fall when opening or closing the
refrigerator door.
• Materials that require certain
temperature conditions such as
vaccine, temperature sensitive
medicines, scientific materials etc
should not be kept in refrigerator.
• If refrigerator will not be operated for
an extended period of time it should
be unplugged. A problem in electrical
cable insulation may result in fire.
• The tip of the electric plug should be
cleaned regularly otherwise it may
cause fire.
• The refrigerator may move when the
adjustable feet is not positioned firmly
on the floor. Using the adjustable feet
you can unsure that the refrigerator is
positioned firmly on the floor.
• If the refrigerator has door handle
do not pull the refrigerator via door
handles when moving the product as
it may disconnect the handle from the
refrigerator.
• If you must operate your appliance
adjacent to another refrigerator or
freezer, the distance between the
appliances must be at least 8 cm.
Otherwise condensation may occur
on the side walls facing each other.
• Water mains pressure must not be
below 1 bar. Water mains pressure
must not be above 8 bars.
• Use only drinkable potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children should be supervised to
ensure that they do not play with the
appliance
HCA Warning
If your product is equipped with
a cooling system that contains
R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore the warning if your product
is equipped with a cooling system
that contains R134a.
You can see the gas used in
production of your product on the
rating plate that is located on the left
inner part of it.
Never dispose the product in fire.

EN
7
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• Maximum amount of food can be
put in your refrigerator’s freezer
compartment when the freezer
compartment shelf or drawer
is removed.Declared energy
consumption value of your refrigerator
was determined when the freezer
compartment shelf or drawer was
removed and under maximum
amount of food load.There is no risk
in using a shelf or drawer according
to the shapes and sizes of the foods
to be frozen.

EN
8
3Installation
BPlease remember that the
manufacturer shall not be held
liable if the information given in the
instruction manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and
etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?

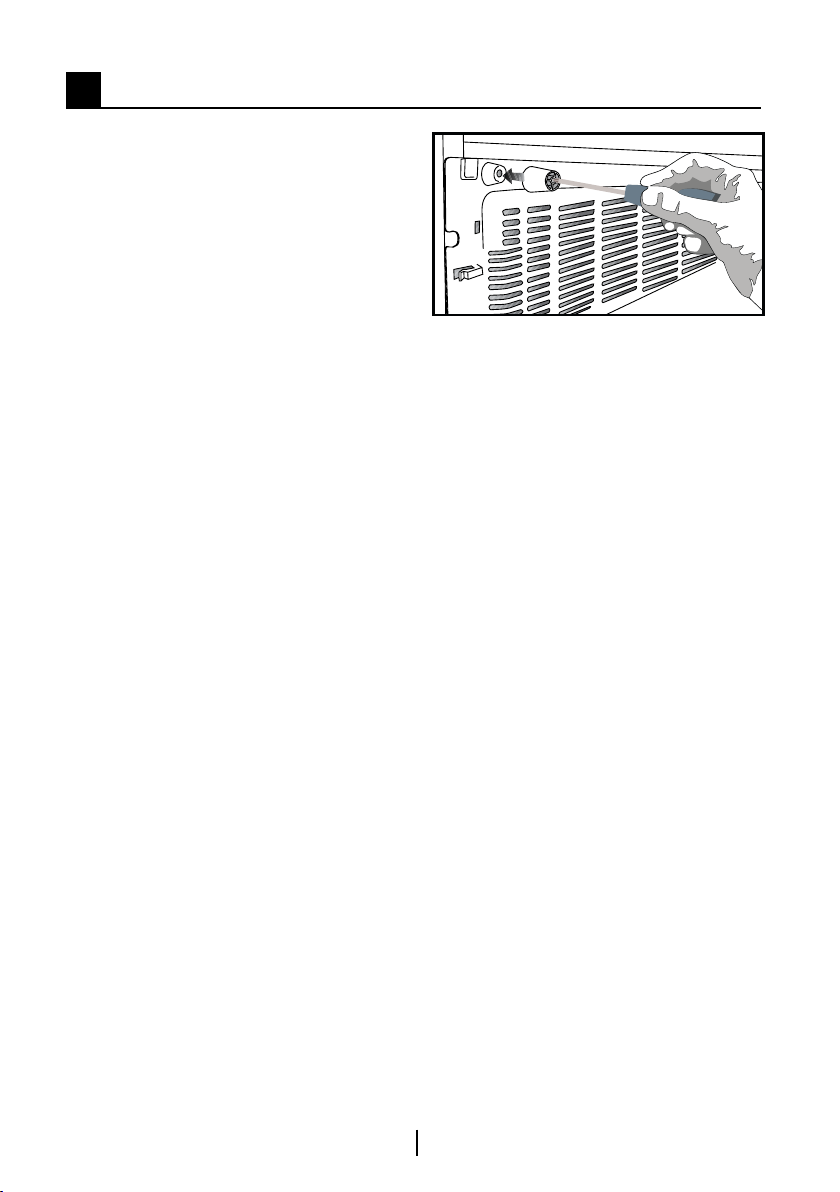

2. You can install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and does not match
exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the fridge door is open
the fridge compartment interior light
will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in
compliance with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal
to your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.

EN
9

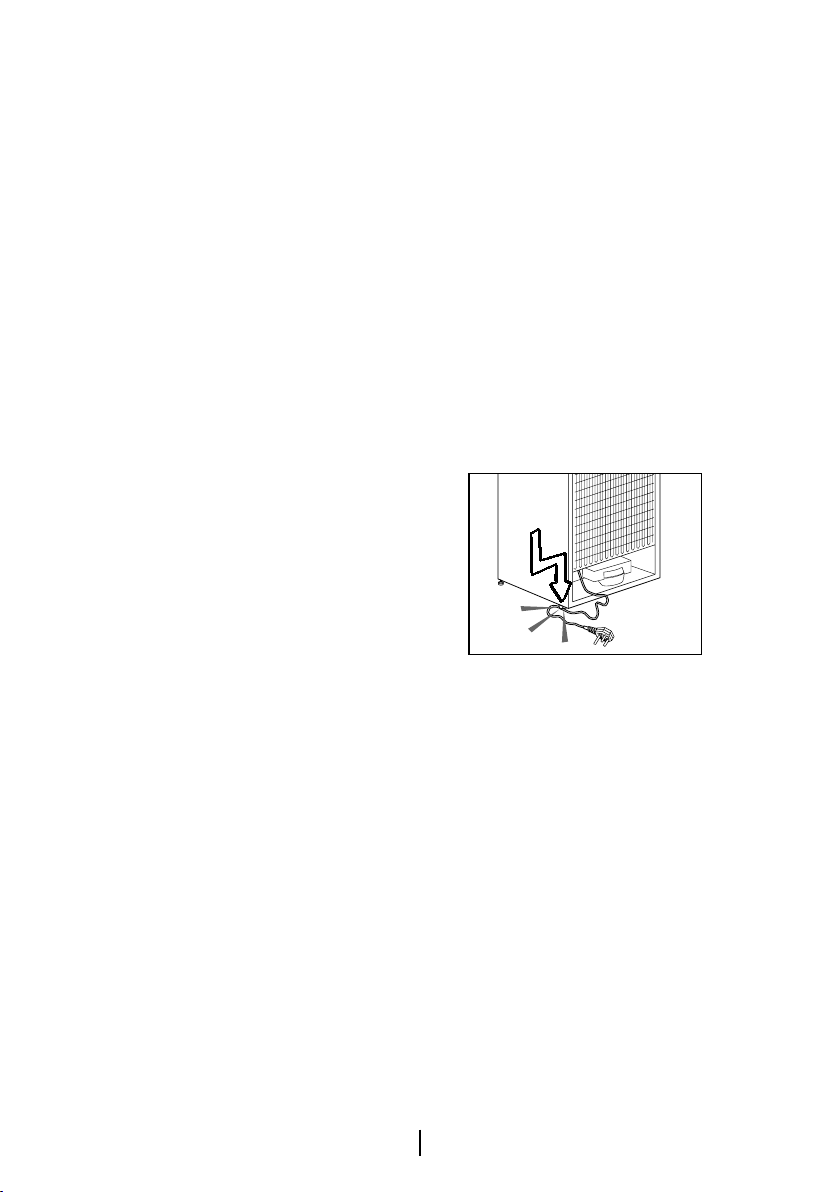

BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, than call the authorized
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.
C This appliance is designed to
operate at temperatures specified
in the table below is equipped with
Advanced Electronic Temperature
Control System [AETCS] which
ensures that at the advised setting [4
- four on the knob] the frozen food in
the freezer will not defrost even if the
ambient temperature falls as low as
-15 °C.
When first installed the product
MUST NOT be placed in low ambient
temperatures because the freezer will
not reduce to it’s standard operating
temperature. Once it has reached its
steady operating state it can be re-
located.

EN
10
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
So you may then install your appliance
in a garage or an unheated room
without having to worry about frozen
food in the freezer being spoilt.
However at low ambient temperatures
mentioned above, fridge contents are
likely to freeze, so check and consume
food in the fridge accordingly. When
the ambient temperature returns to
normal, you may change the knob
setting to suit your needs.
CIf the ambient temperature is
below 0°C, the food in the fridge
compartment will freeze.So, we
recommend you don’t use the fridge
compartment in such low ambient
conditions. You can continue using the
freezer compartment as usual.

EN
11
10
11
45
6
3
12
13
14
9
8
22
23 20
17
16
15
18
24
24
60°
180°
19
2
4
1
7
21
Reversing the doors
Proceed in numerical order

EN
12
Reversing the doors
Proceed in numerical order
60°
180°
10
11
13 14
15
12
4
2
1
6
7
9
8
21
20
21
22
18
19
23
23
5
16
17
3

EN
13
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
14
5Using your refrigerator
Fridge compartment
thermostat setting button
543
At regular room temperatures:
Set the thermostat button to a position
between “2 and 3” to store your food.
At high room temperatures:
543
Thermostat button must be set to a
cooler position if the food is going to
be frozen or large amounts of food will
be loaded.
If the food in the fridge
compartment
cools too much or freezes,
thermostat button must be set to
position “1”.
If the fridge compartment is colder
then the required 24 hours after the
initial startup, open the lower door
and turn the fridge compartment
temperature setting button towards to
the position “1” and if it is warmer then
the required, slightly turn it towards to
the position “5”.
Thermostat button allows you to make
the general temperature setting of your
refrigerator.
Thermostat button of the refrigerator
controls both the temperature
of the freezer compartment and
the amount of the air send to the
fridge compartment and thus,
the temperature of the fridge
compartment.

EN
15
Freezer compartment
thermostat setting button Making ice
Freezer compartment setting button
can be set to a position between
Normal and Quick Freezing.
• In Normal position, the amount of the
air sent to the fridge compartment
reaches to maximum.
• In Quick Freezing position, the
amount of the air sent to the
freezer compartment reaches to
maximum. And the amount of the
air sent to the fridge compartment
decreases to minimum. In this
case, the temperature of the fridge
compartment will increase. This is
normal.
• If you do not need more cooling in
either of the compartments, leave the
setting button in Normal position.
• In cases where the room temperature
is high (25 °C and above), it is
suggested to set the freezer
compartment setting button to a
position near the Normal.
• In low room temperatures, it
is suggested to set the freezer
compartment setting button to a
position between the Normal and
Quick Freezing.
Fill the ice container with water and
place it into its seat. Your ice will be
ready approximately in two hours.
You can easily remove your ice by
slightly twisting the ice container.

EN
16
6Maintenance and cleaning
A Never use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
C Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe it
dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
CTo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the
plastic surfaces of your refrigerator. In
case of spilling or smearing oil on the
plastic surfaces, clean and rinse the
relevant part of the surface at once
with warm water.

EN
17
7Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate
• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse
blown out? Check the fuse.
Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL
CONTROL ve FLEXI ZONE)
• Very cold ambient conditions. Frequent opening and closing of the door. Highly
humid ambient conditions. Storage of food containing liquid in open containers.
Leaving the door ajar.
• Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or
plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator
has not been balanced yet.
• Your refrigerator will start running approximately after 6 minutes. Please call the
service if your refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that he plug is inserted
tightly to the wall socket.
• Are the temperature adjustments correctly made? There is a power failure. Call
your electricity supplier.
The fridge is running frequently or for a long time.

EN
18
• Your new refrigerator may be wider than the previous one. This is quite normal.
Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high.This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded
with food. Cooling down of the refrigerator completely may last for a couple of
hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot
food causes longer running of the refrigerator until they reach the safe storage
temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm
air that has entered into the refrigerator causes the refrigerator to run for longer
periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors
are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to
run for a longer period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge
temperature to a warmer degree and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high degree. Fridge adjustment has an
effect on the temperature of the freezer. Change the temperature of the fridge or
freezer until the fridge or freezer temperature reaches to a sufficient level.
• The door might be left ajar. Close the door completely.
• Large amounts of hot food might have been put in the refrigerator recently. Wait
until the fridge or freezer reaches the desired temperature.
• Refrigerator might have been plugged in recently. Cooling down of the refrigerator
completely takes time because of the size.

EN
19
Noise similar to the sound of seconds heard from an analog clock is coming from
the refrigerator.
• This noise is coming from the solenoid valve of the refrigerator. Solenoid valve
functions for the purpose of ensuring coolant passage through the compartment
which can be adjusted to cooling or freezing temperatures, and performing cooling
functions. This is normal and is not fault cause.
The operation noise increases when the refrigerator is running.
• The operating performance characteristics o f the refrigerator may change
according to the changes in the ambient temperature. It is normal and not a fault.
Vibrations or noise.
• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make
sure that the floor is level, strong and capable to carry the refrigerator.
• The noise may be caused by the items put onto the refrigerator. Such items should
be removed from the top of the refrigerator.
There are noises like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your
refrigerator. It is normal and not a fault.
There is a noise like wind blowing.
• Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is
normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• The doors are ajar. Make sure that the doors are closed completely.
• Doors might have been opened very frequently or they might have been left open
for along time. Open the door less frequently.
Humidity occurs on the outside of the refrigerator or between the doors.
• The weather may be humid. This is quite normal in humid weather. When the
humidity is less, condensation will disappear.
Bad odor inside the refrigerator.
• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a
sponge, warm water or carbonated water.
• Some containers or packaging materials might be causing the smell. Use a different
container or different brand packaging material.
The door(s) is (are) not closing.
