Beko TS 190320 User manual

TS 190320
Refrigerator

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
www.beko.com
This product was manufactured using the latest technology in environmentally friendly conditions.

EN
2
CONTENTS
1 Your refrigerator 3
2 Important Safety Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a water dispenser;.8
Child safety........................................8
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Package information..........................9
HC warning .......................................9
Things to be done for energy saving ..9
3 Installation 11
Points to be paid attention to when the
relocation of the refrigerator .............11
Before you start the refrigerator,.......11
Electrical connection........................11
Disposing of the packaging .............12
Disposing of your old refrigerator .....12
Placing and Installation ....................12
Replacing the interior light bulb .......13
Adjusting the legs ............................14
Reversing the doors ........................15
4 Preparation 16
5 Using your refrigerator 17
Making ice cubes ............................17
Defrosting of the appliance ..............17
Cooling............................................18
Food storage...................................18
6 Maintenance and cleaning 20
Protection of plastic surfaces ..........20
7 Troubleshooting 21

EN
3
1Your refrigerator
1.Top trim
2.Ice making compartments
3.Drain tray
4.Interior light & Thermostat knob
5.Movable shelf
6.Crisper cover
7.Crisper
8.Adjustable front feet
9.Door shelves
10. Egg tray
11. Bottle shelf
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
6
7
9
10
9
11
2
3
4
5
8

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will become
invalid.
The service life of your
product is 10 years. During
this period, original spare
parts will be available
to operate the product
properly.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.

EN
5
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Place the beverage with
higher proofs tightly
closed and vertically.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.

EN
6
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.

EN
7
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.
• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
• Do not touch the plug
with wet hands when
plugging the product.
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator's door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.

EN
8
• The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.
• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
For products with a
water dispenser;
• In order to operate
the water circuit
of the refrigerator
smoothly, the water
mains pressure must
be between 1-8 bars.
For conditions where
water mains pressure
exceeds 5 bars a
pressure regulator
should be used. If the
water mains pressure
exceeds 8 bars then
the refrigerator’s water
circuit should not be
connected to the water
mains. If you lack the
knowledge of how to
measure the water
mains pressure, please
seek a professional
support.Use drinking
water only.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).

EN
9
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut
the power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing
of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.

EN
10
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
11
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1.Your refrigerator should be unplugged.
Before transportation of your refrigerator,
it should be emptied and cleaned.
2.Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes and
the transportation rules on the package
should be strictly observed.
3.Original packaging and foam materials
should be kept for future transportations
or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1.Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended to
keep the distance which will ensure the
air circulation between your refrigerator
and the wall. (The picture is drawn up
as a representation and it is not identical
with your product.)
2.Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section.
3.Connect the plug of the refrigerator to
the wall socket. When the fridge door is
opened, fridge internal lamp will turn on.
4.When the compressor starts to
operate, a sound will be heard. The liquid
and gases sealed within the refrigeration
system may also give rise to noise, even
if the compressor is not running and this
is quite normal.
5.Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

EN
12
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2.Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3.There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation. If
the refrigerator is to be placed in a recess
in the wall, there must be at least 5 cm
distance with the ceiling and at least
5 cm with the wall. Do not place your
product on the materials such as rug or
carpet.
4.Place your refrigerator on an even floor
surface to prevent jolts.

EN
13
Replacing the interior light
bulb
Should the light fail to work switch
off at the socket outlet and pull out
the mains plug. Follow the below
instructions to check if the light bulb
has worked itself loose.
If the light still fails to work obtain
a replacement E14 screw cap type
15 Watt (Max) bulb from your local
electrical store and then fit it as follows:
1.Switch off at the socket outlet and pull
out the mains plug. You may find it useful
to remove shelves for easy access.
2.Remove the light diffuser cover as
shown in figure (a-b).
3.Replace the burnt-out light bulb.
4.Reassemble the light diffuser cover as
shown in figure (c).“Push firmly to ensure
cover is fitted properly.”
5.Carefully dispose of the burnt-out light
bulb immediately.
“Replacement light bulb can easily be
obtained from a good local electrical or
DIY store.”

EN
14
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
The shown close-tipped offset is part
of design , it has no effect on cooling
system.

EN
15
Reversing the doors
Proceed in numerical order
1
60°
5
2
3
4
8
9
7
6

EN
16
4Preparation
CYour refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 5°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
17

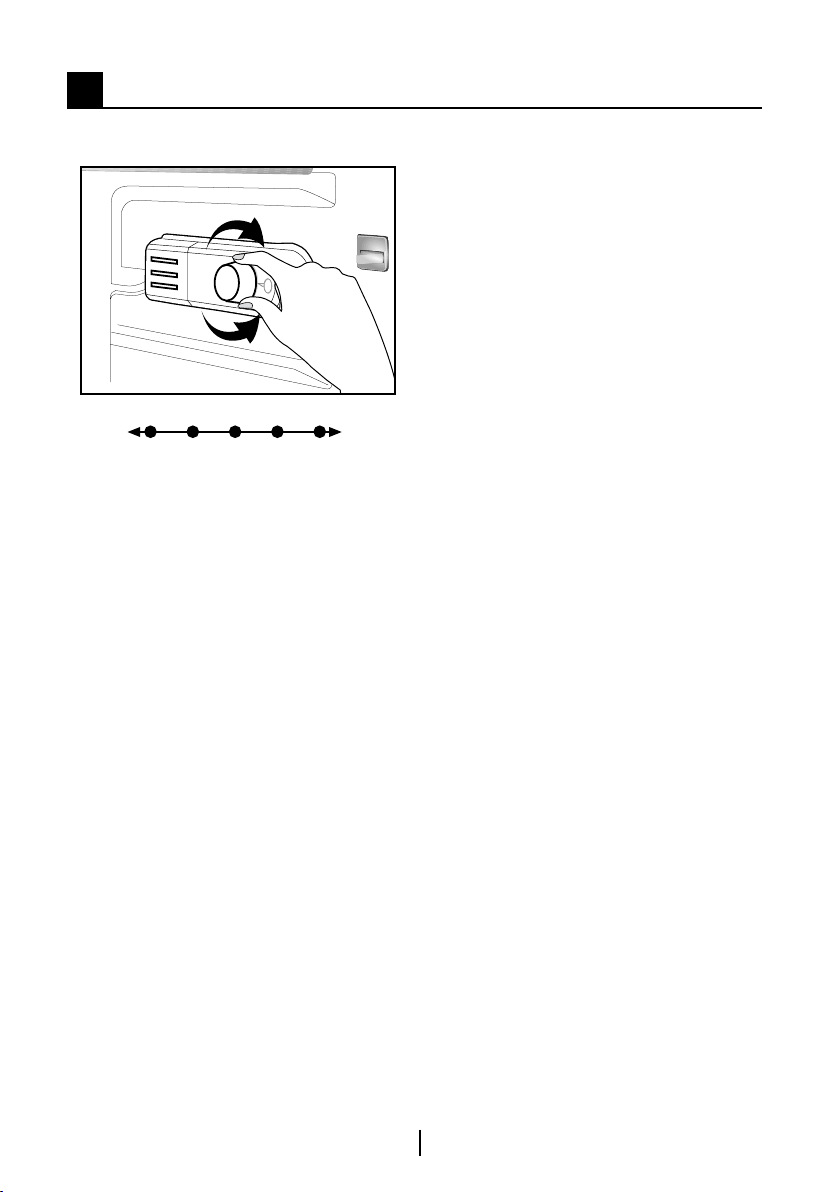

5Using your refrigerator
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting
Warm Cold
1 2 3 4 5
(Or) Min. Max.
(Warmest setting)
5 = Highest cooling setting
(Coldest setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
You can stop operation of your
appliance by turning the thermostat
knob to “0” position.
Please note that there will be different
temperatures in the cooling area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of food kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The coldest region is immediately
below the ice making compartment.
Under high humidity, condensation
may occur on your refrigerator; this is
not a failure. It can be wiped with a dry
cloth according to safety instructions.
Icing, frosting and condensation are
normal for icebox compartment and
water drain container.
Making ice cubes
Fill the ice-cube tray 3/4 full with water
and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
Never use sharp objects such as
knives or forks to remove the ice cubes.
There is a risk of injury!
Let the ice cubes slightly thaw instead,
or put the bottom of the tray in hot
water for a short moment.
Defrosting of the appliance
Excessive build-up of ice will affect the
cooling performance of your device.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your device when there is only
little or no food in it.

EN
18
Take out the food. Wrap the food in
several layers of paper, or a blanket,
and keep it in a cold place.
Unplug the appliance or switch off the
circuit breaker to start the defrosting
process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
Use a sponge or a soft cloth to
remove thawing water if necessary at
the compartments.
Keep the door open during defrosting.
For quicker defrosting, place
containers with warm water inside the
appliance.
Never use electrical devices,
defrosting sprays or pointed or sharp-
edged objects such as knives or forks
to remove the ice.
After the defrosting is done, clean the
inside.
Reconnect the appliance to the mains.
Place the frozen food into the drawers
and slide the drawers into the freezer.
Switch off the circuit breaker and
unplug the appliance for your safety to
start the defrosting process.
During defrost, evaporation tray
damper should be positioned as in the
winter mode. After defrost, it can be
positioned with respect to summer or
winter mode, as needed.
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Store milk products in the intended
compartment in the refrigerator.
Bottles can be stored in the bottle
holder or in the bottle shelf of the door.
Raw meat is best kept in a polyethylene
bag in the compartment at the very
bottom of the refrigerator.
Allow hot food and beverages to cool
to room temperature prior to placing
them in the refrigerator.
• Attention
Store concentrated alcohol in a
container only standing upright and
tightly closed.
• Attention
Do not store explosive substances or
containers with flammable propellant
gases (canned cream, spray cans etc.)
in the appliance.
There is a danger of explosion.

EN
19
3
4
MODE A
MODE B
Evaporation tray damper should be
used as described below to maintain
desired compartment temperature
depending on the ambient temperature,
such as winter mode for cold ambient
temperature and summer mode for hot
ambient temperature.
SUMMER MODE (MODE A)
When cooler compartment
temperature is required...
WINTER MODE (MODE B)
(When warmer compartment
temperature is requiredand defrosting.)
