Product Description and Inventory
The Belkin Enclosure is an industrial-grade, high-performance enclosure for the IT and
telecommunication industries. The Enclosure has full compliance with the 19” rack-mount
hardware EIA 310-D industry standard. The Belkin Enclosure is designed for the optimal
performance of applications with servers, voice, data, networking, internetworking,
cable management, power distribution, and power protection equipment.
Belkin Enclosures
Part Number RMU Height
Nominal
Enclosure
Height w/
Casters
Nominal
Enclosure
Width Description
RK1000ek 42 80.25” (2038mm) 24” (610mm) Enclosure with Sides
RK1001ek 42 80.25” (2038mm) 24” (610mm) Enclosure w/o Sides
RK1002ek 24 48.75” (1238mm) 24” (610mm) Enclosure with Sides
Side panels are available for those Enclosures ordered without sides.
Side panels are available in pairs with hardware included.
Part Number Description
RK5009ek Side Panels for 42U Enclosure
Your Enclosure comes with 50 Metric 6mm Black Screws with Cage Nuts. If you require more, please see
part number below:
Part Number Description
RK5034ek Metric 6mm Black Screw with Cage Nuts (25)

5
Belkin Enclosure - User Manual v 1.0.0ek P74789ec
EN
DE
FR
Product Inventory

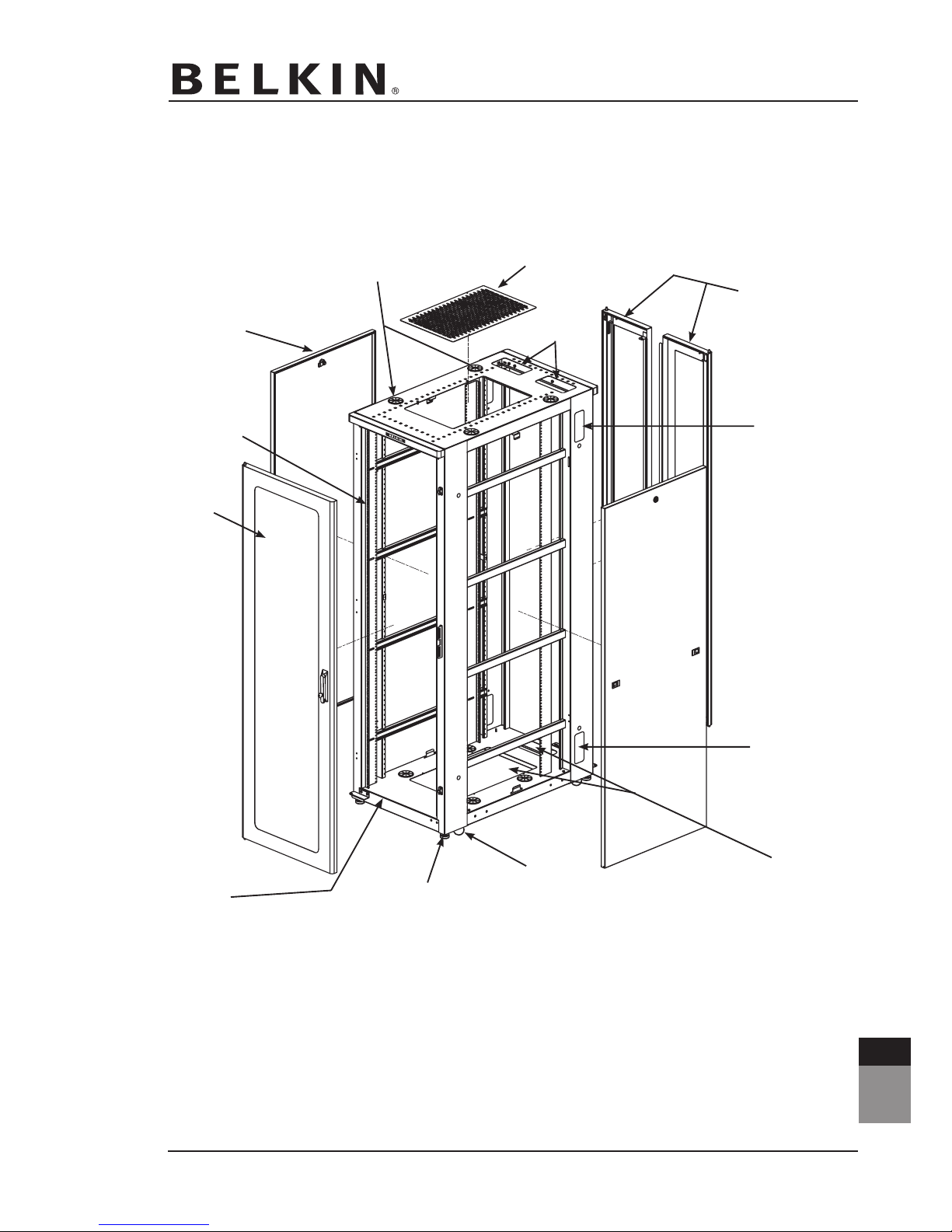

Features of the Enclosure
8
7
1
2
3
45
6
9
9
9
9
9
1 Side Panels with Locks
2 Vertical Rails (Adjustable)
3 Reversible Front Doors
4 Fully Welded Frame
5 Leveling Feet (Adjustable)
6 Casters
7 Split Rear Doors
8 Vented Top Panels
9 Cable Access

6
Belkin Enclosure - User Manual v 1.0.0ek P74789ec
Before you Install
Instructions must be read completely before installation.
When this caution symbol appears in this User Manual, the information that
accompanies it is critical to your safety and the prevention of damage to
product.
Before unpacking, please make sure you have the following tools:
Phillips Screwdriver Utility Knife Level
3/4” (19mm) Open Ended Wrench 1/2” (13mm), 3/8” (10mm) and 7/16” (11mm)
Hex Sockets

7
Belkin Enclosure - User Manual v 1.0.0ek P74789ec
EN
DE
FR
1. Removal of the stretch wrap. To prevent damage to the Enclosure, cut the stretch
wrap at one of the corrugated corners using a utility knife.
2. Remove the corrugated top and corners.
3. Remove the skid brackets from the skid, using a 1/2” (13mm) socket wrench. Remove
the hex from the Enclosure by using the 3/8” (10mm) socket wrench.
4. This step requires two or more people. With one person standing on each side of
the Enclosure, slowly roll the Enclosure to the back of the skid. Proceed until all four
casters contact the floor.
5. Verify that you have received all hardware and components with your Belkin Enclosure.
Contact Belkin support if you feel items are missing.
Unpacking your Enclosure
DETAIL A
A
DETAIL A
A
1
6
2
5
7
3
4
Mounting hardware and keys can be found in bag attached to one of the vertical mounting
rails.
Unpacking Instructions
1 Corrugated top
2 Stretch wrap
3 3/8” (10mm) hex
4 1/2” (13mm) hex
5 Corrugated corners
6 Shipping skid
7 Skid brackets

8
Belkin Enclosure - User Manual v 1.0.0ek P74789ec
Leveling your Enclosure
1. Move your Enclosure to it’s final location.
2. Once in place use your 3/4” (19mm) wrench to lower the
adjustable levelers so that the weight of the Enclosure is
taken off of the casters.
3. Using a level and your wrench, adjust the levelers so that
your Enclosure is level.
Removing your Casters and Levelers
The following steps require two or more people.
1. Using two or more persons, lay your Enclosure on it’s side.
2. Unscrew the levelers
3. Using a 1/2” (13mm) hex socket, remove the 5/6” (21mm) nuts holding the casters
4. Return Enclosure to upright position.
Installing your Belkin Enclosure

9
Belkin Enclosure - User Manual v 1.0.0ek P74789ec
EN
DE
FR
Removing and Installing your Side Panels
1. If side panel is locked, please unlock.
2. Slide both latches toward the center of the side panel, and carefully pull side panel toward you.
3. Lift side panel up and remove from Enclosure.
4. To re-install, reverse above steps.

10
Belkin Enclosure - User Manual v 1.0.0ek P74789ec

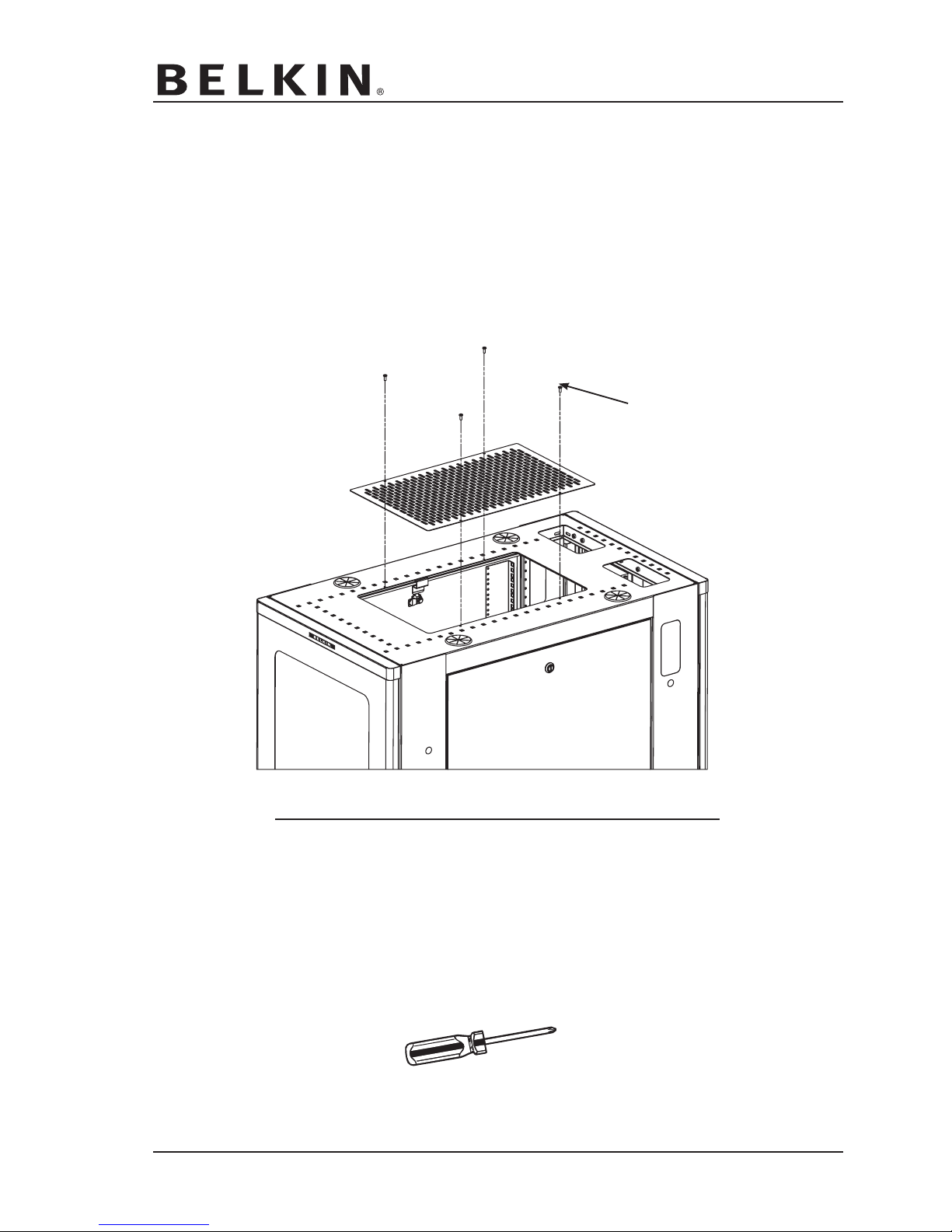

Removing and Installing your Top Panel
The center portion of the top of your Enclosure is attached with four #10-32 Phillips pan head
screws. This top panel can be replaced with optional fan tops by removing the four #10-32
screws. Please see chart below.
Tools required: Phillips Pan
Head Screw Driver
#10-32 Phillips Pan Head Screw
Part Number Description
RK5004ek 3 muffin fan top, 225 CFM
RK5006ek Double 10” fan top, 1100 CFM
