Belle Pclx 320 User manual

- Spare Parts Book

- Pièces détachées

- Libro Despiece

- Lista de Peças

- Onderdelen Boekje

- Reservedele Skrift

- Ersatzteilhandbuch

- Manuale dei ricambi

- Bruksanvisning

- Varaosaluettelo

- Lista Części Zamiennych

- Запасные части Книга

- Varuosade nimekiri

- Rezerves daļu saraksts

- Atsarginiu daliu sarašas

- Част Списък

- Část Barevný pruh

- Lista Pieselor de Schimb

- Részek Oldalra dől

- Rezervni djelovi Knjiga

204

870/10002/4

09/12

Operators Manual

Manuel De L'Opérateur

Manual del Operador

Manual de Operação

Handleiding

Betjeningsvejledning

Bedienungshandbuch

Manuale Dell'Operatore

Bruksanvisning

Betjene Håndbok

Käyttöohje

Instrukcja Obsługi

Рyкoвoдcтвo для oпepaтopa

Kasutusjuhend

Lietotāja rokasgrāmata

Naudojimo Instrukcija

Oпepaтop Pъчeн

Na’vod K Obzluze

Manual de Utilizare

Kezelõk Kézi

Uputstvo za rukovatelja

RUS

EST

HUN

105

114

123

132

141

150

159

168

177

186

195

Managing Director - On behalf of BELLE GROUP (SHEEN) UK.

Le Directeur Général - Pour le compte de la SOCIETE BELLE GROUP (SHEEN) UK.

Director Gerente - En nombre de BELLE GROUP (SHEEN) UK.

Director-Geral - Em nome de BELLE GROUP (SHEEN) UK.

Algemeen Directeur - Namens BELLE GROUP (SHEEN) UK.

Administrerende direktør – På vegne af BELLE GROUP (SHEEN) UK.

PRODUCT TYPE ................. TYPE DE PRODUIT.............. TIPO DE PRODUCTO..........

MODEL................................. MODELE............................... MODELO ..............................

SERIAL No........................... N° DE SERIE........................ N° DE SERIE........................

DATE OF MANUFACTURE. DATE DE FABRICATION ..... FECHA DE FABRICACIÓN..

SOUND POWER LEVEL NIVEAU DE PUISSANCE NIVEL DE POTENCIA

MEASURED / SONORE MESUREE / ACÚSTICA MEDIDO /

....................(GUARANTEED) ............................(GARANTIE) ..................(GARANTIZADO)

WEIGHT............................... POIDS................................... PESO....................................

We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an

authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic

Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the

low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to

directives 2000/14/EC Annex VI & 2005/88/EC, for machines under article 12 the notified body is AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle

Heath, Stockport, Cheshire, SK3 0XU, GB.

Noise Technical Files are held at the Belle Group Head Office address which is stated above.

Nous soussignés, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, certifions que si le produit décrit dans ce certificat est acheté chez un

distributeur autorisé Belle Group au sein de la CEE, il est conforme aux normes CEE ci-après: 2006/42/CE (Cette norme remplace la norme 98/37/CE), Norme

compatible pour l'électromagnisme 2004/108/CE (modifié par 89/336/EEC, 92/31/EEC & 93/68 EEC). Les déchets électriques, et d’équipement électronique 2002/96/CE,

caractéristiques basse tension 2006/95/CE, BS EN ISO 12100-1:2003 Norme de sécurité des machines et des critères associés et configurés, si applicable. Les

émissions de bruit sont conformes à la directive 2000/14/EC Annexe VI et 2005/88/EC pour machines , article 12, l’objet mentionné est AV Technology Limited,

AVTECH House, Birhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Les dossiers techniques sur les émissions sonores des machines sont détenus au siège social de BELLE GROUP à l’adresse ci-dessus.

La Sociedad, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK 17 OEU, GB, por el presente documento certifica que si el producto descrito en este

certificado es comprado a un distribuidor autorizado de Belle Group en la CEE, este es conforme a las siguientes directivas: 2006/42/CE de la CEE (Esta directiva

sustituye a la Directiva 98/37/CE), Directiva 2004/108/CE sobre Compatibilidad Electromagnética (según enmiendas 89/336/EEC, 92/31/EEC & 93/68 EEC). Los

residuos eléctricos y electrónicos (RAEE) 2002/96/CE, Directiva sobre Bajo Voltaje 2006/95/CE, BS EN ISO 12100-1:2003 de Seguridad de Maquinaria y Niveles

armonizados estándares asociados donde sean aplicables. Emisión de Ruídos conforme a la Directiva 2000/14/CE Anexo VI y 2005/88/ECpara máquinas bajo artículo

12 la mencionada unidad está AV Technology Limited, AVTECH House, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 OXU, GB.

En La Sede Central de Belle Group existen Archivos Técnicos con contenido referente a Niveles de Ruido.

O signatário, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, pelo presente, declara que se o produto descrito neste certificado foi adquirido a

um distribuidor autorizado do Belle Group em qualquer país da UE, está em conformidade com o estabelecido nas seguintes directivas comunitárias: 2006/42/CE (Esta

directiva substitui a Directiva 98/37/EC), Directiva de Compatibilidade Electromagnética 2004/108/CE (conforme corrigido pelas 89/336/EEC, 92/31/EEC & 93/68 EEC).

O Eléctrico de Desperdício e Equipamento Electrónico (DEEE) 2002/96/CE, a directiva de baixa voltagem 2006/95/CE, BS EN ISO 12100-1:2003 Segurança da

maquinaria e às normas harmonizadas afins se aplicáveis. As emissões de ruído respeitam e estão dentro das directivas para máquinas 2000/14/EC Anexo VI &

2005/88/EC, artigo 12, sendo o organismo notificado AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

A informação técnica sobre níveis sonoros está disponivel na Sede da Belle Group na morada acima mencionada.

Ondergetekende, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 OEU, GB, verklaren hierbij dat als het product zoals beschreven in dit certificaat is

gekocht van een erkende Belle Group dealer binnen de EEG, het voldoet aan de volgende EEG richtlijnen: 2006/42/CE (Deze richtlijn vervangt Richtlijn 98/37/EC),

Electromagnetische Compatability Richtlijn 2004/108/CE (geamendeerd door 89/336/EEC, 92/31/EEC & 93/68 EEC). De afgedankte elektrische en elektronische

apparatuur (AEEA) 2002/96/CE, de Laagspannings Richtlijn 2006/95/CE, BS EN ISO 12100-1:2003 Veiligheid van Machines en hieraan gekoppelde geharmoniseerde

Standaarden, waar deze van toepassing is. Geluidshinder te voldoen aan de richtlijnen 2000/14/EG en 2005/88/EG bijlage VI, voor toestel onder stuk 12 naar de notified

troep zit AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 OXU, GB

Worden de Technische Dossiers van het lawaai gehouden op het adres van het Hoofdkantoor van de Groep Belle dat hierboven ' wordt verklaard.

Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, erklærer hermed, at hvis det i dette certifikat beskrevne produkt er købt hos en autoriseret

Belle Group forhandler i EU, er det i overensstemmelse med følgende EØF-direktiver: 2006/42/CE (Dette direktiv erstatter direktiv 98/37/EF), 2004/108/EØF (som ændret

ved 89/336/EEC, 92/31/EØF & 93/68 EØF), Affald af elektrisk og elektronisk udstyr (WEEE) 2002/96/CE, lavspændingsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003

Maskinsikkerhed og tilhørende harmoniserede standarder, hvor det er relevant. Støjemission i overensstemmelse med direktiverne 2000/14/EF bilag VI og 2005/88/EF.

for maskiner under paragraf 12. Det bemyndigede organ er AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU,

Storbritanien.

De tekniske støjspecifikationer forefindes på Belle Group´s hovedkontor, adressen er skrevet ovenfor.

EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN

DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING

VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLÆRING

Ray Neilson

TIPO DE PRODUCTO.......... PRODUCTTYPE................... PRODUKTTYPE...................

MODELO.............................. MODEL ................................. MODEL.................................

NO. DE SÉRIE ..................... SERIENUMMER ................... SERIENR..............................

DATA DE FABRIC................ FABRICAGEDATUM ............ FREMSTILLINGSDATO .......

NIVEL DE POTÊNCIA GEMETEN LYDEFFEKTNIVEAU

DE SOM MEDIDO / GELUIDSSTERKTENIVEAU / MÅLT /

.......................(GARANTIDO) ...............(GEGARANDEERD)

.....................(GARANTERET)

PESO.................................... GEWICHT............................. VÆGT...................................

Signed by:

Signature:

Medido por:

Assinado por:

Getekend door:

Uunderskrevetaf:

Place of Declaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date of Declaration - 2004 ...........................................................................

Lieu de déclaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date de déclaration - 2004...........................................................................

Declaración hecha en - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Fecha de la declarachón - 2004..................................................................

Lugar de Declaração - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data da Declaração - 2004...........................................................................

Plaats van de Verklaring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum van de verklaring - 2004..................................................................

Sted i erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dato for erklæringen - 2004.........................................................................

Wir, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, bestätige hiermit, dass, wenn das Produkt innerhalb dieser Bescheinigung ist von einem

gekauft zugelassen Belle Group-Händler innerhalb der EWG, so entspricht sie den folgenden EG-Richtlinien: 2006/42/CE (Diese Richtlinie ersetzt die Richtlinie

98/37/EG), elektromagnetische Kompatibilität Richtlinie 2004/108/EG (geändert durch 89/336/EWG, 92/31/EWG und 93/68 EWG). Die Elektro-und Elektronik-Altgeräte

(WEEE) 2002/96/CE, der Niederspannungs-Richtlinie 2006/95/CE, BS EN ISO 12100-1:2003 Sicherheit von Maschinen und der damit verbundenen harmonisierten

Normen, sofern zutreffend. Geräuschemissionen entsprechen der Richtlinie 2000/14/EG Anhang VI und 2005/88/EG, für Maschinen gemäß Artikel 12 der benannten

Stelle ist AV Technology Limited, AVTECH House, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Geräuschtechnische Dokumente stehen in unserer Zentrale unter obig angegebener Adresse zur Verfügung.

Il Gruppo Belle Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, certifica che, se il prodotto descritto nel presente certificato viene acquistato da un

rivenditore autorizzato Belle gruppo all'interno della CEE, è conforme alle seguenti direttive CEE: 2006/42/CE (presente direttiva sostituisce la direttiva 98/37/CE),

elettromagnetica compatibilità con la direttiva 2004/108/CE (modificata dalla 89/336/CEE, 92/31/CEE e 93/68 CEE). L'Elettrico di Spreco e l'Apparecchiatura Elettronica

(WEEE) 2002/96/CE, la direttiva bassa tensione 2006/95/CE, BS EN ISO 12100-1:2003 Sicurezza del macchinario e le relative norme armonizzate, se del caso.

Emissioni sonore conformi alla direttiva 2000/14/CE, allegato VI e 2005/88/EG, per le macchine a norma dell'articolo 12, l'organismo notificato AV Technology Limited,

AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Dati tecnici relativi ai livelli acustici sono disponibili su richiesta dalla sede madre Belle Group al sopra citato indirizzo.

Undertecknade, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, Storbritannien, intygar härmed att om den produkt som beskrivs i detta intyg är

köpt från en auktoriserad Belle-återförsäljare inom EEG, överensstämmer med följande EEG-direktiv: 2006/42/CE (Detta direktiv ersätter direktiv 98/37/EG),

Elektromagnetisk kompatibilitet 2004/108/CE (ändrat genom direktiv 89/336/EEG, 92/31/EEG och 93/68 EEG). Avfall från elektriska och elektroniska produkter (WEEE)

2002/96/CE, lågspänningsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003 Maskinsäkerhet och tillhörande harmoniserade standarder, i förekommande fall. Buller följa

direktiv 2000/14/EG bilaga VI och 2005/88/EG till maskiner enligt artikel 12 anmälda organet är AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle

Heath, Stockport, Cheshire, SK3 0XU, Storbritannien.

Teknisk dokumentation vad gäller test av maskiners ljud/bullernivå finns dokumenterad hos Belle-Groups huvudkontor i Sheen, England.

Vi, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, herved bekrefte at hvis produktet er beskrevet i dette sertifikatet er kjøpt fra en autorisert

Belle Group forhandler innenfor EØS, følger det med til følgende EEC direktiver: 2006/42/CE (Dette direktivet erstatter direktiv 98/37/EF), Det elektromagnetisk

kompatabiltets-direktivet 2004/108/CE (endret ved 89/336/EEC, 92/31/EEC og 93/68 EEC). Avfallet Elektrisk og Elektronisk Utstyr (WEEE) 2002/96/CE,

Lavspenningsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003 Sikkerhet av maskiner og tilhørende harmoniserte standarder, der dette er aktuelt. Lydeffekt samsvar med

direktiv 2000/14/EC vedlegg VI og 2005/88/EG, for maskiner i henhold til artikkel 12 i meldte organ er

AV Technology Limited, AVTECH House, Birhall Lane, Cheadle

Heath, Stockport, Cheshire, SK3 0XU, GB.

Lydtekniske filer er arkivert hos Bell Group Hovedkontor med adresse som nevnt ovenfor.

Me, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, todistaa, että jos tuote on kuvattu tämän todistuksen ostetaan valtuutetun Belle

jälleenmyyjä ETY: n sisällä, se täyttää seuraavat EY-direktiiveihin: 2006/42/EY (tällä direktiivillä korvataan direktiivi 98/37/EY), sähkömagneettinen yhteensopivuutta

direktiivin 2004/108/CE (muutettuna 89/336/ETY, 92/31/ETY ja 93/68 ETY). Tuhlaa Sähkö ja Sähköinen Varusteet (WEEE) 2002/96/CE, the matalajännitedirektiivistä

2006/95/CE, SFS-EN ISO 12100-1:2003 Koneturvallisuus ja niihin liittyvien yhdenmukaistettujen standardien tarvittaessa. Melupäästöjä täyttävät direktiivin 2000/14/EY

liitteessä VI ja 2005/88/EG, koneiden 12 artiklan mukaisesti ilmoitetun laitoksen on AV Technology Limited, AVTECH House, Birdhall Lane, Cheadle Heath,

Stockport, Cheshire, SK3 0XU, GB.

Melumittausten teknilliset arvot ovat saatavana Belle Group pääkonttorin ylläolevasta osoitteesta.

0\%HOOH*URXS6KHHQ8.6KHHQ1U%X[WRQ'HUE\VKLUH6.(8:LHON %U\W QL QLQLHMV]\PSRÑZLDGF]DP\LÝSURGXNWRSLVDQ\ZW\PÑZLDGHFWZLH]RVWD¦

]DNXSLRQ\RGDXWRU\]RZDQHM%HOOH*URXSZ8(LMHVW]JRGQ\]QDVW SXMºF\PLG\UHNW\ZDPL(82006/42/EY1LQLHMV]DG\UHNW\ZD]DVWSXMHG\UHNW\Z (&

'\UHNW\Zº]JRGQRÑFLHOHNWURPDJQHW\F]QHM2004/108/CE]SRSUDZNDPLZQLHVLRQ\PLSU]H]89/336/EEC, 92/31/EEC & 93/68 EECUtylizacja sprztu elektrycznego i

elektronicznego 2002/96/CE, G\UHNW\ZºZVSUDZLHQLVNLFKQDSL ²2006/95/CE, BS EN ISO 12100-1:2003%H]SLHF]HÇVWZRPDV]\QL]ZLº]DQHQRUP\KDUPRQL]DF\MQH

WDPJG]LHWRPD]DVWRVRZDQLH3R]LRPKD¦DVXMHVW]JRGQ\]'\UHNW\Zº(&=DOºF]QLN9,L2005/88/EGRUJDQL]DFMD]DZLDGDPLDQDRGQRÑQLH]JRGQRÑFLWRAV

Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, :LHON %U\W QL 

Informacje Techniczne dotyczce poziomu haasu s przechowywane w Belle Group – adres powyej.

EGKONFORMITÄTSERKLÄRUNG / DICHIARAZIONE CE DI CONFORMITÁ / EG-VERKLARING VAN

OVEREENSTEMMING / EC SAMSVARSERKLÆRING / EY-YHDENMUKAISUUSILMOITUS /

DEKLARACJA ZGODNOSCI Z PRZEPISAMI UE

Ray Neilson

Unterzeichnet vo:

Firmato da:

Undertecknat:

Signatur:

Allekirjoitus:

3RGSLVD¦:

Erklärungsort - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Erklärungsdatum - 2004...............................................................................

Luogo de dichiarazione - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data de dichiarazione - 2004.......................................................................

Plats av Förklaring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum av Förklaring - 2004 .........................................................................

Sted av Erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dato av Erklæring - 2004 .............................................................................

Julistuksen paikka - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Julistuksen päivämäärä - 2004 ...................................................................

Miejsce deklaracji - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data deklaracji - 2004...................................................................................

PRODUKTTYP..................... TIPO PRODOTTO ................ PRODUKTTYP.....................

MODELL .............................. MODELLO ............................ MODELL...............................

SERIENNR........................... SERIE N°.............................. SERIE NR. ...........................

HERSTELLUNGSDATU ...... DATA DI FABBRICAZIONE.. TILLVERKNINGSDATUM.....

SCHALLLEISTUNGSPEGEL LIVELLO POTENZA LJUDSTYRKA

GEMESSEN / SONORA MISURATA / UPPMÄTT /

......................(GARANTIERT) .........................(GARANTITA) .................(GARANTERAD)

GEWICHT............................. PESO .................................... VIKT......................................

PRODUKTTYP..................... TUOTETYYPPI ..................... TYP PRODUKTO..................

MODELL .............................. MALLI ................................... MODEL .................................

SERIE NR. ........................... VALMISTUSNRO ................. Nr SERII................................

PRODUKSJONSDATO........ VALMISTUSPÄIVÄ .............. DATAPRODUKCJI ...............

ÄLYDKRAFTNIVÅ ÄNENVOIMAKKUUDEN POZIOM MOCY

MÅLT / TASO MITATTU /

'Û

KU ZMIERZONY /

.......................(GARANTERT) .................................(TAATTU) ...........(GWARANTOWANY)

VEKT.................................... MASSA ................................. WAGA...................................

Generaldirektor – Im auftrag von BELLE GROUP (SHEEN) UK.

Amministratore Delegato – Per conto di BELLE GROUP (SHEEN) UK.

V.D. – På vägnar av BELLE GROUP (SHEEN) UK.

Managing Director - På vegne av SOCIETE BELLE GROUP (SHEEN) UK.

Toimitusjohtaja - BELLE GROUP (SHEEN) UK: n puolesta.

'\UHNWRU= U]»G] M»F\ – w imieniu BELLE GROUP (SHEEN) UK

, ,   Belle Group Sheen (), Sheen, Nr. Buxton, Derbyshire SK17 0EU, , ,   ,

              ,    

 : 2006/42/CE (    98/37/),    2004/108/CE (

89/336/EEC, 92/31/EEC & 93/68 EEC).      (WEEE) 2002/96/CE. 2006/95/CE  

, BS EN ISO 12100-1:2003        ,   .  

  2000/14/EC  VI  2005/88/EC,  ,    12  : AV Technology Limited,

AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

       - Belle Group,     .

Meie, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, kinnitan, et kui kirjeldatud toote jooksul käesoleva sertifikaadi on ostetud lubatud Belle

nimel vahendaja jooksul EMÜ, see vastab järgmistele EMÜ direktiividele: 2006/42/CE (käesolev direktiiv asendab direktiivi 98/37/EÜ) , elektromagnetilise ühilduvuse

direktiivi 2004/108/CE (muudetud 89/336/EMÜ, 92/31/EMÜ ja 93/68 EMÜ). Ja elektroonikaseadmete jäätmete (WEEE) 2002/96/CE, madalpinge direktiivi 2006/95/CE,

BS EN ISO 12100-1:2003 Masinate ohutus ning sellega seotud ühtlustatud standarditele, kui see on kohaldatav. Müra osas vastama direktiivi 2000/14/EÜ VI lisa ja

2005/88/EÜ masinate artikli 12 kohaselt teavitatud asutus on

AV Technology Mimited, AVTECH House, Birhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Dokumendid tehnilise müra kohta arhiveeritakse Belle Group peakontoris eelpoolmainitud aadressil.

Ms, Belle Group Sheen UK, Nr. Buxton, Derbyrshire, SK17 0EU, ar šo apliecinm, ar šo apliecinu, ka gadjum, ja produkts aprakstts šaj sertifikt ir iegdjies

no pilnvarota Belle grupas dlera teritorij EEK, t atbilst šdm EK direktvm: 2006/42/CE (Š direktva aizvieto Direktvu 98/37/EK) , Elektromagntisks saderbas

direktvu 2004/108/CE (kur grozjumi izdarti ar 89/336/EEK, 92/31/EEK un 93/68 EEK). Elektrisko un elektronisko iekrtu atkritumiem (EEIA), 2002/96/CE,

zemsprieguma directive 2006/95/CE, BS EN ISO 12100-1:2003 Mašnu drošba un saisttos saskaotus standartus, ja vajadzgs. Trokša emisijas neatbilst Direktvas

2000/14/EK VI pielikum un 2005/88/EK, mašnu saska ar 12 pilnvarot iestde ir AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath,

Stockport, Cheshire, SK3 0XU, LIELBRITNIJA.

Tehnisk dokumentcija par iekrtu trokšu lmeni glabjas Belle Grupas galvenaj biroj, kura adrese ir nordta augš.

Mes, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, patvirtinu, kad jei produktas, kaip aprašyta šio sertifikato pirkti iš leidžiama Belle frakcijos

atstovas pagal EEB, jis atitinka šiuos EEB direktyvas: 2006/42/CE (ši direktyva pakeiia Direktyv 98/37/EB) , elektromagnetinio suderinamumo direktyvos 2004/108/CE

(su pakeitimais, padarytais 89/336/EEB, 92/31/EEB ir 93/68 EEB). Elektros ir elektronins rangos atliek (EE atliek), 2002/96/CE, Žemosios tampos rangos direktyv

2006/95/CE, LST EN ISO 12100-1:2003 Mašin sauga ir susij darnieji standartai, jei taikytina. Triukšmo emisija neatitinka Direktyvos 2000/14/EB VI priede UN

2005/88/EB, už mašinos pagal 12 straipsnio nuostatas, notifikuotoji staiga yra

AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Technins bylos apie triukšmo skleidim saugomos centriniame Belle Group biure (adresas nurodytas viršuje).

%HOOH*URXS6KHHQ8.6KHHQ1U%X[WRQ'HUE\VKLUH6.2(8*%

!"#$%&'(

)%!"#%$&&$&)*$&%(+

#($!"$,!"-"./-0))1)&

+) 2/ 2005/88EO)

$9 HFKQRORJ\/LPLWHG$9 (&+KRXVH%LUGKDOO/DQH&KHDGOH+HDWK6WRFNSRUW&KHVKLUH6.2;8*%

              ,    -.

,  Belle Group, Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU,  ,  ,        

      Belle     ,       : 2006/42/CE

(      98/37/) ,    2004/108/CE (    89/336/, 92/31/ 

93/68 ).       () 2002/96/CE,   2006/95/CE  , BS EN ISO 12100-1:2003 

     ,    .       2000/14/  VI 

2005/88/,        12     : AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle

Heath, Stockport, Cheshire, SK3 0XU, GB.

             LLE,   

 / EÜ VASTAVUSDEKLARATSIOON / 3!(+23§! 2Ò

#$*+ 1"() ÒÒ$2Ò 3(3(*3($2Ò#$*+ 1 "() / £©²¤¢

¤²  

Ray Neilson

RUS

EST

  - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK   - 2004.....................................................................

Koht deklaratsiooni - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Deklaratsiooni kuupäev - 2004....................................................................

Vietas deklarciju - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dienas deklarcija - 2004.............................................................................

Vieta deklaracijos - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data deklaracijos - 2004 ..............................................................................

   - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK    - 2004......................................................................

  - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK   - 2004.......................................................................

 ............... TOOTE TÜÜP....................... PRODUKTA TIPS.................

.............................. MUDEL ................................. MODELIS..............................

 .......... SERIANUMBER ................... SRIJAS NR. ......................

  ................ VALMISTAMISE KUUPÄEV. IZGATAVOŠANAS DATUMS

   HELITUGEVUSE TASE IZMRTAIS SKAAS

 / MÕÕDETUD / JAUDAS LMENIS /

...............() ..............(GARANTEERITUD) ....................(GARANTTAIS)

ª ........................... KAAL .................................... MASA....................................

GAMINIO TIPAS ..................   ............  ..........

MODELIS............................. .................................  ............................

SERIJOS NR. ......................  .................  ..............

PAGAMINIMO DATA............

  

.. .......................

GARSO STIPRUMO      !"!

LYGIS IŠMATUOTAS /   /

  

.................(GARANTUOTAS) ...................()

#$!# / (%%!)

SVORIS................................ T

.................................. ...................................

1 ().

Tegevdirektor - BELLE GROUP (SHEEN) UK poolt.

Vadošais direktors - Prstvot BELLE GROUP (SHEEN) UK.

Generalinis direktorius - BELLE GROUP (SHEEN) UK vardu.

Pe34567- 89:5:;<9=>9=BELLE GROUP (SHEEN) UK.

  –    BELLE GROUP (SHEEN)  .



Alla kirjutanud:

Paraksts:

Pasiraše:



ȉʋȟȕȠĭĲȑ:

My, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK 17 0EU, Velké Británie, tpotvrzuji, že v pípad výrobk uvedených v tomto osvdení je koupil od

autorizovaného dealera Belle skupinu v rámci EHS, že spluje následující smrnic EHS: 2006/42/CE (tato smrnice nahrazuje smrnici 98/37/ES) (Elektromagnetická

kompatibilita Smrnice 2004/108/CE ve znní 89/336/EEC, 92/31/EEC & 93/68 EHS). Odpadních elektrických a elektronických zaízeních (OEEZ), 2002/96/CE,

nízkonapové smrnice 2006/95/CE, BS EN ISO 12100-1:2003 Bezpenost strojních zaízení a související harmonizované normy, popípad. Hlukových emisí v

souladu se smrnicí 2000/14/ES píloha VI & 2005/88/ES, pro stroje podle lánku 12 oznámený subjekt AV Technology Limited, AVTECH house, Birdhall Lane,

Cheadle Heath, Stockport, Cheshire, SK3 0XU, Velká Británie.

Technické údaje ohledn hladin hluku jsou k dispozici k nahlédnutí na adrese spololenosti Belle Group, která je uvedena výše.

Noi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, certific prin prezenta c în cazul în care produsul descris în cadrul acestui certificat este

cumparat de la un distribuitor autorizat Belle Group în cadrul CEE, este conform cu urmtoarele directive CEE: 2006/42/CE (prezenta directiv înlocuiete Directiva

98/37/CE) , de compatibilitate electromagnetic a Directivei 2004/108/CE (astfel cum a fost modificat prin 89/336/CEE, 92/31/CEE i 93/68 CEE). Deeurile electrice i

electronice (DEEE) 2002/96/CE, tensiune sczut a Directivei 2006/95/CE, BS EN ISO 12100-1:2003 Securitatea mainilor i asociate standardele armonizate, acolo

unde este cazul. A emisiilor de zgomot în conformitate cu Directiva 2000/14/CE anexa VI & 2005/88/CE, pentru maini în temeiul articolului 12 organismul notificat este

AV Technology Minimited AVTECH House, Birhall Lane, Cheadle Heath, Stockport, Chesire, SK3 OXU, GB.

Fisele tehnice cu privire la emisiile de zgomot sunt pastrate la Biroul Central Belle Group care este amintit mai sus.

Mi, a Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, Egyesült Királyság ezúton igazolom, hogy ha a termék leírása belül ezt a bizonyítványt

vásárolt engedélyezett Belle Group keresked az EGK, az megfelel az alábbi EEC irányelveknek: 2006/42/CE (ez az irányelv felváltja a 98/37/EK irányelv) ,

elektromágneses kompatibilitási irányelv 2004/108/CE (módosított 89/336/EGK, 92/31/EGK és 93/68 EGK). A hulladék elektromos és elektronikus berendezések (WEEE)

2002/96/CE, kisfeszültség irányelv 2006/95/CE, BS EN ISO 12100-1:2003 Gépek biztonsága és a kapcsolódó harmonizált szabványok, adott esetben. Zajkibocsátás

megfelel a 2000/14/EK irányelv VI és 2005/88/EK géphez a 12. cikk alapján a bejelentett szervezet: AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle

Heath, Stockport, Cheshire, SK3 0XU, Egyesült Királyság.

A zajkibocsátási adatokat megtalálja a Belle Group fent említett központi címén.

Mi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, ovime potvrujem da ako proizvod opisan unutar ovog certifikata je kupio od Belle Group

ovlaštenog distributera unutar EEZ, ona odgovara sljedeim EEC smjernica: 2006/42/CE (Ova direktiva zamjenjuje direktiva 98/37/EC) , Elektromagnetska kompatibilnost

Direktiva 2004/108/CE (kako je izmijenjeno 89/336/EEC, 92/31/EEC i 93/68 EEC). Otpad elektrine i elektronike opreme (WEEE) 2002/96/CE, niskonaponske direktivi

2006/95/CE, BS EN ISO 12100-1:2003 Sigurnost strojeva i pridružene usklaene standarde, gdje je primjenjivo. Emisija buke u skladu s direktivom 2000/14/EC Aneks VI

i 2005/88/EC, za strojeve iz lanka 12. obaviješteni tijelo

AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Tehnika dokumentacija o buci uva se u sjedištu tvrtke Belle Group ija adresa je gore navedena.

Biz, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, Belle Group Eer ürün bu sertifikay içinde açklanan burada da tasdik AET içinde yetkili

Belle Grup diler satn olduundan, aadaki AET direktiflerine uyumludur: 2006/42/CE (Bu yönerge yönergesi 98/37/EC yerine), Elektromanyetik Uyumluluk Yönetmelii

2004/108/CE (as 89/336/EEC, 92/31/EEC ve 93/68 AET tarafndan) deitirilmitir. Atk Elektrikli ve Elektronik Ekipman (WEEE) 2002/96/CE, alçak gerilim direktifi

2006/95/CE, BS EN ISO 12100-1:2003 Makine Güvenlii ve ilgili uyumlatrlm standartlar, uygulanabilir.Onaylanm kurulu, madde 12 altnda makineleri için, gürültü

emisyonlar direktifleri 2000/14/EC Ek VI ve 2005/88/EC ile uyumlu

AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Ses Teknik Dosyas yukarda adresi belirtilen Belle Group Merkez Ofisinde bulunmaktadr.

Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, potvrdzujem, že v prípade výrobkov uvedených v tomto osvedení je kúpil od

autorizovaného dealera Belle skupinu v rámci EHS, že spa nasledujúce smerníc EHS: 2006/42/CE (táto smernica nahrádza smernicu 98/37/ES) (Elektromagnetická

kompatibilita Smernica 2004/108/CE v znení 89/336/EEC, 92/31/EEC & 93/68 EHS). Odpadových elektrických a elektronických zariadeniach (OEEZ), 2002/96/CE,

nízkonapäové smernice 2006/95/CE, BS EN ISO 12100-1:2003 Bezpenos strojových zariadení a súvisiace harmonizované normy, prípadne. Hlukových emisií v

súlade so smernicou 2000/14/ES príloha VI a 2005/88/ES, na stroje poda lánku 12 notifikovaný orgán AV Technology Limited, AVTECH House, Birdhall Lane,

Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.

Technická dokumentácia obsahujúci hladiny hluku je k dispozícii na adrese vedení spolonosti Belle Group, ktorá je uvedená vyše.

ES PROHLÁŠENÍ O SHOD& / DECLARATIE DE CONFORMITATE CE /

EU MEGFELEL'SÉGI NYILATKOZAT / EC UYUM B*LD*RGES* / EC IZJAVA O USKLA+ENOSTI /

PREHLÁSENIE O ZHODE

Ray Neilson

HUN

Místo Deklarace - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum Deklarace - 2004...............................................................................

Locul declaratiei - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data declaratiei - 2004 .................................................................................

Kiállítás Helye - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Kiállítás Ideje - 2004 .....................................................................................

Mjesto izjave o usklaenosti - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum izjave o usklaenosti - 2004............................................................

Declaration Yeri - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Declaration Tarihi - 2004..............................................................................

Miesto Deklarácie - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dátum Deklarácie - 2004..............................................................................

TYP PRODUKU ................... TIPUL PRODUSULUI........... A TERMÉK TÍPUSA.............

MODEL................................. MODEL ................................. MODELL...............................

SERI !ÍSL............................ SERIA ................................... GYÁRI SZÁM .......................

DATUM VÝROBY................. DATA FABRICARII ............... GYÁRTÁSI ID"....................

NAM#$ENÁ HL. NIVEL DE ZGOMOT A MÉRT

HLUKU / MASURAT / HANGER"SZINT /

................(GARANTOVANÁ) ...........................(GARANTAT) ......................(GARANTÁLT)

HMOTNOST......................... GREUTATEA ........................ SÚLY.....................................

TIP PROIZVODA.................. ÜRÜN TIPI............................ TYP PRODUKTU..................

MODEL................................. MODEL ................................. MODEL.................................

SERIJSKI Br. ...................... SERI NUMARASI ................. SÉRIOVÉ !ÍSLO..................

DATUM PROIZVODNJE...... ÜRETIM TARIHI.................... DÁTUM VÝROBY.................

NIVO SNAGE SES SEVIYE NAMERANÁ

ZVUKA IZMJEREN / ÖLÇÜMÜ / HLADINA HLUKU /

..................(GARANTIRANO) ...............(GARANTI EDILEN) ...............(GARANTOVANÁ)

TEŽINA ................................ A%IRLI%I .............................. HMOTNOST.........................

Podepsal:

Semnat de:

Aláírás:

Potpisao:

mzalayan:

Podpísal:

Generální editel – jménem BELLE GROUP (SHEEN) UK

Director General - in numele BELLE GROUP (SHEEN), UK

Ügyvezet igazgató - A BELLE GROUP (SHEEN) UK nevében

Izvršni Direktor – U ime BELLE GROUP (SHEEN) UK

Yönetici - BELLE GROUP (SHEEN) UK adna.

Generálny riadite – menom BELLE GROUP (SHEEN) UK

How To Use This Manual

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY

this manual.

WARNING

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried

out in the correct way.

CAUTION

The life of the operator can be at risk.

WARNING

Contents

KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the

machine off before you switch on, in case you get into difculty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use

or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: BELLE GROUP (UK): +44 (0) 1298 84606

This manual has been written to help you operate and service the ‘PCLX’ Plate compactor safely. This manual is intended for dealers

and operators of the ‘PCLX’ Plate compactor .

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the

general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.

The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.

The ‘Dual Force’ section shows the compaction specication the machine can achieve.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

How to use this manual..............................................................................................................................................................................6

Warning ......................................................................................................................................................................................................6

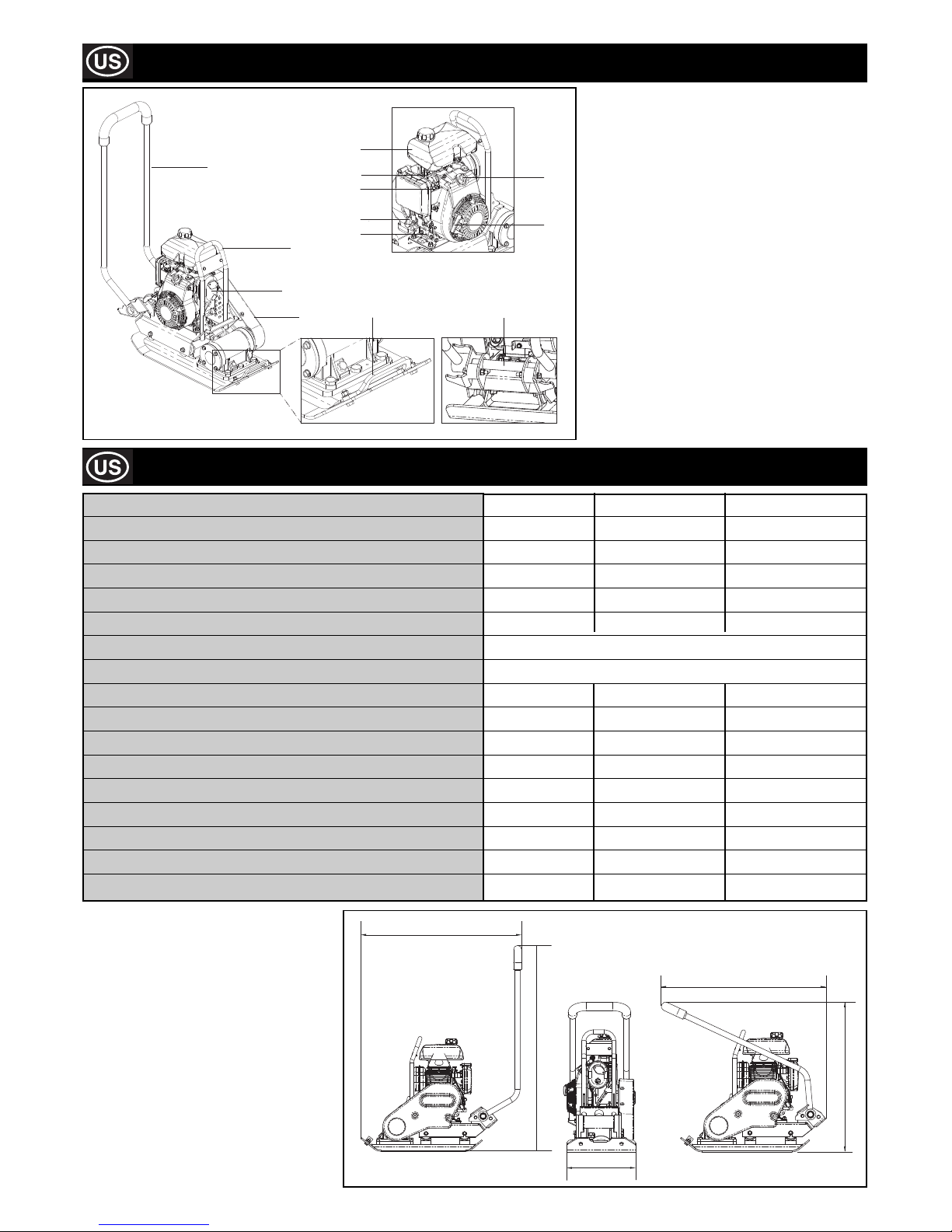

Machine Description...................................................................................................................................................................................7

Technical Data............................................................................................................................................................................................7

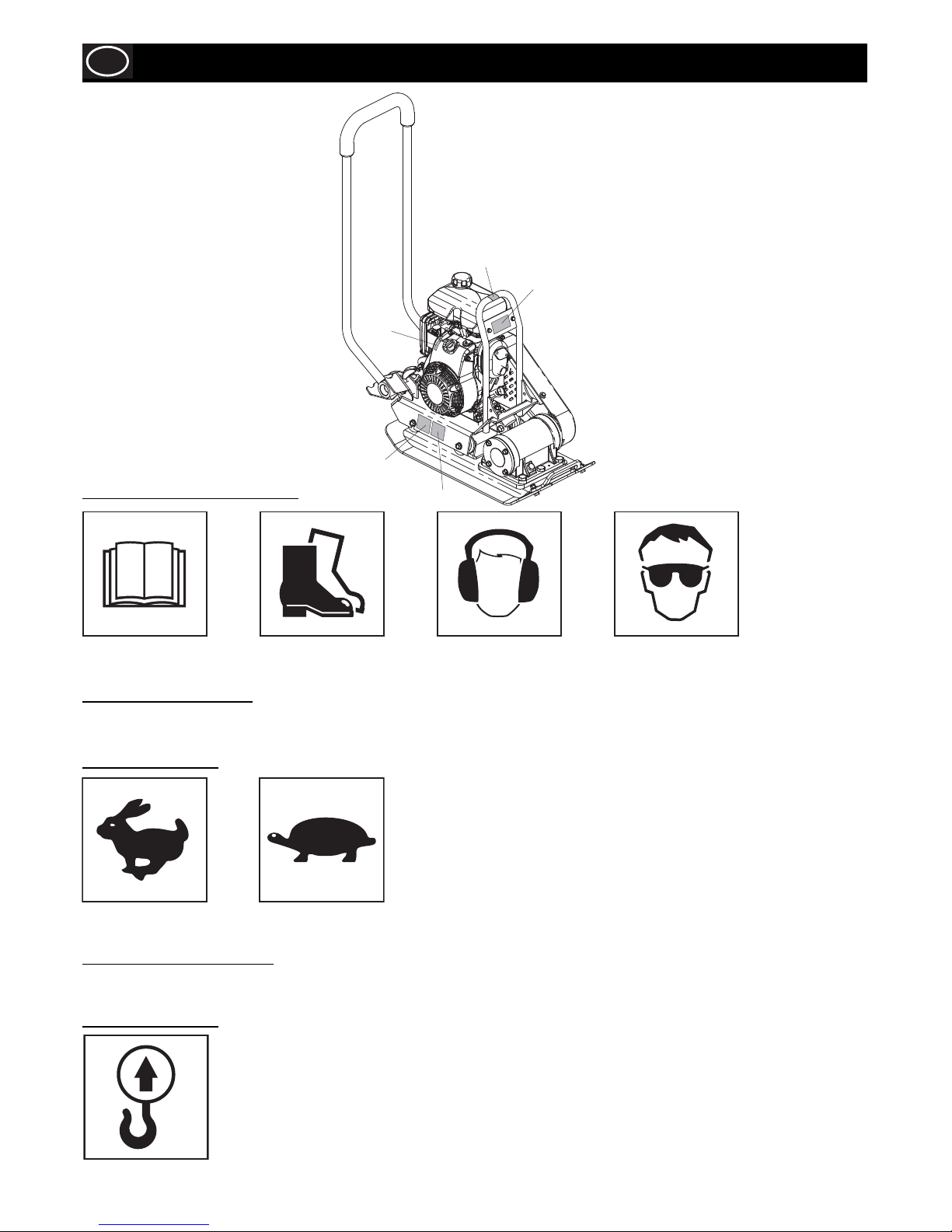

Decals.........................................................................................................................................................................................................8

Environment ...............................................................................................................................................................................................9

Reasons For compaction ...........................................................................................................................................................................9

Compaction Specication...........................................................................................................................................................................9

Applications ..............................................................................................................................................................................................10

Safety Instructions....................................................................................................................................................................................10

Health and Safety.....................................................................................................................................................................................11

Pre-Start Checks......................................................................................................................................................................................11

Operating Instructions .......................................................................................................................................................................11 - 12

Trouble Shooting Guide ...........................................................................................................................................................................12

Service & Maintenance ............................................................................................................................................................................13

‘Dual Force’ / HAUC / NRSWA Certicate ...............................................................................................................................................14

Warranty ...................................................................................................................................................................................................14

Declaration of Conformity...........................................................................................................................................................................2

Belle Group reserves the right to change machine specication without prior notice or obligation.

Machine Description

Machine type:

Single Direction Plate Compactor

1. Fuel Tank,

2. Choke Lever,

3. Fuel ON/OFF Lever,

4. Engine Oil Filler / Dipstick,

5. Throttle Lever,

6. Recoil Starter Handle,

7. Engine ON/OFF Switch

8. Operating Handle,

9. Exhaust,

10. Belt Guard,

11. Mechanical Hoist Lifting Point,

12. Hand Lifting Point

13. Hand Lifting Point (Strut)

DO NOT use a Mechanical Hoist on the Hand

Lifting Points (No’s 12 & 13)

12 13

Technical Data

Model PCLX320 PCLX320S PCLX400

A - Height - Operation (mm) 920 928 920

B - Length - Operation (mm) 875 875 875

C - Width (mm) 320 320 400

D - Length - Storage (mm) 775 775 775

E - Height - Storage (mm) 590.5 590.5 590.5

Engine Honda GX100

Engine Power (Hp/kW) 3.0/2.2 @ 3600Rpm

Weight (kg) 61.5 64.5 64

Vibrator Force (kN) 13 13 13

Frequency (Hz) 101 101 101

Maximum Travel Speed (m/min) 21.2 14.37 21.2

Compaction Force (kg/m2) 398 - 336

Dual Force (NRSWA) (kg/m2) - 1569 -

3 Axis Vibration* (m/sec2) 3.14 2.14 3.68

Usage Time (Hrs) 10.7 11.4 10.2

Sound Power Level (LWA) 105dB(A) 105dB(A) 105dB(A)

* Minimum level to EN500 Part 4

A - Safety Decal (Part No. 19.0.373)

Please Read

Operators Manual Wear Protective

Footwear Wear Ear

Protection Wear Eye

Protection

B - Noise Decal (800-99942)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

A. Safety Decal

B. Noise Decal

C. Engine RPM Decal

D. Low HAV Decal

E. Lifting Point Decal

Fast Engine Speed

Position Slow Engine Speed

Position

Decals

D - Low HAV Decal (800-99954)

The machine has a UK Patented Design which reduces HAV levels allowing a greater Usage Time.

E - Lifting Point Decal

Lifting Point

Compaction Specication

Environment

Reasons For Compaction

Safe Disposal.

Instructions for the protection of the environment.

The machine contains valuable materials. Take the

discarded apparatus and accessories to the

relevant recycling facilities.

Component Material

Operator Handle Steel

Hand Grip Rubber

Base Plate Steel

Eccentric weights Steel

Petrol engine housing Aluminium

Petrol engine covers Synthetic material

Various parts Steel & Aluminium

Soil, which has been disturbed or new inll, subbase and blacktop, will have small voids or air pockets which, if not compacted, will

lead to one or more problems occurring.

1. As trafc crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top

surface as the material lls the voids.

2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.

3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to

expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to

building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore

reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider

are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction

works has lead to new compaction specications being introduced. The most up to date specication is part of the U.K.’s NRSWA (New

Roads & Street Works Act). Civil Engineers are now adopting these specications to ensure good compaction for all site work.

NRSWA (HAUC specication).

The specication was compiled by HAUC (Highways Authorities & Utilities Committee). The ‘New Roads and Street Works Act 1991,

set a new standard for road repairs and reinstatements in the UK. It covers materials, methods, equipment and safety when carrying

out reinstatements on roads and footways. The reason for the act is to ensure repairs and reinstatements are carried out to a higher

standard and ultimately last longer. This in turn will reduce the need for costly remedial work and reduce trafc delays.

There are two categories specied for plate compactors.

1. 1400 to 1800kg/m² 2. Over 1800kg/m²

These gures relate to the static pressure applied by the machine

NOTE: No standard single direction plate compactors comply with this minimum specication. For highways work always use a ‘Dual

Force’ plate compactor.

DUAL FORCE

Belle Group studied the act then developed and patented equipment to enable contractors to comply with the act’s requirements. The

NRSWA legislation requires that compaction equipment meets the minimum specication. By purchasing an Belle Group ‘Dual Force’

plate, you are immediately complying with this part of the act. To comply with the specication and maintain surface tolerance, Belle

Group ‘Dual Force’ base plates are divided into two areas providing two stages of compaction.

Stage 1: The full base area compacts the material like a standard machine.

Stage 2: The base rises onto the ‘Dual Force’ section to give 3 to 4 times the compaction force of standard plates.

Stage 1 Stage 2

Safety Instructions

Applications

Applications/materials fall into three categories:

1. Cohesive materials (less than 20% granular) e.g clay, silt & heavy soils.

2. Granular materials (more than 20% granular) e.g hard core, sand & light soils.

3. Bituminous materials e.g asphalt (tarmac), cold lay (bitumin emulsion products).

The chart shows the HAUC specications for layer depth and number of passes for Dual Force’ plates. If standard machines are used,

optimum compaction can not be guaranteed, however, if layer depths are reduced and number of passes increased, results can be

improved.

Moisture content of cohesive & granular materials is critical to effective compaction. If granular material is too dry it will ow around the

plate instead of compacting. If the moisture content is too high the material may dry out after compaction and shrinkage will occur.

* Usually placed in 100mm minimum layer so not specied by HAUC.

** The nature of cohesive materials makes plate compaction difcult. Optimum compaction is not guaranteed and not

recommended by HAUC.

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following

safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely.

If you are unsure about the safe and correct use of the ‘PCLX’ Plate compactor, consult your supervisor or Belle Group.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.

• When refuelling, DO NOT smoke or allow naked ames in the area.

• Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.

• Store fuel in an approved, purpose made container away from heat and ignition sources.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.

• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.

• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).

• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difculty.

• Always switch OFF the engine before transporting, moving it around the site or servicing it.

• During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and

unattended.

• Never remove or tamper with any guards tted, they are there for your protection. Always check guards for condition and

security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.

• Do not operate the MACHINE when you are ill, feeling tired, or when under the inuence of alcohol or drugs.

Fuel is ammable. It may cause injury and property damage. Shut down the engine, extinguish all open

ames and do not smoke while lling the fuel tank. Always wipe up any spilled fuel.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any main-

tenance, service or repairs.

CAUTION

1400 -1800 kg/m2 COMPACTION PASSESS REQUIRED PER LAYER OF COMPACTED THICKNESS UP TO.

40MM 60MM 80MM 100MM 150MM 200MM

Cohesive Materials** -* -* -* NP NP NP

Granular Materials -* -* -* 5 NP NP

Bituminous 6 NP NP NP NP -

Pre-start Checks

Health & Safety

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator’s hands. Refer to specications & techni-

cal data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage

times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped

footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact

with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of

dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes,

irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your ‘PCLX’ indoors or in a conned space, make sure the work area is adequately ventilated.

The exhaust fumes produced by this equipment are highly toxic and can kill!

WARNING

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work

session or after every four hours of use, whichever is rst. Please refer to the service

section for detailed guidance. If any fault is discovered, the ‘PCLX’ must not be used until

the fault is rectied.

1. Thoroughly inspect the ‘PCLX’ for signs of damage. Make sure that the belt guard is secure before using the machine.

2. Check hoses, ller openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.

3. Check the engine oil level and top up as necessary.

4. Check the engine fuel level and top up as necessary.

5. Check for fuel and oil leaks.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the ‘PCLX’, make sure the lifting equipment has a WLL (Working Load

Limit) suitable for the ‘PCLX’s weight (see Technical Data section or machine serial plate). Attach suitable chains or slings

ONLY to the lifting point on the top of the ‘PCLX’.

• NEVER leave the engine running whilst transporting or moving the ‘PCLX’, even if it is only a short distance.

• Having carried out the checks listed in the ‘pre start’ section, you may start the engine.

The Belle Group ‘PCLX’ range of compactors are tted with a centrifugal clutch, this allows the engine to run at idle without

driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the

engine speed should be set to maximum.

• Set the throttle to maximum and use the control handle to steer or turn the ‘PCLX’.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you

should not have to push the ‘PCLX’ but allow it to travel at its own pace. The speed of travel will be determined by the condition of

the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the

‘PCLX’s direction of travel. If necessary, use a suitable rope attached to the ‘PCLX’ at a low point on the chassis, to allow a

helper to take part of the ‘PCLX’s weight. Work up and down a slope not across.

• Work the ‘PCLX’ over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

Operating Instructions

Honda GX100

1. Fuel Tank,

2. Choke Lever,

3. Fuel ON/OFF Lever,

4. Engine Oil Filler / Dipstick,

5. Throttle Lever,

6. Recoil Starter Handle,

7. Engine ON/OFF Switch

Stopping the engine

1. To stop the engine, set the throttle to idle. Allow the engine to idle for at least 2 minutes

2. Turn the engine ON / OFF switch anti-clockwise to the ‘0’ position.

3. Turn the fuel off.

Starting the engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.

2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the right. If restarting a warm engine, the

choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.

3. Turn the engine ON / OFF switch clockwise to the ‘I’ position.

4. Set the throttle to the idle position by moving the throttle lever fully to the bottom.

5. Taking a rm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until

engine resistance is felt, then let starter return.

6. Taking care not to pull the starter’s rope fully out and pull the starter handle briskly.

7. Repeat until the engine res.

8. Once the engine res gradually set the choke lever to the OFF position by moving it to the left.

9. If the engine fails to re after several attempts, follow the trouble-shooting guide.

10. Due to the centrifugal clutch, the plate will not vibrate until the engine speed is increased.

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY

this manual.

WARNING

Troubleshooting Guide

Problem Cause Remedy

Engine will not start. No fuel. Open fuel tap.

Fill fuel tank.

Engine switched off. Switch engine on.

Spark plug fouled. Clean and reset plug gap.

Engine cold. Close choke.

Engine ooded. Open choke, fully open throttle, pull recoil starter until

engine res.

Engine still will not start Major Fault Contact Agent or Belle Group.

Unit will not vibrate. Engine speed too slow. Set engine speed control to fast.

Drive belt tension loose. Adjust belt tension

Air lter blocked. Clean or renew air lter.

Drive failure. Contact Agent or Belle Group.

Vibrator failure. Contact Agent or Belle Group.

Asphalt adhering to plate. Lack of lubrication. Use water

Bituminous surface Over compaction. Remove and relay.

aking (laminating).

Low travel speed Layer thickness too deep. Remove some of the material.

(plate sinking). Moisture content too high or too low. Remove material and adjust.

Service & Maintenance

Maintenance

The Belle Group ‘PCLX’ range is designed to give many years of trouble free operation. It is recommended that an approved Belle

Group dealer carries out all major maintenance and repairs. Always use genuine Belle Group replacement parts, the use of spurious

parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the ‘PCLX’ on level ground to ensure any uid levels will be correctly read. Only use recommended oils (see chart on follow-

ing page).

Running In Period

When the ‘PCLX’ is rst used from new, the engine oil must be changed after the initial running in period (see engine manual for full de-

tail). The vibrator shaft case oil must be replaced after the rst 100 hours use, then after every 500 working hours. For detail on vibrator

shaft case oil replacement, see ‘Vibrator unit’.

The belt tension should be checked after 4 hours use.

Routine Maintenance After First First month / 3 Months 6 months

4 hours 20Hours 50 Hours 100 Hours

Engine Oil Check Level 9

Change 99

Air Filter Check Condition 99

Clean / Replace 9

Spark Plug Check / Clean 9

Drive Belt Tension 999

Oil / Fuel Type & Quantity - Spark Plug Type

Oil type Quantity Fuel Type Capacity Spark Plug Electrode

(Litre) (Litre) Type Gap (mm)

Petrol Honda GX100 S.A.E. 10W 30 0.4 Unleaded 1.2 BM4a or 0.6 - 0.7

BmR4a

Vibrator Turbine Oil 32 0.22 N/A N/A N/A N/A

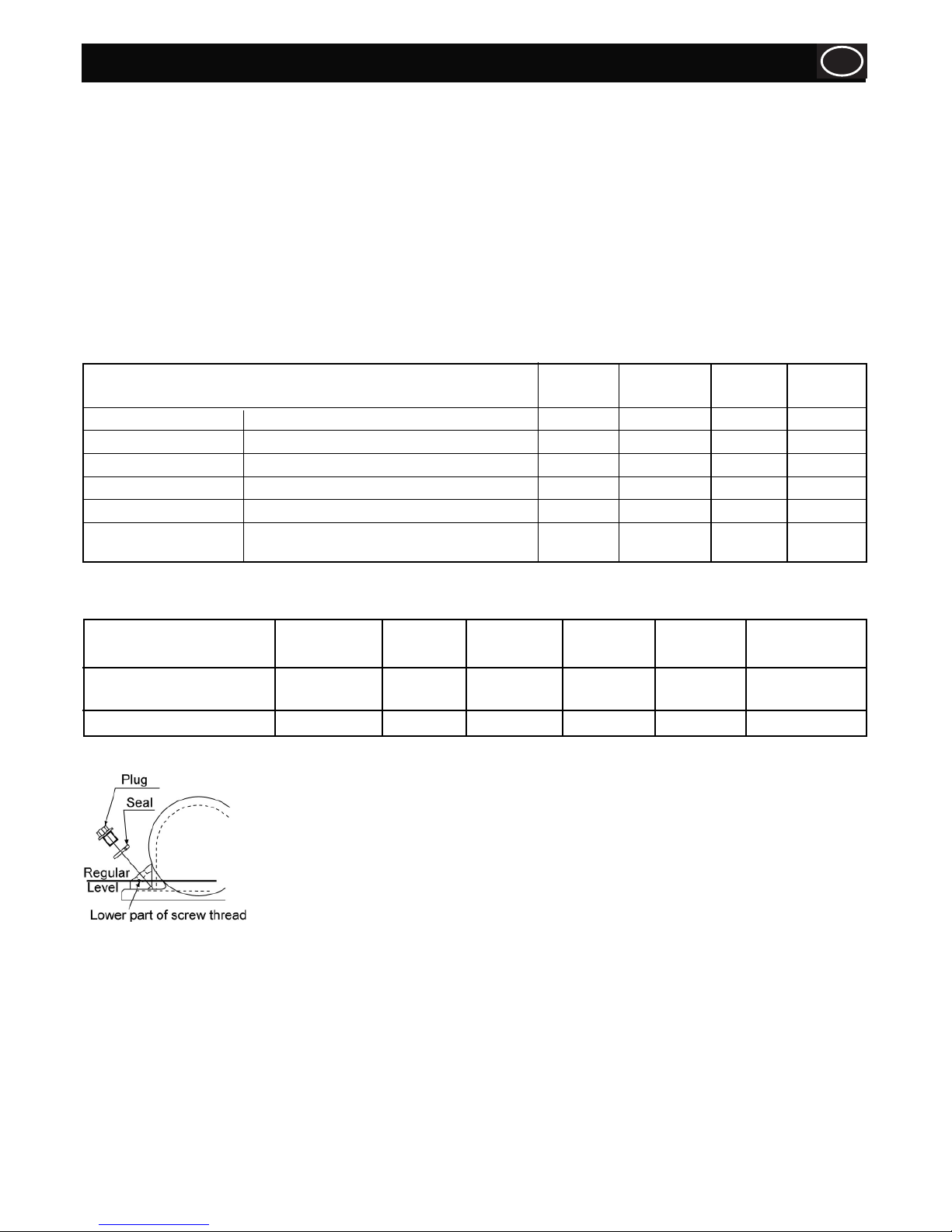

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil

plug hole. Top up as necessary with the correct oil (see chart).

‘Dual Force’ / HAUC / NRSWA Certicate

This machine is tted with a ‘Dual Force’ base plate.

This machine is not tted with a ‘Dual Force’ base plate.

When tted with a ‘Dual Force’ base plate the Static Weight per Unit Area of this machine is over 1400 kg/m² and so complies with the

NRSWA (HAUC specication) for plate compactors in the category 1400 – 1800kg/m².

Managing Director

R. Neilson

‘Dual Force’ allows Belle Group plate compactors to be used for Highways reinstatements in accordance with the specications stated

in the NRSWA (New Roads and Streetworks Act 1991) Appendix A8.

Standard Belle Group plate compactors can be retro tted with ‘Dual Force’, contact Belle Group for details.

Your new Belle Group ‘PCLX’ single direction plate compactor is warranted to the original purchaser for a period of one-year (12

months) from the original date of purchase.

The Belle Group warranty is against defects in design, materials and workmanship.

The following are not covered under the Belle Group warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly,

operation or user maintenance instructions.

2. Alterations, additions or repairs carried out by persons other than Belle Group or their recognised agents.

3. Transportation or shipment costs to and from Belle Group or their recognised agents, for repair or assessment against a

warranty claim, on any machine.

4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

· Drivebelt/s

· Engine air lter

· Engine spark plug

Belle Group and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other

damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should rstly be directed to Belle Group, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel: +44 (0)1298 84606 Fax: +44 (0)1298 84722

Email : W[email protected]

Write to:

Belle Group Warranty Department,

Sheen, Nr. Buxton

Derbyshire,

SK17 0EU

England.

Warranty

How To Use This Manual

WARNING

Contents

KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the

machine off before you switch on, in case you get into difculty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use

or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: BELLE GROUP (UK): +44 (0) 1298 84606

This manual has been written to help you operate and service the ‘PCLX’ Plate compactor safely. This manual is intended for dealers

and operators of the ‘PCLX’ Plate compactor .

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the

general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting’ guide helps you if you have a problem with your machine.

The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.

The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.

The ‘Dual Force’section shows the compaction specication the machine can achieve.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

Belle Group reserves the right to change machine specication without prior notice or obligation.

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY

this manual.

WARNING

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried

out in the correct way.

CAUTION

The life of the operator can be at risk.

WARNING

How to use this manual............................................................................................................................................................................15

Machine Description.................................................................................................................................................................................16

Reasons For compaction .........................................................................................................................................................................18

Compaction Specication.........................................................................................................................................................................18

Operating Instructions ...................................................................................................................................................................... 20 - 21

Trouble Shooting Guide ...........................................................................................................................................................................21

Service & Maintenance ............................................................................................................................................................................22

‘Dual Force’ / HAUC / NRSWA Certicate ...............................................................................................................................................23

Machine Description

Machine type:

Single Direction Plate Compactor

1. Fuel Tank,

2. Choke Lever,

3. Fuel ON/OFF Lever,

4. Engine Oil Filler / Dipstick,

5. Throttle Lever,

6. Recoil Starter Handle,

7. Engine ON/OFF Switch

8. Operating Handle,

9. Exhaust,

10. Belt Guard,

11. Mechanical Hoist Lifting Point,

12. Hand Lifting Point

13. Hand Lifting Point (Strut)

DO NOT use a Mechanical Hoist on the Hand

Lifting Points (No’s 12 & 13)

12 13

Technical Data

Model PCLX320 PCLX320S PCLX400

A - Height - Operation (in) 36.2 36.5 36.2

B - Length - Operation (in) 34.4 34.4 34.4

C - Width (in) 12.6 12.6 15.7

D - Length - Storage (in) 30.5 30.5 60.5

E - Height - Storage (in) 23.2 23.2 23.2

Engine Honda GX100

Engine Power (Hp/kW) 3.0/2.2 @ 3600Rpm

Weight (lbs) 135.6 142.2 141.1

Vibrator Force (kN) 13 13 13

Frequency (Hz) 101 101 101

Maximum Travel Speed (ft/min) 69.6 41.1 69.6

Compaction Force (lbs/m2) 877.4 - 740.8

Dual Force (NRSWA) (lbs/m2) - 3459.1 -

3 Axis Vibration* (ft/sec2) 10.3 25.3 12.1

Usage Time (Hrs) 10.7 11.4 10.2

Sound Power Level (LWA) 105dB(A) 105dB(A) 105dB(A)

* Minimum level to EN500 Part 4

A - Safety Decal (Part No. 19.0.373)

Please Read

Operators Manual Wear Protective

Footwear Wear Ear

Protection Wear Eye

Protection

B - Noise Decal (800-99942)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

A. Safety Decal

B. Noise Decal

C. Engine RPM Decal

D. Low HAV Decal

E. Lifting Point Decal

Fast Engine Speed

Position Slow Engine Speed

Position

Decals

D - Low HAV Decal (800-99954)

The machine has a UK Patented Design which reduces HAV levels allowing a greater Usage Time.

E - Lifting Point Decal

Lifting Point

Compaction Specication

Environment

Reasons For Compaction

Safe Disposal.

Instructions for the protection of the environment.

The machine contains valuable materials. Take the

discarded apparatus and accessories to the

relevant recycling facilities.

Soil, which has been disturbed or new inll, subbase and blacktop, will have small voids or air pockets which, if not compacted, will

lead to one or more problems occurring.

1. As trafc crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top

surface as the material lls the voids.

2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.

3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to

expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to

building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing

capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and

contraction, due to ingress of water.

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider

are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction

works has lead to new compaction specications being introduced. The most up to date specication is part of the U.K.’s NRSWA (New

Roads & Street Works Act). Civil Engineers are now adopting these specications to ensure good compaction for all site work.

NRSWA (HAUC specication).

The specication was compiled by HAUC (Highways Authorities & Utilities Committee). The ‘New Roads and Street Works Act 1991,

set a new standard for road repairs and reinstatements in the UK. It covers materials, methods, equipment and safety when carrying

out reinstatements on roads and footways. The reason for the act is to ensure repairs and reinstatements are carried out to a higher

standard and ultimately last longer. This in turn will reduce the need for costly remedial work and reduce trafc delays.

There are two categories specied for plate compactors.

1. 1400 to 1800kg/m² 2. Over 1800kg/m²

These gures relate to the static pressure applied by the machine

NOTE: No standard single direction plate compactors comply with this minimum specication. For highways work always use a ‘Dual

Force’ plate compactor.

DUAL FORCE

Belle Group studied the act then developed and patented equipment to enable contractors to comply with the act’s requirements. The

NRSWA legislation requires that compaction equipment meets the minimum specication. By purchasing an Belle Group ‘Dual Force’

plate, you are immediately complying with this part of the act. To comply with the specication and maintain surface tolerance, Belle

Group ‘Dual Force’ base plates are divided into two areas providing two stages of compaction.

Stage 1: The full base area compacts the material like a standard machine.

Stage 2: The base rises onto the ‘Dual Force’ section to give 3 to 4 times the compaction force of standard plates.

Stage 1 Stage 2

Component Material

Operator Handle Steel

Hand Grip Rubber

Base Plate Steel

Eccentric weights Steel

Petrol engine housing Aluminium

Petrol engine covers Synthetic material

Various parts Steel & Aluminium
