ELECTRIC LAWN MOWER USER’S MANUAL
3
Electric Lawn mower
INSTRUCTIONS FOR USE
Thank you for purchasing this rotary electric lawn mower.
Before you start using it, please read this user manual carefully and save it for future
use.
TABLE OF CONTENTS
1. GENERAL SAFETY REGULATIONS ......................................................................................................................... 4
Important safety notice............................................................................................................................................ 4
Packaging .......................................................................................................................................................................4
User manual....................................................................................................................................................................4
2. SYMBOLS........................................................................................................................................................................... 5
3. DESCRIPTION..................................................................................................................................................................6
4. BASIC WORK SAFETY..................................................................................................................................................7
Other risks......................................................................................................................................................................... 7
Before you start using the lawn mower ...........................................................................................................8
Preparing for operation............................................................................................................................................8
Operation......................................................................................................................................................................... 8
Maintenance and storage.....................................................................................................................................9
5. ASSEMBLY.......................................................................................................................................................................10
5.1 Installing the handle..........................................................................................................................................10
5.2 Installing the wheels and putting on the grass catcher................................................................ 11
6. OPERATION ...................................................................................................................................................................12
6.1 Setting the mowing height.............................................................................................................................12
6.2 Connecting to the power grid.....................................................................................................................12
6.3 Turning the lawnmower on/off....................................................................................................................12
6.4 Mowing ....................................................................................................................................................................13
7. TECHNICAL SPECIFICATIONS...............................................................................................................................14
8. MAINTENANCE............................................................................................................................................................15
8.1 Blade replacement............................................................................................................................................15
9. DECLARATION OF CONFORMITY......................................................................................................................17
10. DISPOSAL........................................................................................................................................................................18
Table of Contents

EN 4
FZR 2014-E
General safety regulations
1. GENERAL SAFETY REGULATIONS
IMPORTANT SAFETY NOTICE
Unpack the product carefully and do not throw away any of the packaging until you have found all the parts
of the product.
Store the product in a dry place out of reach of children.
Read all the warnings and instructions. Failure to comply with the warnings and instructions may lead to
electric shock, fire and/or serious injuries.
PACKAGING
The product’s packaging prevents damage during transport. This packaging is a resource and can be recycled.
USER MANUAL
Before starting to work with the machine, please read the following safety regulations and instructions for use.
Get familiar with the controls and correct use of the equipment. Keep the User manual in a safe place where it
can be easily found for future use. Save the original packaging, including the internal packing material, guarantee
card and proof of purchase receipt for at least the time of the guarantee. If you need to transport this power tool,
pack it in the original cardboard box for maximum protection during shipping or transport (e.g. when moving or
when you need to send this power tool to a service centre for repair).
Note: If you hand over the machine to somebody else, do so together with the user's manual. Make sure
you use the appliance properly by following the instructions in the included User manual. The User manual
also contains operating, maintenance, and repair instructions.
The manufacturer takes no responsibility for accidents or damages from not following
the instructions in this manual.

EN
ELECTRIC LAWN MOWER USER’S MANUAL
5
Symbols
2. SYMBOLS
Read the manual with the instructions before using this
machine.
Bystanders must be at a safe distance.
Be careful of the sharp blade edges. The blades continue to
rotate even after the motor is turned off. Before carrying out
maintenance or if the power cable is damaged, disconnect
the plug from the mains.
Keep the flexible power cable at a safe distance from the
blade.
The blades will continue rotating even after the
machine is turned off. Before touching any of the
machine's components, wait until they completely stop.
Do not mow grass in the rain and do not leave the lawn
mower uncovered in the rain.
Use ear protection.
Use eye protection.
Use breathing protection.
Always disconnect the power cord before working on the
mowing deck

EN 6
FZR 2014-E
Description
3. DESCRIPTION
1. Top Handle
2. Start unit
3. Start button
4. Start lever
5. Handle nut
6. Bottom part of the handle
7. Safety grass catcher cover
8. Transport handle
9. Lawnmower chassis
10.Wheels
11. Setting the handle height
12. Grass catcher
Fig. 1

EN
ELECTRIC LAWN MOWER USER’S MANUAL
7
Basics of work safety
4. BASIC WORK SAFETY
Never use the machine if the power cable is damaged or visibly worn.
If the lawnmower is connected to a power source using a damaged power cable and the place that is
not insulated is touched before the lawnmower is disconnected from the power source, you risk being
electrocuted.
Also, never touch the blades until the machine is disconnected from the power source and until the blades
completely stop.
Make sure that the extension cable never comes into contact with the blades. The blades could damage the
power cable insulation and create a risk of an electric shock when a part of the body touches the exposed
wire when it is live.
Disconnect the machine from the voltage source (i.e. pull the power cable plug out of the mains power
socket):
• If you need to leave the machine without supervision
• If you have to leave the machine unsupervised
• Before every inspection, every cleaning or repairs
• If you hit a foreign body when working with it
• If the machine vibrates excessively.
Read carefully the basics of working safely with the machine and the user's manual.
Recommendation: Only connect the machine to a power source that has a residual current device (RCD) with
a maximum leakage current of 30mA.
If the power cable is damaged, it must be replaced by the manufacturer or by a customer service centre.
This machine must not be operated by anyone with limited physical, sensory or mental abilities (including
children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge
to operate it. These people must be supervised by a competent person or instructed about the basics of work
safety.
If children are near the machine, make sure they do not play with it.
Tingling or numb hands are indications of excessive vibrations.
If this happens, shorten the work cycle, take sufficiently long breaks, share the work among several people or
if the lawnmower is used for long periods wear special anti-vibration gloves.
An unavoidable consequence of using the lawnmower is the noise when it is running. Therefore, only do noisy
work during dedicated hours, or when this type of activity is normal. Respect quiet times and try to limit the
work to the shortest possible time.
We also recommend that you and persons near the lawnmower wear ear protectors.
OTHER RISKS
Despite our products being designed to meet the valid technical standards and safety directives, there are still
some risks to the user from using the machine:
• Stones and other fragments may fly out of the mowing deck.
• If the machine operator does not use ear protectors, then they risk subsequent deafness.
• Injured fingers during blade maintenance
• Inhaling grass clipping particles
• Electric shock from un-insulated parts.

EN 8
FZR 2014-E
Basics of work safety
This machine must not be operated by those with limited physical, sensory or mental abilities (including
children) or inexperienced persons or persons whose technical knowledge is evidently insufficient for
the given task; and these people should only operate the device under the supervision of a person that is
competent for this task or where the person is thoroughly instructed in working safely with the machine.
If children are near the machine, make sure they do not play with it.
ATTENTION! Carefully read the user manual before using this lawn mower. Make sure that you thoroughly
know all the control elements. Following the work safety rules for the machine minimises the risk of fire,
electric shock or other injuries.
Keep the user manual carefully in case it is needed.
If the machine is incorrectly operated it could cause an injury. The lawnmower could cause serious injury to
the user and those nearby and therefore these work safety rules should always be followed to eliminate this
risk if possible.
The user is responsible for safety when working with the machine. Never use the machine if any of its safety
items are missing or not in full working order.
BEFORE YOU START USING THE LAWN MOWER
Carefully read all the instructions provided in this user manual. Thoroughly get to know the machine's control
elements and the basics for correct use.
Never let children or anyone who you are not certain know the controls and the work safety rules for this
machine operate it on their own. The national legislation may also stipulate a minimum age limit for operating
this type of machine. Please read the laws governing this area in your country.
Never use the lawnmower if people, particularly children or household pets, are moving nearby.
Always remember that the user is fully responsible for injuries or damage to property caused by operating this
machine.
PREPARING FOR OPERATION
When working with the machine wear suitable footwear and long trousers. Never operate the lawnmower
barefooted or in sandals.
Before starting work, inspect the ground and remove any items that could be deflected by the machine.
ATTENTION! Before every use of the machine, make sure that the blade, its mounting pin and the lawn
mower body in general is not damaged or excessively worn. Always replace a damaged or worn out part, of
which there are sets on the machine, with an entire set to prevent imbalance.
OPERATION
Only operate the machine during daylight or sufficient artificial lighting.
If possible, do not mow wet grass.
Make sure that during work you always have a firm support and a secure stance.
Do not run when pushing the mower - walk normally.
The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up
and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope.
Be very careful when changing direction on a slope.
Never use the lawn mower on extremely steep slopes.

EN
ELECTRIC LAWN MOWER USER’S MANUAL
9
Basics of work safety
If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the
lawnmower, be very careful.
Always stop the blades from turning when transporting the machine or moving over an un-grassed area.
Never use the machine if any covers are damaged or if any of its safety elements are missing such as
deflectors or grass catchers.
Always start the motor as described in the user manual, and make sure to keep your feet away from the
blades.
Never tilt the machine when starting the motor unless it is really essential to start it. In this case, turn the side
of the lawnmower that is farther away from you upwards.
Never put your hands or feet under the lawnmower, in particular near to the moving parts. Never cover the
grass ejection chute.
Never transport the machine if the motor is still running.
Always stop the motor first and disconnect the cable plug before troubleshooting or emptying the grass
catcher.
• Proceed in the same way before every inspection, cleaning or repair of the machine.
• If you hit a foreign body make sure the lawnmower has not been damaged, and if it has repair the
damage before starting the motor again.
• Or if the machine starts to vibrate more than unusual (immediately check the machine!)
Stop the motor whenever you move away from the machine.
MAINTENANCE AND STORAGE
Always make sure that all nuts, pins and bolts are securely tightened so that the machine operates safely.
Regularly check the grass catcher for damage or excessive wear and tear.
Immediately replace worn out or damaged parts. This will help your lawnmower to operate safely.
When setting adjustable elements, take care not to clamp your fingers between the moving blades and the
fixed part of the machine. Let the motor cool down before storing the lawnmower in an enclosed area.

EN 10
FZR 2014-E
Assembly
5. ASSEMBLY
For the purpose of transportation, the lawnmower is supplied disassembled. Before use, it must be assembled
according to the following steps:
5.1 INSTALLING THE HANDLE
Fig. 2.3
Fig. 2.2
Fig. 2.1
Prior to installing the handle, slide the power cord holding hook on to the top part. Figure 2.1.
Connect the top and bottom part of the handle using the included screws and thumb nuts. Figure 2.2.
Screw the bottom part of the handle to the lawnmower. Figure 2.3.
Attach the power cord to the handle using the plastic clips.
Note: the handle can be folded for storage purposes.

EN
ELECTRIC LAWN MOWER USER’S MANUAL
11
Assembly
5.2 INSTALLING THE WHEELS AND PUTTING ON THE GRASS CATCHER
Fig. 3.1
Fig. 3.2
Fig. 3.3
Connect the top and bottom part of the grass catcher. Figure 3.1.
To seat the grass catcher on to the lawnmower, it is first necessary to lift the rear safety grass catcher cover.
Figure 3.2 .
Then attach the catcher.
Put the lawnmower wheel onto the axle. Figure 3.3, point 1. Put on the washer and secure in place using the
cotter pin, point 2 and 3.
Finally put on the wheel cover. Repeat this procedure for all 4 wheels.

EN 12
FZR 2014-E
Operation
6. OPERATION
6.1 SETTING THE MOWING HEIGHT
ATTENTION: Before setting the mowing height, always make sure that the lawnmower is turned off and
the blade is not moving.
ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. A rotating blade
can cause injuries.

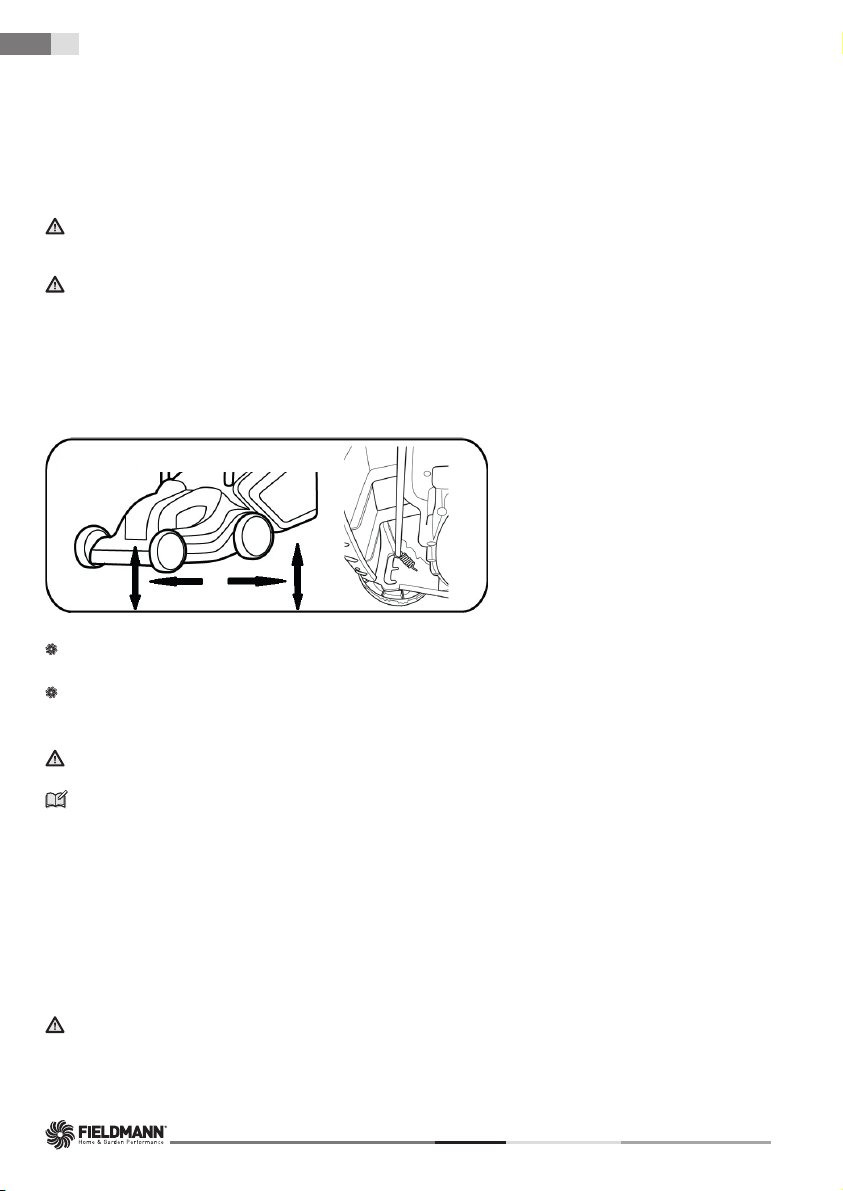

The mowing height is set in 3 positions independently on the front and rear wheel axle.
1. position 25 mm
2. position 45 mm
3. position 60 mm
Fig. 4.1
Setting the height of the front wheels - pull the wheel away from the grass catcher and select the desired
height. Follow this procedure for both front wheels. Figure 4.1
Setting the height of the rear wheels - pull the wheel towards the grass catcher and select the desired height.
The height should be the same as on the front wheels. Follow this procedure for both rear wheels. Figure 4.1
ATTENTION: Make sure that the height of all 4 wheels is set the same
Note: Lawns of standard grass blends should not be mowed to less than 4 cm. Lawn should not be
shortened by more than 1/3 of its height.
6.2 CONNECTING TO THE POWER GRID
Insert the power cable plug into the power grid (230-240 V, 50 Hz).
Check that there is a sufficient length of power cord available.
The quality of the power cord must not be lower than type H05RN-F or H05VV-F and must have a minimum
cross-section of 1.5 mm 2 and a maximum recommended length of 30 m.
6.3 TURNING THE LAWNMOWER ON/OFF
ATTENTION: Do not start the lawnmower when it is standing in a place with tall grass.

EN
ELECTRIC LAWN MOWER USER’S MANUAL
13
Operation

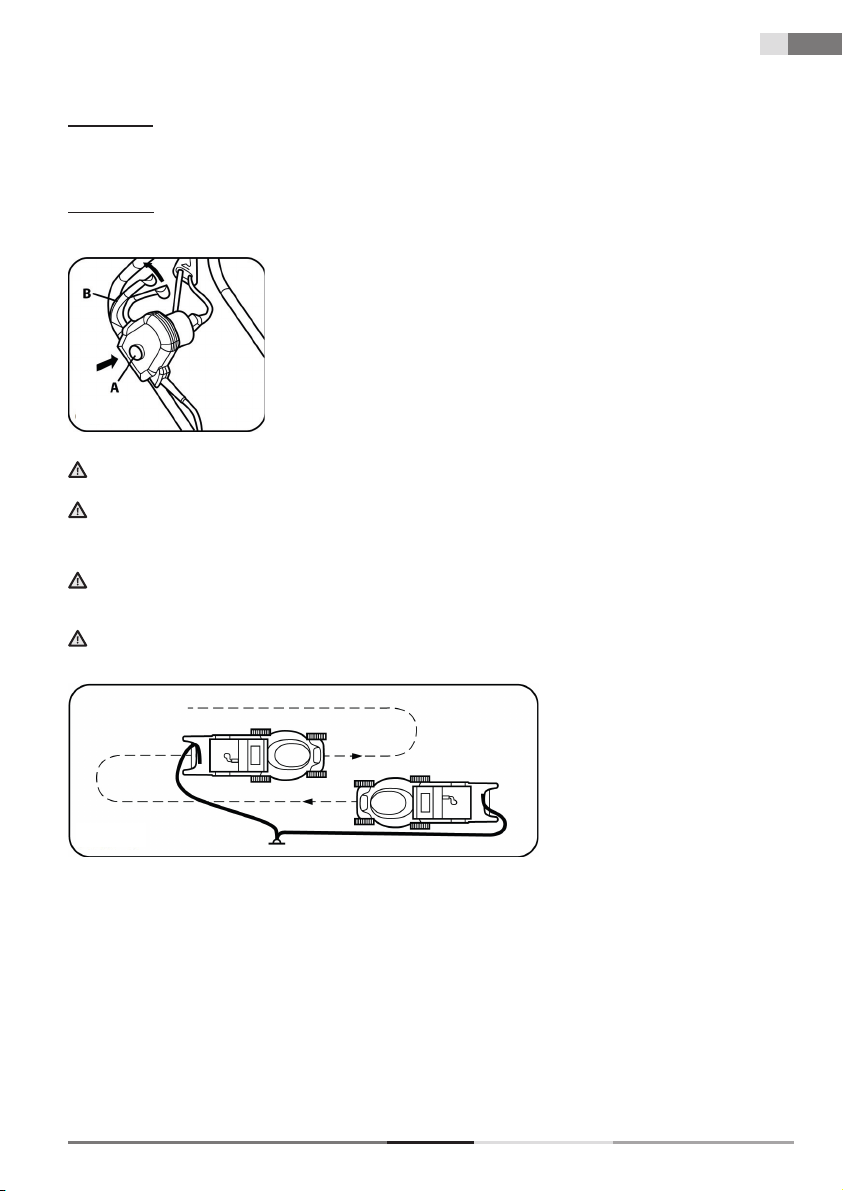

Turning on:
Press and hold the safety button. Figure 5, point A. Then pull the starting lever to the handle. Figure 5, point B.
Release the safety button.
Turning off:
Release the starting lever (Figure 5, point B)
Fig. 5
ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off.
ATTENTION: Do not turn the lawnmower off and on in quick succession.
6.4 MOWING
ATTENTION: Mow the lawn only when it is dry. Mowing wet grass causes undesirable clogging of the
lawnmower and subsequent loss in power and reduced grass collection performance.
ATTENTION: Always mow in the direction away from the power cord. In this way, you will prevent
accidentally severing the power cord. Figure 6.
Fig. 6

EN 14
FZR 2014-E
Technical specifications
7. TECHNICAL SPECIFICATIONS
Model FZR 2014 E
Power source 230-240 V, 50 Hz
Power input 1000 W
Idling speed 3,100 min-1
Coverage width (blade length): 320 mm
Mowing heights 25/45/60 mm - 3 positions
Grass catcher volume 25 l
Weight when empty: 8.3 Kg
Noise level according to standard EN ISO 3744
Guaranteed emission level of acoustic power (LWA max) in accordance with the Noise Level Directive
2000/14:
LwA MAX 94.1 dB (A)
Vibrations 2.0 m/s² K=1.5 m/s²

EN
ELECTRIC LAWN MOWER USER’S MANUAL
15
Maintenance
8. MAINTENANCE
ATTENTION! Before removing the grass catcher, always turn off the lawn mower and pull the extension
cable plug out of the power socket.
Note: We recommend regularly carrying out the maintenance below, this will increase the lifetime and
reliability of the machine.
Regularly visually inspect the machine for defects such as a loose blade, blade installed upside down, blade
damage or damaged or excessively worn parts.
Also regularly check that the protective covers and protective elements are not damaged and are properly
placed.
Before using the machine, carry out all necessary repairs and maintenance.
If, despite regular maintenance, the machine does not work, please contact our customer service, the repair
should be carried out by our contractual partner in one of the specialised Fieldmann workshops.
8.1 BLADE REPLACEMENT
Contact an authorised service centre.
Always use original spare parts.
Before inspecting the blade, always disconnect the lawnmower from the electricity grid
and check that the motor is turned off.
ATTENTION: Remember that the blade still rotates several seconds after the motor is turned off. Never
attempt to stop the blade. In regular intervals, check that the blade is securely fastened, in good condition
and sharp. If necessary, sharpen or replace it.
In the event that the blade hits an object while mowing, turn the lawnmower off and wait until the blade comes to
a stop. Then check the condition of the blade and its fastening bolts.
If these are damaged or if they have been lost then they must be replaced without delay.
Important: Use protective gloves when working.
Loosen the bolt holding the blade by turning anticlockwise, remove the blade and replace it with a new one.
Check that the new blade is installed in the correct direction. Tighten the screw by turning clockwise.
Turn the lawnmower upside down.
Secure the blade against movement using a screwdriver. Figure 7.1.
Loosen the blade bolt and remove the blade. Then retighten firmly. Figure 7.2.

EN 16
FZR 2014-E
Fig. 7.1 Fig. 7.2
Maintenance

EN
ELECTRIC LAWN MOWER USER’S MANUAL
17
Declaration of conformity
9. DECLARATION OF CONFORMITY
/ϮϲϳϮϲϱϰϴsdͲϮϲϳϮϲϱϰϴ
ĂŶŬ<ŽŵĞƌēŶşďĂŶŬĂWƌĂŚĂϭēƷϴϵϯϬϵͲϬϭϭϬϭϬϬĞƐŬĄƐƉŽƎŝƚĞůŶĂWƌĂŚĂϰēƷϮϯϳϱϲϴϮϬϴϬϬ
^KWƌĂŚĂϭēƷϴϬϭϬͲϬϭϭϲϮϯϯϯϴϯϬϯϬϬ
>Zd/KEK&KE&KZD/dz
Product/ brand: Lawn Mower/ FIELDMANN
Type/ model: FZR 2014 E
AC 230-240V, 50Hz, 1000W, IP24, Class II
LpA: 81,5 dB(A), LwA: 96dB(A)
Manufacturer: FAST ČR, a.s.
Černokostelecká 2111, 100 00 Praha 10, Czech Republic
VAT no: CZ26726548
This declaration of conformity is issued under the sole responsibility of the manufacturer.
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive MD 2006/42/EC
Directive EMC 2014/30/EU
Directive RoHS 2011/65/EU
Directive Noise 2000/14/EC
The relevant harmonised standards and the other technical specifications:
EN 60335-1:2012+A13
EN 60335-2-77:2010
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Place of issuance: Prague Name: Ing. Zdeněk Pech
Chairman of the Board
Date of issuance: 15. 11. 2018 Signature:
&^dZĂƐ
ĞƌŶŽŬŽƐƚĞůĞĐŬĄϭϲϮϭϮϱϭϬϭ\şēĂŶLJƵWƌĂŚLJnjĞĐŚZĞƉƵďůŝĐ
ƚĞůϯϮϯϮϬϰϭϭϭĨĂdžϯϮϯϮϬϰϭϭϬ

EN 18
FZR 2014-E
Disposal
10.DISPOSAL
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS
Dispose of used packaging material at a site designated for waste in your municipality.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used electric or electronic
products must not be added to ordinary municipal waste. Take these products to authorised
collection points for proper disposal, renewal and recycling. Or in some European Union
states or other European countries the products can be returned to the local retailer when
buying an equivalent new product. Disposing of this product correctly helps save valuable
natural resources and prevents damage to the environment by improper waste disposal.
Ask your local authorities or collection facility for more details. In accordance with national
regulations penalties may be imposed for the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic devices, ask your retailer or supplier for the
necessary information. Disposal in other countries outside the European Union. This symbol
is valid in the European Union. If you wish to dispose of this product, request the necessary
information about the correct disposal method from the local council or from your retailer.
This appliance meets all the basic requirements of the EU directives.
The text, design and technical specifications may be changed without prior notice and we reserve the right to
make these changes.
Translation of the original user’s manual.
