DISHWASHER USER MANUAL
BELDW60SS
Glen Dimplex Australia Pty Ltd
Unit 1, 21 Lionel Road
Mount Waverley,VIC 3149
Australia
Ph: 1300 556 816
Fax: [phone]
Web: www.belling.com.au
Glen Dimplex New Zealand Ltd
38 Harris Road,East Tamaki,
Manukau,Auckland 2013
New Zealand
Ph: [phone]
Fax: [phone]
Web: www.belling.com.nz

Read this Manual
Dear Customer,
Please read this User Information carefully
and keep it for reference at a later date.
Pass it on to any subsequent owner of the
appliance.
This manual contains covers Safety
Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
Carefully read all information before using
the dishwasher to ensure correct use and
maintenance of the appliance.
Before Calling for Service
Always check the instruction book before
calling a service agent to make sure you have
not missed anything
NOTE:
Belling appliances are constantly seeking
ways to improve the specifications and design
of its products. Whilst every effort is made to
produce up-to-date literature, this instruction
manual should not be regarded as an
infallible guide. Actual product only should be
used to derive cutout sizes.
WARNING !
When using your dishwasher, follow the basic precautions including the following:
1
WARNING! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all hot-water faucets and let the
water flow from each run for several minutes. This will release any accumulated hydrogen gas. As
the gas is flammable, do not smoke or use an open flame during this time.
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating. There is a risk of water squirting out.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Load sharp knives with the handles up to reduce the risk of cut-type injuries;
Warning: Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from contacting with the heating
element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent in your dishwasher.
Other means for disconnection from the supply must be incorporated in the fixed wiring with at
least 3mm contact separation in all poles.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher , there could still be some detergent left inside.
Young children should be supervised to ensure that they do not play with the appliance.
This product is not designed for use by persons (including children) who have reduced physical,
sensory or mental capacities or persons with no experience or knowledge, unless they are
instructed and supervised in the use of the appliance by a person responsible for their safety.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is
open.
The door should not be left in the open position since this could present a tripping hazard.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
1. Safety Information
1) Safety Information .............................1-2
2) Disposal ................................................2
3) Operation Instruction.........................3-4
Control Panel ..............................................3
Dishwasher Features ..................................4
4) When using your dishwasher for the
first time .....................................................4-8
Filling the Rinse Aid Dispenser.................4-5
Function of Detergent ..............................5-8
5) Loading the Dishwasher Baskets..8-11
6) Starting a washing programme ....12-13
Wash Cycle Table ......................................12
Turning on the Appliance............................14
Change the Programme.............................13
Adding additional dishes...............................13
7) Maintenance and cleaning.............14-16
8) Installation .....................................16-19
Positioning and leveling .......................16-17
Connecting the water and electricity supplies
..............................................................17-19
9) Troubleshooting Tips.....................19-21
Error codes ...............................................19
Before calling for service .....................19-21
Technical information ................................21

READ AND FOLLOW THESE SAFETY INSTRUCTIONS CAREFULLY
SAVE THESE INSTRUCTIONS
Use the dishwasher only for its intended function.
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets, the old hose-sets
should not be used.
Make sure that the carpet does not obstruct the openings at the bottom base.
Indoor use only.
2 Disposal
IMPORTANT!
To get the best performance from your dishwasher, read
all operating instructions before use.
2
- Do not dispose of electrical appliances as unsorted municipal waste.
Use separate collection facilities.
-Contact your local government for information regarding the
collection systems available.
-If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
WARNING!
Control Panel
3. Operation Instruction
3
1 Power switch: To turn on/off the power supply.
2D :
3 Program key-press: Press the key to scroll through the wash
cycles. The corresponding program light will be ON to indicate
which WASH CYCLE has been selected.
""
""
5
washing cycle and additional function when you press the button. 6 Child lock button: Hold both buttons for 3 seconds, the appliance
will be locked. No buttons can be used until released.
7 Program indicator light when you select a washing programme ,
the corresponding icon will display.
elay button The START DELAY will allow you to delay the
start time of any cycle automatically up to 24hours.
4 3 in 1 button: Press this button you can choose or
cancel the 3 in 1 function.
Start \pause button: The appliance will start or pause the expected
Child lock : " "
""
8 Rinse aid refill indicator: The indicator lights up when dispenser
needs to be refilled.
9 indicator The Child Lock will be available when
you press the Child lock buttons for 3 seconds, and the
Child lock indicator lights up after flashing 6 times.
10 3 in 1 indicator: The indicator lights up when the 3-in-1
function is selected.
11 Washing light: To come on when the dishwasher is washing.
12 Drying light: To come on when the dishwasher is drying. 13 Digital display: To display the running time remaining,
malfunction codes and delay times.
1 2 3
10
75
8
911
4
13 12
3 in1
6

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, be careful not to overfill.
Replace the cap by aligning it with "open" arrow and turning it to the "closed" (right) arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the
next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four or six settings. Always start with
the dispenser set on "4" If spots and poor drying are problems,
increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are spotty, adjust the dial to the next higher
number until your dishes are spot-free.The dose is factory set
in position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
1
2
3
Adjust lever
(Rinse)
RINSE AID DISPENSER
22
1133
4 When using your dishwasher for the First Time
Dishwasher Features
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Function of detergent
5
4
Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Filters
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder
1
2
3
4
5
8
7
6
A. Fill the Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use branded rinse aid for this dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). This could damage the appliance.
When to Refill the Rinse Aid Dispenser
You can judge the amount of rinse-aid by the colour of the optical level indicator "D" located next to
the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of
the dark dot on the rinse aid level
indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
B. Function of Detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher. Most of commercial quality detergents are suitable for this purpose.
1
2
3
4
5
6
MAX
1
2
3
4
5
6
MAX

7
6
Concentrated Detergent
Based on their chemical composition, dishwasherscan be split in two basic types:
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
The use of "normal" washing programme in conjunction with concentrated detergents reduces
pollution and is good for your dishes; these washing programmes are specially matched to the dirt-
dissolving properties of the enzymes of the concentrated detergent. For this reason"normal"
washing programme in which concentrated detergents are used can achieve the same results that
can otherwise only be achieved using"intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergents
cannot dissolve and develop their full cleaning power during short programmes. Therefore please
use long programmes when using detergent tablets, to ensure the complete removal of detergent
residue.
Detergent Dispenser
The dispenser must be refilled before the start of each washing cycle following the instructions
provided in the Wash Cycle Table. Your dishwashers different programmes usesless detergent
and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is
needed for a normal wash load. Please note, more heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher, otherwise it could get damp and will
not dissolve properly.
Amount of Detergent to Use
2
1
NOTE:
If the lid is closed: press release button. The lid springs open.
Always add the detergent just before starting each wash cycle. Only use branded detergent
aid your for dishwasher.
WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
1122
Filling the detergent dispenser
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place of main wash cycle detergent placed,
MIN means approximately 20g of detergent.
The place of pre-wash cycle detergent placed ,
approximately 5g of detergent.
""
2
1
Please observe the manufacturer's dosing and
storage recommendations as stated on the
detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
NOTE:
You will find information about the amount of detergent for the single programme on the last
page. Please be aware that according to the level of soiling and the specific hardness of water,
differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
1
2
3
4
5
6
MAX
2
1
Use of "3 in 1" Detergent Tablets
General Advice
1. Before using these products you should first check that the water hard-ness in your supply is
compatible with the use of these products as per the detergent manufacturers instructions (on
the product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
3. If you encounter problems when using "3 in 1" products for the first time then please contact the
detergent manufacturers care line (the telephone number is given on the product packaging).
These products are detergents with integrated and combined detergent/rinse aid functions.
Before using these products you should first check that the water hardness in your supply is
compatible with the use of these products as per the detergent manufacturers (on the product
packaging).
To select "3in1" function:
To cancel "3in1" function:
To cancel the 3in1 washing cycle, press the 3in1 button a second time. Alternatively, follow the
Change the Programme instructions on page 13.
If you decide to switch to the use of a standard detergent system we advise that you:
1. Refill the rinse aid compartments.
2. Switch the water hardness setting to the highest possible position and run for three normal cycles
without load.
1. close the door and select the 3in1 washing cycle by pressing the "3in1" button until the "3in1"
indicator blinks.
2. The 3in1 washing cycle will be available after pressing the start/pause button , and the"3in1"
indicator illuminates.

5 Loading the Dishwasher Baskets
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and Cutlery tray may vary from your model.
Attention before or after Loading the Dishwasher Baskets
1. Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under
running water. Place objects in the dishwasher in the following way:
A. Items such as cups, glasses, pots/pans, etc. are stood upside down.
B. Curve items, or those with recesses, should be at a slant so that water can run off.
C. Items are stacked securely and can not tip over.
D. Items do not prevent the spray arms from rotating while washing takes place.
2. Very small items should not be washed in the dishwasher as they could easily fall out of the
Baskets.
3. The upper and lower baskets can not be pulled out at
the same time the dishwasher is Loading, as it May
lead to dumping.
Removing the Dishes
To prevent water dripping from the upper basket into
the lower basket, we recommend that you empty the
Lower basket first and then the upper basket.

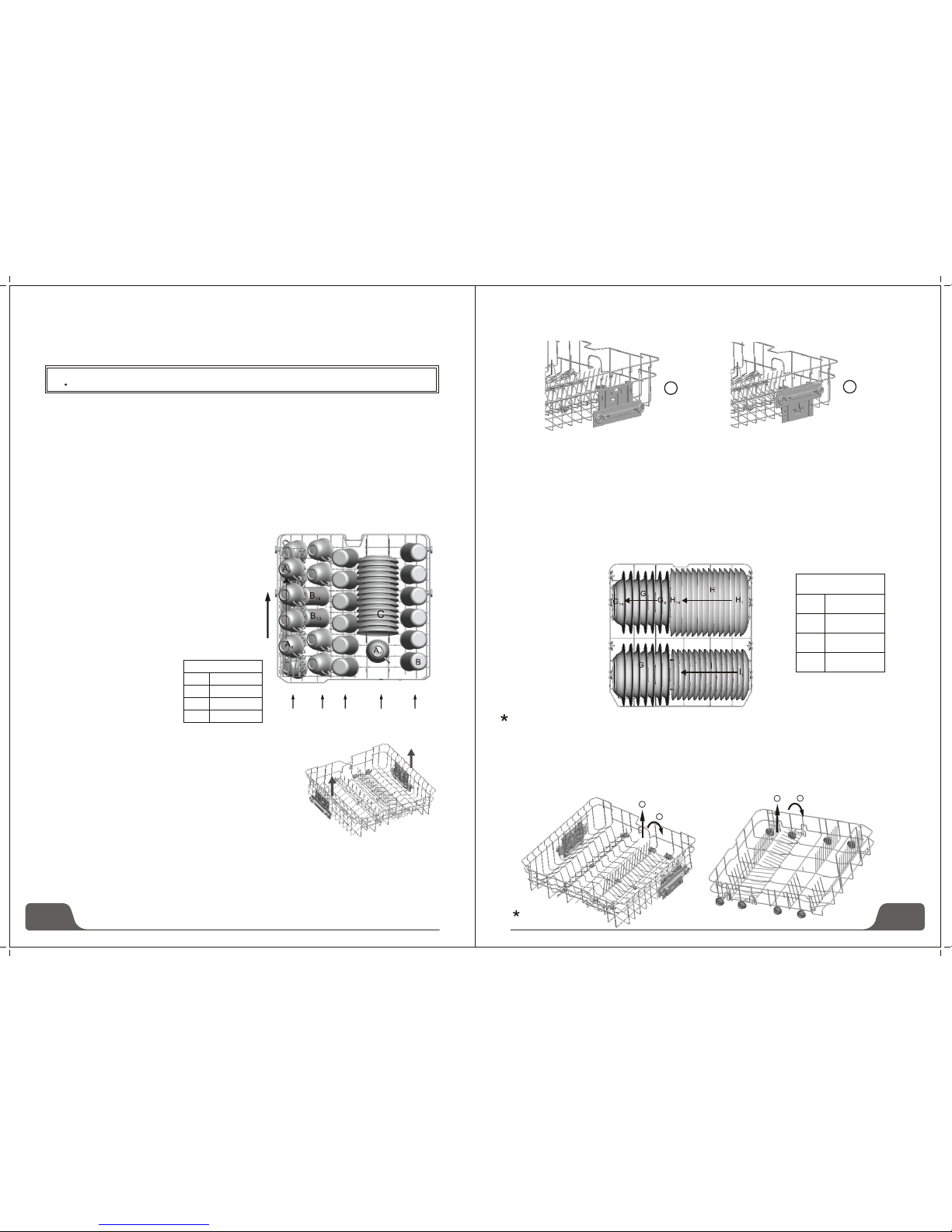

Loading the Upper Basket
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cup and saucers, as well as plates, small
bowls and shallow pans (as long
as they are not too dirty). Position
the dishes and cookware so that
they do not get moved by the
Spray of water.
3. Readjust the water hardness setting again according to the conditions for your region (For more
information please refer to your instruction manual).
Upper basket
Type Item
Cup
Glass
Saucer
A
B
C
Upper Basket
B1
B6
IN
C1
C14
B7
B12
A5
A2
A14
A10
9
8
Basket height adjustment mechanism on the upper basket
of your machine is designed to let you adjust the height of
your upper basket up or down,allowing you to create
large spaces at the top or bottom area of your machine as
needed. The basket of your machine is set to a lower
position in factory settings.
In order to raise your basket,hold it from both sides and
pull it upwards.In order to lower it,hold it from both sides
again,and leave it.
Upper Basket Height Adjustment
Ensure both sides of the basket adjustment mechanism are in the same position when lifting
or lowering the basket.
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean in the lower basket: pots,
pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.
Lower basket
Type Item
Dessert plate
G
H
I
Dinner plate
Soup plate
Lower Basket
12
Upper position Lower position
Upper/Lower basket Folding racks
Folding racks consisting of three/two parts in the upper/lower basket of your machine are designed
in order to let you place bigger items in the basket. Each part can be folded separately, or all parts
can be folded and more space can be obtained. You can use folding racks by raising them
upwards, or by folding them down.
2
1
2
1
Upper Basket Lower Basket
For optional

11
10
Below cutlery/utensils are not to be used in the dishwasher
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes Pewter
or cooper items
Lead crystal glass
Steel items subject to rusting Wooden
platters
Items made from synthetic fibre
WARNING!
Do not let any item extend through the bottom
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
NOTE: Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy
new dishes please make sure that they are suitable for dishwashers.
NOTE: Please do not overload your dishwasher. There is only space for 14 standard dishes. Do not
use dishes that are not suitable for dishwashers. This is important for good results and for
reasonable energy consumption.
Before loading the dishes, you should:
Remove large left-over residue/substances
Soften remnants of burnt food in pans
Loading Cutlery and Dishes
When Loading the Dishes and Cutlery, Please Note:
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot
collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other
To avoid damage to glasses, they must not be touched
Load large items which are most difficult to clean into the lower basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and
tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper
basket
Attention!
Damage to Glassware and other Dishes
Possible causes:
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
Use a mild detergent that is described as kind to dishes. If necessary, seek further information from
detergent manufacturers.
Select a programme with a low temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
At the End of the Wash
When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn
off the appliance using the Power button, shut off the water supply and open the door of the
dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to breakage. They will also dry better.
""
Cutlery tray
Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water
runs off freely.
Cutlery tray
Type Item
Tea spoons
Dessert spoons
Soup spoons
Forks
Knives
1
2
3
4
5
12345
3
42
2
1
5
1

WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
Switch Off the Dishwasher
The digital display appears --- and the buzzer rings 6 times, only in this case the programme
has ended.
1.Switch off the dishwasher by pressing the Power button.
2.Turn off the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down for
around 15 minutes before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes.
By doing this dishes will be cooler and drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
""
""
Switching on
1. Open the tap, if it is closed.
2. Close the door.
3. Make sure the spray arms are not obstructed.
4. Switch the dishwasher on using the Power button.
The additional indicators, delay start indicators and status indicator will light up periodically
one by one.
Select a programme
Choose your programme according to the type of load and how dirty it is.
The different programmes and their uses are described in the programme chart later on in this
booklet. Use the programme selector to select the required setting.
Change the Programme
Premise: A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section
entitled "Filling the detergent dispenser" ).
Press the Power"button and turn on it again. Press the "Programme"button to choose the desired
cycle setting (see the section entitled "Starting a wash cycle. . . " ).
NOTE: If you open the door when the washing cycle is underway, the appliance will pause and
emit warning signals, the display appears E1. When you close the door, the machine will keep
working after 10 seconds.
The 6 programme lights show the state of the dishwasher :
a) One of the programme lights on --> cycle running
b) One of the programme lights bliking--> pause
""
NOTE: If all the lights begin to glimmer, that indicates the machine is out of order, please turn off
the main power and water supply before calling a service agent.
Adding additional dishes
A forgotten dish can be added any time before the detergent cup opens.
1Open the door a little to stop the washing.
2 After the spray arms stop working, you can open the door completely.
3 Add additional dishes.
4 Close the door, the dishwasher will work after 10 seconds.
Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
1.
push the draw back. It is recommended to load the lower basket first, then the upper one (see the
section entitled "Loading the Dishwasher"). Pour in the detergent.
2. Insert the plug into the socket. The power supply is 220V-240V AC 50 Hz, the specification of the
socket is 12 A 250 VAC.50 Hz.
Make sure that the water supply is turned on to full pressure. Close the door, press the Power
button, press the programme button to select a desired "Wash cycle . (See the section entitled
"Wash Cycle Table".) .
NOTE: A click could be heard when the door is closed perfectly.
When the washing is over, you can shut off the switch by pressing Power button.
""
"
""
Turning on the Appliance
6. Starting a Washing Programme
Wash cycle table
Program Cycle Selection
Information
Description
of Cycle
Detergent
Pre/main
Running
Time
(min)
Energy
(kWh)
Water
(L)
Intensive
Heavy
Rinse
Rapid
Soak
For the heaviest soiled loads,
such as pots, pans, casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
For dishes that need to be
rinsed and dried only
A shorter wash for lightly
soiled loads that do not
need drying.
To rinse dishes that you
plan to wash later that day
Pre-wash(40 )
Main wash(55 )
Rinse 1
Rinse 2
Hot rinse(65 )
Drying
Main wash(60 )
Rinse 1
Rinse 2
Hot rinse(65 )
Drying
Main wash(45 )
Rinse
Hot rinse(50 )
Drying
Pre-wash
Hot rinse(70 )
Drying
Main wash(40 )
Hot rinse(50 )
Pre-wash
5/27.5g
5/27.5g
5/27.5g
20g
150
135
113
67
50
8
1.35
1.25
0.83
0.85
0.60
0.07
20.0
16.0
13.7
8
8
4.0
Normal
(AS/NZS 2007.1)
(or 3in1)
(or 3in1)
(or 3in1)
13
12
For heavy soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle
AS/NZS 2007.1:This programme is the test cycle. The information for comparability test
in accordance with AS/NZS.2007.1, as follows:
- Capacity: 14 settings
- Position of Upper basket: Low position
- Rinse aid setting:5(or 4 for four setting dispenser)
NOTE:
We recommend you open the door slightly 50mm to assist in drying of the dishes
after every wash.

15
14
Filtering System The filter is used to avoid the big remnants and other debris getting inside
the pump. Over time the residue can obstruct the filter.
The filter systemconsists of a coarse filter,a flat
(Main filter) anda micro filter (fine filter).
1 Flat filter
Food and debriswill be trapped by a special jet
on the lowerspray arm.
2 Coarse filter
Big debris, suchas bone and glass that could clog the
drain will betrapped in the coarse filter.
Toremove an item caught in this filter, gently squeeze
the taps onthe top of this filter and lift it out.
3 Micro filter
This filter holdssoil and food residue in the sump area
and prevents itfrom being redeposit on the dishes
during a cycle.
- Inspect thefilters for obstructions every time the
dishwasher has beenused.
- By unscrewingthe coarse filter, you canremove
the filter system.Remove any food remnants and
clean the filtersunder running water.
Step 1 To remove the
course filter, rotate anti-
clockwise.
Step 2 Lift the Flatfilter up
7. Maintenance and cleaning
NOTE: Reverse steps to re-install the filter system.
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes
food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing
the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean
the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in the dishwasher, by positioning it and
pressing downward. The dishwasher must never be used without the filters. Improper replacement
of the filter may reduce the performance level of the appliance and damage dishes and utensils.
WARNING!
Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on
them. Otherwise, the filters could be contorted and the performance of dishwasher could decrease.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings. To
remove the spray arms, screw off the nut clockwise to
remove the washer on top of the spray arm and then remove
the arm. Wash the arms in warm soapy water and use a soft
brush to clean the jets. Replace them after rinsing thoroughly.
Caring for the Dishwasher
To clean the control panel, use a lightly dampened cloth then
dry thoroughly.
To clean the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners
on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter in the tub and the bottom and use a sponge to use up water in sump
Cleaning the Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner of any
kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch
the finish. Some papers towels can also scratch or leave marks on the surface.
WARNING!
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical
components. Do not use an abrasive agent or some paper towel due to the risk of scratching or
leaving spots on the stainless steel surface.
2
1
3
1 2
NOTE: This is only to be done by an authorised repairer. Any damages caused otherwise may
void your warranty.

17
16
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply
to the appliance and leave the door slightly
ajar so that moisture and odors are not
trapped inside.
Remove the Plug
Before cleaning or performing maintenance,
always remove the plug from the socket. Do
not take risks with electricity.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of
the dishwasher, do not use solvents or
abrasive cleaning products. Use only a
cloth and warm soapy water. To remove
spots or stains from the surface of the
interior, use a cloth dampened with water
and a little white vinegar, or a cleaning
product made specifically for dishwashers.
When You Go on holiday
When you go on holiday, it is
recommended that you run a wash cycle
with the dishwasher empty and then
remove the plug from the socket, turn off
the water supply and leave the door of the
appliance slightly ajar. This will help the
seals last longer and prevent odors from
forming in the appliance.
Moving the Appliance
If the appliance must be moved, try to keep
it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odors to form
in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with
a damp sponge will prevent this.
Attention:
The installation of the pipes and
electrical equipments should
only be performed by licensed
professionals.
Electrical Shock Hazard!
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electric shock.
Warning

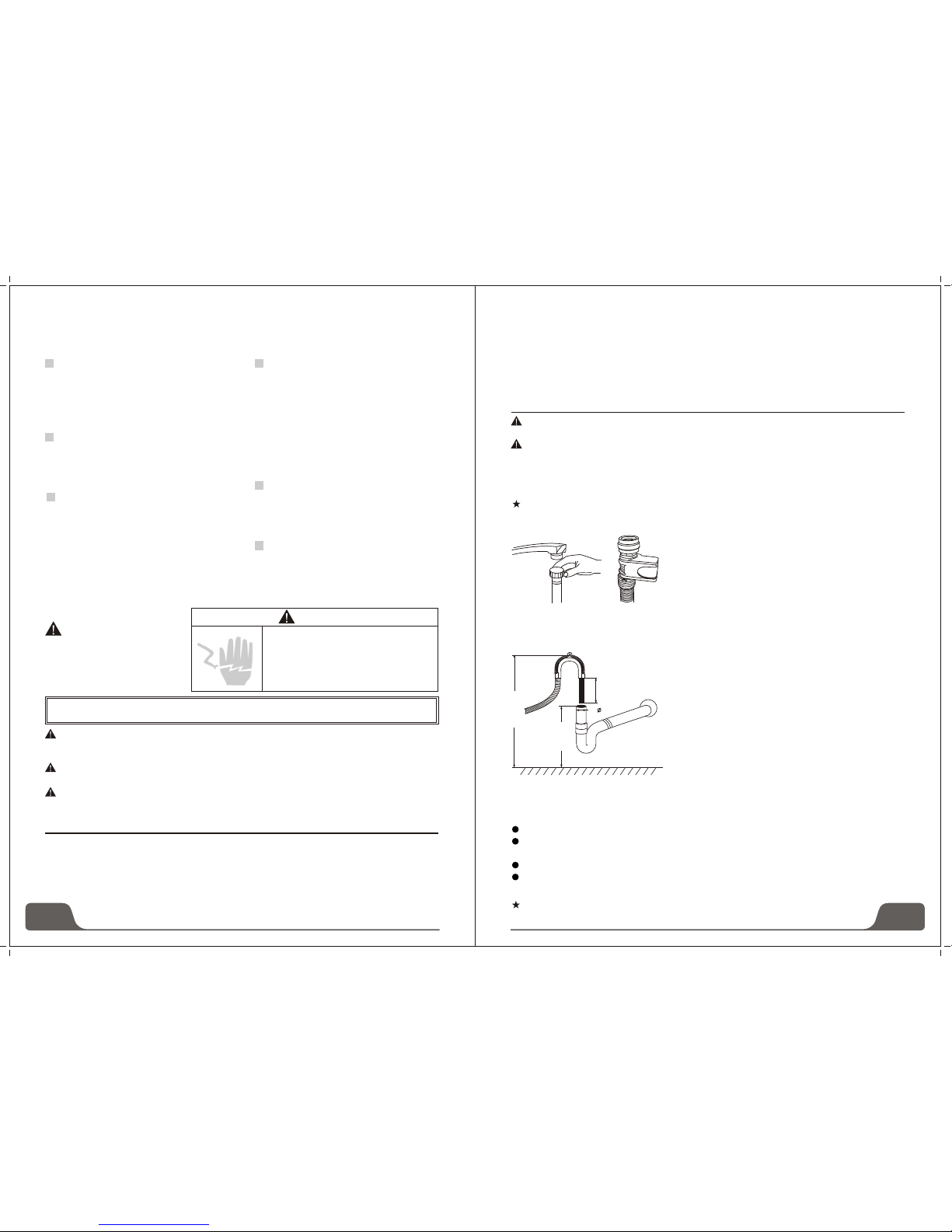

8. Installation
Keep this instruction manual in a safe place for future reference. If the appliance is sold, given
away or moved, please ensure the manual is kept with the machine, so that the new owner may
benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe
installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary,
it may be tilted onto its back.
Positioning and leveling
1. Remove the appliance from all packaging and check that it has not been damaged during
transportation. If it has been damaged, contact the retailer and do not proceed and further with the
installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent
cabinets or even with the wall. This appliance can also be recessed under a single work top (see
the Assembly instruction sheet).
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the
appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not
exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to
move or cause vibrations and noise while it is operation.
Connection to the water and electrical supplies should only be performed by a qualified
technician.
The appliance must be connected to the water supply network using new piping. Do not use old
piping.
Connecting the waterinlet hose
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is
not taken, there is a risk that the water inlet can get blocked
and the appliance could be damaged.
Fit the drainage hose of your machine to the drainage pipe
without bending.
If the length of the hose is not sufficient, please contactthe
authorised service centre for an extension made from the
same material as the original. Remember that the length of
the hose should not exceed 4 meters even with an
extension.
If the drainage hose is longer than 4 m. the dishes will not be
cleaned properly. Always secure your hose firmly to the
drainage pipe to avoid it coming off during the washing
process.
Connecting the water outlet hose
Electrical connection
Before inserting the plug into the electrical socket, make sure that:
the socket is earthed and complies with current regulations;
the socket can withstand the maximum load of the appliance, which is indicated on the data plate
located on the inside of the door(see description of the appliance);
the power supply voltage falls within the values indicated on the data plate on the inside of the door;
the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised
technician to replace the plug (see assistance); do not use extension cables or multiple sockets.
Connecting the water and electrical supplies
max1100mm
min500mm
min120mm
min 40mm
For optional

19
18
Once the appliance has been installed, the power supply cable and the electrical socket should
be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, it must be replaced by the manufacturer or its
Technical Assistance Service Agent in order to prevent all potential hazards.(See Assistance)
The company shall not be held responsible for any incidents that occur if these regulations are
not observed.
The followings should be checked before starting the dishwasher:
1 Whether the dishwasher is level and fixed
2 Whether the inlet valve is opened
3 Whether there is leakage at the connections of the conducts
4 Whether the wires are tightly connected
5 Whether the power is switched on
6 Whether the inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher
Attention
After installation, keep this manual in a safe place.
Start of Dishwasher
9. Troubleshooting Tips
Advice regarding the first wash cycle
After the appliance has been installed, immediately before running the first wash cycle, completely
fill the dispenser of rinse aid (see Rinse aid ).
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and
drain hoses that can be positioned to the right or the left to facilitate proper installation.
Leveling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the
dishwasher, making it level. In any case, the appliance should not be inclined more than 2 .
NOTE: The maximum adjustment height of the feet is 20 mm.
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, observe to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be
reduced.
Syphon Connection
The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip.
Codes Meanings Possible Causes
Water drainage malfunction
Door open
Water inlet
Water drainage
Temperature sensor
Overflow/leakage
Water leakage
Heating element
The door is opened when the
dishwasher is operating
Water inlet malfunction
Temperature sensor malfunction
Overflow occurs/Water leakage occurs
Water leakage occurs
Abnormal heating
E1
Error codes
If malfunctions occur, the appliance will display error codes as below.
WARNING!
If overflow occurs, turn off the main water supply before calling a service agent. If there is water in
the base pan because of an overfill or small leak, the water should be removed before restarting the
dishwasher.
E2
E3
E4
E5
E6
E7

21
20
Stained tub
interior
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Dishes and
flatware
not clean
Make sure that the action of the detergent dispenser
and spray arms are not blocked by large dishware.
Improper program
Improper basket
loading
Select a stronger programme.
Spots and
filming on
glasses and
flatware
1Extremely hard
water
2Low inlet
temperature
3Overloading the
dishwasher
4Improper loading
5Old or damp
powder detergent
6Empty rinse agent
dispenser
7Incorrect dosage
of detergent
To remove spots from glassware:
1Take out all metal utensils out of the dishwasher.
2Do not add detergent.
3Choose the longest cycle.
4Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Before Calling for Service
Use only the special dishwasher detergent to avoid
suds.If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then start the "soak" wash
cycle to drain out the water... Repeat if necessary.
Problem
Dishwasher
doesn't run
Drain pump
doesn't stop
Noise
Suds in
the tub
Possible Causes What To Do
Spilled rinse agent
Always wipe up rinse agent spills immediately.
Fuse blown, or the
circuit breaker acted
Power supply is
not turned on
Water pressure
is low
Overflow
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible
sounds are normal
Utensils are not
secure in the
baskets or
something small
has dropped into
the basket
Motor hums
Improper detergent
Sound from detergent cup opening.
Check that the water supply is connected properly and
the water is turned on.
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Cloudiness
on glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them
clean.
Yellow or
brown film on
inside surfaces
White film
on inside
surface
The detergent
dispenser lid
cannot be clos
-ed properly
Detergent left
in dispenser
cups
Steam
Black or
gray marks
on dishes
Water
the bottom
of the tub
Iron deposits in
water can cause an
overall film
Dishes block
detergent Cups
Using a solution of 1/2 cup of bleach and 3 cups of
warm water to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the
heating elements cool down before cleaning interior;
otherwise, burns will happen.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent for the
risk of foaming or suds.
Hard water minerals
Clogged detergent
residue is blocking
the catch
Tea or coffee stains
A small amount of clean water around the outlet on
the tub bottom keeps the water seal lubricated.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Clean the detergent from the catch.
This is normal
Aluminum utensils
have rubbed
against dishes
Normal phenomenon
Dishwasher
leaks Dishwasher isn't
level Make sure the dishwasher is level.
Overfill dispenser or
rinse aid spills
Technical information
WDH 600mm 600mm 845mm
Voltage connected load:
Water pressure:
See rating label
0.04--1.0MPa
Power supply: see rating label
Capacity: 14 Place settings
Hot water connection:
Max 60
21
20
Stained tub
interior
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Dishes and
flatware
not clean
Make sure that the action of the detergent dispenser
and spray arms are not blocked by large dishware.
Improper program
Improper basket
loading
Select a stronger programme.
Spots and
filming on
glasses and
flatware
1Extremely hard
water
2Low inlet
temperature
3Overloading the
dishwasher
4Improper loading
5Old or damp
powder detergent
6Empty rinse agent
dispenser
7Incorrect dosage
of detergent
To remove spots from glassware:
1Take out all metal utensils out of the dishwasher.
2Do not add detergent.
3Choose the longest cycle.
4Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Before Calling for Service
Use only the special dishwasher detergent to avoid
suds.If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then start the "soak" wash
cycle to drain out the water... Repeat if necessary.
Problem
Dishwasher
doesn't run
Drain pump
doesn't stop
Noise
Suds in
the tub
Possible Causes What To Do
Spilled rinse agent
Always wipe up rinse agent spills immediately.
Fuse blown, or the
circuit breaker acted
Power supply is
not turned on
Water pressure
is low
Overflow
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible
sounds are normal
Utensils are not
secure in the
baskets or
something small
has dropped into
the basket
Motor hums
Improper detergent
Dishwasher has not been used regularly. If you do not
use it often, remember to set it to fill and pump out
every week, this will help keep the seal moist.
Always ensure everything is secured in the dishwasher..
Sound from detergent cup opening.
Check that the water supply is connected properly and
the water is turned on.
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Cloudiness
on glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them
clean.
Yellow or
brown film on
inside surfaces
White film
on inside
surface
The detergent
dispenser lid
cannot be clos
-ed properly
Detergent left
in dispenser
cups
Steam
Black or
gray marks
on dishes
Water
sitting on
the bottom
of the tub
Iron deposits in
water can cause an
overall film
Dishes block
detergent Cups
Using a solution of 1/2 cup of bleach and 3 cups of
warm water to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the
heating elements cool down before cleaning interior;
otherwise, burns will happen.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent for the
risk of foaming or suds.
Hard water minerals
Clogged detergent
residue is blocking
the catch
Tea or coffee stains
A small amount of clean water around the outlet on
the tub bottom keeps the water seal lubricated.
Use a mild abrasive cleaner to eliminate those marks.
A small amount of steam coming through the vent by the
door latch during drying and water draining is normal.
Re-loading the dishes properly.
Clean the detergent from the catch.
Please call a water softener company for a special filter.
This is normal
Aluminum utensils
have rubbed
against dishes
Normal phenomenon
Dishwasher
leaks Dishwasher isn't
level Make sure the dishwasher is level.
Spilled rinse aid could cause oversudding and lead to
overflowing. Wipe away any spills with a damp cloth.to
overflowing.
Overfill dispenser or
rinse aid spills
Technical information
WDH
See rating label
Warranty
The warranty period is 24 months from the date of purchase.
