Benchmark 5554-513 User manual
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
5 Year Limited Warranty
22" ELECTRIC SNOW BLOWER
1
PRODUCT SPECIFICATIONS
22" SNOW BLOWER
Motor 120 V, 60 Hz, 15 A
Paddle speed Up to 2,500 RPM
Clearing width 22" (56 cm)
Clearing depth 12" (30 cm)
Discharge distance Up to 30' (9 m)
Plowing capacity (Max) 25 tons (25,000 kg) per hour
LED light 3 W
Impeller size 8" (20 cm)
Wheels 7" (18 cm)
Weight 36 lb 8 oz (16.68 kg)
NEED ASSISTANCE?
For problems or questions, DO NOT RETURN TO STORE. Please contact one of our
Customer Service Agents who would be happy to assist you.
For Customer Assistance Please Call: 1-833-818-4111.
5554-513
22" ELECTRIC SNOW BLOWER
2
TABLE OF CONTENTS
Product Specifications................................................................................... 1
Table of Contents ........................................................................................... 2
Safety Information ...................................................................................... 3-5
Electrical .................................................................................................... 5-6
Assembly.................................................................................................... 7-9
Operation ............................................................................................... 10-12
Maintenance .......................................................................................... 12-14
Safety Symbols ....................................................................................... 15-16
Know your 22" Snow Blower.................................................................... 17-18
Troubleshooting ........................................................................................... 18
Exploded View ............................................................................................. 19
Parts List ................................................................................................ 20-21
Warranty...................................................................................................... 22
3
SAFETY INFORMATION
FOLLOW THESE RULES WHILE OPERATING THE SNOW BLOWER
Walk. Do not run.
• Verify that the snow blower is not in contact with anything before turning it on.
• Stay away from paddle openings at all times. Keep face, hands, and feet away
from concealed, moving, or rotating parts.
• Be attentive when using the snow blower. Stay alert for holes in the terrain and
other hidden hazards or trac.
• Move up and down slopes when clearing snow. Do not go across a slope. Use
caution when changing direction. Do not use this snow blower to clear snow from
steep slopes.
• Do not operate the power tool if the guards, plates, and other safety protective
devices are not in place.
• Do not operate the snow blower near glass enclosures, automobiles, trucks,
window wells, drop-os, etc., without properly adjusting the angle of the snow
discharge. Keep children and pets away from the work area.
• Do not operate the snow blower at high speeds on slippery surfaces. Look behind
when backing up and exercise caution.
• Wear safety glasses or goggles that meet ANSI 287.1 standards.
• Use the snow blower in daylight or in good artificial light.
• To avoid accidental start-ups, remain in the starting position when turning the
snow blower on. The operator and the power tool must be in a stable position
during start-up. See the section titled Powering On and O, page 12.
• Use this power tool only for the purposes it was designed.
• Hold the snow blower with both hands while it is in use. Keep a firm grip on the
handles.
• lf the impeller does not rotate freely due to ice, thaw the snow blower thoroughly
before attempting to use it.
• Keep the paddle clear of debris.
• Do not attempt to clear the impeller while the motor is running.
• If the snow blower starts to vibrate abnormally, stop the snow blower immediately
and attempt to determine the cause. Vibration is generally an indication of
danger.
• Do not use on gravelled surface unless the snow blower is adjusted for such a
surface in accordance with the operator's manual.
• Keep Children Away-All visitors should be kept a safe distance from work area.
• Dress Properly- Do not wear loose clothing or jewellery. They can be caught in
moving parts.
• Wear rubber boots when operating the snow blower. Always wear substantial
footwear.
WARNING! Read the operating and service instruction manual carefully.
Be thoroughly familiar with the controls and the proper use of the equipment.
5554-513
22" ELECTRIC SNOW BLOWER
4
• Keep guards in place and in working order.
• Don't force the snow blower - It will perform better and safer at the rate for which
it was designed.
• Don't overreach - Keep proper footing and balance at all times.
• If the snow blower strikes a foreign object, follow these steps:
i) Stop the snow blower. Release the switch.
ii) Unplug power cord.
iii) Inspect for damage.
iv) Repair any damage before restarting and operating the snow blower.
• Store snow blower indoors -When not in use, power tools should be stored indoors
in a dry, locked-up place out of reach of children.
• Maintain snow blower with care - Follow instructions for lubricating and changing
accessories.
• Allow the snow blower to run for a few minutes after clearing snow in order to
prevent moving parts from freezing.
• Only use identical replacement parts and accessories for this snow blower. The
use of nonidentical or accessories could lead to serious injury to the user or
damage the snow blower, and will void the warranty.
• Do not pick up the snow blower while it is running. The snow blower is designed to
travel along the ground.
• Never allow children to operate a snow blower. Keep the area of operation clear of
all persons, particularly small children, and pets.
• Thoroughly inspect the area where the equipment is to be used and remove all
stones, sticks, wires, bones, and other foreign objects.
• Stop the paddle when crossing gravel driveways, walkways, or roads.
• To prevent disconnection of the power cord from the extension cord during
operation. Refer to the section entitled Using the Cord Retainer.
• Avoid accidental starting - Don't carry a plugged in snow blower with your finger
on the switch. Be sure switch is o when plugging in.
• If the cord is damaged in any manner while it is plugged in, disconnect it from the
outlet immediately.
• Do not abuse the cord. Do not carry the snow blower by the power cord or yank
the cord in order to disconnect it from the receptacle.
• Disconnect the snow blower from the power supply when: not in use, before
servicing, and when changing accessories.
GENERAL SAFETY RULES
• Verify that the snow blower is secure while transporting.
• Store the snow blower in a dry area that will prevent unauthorized use or damage.
Keep out of the reach of children.
• Keep handles dry, clean, and free of debris. Clean the snow blower after each use.
Refer to Maintenance section in this manual for more information.
• If the labels on the snow blower become defaced or start to lift o, contact the
toll-free helpline at 1-833-818-4111.
5
• Keep these instructions in a safe place for future reference. Refer to them often,
and use them to instruct other users. Anyone who uses this snow blower must
read these instructions carefully.
• Maintain the snow blower with care. Follow the instructions for lubricating and
changing accessories.
WARNING! To prevent electric shock use only with an extension cord
suitable for outdoor use.
ELECTRICAL
DOUBLE INSULATION
Double insulation is a concept in safety in electric snow blower which eliminates
the need for the usual three-wire grounded power cord. All exposed metal parts
are isolated from the internal metal motor components with protecting insulation.
Double insulated snow blowers do not need to be grounded.
WARNING! Servicing of a product with double insulation requires extreme
care and knowledge of the system and should be performed only by a qualified
service technician.
For service, we suggest you return the product to your nearest authorized service
centre for repair. Always use identical factory replacement parts when servicing.
EXTENSION CORDS
When using a snow blower at a considerable distance from a power source, be sure
to use an extension cord that has the capacity to handle the current the product will
draw. An undersized cord will cause a drop in line voltage, resulting in overheating
and loss of power. Use the chart to determine the minimum wire size required in an
extension cord. Only round jacketed cords listed by Underwriter's Laboratories( UL)
should be used.
MINIMUM GAUGE (AWG)
EXTENSION CORDS (120V USE ONLY)
Ampere Rating*
(on product
data plate)
Cord Length
25' (7.6 m) 50' (15 m) 100' (30 m)
0-2.0 16 16 16
2.1-3.4 16 16 16
3.5-5.0 16 16 14
5.1-7.0 16 14 12
7.1-12.0 14 14 12
12.1-16.0 14 12 -
*Used on 12 gauge - 20 amp circuit. NOTE: AWG = American Wire Gauge
5554-513
22" ELECTRIC SNOW BLOWER
6
When working outdoors with a product, use an extension cord that is designed for
outside use. This type of cord is designated with "WM" on the cord's jacket.
Before using any extension cord, inspect it
for loose or exposed wires and cut or worn
insulation. It is possible to tie the extension
cord and power cord in a knot to prevent
them from becoming disconnected during
use. Make the knot as shown in the figure at
right, then connect the plug end of the power
cord into the receptacle end of the extension
cord. This method can also be used to tie two
extension cords together.
WARNING! The double-insulated system is intended to protect the user
from shock resulting from a break in the snow blower's internal insulation.
Observe all normal safety precautions to avoid electrical shock.
• Inspect the extension cord and the power cord on a regular basis. Look for
deterioration, cuts, or cracks in the insulation. Inspect the connections for
damage. Repair or replace the extension cord or the power cord if any damage
is found.
• Verify that the paddle and all moving parts have come to a complete stop, and
disconnect the snow blower from the power supply in order to prevent accidental
start-ups, before cleaning or performing any inspections or repairs.
• Do not abuse the extension cord. Do not carry the snow blower by the power cord
or pull on the cord in order to disconnect it from the receptacle.
• Keep the extension cord away from heat, oil, and sharp edges in order to prevent
damage.
• If the extension cord is damaged in any manner while it is plugged in, disconnect
it from the outlet immediately.
• Prevent any possible disconnection of the power cord from the extension cord
while the snow blower is in use by using the cord retainer. Refer to the section
entitled Using the Cord Retainer.
• Unplug the snow blower and allow it to cool down before putting it into storage.
Store the snow blower indoors.
• Unplug the snow blower when it is not in use and before performing any
maintenance or repairs.
WARNING! Keep the extension cord clear of the working area. Position the
cord so that it will not get caught on obstacles while you are operating the snow
blower. Failure to do so can result in serious personal injury.
7
ASSEMBLY
GETTING STARTED
1. Remove the snow blower and all other items from the box.
2. Determine the left and right hand side of the snow blower by standing in the
normal operating position.
3. Check all items for shipping damage. If damage is found or suspected or if any
of the parts are missing, do not assemble. Instead, promptly inform the dealer
where you bought the snow blower or contact at 1-833-818-4111 for assistance.
4. Check to make sure the upper chute crank is included.
ASSEMBLING THE HANDLE
Fig. 1 Fig. 2 Fig. 3
1. For easy assembly, the unit comes complete with most parts already connected.
To complete the handle assembly, please follow the steps below. For storage,
you can fold the handle as (Fig. 1 ).
2 . Secure the connection of the lower frame to the middle frame by fastening the
first set of joint fixing T-bolts and knobs on each side.
3. Before securing the upper frame, slide the extension cord restraint hook up the
upper frame (Fig. 3).
4. Secure the connection of the upper frame to the middle frame by fastening the
second set knobs and bolts on each side (Fig. 4).
Fig. 4
Fig. 5 Fig. 6 Fig. 7
Cable
clips
Cable
5. Clip the 2 chute clean-out tool clips on the side of the middle frame, and insert
the chute clean-out tool in the clips (Figs. 5 - 6).
6. Clip on the 2 cable clips on the frame, and insert the cable inside of the cable
clips (Fig. 7).
5554-513
22" ELECTRIC SNOW BLOWER
8
DISCHARGE CHUTE ASSEMBLY
Fig. 8 Fig. 9 Fig. 10
1. Loosen the knob to lift the chute deflector.
2. Lift the chute deflector and lock it securely onto the discharge chute.
3. Raise or lower the chute deflector to the desired height of the snow stream and
tighten the knob. NOTE! Do not overtighten the knob.
CHUTE CRANK ASSEMBLY
Fig. 11 Fig. 12 Fig. 13
1. Remove the cotter pin from the lower chute crank (Fig. 11 ).
2. Install the lower crank rod by inserting it into the opening at the back of the
housing with holes aligned (Fig. 12).
3. Secure the lower chute crank in place with the cotter pin (Fig. 13).
Fig. 15 Fig. 16
Cotter pin
Fig. 14
4. Remove the cotter pin on the crank rod connector by hand (Fig. 14).
5. Slide the upper chute crank through the rubber
ring located on the middle frame (Fig. 15).
6. Slide the upper chute crank into the crank rod
connector (Fig. 16).
7. Align the holes and insert the cotter pin by hand
(Fig. 17).
Cotter pin
Fig. 17
9
NOTE: Before using this machine, make sure that the power source you will use
complies with the specifications detailed in this manual. Before inserting the plug
into the socket, verify that the snow blower's roll shaft and rubber plates are firmly
secured with screws, and that the rubber plates are firmly secured with screws, and
that the rubber plates are facing the correct direction. Perform a test run to ensure
that the motor turns freely.
SECURING THE EXTENSION CORD
WARNING! Electric shock may cause SEVERE INJURY or DEATH.
• Do not allow any part of snow blower to make contact with water while powered
on. If the snow blower becomes wet while turned o, wipe dry before starting.
• Use only a UL, CSA, or ETL rated extension cord for outdoor, all weather use. Do
not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands or while standing in water.
Wearing rubber boots oers some protection.
EXTENSION CORD CHART
Cord Length 50 ft (15 m) 100 ft (30 m)
Wire Gauge 14 AWG 12 AWG
1. For safe and ecient use of your snow blower, use only a Ul-rated extension cord
recommended for outdoor use.
Fig. 18 Fig. 19 Fig. 20
2. Push the loop of the extension cord through the slot from the opposite side
of the restraint hook. Position the loop over the hook and pull the cable back
through the slot (Fig. 18).
3. Insert the female end of the extension cord into the appliance's polarized male
plug (Fig. 19).
4. Note that the snow blower has a polarized male plug-one prong in the plug is
slightly longer and wider than the other (Fig. 20). The extension cord female end
should be likewise polarized so that the extension cord fits snugly into the snow
blower plug.
WARNING! Damaged electrical cords present risk of fire, electrical shock,
and serious bodily injury. Before operating the snow blower, carefully examine
the electrical cord. If the cord is damaged, do not use the snow blower. Replace
or repair the damaged cord immediately.
5554-513
22" ELECTRIC SNOW BLOWER
10
OPERATION
POWERING ON AND OFF
Fig. 21 Fig. 22 Fig. 23
1. To power on, depress and hold the safety switch button found alongside the
switch housing (Fig. 21 ).
2. While depressing the safety switch button, pull the ON/OFF switch bail toward
you. Once the machine powers on, release the safety switch button and begin
operation (Fig. 22). The machine can only be started by depressing the safety
switch button first, followed by squeezing the ON/OFF switch bail; reverse
operation will not start the machine.
3. To power o, release your grip on the ON/OFF switch bail.
4. The LED light can be used to illuminate the surface in front in the dark. To use
the light, turn on the light switch located on the back side of the snow blower
(Fig. 23).
NOTE: The light will only turn ON when the snow blower is running. After
finishing your work session, REMEMBER to TURN OFF the light switch.
MOVING THE MACHINE & PLOWING THE SNOW
WARNING! Foreign objects, such as rocks, broken glass, nails, wire, or
string, can be picked up and thrown by the snow blower, causing serious
personal injury. Remove all foreign objects from the area to be plowed before
operating the snow blower.
1. Keep the area of operation free of foreign objects that can become thrown by the
rotating paddle. Perform a thorough inspection of the area since some objects may
be hidden from view by surrounding snow. If the snow blower hits an obstruction
or picks up a foreign object during use, stop the snow blower, disconnect the
extension cord, remove the obstruction, and inspect the unit for damage. Repair
or replace any damaged part before restarting and operating the unit.
2. Keep children, pets, and bystanders away from the area of operation. Be aware
that the normal noise of the machine when turned on may make it dicult for
you to hear approaching people.
3. When moving the snow blower, use the wheels on one side as the pivot point.
Slightly tilt the snow blower on this pivot point to move it forward or backward.
4. Start your clearing path near the electrical outlet and work outward, throwing
snow in a back and forth motion. To clear in the opposite direction, step over the
cord and pivot the snow blower on its wheels. Make sure to overlap clearing paths.
11
5. Note the wind direction. If possible, move in the same direction as the wind so
that the snow is not thrown against the wind (and then back into your face and
onto the just cleared path).
6. While moving the snow blower, do not drag the power cable violently or roughly.
The snow blower should move within the range that the cable can reach.
7. Do not push the snow blower with excessive force. You should push the machine
gently and evenly in accordance with the unit's throw rate.
8. Do not apply additional man-made load to the engine since this may cause
engine damage.
9. Some parts of the snow blower may freeze under extreme temperature
conditions. Do not attempt to operate the snow blower with frozen parts. If the
parts freeze while the snow blower is in use, stop the snow blower, unplug the
extension cord, and inspect for frozen parts. Free all parts before restarting or
operating the snow blower. Never force controls that have frozen.
10.When working on pebbles, gravel, or unpaved surfaces, avoid throwing loose
surface material along with the snow by pushing down on the handle to raise the
scraper bar at the base of the unit above the pebbles or gravel.
CHANGING THROW DIRECTION AND THROW HEIGHT
Fig. 24 Fig. 25 Fig. 26
1. The discharge chute can be adjusted 180 degrees by rotating the chute crank.
Rotate the chute control crank clockwise to move the discharge chute to the left
(Fig.24) and counterclockwise to move the chute to the right (Fig.25).
NOTE: A little lubricant, such as WD-40, will provide a smoother operation
of the chute (spray at points A and B as indicated in Fig. 24).
2. The chute deflector on the top of the discharge chute controls the height of
the snow stream. Loosen the knob to raise or lower the deflector to the desired
height of snow you wish to throw. Tighten the knob to secure the deflector
(Fig. 26).
WARNING! Never direct the snow discharge chute at the operator, at
bystanders, at vehicles, or at nearby windows. The discharged snow and foreign
objects accidentally picked up by the snow blower can cause serious damage and
personal injury. Always orient the discharge chute in the opposite direction from
where you, bystanders, surrounding vehicles, or windows are located.
5554-513
22" ELECTRIC SNOW BLOWER
12
WARNING! Make sure that the chute deflector snaps and locks completely
onto the discharge chute. An opening between the discharge chute and the
chute deflector may allow foreign objects to be picked up by the snow blower
and thrown in the direction of the operator causing serious bodily injury. Do
not advance the chute deflector too far forward causing an opening to appear
between the deflector and discharge chute. Do not overtighten the knobs on
the chute deflector (Fig. 26).
MAINTENANCE
SERVICING
Servicing should be performed by a qualified technician. Replacement parts for
this snow blower must be identical to the parts that they replace. If repairs are
necessary, contact the toll-free helpline at: 1-833-818-4111.
STORAGE
• Allow the engine to cool completely before cleaning, storing, or transporting the
snow blower. Be sure to secure the unit while transporting.
• Disconnect the extension cord from the snow blower. Inspect the extension cord
closely for signs of wear or damage. Replace it if it is worn or damaged.
• Run the snow blower for a few minutes in order to melt any snow that may be left
on the snow blower.
• Wipe the snow blower o with a dry cloth before storage. This will help prevent ice
building up on the unit and parts freezing.
• Inspect the snow blower thoroughly for worn, loose, or damaged parts. If any parts
must be repaired or replaced, contact the toll-free helpline at: 1-833-818-4111.
• Store the snow blower in a clean, dry place. Cover it in order to provide
added protection.
NOTE: Identify the left and right sides of the snow blower when standing in
the normal operating position.
LIFETIME LUBRICATION (MOTOR AND PADDLE)
Lubrication is not necessary and may damage the unit. The snow blower is
lubricated for lifetime use at the factory before shipment.
GENERAL MAINTENANCE TIPS
1. Do not attempt to repair the machine unless you have the proper tools and
instructions for disassembly and repair of the machine.
2. Check bolts and screws at frequent intervals for proper tightness to ensure that
the equipment is in safe working condition.
3. After each snow removal session, run the snow blower for a few minutes to
prevent the collector/paddle from freezing. Shut o the motor, wait for all
revolving parts to stop completely, and wipe residual ice and snow o the unit.
Rotate the chute crank several times to remove any excess snow.
13

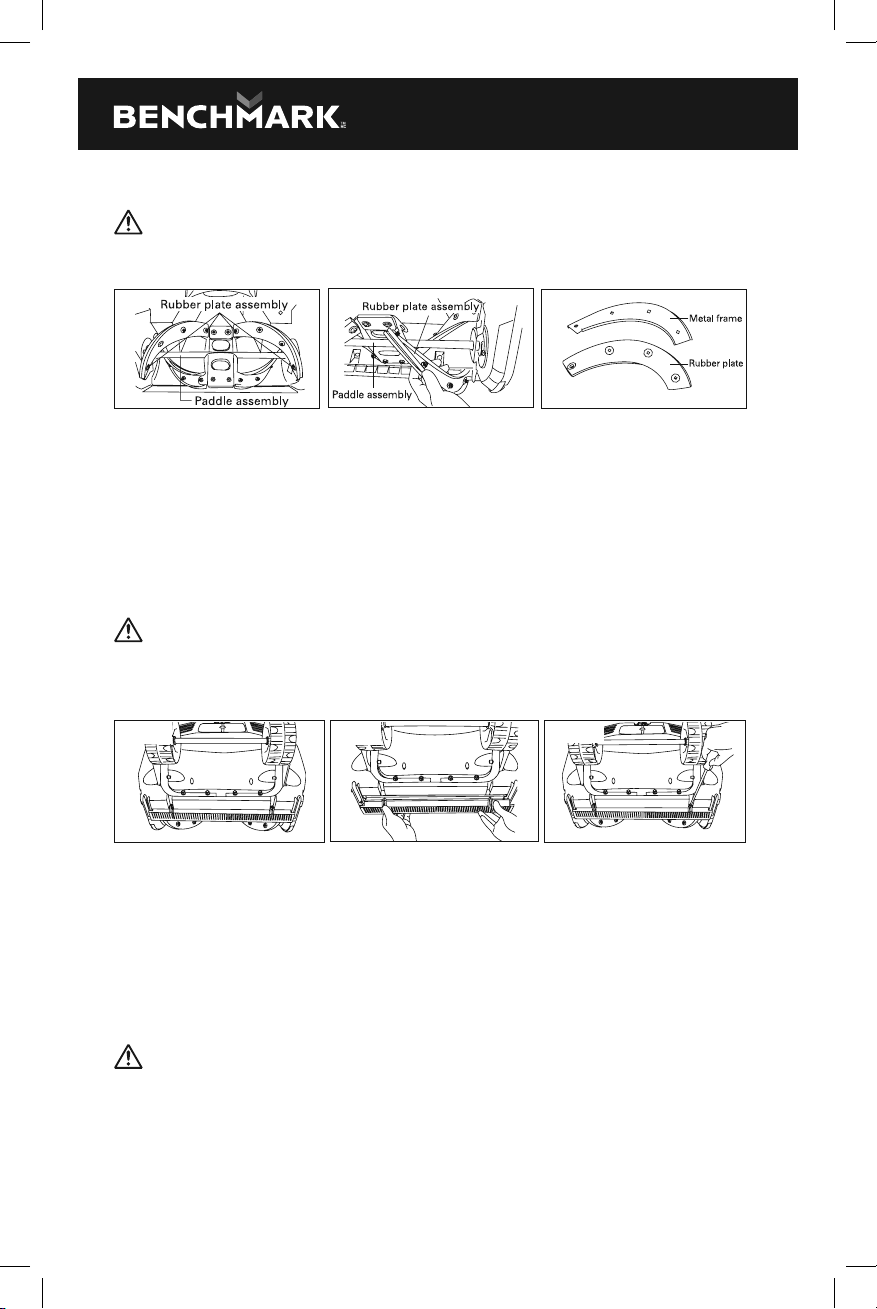

REPLACING THE RUBBER PLATES
NOTE: When replacing worn rubber plates, pay close attention to carefully
distinguish between the coarse and smooth side of the plates. Place the coarse
side inside and the smooth side outside.
Fig. 27 Fig. 29Fig. 28
1. Detach the worn rubber plate assembly by removing the two sets of nuts and
bolts used to secure it to the paddle assembly (Figs. 27 & 28).
2. Loosen the middle two sets of nuts and bolts to detach the worn rubber plate
from the metal frame (Fig. 29).
3. Attach the new rubber plate onto the metal frame by replacing and tightening
the middle two sets of nuts and bolts (Fig. 29).
4. Reassemble the rubber plate assembly to the paddle assembly by replacing and
tightening the two sets of nuts and bolts used to secure it.
WARNING! Make sure to turn o the switch and disconnect the extension
cord before performing any maintenance task on your snow blower.
REPLACING THE RUBBER PLATES
Fig. 30 Fig. 31 Fig. 32
1. The scraper bar is located at the base of the snow blower beneath the rotor
housing (Fig.30).
2. Detach the worn scraper bar from the snow blower by removing the two screws
that hold it in place (Fig. 31 ).
3. Install the new scraper bar and fasten it securely to the snow blower with the two
screws (Fig. 32).
REPLACING THE BELT AND PULLEY
NOTE: Determine the left and right hand side of the snow blower by
standing behind the unit in the normal operating position.
1. Remove the screws from the left panel of the snow blower and remove the left
panel (Fig. 33).
2. Lift the belt tension pulley and roll the worn belt up and o the big pulley from
the top of the big pulley (Fig. 34).
5554-513
22" ELECTRIC SNOW BLOWER
14
Fig. 33 Fig. 34
Belt tension
Loosen Belt
Tighten Big pulley
3. To replace the big pulley, remove the screw and washer from the middle of the
pulley. While securing the paddle, so it does not spin, use a 7/ 8-inch socket
to turn the outer nut of the pulley clockwise (the pulley is left-handed, so
loosening and tightening occur in reverse orientation; clockwise to loosen and
counterclockwise to tighten). Once the old pulley is removed, replace the big
pulley and tighten the outer nut counterclockwise with the 7/ 8-inch socket.
Replace and tighten the screw and washer (Fig. 34).
NOTE: Heavy wet snow puts a load on belts, thus requiring more frequent
belt replacement.
4. To install the new belt, lift the belt tension and roll the new belt onto the little
pulley at an angle. Then roll the belt onto the top of big pulley by rotating the big
pulley counterclockwise as the belt grips the top of the big pulley (Fig. 34).
5. Replace the left panel of the snow blower with all screws (Fig. 33).
AUTOMATIC RESET
This snow blower has built-in automatic reset functions. In the event of a major
obstruction that halts paddle movement, simply unplug your unit, clear the paddle
obstruction, wait 60 seconds, and then resume use of your machine.
15
SAFETY SYMBOLS
Voltage
Current
Frequency (cycles per second)
Power
Time
Rational speed, at no load.
Double-insulated construction.
Revolutions, strokes, surface speed, orbits etc., per minute.
SAFETY ALERT - Indicates a precaution, a warning, or a danger.
WARNING! Do not expose the unit to rain or wet conditions. Keep dry.
To reduce the risk of injury user must read and understand
operator's manual before using this product.
Always wear safety goggles or safety glasses with side shields, and
as necessary a full face shield as well as full ear protection when
operating this product.
Stop the machine before leaving the machine. The rotating part will
continuously run for several seconds after you turn o the machine.
Thrown objects can ricochet and result in personal injury or
property damage.
Danger-Keep hands and feet away from openings while the machine
is running. Do not use hands to unclog chute. Stop motor and unplug
the machine before removing debris.
Keep all bystanders and domestic animals a safe distance away from
the work area.
Keep hands away from moving parts.
Keep hands and feet away from rotating parts.
Keep hands away from the moving parts of the snow blower. The
rotating parts can cause severe bodily injury.
5554-513
22" ELECTRIC SNOW BLOWER
16
Always keep the power cable away from heat sources, oils, or sharp
edges. Immediately remove plug from the mains if the cable is
damaged or entangled.
Wear safety gloves during use to protect hands. Wear safety
footwear at all times to provide protection against objects that may
accidentally fall on feet.
WARNING! Electrical shock hazard.
Keep the flexible power supply cord away from the rotating paddle.
WARNING! Turn the machine OFF and disconnect it from the
power supply before inspecting, cleaning, changing accessories or
conducting any other maintenance task.
17
KNOW YOUR 22" ELECTRIC SNOW BLOWER
• Carefully remove the product and any accessories from the box. Make sure that
all items listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the product.
• If any parts are damaged or missing, please call 1-833-818-4111 for assistance.
1.Handle bar
2. Bail lever
3. Safety switch button
4. Power cord
5. Cable restraint holder
6. Joint fixing t-bolt & knob- 4 pieces
7. Discharge chute
8. Carrying or lifting handle (For transport only)
9. LED light
10. Main cover
11. Paddle
12. Scraper bar
13. Wheel
14. Lower frame
15. LED light switch
16. Chute clean-out tool
17. Lower chute crank
18. Middle frame
19. Upper chute crank
5554-513
22" ELECTRIC SNOW BLOWER
18
WARNING! If any parts are damaged or missing, do not operate this product a
until the parts are replaced. Using a product with damaged or missing parts could
result in serious personal injury.
WARNING! Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or modification is
misuse and could result in a hazardous condition leading to possible serious
personal injury.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The handle is not in position. The bolts are not
properly seated.
Make sure the bolts are correctly
installed through the handlebars.
Check to see if the hand knobs are
tight. Refer to Assembling the Handle,
page 9.
The snow blower does
not start.
The switch is defective.
The extension cord is not
connected to the plug.
The extension cord is not
connected to the power source.
Have the switch replaced by an
authorized service centre.
Connect the plug on the snow blower
to the extension cord.
Plug the extension cord into a live
120VAC, 60 Hz outlet.
The motor is on, but the
impeller does not turn. The belt is damaged. Replace the belt. Refer to Replacing
the Belt and Pulley, page 15.
The snow blower leaves a
thin layer of snow behind. The scraper is worn.
Inspect the scraper for wear or
damage. Replace the scraper. Refer to
Replacing the Scraper Bar, page 15.
19
EXPLODED VIEW
Table of contents
Other Benchmark Snow Blower manuals
