Beneston VCF-HMF01TXRX User manual

User Manua
l
Mini 3G-SDI Optical
T ra n sce i ver
VCF-HMF01TXRX
NOTE: The casing design is subject to change without notice.
Our Mini SD/HD/3G-SDI optical transceiver is an Ultra -mini and economical version
device. It’s a perfect and economic extra long extender to transmit SD/HD/3G-SDI video,
embedded audio via fiber-optic cable.
This device includes a transmission and a receiving. Support to SMPTE292M, SMPTE259M
standards, as well as DVB-ASI (EN50083-9) digital TV signal format.
The device could extend 3G-SDI transmission distance via fiber cable up to 20km.
Features
Support 1channel 3G-SDI video and audio signal.
SD/HD/3G-SDI input automatic detection.
Support data rate from 270M bit/s to 2.97G bit/s.
Transmission distance from 0 to 20KM via single mode and single fiber.
Support SMPTE424M (2.97Gbps ), SMPTE292M (1.485Gbps), SMPTE259M (270Mbps),
and DVB-ASI signal.
Support plug and play function.
Operation status indicator.

2
Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.
Disposal of Old Electrical & Electronic Equipment (Applicable in the
European Union and other European countries with separate collection
systems).
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the
product.
Caution ..
1. Handle this product with care
Avoid any shock or bumping of the product. Improper handling could damage the
product. Do not handle the unit with wet hands. Provide proper ventilation and air
circulation and do not use near water.
2. Requires a proper operating environment
This product is not waterproof and is designed for indoor use. The allowable temperature
range for operation of this product is between 0°C~40°C / 32°F~104°F.
3. Check the power source voltage
The power source voltage should be within the specified range. (Product must
meet the specifications).
4. Objects and liquid entry
Never push objects of any kind into this product as this may touch dangerous voltage
points of short out parts that could result in a fire or electric shock. Never spill any kind of
liquid on the product.
5. Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
6. Servicing
Do not attempt to service this product by yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all service to qualified
servicing personnel

3
.Package Contents
1. One (1) Transmitter and One (1) Receiver
3. One (1) User Manual
4. One (1) AC Adapter
1 . 2. 3. .
For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged.
Technical Specifications
Model
Mini 1CH SD/HD/3G-SDI fiber extender
Input interface
TX: 1 3G-SDI, BNC
RX: 1 fiber, LC interface
Output interface
TX: 1 Fiber, LC interface
RX: 1 3G-SDI, BNC
Optical Type
3 Gbps SFP optical module
single module is 1310/1550nm wavelength
Max. Distance
200KM Single mode
Connector
LC
Transmitted power
-5dbm～-10dbm
Maximum Receiving
-28dBm
Signal Type
SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
3G-SDI (2.97Gbps )
Support Input Format
SD: 525i@59.94Hz, 625i@50Hz
HD: 720p@25Hz / 29.97Hz / 30Hz
720p@50Hz / 59.94Hz / 60Hz
1080i@50Hz / 59.94Hz / 60Hz
1080p@23.98Hz/24Hz/25Hz/29Hz/30Hz
3G-SDI : 1080p 50/59.94/60Hz
Video Standard
SMPTE 424M, SMPTE 292M and SMPTE 259M
Power Supply
DC12,1A
Power Consumption
3~5 Watts
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Relative Humidity
20%~90% RH (Non-condensation)
Dimension
115 X 25 X 25MM
*Specifications are subject to change without notice

4
Key Components ..
Components Made in USA for this product:
Name of Component
Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer
Gennum
Multi-Rate Dual Slew-Rate Cable Driver
Mindspeed & Gennum
*Key components are listed by the manufacturer and are subject to change without notice

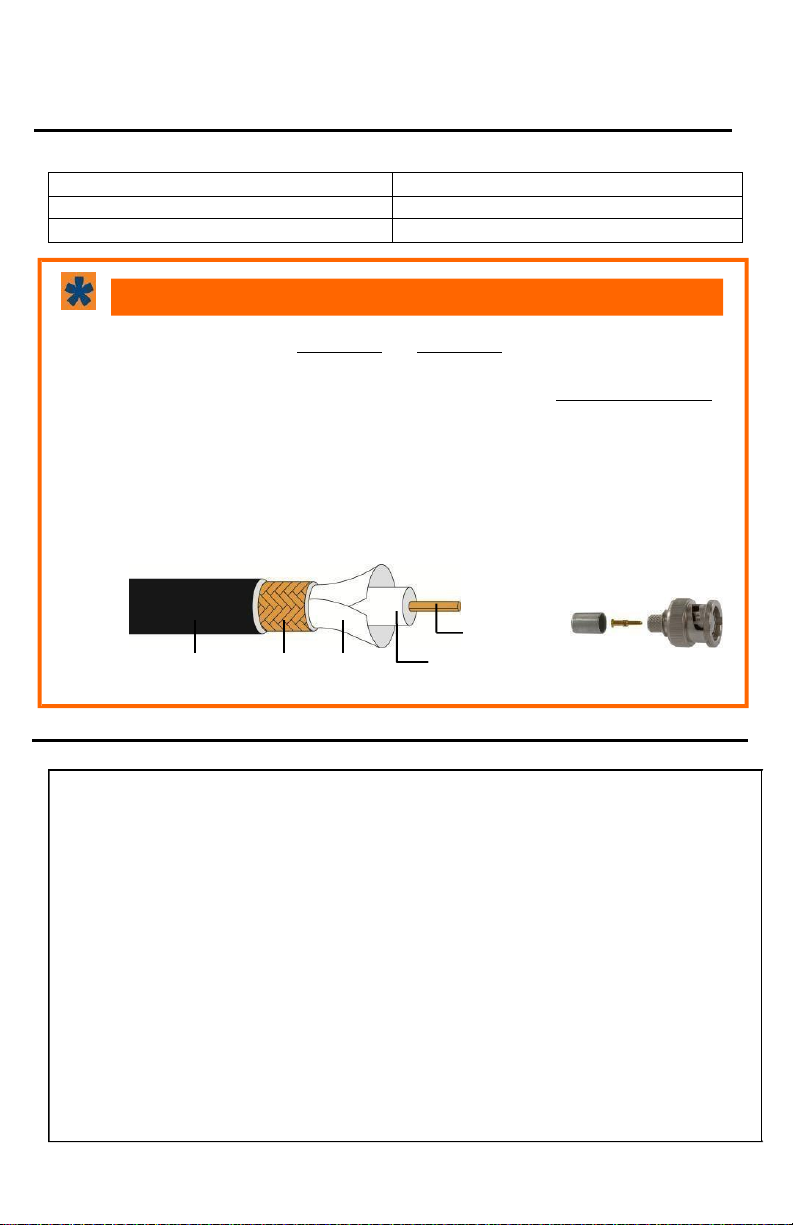

NOTE: Cable & Connector for HD-SDI camera
In order to achievethe Best Quality and Long Range coax cable run of up to 200m /
600ft, you will need:
1. Good QualityCable: We suggest using RG6 Belden 1694A Low Loss Serial Digital
coax cable because RG6 cables have better grounding than RG59 cables. RG6 is for
Digital Signal and RG59 is for Analog Signal.
2. Good QualityBNC Connectors: Contact Plating Gold plated pins provide
exceptional conductivity.
3. Good QualityInstallation: Do not over cut the braid because it will affect the
grounding. The image will have lines and noise.
Bare Copper
Jacket Braid Shielding
Conductor
Dielectric Contact Plating
Gold Plated Pin
