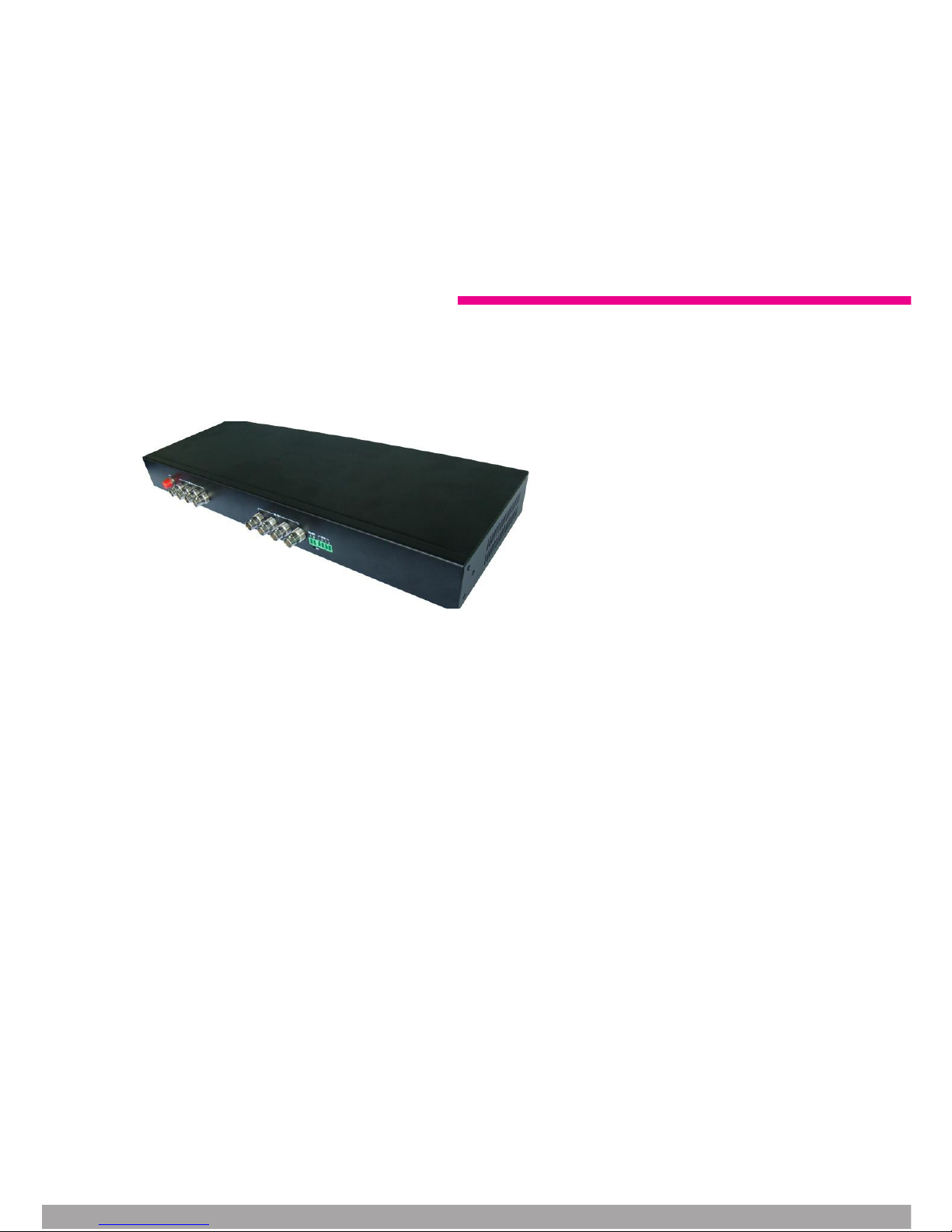

Beneston VCF-FB08TX&RX User manual

Our 8CH SD/HD-SDI Optical Transceiver is to transmit
HD/HD-SDI video to up to 20KM with RS485 data
and/or independent audio input/output via single fiber
This kit include a transmitter and receiver.
Transmitter is used as sending and Receiver is used
as receiving .System support in accordance with
SMPTE424M, SMPTE292M, SMPTE259M standard,
as well as DVB-ASI (EN50083-9) digital TV signal
format.
* Support 8 channel SD/ HD-SDI video
* SD/HD-SDI input automatic detection, supported
transmission rate from 270M bit/s to 1.485G bit/s
* Transmission distance is from 0km to 20KM via single
mode fiber.
* Support SSMPTE 292M (270Mbps),MPTE 259M
(1.485Gbps and DVB-ASI signal
* Support plug and play function
* Operation status indicated by LED
®
BENESTON
USER MANUAL
HD-SDI Optical Transceiver
Features
VCF-FB08TX&RX
V00150213-U(1)
VCF-FB08TX&RX

Please read the Manu al before attem pting to use this product.
Specifications and appearance are subject to change without notice.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
Caution ..
1. Handle this product with care
Avoid any shock or bumping of the product. Improper handling could damage the product. Do
not handle the unit with wet hands. Provide proper ventilation and air circulation and do not
use near water.
2. Requires a proper operating environment
This product is not waterproof and is designed for indoor use. The allowable temperature
range for operation of this product is between 0?C~40?C / 32°F~104°F.
3. Check the power source voltage
The power source voltage should be within the specified range. (Product must meet the
specifications).
4. Objects and liquid entry
Never push objects of any kind into this product as this may touch dangerous voltage points of
short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the
product.
5. Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
6. Servicing
V00150213-U(1)
VCF-FB08TX&RX

Do not attempt to service this product by yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.
Package Contents ..
1. One (1) Transmitter
2. One (1) Receiver
3. One (1) User Manual
4. One (1) AC Adapter
1. 2. 3.
For any returns, please include all components listed above with original packaging in Resalable
Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
Parts & Functions ..
Front panel
Rear panel
Name Description
OPT Optical interface, bi-directional, adopts FC connector
HD-SDI IN [1:8] HD-SDI input 1/2/3/4/5//6/7/8
OUT [1:8] HD-SDI output1/2/3/4/5/6/7/8
RS485 RS485 serial management interface, adopts PHOENIX connector
V00150213-U(1)
VCF-FB08TX&RX

A RS485 positive terminal
B RS485 negative terminal
AUX
One auxiliary channel, which can be 2-channel bi-directional audio, or
2-channel unidirectional audio, or 4-channel unidirectional audio, or 2-channel
contact closure input/output, or 1-channel bi-directional RS422 , or 2-channel
bi-directional RS232 channel. Refer to table 2-1-3 for more.
AUX interface
AUX interface No. Name Description
2-channel
bi-directional audio
1 AOUT1 Audio channel -1 output
2 AOUT2 Audio channel -2 output
3 G Ground
4 AIN1 Audio channel -1 input
5 AIN2 Audio channel -2 input
2-channel
unidirectional audio
input
1 AIN1 Audio channel -1 input
2 AIN2 Audio channel -2 output
3 G Ground
4 -- --
5 -- --
2-channel
unidirectional audio
output
1 AOUT1 Audio channel -1 output
2 AOUT2 Audio channel -2 output
3 G Ground
4 -- --
5 -- --
4-channel
unidirectional audio
Input
1 AIN1 Audio channel -1 input
2 AIN2 Audio channel -2 input
3 G Ground
4 AIN3 Audio channel -3 input
5 AIN4 Audio channel -4 input
4-channel
unidirectional audio
Output
1 AOUT1 Audio channel -1 output
2 AOUT2 Audio channel -2 output
3 G Ground
4 AOUT3 Audio channel -3 output
5 AOUT4 Audio channel -4 output
V00150213-U(1)
VCF-FB08TX&RX

Note: The AUX interface of transmitter and receiver are used in pairs, e.g. if transmitter use 2-channel
unidirectional audio output interface, receiver should use 2-channel unidirectional audio input interface.
Technical Specifications ..
Model 8CH HD-SDI optical transceiver
Input 8 ch BNC (75 ohm,SDI )
Signal Type SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)
Support Input Format
SD: 525i @ 59.94Hz, 625i @ 50Hz
HD: 1080P@30,25,24, 1080I@60,50 and
720P@60,50,30,25,24
Video Standard SMPTE 292M and SMPTE 259M
In-out electrical level 800mVp-p±10%
Audio Independently two channel audio input/output
Digital Audio 48KHz
AES digital audio channel 8CH
Fiber interface FC/PC ( SC to custom)
Fiber type Single Mode, Single Fiber
Wavelength 1310/1550nm
Max. Distance 0m-20Km
Transmitted power -5dbm～-10dbm
Maximum Receiving Sensitivity -28dBm
DATA comm. method RS-485/Half duplex
Power Supply AC 100-260v
Power Consumption 3~5 Watts
Operating Temperature 0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Relative Humidity 20~90% RH (Non-condensation)
Dimension 19in,1 U tall ,155mm wide
Weight 5000 g (Tx and Rx)
*Specifications are subject to change without notice
Key Components ..
Components Made in USA for this product:
Name of Component Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer Gennum
Multi-Rate SDI Automatic Reclocker Gennum
Multi-Rate Dual Slew-Rate Cable Driver Mindspeed & Gennum
SDI SPD Bourns
HDMI ESD Protection Semtech
Micro Controller Unit Texas Instruments
Components Made in China for this product:
Name of Component Manufacturer
V00150213-U(1)
VCF-FB08TX&RX

DC/DC Converter Richtek
*Key components are listed by the manufacturer and are subject to change without notice
Application Diagram ..
* The distance depends on the quality of the SDI signal from the HD camera source and also the Coax
Cable & Connector
Install Guide :
1) Connect the SDI source (such as SDI CAM ) to the SDI IN of Transmitter
2) Connect the SDI out of Receiver to HDTV display or SDI device like SDI converter ,SDI
DVR
3) Use the quality FC patch cord to connect FC connector of the transmitter and Receiver
and then connect to the fiber-optic cable pigtail
4) Connect the output data port of Receiver (eg. TX+ and TX-) of other control device
such as Keyboard to the RX+ and RX- of the RX.
Connect the input data port of transmitter (eg. RX+ and RX-) of other under- controlled
device s such as SDI camera to the TX+ and TX- of the TX. GND in both TX and RX should
be connected directly to user’s equipment.
5) Plug two pieces of 12V power supply into the transmitter and Receiver.
6) Power on the other devices like SDI camera and SDI DVR , HDTV monitor ect

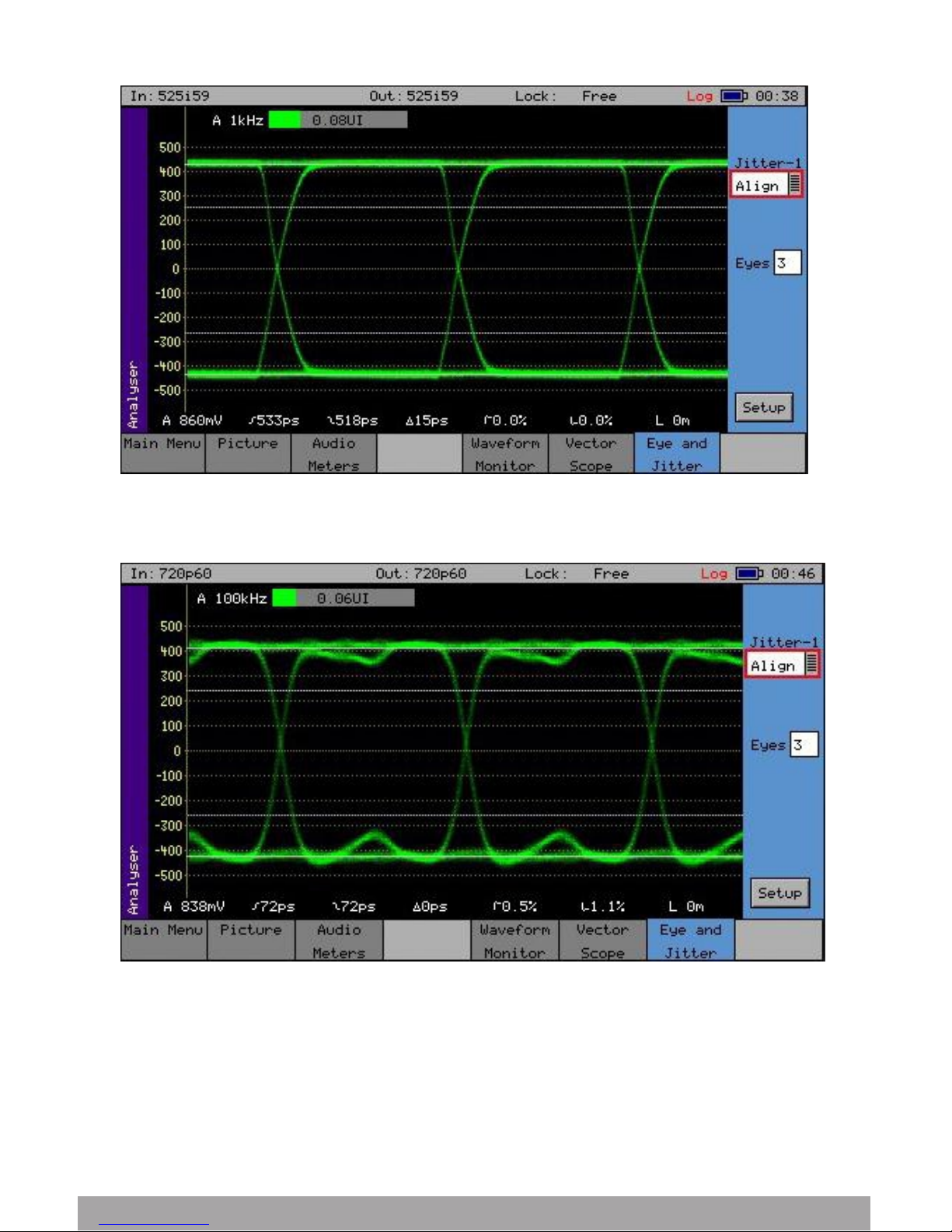

Eye Diagram ..
SD Mode
525i59
V00150213-U(1)
VCF-FB08TX&RX

HD Mode
720P60
V00150213-U(1)
VCF-FB08TX&RX

1080P30
V00150213-U(1)
VCF-FB08TX&RX

IMPORTANT NOTE: Cable & Connector for HD Camera
In order to achieve the Best Quality and Long Range coax cable run of up to 200m /
600ft, you will need:
1. Good Quality Cable: We suggest using RG6 Belden 1694A Low Loss Serial Digital
coax cable because RG6 cables have better grounding than RG59 cables. RG6 is
for Digital Signal and RG59 is for Analog Signal.
2. Good Quality BNC Connectors: Contact Plating Gold plated pins provide
exceptional conductivity.
3. Good Quality Installation: Do not over cut the braid because it will affect the
grounding. The image will have lines and noise.
Bare Copper
Jacket Braid Shielding
Limited Warranty ..
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of
anyone else that this product at the time of its sale by Manufacturer is free of defects in
materials and workmanship under normal and proper use for one (1) year from the
purchase date. Manufacturer's only obligation is to correct such defects by repair or
replacement, at its option, if within such one (1) year period the product is returned prepaid,
with proof of purchase date, and a description of the problem. This warrant excludes and
there is disclaimed liability for labor for removal of this product or reinstallation. This
warranty is voided if this product is installed improperly or in an improper environment,
overloaded, misused, opened, abused, or altered in any manner, or is not used under
normal operating conditions or not in accordance with any labels or instructions. There
are no other implied warranties of any kind, including merchantability and fitness or a
particular purpose, but if any implied warranty is required by the applicable jurisdiction, the
duration of any such implied warrant, including merchantability and fitness of or a particular
purpose, is limited to one (1) year.
Manufacturer is not liable for incidental, indirect, special, or consequential damages,
including without limitation, damage to, or loss of use of, any equipment, loss sales
or profits or delay or failure to perform this warranty obligation. The remedies,
provided therein are the exclusive remedies under this warranty, whether based on
contract, tort or otherwise.
Conductor
Dielectric Contact Plating
Gold Plated Pin
V00150213-U(1)
VCF-FB08TX&RX
