BERG BVER23 User manual
Upright Chiller & Freezer
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately. See page 2.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS
BVER23 BVEF23
050715
™
052015
Service and Installation Manual
2
CONTENTS
RECEIVING & INSPECTING EQUIPMENT………………………………………..…………………2
SPECIFICATIONS…………………………………………………….……………………….………3
INSTALLATION………………………………………………………………………….…………..….4
OPERATION………..……………………………………………………………………..……………5
MAINTENANCE……………………………………………………………………….……………….7
WIRING DIAGRAM………………………………………………………………………………….…...9
All rights reserved. Reproduction without written permission is prohibited.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand
side near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the customer service department
at the number listed on the last page.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not
damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and
reported to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the
equipment, notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This should be done within
10 days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the refrigeration package.
Be sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.
Service and Installation Manual
3
SPECIFICATION
MODEL#
V/Hz/Ph
AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU/H
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
BVER23 115/60/1 4 23 1/4 830 11.99 232 5-15P
BVEF23 115/60/1 7 23 3/4 1966 10.58 249 5-15P
Service and Installation Manual
4
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much
as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack the units so full that air cannot circulate. The refrigerated air is discharged at the top rear of the
unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to this
air flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the
evaporator drain pan. The shelves have a rear turn up on them to prevent this. However, bags and other
items can still be located to the far rear of the cabinet. Air is brought into the evaporator coil with fans mounted
to the front of the coil.
Outside cabinet:
Be sure that the unit has access to ample air. Avoid hot corners and locations near stoves and ovens. It is
recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space above
the unit.
Leveling
A level cabinet looks better and will perform better because the doors will line up with the frames properly.
Use a level to make sure the unit is level from front to back and side to side. Ensure the floor where the unit
is to be located is level.
Stabilizing
All models are supplied with casters for your convenience, ease of cleaning underneath and for mobility. It is
very important, however, that the cabinet be installed in a stable condition with the front wheels locked while
in use. Should it become necessary to lay the unit on its side or back for any reason, allow at least 24
hours before start-up to allow compressor oil to flow back into place. Failure to meet this requirement can
cause compressor failure and unit damage.
Unit repairs will not be subject to standard unit warranties if due to improper installation
procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be sure
the unit is connected to the proper power source.
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.
Service and Installation Manual
5
OPERATION
Do not throw items into the storage area. Failure to heed these recommendations could result in damage to
the interior of the cabinet.
Refrigerated cycle
Refrigerators: During the refrigeration cycle, the evaporator fans willrun continuously even when one
or more doors are open.
1. Every 6 hours, the unit will turn off and to allow the evaporator coil to defrost. The controller now
displays the defrost symbol. When the coil temperature reaches 41° or after 20 minutes of defrost, the
unit will turn on again.
2. The factory setting for the temperature range is 34° to 38° F.
Freezers: During the refrigeration cycle the controller supplies power to the condensing unit and
evaporator fan motors. The evaporator fans will run at any time the evaporator coil temperature is below
35° F, but cycle off during a defrost period and when door is open.
1. Every 6 hours, the unit will turn off and electric heater will turn on to start the defrost cycle. The
controller now displays the defrost symbol. When the coil temperature reaches 45° or after 20 minutes of
defrost, the unit will turn on again.
2. The factory setting for temperature range is -1° to -3°F
On/Off Switch:
An on/off switch is located on the front of the panel. When the unit is on, the switch will glow green.

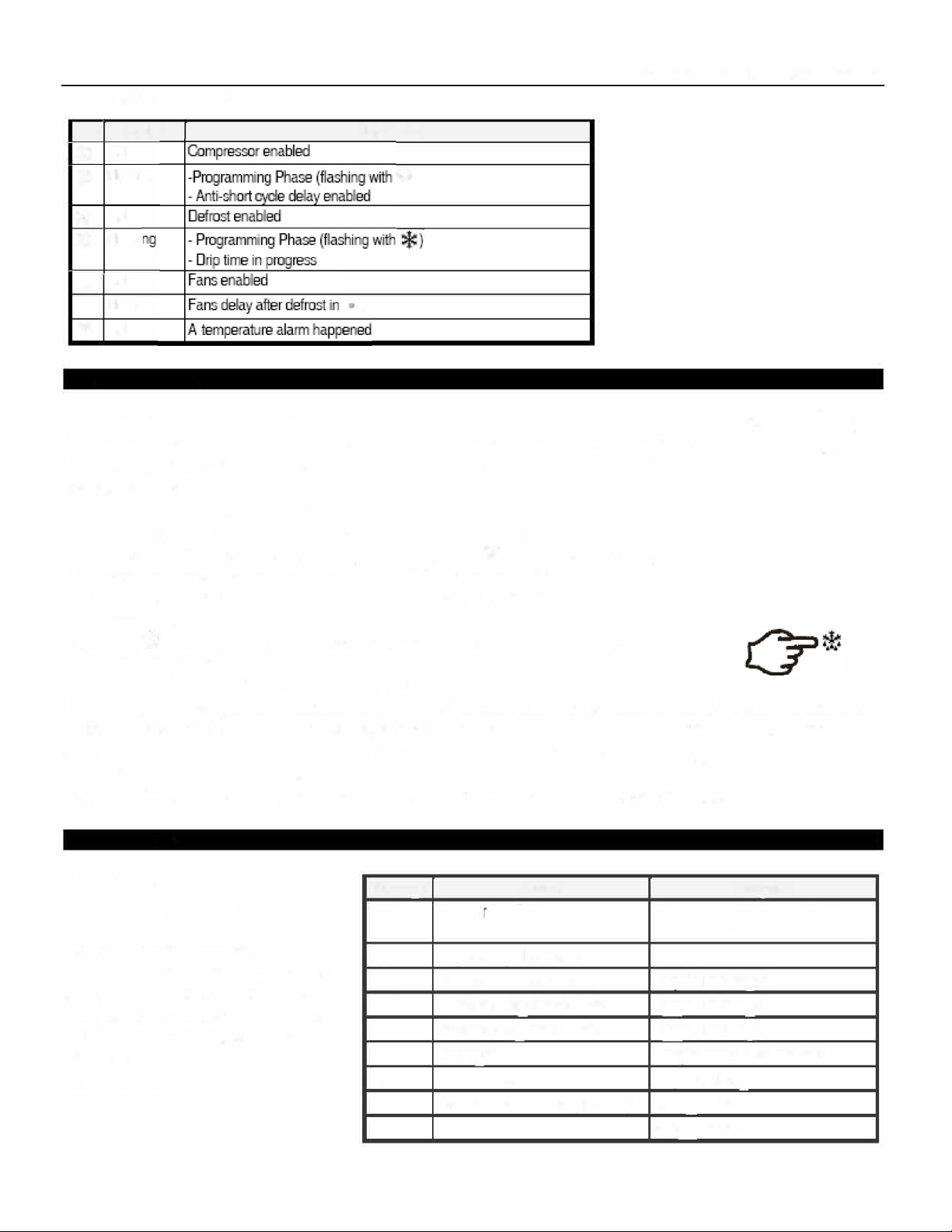

SOLID-STATE THERMOSTAT DESCRIPTIONS

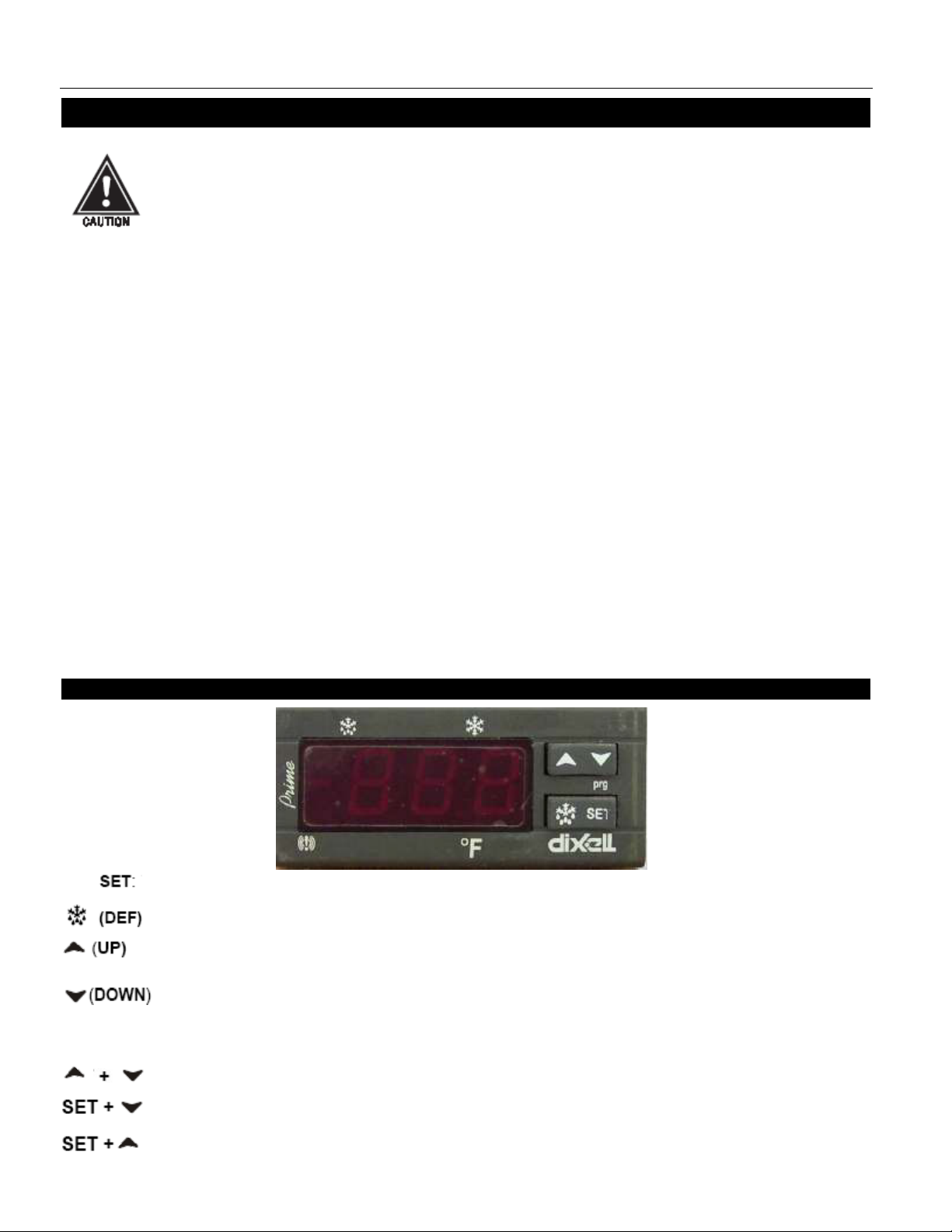

1. FRONT PANEL COMMANDS
To display target set point; in programming mode it selects a parameter or confirms an operation.
To start a manual defrost
To view the latest alarm occurrence; in programming mode it browses the parameter
codes or increases the display value
To view the latest alarm occurrence; in programming mode it browses the parameter
codes or decreases the display value
KEY COMBINATION
To lock & unlock the keyboard
To enter in programming mode
To return tothe roomtemperature display
Seice and Insllation Manual
�
'i
)
SET�
W
or
0
or v
"Pr
"p3•
M
u
01 OUU
--
Service and Installation Manual
7
MAINTENANCE
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and
water or a nonabrasive liquid cleaner.
Do not use an abrasive cleaner because it will scratch the plastic and can damage the breaker strips
and gaskets.
CleaningtheCondenserCoil
The condenser coil requires regular cleaning, and is recommended every 90 days. In some instances, you
may find that there is a large amount of debris, dust or grease accumulated prior to the 90 day time frame.
In these cases the condenser coil should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris, the condenser coil can be cleaned with a
simple brush. Heavier dust build-up may require a vacuum or even compressed air to blow through the
condenser coil.
If heavy grease is present, there are de-greasing agents available for refrigeration use and specifically for
the condenser coils. The condenser coil may require cleaning with the de-greasing agent and then blown
through with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times.
Continuous operation with dirty or clogged condenser coils can result in compressor failures. Neglecting the
condenser coil cleaning procedures will void any warranties associated with the compressor or cost to
replace the compressor.
Never use a high pressure water wash for this cleaning procedure as water can damage the
electrical components located near or at the condenser coil.
In order to maintain proper refrigeration performance, the condenser fans must be cleaned of dust, dirt and
grease regularly. It is recommended that this be done at least every three months. If conditions are such that
the condenser is totally blocked in three months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercial-grade condenser cleaner may
be required.
Service and Installation Manual
8
MAINTENANCE
Cleaning solutions need to be alkaline based or non-chloride based. If cleaners containing chlorides are
used, be sure to rinse and dry thoroughly. Routine cleaning can be done with soap and water. Extreme
stains or grease should be cleaned with a non-abrasive cleaner and plastic scrub pad. It is always good
to rub with the grain of the steel.
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of the
gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength cleaning
products on gaskets as this can cause them to become brittle and prevent proper seals. Do not use sharp
tools or knives to scrape or clean the gasket which could possibly tear the gasket and rip the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorized service technicians.
The gaskets are "Dart" style and can be pulled out of the groove in the door and be replaced by pressing
the new one back into place.
Doors/Hinges
Over time and with heavy use, door hinges may become loose. If the door is beginning to sag, tighten the
screws that mount the hinge brackets to the frame of the unit. If the doors are loose or sagging, this can
cause the hinge to pull out of the frame which may damage both the doors and the door hinges.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and
evaporates it into an external condensate evaporator pan. Each drain can become loose or disconnected
from moving or bumping the drain. If you notice excessive water accumulation on the inside of the unit,
be sure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan.
If water starts to collect underneath the unit, you may want to check the condensate evaporator drain tube
to be sure it is still located inside the drain pan. The leveling of the unit is important as the units are
designed to drain properly when on a level surface. If your floor is not level this can also cause drain
problems. Be sure all drain lines are free of obstructions because this can cause water to back up and
overflow the drain pans.
Service and Installation Manual
9
WIRING DIAGRAM
MODEL:BVER23
MODEL:BVEF23
Service and Installation Manual
10
WIRING DIAGRAM
MODEL: BVER23
Service and Installation Manual
11
WIRING DIAGRAM
MODEL: BVEF23
™
