BERG STH49BRG User manual

Reach Ins
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!

Service and Installation Manual
2
CONTENTS
RECEIVING & INSPECTING EQUIPMENT………………………………………..…………………2
SPECIFICATIONS…………………………………………………….……………………….………3
INSTALLATION………………………………………………………………………….…………..….4
OPERATION………..……………………………………………………………………..……………5
MAINTENANCE……………………………………………………………………….……………….7
SAFETY PRECAUTIONS................................................................................................................9
ELECTRICAL WARNING..............................................................................................................9
TROUBLE SHOOTING.................................................................................................................10
LIMITED WARRANTY COVERAGE.....................................................................................................11

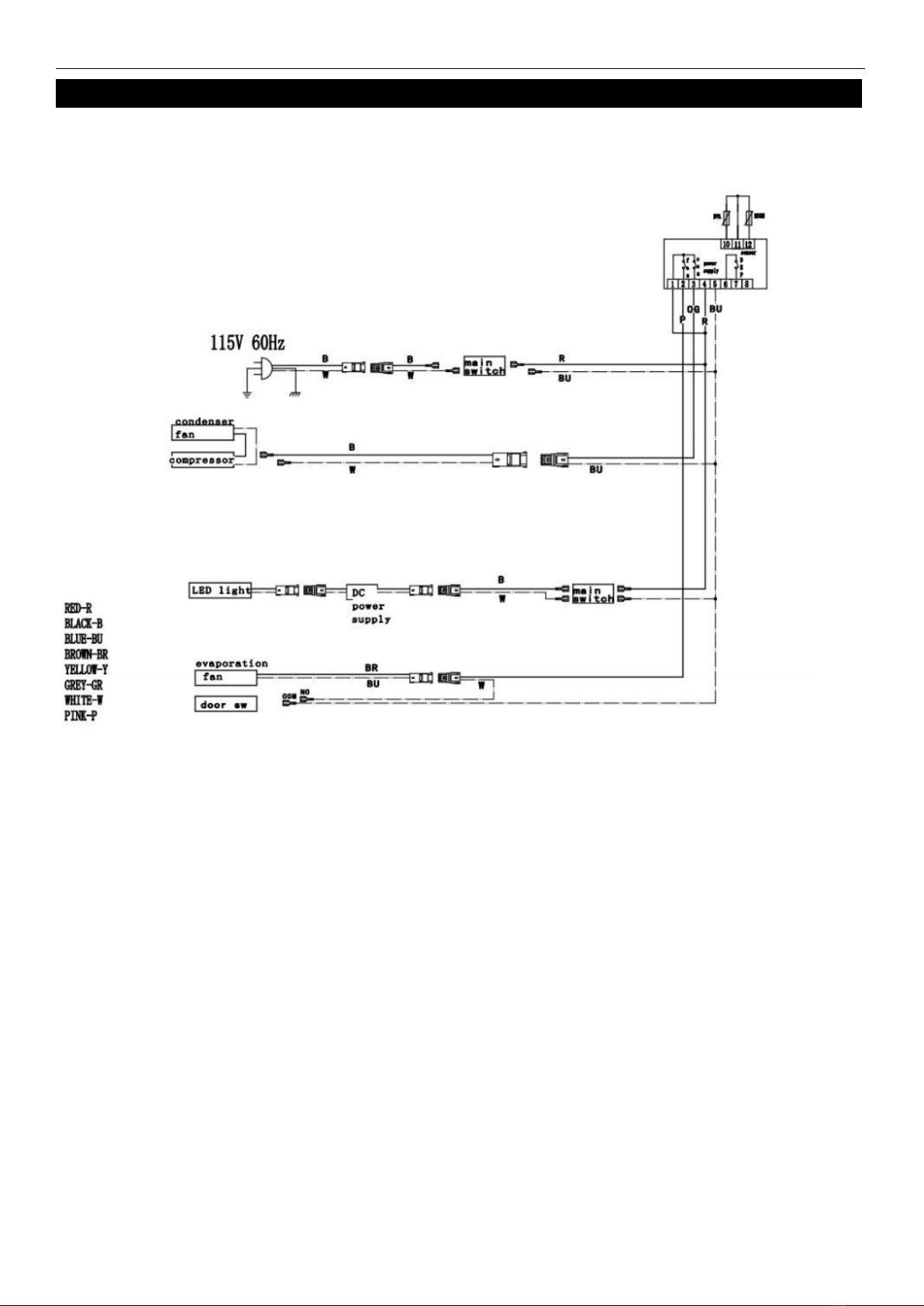

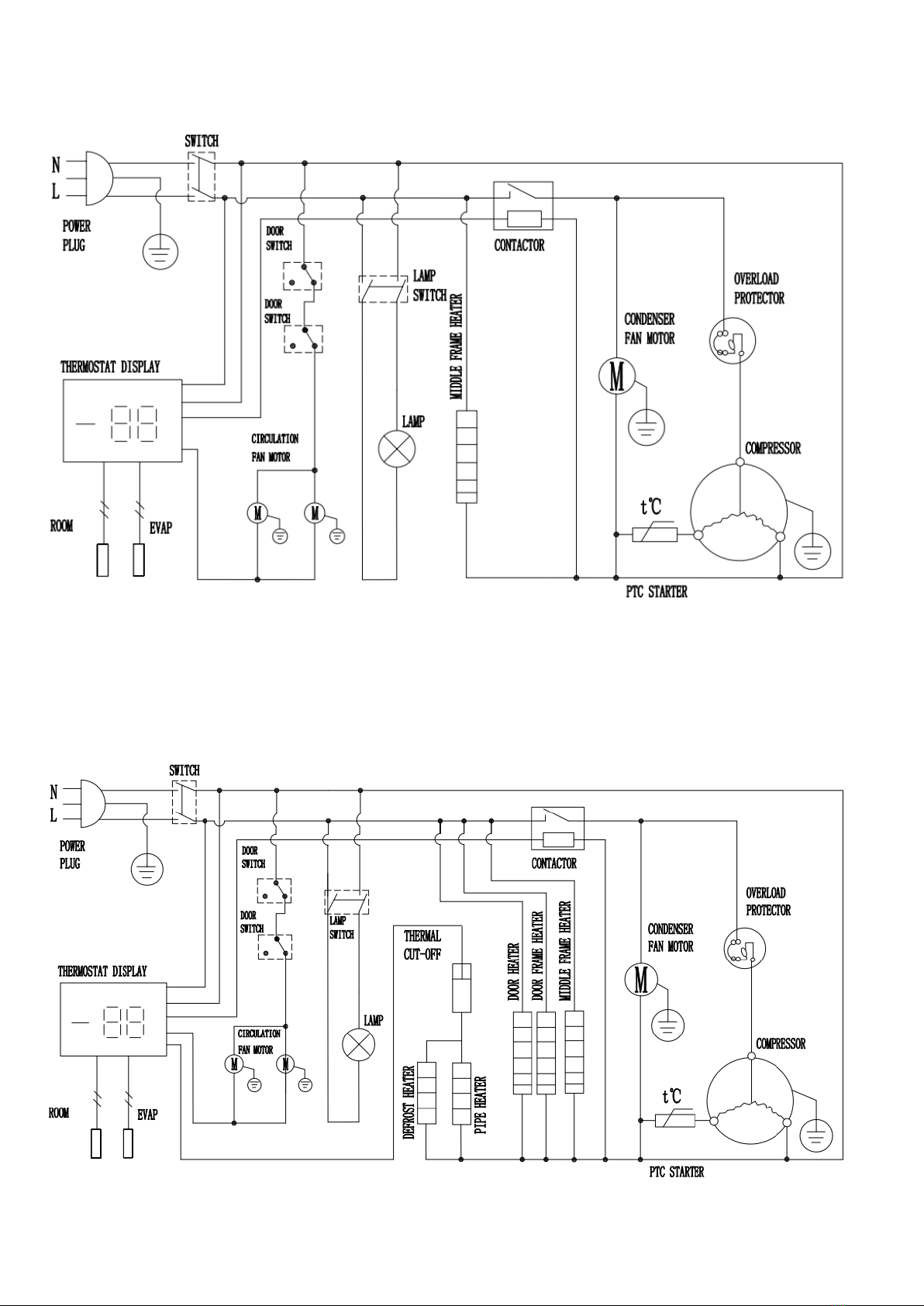

WIRING DIAGRAM…………………………………………………………………………………12
All rights reserved. Reproduction without written permission is prohibited.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand
side near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the customer service department
at the number listed on the last page.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not
damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported
to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the equipment,
notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This should be done within 3
days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the refrigeration package. Be
sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.

Service and Installation Manual
3
SPECIFICATION
LOSS OR SPOILAGE OF PRODUCTS IN YOUR REFRIGERATOR/FREEZER IS NOT COVERED BY
WARRANTY. IN ADDITION TO FOLLOWING RECOMMENDED INSTALLATION PROCEDURES.
NOTICE:
PLEASE RUN THE REFRIGERATOR/FREEZER 24 HOURS PRIOR TO USAGE. THANK YOU.

Service and Installation Manual
4
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much
as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack the units so full that air cannot circulate. The refrigerated air is discharged at the top rear of the
unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to this
air flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the
evaporator drain pan. The shelves have a rear turn up on them to prevent this. However, bags and other
items can still be located to the far rear of the cabinet. Air is brought into the evaporator coil with fans mounted
to the front of the coil.
Outside cabinet:
Be sure that the unit has access to ample air. Avoid hot corners and locations near stoves and ovens.
It is recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space above
the unit.
Leveling
A level cabinet looks better and will perform better because the doors will line up with the frames properly. Use
a level to make sure the unit is level from front to back and side to side. Units supplied with legs will have
adjustable bullet feet to make the necessary adjustments. If the unit is supplied with casters, no adjustments
are available. Ensure the floor where the unit is to be located is level.
Stabilizing
All models are supplied with casters for your convenience. It is very important, however, that the cabinet be
installed in a stable condition with the front wheels locked while in use.
Should it become necessary to lay the unit on its side or back for any reason, allow at least 24 hours before
start-up to allow compressor oil to flow back into place. Failure to meet this requirement can cause
compressor failure and unit damage.
Unit repairs will not be subject to standard unit warranties if due to improper installation
procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be sure
the unit is connected to the proper power source.
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.

Service and Installation Manual
5
OPERATION
Do not throw items into the storage area. Failure to heed these recommendations could
result in damage to the interior of the cabinet.
Refrigerated cycle
Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously even when one or
more doors are open. The lamp switch will activate the lights when opened.
1. Every 6 hours, the unit will turn off and to allow the evaporator coil to defrost. The controller now
displays defrost symbol. When the coil temperature reaches 53°F or after 30 minutes of defrost, the unit
will turn on again.
2. Anti-condensation heaters on door frames work in conjunction with the compressor.
3. The factory setting for the temperature range is 34°F to 38° F.
On/Off Switch:
An on/off switch is located on the front of the bottom panel. When the unit is on, the switch will glow green.
SOLID-STATE THERMOSTAT DESCRIPTIONS

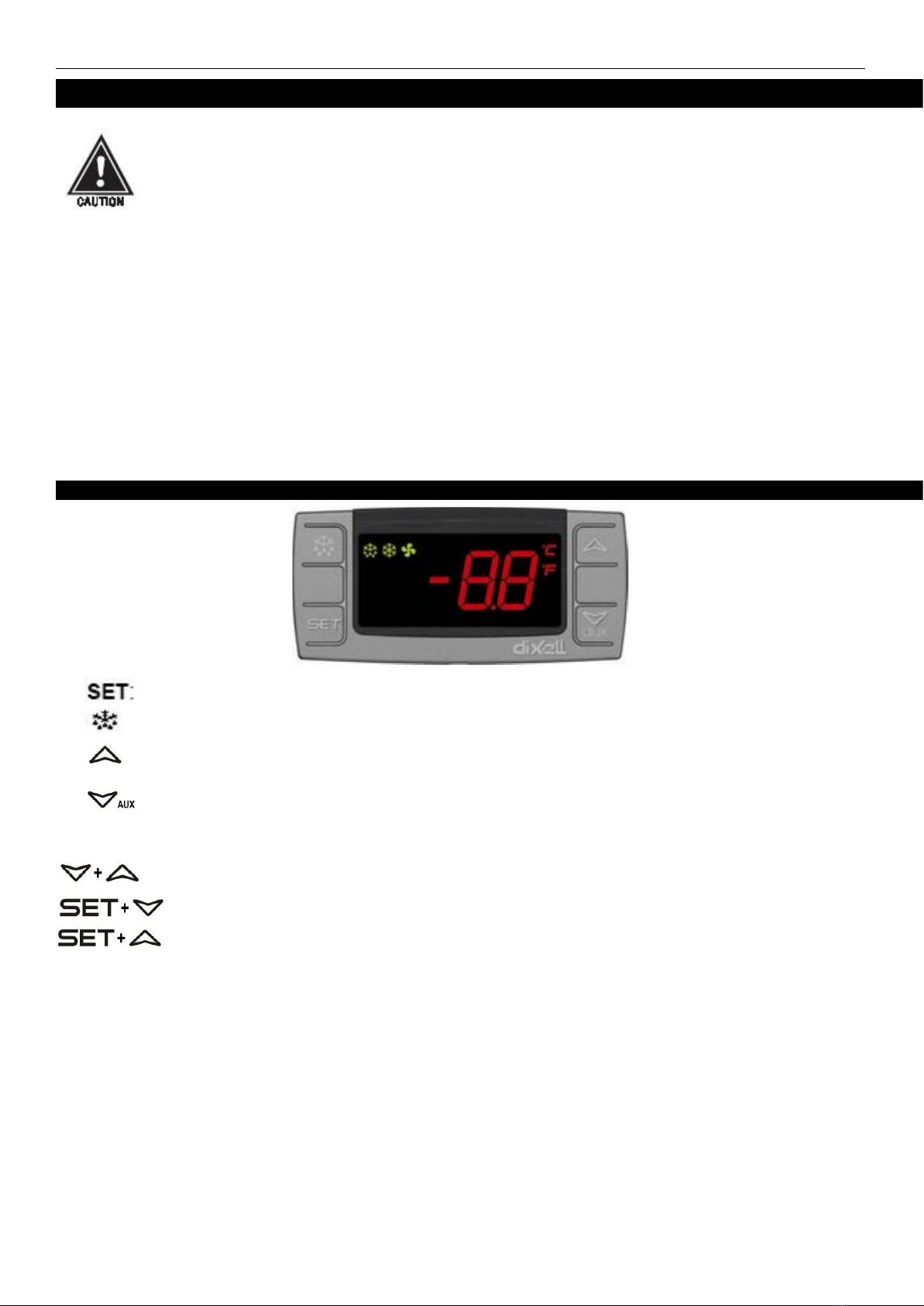

1. FRONT PANEL COMMANDS
To display target set point; in programming mode it selects a parameter or confirm an operation.
To start a manual defrost
In programming mode it browses the parameter codes or increases the displayed value
In programming mode it browses the parameter codes or decreases the displayed value
KEYS COMBINATION
To lock or unlock the keyboard
To enter in programming mode
To return to room temperature display

Service and Installation Manual
1.1 Function of LEDS
2. MAIN FUNCTIONS
2.1 HOW TO SEE THE SET POINT
1. Push and immediately release the SET key,the set point will be showed;
2. Push and immediately release the SET key or wait about 5s to return to normal
visualisation.
2.2 HOW TO CHANGE THE SETPOINT
1. Push the SET key for more than 2 seconds to change the Set point value;
2. The value of the set point will be displayed and the “°C” or “°F” LED starts blinking;
3. To change the Set value push the or arrows.
4. To memorise the new set point value push the SET key again or wait 10s.
2.3 HOW TO START A MANUAL DEFFROST
Push the DEF key for more than 2 seconds and a manual defrost will start
2.4 TO LOCK THE KEYBOARD
1. Keep pressed for more than 3s the and keys.
2. The “OF” message will be displayed and the keyboard will be locked. If a key is pressed more
than 3s the “OF” message will be displayed.
2.5 TO UNLOCK THE KEYBOARD
Keep pressed together for more than 3s the and keys till the “on”
message will be displayed.
3. ALARM SIGNALLING
ALARM RECOVERY
Probe alarms P1” and “P2” start
some seconds after the fault in the
related probe; they automatically
stop some seconds after the probe
restarts normal operation. Check
connections before replacing the
probe. Temperature alarms “HA” and
“LA” automatically stop as soon as
the temperature returns to normal values.
Alarms “EA” and “CA” (with iF=bL) recover as soon as the digital input is disabled.
6

Service and Installation Manual
7
MAINTENANCE
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and
water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless
steel to avoid marring the finish.
Do not use an abrasive cleaner because it will scratch the stainless steel and plastic and can damage the
breaker strips and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning and it is recommended every 90 days. In some instances, you
may find that there is a large amount of debris and dust or grease accumulated prior to the 90 day time frame.
In these cases the condenser coil should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris, the condenser coil can be cleaned with a simple
brush. Heavier dust build-up may require a vacuum or even compressed air to blow through the condenser
coil.
If heavy grease is present, there are de-greasing agents available for refrigeration use and specifically for the
condenser coils. The condenser coil may require cleaning with the de-greasing agent and then blown through
with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times.
Continuous operation with dirty or clogged condenser coils can result in compressor failures. Neglecting the
condenser coil cleaning procedures will void any warranties associated with the compressor or cost to replace
the compressor.
• For efficient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
• Clean the condenser with a commercial condenser coil cleaner and a soft brush, available from any
commercial refrigeration equipment retailer, or vacuuming the condenser with a shop vac or use CO2.
Never use a high pressure water wash for this cleaning procedure as water can damage the
electrical components located near or at the condenser coil.
In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and
grease regularly. It is recommended that this be done at least every three months. If conditions are such that
the condenser is totally blocked in three months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercial-grade condenser cleaner may
be required.
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel several important steps need to be taken. First, we need to
understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also
contains 12-30% chromium which forms an invisible passive film over the steels surface which acts as a shield
against corrosion. As long as the protective layer is intact, the metal is still stainless. If the film is broken or
contaminated, outside elements can begin to breakdown the steel and begin to form rust of discoloration.

Service and Installation Manual
8
MAINTENANCE
Proper cleaning of stainless steel requires soft cloths or plastic scouring pads,
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!
Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will
damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and
household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry
thoroughly.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should be
cleaned with a non-abrasive cleaner and plastic scrub pad. It is always good to rub with the grain of the steel.
There are also stainless steel cleaners available which can restore and preserve the finish of the steel’s
protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this has begun, clean
thoroughly and start to apply stainless steel cleaners in attempt to restore the passivity of the steel.
Never use an acid based cleaning solution！Many food products have an acidic content
which can deteriorate the finish. Be sure to clean the stainless steel surfaces of ALL food
products.
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of the
gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength cleaning
products on gaskets as this can cause them to become brittle and prevent proper seals. Do not use
sharp tools or knives to scrape or clean the gasket which could possibly tear the gasket and rip the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorized service technicians. The
gaskets are "Dart" style and can be pulled out of the grove in the door and replaced by pressing the new one
back into place.
Doors/Hinges
Over time and with heavy use, door hinges may become loose. If the door is beginning to sag, tighten the
screws that mount the hinge brackets to the frame of the unit. If the doors are loose or sagging, this can
cause the hinge to pull out of the frame which may damage both the doors and the door hinges.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and
evaporates it into an external condensate evaporator pan. Each drain can become loose or disconnected from
moving or bumping the drain. If you notice excessive water accumulation on the inside of the unit, be sure the
drain tube is connected from the evaporator housing to the condensate evaporator drain pan. If water starts to
collect underneath the unit, you may want to check the condensate evaporator drain tube to be sure it is still
located inside the drain pan. The leveling of the unit is important as the units are designed to drain properly
when on a level surface, if your floor is not level, this can also cause drain problems. Be sure all drain lines are
free of obstructions because this may cause water to back up and overflow the drain pans.

Service and Installation Manual
9
SAFETY PRECAUTIONS
This refrigerator must be properly installed and located in accordance with the Installation Instructions
before it is used.
Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the
refrigerator and seriously injure themselves.
Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick
to these extremely cold surfaces.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance
Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and
cabinet are necessarily small; be careful closing doors when children are in the area.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
Unplug the refrigerator before cleaning and making repairs.
Setting temperature controls to the ZERO (0) position does not remove power to the light circuit,
perimeter heaters, or evaporator fans.
Refrigerant Disposal
Your old refrigerator may have a cooling system that uses “Ozone Depleting” chemicals. If you are throwing
away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified service
technician. If you intentionally release any refrigerants you can be subject to fines and imprisonment under
provisions of the environmental regulations.
ELECTRICAL WARNING
Please ensure that the required voltage is being supplied at all times.
The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate
over-current protection. NEVER USE AN ADAPTER PLUG!
The unit should have its own dedicated outlet.
Do not use extension cords.
Do not unplug your unit by pulling on the power cord. Grip the plug firmly and pull straight out from the
outlet.
Ensure the unit is not resting on or against the electrical cord.
If the unit is not in use for a long period of time, best to unplug the unit from the outlet.
To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
If the power cuts off, wait at least 5 minutes before turning the unit on to avoid damage to the
compressor.

Service and Installation Manual
10
TROUBLE SHOOTING
Fault Probable Cause Action
Compressor is Not Running Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker.
Power cord unplugged Plug in power cord
Thermostat set too high Set thermostat to lower temperature
Cabinet Temperature is too Warm Thermostat is set too high Set thermostat to lower temperature.
Airflow is blocked
Re-arrange products to allow for proper
air flow. Make sure there is at least
four inches of clearance from the fan
Low refrigerant levels Contact a service technician to check
refrigerant levels
Door is slightly ajar Make sure door is completely closed.
Interior Light is Not Working Poor switch connection Turn off light switch and turn it back on.
Bulb is not connected Make sure the bulb is correctly inserted
in the socket.
Bulb has burned out Replace the bulb
Condensation is Collecting on the
Cabinet and/or Floor Gasket is not sealing properly Clean, repair, or replace the gasket as necessary

Service and Installation Manual
11
WIRING DIAGRAM
MODEL：STH23BRG
MODEL：STH23BFG

MODEL：STH49BRG
MODEL：STH49BFG
12

Service and Installation Manual
13
WIRING DIAGRAM
MODEL: STH23BRG

Service and Installation Manual
14
WIRING DIAGRAM
MODEL: STH49BRG

STH23BFG
STH49BFG
15

Berg Refrigeration Warranty
For Models GA0010 (STH23BRG) GA0011 (STH49BRG) GA0012 (STH23BFG) & GA0013 (STH49BFG)
2 Year Parts & Labor Limited Warranty, 3Year Additional Compressor Part Warranty - Valid Only in
the Continental United States for Berg GA0010, GA0011, GA0012 and GA0013 models
TWO YEAR PARTS & LABOR WARRANTY
Warrants to the original purchaser ofthis unit, the cabinet and allparts thereof, to be free from defects
in material orworkmanship, under normal use and service for a period oftwo (2)yearsfrom the date
of original purchase. Any parts covered bythis warranty that are examined and determined to have
been defective within two (2)yearsoforiginal purchase shall be repaired orreplaced as stated below.
Berg Refrigeration shall be deemed to have fully complied with its obligation under the foregoing
warranties byelecting either one of the following procedures.
1. Furnishing a replacement part, freight collect, in even exchange for the returned part, freight
collect.
2. Receiving the defective part, freight collect, repairing it; and returning it freight collect.
ADDITIONAL THREE- YEAR COMPRESSOR PART WARRANTY
Berg Refrigeration warrants its hermetically and semi-hermetically sealed compressor to be free
from defects in both material and workmanship under normal use and service fora period
of three (3) additional years from the date of original purchase
Exclusions
The warranty described herein does not cover the following:
1) The original serial number has been removed, altered, or cannot be readily determined on the Berg
Refrigeration product.
2) Normal wear and tear and gradual deterioration of the Berg Refrigeration product
3) When the Berg product has been transferred from an original owner to another party.
4) When the Berg product has been moved outside of the continental United States.
5) Rust on the interior or exterior of the Berg Refrigeration product.
6) When a Berg product is purchased “as is.”
7) When the Berg product is defective, but the defect does not involve malfunction or defects in materials or
workmanship.
8) When the Berg product is used in a way that is not in accordance with provided instructions and intended
purpose.
9) When the Berg product is installed in places other than recommended locations, including, but not limited
to, outside, open air venues, and residential locations.
10) Expenses for making the defective Berg product available for removal or accessible for the replacement
Berg product, such as removing shelves, etc.

11) Common wear and tear items, including, but not limited to, light bulbs, air filters, water filters, knobs,
handles, gaskets, power cords, and other cosmetic parts.
12) Damages to the finish of the Berg product that occur during installation.
13) When the Berg product has been repaired, modified or altered by the owner or a third party.
14) Damage to the Berg product as a result of misuse, abuse, neglect, accidents, fire, flooding, or acts of God.
15) Damage to the Berg product relating to improper utility connection or supply and problems due to
improper ventilations.
16) Damage to the contents being stored in the malfunctioning Berg product.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY,
WRITTEN OR ORAL EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
The agents, employees, distributors, and dealers of Berg Refrigeration are not authorized to make modifications to
this warranty or to make additional warranties that are binding on Berg Refrigeration. Accordingly, statements by
such individuals, whether oral or written, do not constitute warranties and should not be relied upon.
THE BUYER’S REMEDY AGAINST BERG REFRIGERATION, FOR THE BREACH OF ANY
OBLIGATION ARISING OUT OF THE SALE OF BERG REFRIGERATION, WHETHER DERIVED
FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED TO REPLACEMENT OR REPAIR OF
THE BERG REFRIGERATION PRODUCT.
In no event shall Berg Refrigeration. be liable for any other damage or loss, including, but not limited to, lost
profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of interruption or down time, cost of
substitute equipment, facilities, or services, or any other special, incidental, or consequential damages.
To Obtain Warranty Service, call 888-585-9440 Effective Date 8/1/22
