Bertazzoni FRZ605UBLPTT User manual

35bertazzoni.com
60cm (24”) Freezer Column Panel Ready
Dimensions
FRZ605UBLPTT (left hinge)
FRZ605UBRPTT (right hinge)
SIDE VIEW
FRONT VIEW TOP VIEW
5"
127
2 3/4"
70
24"
609
83 1/2"
2120
+
1"(25)
22 1/4"
565
71 1/8"
1808
19 7/8"
505
24 1/4"
615
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
4 1/4"
108
*
46 3/4"
1187
**
100°
SIDE VIEW
FRONT VIEW TOP VIEW
5"
127
2 3/4"
70
24"
609
83 1/2"
2120
+
1"(25)
22 1/4"
565
71 1/8"
1808
19 7/8"
505
24 1/4"
615
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
46 3/4"
1187 **
4 1/4"
108 *
100°
BUILT-IN FREEZER COLUMNS
Dimensions in parentheses are millimeters unless otherwise
specified.
* Maximum Overall Handle Dimension
** Width of 19mm (3/4”) Door Panel
For detailed handle dimensions see page 71

36 bertazzoni.com
INSTALLATION
All Bertazzoni columns can be installed in a standard 635mm
(25”) depth cutout.
Finish the edges of the opening because they may be visible
when the door is open.
For a built-in installation, to cover gaps between the appliance
and the adjacent cabinets, special side profiles are factory-
installed and covering frames are provided with the product.
For panel ready columns, do not exceed the maximum
weight of 34 kg (75 pounds) for door panel. Panel can have
thickness ranging between 19mm (¾”) and 28mm (1 1/8”).
For instructions of product combinations please see the
Multiple Installation Section (page 58).
CABINET REQUIREMENT
Installation of the appliance must be performed in accordance
with the provisions of applicable legislation.
Be sure that support of this appliance is perpendicular to the
front facing of the wall or cabinet before you perform the
installation.
The floor must be flat and must be capable of supporting the
weight of the appliance when in use.

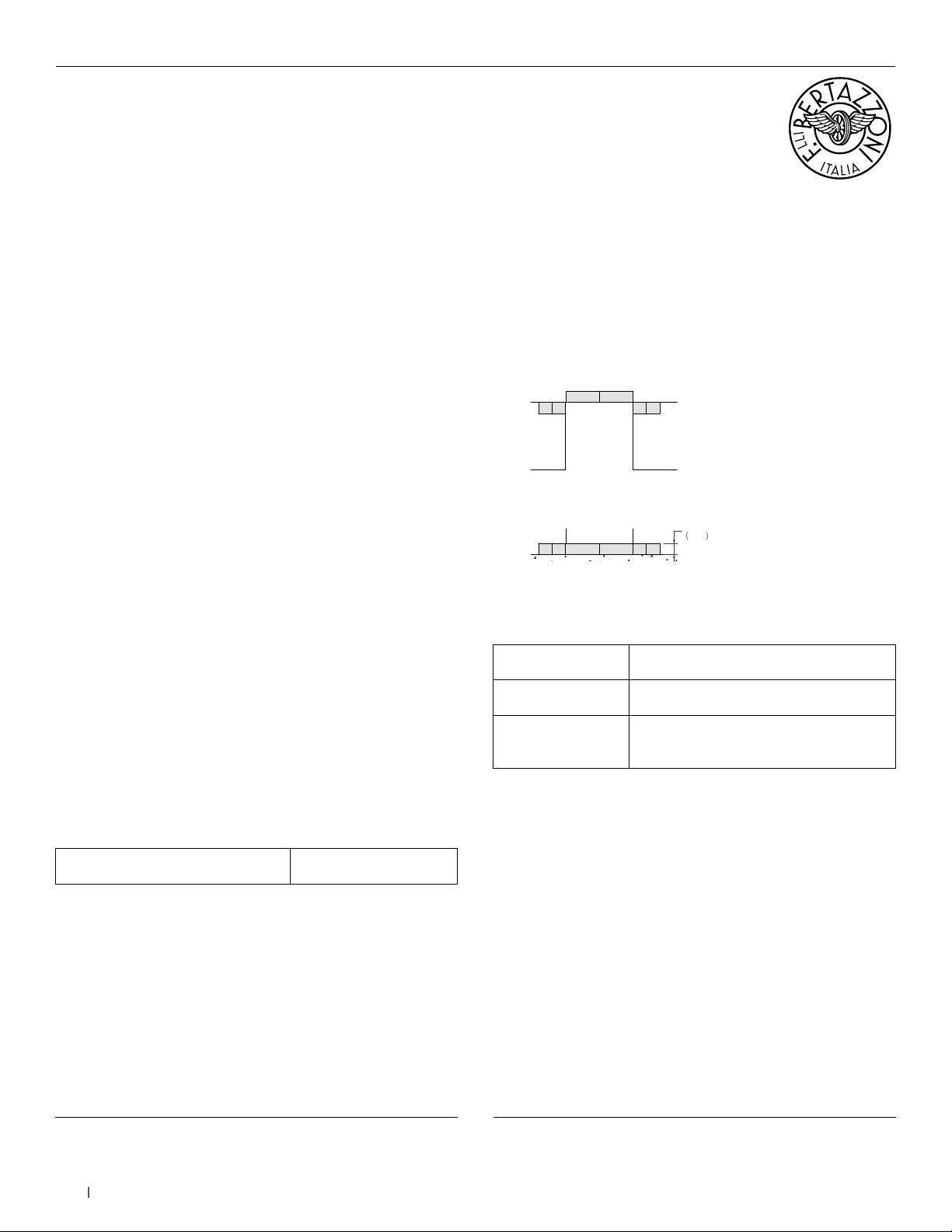

ELECTRICAL REQUIREMENT
The installation must comply with all applicable electrical codes.
A properly - grounded horizontally - mounted electrical
receptacle should be installed.
Place the electrical supply flush with the back wall and within
the shaded area shown in the illustrations.
Placement within the opening may require additional cabinet
depth.
TOP VIEW
FRONT VIEW
EW EWW
E
EW EWW E
5"
127
A separate circuit breaker servicing only this appliance is
recommended.
PLUMBING REQUIREMENTS
Bertazzoni Freezer Columns are provided with a water filter
assembly which must be mounted outside the unit.
The appliance must be connected only to a potable water
supply system.
To connect to water supply system (for appliances equipped
with ice maker) a 6,4mm (¼”) waterline with accessible
shut-off valve must be supplied.
The solenoid connection on the appliance is 19mm (¾”)
diameter but is metric threaded (NPT).
The system pressure must be between from 8 PSI to 75 PSI
(between 0.5 bar and 5 bar). Different pressures can cause
malfunctions or leaks in the water system.
For information on how to purchase the water filter, please
see Use and Maintenance Manual.
BUILT-IN FREEZER COLUMNS
60cm (24”) Freezer Column Panel Ready
Installation requirements
Required floor support 450 kg (992 lb)
For detailed installation specifications consult the multiple installation
requirements page or each single product installation manual.
Dimensions in parentheses are millimeters unless otherwise
specified.
Electrical supply 220-240 V 50/60 Hz 275 W 1,5 Amp
Service 10 Amp dedicated circuit
Power Connection 2-pole 220V SCHUKO plug with
2m power cord

37bertazzoni.com
BUILT-IN FREEZER COLUMNS
60cm (24”) Freezer Column Panel Ready
Flush installation
SIDE VIEW FRONT VIEW
TOP VIEW
24"
610
83 7/8"
2130
Min.
25"
635
aa
b
b
(a) Area to be left clear for the anti-tipping
brackets – 82x127mm (3”1/2x5”)
(b) Panel dimensions available on Built-in Food Preservation
Design Guide or Installation Manual
Dimensions in parentheses are millimeters unless otherwise
specified.
b: depth includes kitchen cabinet front panel.
