Best Barns Millcreek Safety guide

Manufactured by Reynolds Building Systems, Inc.
This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from Reynolds
Building Systems, Inc. © Copyright 2011
12'x 16'
the Millcreek
205 Arlington Drive Greenville, PA 16125
Assembly Book
Best Barns USA
Revised July 22, 2021

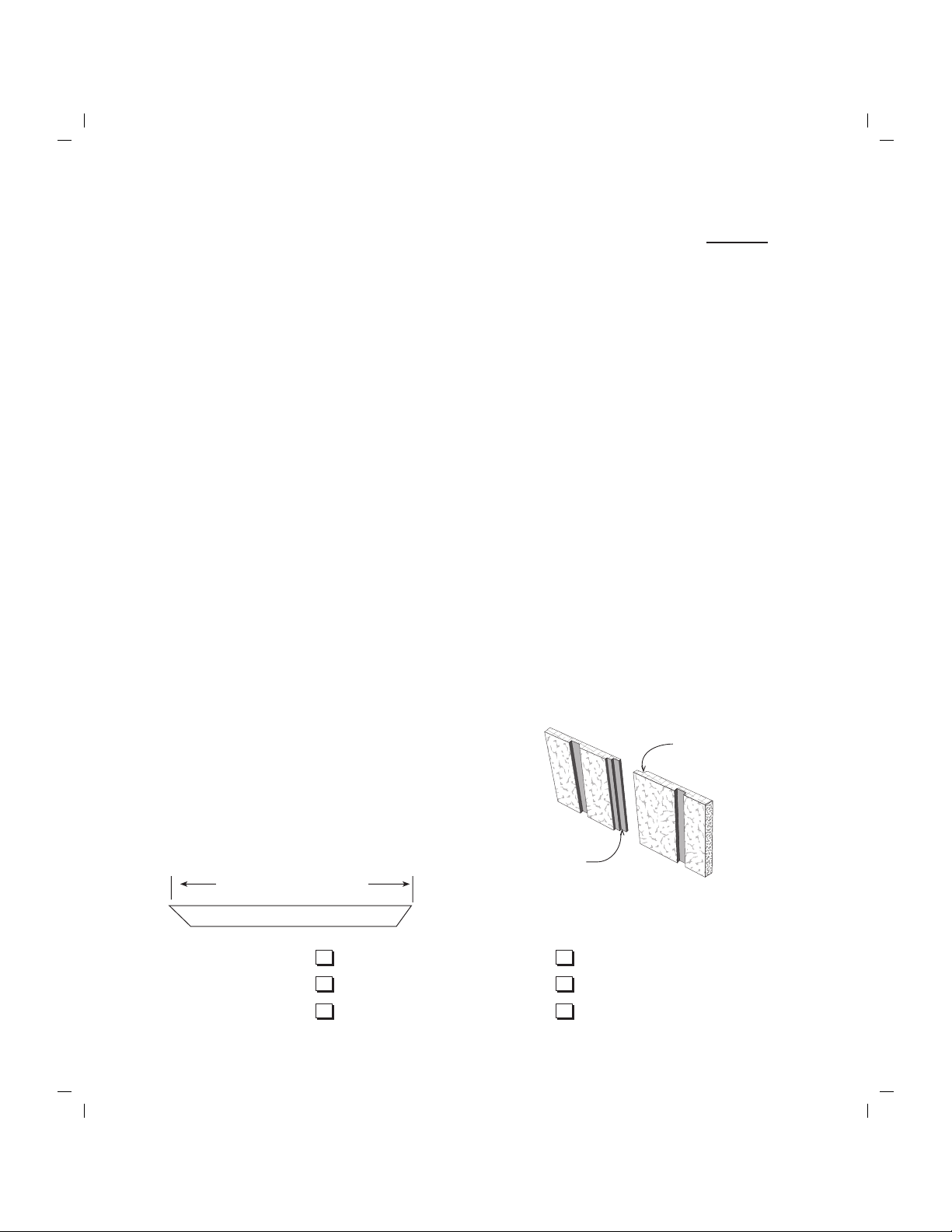

When measurements are given for a board
length or width, it is from the longest side.
measure from here
Tool List
Hammer & Hand Saw
Framing Square & Level
Power Circular Saw
Power Drill/screwdriver
Measuring Tape
2-8' Step Ladders
Always wear safety glasses when cutting ornailing!
IMPORTANT INFORMATION ABOUT YOUR SHED KIT
To identify which edge we want you to use,
we will refer to the edge as either the 'LAP'
Edge or the Tongue Edge.
Tongue Edge
LAP Edge
Download the most current instruction book at www.barnkits.com; use the "manuals"
link on the menu bar and then select your building kit and size.
Thank you for purchasing our shed kit. Read the instructions before starting the assembly
of the building. If you have any questions about assembling the kit, call 800-245-1577.
Business hours (8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-
HELP (4357) or email to [email protected].
The material that is included in our kit is listed on the back page. The optional floor package,
if purchased, will be supplied by a local lumber supplier.
Our kit does not include the shingles, the quantity needed is listed on the back page. The
siding is primed. You will need to apply a finish coat using latex acrylic paint.
Some of the framing lumber was used in the shipping pallet. Unpack the material from the
pallets. Unscrew the OSB panels and the 2x4s from the shipping pallet. The 2x4s will be
used for wall bracing and to support the loft beams. The bit for the screws is packed in the
hardware bag.
Most buildings are installed on a wood floor and the siding was designed to extend over the
wood flooring. If the foundation is a concrete floor cut the siding flush with the bottom of
the wall plate to prevent the concrete from contacting the siding.
Stacking the boards, according to size, will make them easier to find when needed. Do Not
discard any material until your building is complete.
Before you begin construction, be sure to study this assembly manual. Also, obtain a building
permit and check all pertinent building code regulations for your area.
Thank you for your purchase. Bill & Linda Rinella, owners

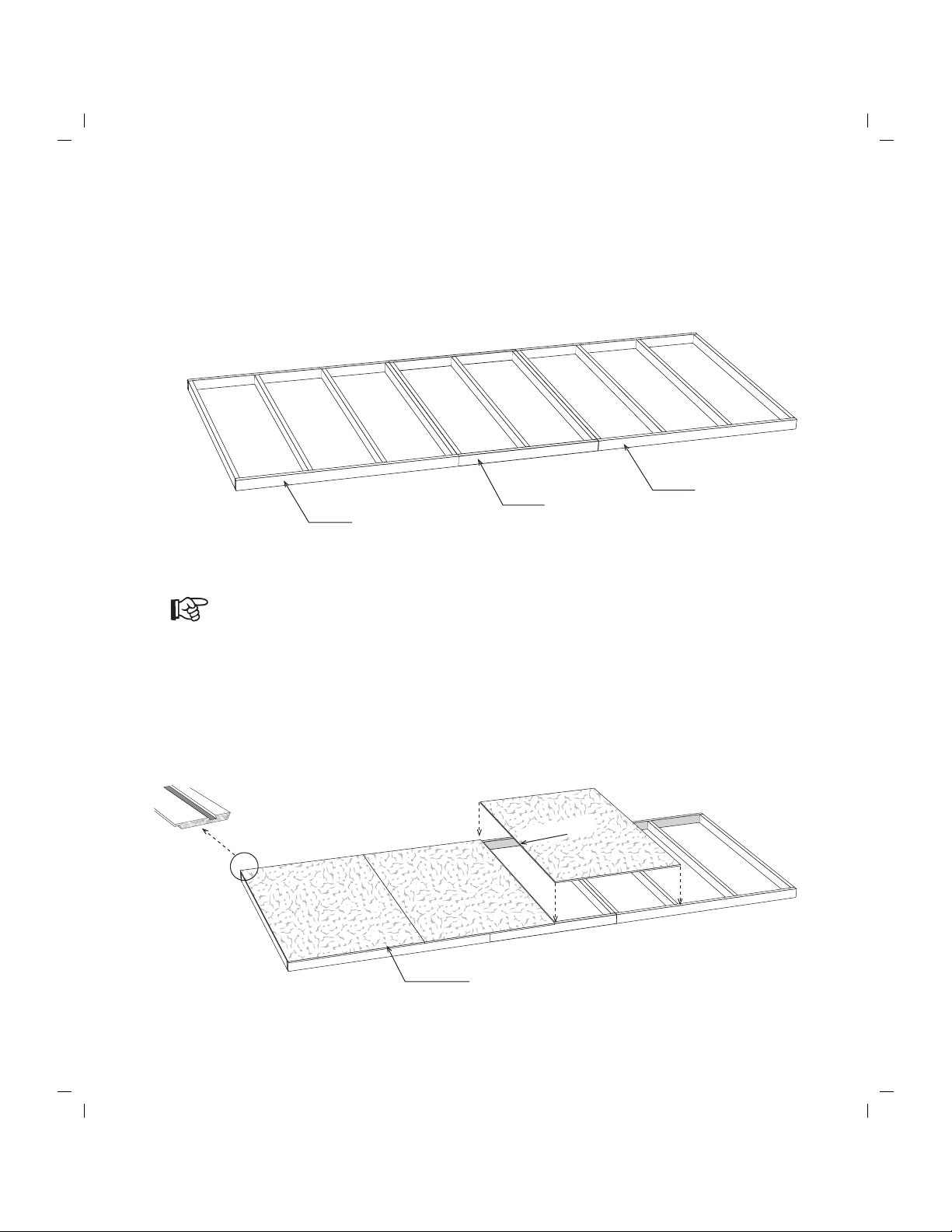

1. Cut (2) two 2x4-8' boards into 2' long blocks. Butt the 4x4-8' timbers together to make 16'
runners. Secure the 4x4s together with the 2' long 2x4 blocks and 16d galvanized nails.
Nail 2x4 joist headers and
floor joist to 4x4 runners.
XX
XX
X
X
2x4 Joist Header X
X
16"
16"
15-1/4"
Material Description Qty. & Size
2x4 Treated Blocking
2x4 Treated Floor Joists
2x4 Treated Joist Headers
4x4 Treated Runners
Flooring: 5/8" or 3/4"
Galv. Spiral Floor Nails
Galvanized Deck Nails
2 pcs. 8'
13 pcs. 12'
2 pcs. 16'
8 pcs. 8'
6 pcs. 4x8
3 lbs. 8d
3 lbs. 16d
::::::::::::
:
::
:
::
:
2x4 Floor Joist
spaced 16" o.c.
2x4 Joist Header
4x4 Treated Runners
Flooring
Outside Measurement
16' - 0" Floor Length
12' - 0" Wide
2x4 Blocking
.
.
.
.
.....
...
.
.
.
.
.
..
............
It is important that the floor be level and square. Square the floor as follows: before nailing the
flooring, measure the floor diagonally (corner to corner). Then measure the opposite corners;
these measurements will be the same when the floor is square. Toenail frame to the 4x4 runners.
Install the flooring with 8d galvanized spiral floor nails spaced 8" apart.
3. Cut 2x4-12' floor joist to 11'-9". Treated lumber may be thicker than 1-1/2". Take this into
account when cutting the length of floor joists. Shorten joist measurements if necessary to
obtain 12'-0" building width.
2. Cut (2) two 2x4 joist headers to 16' - 0". Layout for 16" on center joist spacing. 'X' marks
where floor joist will be placed.
Foundation size is 12'-0" x 16'-0". Check local building codes in your area, the construction may
have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete
and the wall plates. Foam sill sealer can be purchased at home centers in rolls 3-1/2" or wider.
Constructing Details for Deluxe Floor System
Deluxe floors include 4x4 runners, standard floors do not

2. Repeat to assemble a second Gable Plate.
72" Long 2x6 w/ Notch
72" Long 2x6 w/ Notch
72" Long 2x6
without notch
36" Long 2x6 w/ Notch
36" Long 2x6
w/ Notch
GLUE
4. To provide additional strength, install (2) two rows of 2-1/2" wood screws spaced 16" apart
as shown below.
5. Repeat steps to assemble a second Loft Beam.
Step 2 Assemble Gable Plates
1. Butt (2) two 72" long 2x4s together and secure them by nailing a 3-1/2" x 42-3/4" long
plywood gusset across the top where they butt together. The gusset needs to be centered on
the 2x4s (approximately 50-5/8" of the 2x4s will be exposed on each side of the gusset).
Use wood glue and (2) two rows of (10) ten 6d common nails to secure the gusset.

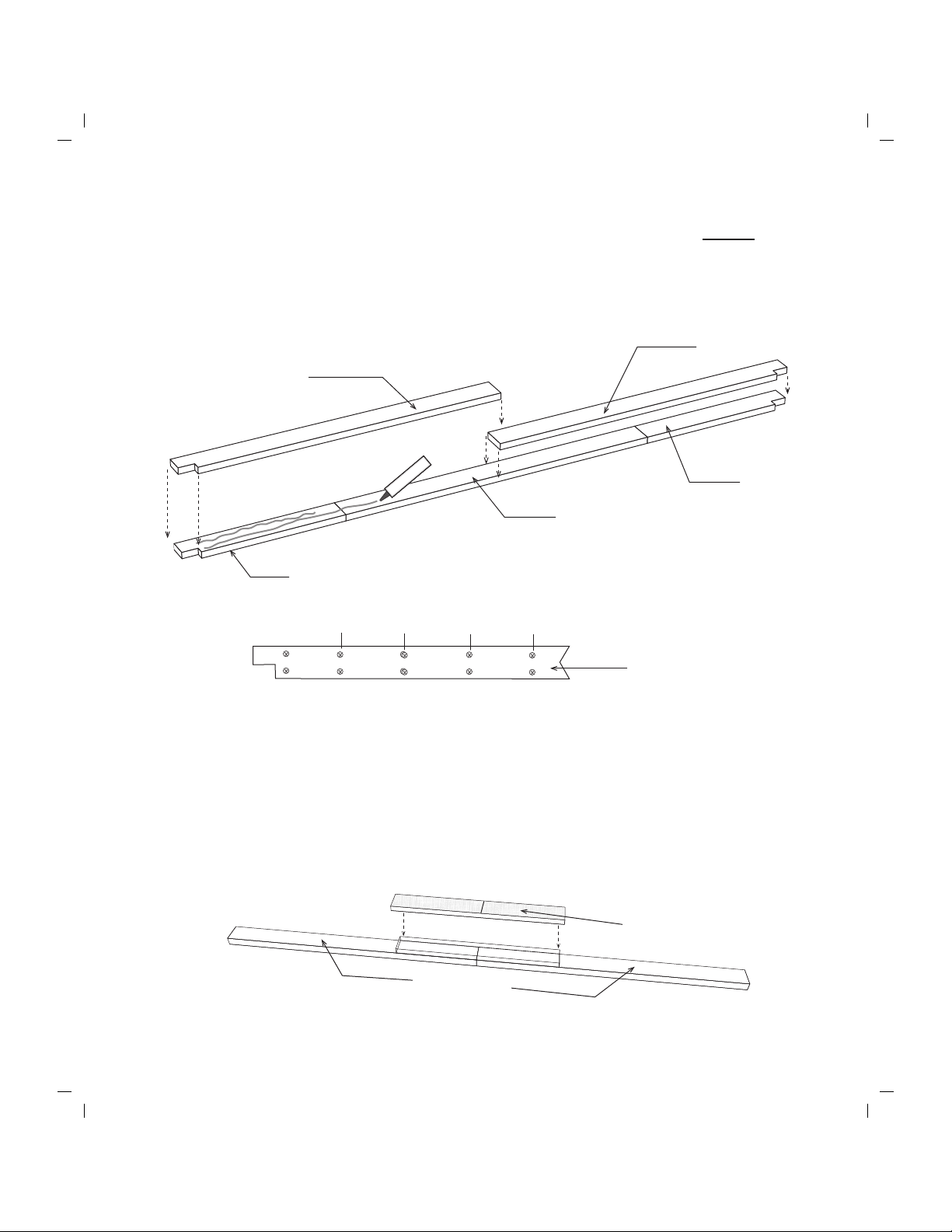

Step 1 Assemble Loft Beams
1. Locate (2) two 36" long 2x6 boards with a notch on one end and a 2x6 board without a
notch. Position these 2x6 boards on a flat surface as shown below.
2. Apply a coat of glue with a brush to the top surface.
3. Locate (2) two 72" long 2x6 boards with a notch on one end. Install these 2x6 boards
over the bottom boards as shown.
72" long 2x4
3/4" Plywood Gusset
2x6 Beam
16" 16" 16"

4. Secure the 2x4s at the peak with a 12" x 32" wood gusset. Apply wood glue with a brush
between the gusset and truss and nail with (25) twenty-five 6d common nails evenly spaced.
5. Turn the truss over and install a gusset to the other side of the truss.
6. Repeat this process to assemble (6) six more trusses.
32" Top Gusset
1. Position a Gable Plate (from Step 2) on the floor with the narrow edge side down.
2. Position (2) two truss halves (2x4s connected with a metal plate) with the short legs against
the end of the 2x4 Gable Plate Assembly. DO NOT attach the Gable Plate Assembly to the
truss. It is temporarily used to help hold the 2x4 truss parts in place and will be attached in a
later step. See detail below.
3. There are short 2x4s, that may have an angle on one or both ends. Use these as a jig to hold
the truss halves and gable plate together by temporarily screwing or tack-nail blocks to floor.
This will ensure that the trusses and gable ends are identical.
Do Not Fasten Truss Legs to Gable Plate
Step 3 Assemble Trusses
Truss Half
Metal Plate
2x4 Block
Gable Plate
2x4 Block
Gable Plate Assembly
Short Leg

:
Step 4 Assemble Roof Gables
1. Place (2) two truss halves together on the 2x4 gable plate.
2. Cut a 50" long 2x4 to fit and install in the center of the gable. Nail through gable plate and
plywood gusset with (2) two 10d sinkers. Secure the top with a 9" x 12" wood gusset.
3. Butt (2) two 40-3/4" long 2x4s against the wood gusset. Secure the bottoms to the 2x4 gable
plate by nailing through plate with (2) two 10d sinkers. Secure the tops with a barbed plate.
4 Install (2) two 30-3/4" long 2x4s with barbed plates and nails.
5. Nail truss leg to 12' Gable Plate with 10d sinkers.
30-3/4" Long 2x4
2x4 Cut to Fit
40-3/4" Long 2x4
9" x 12" Wood Gusset
1"x4" Drive-on Plate
If you want to install the loft doors and trim as a
decorative plant (not operating) repeat the above steps.
If you want the loft doors to open, repeat steps 1-5
substituting number step 3 with directions below.
3. Cut a 50" long 2x4 board to fit
between the 40-3/4" boards and
install in the opening 32" from top
of plywood gusset. Secure with
1"x4" metal barbed plates.
6. Position 2nd gable plate and repeat steps to assemble the front roof gable. Read note below:
32"
Remove temporary 2x4 blocks

.
.
.
.
.
.
.
..
.
..
.

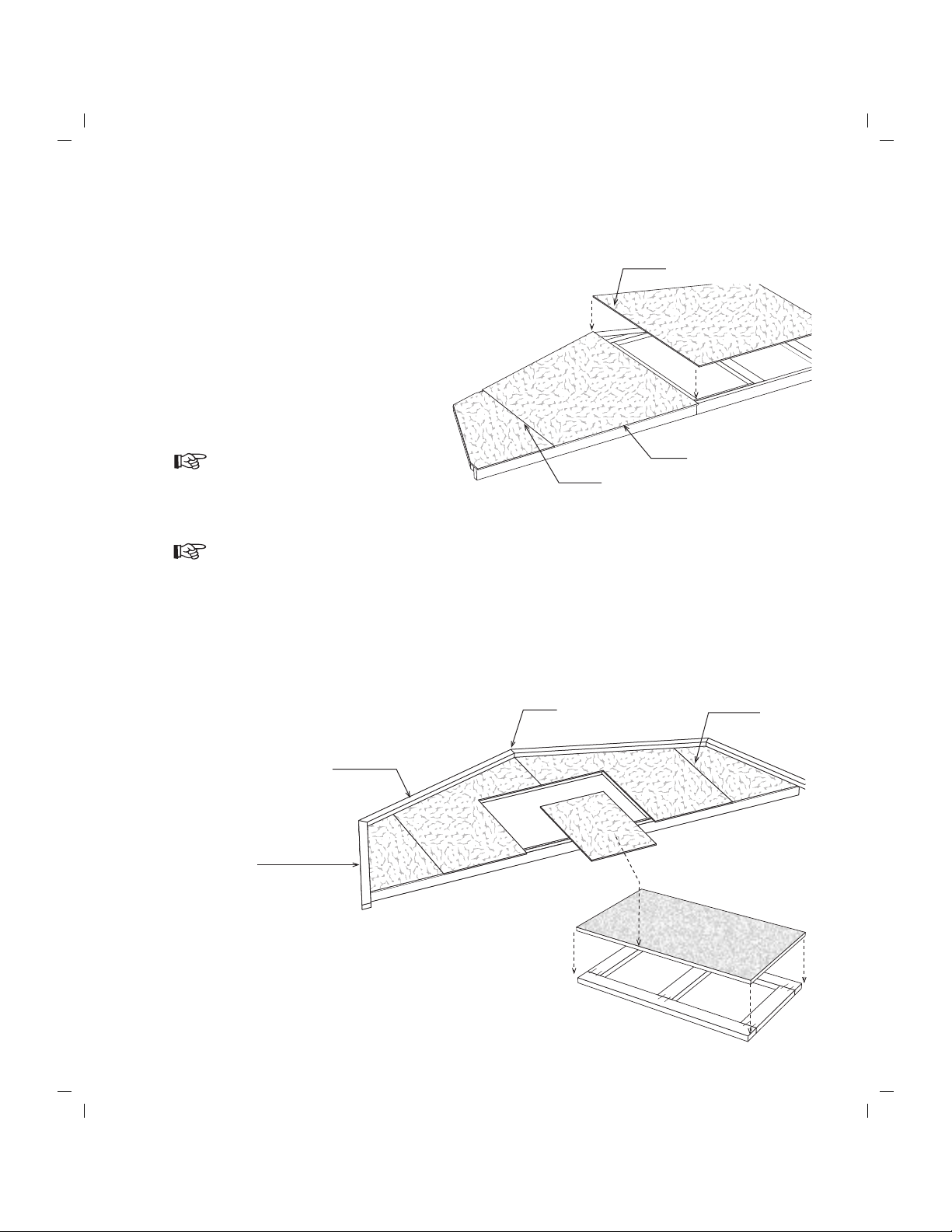

Building Tip: Gather all pre-cut gable siding and position them on
gable frames before nailing.All siding should extend 3/4" below Gable
Plate. If siding extends above frame cut siding flush with frame.
1. Select a siding panel with a 'Tongue' edge and install on right side of gable. Before you install
the center siding panels ,lay them on the frame and trace the top and side of the door opening
on the siding panels. Cut panels from bottom of siding to top of door opening. Save these
pieces to be installed on loft doors below.
Step 5A Apply Siding to Rear Roof Gable
2. Select the siding panel with a 'Tongue' edge
on right side. Install this panel on left side of
gable. Use 6d galv. nails spaced 8" apart.
The rear gable trim can be
installed now or in Step 17.
Step 5B Apply Siding to Front Roof Gable
Siding Extends
3/4" Below Plate
'Tongue' Edge
'LAP' Edge
2. Install (2) two 61" long 2x3 boards with
blue marking at peak of the gable. Install
2x3 flush with gable frame. Use 10d
sinkers spaced 6" apart.
4. The loft door frames are temporarily held together with
corrugated fasteners. Place the doors on level surface
with fasteners facing up. Re-cut the siding from step 1
to the size of the door frame. Place primed side down
and secure the siding panel to the frame with 1" screws.
Set doors aside. They will be installed in a later step.
61" Long 2x3
Blue ends
3. Install (2) two 42-1/2"
long 2x3s.
Use 10d sinkers.
First End Panel
Tongue Edge
3. Continue to right side with pre-cut
siding panels.
1. Select rear gable and turn frame over.
If you are installing the loft doors and trim as a decorative plant (not operating)
install the siding as done above but starting from right side rather than from
left side. Skip to steps 2 and 3 below.

4. Install (3) three 2x4-80-1/4" wall studs between (2) two 48" long 2x4s boards.
Install the stud in the center of the wall frame.
X
X
X
X
X
X
X
X
72" Wall Plate
24"
23-1/4"
80-1/4"
Wall Stud
72" Wall Plate
2. Install (4) four 80-1/4" long wall studs between the wall plates. User (2) two
10d sinkers at each end of stud.
2x4-4' Bottom
Plate
5. Repeat to assemble another 4' wall section.
Step 6A Assemble Side Walls
1. Position (2) two 2x4-72" boards together and indicate with 'X' marks, where the
wall studs will be located.
3. Repeat process to assemble (3) three more 72" wall frames.
80-1/4" Wall Stud

Cut the siding flush with the bottom plate if installing on a cement slab.
Siding Extends 3/4" Below Plate
LAP Edge
10. Repeat to assemble the another side wall.
LAP
6. Position a 48" wide wall frame between (2) two 72" wall frames as shown below. Nail
frames together with (4) four 10d sinkers staggered on each side.
7.
Square wall frame. Measure diagonally (corner to corner). The measurements will be the
same when the wall is square.
Step 6B Assemble Side Walls Continued
8. Install the first siding panel with the 'LAP edge' flush the end of the wall and extending 3/4"
below the bottom plate. Use 6d galv. nails spaced 8" apart.
9. Install (2) two more siding panels. You can install the last siding panel now or after the walls
are erected so the panel will be easier to handle.
72" Wall Frame
72" Wall Frame
48" Wall Frame

80-1/4” Wall Studs
68-1/2" Wall Plate
Step 7 Assemble Back Wall
1. Position (4) four 2x4x68-1/2" boards together and indicate with 'X' marks where the wall studs
will be located. Mark the ends that will butt together with the letters 'A' and 'B'.
2. Install (8) eight 80-1/4" long wall studs, between the wall plates, over the 'X' marks and where
the plates meet. Use (2) two 10d sinkers at each end of stud. Nail wall sections together using
10d sinkers.
A
A
B
B
XX
XX
X
X
X
X
X
X
X
X
68-1/2" Wall Plate
24"
19-3/4" 24"
23-1/4"
68-1/2" Wall Plate
AB
3. Square wall frame. Measure diagonally (corner to corner). The measurements will be the
same when the wall is square.
4.
Install the 1st siding panel with the 'LAP' edge extending 3-1/2" past the wall frame. The
bottom will extend 3/4" below the bottom plate. Tip: Use 3/4" trim board as a gauge.
5. Install the other siding panels. Cut the last panel to extend 3-1/2" beyond the wall frame.
Siding to extend 3/4”
below bottom plate
LAP
Edge
A
B
Siding Extends 3-1/2"
Past 2x4 Stud

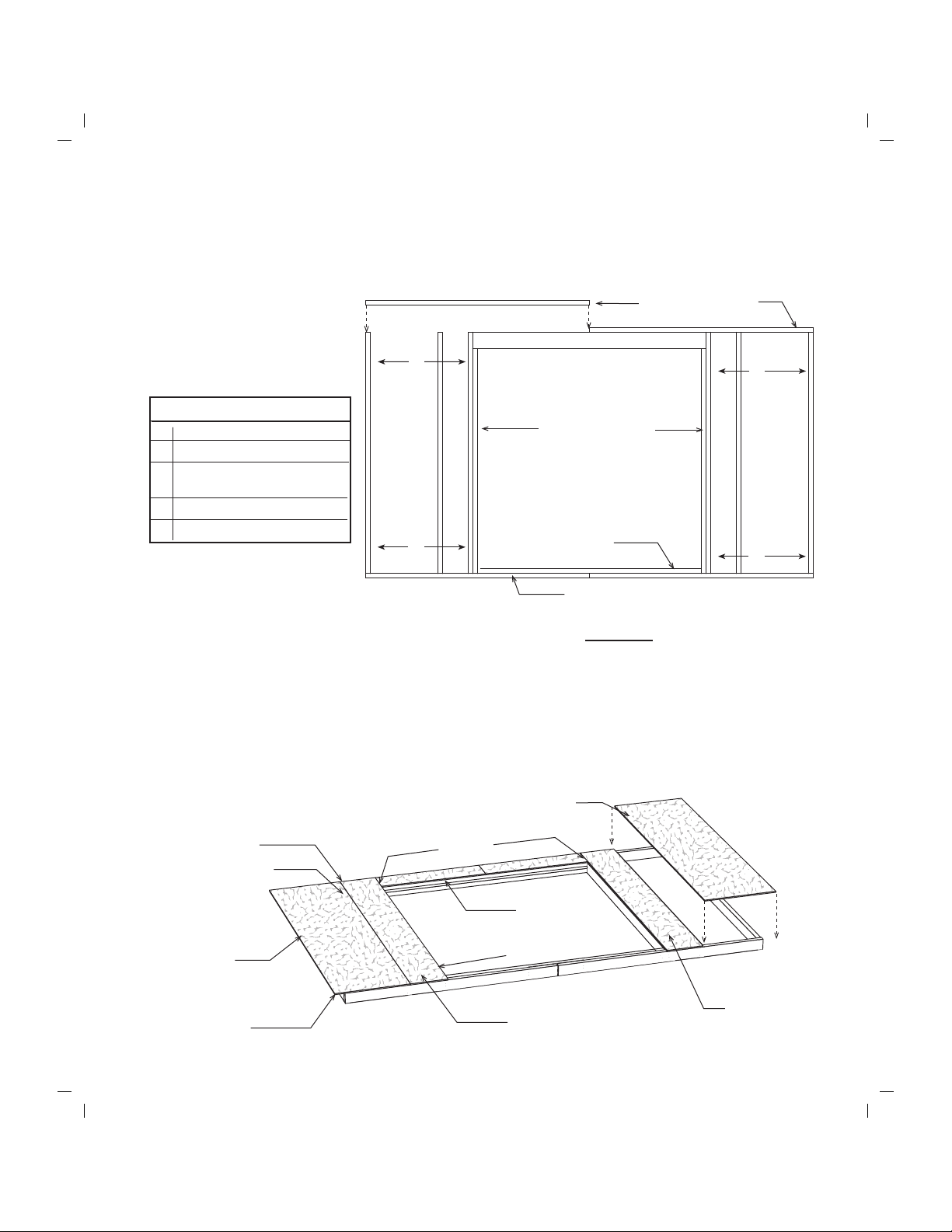

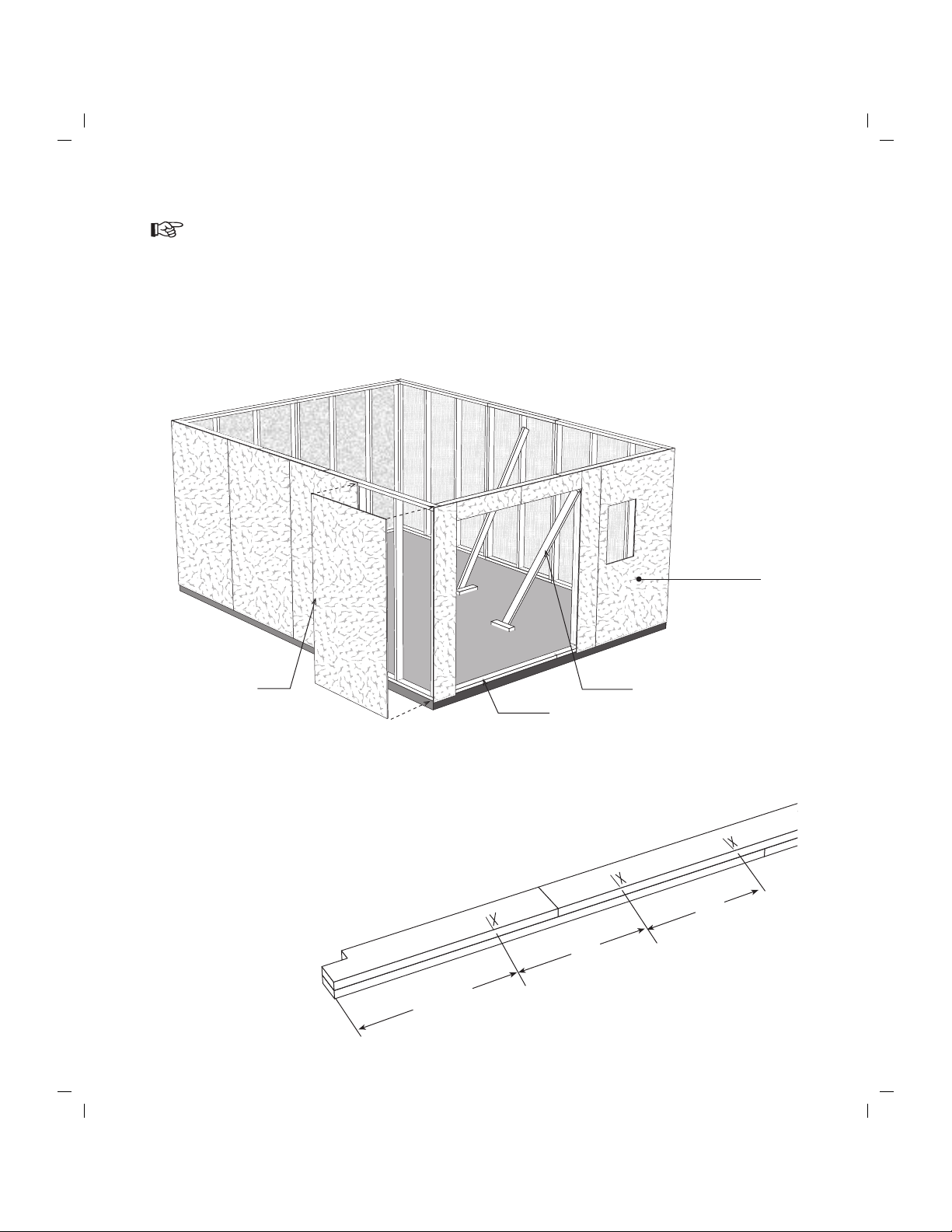

If you want the barn doors in the center of the front wall, go to Step 9B.
:
:
:
:
:
:
75" Long 2x6
OSB Filler
3. Go to Step 10A.
3. Go to Step 10B.
XXX
X
19-3/4"
32-1/2"
2x4 - 68-1/2
Boards
2x4 - 6' Board (Door Spacer)
19-3/4"
....
...
Step 8 Assemble Door Header
Assemble door header using (2) two 75" long 2x6 boards and a 75" OSB filler
panel. Apply wood glue with a brush between OSB and boards. Nail header
together with 10d coated sinkers. Use (12) twelve nails on each side.
19-3/4"
24"
Bottom Wall Plate Assembly
Step 9A Assemble Bottom Wall Plate (doors offset)
Step 9B Assemble Bottom Wall Plate (doors centered)
56-1/2" To Door Spacer
Door Spacer
1. Butt (2) two 68-1/2" boards together to make bottom wall plate. Secure bottom plate with
a 2x4-6' board (used as door spacer) installed 56-1/2" from the end of the 2x4 wall plate.
Secure with (4) four 2-1/2" wood screws.
2. Mark locations for the wall studs with 'X' marks.
1. Butt (2) two 68-1/2" boards together. Center a 2x4-6' board (used as door spacer) on top and
screw the boards together using (4) four 2-1/2" wood screws.
2. Mark stud spacing as shown below.

2x4-6' Door Spacer
36"
Optional windows can be installed now or later.
Check measurements. They
should be the same or the
door opening will not be square!
Step 10A Assemble Front Wall (doors offset)
To install doors offset to the left, flip wall before applying the siding.
5. Install a 12" siding panel with a 'LAP' edge and a full width siding panel on the left side of
door (right side if installing door on left). The cut edge on the 12" siding should be flush with
the door opening and the full width sding should extend 3-1/2" past the frame. Siding should
extend 3/4" below bottom plate. When both panels are positioned nail to frame.
6. Install (2) two 7-3/4" high pre-cut siding panels over the door opening. The siding should
extend 3/4" below the door header.
LAP
Edge
Butt Square Edges
Together
LAP Edge
3/4" Below Header
12" Siding Panel
Cut Edge
12-3/4"
Siding Panel
Siding Extends
3-1/2" Past 2x4 Frame
2x6 Door Header
68-1/2' Top Wall Plates
1. Gather the material listed below to assemble the door wall.
2. Install (4) four 80-1/4" wall studs over the 'X' marks using 10d sinkers.
Wall Studs with Door
Jacks Attached
3. Install pre-built studs with
the door jacks attached to
either side of the door spacer.
4. Install door header on the
door jacks. Use 10d sinkers.
7. Install a 12-3/4" wide siding panel on the end of the
wall frame. The siding will extend 3-1/2" beyond
the 2x4 wall frame.
!
2 68-1/2" Wall Plates
4 80-1/4' Wall Studs
2 80-1/4' Wall Studs
w/ door jacks attached
1 Door Header from Step 8
1 Bottom Plate from Step 9A
Material List
!
!

2x4-6' Door Spacer
!
!
Check measurements. They
should be the same or the
door opening will not be square!
!
!
Step 10B Assemble Front Wall (doors centered)
2x6 Door Header
Siding 3/4"
Below Header
Cut Edge
Tongue Edge
Cut Edge
Butt Square Edges
Together
5. Locate a 12" siding panel that has a 'LAP' edge. Position the 'cut' edge flush with the left side
of the door opening. Do Not nail the 'LAP' edge until the other siding is applied.
6. Cut a full width siding panel in half lengthways. Select the siding with the 'tongue' edge and
install this at the left end of the wall frame. Siding should extend 3-1/2" past the frame.
7. Install (2) two 7-3/4" pre-cut siding panels over the door opening. Siding should extend 3/4"
below header.
8. Install a 12-34" siding panel with the 'cut' edge flush with the side of the door opening.
9. Install the last siding panel. It should extend 3-1/2" beyond the 2x4 wall frame.
LAP Edge
LAP Edge
12" Siding Panel
12-3/4"
Siding Panel
Siding Extends 3-1/2"
Past 2x4 Frame
Wall Studs with Door
Jacks Attached
68-1/2" Top Plate
2x4 Bottom Plate w/ Door Spacer
2 68-1/2" Wall Plates
4 80-1/4' Wall Studs
2 80-1/4' Wall Studs
w/ door jacks attached
1 Door Header from Step 8
1 Bottom Plate from Step 9B
Material List
1. Gather the material listed below to assemble the door wall.
2. Install (4) four 80-1/4" wall studs over the 'X' marks using 10d sinkers.
!
3. Install pre-built studs with
the door jacks attached to
either side of the door spacer.
4. Install door header on the
door jacks. Use 10d sinkers.

There are (2) two 2x4s that are screwed to each pallet. Unscrew these 2x4s and use (2) two
of the 2x4s as braces to hold the walls straight. The other 2x4s will be used later.
Step 11 Set Walls
Layout both beams for the spacing of the loft floor joists.
The 'X' marks where the floor joist will be placed.
Step 12 Layout Loft Joist Spacing on 2x6 Beam
2x4 Bottom Plates
1. Set the back wall panel between the side walls. Secure wall panels together at the corners
using (4) four 10d coated sinker nails per corner.
2. Install the front wall frame between the side walls.
3. Install the last siding panel on the side walls. Nail along the siding edge where the side wall
siding panels overlap.
Nail Along
Siding Edge
Front Wall Frame
2x4 Wall
Brace
23-1/4"
24"
24"
4. Unscrew and remove the 2x4 door spacer (this will be used later). Cut and remove the
bottom 2x4 in the door opening. Secure walls to floor using 10d sinkers or concrete
anchor bolts (not supplied).

2. Remove 2x4 wall braces and
cut to fit under second beam..
3. Repeat to install the other 2x6
beam. Install the beam to the
side of the double studs facing
the back of the building.
.
Double Stud 2x6 Beam
76-1/4" 2x4 Board

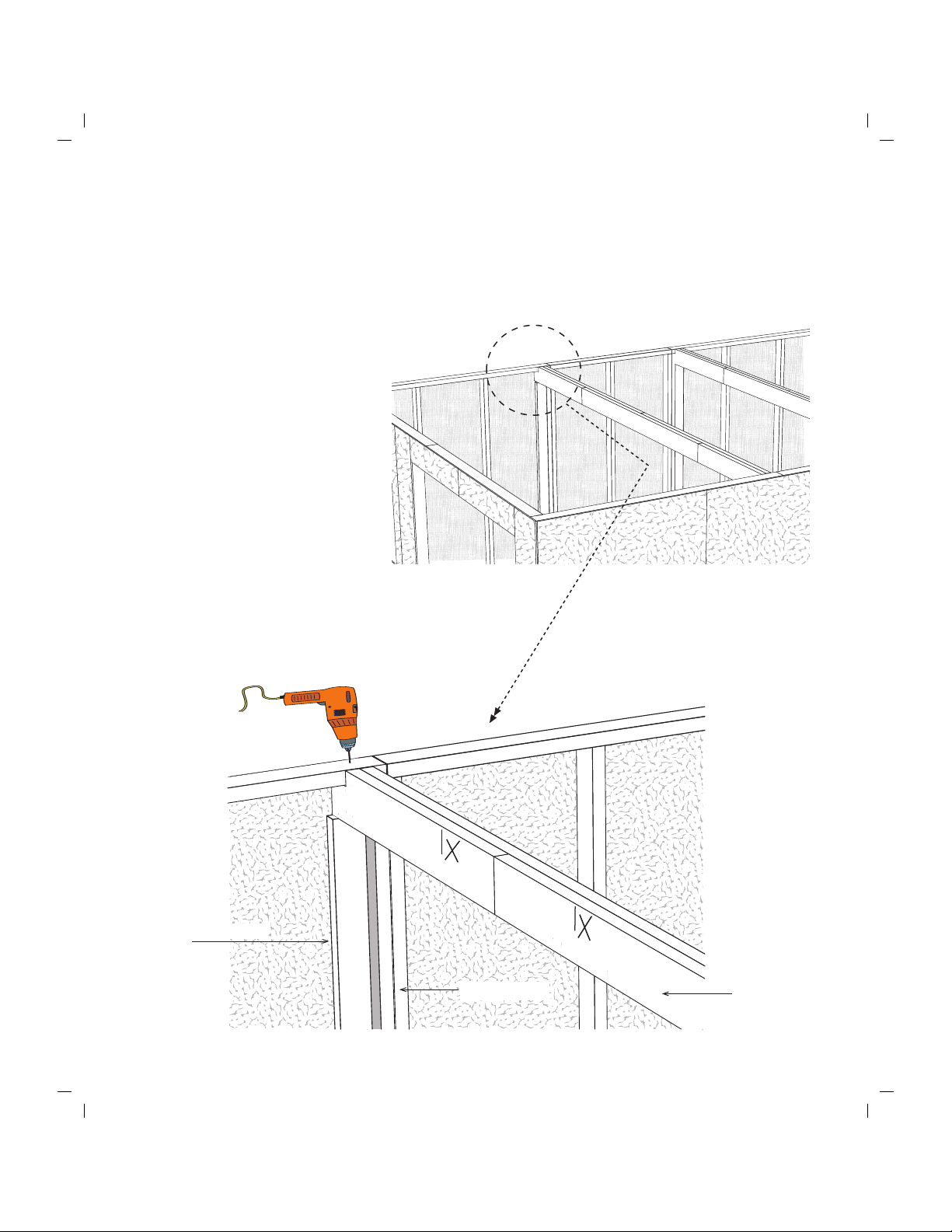

1. Install the front 2x6 beam to the side of the double studs facing the front of the building. Place
the notch under the top plate. Cut to fit under the beam the (2) two 2x4s removed from pallet.
Toenail to beam with 10d sinkers. Further secure the beam with a 2-1/2" wood screws through
the top of the wall plate.
Important: When installed properly the 'X' marks will
be facing the front wall on the front beam and the back
wall on the back beam. The beams will be 51" apart.
Step 13 Install 2x6 Loft Beams

2x4 Hanger
Cover 'X' Marks on
2x6 Beams
:
:
:
:

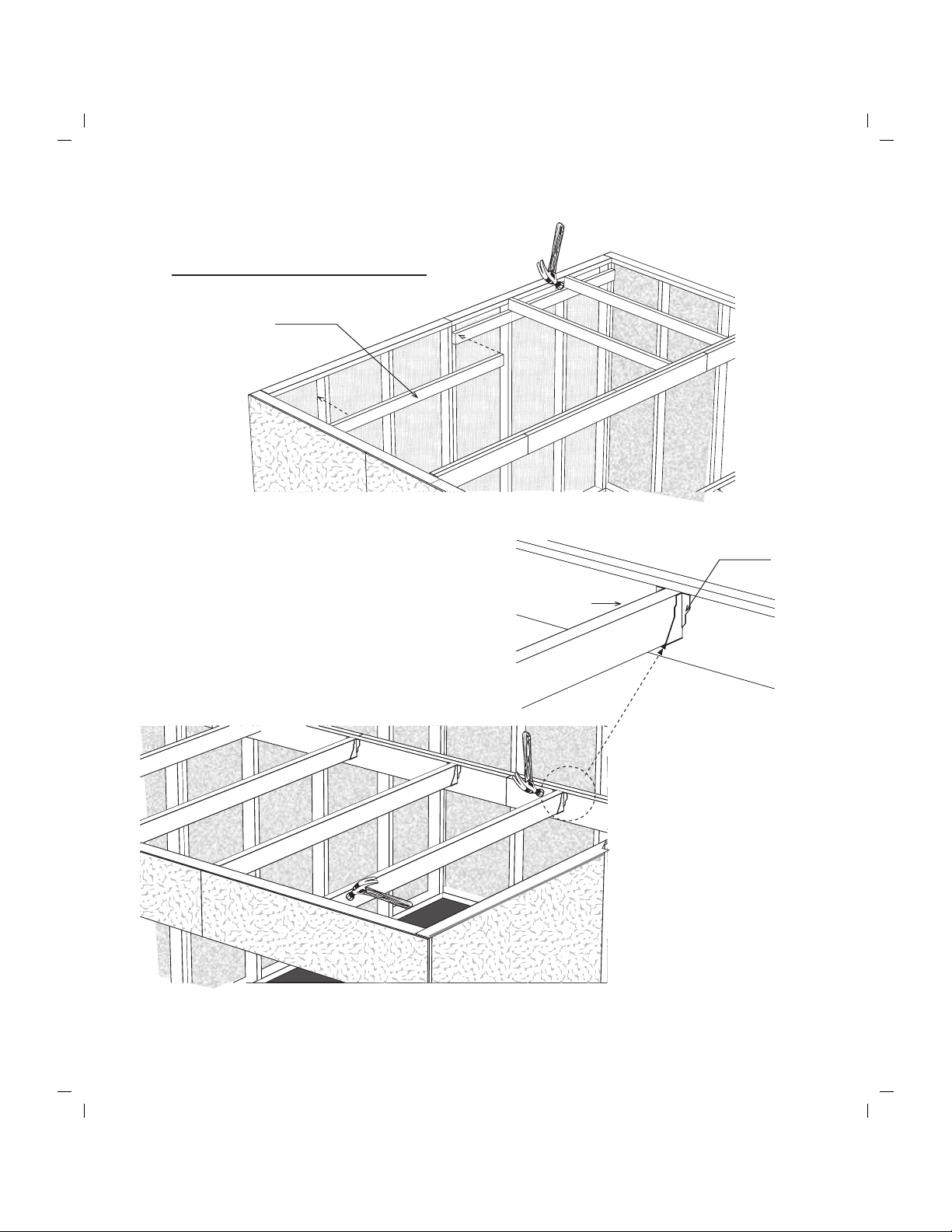

Step 14 Install Loft Floor Joists
1. Install (2) two 68-1/2" long 2x4s on the back
wall to support the floor joist. Install the 2x4s
3-1/2" below the top of the wall plate. Secure
to wall studs with 10d sinkers, 2 nails per stud.
2. Install 64" long 2x4 floor joist. Secure one
end to the loft beam using 2x4 hangers over
'X' marks. Use 10d sinker coated nails.
Toenail other end on top of the 68-1/2" long
2x4s installed on the wall.
68-1/2" Long 2x4
3. Repeat steps for the front loft area.

3-1/2" x 51" Filler
4’x6’ Flooring
4’x6’ Flooring
22-1/2"x6’ Flooring
22-1/2"x6’ Flooring
1x4 84-1/2" Corner Trim
Sidewall
Back and Front Walls
1x4 72" Top Trim
Cut to Fit
.
.
.
.
.
.
1x4 Trim
Loft Floor
flush
Step 16 Install Wall Trim
Step 15 Install Loft Flooring
1. Install 7/16" OSB loft flooring on back loft floor joists. Loft flooring is flush with outside of
top wall plate. Use 7d sinker nails spaced 8” apart. See layout pattern below:
2. Repeat to install loft flooring at the front of the building.
3. Cut 3-1/2" x 56" long floor fillers to size and fit between the loft flooring.
1. Install (2) two 84-1/2" long 1x4 corner trim boards on the back wall, flush with the siding on
the sidewall. Use 8d galvanized box nails spaced 12" apart.
2. Cut to fit and install (2) two 1x4-72" trim boards across the top of the back wall. Install the
1x4 boards flush with the top of the loft flooring. See diagram below.
3. Repeat for front wall trim.

DETAIL 'D'
........
:
::
:
:
:
:
:
:
:
:
1x4 Trim
Step 17 Set Rear and Front Gables
WARNING: The gable ends are heavy
and awkward. You'll need helpers to lift
and set gables in place.
1. Install the rear gable on the rear wall. The
siding on the gable must extend over the 1x4
trim board, not behind it. See detail 'D' below.
Nail bottom gable to loft flooring. Use 10d
sinker nails spaced evenly in stud openings.
2. Install (2) two 61" long 1x4 gable trim flush with the top edge of the gable. Install the
ends with blue marks together. Install trim with 8d galvanized nails spaced 12" apart.
3. Install (2) two 42-1/2" long 1x4 gable trim
flush with the side edge of the gable.
4. Install the front gable. Do Not apply trim.
1x4 Trim
Bottom Edge of Gable Siding
Overlaps Top Wall Trim; nail
with 8d galvanized box nails.

:
:
:
:
.
.
.
.
.
.
.
.
24"
18-3/4"
Rear Gable
Measure from Face
of Gable Plate
3. Layout the truss spacing. Measure from the inside face of the 2x4 gable plate to mark the
location of the first truss. The last truss space will be more than 24".
Important: When marking the opposite wall, place the 'X' mark on the same side of the line
so your trusses are parallel when they are installed.
Step 18 Install 2x4 Truss Plates
1. Install a 48" long 2x4 truss plate against the rear gable
and flush with outside edge of wall plate. Install a 72"
long 2x4 truss plate. Cut another 72" truss plate to size
and install. Use 10d coated sinker nails spaced 16".
2. Repeat to install truss plates on the opposite side.
48” Truss Plate
72” Truss Plate
Rear Gable

Straight Edge
Metal Truss Hanger
Soffit Board Flush With Siding
To prevent the nails from protruding
thought the bottom of the soffit board,
nail at an angle when nailing roof
sheathing to the soffit boards.
1. Place trusses over the 'X' marks and secure
trusses to 2x4 truss plate using 2x4 hangers and
10d coated sinker nails.
2. Locate 65-1/4" long soffit boards that have a
beveled edge. Install one of these boards flush
with the top of the siding and butting against
the rear gable trim. Secure soffit boards to the
top wall plate with 3" long screws spaced 8"
apart. Install the last soffit boards to fit behind
2x3 boards on the front gable.
Step 19 Install Trusses & Soffit Boards
1. Install a 42" x 72" OSB roof panel flush with
the face of the rear gable trim. Use a straight
edge to align the top of the sheathing with the
top of the truss. Continue adding sheathing
following the layout on the next page. Use
7d coated sinkers, spaced 6" apart.
2. Repeat step for opposite side.
Step 20A Install Roof Sheathing
