Best Barns Brandon-R Safety guide

This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from Reynolds
Building Systems, Inc. © Copyright 2018
the Brandon - R Building Size
12'x12' or 12'x16'
Revised November 21, 2018
Assembly Book
Manufactured by Reynolds Building Systems, Inc.
205 Arlington Drive Greenville, PA 16125 800-245-1577

Tongue Edge
LAP Edge
Tool List
Hammer & Phillips Screwdriver
Framing Square & Level
Hand or Circular Saw
Power Drill/Screwdriver
Measuring Tape
2 - 8' Step Ladders
Always wear safety glasses when cutting or nailing!
The siding is made in 4x8 sheets with grooves
cut into the face, the long edge is beveled so
that the siding overlays where they butt.
To identify which edge we want you to use,
we will refer to the edge as either the 'LAP'
Edge or the Tongue Edge. Nail siding with
8d galvanized box nails spaced 8" apart.
IMPORTANT INFORMATION ABOUT YOUR SHED KIT
Thank you for purchasing our shed kit. Read the instructions before starting the assembly of the
building. If you have any questions about assembling the kit, call 800-245-1577. Business hours
(8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-HELP (4357).
The foundation size should measure 12'-0" wide by 12' or 16' long depending on the model you
purchased. Do Not make the foundation larger than the building size. The siding should project
beyond the foundation for water to expel properly from the side walls.
The material that is included in our kit is listed on the back page. The optional floor package,
if purchased, will be supplied by a local lumber supplier. Our kit does not include the shingles,
the quantity needed is listed on the back page. The siding is primed. You will need to apply a
finish coat using latex acrylic paint.
Most buildings are installed on a wood floor and the siding was designed to extend over the wood
flooring. If the foundation is a concrete floor cut the siding flush with the bottom of the wall
plate to prevent the concrete from contacting the siding.
Stacking the boards, according to size, will make them easier to find when needed. Do Not
discard any material until your building is complete.
Before you begin construction, be sure to study this assembly manual. Also, obtain a building
permit and check all pertinent building code regulations.

To keep 2x4 frame from
moving, toe nail to 4x4.
3. Cut 2x4-12' floor joist to 11'-9". Treated lumber may be thicker than 1-1/2". Take this into
account when cutting the length of floor joists. Shorten joist measurements if necessary to
obtain 12'-0" building width.
2. Cut (2) two 2x4 joist headers to length. Cut 2x4s to 12'-0" for a 12' long building, 16'-0"
for a 16' long building. Layout for 16" on center joist spacing. 'X' marks where floor joist
will be placed.
It is important that the floor be level and square. Square the floor as follows: before nailing the
flooring, measure the floor diagonally (corner to corner), then measure the opposite corners; these
measurements will be the same when the floor is square.

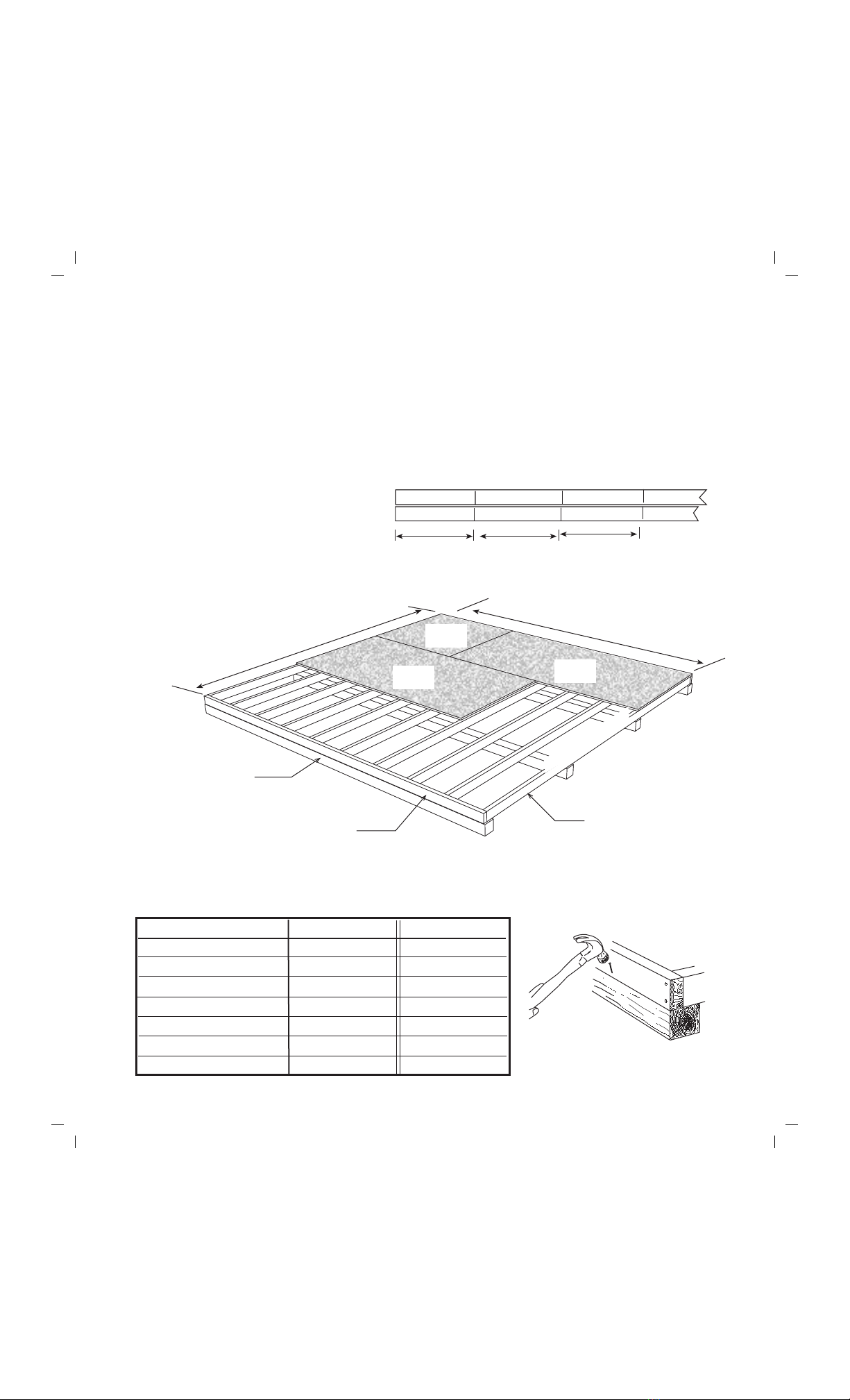

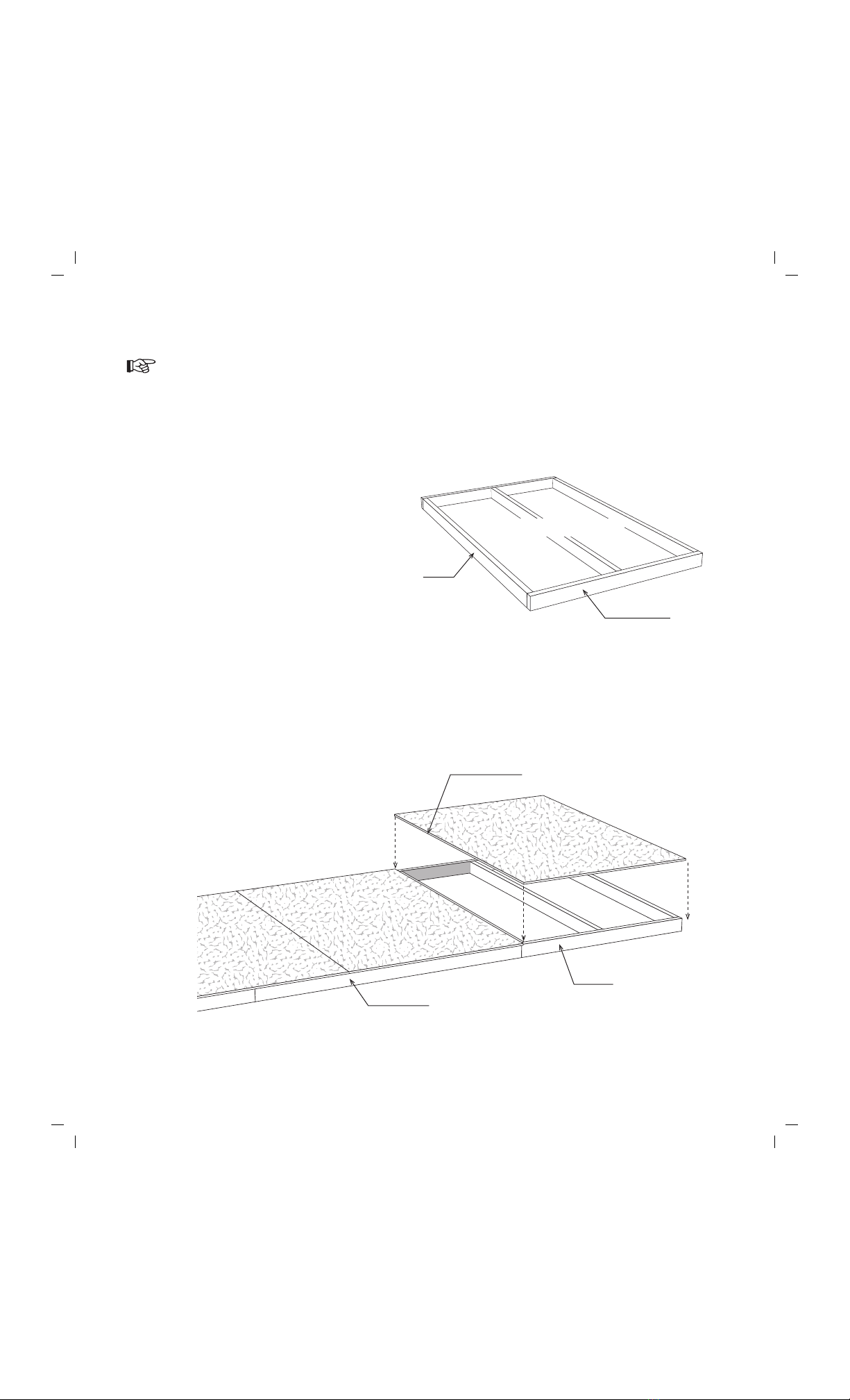

Constructing Details for Deluxe Floor System
Check local building codes in your area, the construction may have to change. For a concrete slab,
install sill sealer as a moisture barrier between the concrete and the wall plates. Foam sill sealer
can be purchased at home centers in rolls 3-1/2" or wider.
XX
XX
X
X
16"15-1/4"
2x4 Joist Header X
X
16"
12' - 0" Building Width
4x4 Treated Runners
2x4 Joist 11' - 9" Long
Door Wall
4x8
Flooring
Joist Header 12'- 0" for 12' building
16'- 0" for 16' building
4x8
Flooring
4x4
Flooring
12' - 0" or 16' - 0" Length
1. For a 16' building, butt the 4x4-8' timbers together to make 16' runners. Secure the 4x4s
together with 2' long 2x4 blockscut from (2) two 8' boards using 16d glavanized nails.
Material Description 12' x 12' shed 12' x 16' shed
2x4 Treated Blocking 2 pcs. 12' 2 pcs. 8'
2x4 PT Joist Headers 2 pcs. 12' 2 pcs. 16'
2x4 PT Floor Joist 10 pcs. 12' 13 pcs. 12'
4x4 Treated Runners 4 pcs. 12' 8 pcs. 8'
Flooring 5/8" or 3/4" 5 pcs. 4x8 6 pcs. 4x8
Spiral Floor Nails 2 lbs. 8d 3 lbs. 8d
Galv. Deck Nails 1 lb. 16d 3 lbs. 16d

If you are constructing a 12' x 12' building, go to Step 3.
XX
XX
X
X
X
X
72" Wall Plate
X
X
A
A
B
B
X
X
2x4-72" Wall Studs

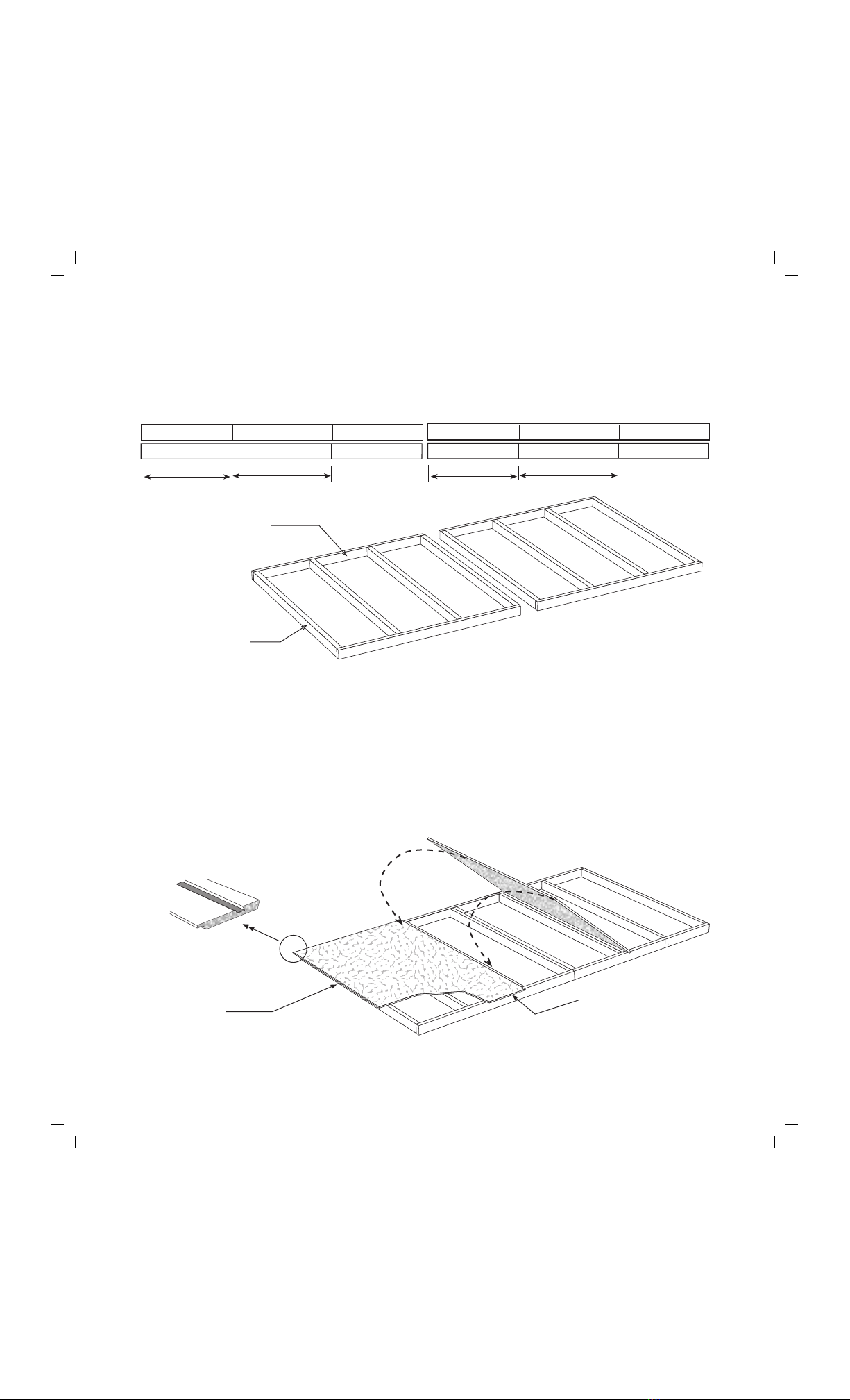

Step 1 Assemble 12' Long Sidewalls
6. Repeat to assemble another sidewall.
Do not discard any material until construction is complete. Including short blocks of 2x4s.
2. Install (8) eight 72" wall studs between the top and bottom plates. Use 10d sinkers, (2) two
nails at each stud end. Nail both wall frames together with 10d sinkers.
3. Square wall frame. Measure diagonally (corner to corner). The measurements will be the same
when the wall is square.
4. Install the first siding panel with the 'LAP edge' flush the end of the wall and extending 3/4"
below the bottom plate. Use 8d galv. nails spaced 8" apart.
5. Install (2) two more siding panels.
Siding Extends 3/4" Below Plate
LAP Edge
1. Gather (4) four 2x4-72" boards and position together then indicate with 'X' mark where the
wall studs will be located. Mark the ends that will butt together with 'the letters A' and 'B'.
72" Wall Plate
24"
23-1/4" 24"
23-1/4"
72" Wall Plate
72" Bottom Plate
LAP
AB
Flush

4. Select one of the 12' sidewalls assembled in Step 1. Butt the 48" wall frame against the wall
with siding. DO NOT nail these frames together so they can be separated later.
5. Install a siding panel on the 48" frame. Cut panel flush with the end of the wall frame. DO
NOT nail along the long edge of siding that overlaps the 12' wall frame.You can nail this edge
after the wall panels are installed. Two separate walls are easier to handle when erecting kit.
1. Locate (2) two 48" long 2x4s and (3) three 2x4-72" wall studs.
2. Install (2) two 2x4-72" wall studs between wall plates at each end. Install (1) one stud in the
center of the wall frame.
3. Repeat to assemble another 48" wall section.
6. Repeat to apply siding to the other 48" wall frame.
2x4-48" Bottom
Plate
Do Not Nail Along This Edge
If you are constructing a 12' x 12' building, go to Step 3.
Step 2 Assemble Sidewalls for 16' Building Length
12' Wall Panel from Step 1
48" Wall Panel
Make (2) Two Frames
72" Wall Stud

3. Install (4) four 72" wall studs between (2) two 58-1/2" long 2x4 wall plates
4. Gather (2) two 2x4-72" 2x4s. Cut each board to 71-1/2" and install as a header support on each
wall frame flush with bottom plate. Use 10d sinkers.
6. Install a 16" siding panel with a
tongueedge.Cutedgewillbeflush
with the header support.
If installing the optional window you
can cut the opening in the siding.
Instructions are packed in window box.
XX
X
X
X
X
X
X
Step 3 Assemble Door Wall - Offset Doors
71-1/2" Header Supports
5. Select a 16" wide siding panel with a
'LAP' edge. Install cut edge flush with
header support. The 'LAP' edge will
extend 3-1/2" beyond the wall frame.
Bottom edge will be 3/4" below the
bottom plate.
1. Cut (2) two 11" plates from a 34-3/4" long
2x4. Install (2) two 72" wall studs between the
11" long 2x4 wall plates.
2. Position (2) two 58-1/2" long 2x4s together
and indicate with 'X' marks where the wall
studs will be located.
71-1/2" Header Support
To position the door opening in the center of the wall, go to Step 4. To position
the door opening on the right side of the front wall, flip the walls and apply
siding to the opposite side of the wall frames.
LAP Edge Extends 3-1/2"
Siding Extends
3/4" Below Plate
7. Install the last siding panel. The siding will
extend 3-1/2" past the wall frame.
58-1/2" Wall Plate
19-3/4"
24"
Cut Edge Flush
71-1/2" Header
Support

X
X
X
X
X
X
Left Side Wall Panel Right Side Wall Panel
Step 4 Assemble Door Wall - Doors Centered
71-1/2" Header
Support
5. Select one frame and position so header support is on right.
6. Locate a 16" wide siding panel with a 'LAP' edge. Install this panel with the cut edge flush
with the 2x4 header support. Bottom edge should be 3/4" below bottom plate. Only nail along
cut edge until next panel is installed.
7. Cut a 48-3/4" wide siding panel in half lengthways.
8. Select cut panel with the 'Tongue' edge. Install this panel so cut edge extends 3-1/2" beyond
the end of the frame and tongue edge under the 16" panel. The siding should extend 3/4' below
the bottom plate. Nail both siding panels to frame.
1. Locate (2) two 34-3/4" long 2x4s and position them together.
Indicate with 'X' marks where studs will be located..
2. Install (3) three 72" wall studs between the 34-3/4" wall plates.
3. Locate (1) one 2x4-72" and cut to 71-1/2". Install as a header
support on right side as shown and flush with bottom plate. Use
10d sinkers.
4. Locate (2) two 58-1/2" 2x4s and cut (1) one 34-3/4" plates from
each. Repeat steps 2 and 3 to assemble another wall frame.
Make (2) Two Frames
71-1/2" Header Support
7. Locate a 16" wide siding panel with a 'Tongue' edge and the remaining 24" wide cut panel.
Install these on remaining frame. Make sure header support is oriented to the left.
Cut Edge Extends
Beyond Frame
LAP Edge
Tongue
Edge
Cut Edge Flush
34-3/4" Wall Plate
19-3/4"
Cut Edge Extends
Beyond Frame

A
A
B
B
XX
XX
X
X
2. Install (8) eight 72" wall studs between the top and bottom plates. Assemble wall frames with
10d sinkers, (2) two nails at each stud end. Nail both wall frames together with 10d sinkers.
3. Square wall frame.
4.
Install the 1st siding panel with the 'LAP' edge extending 3-1/2" past the wall frame. The bottom
will extend 3/4" below the bottom plate.
5. Install (2) two more siding panels. Cut the last panel to extend 3-1/2" beyond the wall frame.
X
X
X
X
X
X
68-1/2" Wall Plate
2x4-72" Wall Studs
Step 5 Assemble 12' Back Wall
1. Gather (4) four 2x4-68-1/2" boards an position together then indicate with 'X' marks, where
the wall studs will be located. Mark the ends that will butt together with the letters 'A' and 'B'.
68-1/2" Wall Plate
24"
19-3/4" 24"
23-1/4"
68-1/2" Wall Plate
AB
Siding to extend 3/4”
below bottom plate
LAP
Edge
A
B
Siding Extends 3-1/2"
Past 2x4 Stud

6. Secure the 2x4 bottom plate to the truss rafter with
a 2-1/2" wood screw on both ends. Set gable aside.
7. Repeat steps 3-6 to assemble another gable.
72" long 2x4
3/4" Plywood Gusset
2. Repeat to assemble another
12' long bottom plate.
3. Place the bottom gable plate on the floor along with (2) two 80-1/2" long 2x4 truss rafters as
shown below. Bottom plate will be on edge. There are short 2x4s, that may have an angle on
one end, supplied in the kit. Use these to hold the truss rafter and bottom gable plate together
by temporarily screwing the blocks to the floor using 2-1/2" screws. This will ensure that the
gable frames and the trusses, assembled next, are identical.
4. Secure the top of the truss rafters together with a 1"x4" barbed metal drive-on plate.
5. Install (2) two 23-1/2" gable studs with angle cut at one end. Nail through the bottom plate
with 10d sinkers and secure the top with barbed metal drive-on plates.
Step 6 Assemble Roof Gables
1. Butt (2) two 72" long 2x4s together and secure them with a 3-1/2" x 31-3/4" long plywood
gusset across the top where they butt together. Use glue and (12) twelve 6d common nails.
This will be used as the bottom plate on the roof gables.
23-1/2" Gable Stud
Bottom Gable Plate
Barbed Metal Plate
80-1/2" long 2x4
Truss Rafter
2x4 Block
2x4 Block

6. Remove and save the short 2x4 blocks. They
will be used in a later step.
Detail 'B'
!
!

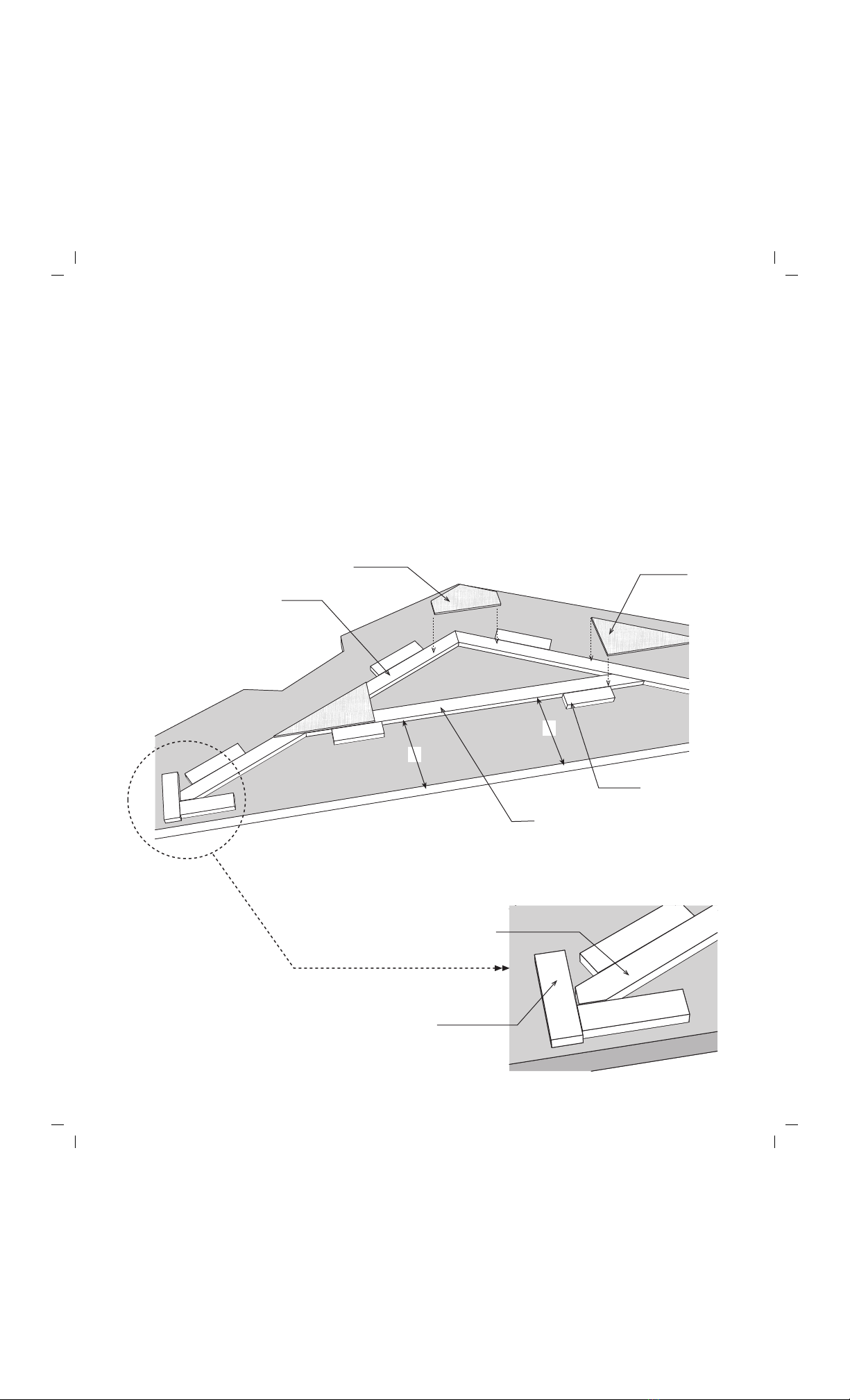

Step 7 Assemble Roof Trusses
1. Place (2) two 80-1/2" long 2x4 truss rafters and a 82" long collar tie together as shown below.
The collar tie has an angle cut on both ends. Reposition the lower 2x4 blocks to hold the truss
rafter and collar tie in place. See 'Detail B'.
2. Secure the 2x4 truss rafters at the top with a 8" x 20" wood gusset. Apply wood glue between
the 2x4s and the gusset. Nail the gusset to the 2x4s with (14) fourteen 6d common nails,
3. Install (2) two 12"x24" gussets at ends of the collar tie. Glue and nail using 14 nails per gusset.
4. Turn this truss over and apply wood gussets to the opposite side.
5. Repeat to assemble (4) four more trusses if you are building a 12' long building. Assemble (6)
six more trusses if you are building a 16' long building.
2x4 Block
Top Gusset 12"x24" Gusset
2x4-82" Collar Tie
!Install collar tie the same
distance from edge of floor.
80-1/2" Truss Rafter
2x4 Block
2x4 Block
2x4 Block
80-1/2" Truss Rafter

If you are constructing a 12' x 16' building, go to Step 8B.
7. Install (2) two 4-1/4" siding panels over
the door header. The siding should extend
3/4" below the door header. Cut length to
fit. Wall trim, installed later, will hide
where the siding butts the front wall siding.

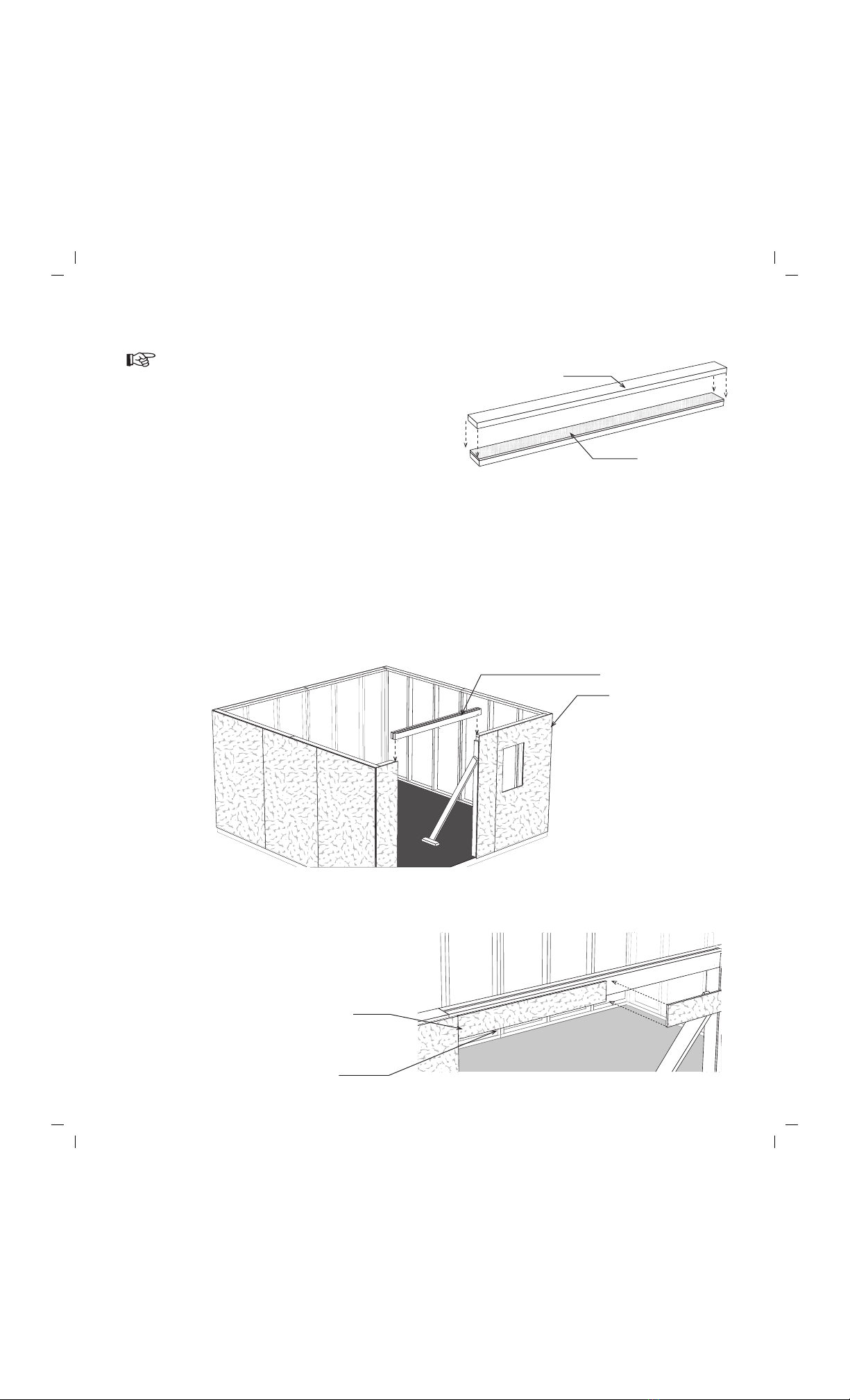

Step 8A Set Walls For 12' x 12' Building
2. Erect wall panels. IMPORTANT make sure walls are plumb and square. Secure together
at the corners using (4) four 10d sinkers per corner.
3. Nail along siding edge where it overlaps front and back walls at corners.
4. Install the 2x4 door header between the front wall panels. Nail through the wall stud into the
ends of the header. Toenail into the top wall plates.
5. Remove the center (2) two 2x4-84" boards from pallet and temporarily install at both sides of
the door opening to hold the wall straight. Alternatively you can use 2x4-72" boards that will
be used later for tie plates.
6. Nail all wall panels to the floor through the bottom plate. Space 10d sinkers 24" apart.
2x4 Door Header
Drawing shows a building
with the doors offset.
OSB Filler
1. Gather (2) two 67-1/2" long 2x4 boards and a
3-1/4" x 67-1/4" OSB filler panel. Glue both
sides of OSB. Nail header together from both
sides with 10d sinkers staggered 6" apart.
67-1/2" Long 2x4
Nail siding
Cut 4-1/4" x 48" Siding
Panels to Fit
3/4" Below
Bottom of Header

2. Erect wall panels. IMPORTANT make sure walls are plumb and square. Secure together
at the corners using (4) four 10d sinkers per corner.
3. Nail siding on each 4' wall panel to the 12' wall panels. Nail along siding edge where it overlaps
at corners.
4. Install the 2x4 door header between the front wall panels. Nail through the wall studs into the
ends of the header. Toenail into the top wall plates.
5. Temporarily install 2x4-84" boards from pallet at both sides of the door opening to hold the
wall straight. Alternatively you can use 2x4-72" that will be used later for tie plates.
7. Install (2) two 4-1/4" siding panels over
the door header. The siding should extend
3/4" below the door header. Cut length to
fit. Wall trim, installed later, will hide
where the siding butts the front wall siding.
6. Nail all wall panels to the floor
through the bottom plate. Space 10d
sinkers 24" apart.

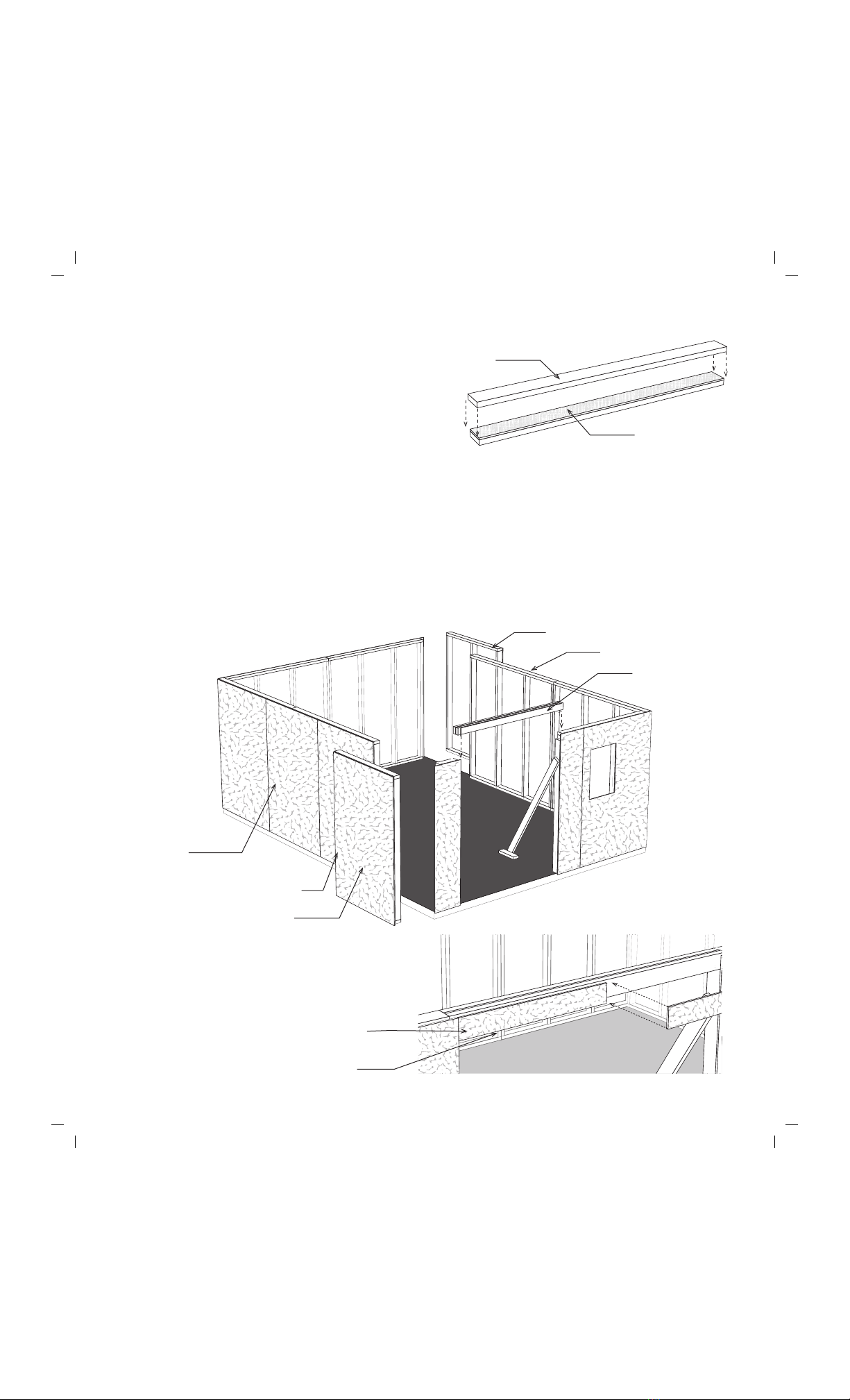

Step 8B Set Walls For 12' x 16' Building
4' Long Wall Panel
12' Long Wall Panel
Door Header
4' Long Wall Panel
12' Long Wall Panel
Nail Along Siding Edge
OSB Filler
1. Assemble door header using (2) two 67-1/2"
long 2x4 boards and 3-1/4" x 67-1/4" OSB filler
panel. Glue both sides of OSB. Nail header
together with (8) eight 10d sinkers on each side.
67-1/2" Long 2x4
Drawing shows building
with the doors offset.
Cut 4-1/4" x 48" Siding Panels to Fit
3/4" Below Bottom of Header

Tip; Paint the siding and trim boards before installing the trim.
Step 9 Install White Pine Trim
Front Wall
Door Opening
1x4-6' Trim
Side Wall
Install All Trim Flush
With Top Plate
3. Repeat above steps on opposite
side wall and front corner.
4. Butt a 1x4-6' trim board against
1x4 corner trim and flush with top
plate. Nail along top.
5. Cut a second 1x4-6' trim board to
finsh at opposite corner.
6. Repeat to install trim on back wall.

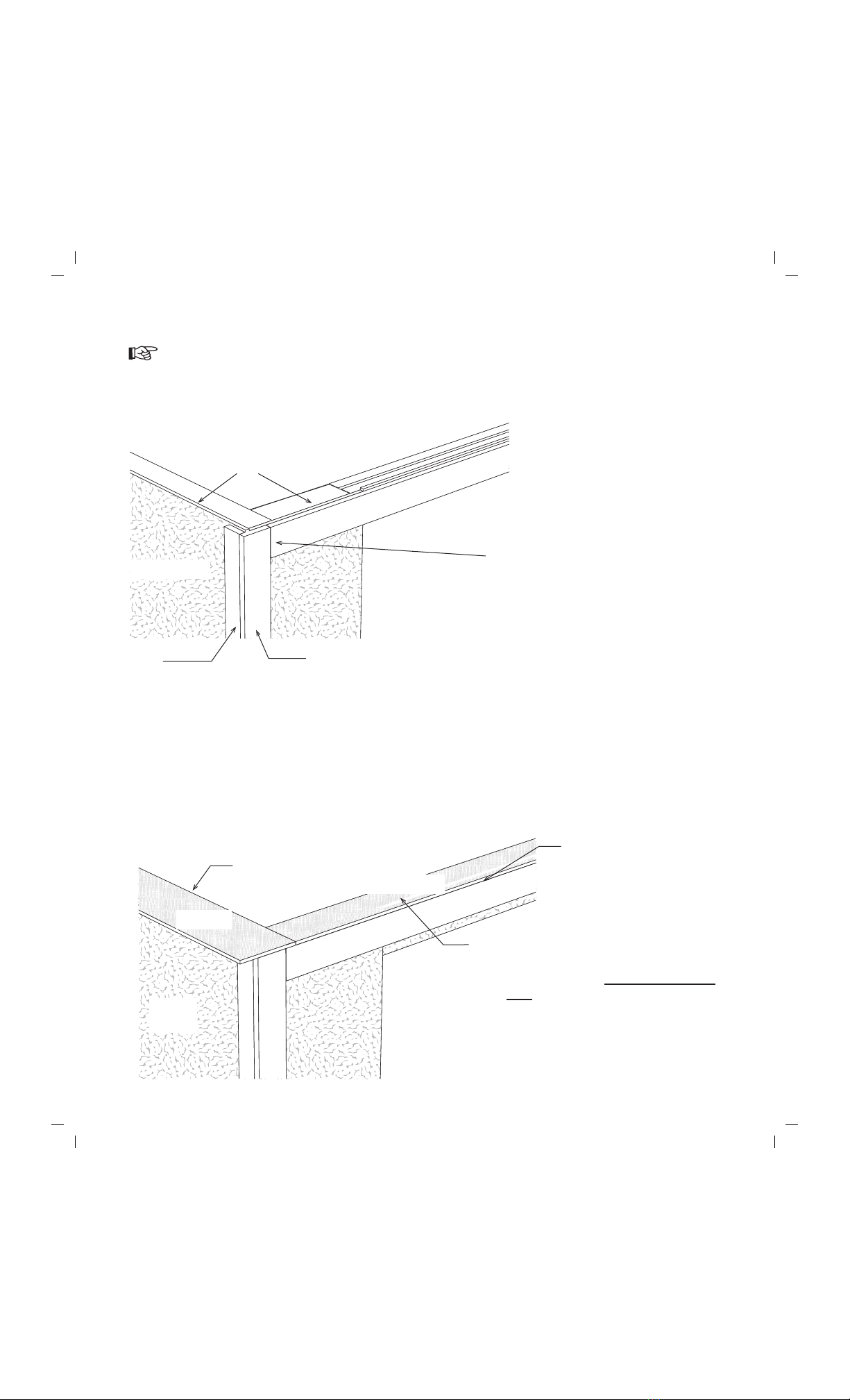

Step 10 Install Primed Soffit and Filler
1. Locate (1) one 7" wide x 48-3/4" long siding panel and cut in half. Install one half over the
side wall with the primed side facing down. Cut edges should be flush with the inside of the
top 2x4 wall plate and flush with the trim on the front wall. Tack the soffit with a couple 6d
common nails. Installing 2x4 tie plates in a later step will provide more nailing.
2. Install (3) three more soffit boards for a 12' building or (4) four for a 16' building. Cut the last
soffit flush with the back wall trim.
Side
Wall
Soffit Flush with
Inside of 2x4
4. Install (3) three 4-1/4" wide x 48-
3/4" filler panels over the front wall.
Install the filler flush with the 1x4
trim. Cut last filler to fit.
5. Repeat to install filler on back wall.
3. Repeat to install soffit boards on the other side wall.
1x3 Trim 1x4 Trim
Front Wall
Door Opening
Install Filler
Flush to Trim
1. Install (2) two 75-3/4" long 1x3 corner trim boards to the side wall flush with the top 2x4 wall
plate and flush with siding on the front and back walls. Use 8d galv. nails, spaced 12" apart.
2. Install a 75-3/4" long 1x4 trim board to the front wall flush with wall plate and with 1x3 trim.
7" Soffit
4-1/4" Filler

LAP Edge
Flush
Step 12 Install Gables
Important: Bottom edge of siding extends
over 1x4 trim. Paint this edge.
2. Install gable on the front wall.
Step 11 Install Siding on Gables
1. Install a gable on the rear wall. The gable siding will extend over the 1x4 trim on the lower
wall. Secure gable to wall by nailing through the gable plate with 10d sinkers. Nail siding along
the 1x4 trim board with 8d galv. nails.
Siding Extends 3/4"
Below Bottom Plate
2x4s-72" Stacked to
Level Gable
1. Select one of the gable frames. Turn the gable over so bottom plate is on edge on floor. Support
gable studs and rafters with (2) two 2x4-72" boards stacked. This will give you a solid surface
when nailing siding.
2. Install left gable siding panel with the 'LAP' edge flush with the end of of bottom plate. Use
6d galv. nails across the top of the 2x4 frame and gable studs. Use 8d galv. nails across the
bottom plate. The siding will extend 3/4" below the bottom 2x4.
3. Install center and right panels. Cut last panel flush with end of bottom plate.
4. Repeat to install siding on
the other gable frame. LAP
Edge

2. If used for a wall brace, remove a 72" long 2x4
and install this next to the 3' long 2x4. Cut a 3'
piece to fit against rear gable.
3. Repeat to install tie plates on the oppost side wall.
Inside of Building
1. Cut a 2x4-72" in half and install one 3' piece over a side wall, against the front gable
plate and flush with the inside of soffit. Use 10d sinkers.

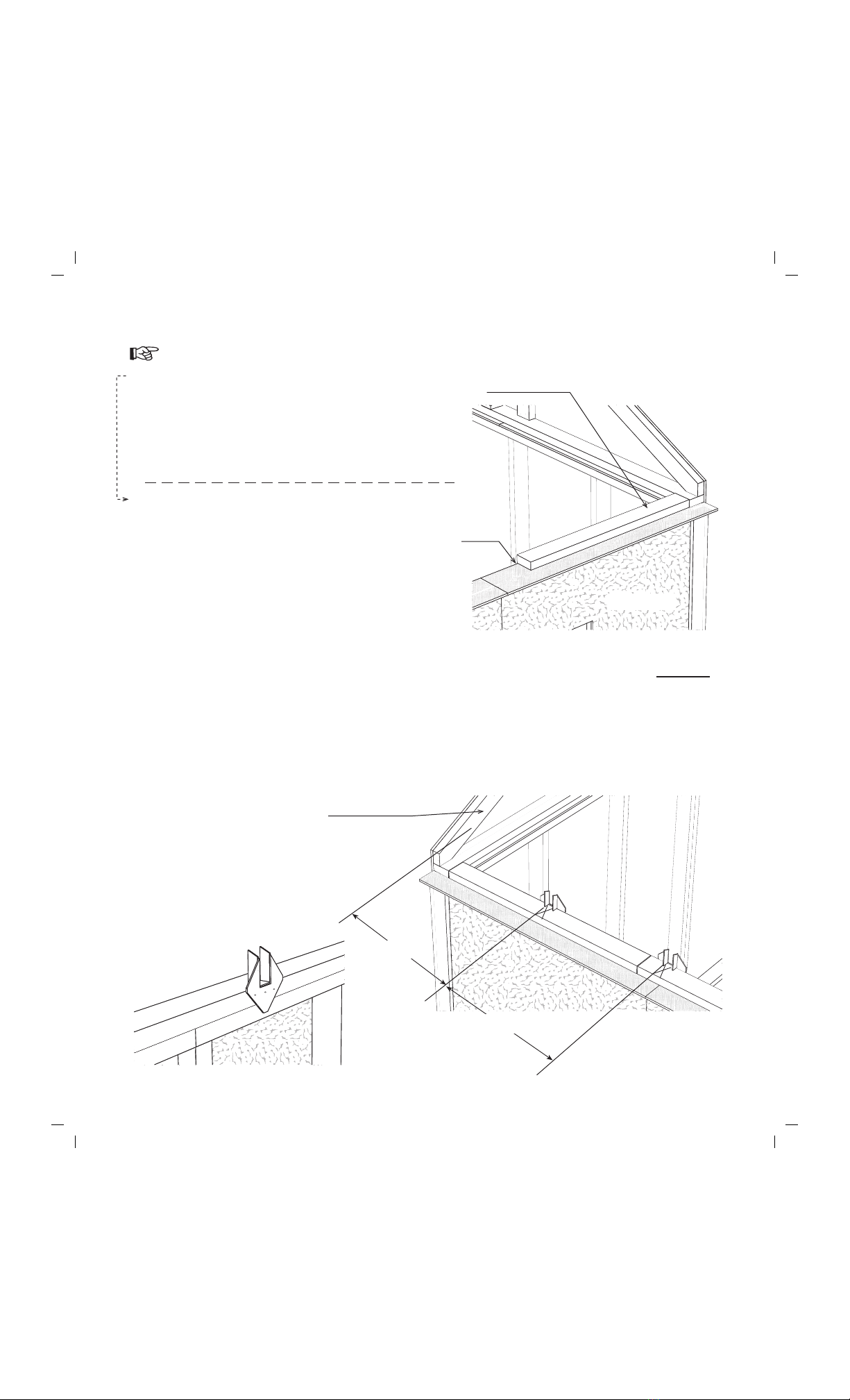

Step 14 Layout Roof Trusses
Side Wall
Step 13 Install 2x4 Tie Plates on Side Walls
For a 16' Building Length, Skip to Number 4
4. Install a 4' long 2x4 over a side wall, against the
front gable plate and flush with the inside of soffit.
Use 10d sinkers.
5. If used for a wall brace, remove a 72" long 2x4
and install this next to 4' tie plate. Cut another 72"
2x4 to fit against reart gable.
6. Install tie plates on the opposite side wall.
1. Layout the truss spacing from the left sidewall of the building. Measure from the backside
of the 2x4 gable frame when marking the location of the first truss. Continue 24" spacing
to other gable. Important: When marking the opposite wall, place the 'X' mark on the same
side of the line so your trusses are parallel when they are installed.
2. Install metal hangers to the tie plate with 6d common nails . The opening should line up
with the 'X' mark, the bottom of the opening, flush with the 2x4 tie plate. Detail 'D'.
24"
20-5/8"
Measure from
Backside of 2x4
Install
Flush
Detail 'D'
2x4 Tie Plate

3. Install a 2x4 block at each
end of the soffit, flush with
the 2x4 gable frame.
1. Install a 8-1/2" long trim board, called a keystone,
at the top of the gable flush with the top of the
gable frame. Use 8d galv. nails.
2. Install (2) two 81" long 1x4 trim boards flush
with the top of the gable frame.
Use 8d galv. nails.
2. Install short 2x4 blocks at
both ends of each truss.
Secure 2x4 blocks to the
soffit panel using (2) two
1-1/2" long exterior screws.

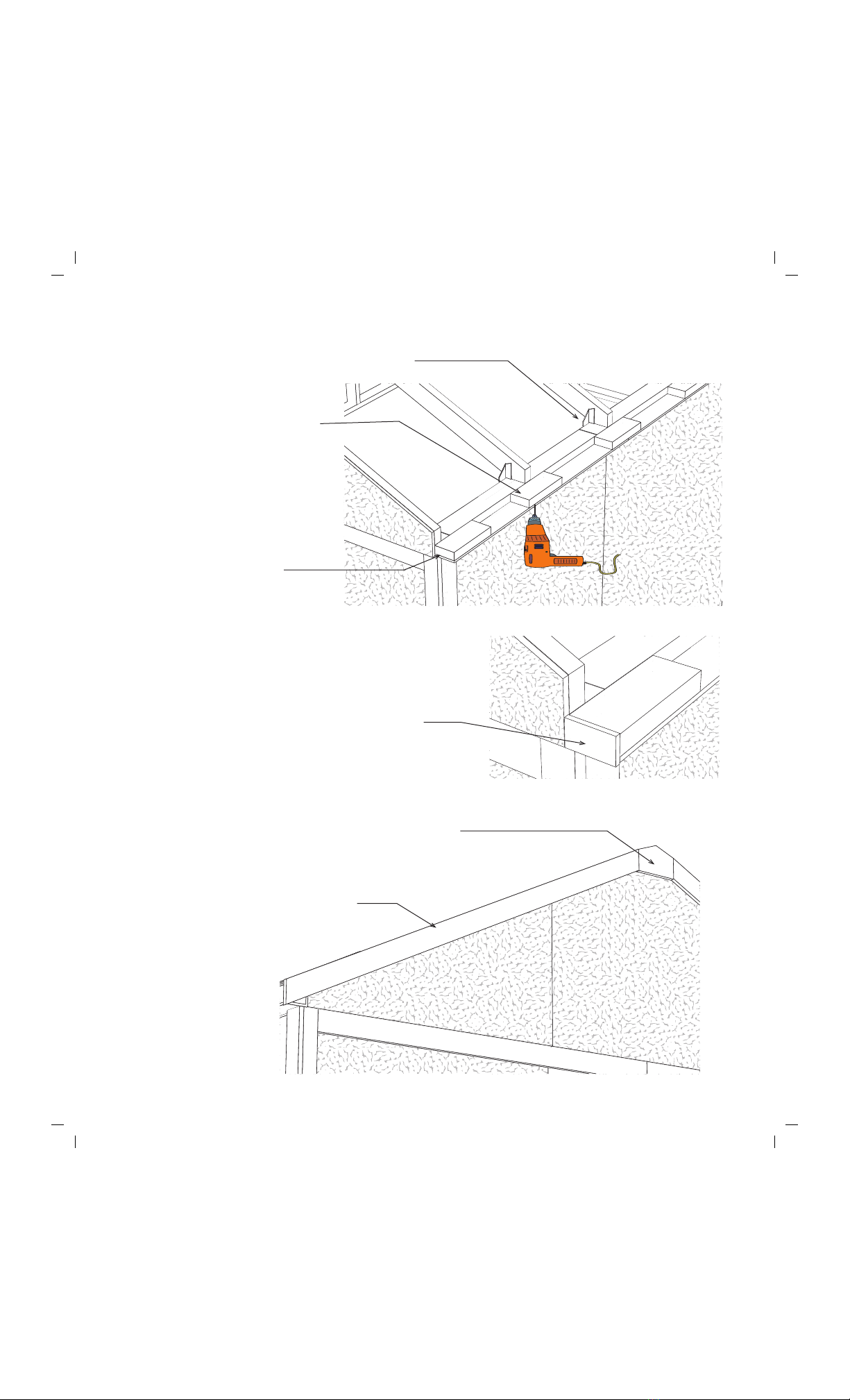

Step 15 Set Roof Trusses and Soffit Blocks
1. Set roof trusses. Secure trusses to metal hangers with 6d common nails.
Step 16 Install Rear Gable Trim
4 Install small primed siding fillers, packed with the
hardware, over the 2x4 soffit blocks. Siding fillers
will be flush with the gable siding. Use 6d galv. nails.
Siding Filler

48" x 72"
48" x 48" 48" x 83-1/2"
36-1/2" x 83-1/2"
Panel Extends
7-1/2" Beyond
Gable
"
Cut each 48" x 85-3/4" panel from the extension kit
to a 48" x 48" and a 36-1/2" x 48" long panel.
"
"
36-1/2" x 72"
3. If you are building a 16' building, butt a 1x4-4' fascia board to the 6' board. See sheathing
drawing below. Install another1x4-4' fascia on the opposite side.
4. Do not install last fascia boards until a later step.
5. Install roof sheathing per layout below. *See note below for 16' building. Starting at rear of
building install a 48"x72" OSB roof panel flush with 1x4 gable trim. Plumb each truss and
gables. Make sure the sheets meet at center of truss. Use 7d sinkers spaced 12" apart. The top
row of roof sheathing will be about 1" below the ridge to allow for optional ventilation.
Important: Make sure the roof sheathing extends 7" past the siding on the face of the gable.
1x4-6' 1x4-4'
36-1/2" x 48"
Step 17 Install 1x4 Fascia & Roof Sheathing
1x4 -6' Fascia Board
1x4 Fascia
2x4 Truss
Roof Sheathing
Straight Edge
2x4 Tie Plate
2x4 Soffit Block
Nail Fascia to
2x4 Block
1. Starting at the rear of the building, install a 1x4-6' white pine fascia board against the rear gable
trim. Install the fascia so the bottom edge of the roof sheathing will rest on the edge of the 1x4.
See Detail 'E'. Use a straight edge to align the 1x4 board with the top of the trusses.Use 8d
galv. nails.
2. Repeat on opposite side wall.
"
Detail 'E'
48" x 48" 48" x
36-1/2"
""

Air
Space
Truss
Shingles
7" Wide Panel
Flush with Bottom of 2x3
1x3 Door Trim

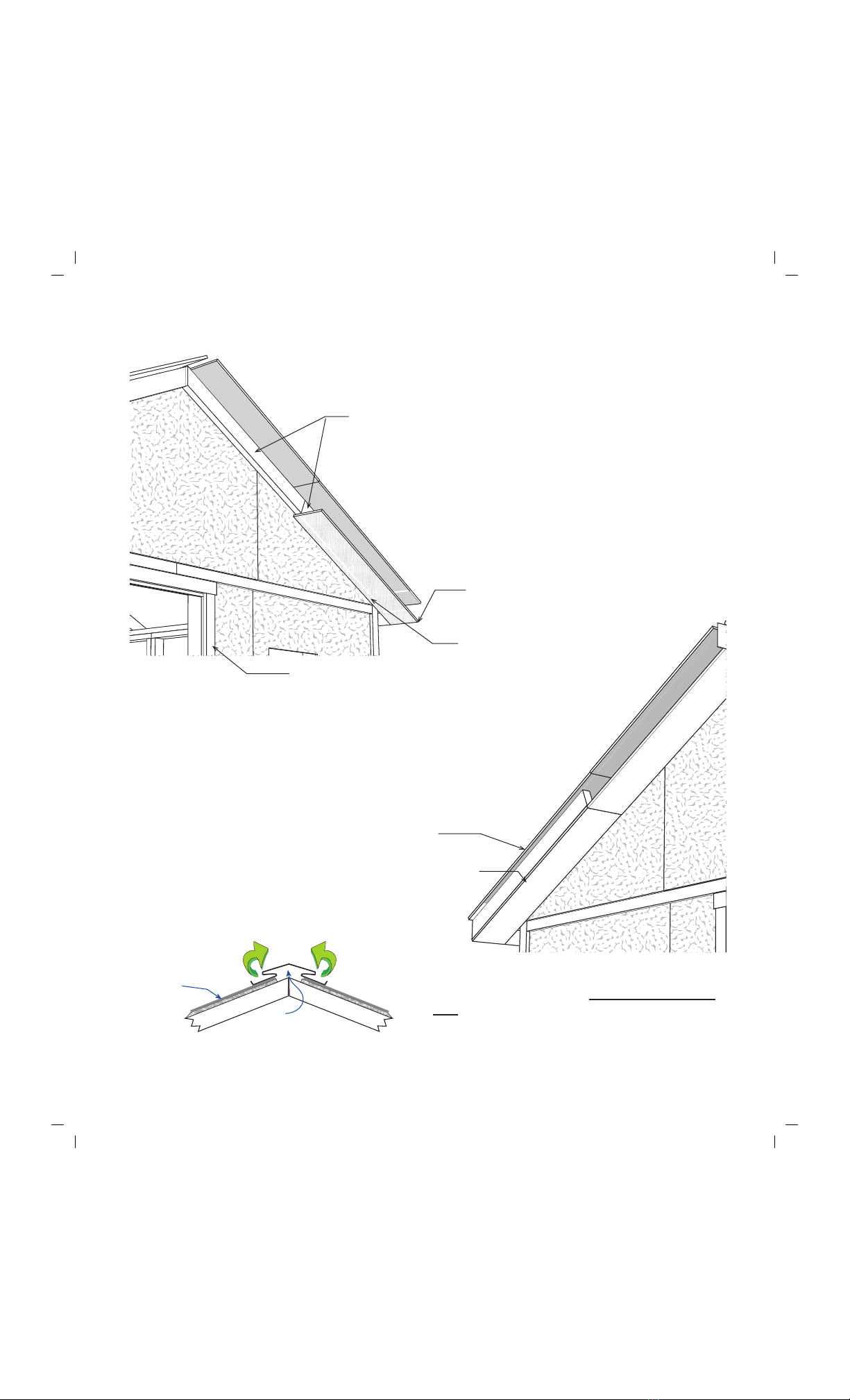

Step 18 Install Front Gable Soffit and Door Trim
2. Gather (2) two 42-3/8" long 2x3s. Starting at the peak
install against gable siding and underside of roof sheathing.
Use 10d sinkers. Repeat on the other side.
3. Gather (2) two 7" wide soffit panels. Install first panel
flush with lower end of 2x3 and against siding. Use 6d
galv. nails. Cut next panel to fit. Repeat on other side.
1. Install metal roof edging perimeter of the roof
area. If you are not installing shingles at this time,
you can purchase felt paper to protect the roof
sheathing. Install the felt paper before you install
the metal roof edge.
Optional ridge vent provides
ideal ventilation.
1. Locate (2) two 1x3-72" long trim boards. Tack these boards, with a
couple nails, flush to each side of the door opening. You may want
to move the trim later when you install the doors.
Step 19 Install Roofing
Not Supplied in Kit
Nail into Bottom of 2x3
5. Install gable trim and keystone over the 2x3 boards and under
the roof sheathing. Use 8d galv. nails.
6. Return to side wallsand cut the last 1x4-7' fascia boards to fit.
4. Starting at the peak install (2) two 42-3/8" long 2x3s between the roof
sheathing and the 7" soffit panels. Use 6d galv. nails on soffit and 7d sinkers
through roof sheathing. Set these boards flush with soffit panels. Roof
sheathing will extend past 2x3 boards. Repeat on other side.
Nail with 7d Sinkers
Nail with 6d Galv.

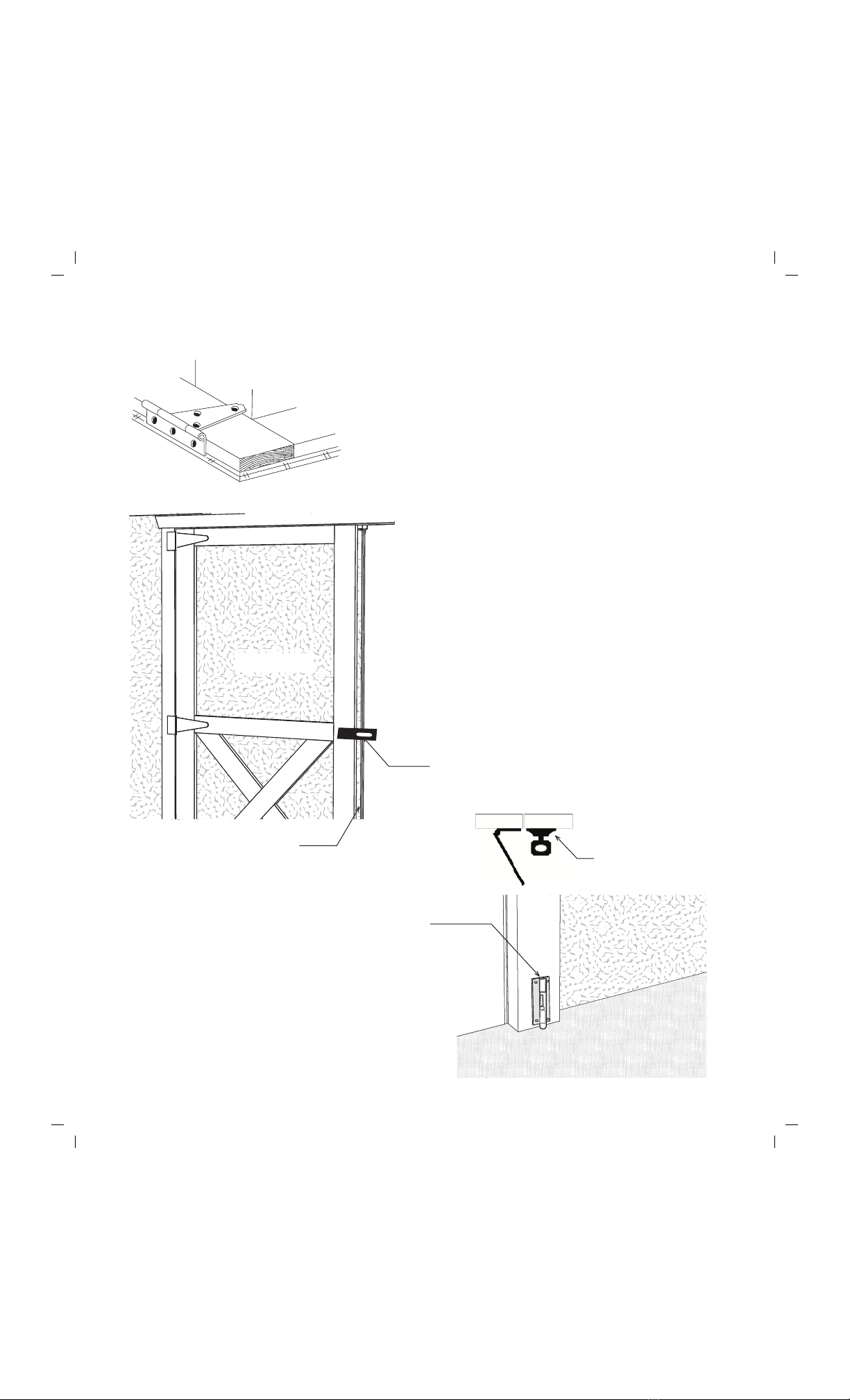

Step 20 Install Doors & Hardware
3. Before fastening the hinges to the side trim,
temporarily prop the doors in the opening. Leave
a space at the top and bottom of the doors and
between the doors and the side trim to allow
room for the doors to expand due to humidity.
If your door opening is out of square, the space
around the doors will not be even. You can
remove and re-position the side trim to make
allowances for this. The side trim does not have
to be flush with the frame of the door opening.
You can move the trim in or out to make the
door spacing equal.
4. Determine position of hinges and install to side
trim with 2" screws.
5. Installdoorhaspondoubledoors.Whenproperly
installed the hasp will fold in half to receive
locking latch and the screw heads will be
covered.
6. Install a barrel bolt on the lower back of
the door to secure this door in place when
closed. You will need to drill a hole for
the round shaft to drop into.
7. Install another barrel bolt at the top of the
door.
Barrel Bolt on the
back of left door
Left Door
Siding Extends Past Trim
1. Locate the door that has a 2x4 fastened, on edge, to the
back side of the door. When doors are closed this 2x4 will
be in the center where doors meet. Lay the door with the
trim facing up and install (3) three 5" hinges to the right
side. To position the hinge properly, hold the rectangular
plate against the frame. Use 1-1/4" black screws.
2. Install hinges on the left side of the other door.
Fold Hasp to Cover
Screws

Material Packaged In Component Kit
4 1 lb. box 10d Sinkers
4 1 lb. box 8d Galv.
2 1 lb. box 7d Sinkers
1 1 lb. box 6d Galv.
4 1 lb. box 6d Common
50 ea. 1-1/2" Exterior Screws
25 ea. 2-1/2" Deck Screws
6 ea. 5" Door Hinges
1 ea. 4-1/2" Door Latch
2 ea. 6" Barrel Bolts
25 ea. 2" Hinge Screws
25 ea. 1-1/4" Hinge Screws
6 ea. 1x4 Metal Plates
2 ea. Bottle Glue
2 ea. Plywood Gussets 3-1/2" x 32"
1 ea. OSB Filler 3-1/4" x 67-1/4"
2 ea. 1x6 Keystone 8-1/2"
4 ea. 1x4 Gable Trim 81"
4 ea. 1x4 Corner Trim 75-3/4"
4 ea. 1x3 Corner Trim 75-3/4"
4 ea. 1x4 Wall Trim 72"
2 ea. 1x3 Door Trim-sides 72"
1 ea. 1x3 Board (not used) 72"
2 ea. Pre-built Door 32" x 71-1/2"
4 ea. Gable Siding Fillers 2"x3"
5 7 Collar Ties 2x4 82"
14 18 Truss Rafters 2x4 80-1/2"
48 54 Wall Studs 2x4 72"
4 4 Wall Plates 2x4 68-1/2"
2 2 Wall Plates 2x4 67-1/2"
2 2 Wall Plates 2x4 58-1/2"
2 2 Wall Plates 2x4 34-3/4"
--- 6 Wall Plates 2x4 48"
4 4 Gable Studs 2x4 23-1/2"
8 8 Gable Framing 2x3 42-3/8"
10 14 Truss Gussets 7/16" 10" x 24"
20 28 Truss Gussets 7/16" 12" x 24"
11 13 Soffit Panels 3/8" x 7" x 48"
8 8 Filler Panels 3/8"x 4-1/4" x 48"
10 14 2x4 Metal Truss Hangers
2 2 Fascia Boards 1x4 x 84"
2 2 Fascia Boards 1x4 x 72"
--- 2 Fascia Boards 1x4 x 48"
10 12 Siding Panels 48" x 75-3/4"
2 2 Siding Panels 16" x 75-3/4"
2 2 Gable Siding Panel 48" x 40"
4 4 Gable Siding Panel 48" x 28"
4 4 Roof Sheathing 72" Long
--- 2 Roof Sheathing 85-3/4" Long
4 4 Roof Sheathing 83-1/2" Long
18 24 2x4 Truss Jig Blocks 5" to 7"
Bld. Length
12' 16'
Building Size
12x12 12x16
8 bdl. 10 bdl. Roof Shingles
7 pcs. 8 pcs. Roof 'drip' Edge 10'
Install metal roof edge the perimeter of the
building. Install shingles according to the
instructions on the wrapper. If you need more
detailed instructions on installing shingles, there
are good publications at book stores or online.
Install Shingles. Purchased Separately
