Best Barns Millcreek Safety guide

Manufactured by Reynolds Building Systems, Inc.
This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from Reynolds
Building Systems, Inc. © Copyright 2011
12'x 20'
Assembly Book
Best Barns USA
the Millcreek
205 Arlington Drive Greenville, PA 16125
Revised September 19, 2017

When measurements are given for a board
length or width, it is from the longest side.
measure from here
Tool List
Hammer & Hand Saw
Framing Square & Level
Power Circular Saw
Power Drill/screwdriver
Measuring Tape
2-8' Step Ladders
Always wear safety glasses when cutting ornailing!
IMPORTANT INFORMATION ABOUT YOUR SHED KIT
To identify which edge we want you to use,
we will refer to the edge as either the 'LAP'
Edge or the Tongue Edge.
Tongue Edge
LAP Edge
Download the most current instruction book at www.barnkits.com; use the "manuals"
link on the menu bar and then select your building kit and size.
Thank you for purchasing our shed kit. Read the instructions before starting the assembly
of the building. If you have any questions about assembling the kit, call 800-245-1577.
Business hours (8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-
HELP (4357) or email to [email protected].
The material that is included in our kit is listed on the back page. The optional floor package,
if purchased, will be supplied by a local lumber supplier.
Our kit does not include the shingles, the quantity needed is listed on the back page. The
siding is primed. You will need to apply a finish coat using latex acrylic paint.
Some of the framing lumber was used in the shipping pallet. Unpack the material from the
pallets. Unscrew the OSB panels and the 2x4s from the shipping pallet. The 2x4s will be
used for wall bracing and to support the loft beams. The bit for the screws is packed in the
hardware bag.
Most buildings are installed on a wood floor and the siding was designed to extend over the
wood flooring. If the foundation is a concrete floor cut the siding flush with the bottom of
the wall plate to prevent the concrete from contacting the siding.
Stacking the boards, according to size, will make them easier to find when needed. Do Not
discard any material until your building is complete.
Before you begin construction, be sure to study this assembly manual. Also, obtain a building
permit and check all pertinent building code regulations for your area.
Thank you for your purchase. Bill & Linda Rinella, owners

1. Stagger the 4x4 timbers as shown below. Cut (2) two 2x4- 8' boards into 2' long blocks
to secure the 4x4s where they butt together.
Assembly Instructions for
Rear Floor Section
4. Install the floor joists cut above between the 8' joist headers. Secure with 16d galv. deck nails.
5. Place floor assembly over the 4x4s. Square floor assembly. Measure the floor diagonally
(corner to corner) and then the opposite corners; these measurements will be the same when
the floor is square. Toenail frame (headers & joists) to the 4x4 runners.
2. Cut (2) two 2x4-8' to a length of 8' -0". They
will be used for the joist headers. Layout, from
left, for 16" on center joist spacing. 'X' marks
where floor joist will be placed.
6. Cut (2) two 2x4-12' to a length of 12' -0". Layout
for 16" joist spacing, See above.
7. Install floor joists between the joist headers. Square
the floor section and install against the section
assembled above. Toenail to the 4x4s runners.
8. Install 4x8 flooring over the 2x4s. Use 8d
galvanized spiral floor nails spaced 8" apart.
Material Description 12' x 20'
2x4 Treated Blocking 2 pcs. 8'
2x4 PT Joist Headers 2 pcs. 8'
2x4 PT Joist Headers 2 pcs. 12'
2x4 PT Floor Joist 17 pcs. 12'
4x4 Treated Runners 4 pcs. 8'
4x4 Treated Runners 4 pcs. 12'
Flooring 5/8" or 3/4" 8 pcs. 4x8
Galv Spiral Floor Nails 3 lb. 8d
Galvanized Deck Nails 5 lb. 16d
Foundation size is 12'-0" x 20'-0". Check local building codes in your area, the construction may
have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete
and the wall plates. Foam sill sealer can be purchased at home centers in rolls 3-1/2" or wider.
Constructing Details for Deluxe Floor System
Deluxe floors include 4x4 runners, standard floors do not.
3. Cut (17) seventeen 2x4-12' treated boards to 11' -9". These will be the floor joists. Treated
lumber may be thicker than 1-1/2". Take this into account when cutting the length of floor
joists. Shorten joist measurements if necessary to obtain 12'-0" building width.
XXXX
XXXX
X
X
15-1/4" 16" 16"
4x4-8' Treated
Runner
4x8 Flooring
2x4-8' Joist Header
4x4-12' Treated
Runner
4x4-8' Runner
4x4-12' Runner
4x4-12' Runner
Front Floor Section
::
:::
:
:::::::
.
.
.
.
...
...
.
.
.
......

2. Repeat to assemble a second Gable Plate.
72" Long 2x6 w/ Notch
72" Long 2x6 w/ Notch
72" Long 2x6
without notch
36" Long 2x6 w/ Notch
36" Long 2x6
w/ Notch
GLUE
4. To provide additional strength, install 2-1/2" wood screws spaced 16" apart as shown below.
5. Repeat steps to assemble a second Loft Beam.
Step 2 Assemble Gable Plates
1. Butt (2) two 72" long 2x4s together and secure them by nailing a 3-1/2" x 42-3/4" long
plywood gusset across the top where they butt together. The gusset needs to be centered
on the 2x4s (approximately 50-5/8" of the 2x4s will be exposed on each side of the gusset).
Use wood glue and (2) two rows of (20) twenty 6d common nails to secure the gusset.
Step 1 Assemble Loft Beams
1. Locate (2) two 36" long 2x6 boards with a notch on one end and a 2x6 board without a
notch. Position these 2x6 boards on a flat surface as shown below.
2. Apply a coat of glue to the top surface using wood glue supplied in the kit.
3. Locate (2) two 72" long 2x6 boards with a notch on one end. Install these 2x6 boards
over the bottom boards.
72" long 2x4
3/4" Plywood Gusset
2x6 Beam
16" 16" 16"

2x4 Block
Gable Plate Assembly
2x4 Block
Gable Plate
4. Nail a 31-3/4" long 2x3 block where the trusses meet at the top with 10d coated sinker
nails. Secure with a 32" wood gusset. Apply wood glue between the gusset and truss and
nail with (25) twenty-five 6d common nails.
5. Turn the truss over and install a gusset to the other side of the truss.
6. Repeat this process to assemble (8) eight more trusses.
32" Top Gusset
1. Position a Gable Plate (from Step 2) on the floor with the narrow edge side down. Use 2x4
blocks to hold the 2x4 plate straight.
2. Position (2) two truss halves (2x4s connected with a metal plate) with the short legs against
the 2x4 Gable Plate Assembly. DO NOT attach the Gable Plate Assembly to the truss. It is
temporarily used to help hold the 2x4 truss parts in place and will be attached in a later step.
3. Secure 2x4 blocks around the perimeter of truss to hold truss parts in place.
Do Not Fasten Truss Legs to Gable Plate
Step 3 Assemble Trusses
31-3/4" Long 2x3 Block
Truss Half
Metal Plate
Building Tip: To aid in the assembly of the trusses, temporarily tack-nail or screw 2x4
blocks to the floor using short 2x4 packing blocks supplied in kit. This will ensure
that all the trusses are assembled the same.

:
32"
3. Install a 42-3/4" long 2x4 board in the
opening 32" from top of wood gusset.
Secure with 1"x4" metal barbed plates.
7. Position 2nd gable plate and repeat steps to assemble the front roof gable. Read note below:
DO NOT use trusses from Step 3 to assemble the roof gables.
1. Place (2) two truss halves together and secure the top with a 1"x4" barbed metal plate.
2. Nail a 31-3/4" long 2x3 board to the truss at the ridge with 10d coated sinkers.
3. Cut a 42-3/4" long 2x4 to fit and install in the center of the gable. Nail through gable plate
and plywood gusset with (2) two 10d sinkers. Secure the top with a 1x4 barbed metal plate.
4. Butt (2) two 40-3/4" long 2x4s against the wood gusset. Secure the bottoms to the 2x4 gable
plate by nailing through plate with (2) two 10d sinkers. Secure the tops with a barbed plate.
5. Install (2) two 30-3/4" long 2x4s with barbed plates and nails.
6. Nail truss leg to 12' Gable Plate with 10d sinkers.
30-3/4" Long 2x4
2x4 Cut to Fit
40-3/4" Long 2x4
31-3/4" Long 2x3 Block
Wood Gusset
Step 4 Assemble Roof Gables
If you want the loft doors to open, repeat steps 1-6
substituting number step 3 with directions below:
1"x4" Drive-on Plate

2. Install (2) two 61" long 2x3 boards with blue marking at
one end. Install this end at the top of front gable ony.
Ensure 2x3 is flush with gable frame. Use 10d sinkers.
3. Install (2) two 42-1/2" long 2x3s. Use 10d sinkers.
61" Long 2x3
42-1/2" Long 2x3
Blue ends
4. Assemble the loft doors. The loft door frames are
temporarily held together with corrugated fasteners;
this is the back side of the door frame. Place the doors
on level surface, face side down. Cut the siding from
above step to the size of the door frame. Secure the
siding panel to the frame with 1" screws provided.
Siding Extends
3/4" Below Plate
LAP
'Tongue' Edge
.
.
.
.
.
.
.
..
.
..
.
1. Install siding on right working left. Lay out the first (2) two pieces of siding on frame.
Important: Do not nail to frame if loft doors are to open. Mark and cut so siding is flush
with top and right side of loft door opening. Cut to bottom of siding below gable plate. Nail
first two pieces of siding to frame. Lay out next siding panel, do not nail if loft doors are
to open, and repeat cut for left side door opening. Nail last two pieces of siding to frame.
Step 5A Apply Siding to Rear Roof Gable
1. Remove 2x4 blocks and turn gable frame over.
2. Install pre-cut siding on rear gable. First piece
will have a 'Tongue' edge. Start from left and
install siding extending 3/4" below gable plate.
Siding must not extend above the top frame. Use
8d galvanized box nails along the gable plate and
6d galvanized box nails on studs and truss frame.
Space nails 8" apart.
The rear gable trim is installed
in Step 18, however you can
install the trim now.
Step 5B Apply Siding to Front Roof Gable

Cut the siding flush with the
bottom plate if installing the
building on a cement slab.
Step 6A Assemble 10' Sidewalls
4. Cut one of the 48" wide siding panels in half lengthways.
5. Square wall frame.
Measure diagonally (corner to corner); the measurements will
be the same when the wall is square.
6.
Select the 2' wide panel, with the 'tongue' edge, and install this panel with the 'cut'
edge flush with the end of the wall and extending 3/4" below the bottom plate. Use
8d galvanized nails spaced 8" apart.
7. Install (2) two more siding panels.
Siding Extends 3/4" Below Plate
LAP Edge
1. Position (2) two 2x4-48" boards and (2) two 2x4-72" boards together and indicate
with 'X' marks where the wall studs will be located.
2. Install (7) seven 80-1/4" long wall studs between the wall plates. Use (2) two 10d sinkers
at each end of stud. Nail the frames together with (5) five 10d sinkers, alternating sides.
3. Repeat to assemble (3) three more 10' long sidewall frames. You will need to cut (2) two
64" long 2x4s to a length of 48" to assemble the last 48" wall frame.
8. Select (1) one of the 10' wall frames and repeat to apply siding to a second sidewall frame.
XX
XX
X
X
X
X
24"
23-1/4"
72" Wall Plate
X
X
X
X
X
X
48" Wall Plate
23-1/4"
Cut Edge
Tongue Edge
72" Wall Plate
48" Wall Plate
:::::::
.
.
.

4. Repeat to apply siding to the other 10' wall frame.
Step 6B Assemble Sidewalls for 20' Building Length
1. Select one of the 10' sidewalls assembled in Step 6. Butt a 10' wall frame against the
wall with siding. Do Not nail these frames together so they can be separated later.
10' Wall Panel from Step 5
6' Wall Plate
2. Square the wall frame. Install a full width siding panel using 8d galvanized box nails spaced
8" apart. Do Not nail along the long edge that overlaps the 10' wall frame. You can nail
this edge after the wall panels are installed. This will enable you to separate the wall panels
making them easier to handle.
Do Not Nail Along This Edge
LAP Edge
4' Wall Plate
3. Install another full width siding panel and
the 2' wide siding panel.

3. Square wall frame. Measure diagonally (corner to corner); the measurements will be the
same when the wall is square.
4.
Install the 1st siding panel with the 'LAP' edge extending 3-1/2" past the wall frame. Use
8d galvanized box nails spaced 8" apart. The bottom will extend 3/4" below the bottom
plate, or trim flush for cement slab.
5. Install the other siding panels. Cut the last panel to extend 3-1/2" beyond the wall frame.
A
A
B
B
XX
XX
X
X
X
X
X
X
X
X
68-1/2" Wall Plate
23-1/4"
68-1/2" Wall Plate
19-3/4" 24" 24"
Step 7 Assemble Back Wall
1. Position (4) four 68-1/2" 2x4 boards together and indicate with 'X' marks where the wall studs
will be located. Mark the ends that will butt together with the letters 'A' and 'B'.
2. Install (8) eight 80-1/4" long wall studs, between the wall plates, over the 'X' marks and where
the plates meet. Use (2) two 10d coated sinkers at each end of a stud. Nail wall sections
together using (5) five 10d coated sinker nails, alternating each side of the studs.
Siding to extend 3/4”
below bottom plate
LAP
Edge
A
B
Siding Extends 3-1/2"
Past 2x4 Stud
:
80-1/4” Wall Studs
68-1/2" Wall Plate
:
:
:
:
:
:
:
AB

If you want the barn doors in the center of the front wall, go to Step 9B.
:
:
:
:
:
:
75" Long 2x6
OSB Filler
3. Go to Step 10A.
3. Go to Step 10B.
XXX
X
19-3/4"
32-1/2"
2x4 - 68-1/2
Boards
2x4 - 6' Board (Door Spacer)
19-3/4"
....
...
Step 8 Assemble Door Header
Assemble door header using (2) two 75" long 2x6 boards and a 75" OSB filler
panel. Apply wood glue between OSB and boards. Nail header together with
10d coated sinkers. Use (12) twelve nails on each side.
19-3/4"
24"
Bottom Wall Plate Assembly
Step 9A Assemble Bottom Wall Plate (doors offset)
Step 9B Assemble Bottom Wall Plate (doors centered)
56-1/2" To Door Spacer
Door Spacer
1. Butt (2) two 68-1/2" boards together to make bottom wall plate. Secure bottom plate with
a 2x4-6' board (used as door spacer) installed 56-1/2" from the end of the 2x4 wall plate.
Secure with (4) four 2-1/2" wood screws.
2. Mark locations for the wall studs with 'X' marks.
1. Butt (2) two 68-1/2" boards together. Center a 2x4-6' board (used as door spacer) on top and
screw the boards together using (4) four 2-1/2" wood screws.
2. Mark stud spacing as shown below.

2x4-6' Door Spacer
36"
Optional windows can be installed now or later.
Check measurements. They
should be the same or the
door opening will not be square!
Step 10A Assemble Front Wall (doors offset)
To install doors offset to the left, flip wall before applying the siding.
5. Install a 12" and a full width siding panel on the left corner (right corner if installing door on
left side). The cut edge on the 12" siding should be flush with the left side of the door opening
and extend 3-1/2" past the frame. Do Not nail the 'LAP' edge until the other siding is applied.
Position the full width siding panel and nail along the 'LAP' edge of the 12" wide panel.
6. Install (2) two 7-3/4" high pre-cut siding panels over the door opening. The siding will extend
3/4" below the door header.
LAP
Edge
Butt Square Edges
Together
LAP Edge
3/4" Below Header
12" Siding Panel
Cut Edge
12-3/4"
Siding Panel
Siding Extends
3-1/2" Past 2x4 Frame
2x6 Door Header
68-1/2' Top Wall Plates
1. Gather the material listed below to assemble the door wall.
2. Install (4) four 80-1/4" wall studs over the 'X' marks using 10d coated sinker nails.
Wall Studs with Door
Jacks Attached
3. Install the wall studs with
the door jacks on each side
of the door spacer.
4. Install door header on the
door jacks.
7. Install a 12-3/4" wide siding panel on the end of the
wall frame. The siding will extend 3-1/2" beyond
!
2 68-1/2" Wall Plates
4 80-1/4' Wall Studs
2 80-1/4' Wall Studs
w/ door jacks attached
1 Door Header from Step 8
1 Bottom Plate from Step 9A
Material List
!
!

2x4-6' Door Spacer
!
!
Check measurements. They
should be the same or the
door opening will not be square!
!
!
Step 10B Assemble Front Wall (doors centered)
2x6 Door Header
Siding 3/4"
Below Header
Cut Edge
Tongue Edge
Cut Edge
Butt Square Edges
Together
5. Locate a 12" siding panel that has a 'LAP' edge. Position the 'cut' edge flush with the left side
of the door opening. Do Not nail the 'LAP' edge until the other siding is applied.
6. Cut a full width siding panel in half lengthways. Select the siding with the 'tongue' edge and
install this siding panel at the left end of the wall frame.
7. Install (2) two 7-3/4" pre-cut siding panels over the door opening, flush with the top plate.
8. Install a 12-34" siding panel with the 'cut' edge flush with the side of the door opening.
9. Install the last siding panel. It will extend 3-1/2" beyond the 2x4 wall frame.
LAP Edge
LAP Edge
12" Siding Panel
12-3/4"
Siding Panel
Siding Extends 3-1/2"
Past 2x4 Frame
Wall Studs with Door
Jacks Attached
68-1/2" Top Plate
2x4 Bottom Plate w/ Door Spacer
2 68-1/2" Wall Plates
4 80-1/4' Wall Studs
2 80-1/4' Wall Studs
w/ door jacks attached
1 Door Header from Step 8
1 Bottom Plate from Step 9B
Material List
1. Gather the material listed below to assemble the door wall.
2. Install (4) four 80-1/4" wall studs over the 'X' marks using 10d coated sinker nails.
3. Install the wall studs with
the door jacks on each side
of the door spacer.
4. Install door header on the
door jacks.
!

Tip: Use the 2x4s from the shipping pallet as braces to hold the walls straight.
Step 11 Set Walls
Layout both beams for the spacing of the loft floor joists.
The 'X' marks where the floor joist will be placed.
Step 12 Layout Loft Joist Spacing on 2x6 Beam
Nail Along
Siding Edge
Front Wall Frame
2x4 Wall
Brace
23-1/4"
24"
24"
10' Long Rear
Wall Panel
1. Set the back wall panel between the sidewalls. Secure wall panels together at the corners
using (5) five 10d coated sinker nails per corner. Nail wall panels to the floor through the
bottom plate using 10d coated sinkers; (2) two nails per stud opening.
2. Install the front wall frame between the sidewalls.
3. Install the last siding panel on the sidewalls. Nail along the siding edge where the sidewall
siding panels overlap.
5. Unscrew and remove the 2x4 door spacer (this will be used later). Cut
and remove the bottom 2x4 in the door opening.

2. Use the beam as a reference to mark
where the floor joist will be placed.
The 2x4 floor joist, when installed,
will be aligned with the wall studs.
1. Cut (4) four 2x4 boards taken from one of the shipping pallets to a length of 76-1/4".
2. Install the rear 2x6 beam 84" from the 2x4 joist header boards with the 'X' marks on the beam
facing the back wall. You can use a 2x4-7' board as a gauge to properly space the beam.
Refer to Step 15 to see how the loft floor joist will be installed.
Place the notch under the top plate and support the beam with one of the 76-1/4" long 2x4s.
Further secure the beam with a 2-1/2" wood screws through the top of the wall plate.
Step 14 Install 2x6 Loft Beams
3. Repeat to Install the other beam with the 'X' marks on the beam facing the front wall.
When the front beam is installed there will be 56" between the beams
Step 13 Install Loft Floor Joist Headers
1. Install (2) two 68-1/2" long 2x4s on the back wall to support the floor joist. Install the 2x4s
flush with the top of the 2x4 wall plate. Secure to wall studs and top plate with 10d sinkers.
68-1/2" Long 2x4
3. Repeat to install joist header support boards on the front wall.
2x6 Beam
76-1/4" 2x4 Board
Back Wall
84" to 2x4 Joist Header
.
:
:
......

2x4 Hanger
Cover 'X' Marks on
2x6 Beams
Step 16 Install Loft Flooring
Install 84" long 2x4s between the front and
rear beams and the 2x4s joist headers. Use
2x4 hangers with 10d coated sinker nails.
1. Install 7/16" OSB loft flooring on back loft floor joists. Loft flooring is flush with outside of
top wall plate. Use 7d sinker nails spaced 8” apart. See layout pattern below:
2. Repeat to install loft flooring at the front of the building.
3. Install 3-1/2" x 56” floor fillers on top of side wall plates between the loft flooring.
4’x6’ Flooring
44"’x 6’ Flooring
4’x6’ Flooring
44"x 6’ Flooring
3-1/2" x 56" Filler
Step 15 Install 2x4 Floor Joists

1x4 84-1/2" Corner Trim
Sidewall
Back and Front Walls
1x4 72" Top Trim
Cut to Fit
.
.
.
.
.
.
1x4 Trim
Loft Floor
flush
........
Step 17 Install Wall Trim
1. Install (2) two 84-1/2" long 1x4 corner trim boards on the back wall, flush with the siding on
the sidewall. Use 8d galvanized box nails spaced 12" apart.
2. Cut to fit and install (2) two 1x4-72" trim boards across the top of the back wall. Install the
1x4 boards flush with the top of the loft flooring. See diagram below.
3. Repeat for front wall trim.
Step 18 Set Rear and Front Gables
WARNING: The gable ends are heavy
and awkward. You'll need helpers to lift
and set gables in place.
1. Install the rear gable on the rear wall. The
siding on the gable must extend over the 1x4
trim board, not behind it. See detail 'D' on
next page. Nail bottom gable to loft flooring.
Use 10d sinker nails spaced evenly in stud
openings.

DETAIL 'D'
:
::
:
:
:
:
:
:
:
:
1x4 Trim
Step 18 Set Rear and Front Gables (continued)
2. Install (2) two 61" long 1x4 gable trim flush with the top edge of the gable. Install the
ends with blue marks together. Install trim with 8d galvanized nails spaced 12" apart.
3. Install (2) two 42-1/2" long 1x4 gable trim
flush with the side edge of the gable.
4. Install the front gable. Do Not apply trim.
1x4 Trim
Bottom Edge of Gable Siding
Overlaps Top Wall Trim; nail
with 8d galvanized box nails.

.
.
.
.
.
.
.
.
24"
18-3/4"
Rear Gable
Measure from Face
of Gable Plate

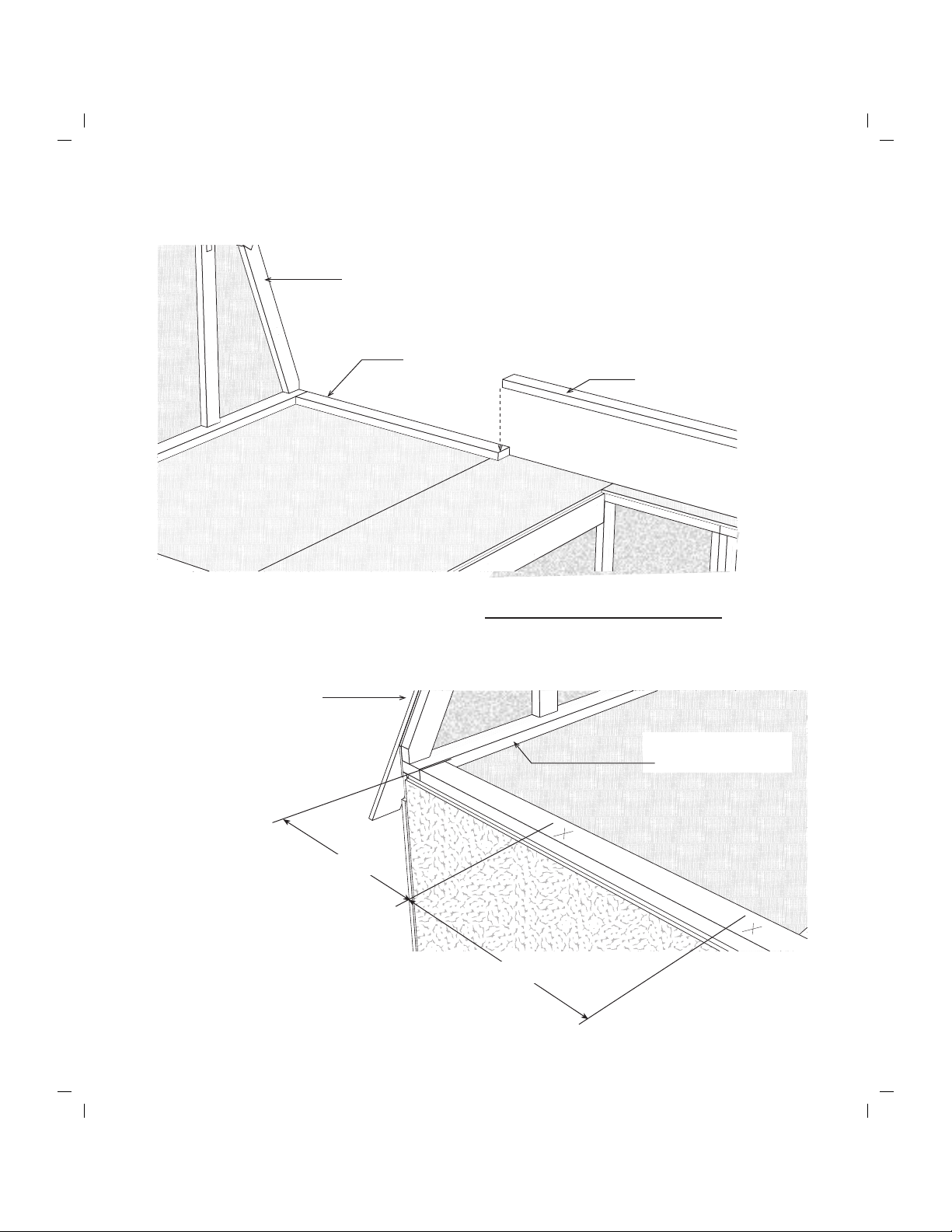

Step 19 Install 2x4 Truss Plates
3. Layout the truss spacing. Measure from the inside face of the 2x4 gable plate to mark the
location of the first truss. The last truss space will be more than 24".
Important: When marking the opposite wall, place the 'X' mark on the same side of the line
so your trusses are parallel when they are installed.
1. Install a 72" long 2x4 truss plate against the rear gable
and flush with outside edge of wall plate. Install a 64"
long 2x4 truss plate. Cut another 64" tie plate to size
and install. Use 10d coated sinker nails spaced 16".
2. Repeat to install truss plates on the opposite side.
:
:
:
:
72” Tie Plate
64” Tie Plate
Rear Gable

Straight Edge
Metal Truss Hanger
Soffit Board Flush With Siding
To prevent the nails from protruding
thought the bottom of the soffit board,
do not nail at an angle when nailing roof
sheathing to the soffit boards.
1. Place trusses over the 'X' marks and secure
trusses to 2x4 truss plate using 2x4 hangers and
10d coated sinker nails.
2. Locate 65-1/4" long soffit boards that have a
beveled edge. Install one of these boards flush
with the top of the siding and butting against
the rear gable trim. Secure soffit boards to the
top wall plate with 3" long screws spaced 8"
apart. Install the last 48" soffit boards to fit
behind 2x3 boards on the front gable.
Step 20 Install Trusses & Soffit Boards
1. Install a 42" x 72" OSB roof panel flush with
the face of the rear gable trim. Use a straight
edge to align the top of the sheathing with the
top of the truss. Continue adding sheathing
following the layout on the next page. Use
7d coated sinkers, spaced 6" apart.
2. Repeat step for opposite side.
Step 21 Install Roof Sheathing
