Beyond BY-M41A User manual

BY-M41A
7*40w 4in1 wash zoom beam
User manual
P le a se rea d t he ins t r u ction s ca refu ll y before use

2
TABLE OF CONTENTS
1. S af ety I nst r uctions ..................................................................................................... 2
2. Technical Specifications ...........................................................................................4
3. How To Control The Unit .......................................................................................5
4. shape .......................................................................................................................... 9
5. Trouble shooting ......................................................................................................11
6. Fixture Cleaning ...................................................................................................... 12
statement
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also can not be responsible for any malfunction & problem owing to
ignore the manual.
1. S af ety I nst r uctions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
 Unpack and check carefully there is no transportation damage before using
the unit.
 Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
 It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
 The unit is for indoor use only. Use only in a dry location.
 The unit must be installed in a location with adequate ventilation, at

3
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.

Disconnect main power before replacement or servicing.

Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.

Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
 Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.

In the event of serious operating problem, stop using the unit
immediately.Never try to repair the unit by yourself. Repairs carried out by
unskilled people can lead to damage or malfunction. Please contact the
nearest authorized technical assistance center. Always use the same type
spare parts.

DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.

DO NOT open the unit within five minutes after switching off.

The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require

4
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
2. Technical Specifications
Light Sources: 7x 40W 4in1 RGBW LED
Beam Angle: 6°~ 55°
Power Consumption: 300W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 26*21*42 cm
Packing size: 47x53x38cm
Net Weight: 8.35 Kgs
Gross Weight: 10.5 Kgs
Control
DMX Channel: 17 Channel
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 8/16 bit
Construction
Display: 180°reversed LCD colorful Display
Data In/Out socket: 3-pin XLR sockets
Power Socket: Powercon in/out
Protection Rating: IP20

5
Features
Motorized liner zoom system, zoom range: 6°~55°
Outstanding color macro effect
Dimmer: 0~100% smooth dimming
Variable strobe effects
Fast, quiet operation and flicker free
3. How To Control The Unit
Th e D M X512 is w id ely used in intellig ent ligh ti ng co n tr ol,with a DMX 512
controller.connect several lights together,dmx in and dmx out,
3 p in XLR co nn ectors : Pin 1: G ND , Pin 2: Nega tive s ig n a l (-), Pin 3: P o s itive s i gna l
(+)
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
uP To go forward in the selected functions
ENTER To confirm the selected functions
Se t DM X Addres s Code

6
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not save and
Exit
1
Address
Address 001～512
Address setting 001-512
2
Run Mode
1.DMX512
Console control
2.Auto
1.Master
2.Alone
3.Sound
1.Master
2.Alone
3
Reverse
1.Pan
Pan forward or
reversed setting
1.Yes
2.No
2.Tilt
Tilt forward or
reversed setting
1.Yes
2.No
3.Display
Display forward or
reversed setting
1.Yes
2.No
4
Channel
17 channels
17 channel mode
5
Pan Degree
540
Pan angle 540°/360°
Rotation
360
6
Mic sense
001-100
Sound sensitivity 001-100
7
Inform
1.CH Value
Each channel show CH value
2.Temp ____℃
Show the temperature of led
board

7
3.Soft V1.0
Show the version number
8
Reset
1.Yes
Reset
2.No
9
Default
3.Yes
Factory setting
4.No
10
Adjust
Pass word
****
1.Pan
Pan fine control
2.Tilt
Tilt fine control
3.Focus
Zoom fine control
DMX channel´s functions and values (17 DMX channels):
17 channel mode：
Channel
Function
Description
Value
Ch 1
pan ajustment
pan ajustment
0----255
Ch 2
Pan fine adjustment
Pan fine adjustment
0----255
Ch 3
Tilt ajustment
Tilt ajustment
0----255
Ch 4
Pan fine adjustment
Pan fine adjustment
0----255
Ch 5
Speed of Pan/Tilt
from fast to slow
0----255
Ch 6
Strobe
No function
0----15
Strobe（from slow to fast）
16----214
Random strobe
215----255
Ch 7
Dimmer
from dark to bright
0----255
Ch 8
Dimming mode
mode 1
0----49

8
mode 2
50----99
mode 3
100----149
mode 4
150----255
Ch 9
Zoom
From near to far
0----255
Ch 10
R
from dark to bright
0----255
Ch 11
G
from dark to bright
0----255
Ch 12
B
from dark to bright
0----255
Ch 13
W
from dark to bright
0----255
Ch 14
Static color
No function
0----16
Every 16 dmx value each
color
17----255
Ch 15
Moving color
No function
0----49
Skip change
50----99
Gradual change
100----255
Ch 16
Speed of
moving color
from fast to slow
0----255
Ch 17
Reset
no function
0----79
Reset
80----99
No function
100----255

9

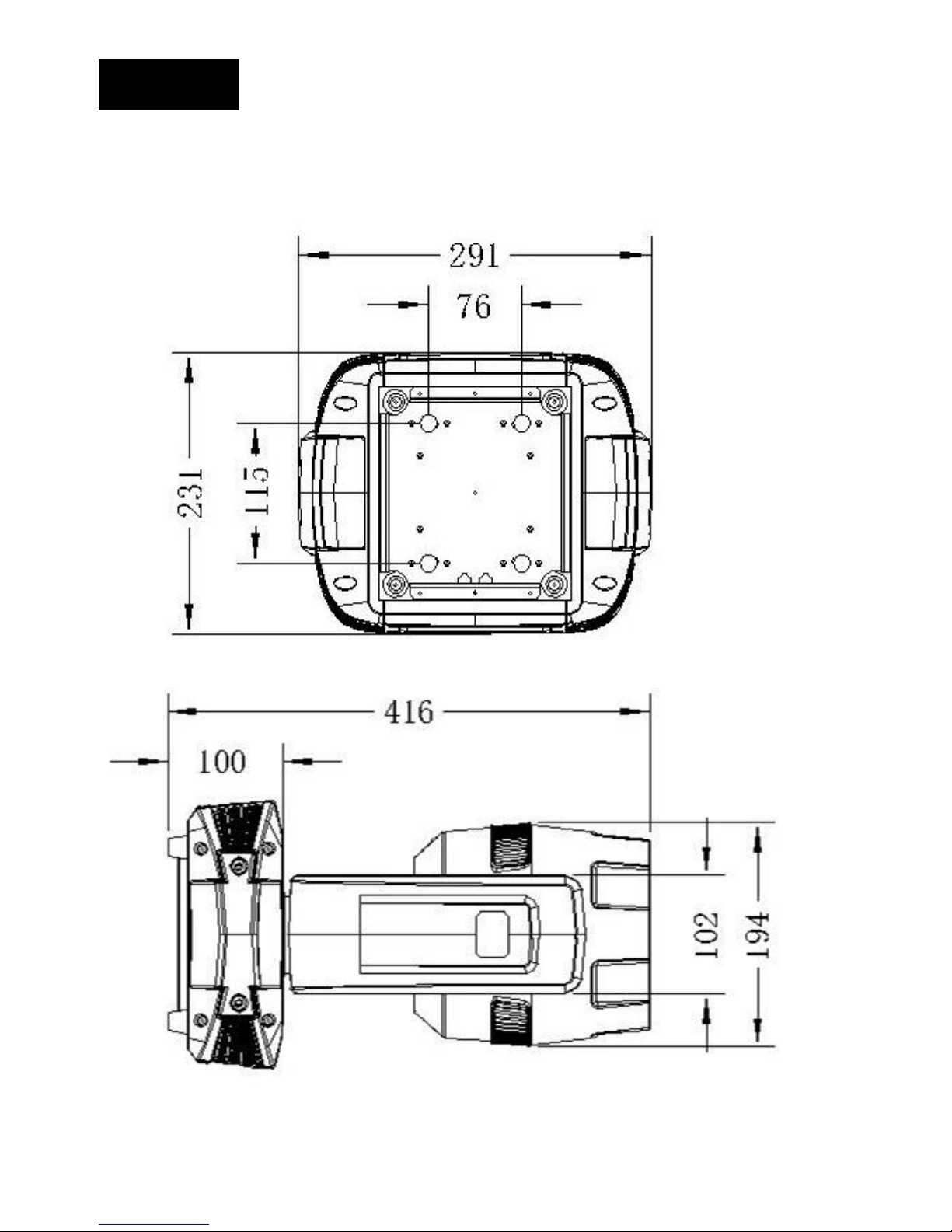

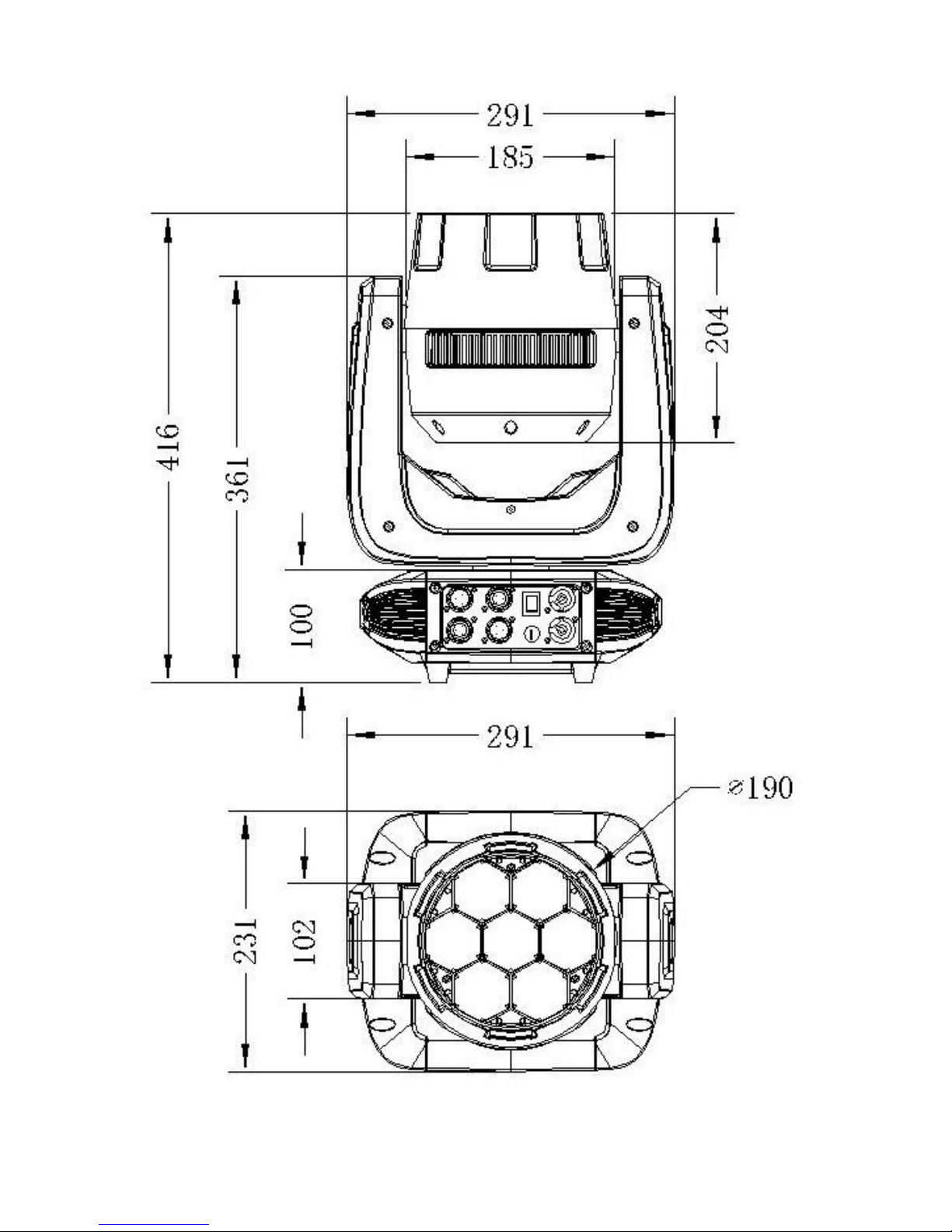

4. Shape

10

11
5. Trouble shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e
s o m e s ug g es tion s fo r ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Ch eck th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a g e on th e m a i n co nn e ct o r .
3. Ch eck th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link
p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess
s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Ch eck if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta g e c a b les th a t
m a y c a us e d a m a g e or in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is
b r oken.
2. The motor’s drive IC on the PCB might be out of condition.

12
6. Fixture Cleaning
Th e clean ing o f inter na l a nd ex ter na l optica l lens es a nd/or m ir r ors m u s t b e c a rr ied
ou t p eriodica lly to optim iz e ligh t ou tput . Cle a nin g f r eq uency d e p end s on t h e
environm ent in w hich t h e f ixture ope r a tes : d a m p , s m oky o r p a r tic ula r ly d ir ty
s urr ound ing c a n c a us e g r eat er acc um ula tio n of d ir t on th e u nit’ s optics .
 Cle a n with s oft clo th u s ing no r m a l g l a ss clea ni ng fluid .
 A lw a y s d r y th e parts ca r ef ully .
 Cle a n th e ex ter na l optic s a t leas t ev ery 20 days. Cle a n th e in ter na l opti cs a t
lea s t ev ery 30/60 days.
