BHG 720-0882 User manual

WARNING
To reduce the risk of fire, burn hazard or other injury,
read the manual carefully and completely before
using your grill.
WARNING
FOR OUTDOOR USE ONLY.
WARNING
This grill is not intended to be installed in or on
recreational vehicles and/or boats.
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-800-913-8999, 8 a.m. - 5 p.m. PST Monday – Friday.
SERIAL # _________________________ MFG. DATE ________ PURCHASE DATE:
_________
®
Version No. 19000466A1
Note to Consumer/Nota para el usuario/Note destinée à l’utilisateur
Leave this Owner’s Manual in a convenient place for future reference.
Deje este Manual del Usuario en un lugar conveniente para referencia en el futuro.
Rangez ce manuel de l’utilisateur dans un endroit pratique pour une consultation future.
ITEM / ARTÍCULO / RÉF #BH15-101-099-04
# BH15-101-099-07
LP GAS GRILL (pages 1-40)
PARRILLA A GAS LP (páginas 41-82)
GRIL AU GAZ DE PÉTROLE
LIQUÉFIÉ (pages 83-122)
MODEL / MODELO / MODÈLE # 720-0882
#720-0882R

Warranty-----------------------------------------------
Precautions--------------------------------------------
Package Parts List----------------------------------
Parts Diagram ----------------------------------------
Parts List-----------------------------------------------
Preparation---------------------------------------------
Assembly Instructions-------------------------------
Lighting Instructions---------------------------------
Cleaning and Maintenance------------------------
Troubleshooting--------------------------------------
Cooking Instructions---------------------------------
Grill Cooking Chart----------------------------------
WARNING
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
WARNING
Your grill will get very hot. Never lean over the
cooking area while using your grill. Do not touch
cooking surfaces, grill housing, lid or any other
grill parts while the grill is in operation, or until the
gas grill has cooled down after use.
Failure to comply with these instructions may
result in serious bodily injury.
WARNING
1. Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the
vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or your fire department.
Grill Installation Codes
The installation must conform with local codes or,
in the absence of local codes, with either the
national fuel gas code, ANSI Z 223.1/NFPA S4,
Natural gas and propane installation code, CSA
B149.1, or propane storage and handling code,
B149.2, or the standard for Recreational vehicles,
ANSI A 119.2, and CSA Z240 RV series
recreational vehicle code, as applicable.
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas tank, not
included with grill. Never connect your gas grill to
an LP gas tank that exceeds this capacity.
Table of Contents Precautions
2
2-4
5-8
9
10-11
12
13-31
32-35
36
37
38
39
WARNING: This product contains lead, a
chemical known to the State of California to cause
birth defects or other reproductive harm.
Wash your hands after handling this product.
One-Year Limited Warranty on stainless steel and
other parts.
If this grill fails due to a defecting material or
workmanship within one year from the date of
purchase, call 1-800-913-8999.
For five years from the date of purchase, any
stainless steel burner that rusts through will be
replaced under warranty terms.
All warranty coverage excludes igniter batteries and
grill part paint loss, discoloration or rusting, which are
either expendable parts that can wear out from
normal use within the warranty period, or are
conditions that can be the result or normal use,
accident or improper maintenance.
All warranty coverage is void if this grill is ever used
for commercial or rental purposes.
Grill Warranty
2

Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and re-
qualified at each filling.
Do not store a spare LP gas tank under or near
this appliance.
Never fill the tank beyond 80 percent full. If this
information is not followed exactly a fire causing
death or serious injury may occur.
Always keep LP gas tanks in an upright position.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this gas grill.
Do not subject the LP gas tank to excessive heat.
Never store an LP gas tank indoors. If you store
your gas grill in the garage or other indoor
location, always disconnect the LP gas tank first
and store it safely outside.
Place dust cap on cylinder valve outlet whenever
the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
LP gas tanks must be stored outdoors in a well-
ventilated area and out of reach of children.
Disconnected LP gas tanks must not be stored in
a building, garage or any other enclosed area.
When your gas grill is not in use the gas must be
turned off at the LP gas tank.
The pressure regulator and hose assembly must
be inspected before each use of the grill. If there
is excessive abrasion or wear or if the hose is cut,
it must be replaced prior to the grill being used
again.
Keep the gas pressure regulator hose away from
hot grill surfaces and dripping grease. Avoid
unnecessary twisting of hose. Visually inspect the
hose prior to each use for cuts, cracks, excessive
wear or other damage. If the hose appears
damaged do not use the gas grill. Call 1-800-913-
8999 for a replacement hose.
Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
Never allow children to operate your grill.
A tank of approximately 12 inches in diameter by 18-1/2
inches high is the maximum size LP gas tank to use.
You must use an OPD gas tank which offers an
Overfill Prevention Device.
This safety feature prevents the tank from being
overfilled which can cause malfunction of the LP gas
tank, pressure regulator and/or grill.
The LP gas tank must be constructed and marked in
accordance with specifications of the U.S. Dept. of
Transportation (DOT). In Canada, the LP gas tank must
meet the National Standard of Canada ,CAN/CSA-B339 ,
Cylinders, spheres and Tubes for Transportation of
Dangerous Goods and Commission .
1. The LP gas tank must have a shutoff valve,
terminating in an LP gas supply tank valve outlet, that is
compatible with a Type 1 tank connection device. The LP
gas tank must also have a safety relief device that has a
direct connection with the vapor space of the tank.
2. The tank supply system must be arranged for vapor
withdraw.
3. The LP gas tank used must have a collar to protect the
tank valve.
Proper Placement and Clearance of Grill
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area. Your gas grill is
to be used outdoors only, at least 24 inches from the
back and side of any combustible surface. Your gas grill
should not be used under overhead combustible
construction . Do not obstruct the flow of ventilation air
around the gas grill housing.
Do not install this outdoor gas grill in or on recreational
vehicles or boats.
Keep outdoor gas grill area clear and free from
combustible materials, gasoline and other flammable
vapors and liquids.
Do not obstruct the flow of combustion and ventilation
air. Check for this each time prior to using grill.
Never connect an unregulated LP gas tank to your gas
grill. The gas pressure regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure of 11”
water column (W.C.) for connection to an LP gas tank.
Only use the pressure regulator and the hose assembly
supplied with your gas grill. Replacement pressure
regulators and hose assemblies must be those specified
in this manual.
Precautions
Always keep the LP cylinder at
90°(upright) orientation to
provide vapor withdraw.
3

WARNING
A strong gas smell, or the hissing sound of gas
indicates a serious problem with your gas grill or
the LP gas tank. Failure to immediately follow the
steps listed below could result in a fire or
explosion that could cause serious bodily injury,
death, or property damage.
Shut off gas supply to the gas grill.
Turn the control knobs to OFF position.
Put out any flame with a proper fire
extinguisher.
Open grill lid.
Get away from the LP gas tank.
Do not try to fix the problem yourself.
If odor continues or you have a fire you can not
extinguish, call your fire department. Do not call
near the LP gas tank because your telephone is
a form of electrical device and could create a
spark resulting in fire and/or explosion.
CAUTION:Spiders and small insects occasionally
spin webs or make nests in the grill burner tubes
during transit and warehousing. These webs can lead
to gas flow obstruction which could result in a fire in
and around burner tubes. This type of fire is known as
“FLASH-BACK” and can cause serious damage to
your grill and create an unsafe operating condition for
the user.
Although an obstructed burner tube is not the only
cause of “FLASH-BACK”, it is the most common
cause.
To reduce the chance of “FLASH-BACK”, you must
clean the burner tubes before assembling your grill,
and at least once a month in late summer or early fall
when spiders are most active. Also perform this
burner tube cleaning procedure if your grill has not
been used for an extended period of time.
See Cleaning Burner Tubes and Ports on page 35.
NOTE: The normal flow of gas through the pressure
regulator and hose assembly can create a humming
noise. A low volume of noise is perfectly normal and
will not interfere with operation of the grill. If humming
noise is loud and excessive you may need to purge
air from the gas line or reset the pressure regulator.
This purging procedure should be done every time a
new LP gas tank is connected to your grill. For help
with this procedure call the Grill Information Center at
1-800-913-8999.

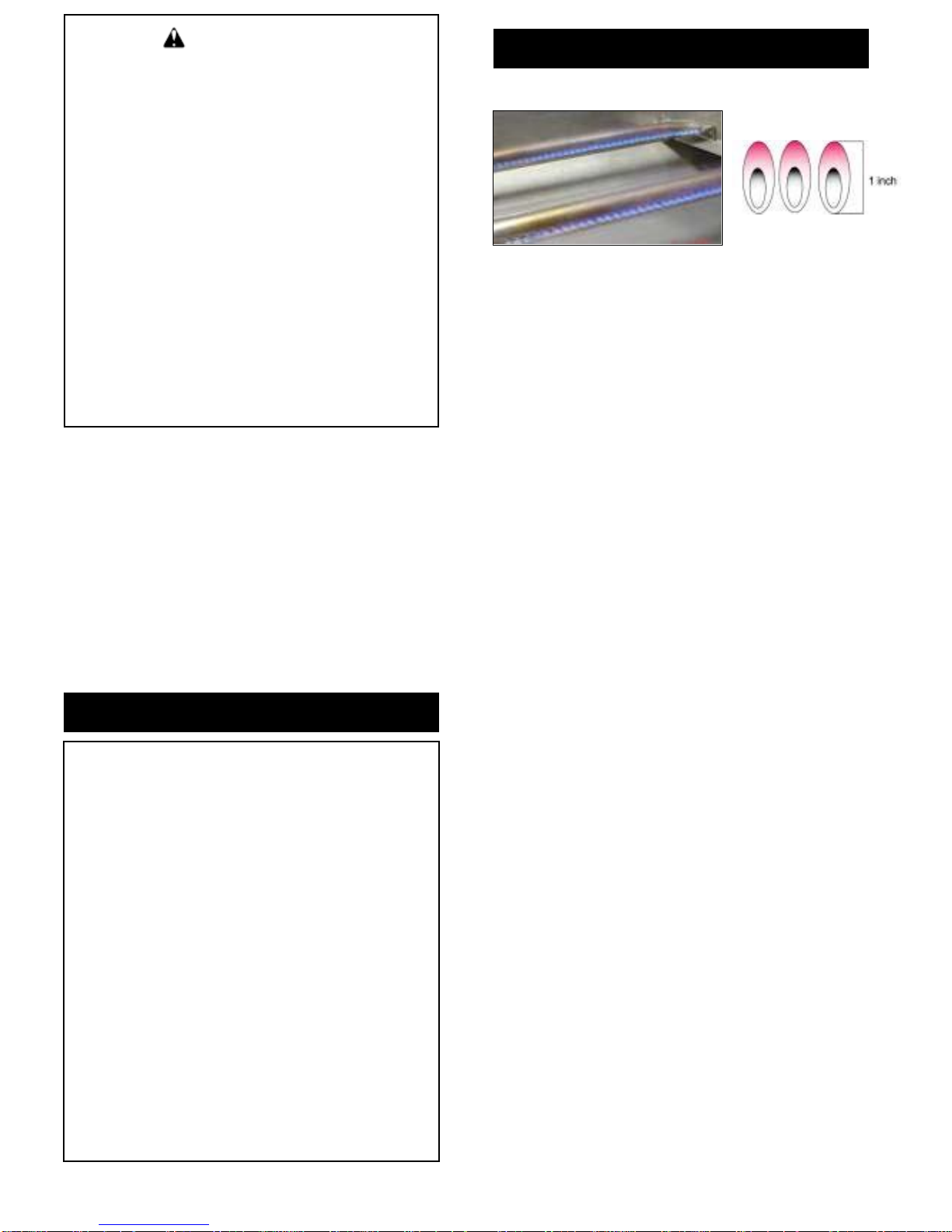

Visually check the burner flames prior to each use. The
flames should look like picture, if they do not, refer to the
Cleaning Burner Tubes and Burner Ports, see page 34 of
this manual.
CAUTION: Beware of Flash-Back
Burner Flame Check
4
It is recommended that a separate circuit servicing only
this grill be provided.
■To avoid electrical shock, do not immerse cord or plugs
in water or other liquid.
■Unplug from the outlet when not in use and before
cleaning. Allow to cool before attaching or taking off parts.
■Do not operate any outdoor cooking gas appliance with
a damaged cord, damaged plug, or after the appliance
malfunctions or has been damaged in any manner.
Contact the manufacturer for repair.
■Do not let the cord hang over the edge of a table or
touch hot surfaces.
■Do not use an outdoor cooking gas appliance for
purposes other than intended.
■When connecting, first connect plug to the outdoor
cooking gas appliance then plug appliance into the outlet.
■Use only a Ground Fault Interrupter (GFI) protected
circuit with this outdoor cooking gas appliance.
■Do not remove the ground prong or use with an adapter
of 2 prongs.
■Use extension cords with a 3 prong grounding plug
rated for the power of the equipment and approved for
outdoor use with a W-A marking.
The outdoor grill, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes with the National Electrical Code
ANSI/NFPA 70, or Canadian Electrical Code, CSA C22.1.
Keep any electrical supply cord and the fuel supply hose
away from any heated surfaces.
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
Check with a qualified electrician if you are not sure
whether the grill is properly grounded.

Package parts List
5 6
7 8 x4
9 x2 10x2
1
3 4
2
5

Package parts List
14
16
17 18
19 20
11 12
13x2
15
x2x2
6

Package parts List
25 26
27 28
29 30
22
23 24
21
x5
x3
7

Package parts List
32
31 x2
33
8

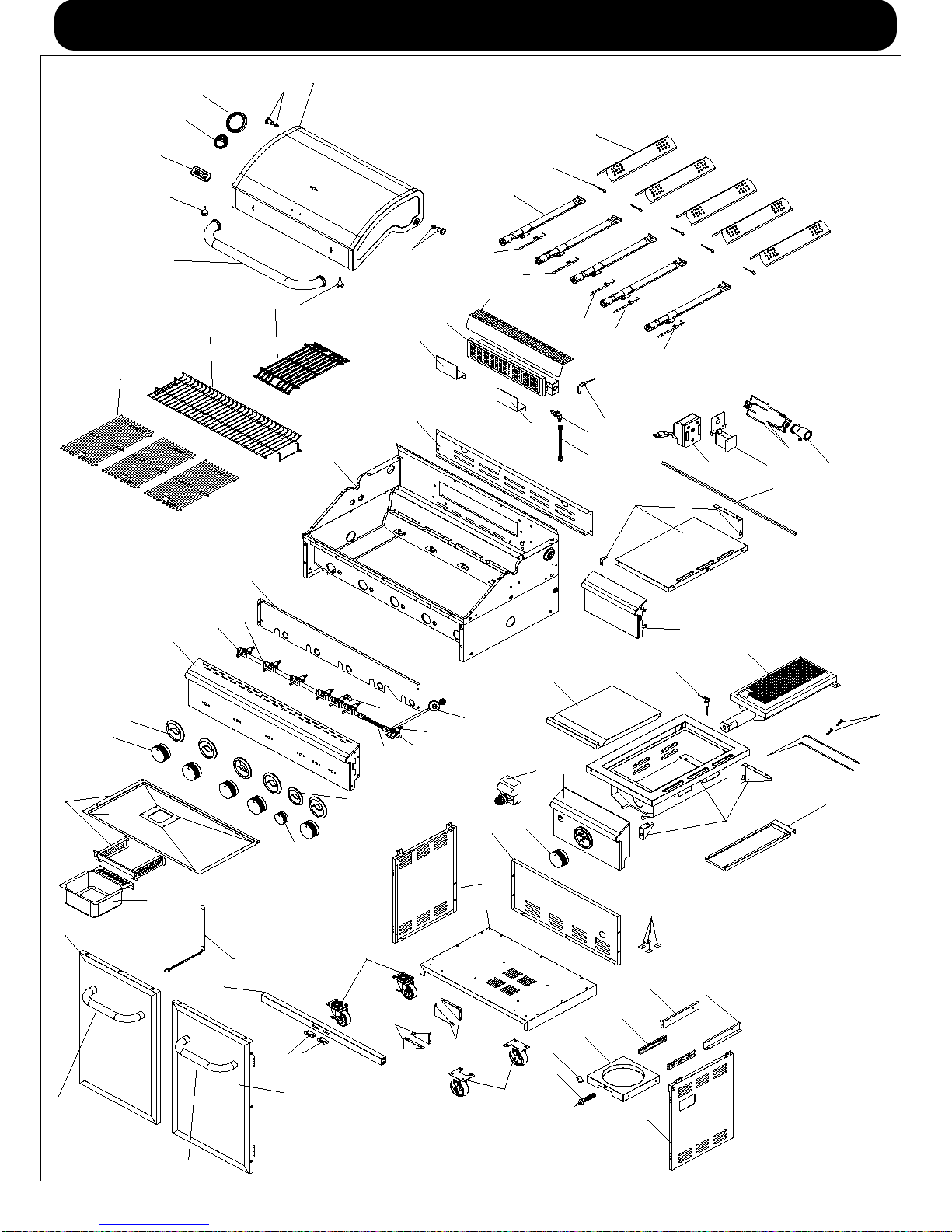

Parts Diagram
9
1
2
3
4
5
6
6
2
8
10
15 14
13 12
42 4139
44
43
46
19
18
20 17
20
37
38
9
70
11
33
34
53
47
52
54
51
48
50
56
63
67 66
68
73
71
72
22
23
24
26
28
29
31
27
30
32
45
49
55
58
57
61
69
35 25
7
36
62
40
74
75
76
77
78
79
79
60
16
21
64
65
59
9

No. Part (Description) Warranty coverage
(Year) QTY No. Part (Description)
Warrant
y
covera
ge
(Year)
QT
Y
1 Main Lid 1 1 36 Rotisserie burner control knob 1 1
2 Main Lid screw 1 2 37 Grease pan assembly 1 1
3 Temperature gauge housing 1 1 38 Grease box 1 1
4 Temperature gauge 1 1 39 Spit fork 1 2
5 Logo 1 1 40 Shaft collar 1 1
6 Hood buffer 1 2 41 Motor bracket 1 1
7 Main lid handle 1 1 42 Motor 1 1
8 Flame tamer 1 5 43 Spit rod 1 1
9 Burner pin assembly 1 5 44 Sear side burner cooking grate 1 1
10 Main burner 5 5 45 Warming rack 1 1
11 Main burner igniter wire A 1 1 46 Cooking grid with hole 1 3
12 Main burner igniter wire B 1 1 47 Sear side burner 1 1
13 Main burner igniter wire C 1 1 48 Sear side burner lid hinge rod pin 1 2
14 Main burner igniter wire D 1 1 49 Sear side burner igniter wire 1 1
15 Main burner igniter wire E 1 1 50 Sear side burner lid hinge rod 1 2
16 Rotisserie Heat Shield 1 1 51 Sear side burner grease tray 1 1
17 Rotisserie burner igniter wire 1 1 52 Sear side burner bowl assembly 1 1
18 Rotisserie Orifice W/ Brass
Elbow 1 1 53 Sear side burner lid 1 1
19 Rotisserie burner flex gas line 1 1 54 Sear side burner control panel, right 1 1
20 Rotisserie burner igniter
bracket 1 2 55 Pulse Igniter Module 1 1
21 Rotisserie burner 1 1 56 Sear side burner control knob 1 1
22 Back panel , top 1 1 57 Side shelf control panel 1 1
23 Main burner bowl assembly Non-
replaceable 1 58 Side shelf, left 1 1
24 Front baffle 1 1 59 Back panel 1 1
25 Regulator, LP 1 1 60 Side panel, left 1 1
26 Sear side burner gas valve 1 1 61 Bottom panel 1 1
27 Sear side burner manifold 1 1 62 Grease pan supporting bracket 1 4
28 Sear side burner flex gas line 1 1 63 Gas tank tray slide bracket, left 1 1
29 Rotisserie gas valve 1 1 64 Gas tank tray slide bracket, right 1 1
30 Main manifold 1 1 65 Gas tank tray slide 1 2
31 Main gas valve 1 5 66 Tank tray 1 1
32 Main control panel 1 1 67 Gas tank tray block piece 1 1
33 Main burner bezel 1 5 68 Tank tray bolt 1 1
34 Rotisserie burner bezel 1 1 69 Side panel, right 1 1
35 Control knob 1 5 70 Caster 1 2
Parts List
10
10

No. Part (Description) Warranty coverage
(Year)
QT
Y N o. Part (Description)
Warrant
y
coverag
e (Year)
QT
Y
71 Triangle bracket A 1 2 77 Door, Left 1 1
72 Triangle bracket B 1 2 78 Door, right 1 1
73 Swivel caster with brake 1 2 79 Door handle 1 2
74 Lighting rod 1 1 K/D Hardware pack 1 1
75 Cart Frame, Front 1 1 Manual 1 1
76 Door magnet 1 2
Parts List
If you are missing hardware or have damaged parts
after unpacking grill, call 1-800-913-8999 for
replacements.
To order replacement parts after using grill, call:
1-800-913-8999.
Important: Use only parts listed above. When ordering
parts, providing the following information:
• Model #
• Serial # (found on the door inner of your grill)
• Part Number (see PART# in chart)
• Part Description
• Quantity of parts needed
11

A x16 B x17 C x12 D x33

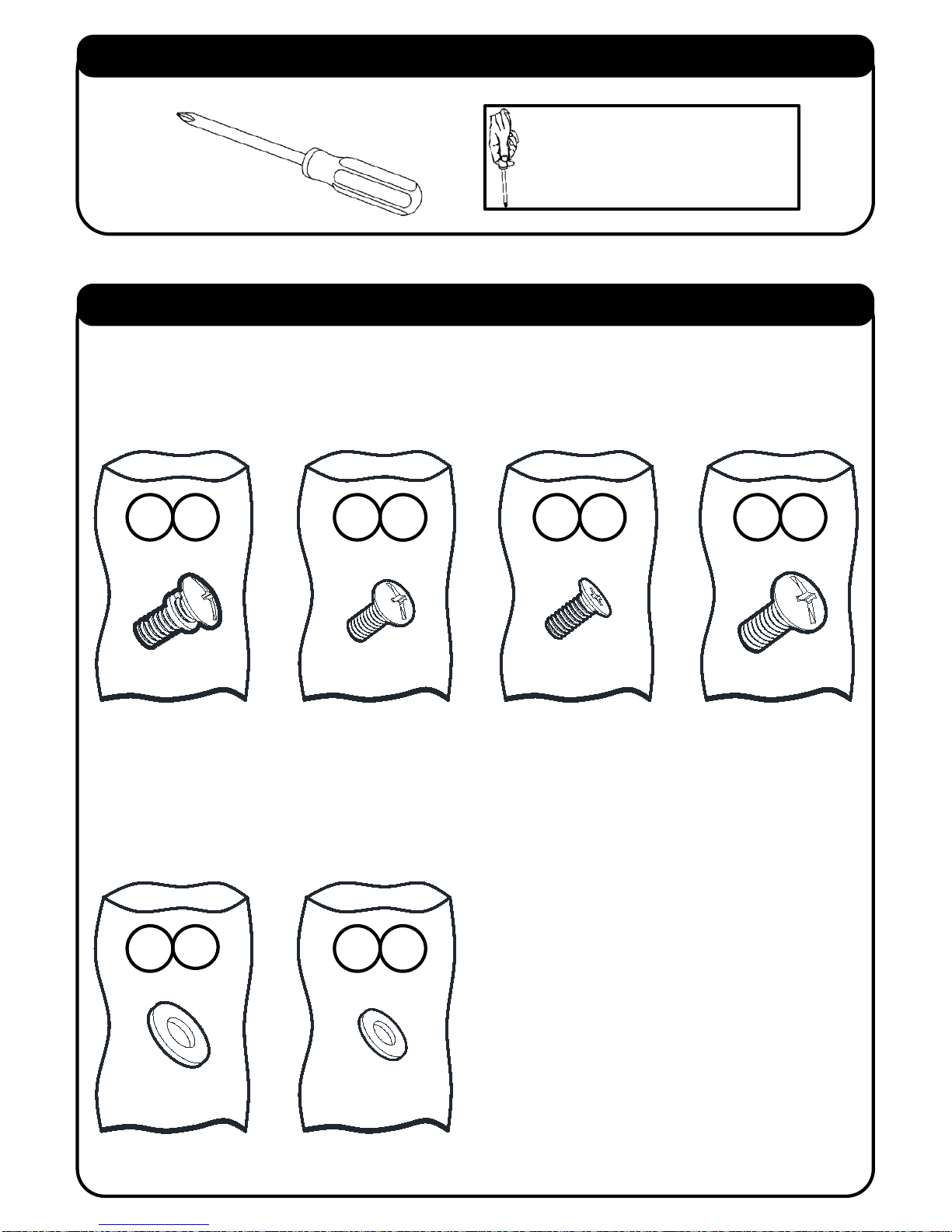

Hardware package list
Tools Needed
E x16 F x4
Truss Head Screw
5/32" x 10mm Flat Head Screw 5/32" x 10mm
Flat Washer
1/4"
Truss Head Screw
1/4" x 15mm
Flat Washer
5/32"
Truss head screw
with locking washer
1/4" x 15mm
12
Some parts come with Screws pre-
installed.
Loosen and tighten for final assembly.

A
1
x16
B
2
x4 2
1
E
x16
!

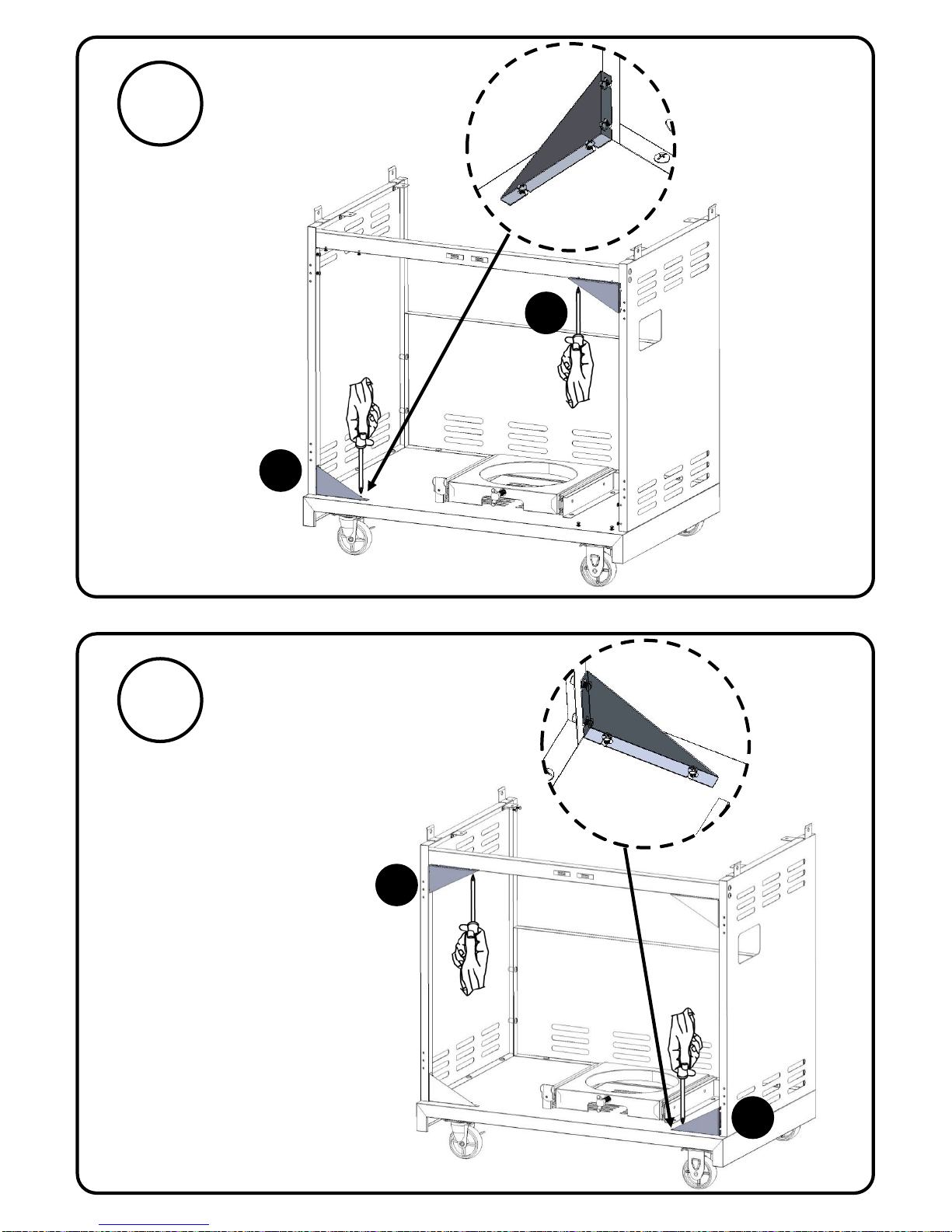

Assembly Instructions
13

4
3
D
4
x3
3
4
14

D
5
x3
D
6
x7
5
6
15

D
7
x4
8
7
8
16

9
10
10
9
9
10
17

D
11
x2
D
12
x2
11
12
13
13
18

C
13
x6
C
14
x6
11
12
19

15
16
B
x4
F
x4
14
15
16
B
x2
!
20
