Billet Specialties TRAC V3120 User manual

INSTALLATION MANUAL
CHEVROLET SMALL BLOCK
V3120 / V3220
Billet Specialties, Inc.
500 Shawmut Avenue
La Grange, Illinois 60526
TECH Line 708.588.0505
Fax [phone]
www.billetspecialties.com

Spacer Nut - 1-3/4” Spacer Nut - 2-11/16”
x2
3/8-16 x 2” Socket Head Cap Screw
(Power Steering Bracket)
x2
5/16-24 x 3” Socket Head Cap Screw
(Power Steering Pump)
x2
5/16”
Lock Washer
x3
3/8-16 x 3” Block Mounting Stud
x1
x3
x1
3/8-16 x 4” Block Mounting Stud
Required Tools & Materials
Anti-seize Compound
RTV Silicone
Gasket Scraper
Scotch-Brite®Pad
3/8-16 Thread Chaser* & Holder
*Thread chasers are available at your
local parts store and are different from
a thread cutting tap.
11/16” Combo Wrench
3/4” Combo Wrench
Socket Wrench & Extension
10mm 12pt. socket
12mm 12pt. socket
3/16” Allen
5/16” Allen
1/4” Allen
6mm Allen
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING ANY
COMPONENTS OF THE V-TRAC PULLEY SYSTEM
Tech Line: 708.588.0505
Fax: [phone]
www.billetspecialties.com
Skin Board #1 - Packaged with Power Steering Pump
Skin Board #3 - Packaged In Main Box
Skin Board #2 - Packaged with Water Pump
Other Hardware
Goodyear Gatorback V-Belt - Compressor 43”
Goodyear Gatorback V-Belt - Alternator 41-1/2” (w/o Power Steering) - 44” (w/ power steering)
x7
x1
10mm-1.5 x 80mm 12pt. Cap Screw
(Alternator)
x2
x2
10mm x .5mm
Shim Washer
x4
O-Ring Set
x2
O-Ring Set
10mm x 1mm
Shim Washer
x3
3/8-24 x 1” Socket Head Cap Screw
(Crankshaft Pulley)
x2
3/8-16 x 1-1/4” Socket Head Cap Screw
(Alternator Bracket - Not used with Power Steering Kits)
x2
x3
3/8” Belleville Washer
(Crankshaft Pulley)
3/8-16 Zinc Coated Hex Nuts
(Discard After Use)
x3
1/4-20 x 3/4”
Socket Head Cap Screw
(Compressor Cover)
x2
8mm-1.25 x 25mm
Socket Head Cap Screw
(A/C Manifold)
x4
5/16-24x1/2”
Socket Head Cap Screw
(Water Pump Pulley)
x1
Compressor Shoulder Bolt
(A/C Compressor)
x1 Compressor Shoulder
Bolt Washer
8mm Slide Spacer
x2
8mm-1.25 x 25mm 12pt. Cap Screw
(Bridge Bracket)

TECH LINE: 708-588-0505 FAX [phone] www.billetspecialties.com 5
Figure 1 - Prepping The Block
Disconnect battery; remove all existing accessory drive brackets and
components from motor.
Remove water pump, scrape away any existing gasket material with a
gasket scraper and dress surface with a Scotch Brite® pad.
Clean and prep threads on engine block at water pump and driver side
bosses by crank (for power steering kits), use a 3/8-16 thread chaser if
necessary. Thread chasers are available at your local auto parts store or tool
dealer and are different from a thread cutting tool.
Apply RTV sealer to one end of the three 3/8-16 x 3” threaded studs and
thread two studs into the driver side water pump mount holes and one stud
into the upper passenger side mount hole and tighten.
Apply RTV sealer to one end of the remaining 3/8-16 x 4” stud and thread
into the bottom passenger side mount hole and tighten. The studs can eas-
ily be tightened by threading two 3/8-16 zinc coated nuts onto the stud and
tighten them against each other to act as a drive nut.*
Figure 2 - Install Alternator & A/C Brackets
Install the large O-rings into both sides of the passenger side compressor
bracket by seating them into the recessed groves, install the small by-pass
O-rings in the same manner. Place bracket over studs and seat up against
engine block.
Install the large O-rings into both sides of the driver side alternator bracket by
seating them into the recessed groves. Place bracket over studs and seat up
against engine block.
For kits with power steering – apply anti-seize to the threads of the two
3/8-16 x 2” socket head cap screws and thread through the power steering
bracket, alternator bracket and into engine block and finger tighten.
For kits without power steering – apply anti-seize to the threads of the two
3/8-16 x 1-1/4” socket head cap screws and thread through the alternator
bracket and into engine block and finger tighten.
*Example

7
Figure 4 - Install Power Steering Pump & Bridge Bracket
If you do not have power steering proceed to Step 2.
STEP 1: Apply anti-seize to the threads of the two 5/16-24 x 3” socket head
cap screws. Place power steering pump and pulley onto bracket and thread
the two 5/16” socket head cap screws with 5/16” lock washers through pump
into bracket and tighten firmly.
STEP 2: Apply anti-seize to the threads of the four 8mm-1.25 x 25mm 12pt.
ARP cap screws. Align bridge bracket mount holes with the four spacer nuts.
Install the four 8mm 12pt. ARP cap screws and tighten firmly.
TECH LINE: 708-588-0505 FAX [phone] www.billetspecialties.com
Figure 3 - Install Water Pump
Install water pump onto studs (make sure O-rings are still seated).
Apply anti-seize to exposed stud threads. Thread the three 2-11/16 spacer
nuts onto the short studs with the hex end out.
Thread the remaining 1-7/8” spacer nut to the passenger side bottom stud.
Tighten all spacer nuts firmly at this time. Also tighten lower 3/8” cap screws
on alternator bracket or power steering bracket.

9
TECH LINE: 708-588-0505 FAX [phone] www.billetspecialties.com
Figure 6 - Install Crank Pulley, Water Pump Pulley
& Compressor Clutch Cover
Install the crank pulley by applying anti-seize to the threads of the three
3/8-24 x 1” socket head cap screws, install the three 3/8” Belleville washers
onto each cap screw and thread through crank pulley into damper.
Install the water pump pulley by applying anti-seize to the threads of the
four 5/16-24 x 1/2” socket head cap screws and threading them through the
water pump pulley into flange.
Install the compressor cover by applying anti-seize to the three 1/4-20 x 3/4”
socket head cap screws and threading them through compressor cover and
into compressor clutch.
Tighten all fasteners firmly.
Figure 5 - Install Alternator & A/C Compressor
Alternator: Apply anti-seize to the threads of the 10mm-1.5 x 80mm ARP 12pt.
cap screw and the 8mm-1.25 x 25mm ARP 12pt. cap screw. Place alternator
between lower bridge bracket and alternator bracket and thread the long
ARP 12pt. cap screw through the bridge bracket, alternator and into the
alternator bracket and finger tighten. 10mm shim washers are provided to
shim the lower alternator boss to the bridge bracket. The alternator boss may
vary in width due to the polishing process. Place the 8mm slide spacer* on
the short ARP 12pt. cap screw, align top alternator boss with bridge bracket
and thread the cap screw with slide spacer through bridge bracket and into
alternator boss and finger tighten.
A/C Compressor: Apply anti-seize to the threads of the 3/8-16 compressor
shoulder bolt and two 8mm-1.25 x 25mm ARP 12pt. cap screws. While
supporting the compressor, place the shoulder bolt and washer into the back
compressor mount boss and align with compressor bracket on motor and
finger tighten. Thread one 8mm ARP 12pt. cap screw through bridge bracket
and into lower compressor boss and finger tighten. Place the 8mm slide
spacer* on the short ARP 12pt. cap screw, align top compressor boss with
bridge bracket and thread the cap screw with slide spacer through bridge
bracket and into compressor boss and finger tighten.
*Flange of spacer fits into
adjustment slot on bracket.

11

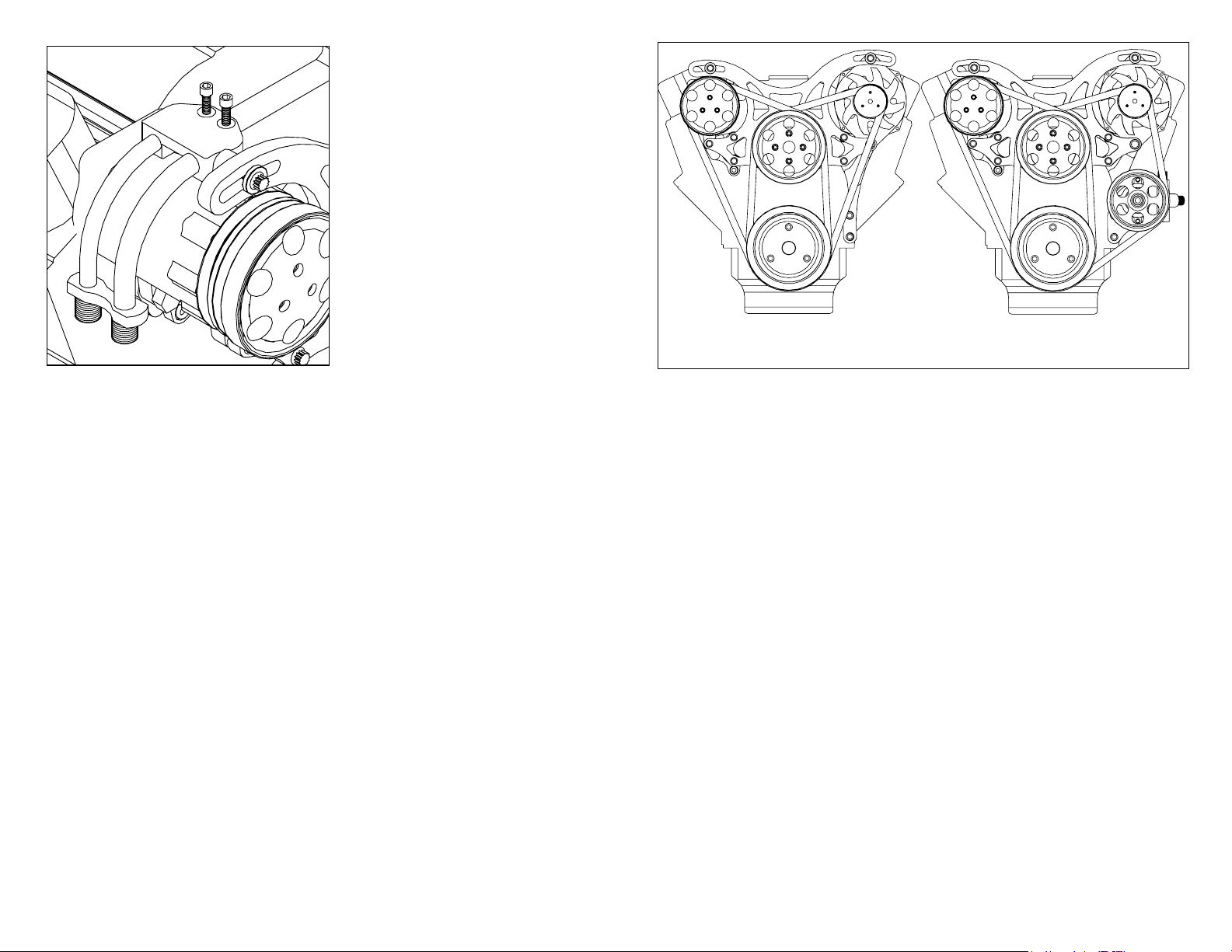

Figure 8 - Install Belt
Route belts as shown in appropriate diagram, adjust alternator belt tension
first. Tighten alternator mounting hardware firmly. Adjust compressor belt
tension, tighten rear compressor shoulder bolt firmly then front compressor
cap screw firmly. Finish by tightening the top compressor cap screw.
Re-check all fasteners for tightness and proper belt tension. Connect all
electrical and start motor and allow to warm up. Turn motor off and re-check
fasteners and belts. Re-check after 100 miles.
Alternator Belt Length:
• With Power Steering - 44”
• Without Power Steering - 41-1/2”
Compressor Belt Length: 43”
TECH LINE: 708-588-0505 FAX [phone] www.billetspecialties.com
Figure 7 - Install A/C Compressor Manifold
Compressor Manifold – Read the precautions below, BEFORE installing the
compressor manifold. To install the manifold remove the bolts & protective
cap, being sure to leave the o-rings in place on compressor. Apply anti-seize
to the threads of the two 8mm-1.25 x 25mm socket head cap screws. Place
manifold on compressor and attach with the two 8mm cap screws and
tighten firmly. Attach compressor lines at this point or seal off threaded ends
of manifold.
IMPORTANT
• Only remove sealed cap on compressor and install manifold if you plan on
charging your system immediately, leaving the compressor open to outside
air can introduce moisture into the system causing the cooling system not to
operate properly.
• Never connect the compressor clutch wire and run the compressor unless
the system is charged. Serious damage may occur to compressor. Do not
install the manifold unless you are going to finish installing the a/c hoses and
never connect the compressor clutch wire until system is ready to charge
with Freon.
• Although the compressor is supplied with oil, the level may not be correct
for the entire system. Consult the instruction manual of the air conditioning
unit for proper levels and system charging procedures.
• Billet Specialties recommends having your air conditioning charged and
serviced by an automotive air conditioning service center with the proper
equipment to ensure many years of proper operation.
With Power Steering
Without Power Steering

V3120 / V3220
Billet Specialties, Inc.
500 Shawmut Avenue
La Grange, Illinois 60526
Tech Line 708-588-0505
Fax [phone]
www.billetspecialties.com
