Binatone LS1000W User manual

User’s Guide
For LS1000W
10.4” (26.4 cm) Digital Photo Frame
Wi-Fi®Enabled
Warning
Use only the power adapter supplied with your product.

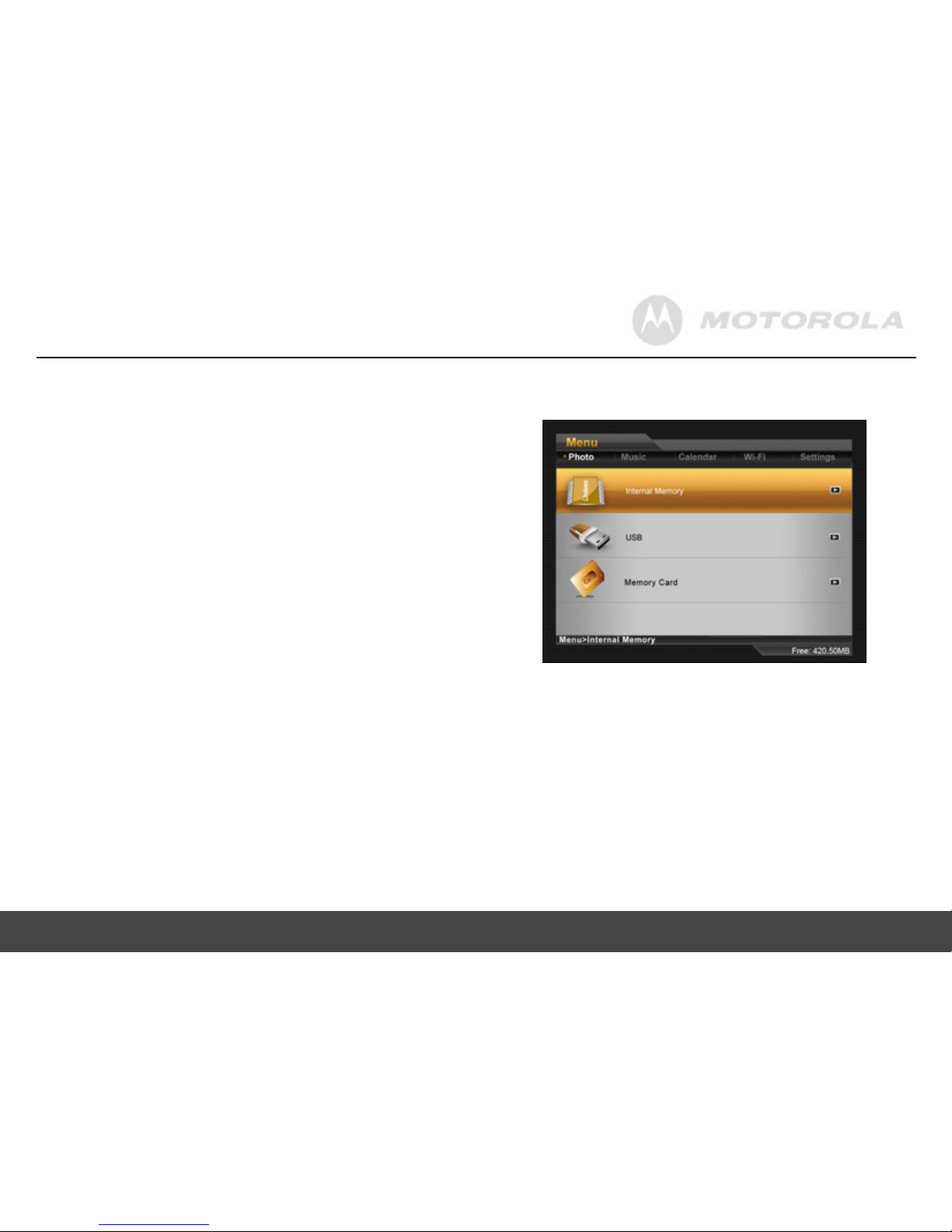

Welcome...
to your new Motorola Digital Photo Frame!
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will
need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For product-related questions, please call:
1-888-331-3383 in US and Canada
0845 218 0890 in UK
(65) 68412668 in Singapore
[phone] in Europe
On the Web: www.motorola.com
This User’s Guide provides you with all the information you need to get the most from your digital photo frame.
Before you start using, you will need to set up your digital photo frame. Follow the simple instructions in
“Getting started”, on the next few pages.
IMPORTANT
zOnly use the supplied power adapter.
Got everything?
z1 x Digital Photo Frame
z1 x Stand
z1 x Power adapter
z1 x Remote control
z1 x Quick Start Guide
z1 x User’s Guide
Key features
z3 view modes: Clock/Calendar mode, slideshow mode and
thumbnail mode
z5 slideshow transition effects
zDate and Time settings
zProgrammable On/Off Time
zSupports flash drive, SD, SDHC and MMC memory cards.

Getting started 3
Frame Overview
1. Navigation and buttons
2. EXIT button
3. ON/OFF button
4. Hanging slot (Portrait position)
5. Hanging slot (Landscape position)
6. Stand locking slot
7. Loudspeakers
8. Earphone jack
for connecting to an earphone/headset or
external speaker to play the audio.
9. USB port
for inserting a USB flash drive that contains the
photos or music you want to play.
10. Memory card slot
for inserting an SD, SDHC, MMC memory card
that contains the photos or music you want to
play.
11. Power jack

Getting started
4
Table of Contents
1. Getting started................................................................................5
1.1 Installing the stand..........................................................6
1.1.1 Landscape position ..............................................6
1.1.2 Portrait position ....................................................7
1.2 Connecting to power .......................................................8
1.3 Inserting a memory card or a USB flash drive .................8
1.4 Replacing the remote control battery...............................9
2. Using the photo frame..................................................................10
2.1 Using the control buttons ..............................................10
2.2 Using the remote control ...............................................13
3. Using the menus...........................................................................15
3.1 Using the Main Menu ....................................................15
3.2 Using the Photo menu...................................................16
3.2.1 Copying one or all photos...................................17
3.2.2 Deleting one or all photos...................................17
3.2.3 Auto rotation.......................................................18
3.3 Using the Music menu...................................................19
3.3.1 Copying one or all music files .............................20
3.3.2 Deleting one or all music files .............................21
3.4 Using the Calendar menu .............................................21
3.5 Using the Wi-Fi menu....................................................22
3.5.1 Step 1: Setting up Wi-Fi connection....................22
3.5.2 Step 2: Configuring your accounts ......................26
3.5.2.1 Configuring your Picasa™account.........26
3.5.2.2 Configuring your Flickr®account ...........27
3.5.2.3 Configuring your Framechannel™
account .................................................28
3.5.2.4 Configuring RSS ...................................29
3.5.2.5 Configuring your email account.............30
3.5.2.6 More information about on-screen
keyboard use ........................................32
3.5.3 Step 3: Using web services.................................33
3.5.3.1 Using Picasa™.......................................33
3.5.3.2 Using Flickr®.........................................34
3.5.3.3 Using Framechannel™...........................35
3.5.3.3.1 Framechannel custom
settings ...................................35
3.5.3.4 Using RSS ............................................36
3.5.3.5 Using WEB Radio .................................36
3.5.3.6 Using Email...........................................39
3.5.3.6.1 Adding your contacts to the
Welcome list ...........................39
3.5.3.6.2 Receiving photo emails...........40
3.5.3.6.3 Viewing received photo emails
on inbox..................................42
3.5.3.6.4 Sending a photo by email........43
3.5.3.6.5 Editing or deleting the contacts
in the Welcome list..................44
3.5.4 FAQ and troubleshooting....................................45
3.6 Using the Settings menu ...............................................48
3.6.1 Setting an alarm....................................51
3.6.2 Enabling auto on/off ..............................52
4. General information .....................................................................53
5. Technical specifications ..............................................................60
6. Wall mounting instructions..........................................................61

Getting started 5
1. Getting started
WARNING
zDo not place your digital photo frame in the bathroom or
other humid areas.
zDo not place your digital photo frame near sources of
heat and extreme temperatures, such as fluorescent
lighting, microwave ovens, heating appliances and direct
sunlight.
zDo not disassemble your digital photo frame; there are no
user-serviceable parts inside.
zIf the LCD screen breaks, do not touch the glass or liquid.
Contact Motorola customer support for assistance.
zUse only the power adapter supplied with your digital
photo frame.
Compatible photo format
Your digital photo frame can only display photos that are in
JPEG format. Other photo formats may not be detected or
displayed correctly.
Care and maintenance
Wipe the frame and the LCD screen gently with a soft, clean,
dry cloth.
To remove fingerprints on the LCD screen, wipe gently with
a soft, lint-free cloth. Do not use cleaning solutions unless
they are designed specifically for LCD screens.
IMPORTANT
Always switch off and disconnect the power adapter before
cleaning the digital photo frame.

Getting started
6
1.1 Installing the stand
1.1.1 Landscape position
To place the photo frame in landscape position, follow the
steps below to install the stand.
1. Hold the photo frame in landscape position.
2. Attach the stand to the stand locking slot on the back of
the photo frame.
3. Insert the stand into the stand locking slot as illustrated,
until the stand is secured to the photo frame.
WARNING
zDo not rotate the stand during the installation. Otherwise,
the photo frame will be damaged.
zOnce the installation is complete, place the photo frame
on a stable surface to avoid any possible movement.

Getting started 7
1.1.2 Portrait position
To place the photo frame in portrait position, follow the steps
below to install the stand.
1. Hold the photo frame in portrait position.
2. Attach the stand to the stand locking slot on the back of
the photo frame.
3. Insert the stand into the stand locking slot as illustrated,
until the stand is secured to the photo frame.
WARNING
zDo not rotate the stand during the installation. Otherwise,
the photo frame will be damaged.
zOnce the installation is complete, place the photo frame
on a stable surface to avoid any possible movement.

Getting started
8
1.2 Connecting to power
Follow the steps below to connect the photo frame to a
power outlet to turn on the power.
1. Plug one end of the AC power adapter to the power
jack on the back of the photo frame.
2. Plug the other end into a power outlet. The power of
the photo frame will be turned on.
3. Place the photo frame in landscape or portrait position
on a stable surface.
NOTE
Available plug types may vary depending on where you
purchased this photo frame.
1.3 Inserting a memory card
or a USB flash drive
The photo frame is preloaded with some photos in the
internal memory. On the top of the photo frame, you can
also insert a memory card or a USB flash drive containing
the content you want to show on this unit.
NOTE
zAfter you insert a photo-loaded memory card or USB
flash drive and connect the photo frame to power, the
photo frame will automatically start to display photos in
slideshow mode.
zThe memory card slot and USB port both support
hot-swap function.
zThe memory card slot accepts these types of memory
cards: SD, SDHC, MMC.
zYou can play audio and image files on the photo frame.
The supported audio file format is MP3 (*.mp3). The
supported image file format is JPEG (*.jpg).
zVideo files are not supported on this photo frame.

Getting started 9
1.4 Replacing the remote
control battery
The supplied remote control comes installed with a CR2025
lithium battery. When you need to replace the battery, follow
the steps below.
1. Slide the locking tab to the right.
2. Pull out the battery holder.
3. Insert the new battery into the battery holder. The
battery must be placed with the positive pole facing
upwards in the illustrated position.
4. Slide the battery holder into the remote control.
WARNING
zProtect the battery from overheating or excessive
moisture.
zFailure to replace the battery in the correct manner may
result in damage to the battery.
zUse only the approved specified batteries.
zProperly recycle or dispose of used batteries according to
local guidelines and regulations.
zDo not throw batteries into fire. This may result in an
explosion.
zIf the battery is completely drained or the remote control
is not in use for a long time, remove the battery to prevent
leakage.

Using the photo frame
10
2. Using the photo frame
To operate the photo frame, you can:
zUse the control buttons on the back of the photo frame
Or
zUse the supplied remote control
2.1 Using the control
buttons
No. Description
1 Navigation and buttons
a. UP/VOL＋: moves up/increases the volume.
b. DOWN/VOL－: moves down/decreases the
volume.
c. RIGHT: moves right.
d. LEFT: moves left.
e. : Enters/confirms the selection, or
starts/pauses the playback.
2 EXIT button
zReturns to the Main Menu.
zGoes back to the previous page.
zStops the playback.
3 ON/OFF button
zTurns on the screen backlight.
zTurns off the screen backlight to enter Standby
mode.

Using the photo frame 11
When using the Main Menu
Button Function
UP/VOL＋Selects Internal Memory, USB or
Memory Card.
DOWN/VOL－Selects Internal Memory, USB or
Memory Card.
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
Enters sub-pages of Photo, Music,
Calendar, Wi-Fi or Settings menu.
When browsing photos in thumbnail view
Button Function
UP/VOL＋Moves up.
DOWN/VOL－Moves down.
LEFT Moves left.
RIGHT Moves right.
Displays the currently selected
photo in Single Photo view.
EXIT Goes back to the previous page.
When playing a slideshow
Button Function
Starts/pauses the playback.
EXIT Goes back to the previous page.
When using the Music menu
Before playing music / When music is paused
Button Function
UP/VOL＋Selects the previous track.
DOWN/VOL－Selects the next track.
LEFT Selects the previous track.
RIGHT Selects the next track.
When playing music
Button Function
UP/VOL＋Increases the volume.
DOWN/VOL－Decreases the volume.
LEFT Selects the previous track.
RIGHT Selects the next track.

Using the photo frame
12
When using the Calendar menu
Button Function
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
Enters Calendar full screen mode
when the Calendar menu is
selected.
EXIT Goes back to the previous page.
When using the Wi-Fi menu
Button Function
UP/VOL＋Moves up to select an item.
DOWN/VOL－Moves down to select an item.
LEFT Selects Wi-Fi List, Wi-Fi Setup or
Account Cfg.
RIGHT Selects Wi-Fi List, Wi-Fi Setup or
Account Cfg.
Enters the sub-page of Wi-Fi List,
Wi-Fi Setup or Account Cfg.
EXIT Goes back to the previous page.
When using the Settings menu
Button Function
UP/VOL＋Moves up to the previous sub-menu
in Settings.
DOWN/VOL－Moves down to the next sub-menu
in Settings.
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
zEnters sub-menus in Settings.
zEnters/confirms the selection.
EXIT zQuits sub-menus in Settings.
zGoes back to the previous page.

Using the photo frame 13
2.2 Using the remote control
The following table describes the buttons and their functions
that are available on the supplied remote control.
No. Description
1 ON/OFF
zTurns on the screen backlight.
zTurns off the screen backlight to enter Standby
mode.
2 MENU
zYou can press this button to activate or deactivate
Copy One, Copy All, Delete One or Delete All
options in Photo Viewer and Music Player.
zDisplays the Add to favorites option when using
the WEB Radio menu in Wi-Fi List.
zDisplays the Send Mail option when using the
Email menu in Wi-Fi List.
3 UP/VOL＋
Moves up or increases the volume.
4 LEFT/PREVIOUS
Moves left or selects the previous item.
5 ROTATE
You can press this button repeatedly to rotate the
selected photo counterclockwise each time by 90
degrees.
6 DOWN/VOL－
Moves down or decreases the volume.
(Continued on next page)

Using the photo frame
14
No. Description
7 WEB Radio
You can press this shortcut key to access WEB
Radio in Wi-Fi List to listen to radio stations on the
web, when a Wi-Fi®connection has been set up.
8 EMAIL
You can press this shortcut key to access Email in
Wi-Fi List to operate photo emails, when a Wi-Fi
connection has been set up.
9 Wi-Fi SETUP
You can press this button to set up a Wi-Fi
connection.
10 SETUP
You can press this button to access the Settings
menu.
11 EXIT
Goes back to the previous page.
12 RIGHT/NEXT
Moves right or selects the next item.
13 (OK/PLAY/PAUSE)
Enters and confirms the selection, or starts/pauses
the playback.
14 ZOOM
Zooms in the photo by a factor of 2x, 4x, 8x and 16x.
15 RSS
You can press this shortcut key to access RSS
reader, when a Wi-Fi connection has been set up.
16 PICASA
You can press this shortcut key to access Picasa™
web album service, when a Wi-Fi connection has
been set up and your account has been configured.
17 FRAME CHANNEL
You can press this shortcut key to access
Framechannel™service, when a Wi-Fi connection
has been set up and your account has been
configured.

Using the menus 15
3. Using the menus
3.1 Using the Main Menu
After turning on the power of the photo frame, photos will
play in slideshow mode automatically.
zIf a memory card has been inserted, photos in the card
will play in slideshow mode automatically.
zIf no memory card is inserted, photos in the built-in
memory will play in slideshow mode automatically.
To exit slideshow mode and return to the Main Menu, press
the EXIT button on the back of the photo frame.
NOTE
To check the available space in Internal Memory, USB or
Memory Card, select Internal Memory, USB or Memory
Card and check the amount of free space shown on the
bottom right corner.
In the Main Menu, you can:
zPress the LEFT or RIGHT button to select the Photo,
Music, Calendar, Wi-Fi or Settings menu.
zPress the UP/VOL＋or DOWN/VOL－button to select a
device, including Internal Memory, USB or Memory
Card.

Using the menus
16
3.2 Using the Photo menu
NOTE
The photo frame only supports JPEG (*.jpg) image file
format.
1. In the Main Menu, press the LEFT or RIGHT button to
select the Photo menu.
2. Press the UP/VOL＋or DOWN/VOL－button to
select a device.
3. Press the button to enter Photo Viewer, which
displays your photos in thumbnail view. In Photo
Viewer, both photos and folders may display,
depending on the content stored in your device.
zTo browse or select a photo, use the UP/VOL＋,
DOWN/VOL－, LEFT and RIGHT buttons.
zTo play photos in full screen single photo mode,
press the button. Press the button again
to start running slideshow.
zTo make photos play with background music in
slideshow mode, go to the Settings menu to set
Music slideshow to On. (This function is only
available when you have music files in the internal
memory or inserted memory card/USB flash drive.)
zTo switch to the previous or next photo in slideshow
mode, press the LEFT or RIGHT button.
zTo control the slideshow music volume, press the
UP/VOL＋or DOWN/VOL－button.
zTo rotate a photo, press the ROTATE button on your
remote control.
zTo zoom in a photo, press the ZOOM button on your
remote control.

Using the menus 17
3.2.1 Copying one or all photos
NOTE
zTo copy photos from your memory card or USB to the
internal memory, please insert your memory card or USB
flash drive first.
zUse the supplied remote control for this operation.
1. In Photo Viewer, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Copy One
or Copy All, and then press the button.
3. Press the UP/VOL＋or DOWN/VOL－button to
select Yes, and then press the button.
4. Press the UP/VOL＋or DOWN/VOL－button to
select the destination (USB, Memory Card or Internal
Memory), and then press the button to confirm.
Once the copy process starts, do not remove your USB
or memory card from the photo frame before the
“Complete” message appears.
3.2.2 Deleting one or all photos
NOTE
Use the supplied remote control for this operation.
1. In Photo Viewer, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Delete One
or Delete All, and then press the button.
3. Press the UP/VOL＋or DOWN/VOL－button to
select Yes, and then press the button to confirm.

Using the menus
18
3.2.3 Auto rotation
The photo frame has a built-in tilt sensor that allows auto
rotation of photos. Follow the instructions below to enable
auto rotation.
•When the photo frame is placed in landscape position,
rotate the photo frame 90 degrees counterclockwise to
enable auto rotation.
•When the photo frame is placed in portrait position,
rotate the photo frame 90 degrees clockwise to enable
auto rotation.

Using the menus 19
3.3 Using the Music menu
NOTE
The photo frame only supports MP3 (*.mp3) audio file
format.
1. In the Main Menu, press the LEFT or RIGHT button to
select the Music menu.
2. Press the UP/VOL＋or DOWN/VOL－button to
select a device.
3. Press the button to enter Music Player.
zTo select the previous track, press the UP/VOL＋
or LEFT button.
zTo select the next track, press the DOWN/VOL－or
RIGHT button.
zTo play the selected track, press the button.
zDuring music playing, volume bar shows on top right
corner. To increase or decrease the volume, press
the UP/VOL＋or DOWN/VOL－button.

Using the menus
20
3.3.1 Copying one or all music
files
NOTE
zTo copy music files from your memory card or USB to the
internal memory, please insert your memory card or USB
flash drive first.
zUse the supplied remote control for this operation.
1. In Music Player, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Copy One
or Copy All, and then press the button.
3. Press the UP/VOL＋or DOWN/VOL－button to
select Yes, and then press the button.
4. Press the UP/VOL＋or DOWN/VOL－button to
select the destination (USB, Memory Card or Internal
Memory), and then press the button to confirm.
Once the copy process starts, do not remove your USB
or memory card from the photo frame before the
“Complete” message appears.
