Biostar P4M800 Pro-M7 User guide

P4M800 Pro-M7 BIOS SETUP
i
BIOS Setup..............................................................................................1
1 Main Menu................................................................................. 3
2 Standard CMOS Features .............................................................. 6
3 Advanced BIOS Features............................................................... 9
4 Advanced Chipset Features...........................................................15
5 Integrated Peripherals ..................................................................22
6 Power Management Setup ............................................................28
7 PnP/PCI Configurations ...............................................................34
8 PC Health Status.........................................................................37
9 Frequency/ Voltage Control..........................................................39

P4M800 Pro-M7 BIOS SETUP
1
BIOS Setup
Introduction
This manual discussed Phoenix-Award™ Setup programbuilt into the ROM BIOS. The
Setup program allows users to modify the basic system configuration. This special
information is then stored in battery-backed RAM so that it retains the Setup information
when thepower is turned off.
The Phoenix-Award BIOS™ installed in your computer system’s ROM (Read Only
Memory) is a custom version of an industry standard BIOS. This means that it supports
Intel Pentium ® 4 processor input/output system. The BIOS provides critical low-level
support for standard devices such as disk drives and serial and parallel ports.
Adding important has customized thePhoenix-Award BIOS™, but nonstandard, features
such as virus and password protection as well as special support for detailed fine-tuning
of the chipset controlling the entire system.
The rest ofthis manual is intended to guide you through the process ofconfiguring your
systemusing Setup.
Plug and Play Support
These PHOENIX-AWARD BIOS supports thePlug and Play Version 1.0A specification.
ESCD (Extended SystemConfiguration Data) writeis supported.
EPA Green PC Support
This PHOENIX-AWARD BIOS supports Version 1.03 of the EPA Green PC
specification.
APM Support
These PHOENIX-AWARD BIOS supports Version 1.1&1.2 of the Advanced Power
Management (APM) specification. Power management features are implemented via the
SystemManagement Interrupt (SMI). Sleep and Suspend power management modes are
supported. Power to the hard disk drives and video monitors can be managed by this
PHOENIX-AWARD BIOS.
ACPI Support
Phoenix-Award ACPI BIOSsupport Version 1.0b ofAdvanced Configuration and Power
interface specification (ACPI). It provides ASL code for power management and
device configuration capabilities as defined in the ACPI specification, developed by
Microsoft, Intel and Toshiba.

P4M800 Pro-M7 BIOS SETUP
2
PCI Bus Support
This PHOENIX-AWARD BIOS also supports Version 3.0 of the Intel PCI (Peripheral
Component Interconnect) local busspecification.
DRAM Support
DDR2 SDRAM (Double Data Rate Two Synchronous DRAM) are supported.
Supported CPUs
This PHOENIX-AWARD BIOS supports the Intel CPU.
Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
<PgUp> and <PgDn> keys to change entries, press <F1> for help and press <Esc> to
qu it . The fol l o wi ng t able p rovid es more det ail ab ou t ho w t o n av ig at e in t h e Setup
programby using thekeyboard.
Keystroke Function
Up ar row M ove to pre vi o us it em
Down arrow Move to next item
Left ar ro w M ove to th e i te m on th e l eft (me nu b ar )
Rig ht ar row M ove to th e i te m on th e r ig ht ( me nu bar)
Move E nter Move to the item you desired
Pg U p ke y Increas e t he nu mer ic val ue or ma ke c ha ng es
Pg D n ke y Decrease th e n um eri c val u e or ma ke ch ang es
+ Ke y Increas e t he nu mer ic val ue or ma ke c ha ng es
- Ke y Decrease th e n um eri c val u e or ma ke ch ang es
Esc key Main Menu – Quit and not s ave c hanges int o CMOS
Stat us P ag e S etu p M en u an d Op ti on Pag e Set up M en u – E xi t
Current pag e a nd r eturn to M ain Menu
F1 key General helpon Setup navigation keys
F5 ke y Loa d pr e vi ous valu es fr o m C MOS
F7 ke y Loa d t he opti mize d d efa ul ts
F10 ke y Sa ve all th e CMOS c ha ng es a nd e xi t

P4M800 Pro-M7 BIOS SETUP
3
1 Main Menu
Once you enter Phoenix-Award BIOS™ CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several setup functions.
Use the arrow keys to select among the items and press <Enter> to accept and enter the
sub-menu.
Figure 1: Main Menu
Standard CMOS Features
This submenu contains industrystandard configurable options.
Advanced BIOS Features
This submenu allows you to configure enhanced features ofthe BIOS.
Advanced Chipset Features
This submenu allows you to configure special chipset features.
!! WARNING !
!
The information about BIOS defaults on manual (Figure
1,2,3,4,5,6,7,8,9) is just for reference, please refer to the BIOS
installed on board, for updateinformation.

P4M800 Pro-M7 BIOS SETUP
4
Integrated Peripherals
This submenu allows you to configure certain IDE hard drive options and Programmed
Input/ Output features.
Power Management Setup
This submenu allows you to configure the power management features.
PnP/PCI Configurations
This submenu allows you to configure certain “Plug and Play” and PCIoptions.
PC Health Status
This submenu allows you to monitor thehardware ofyoursystem.
Frequency/ Voltage Control
This submenu allows youto change CPU Vcore Voltage and CPU/PCI clock. (However,
this f unction is strongly recommended not to use. Setting the voltage and clock
improperly may damage your CPU or M/B!)
Load Optimized Defaults
This selection allows you to reload the BIOS when the system is having problems
particularly with the boot sequence. These configurations are factory settings optimized
for this system. A confirmation message willbe displayed before defaults are set.

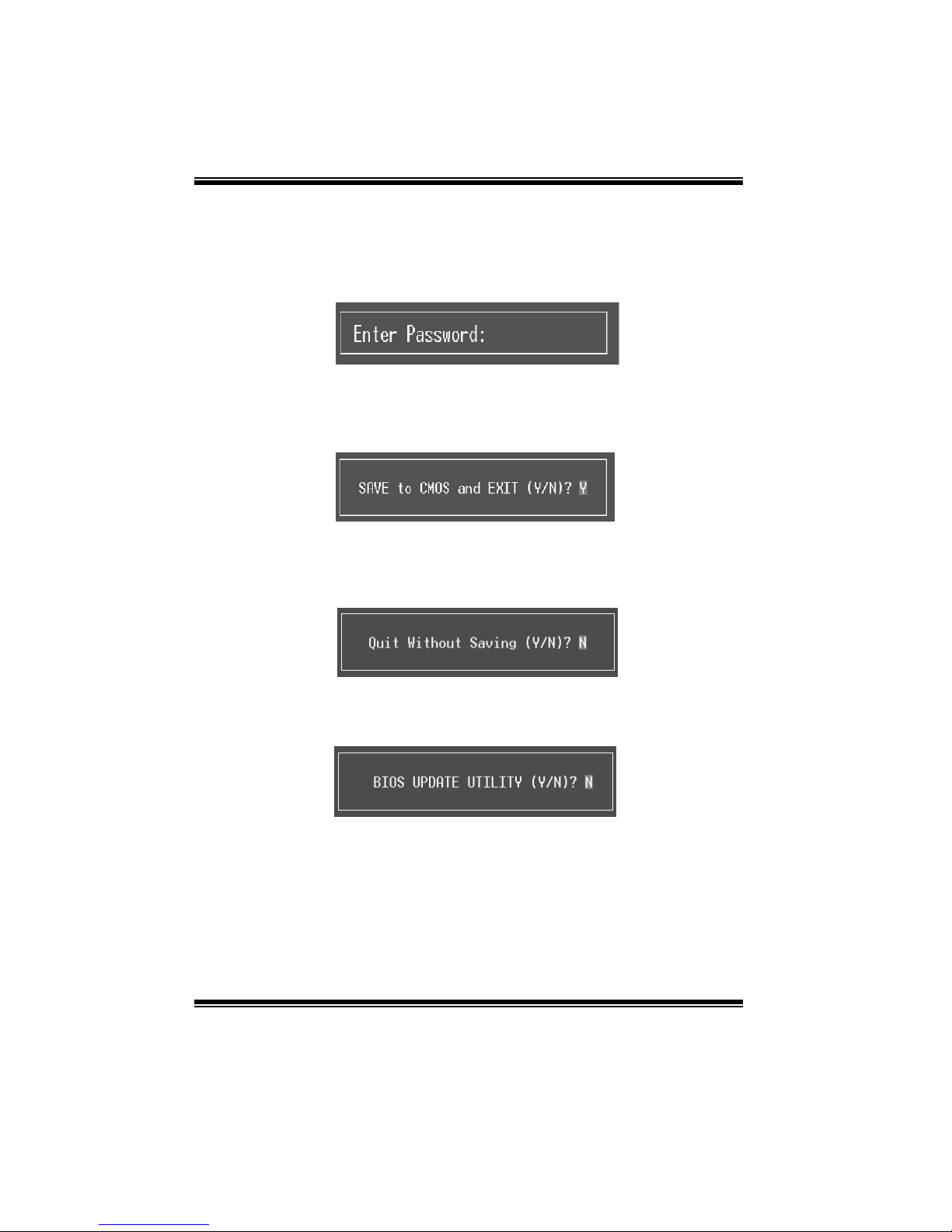

Set Supervisor Password
Setting the supervisor password will prohibit everyone except the supervisor from
making changes using the CMOS Setup Utility. You will be prompted with to enter a
password.

P4M800 Pro-M7 BIOS SETUP
5
Set User Password
If t h e Su p erv is or P assw o rd is no t s et , t h en the Us er P ass wo rd will fun cti on in the s ame
way as the Supervisor Password. If the Supervisor Password is set and the User
Password is set, the“User” will only be able to view configurations but will not be able
to changethem.
Save & Exit Setup
Save all configuration changes to CMOS(memory) and exit setup. Confirmation message
will bedisplayed before proceeding.
Exit Without Saving
Abandon all changes made during the current session and exit setup. confirmation
message willbe displayed before proceeding.
Upgrade BIOS
This submenu allows you toupgradebios.

P4M800 Pro-M7 BIOS SETUP
6
2 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category
includes no,one or more than one setup items. Use the arrow keys to highlight the item
and then use the<PgUp> or <PgDn> keys to select the value you want in each item.
Figure 2: Standard CMOS Setup

P4M800 Pro-M7 BIOS SETUP
7
Main Menu Selections
This tableshows theselections that you can make onthe Main Menu.
Item Options Description
Date mm : dd :yy Set the system date. Note
that the ‘Day ’ automatically
changes when you set the
date.
Time hh : mm : ss Set the system internal
clock.
IDE Channel 0 Master Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options
IDE Channel 0 Slav e Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options.
IDE Channel 1 Master Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options.
IDE Channel 1 Slav e Options are in its sub
menu.
Press <Enter> to enter the
sub menu of detailed
options.
Driv e A
Driv e B
360K, 5.25 in
1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
None
Select the ty pe of floppy
disk drive installed in y our
sy stem.
Video EGA/VGA
CGA 40
CGA 80
MON O
Select the def ault v ideo
dev ice.

P4M800 Pro-M7 BIOS SETUP
8
Item Options Description
Halt On All Errors
No Errors
All, but Key board
All, but Diskette
All, but Disk/ Key
Select the situation in which
y ou want the BIOS to stop
the POST process and
notify y ou.
Base Memory N/A Displays the amount of
conv entional memory
detected during boot up.
Extended Memory N/A Displays the amount of
extended memory detected
during boot up.
Total Memory N/A Displays the total memory
av ailable in the system.

P4M800 Pro-M7 BIOS SETUP
9
3 Advanced BIOS Features
Figure 3: Advanced BIOS Setup
CPU Feature
Figure 3.1: CPU Feature

P4M800 Pro-M7 BIOS SETUP
10
Thermal Management
Thi s op ti on allo ws yo u to s el ect the w ay to co nt rol th e “ Thermal Manag ement .”
The Choices: Thermal Monitor 1 (default), Thermal Monitor 2.
LimitCPUIDMaxVal
Set Limit CPUID MaxVal to 3, it shouldbe“Disabled” for WinXP.
The Choices: Disabled (default), Enabled.
Execute Disable B it
When disabled, forces the XD feature flag to always return 0.
The Choices: Enabled (default), Disabled.
Virtualization Technology
When enabled, a VMM can utilize the additional hardware capabilities provided by
Vanderpool Technology.
The Choices: Enabled (default), Disabled.
Shadow Setup
Video BIOS Shadow
Enabled copies Video BIOSto shadow RAM Improves performance.
Enabled (default) Optional ROM is enabled.
Disabled Optional ROM is disabled.
Cache Setup
CPU L1 & L2 Cache
Depending on the CP U/chipset in use, you may be able to increase memory access time
with this option.
Enabled (default) Enable cache.
Disabled Disable cache.
CPU L3 Cache
Depending on the CP U/chipset in use, you may be able to increase memory access time
with this option.
Enabled (default) Enable cache.
Disabled Disable cache.
CPU L2 Cache ECC Checking
This itemallows you to enable/disable CPU L2 Cache ECC Checking.
The Choices: Enabled (default), Disabled.

P4M800 Pro-M7 BIOS SETUP
11
Boot Seq & Floppy Setup
This itemallows you to setup boot seq & Floppy.
Figure 3.2: Boot Seq & Floppy Setup
Hard Disk Boot Priority
These BIOS attempt to arrange the Hard Disk boot sequence automatically.
This will depend on which Hard Disk is installed.
Figure 3.2.1: Hard Disk Boot Priority
The Choices: P ri. Master, Pri. Slave, Sec. Master, Sec. Slave, USBHDD0, USB
HDD1, USB HDD2, and Bootable Add-in Cards.

P4M800 Pro-M7 BIOS SETUP
12
First/ Second/ ThirdB oot Device
These BIOS attempt to load the operating system fro m the devices in the
sequence selected in these items.
The Choices: Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-FDD,
USB-ZIP , USB-CDROM, LAN, Disabled.
Boot Other Device
When enabled, BIOS will try to load the operating system fro m other device
when it failed to load fromthe three devices above.
The Choices: Enabled (default), Disabled
Swap Floppy Drive
For systems with two floppy drives, this option allows you to swap logical drive
assignments.
The Choices: Disabled (default), Enabled.
Boot Up Floppy Seek
Enabling this option the motherboard will test the floppy drives to determine if
th ey h av e 4 0 o r 80 t rack s . Disablin g this op ti on reduces t h e t ime i t t ak es to
boot-up.
The Choices: Enabled (default), Disabled.
Virus Warning
This option allows you to choose the VIRUS Warning feature that is used to protect the
IDE Hard Disk boot sector. Ifthis function is enabled and an attempt is made to write to
the boot sector, BIOS will display a warning message on the screen and sound an alarm
beep.
Dis a bl ed (default) Virus protection is disabled.
Enabled Virus protection is activated.
Hyper-Threading Technology
This option allows you to enable or disabled Hyper-Threading Technology. “ Enabled”
for Windows XP and Linux 2.4.x (OS optimized for Hyper-Threading Technology).
“Disable” for other OS (OS not optimized for Hyper-Threading Technology).
The Choices: Enabled (default), Disabled.
Quick Power On Self Test
Enabling this option will cause an abridged version of the Power On Self-Test (POST)
to execute after you power up the computer.
Disabled NormalPOST.
Enabled (default) Enablequick POST.

P4M800 Pro-M7 BIOS SETUP
13
Boot Up NumLock Status
Selects theNumLock. State after power on.
The Choices: On (default) Numpad is number keys.
Off Numpad is arrow keys.
Typematic Rate Setting
When a key is held down, the keystroke will repeat at a rate determined by the keyboard
controller. When enabled, thetypematic rate and typematic delay can be configured.
The Choices: Disabled (default), Enabled.
Typematic Rate (Chars/Sec)
Sets the rate at which a keystroke is repeated when you hold the key down.
The Choices: 6 (default),8, 10, 12, 15, 20, 24, 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat thekeystroke.
The Choices: 250 (default),500, 750, 1000.
Security Option
This option will enable only individuals with passwords to bring the system online
and/or to use the CMOS Setup Utility.
System: A password is required for the system to boot and is also required to access
the Setup Utility.
Setup (default): A password is required to access the Setup Utility only.
This will only apply if passwords are set from the Setup main menu.
MPS Version Control For OS
The BIOS supports version 1.1 and 1.4 ofthe Intel multiprocessor specification.
Select versionsupported by the operation systemrunningon this computer.
The Choices: 1.4 (default), 1.1.
OS Select For DRAM > 64MB
A choice other than Non-OS2 is only used for OS2 systems with memory exceeding
64MB.
The Choices: Non-OS2 (default), OS2.
Delay For HDD (Secs)
This itemallows you to select the timing ofDelay for HDD.
Min= 0 Max= 15 Key in a DEC number.
The Choices: 0 (default).

P4M800 Pro-M7 BIOS SETUP
14
Small Logo(EPA) Show
This item allows you to select whether the “ Small Logo” shows. Enabled (default)
“Small Logo” shows when system boots up. Disabled No “ Small Logo” shows when
systemboots
The Choices: En abl ed , Di sa bl ed (default).
Summary Screen Show
This item allows you to enable/disable the summary screen. Summary screen means
systemconfiguration and PCI device listing.
The Choices: Disabled (default), Enabled.

P4M800 Pro-M7 BIOS SETUP
15
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to systemme mory resources, such as DRAM.
It also coordinates communications with the PCI bus. The default settings that came with your
system have been optimized and therefore should not be changed unless you are suspicious that
the settings have been changed incorrectly.
Figure 4: Advanced Chipset Setup

P4M800 Pro-M7 BIOS SETUP
16
DRAM Clock/Drive Control
To control the DRAM Clock, highlight the “Press Enter” next to the “DRAM Clock”
label and press the enter key. The submenu will appear, providing you the following
options:
Figure 4.1: DRAM Clock/Drive Control
DRAM Clock
This itemdetermines DRAM clock following 100MHz, 133MHz or By SPD.
The Choices:BySPD(default), 100MHz, 133MHz, 166 MHz, 200 MHz,
266 MHz.
DRAM Timing
This itemdetermines DRAM clock/ timing follow SPD or not.
The Choices: Auto BySPD(default), Manual, Turbo, Ultra.
SDRAM CAS Latency
When DRAM is installed, the number ofclock cycles ofCAS latency depends on
the DRAM timing.
The Choices: 2.5/4 (default), 1.5/2, 2/3, 3/5.
B ank Interleave
This item allows you to enableor disable the bank interleave feature.
The Choices: Disabled (default), 2 Bank, 4 Bank, 8 Bank.

P4M800 Pro-M7 BIOS SETUP
17
Precharge to Active (Trp)
This item allows you to specify the delay from precharge command to activate
co mma n d .
The Choices: 4T (default)., 2T, 3T, 5T.
Active to Precharge (Tras)
This item allows you to specify the minimum bank active time.
The Choices: 07 T (default), 05T~20T.
Active to CMD (Trcd)
Use this itemto specify the delay from the activation ofa bank to the time that a
read or write command is accepted.
The Choices: 4T (default),2T, 3T, 5T.
REFto ACT/REF (Trfc)
The Choices: 21 T (default). 08T~71T.
ACT(0) to ACT(1) (TRRD)
This itemallows you to determine the selection for REF to ACT(1) (TRRD)
The Choices: 3T (default), 2T, 4T, 5T.
Read to Precharge (Trtp)
This itemallows you to determine the selection for Read to P recharge (Trtp)
The Choices: 2T (default),3T.
Write to Read CMD(Twtr)
Thi s it em al l o ws yo u to d et ermi ne th e s el ect io n fo r W rite to Read CMD (Twt r)
The Choices: 1T/2T (default),2T/3T.
Write Recovery Time (Twr)
This item allows you to determine the selection for Write Recovery Time (Twr)
The Choices: 4T (default), 2T, 3T, 5T.
DRAM CommandRate
This item controls clock cycle that must occur between the last valid write
operation and the next command.
The Choices: 2T Command (default), 1TCommand.
RDSAIT mode
This itemallows you to determine the selection for RDSAIT mode
The Choices: Auto (default), Manual.
RASAIT selection
This itemallows you to determine the selection for RDSAIT
The Choices: 03 (default), Min=0000, Max=003F, Key in a HEX number.

P4M800 Pro-M7 BIOS SETUP
18
AGP & P2P Bridge Control
If you highlight the literal “Press Enter” next to the “AGP &P2P Bridge Control” label
and then press the enter key, itwill take you a submenu with the following options:
Figure 4.2: AGP & P2P Bridge Control
AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP ) aperture. The aperture is a
portion ofthePCI memory address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are forwarded to the AGP without
any translation.
The Choices: 32M, 64M, 128M (default), 256M, 512M, 1G.
AGP2.0 Mode
This itemallows you to select the AGP Mode.
The Choices: 4X (default), 2X, 1X.
AGPDriving Control
By choosing “Auto” thesystemBIOS will the AGP output Buffer Drive strength
P Ct rl b y A GP Card. By ch oo si ng “ Manual ”, it allows us er t o s et AGP outp ut
Bu ffer Driv e st rength P Ct rl by manu al.
The Choices: Auto (default), Manual.

P4M800 Pro-M7 BIOS SETUP
19
AG P Dri vi ng Va l ue
While AGP driving control itemset to“Manual”, it allows user to set AGP
driving.
The Choices: DA (default), Min=0000, Max=00FF, key in a HEXnumber.
AG P Fa s t Write
Thi s it em al l o ws yo u to di s ab l e or en able AGP Fast W rit e fu n ctio n .
The Choices: Disabled (default), Enabled.
AGP Master 1 WS Write
When Enabled, writes to the AGP (Accelerated Graphics Port) are executed with
one wait states.
The Choices: Enabled (default), Disabled.
AGPMaster 1 WS Read
When Enabled, read to the AGP (Accelerated Graphics Port) are executed with
one wait states.
The Choices: Enabled (default), Disabled.
AGP3.0 Calibration cycle
This itemallows you to disable or enable AGP 3.0 Calibration Cycle.
The Choices: Enabled (default), Disabled.
VG A Share Memory Size
This itemallows you to select the VGA share memory size.
The Choices: 64M(default), Disabled, 32M, 16M.
Direct Frame Buffer
This itemallows you to disabled or enabled direct frame buffer
The Choices: Enabled (default), Disabled.
