CHAPTER 1: INTRODUCTION
1.1 P4TGV-R FEATURES
A. Hardware
CPU
Supports Socket 478.
Supports Intel Pentium 4 processor.
Supports Intel Pentium 4 Celeron/Celeron D processor.
Supports Intel Pentium 4 478 Willamette/Northwood/Prescott
CPU.
Front side bus at 400/533 MHz.
Chipset
North Bridge: Intel 845GV.
South Bridge: Intel ICH4.
Main Memory
Supports up to 2 DDR devices.
Supports 200/266/333 MHz DDR devices.
Maximum memory size is 2GB.
DIMM Socket
Location DDR Module Total Memory Size (MB)
DIMM1 64MB/128MB/256MB/512MB/1GB *1
DIMM2 64MB128MB/256MB/512MB/1GB *1 Max is 2 GB.
Super I/O
Chip: ITE IT8712F
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives:
- H/W Monitor
- ITE’s “Smart Guardian” function.
Slots
3 32bit PCI bus master slots.
1 XGP 4X/8X slot (Xtreme Graphics Port).
LAN (optional)
Chip: RTL8100C
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
Supports personal Firewall setup.

P
P4 4 T TG GV V- -R R
2
Supports ACPI power management.
Onboard IDE
Support 4 IDE disk drives.
Supports PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100
function.
Onboard AD’97 Sound Codec
Chip: CMI9761A
Compliant with AC’97 Version 2.3 specification.
Support 6 channels.
Support Stereo MIC.
Onboard Peripherals
a. Rear Side
1 parallel port.
1RJ-45 LAN jack (optional).
1 audio port.
1 serial port.
1 parallel port.
1 PS/2 keyboard & mouse port.
4 USB 2.0 ports. (JUSB3 is optional.)
COM1 VGA1
PS/2
Keyboard
PS/2
Mouse
USB x2 USB x2
LAN
(optional)
Speaker Out
Line In
Mic In
Parallel
JKBMS1 JUSB3
(optional) JPRNT1
JCOM1 JVGA1
JUSBLAN1
JAUDIO1
Audio
Connector
b. Front Side
4 USB2.0 ports (JUSB2 is optional.).
1 MIC-in port.
1 Line-in port.
1 Line-out port.
1 S/PDIF out connector (optional)
1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M
and 2.88Mbytes.
Dimension
Micro ATX Factor Form: 19.9cm(W) x 24.4cm(L)

P
P4 4 T TG GV V- -R R
3
B. BIOS & Software
BIOS
Award legal BIOS.
Supports APM1.2.
Supports ACPI.
Supports USB Function.
Software
Supports 9th TouchTM, FlaserTM, BootblockerTM, WinFlasherTM,
and WarpspeederTM.
Offers the highest performance for Windows 98, Windows NT,
Windows 2000, Windows ME, Windows XP, Linux, UNIX series,
etc.
1.2 PACKAGE CONTENTS
FDD Cable X 1
HDD Cable X 1
User’s Manual X 1
Fully Setup Driver CD X 1
Rear I/O Panel for ATX Case X 1
USB 2.0 Cable X1 (optional)
S/PDIF Cable X 1 (optional)

P
P4 4 T TG GV V- -R R
4

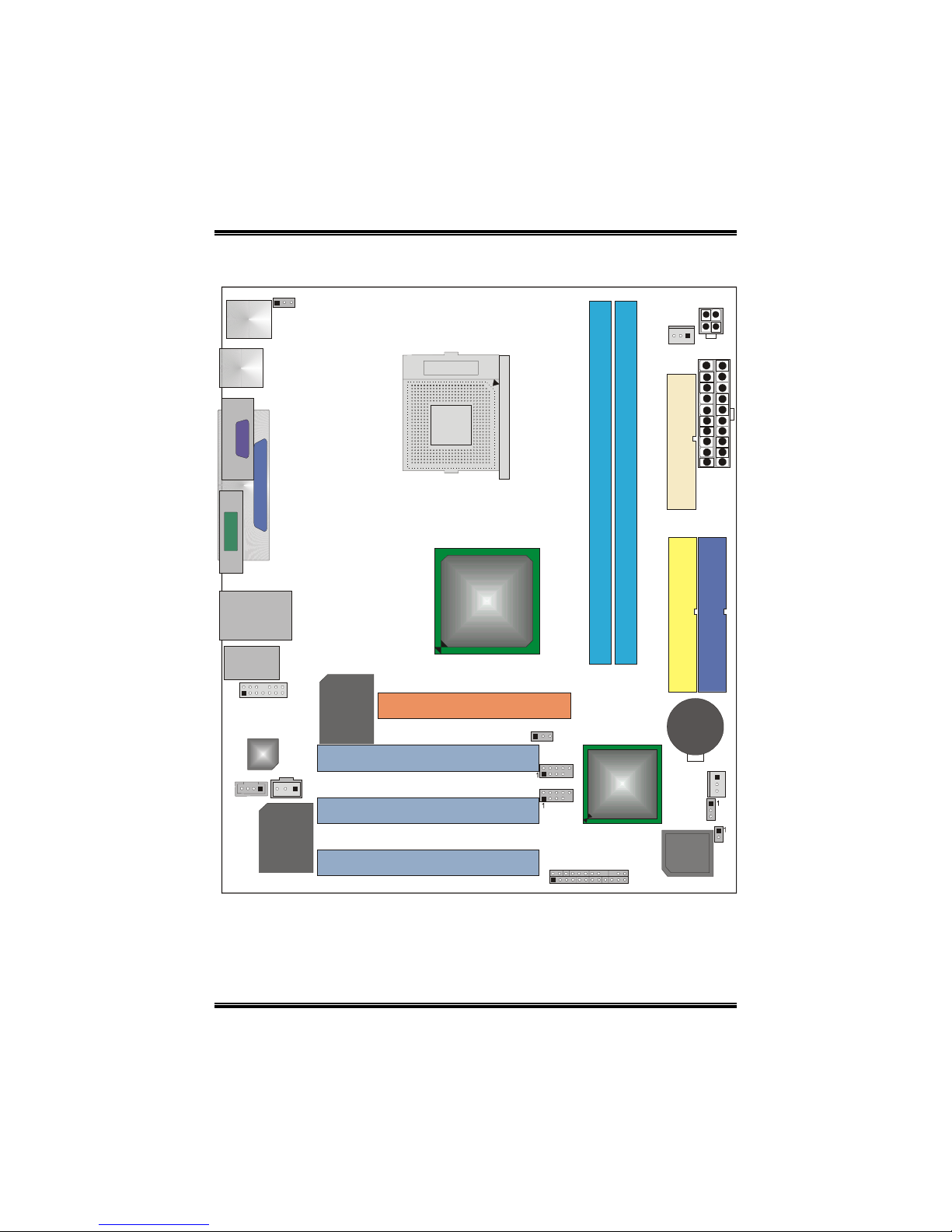

1.3 P4 TGV-R LAYOUT
JKBMS1
JUSBV1
Intel
845GV
Intel
ICH4
PCI1
Codec
JUSB3
(optional)
JPRNT1
JCOM1
JVGA1
JUSBLAN1
JAUDIO1
1
213
14
JAUDIO2
1
11
JCDIN1 JSPDIF_OUT1
XGP1
PCI2
PCI3
1
USBV2
2
2
JUSB1
JUSB2
(optional)
JPANEL1
1
223
24
JCMOS1
JCL1 JSFAN1
1
BAT1
IDE1
FDD1
IDE2
IDE1
DDR1
DDR2
JATXPWR1 JATXPWR2
JCFAN1
1
Socket 478
CPU1
RTL8100C
ITE8712 BIOS
Note: ■represents the 1st pin.

P
P4 4 T TG GV V- -R R
5
1.4 COMPONENTS OF P4 TGV-R
Socke t 478
Intel
845GV
Intel
ICH4
Codec
IDE1
A
B
C
D
E
F
GH
I
J
K
L
M
N
O
P
Q
R
BIOS
RTL8100C
ITE8712
CPU1
A. XGP1: Xtreme Graphic Port Slot. J. JCI1: Case open Header.
B. JUSBV1: Power source for JKBMS1,
JUSB3 (optional), and JUSBLAN1. K. JCMOS1: Clear CMOS Header.
C. Back Panel Connectors (Rear Side). L. JSFAN1: System fan connector.
D. JAUDIO1: Audio out header.
M. JUSBV2: Power source for JUSB1/2.
(JUSB2 is optional.)
E. JSPDIF
_
OUT1: Digital audio out header.
(Optional) N. IDE1/2: Hard disk connectors.
F JCDIN1: CD-ROM audio-in header. O. DDR1~2: DDR memory modules.
G. PCI1~3: Peripheral Component
Interconnect slots. P. FDD1: Floppy disk connector.
H. JPANEL1: Front panel connector. Q. JATXPWR1/2: ATX power source.
I. JUSB1/2: Front USB headers. (JUSB2 is
optional.) R. JCFAN1: CUP fan connector.

P
P4 4 T TG GV V- -R R
6
CHAPTER 2: HARDWARE INSTALLATION
2.1 CENTRAL PROCESSING UNIT (CPU)
Step 1: Pull the lever sideways away from the socket and then raise the
lever up to a 90-degree angle.
Step 2: Look for the white dot/cut edge. The white dot/cut edge should
point wards the lever pivot. The CPU will fit only in the correct
orientation.
Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
2.2 FAN HEADERS
These fan headers support cooling fans built in the computer. The fan
wiring and plug may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU FAN Header: JCFAN1 Pin Assignment
1 Ground
2 +12V
1
JCFAN1 3 FAN RPM rate sense
System Fan Header: JSFAN1
Pin Assignment
1 Ground
2 +12V
1
JSFAN1 3 FAN RPM rate sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head connector. When connecting with
wires onto connectors, please note that the red wire is the positive and should be
connected to pin#2, and the black wire is Ground and should be connected to
GND.

P
P4 4 T TG GV V- -R R
7
2.3 MEMORY MODULE INSTALLATION
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Note:
To assure the system safety, if you need to change DDR modules, firstly,
please unplug the 20-pin power cable with the power connector, and
then you can change the modules. Afterwards, plug in the cable the
power connector again, and finally you can boot up the system.

P
P4 4 T TG GV V- -R R
8
2.4 CONNECTORS AND SLOTS
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
Hard Disk Connectors: IDE1/IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so you
can connect up to four hard disk drives. The first hard drive should
always be connected to IDE1.
Peripheral Component Interconnect Slots: PCI 1~3
This motherboard is equipped with 5 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
Xtreme Graphics Port Slot: XGP1
This XGP (Extreme Graphics Port) slot is a special design that only
supports compatible AGP VGA cards.
To install the system with an add-on AGP VGA card, please make sure
to install the driver of add-on AGP VGA card before onboard VGA
driver installation. If the onboard VGA driver has already been installed
before you install the add-on AGP VGA card, the system will
automatically set the onboard VGA as the primary graphics adapter.
For the onboard VGA driver can’t be removed completely, and to solve
this problem, please follow the steps below,
1. Disable onboard VGA utility under the operating system, and reboot
PC. After PC restarts, the system will automatically set the AGP
VGA card as the graphics adapter. Or,
2. Re-install your operating system to ensure the AGP VGA card
function can be used.
Note:
Please go to “http://www.biostar.com.tw” for more detailed information
about XGP compatible AGP cards.

P
P4 4 T TG GV V- -R R
9
CHAPTER 3: HEADERS & JUMPERS SETUP

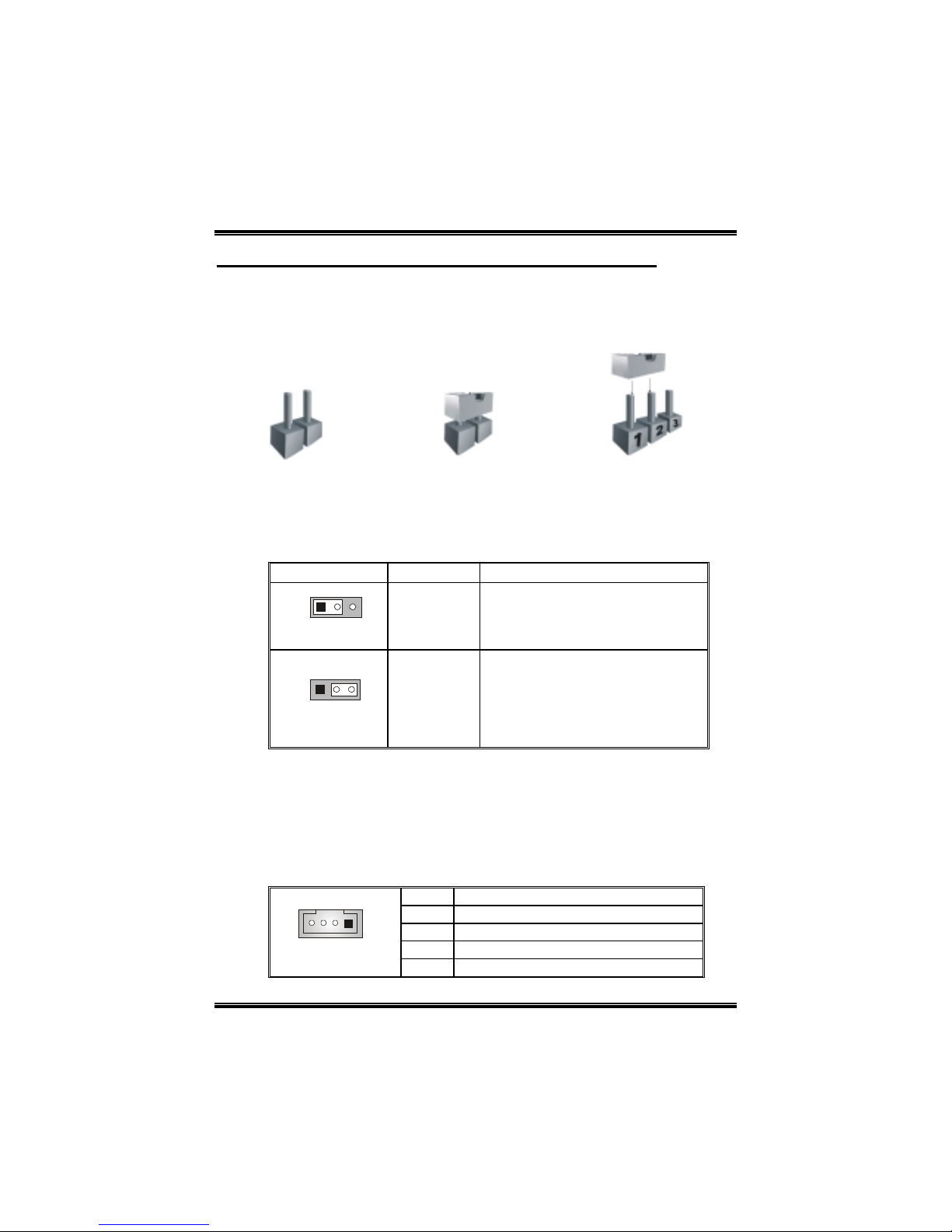

3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers.
When the jumper cap is placed on pins, the jumper is “close”, if not, that
means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JUSBV1/JUSBV2: Power Source Selection for USB ports at JUSB3,
JUSBLAN1 & JUSB1/JUSB2 (JUSM3 is optional.)
JUSBV1/JUSBV2 Assignment Description
1
Pin 1-2 close +5V
JUSBV1: +5V for JKBMS1 and USB
ports at JUSB3 & JUSBLAN1
connector,
JUSBV2: +5V for JUSB1/JUSB2.
1
Pin 2-3 close +5V standby
Voltage
JUSBV1: JKBMS1 and USB ports at
JUSB3 & JUSBLAN1 are
powered with standby voltage of
5V.
JUSBV2: JUSB1/2 ports are powered
with standby voltage of 5V.
Note:
In order to support this function “Power-o system via USB device,”
“JUSBV1/JUSBV2” jumper cap should be placed on Pin 2-3 individually.
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the veriaty
devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card
etc.. Pin Assignment
1 Left channel input
2 Ground
3 Ground
1
JCDIN1 4 Right channel input

P
P4 4 T TG GV V- -R R
10

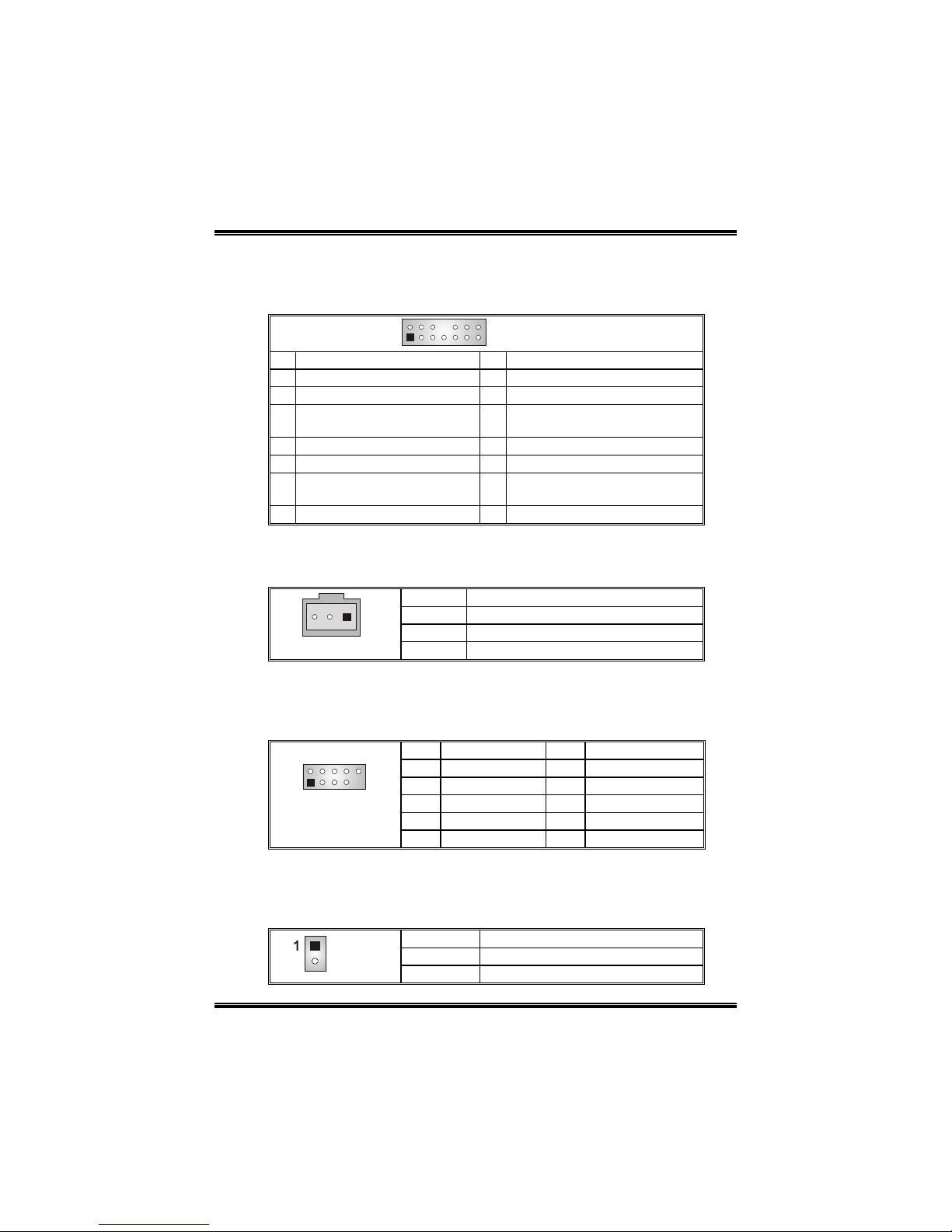

JAUDIO2: Front Panel Audio Header (optional)
This header allows user to connect the front audio out put cable with
the PC front panel. It will disable the output on back panel audio
connectors.
1
213
14
JAUDIO2
Pin Assignment Pin Assignment
1 Mic in/center 2 Ground
3 Mic power/Bass 4 Audio power
5 Right line out/Speaker out
Right 6 Right line out/Speaker out Right
7 Reserved 8 Key
9 Left line out/Speaker out Left 10 Left line out/Speaker out Left
11 Right line in/Rear speaker
Right 12 Right line in/Rear speaker Right
13 Left line in/Rear speaker Left 14 Left line in/Rear speaker Left
JSPDIF_OUT1: Digital Audio Connector (optional)
This connector allows user to connect the PCI bracket SPDIF output
header. Pin Assignment
1 +5V
2 SPDIF_OUT
1
JSPDIF_OUT1 3 Ground
JUSB1/JUSB2: Front USB Headers (JUSB2 is optional.)
This header allows user to connect additional USB cable on the PC
front panel, and also can be connected with internal USB devices, like
USB card reader. Pin Assignment Pin Assignment
1 +5V (fused) 2 +5V (fused)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
1
210
JUSB1/JUSB2
9 Key 10 NC
JCL1: Case Open Header (optional)
This connector allows system to monitor PC case open status. If the
signal has been triggered, it will record to the CMOS and show the
message on next boot-up.
Pin Assignment
1 Case open signal
JCL1 2 Ground

P
P4 4 T TG GV V- -R R
11
JCMOS1: Close CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe
setting and the CMOS data, please carefully follow the procedures to
avoid damaging the motherboard.
JCMOS1 Assignment
Pin 1-2 close Normal Operation (Default).
Pin 2-3 close Clear CMOS data.
※
※※
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
JPANEL1: Front Panel Connector
This 24-pin connector includes Power-on, Reset, HDD LED, Power
LED, Sleep button, speaker and IrDA Connection. It allows user to
connect the PC case’s front panel switch functions.
1
223
24
JPANEL1
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground Sleep button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector 8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HEE LED (-) Hard drive
LED 12 Power LED (-) Power LED
13 Ground 14 Power button
15 Reset control Reset button 16 Ground Power-on
button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector 24 IRRX
IrDA
Connector

P
P4 4 T TG GV V- -R R
12
JATXPWR1/JATXPWR2: Power Connectors
JATXPWR1: This connector allows user to connect 20-pin power
connector on the ATX power supply.
JATXPWR2: By connecting this connector, it will provide +12V to CPU
power circuit. Pin Assignment Pin Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 Standby Voltage +5V 19 +5V
1
10
11
20
JATXPWR1 10 +12V 20 +5V
Pin Assignment Pin Assignment
1 +12V 3 Ground
13
JATXPWR2 2 +12v 4 Ground

P
P4 4 T TG GV V- -R R
13
CHAPTER 4: USEFUL HELP
4.1 AWARD BIOS BEEP CODE
Beep Meaning
One long beep followed by two short
beeps Video card not found or video card memory bad
High-low siren sound CPU overheated, system will shut
down automatically
One Short beep when system
boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 TROUBLESHOOTING
Probable Solution
1. No power to the system at all
Power light don’t illuminate, fan
inside power supply does not
turn on.
2. Indicator light on keyboard does
not turn on.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drive is spinning.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from hard disk
drive, can be booted from CD-ROM
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from CD-ROM.
Hard disk can be read and
applications can be used but booting
from hard disk is impossible.
Back up data and applications files.
Reformat the hard drive. Re-install
applications and data using backup
disks.
Screen message says “Invalid
Configuration” or “CMOS Failure.” Review system’s equipment. Make sure correct information is in setup.
Cannot boot system after installing
second hard drive.
Set master/slave jumpers correctly.
Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility with
other drives.

P
P4 4 T TG GV V- -R R
14
CHAPTER 5: WARPSPEEDER™
5.1 INTRODUCTION
[WarpSpeeder™], a new powerful control utility, features three user-friendly
functions including Overclock Manager, Overvoltage Manager, and
Hardware Monitor.
With the Overclock Manager, users can easily adjust the frequency they
prefer or they can get the best CPU performance with just one click. The
Overvoltage Manager, on the other hand, helps to power up CPU core
voltage and Memory voltage. The cool Hardware Monitor smartly indicates
the temperatures, voltage and CPU fan speed as well as the chipset
information. Also, in the About panel, you can get detail descriptions about
BIOS model and chipsets. In addition, the frequency status of CPU, memory,
AGP and PCI along with the CPU speed are synchronically shown on our
main panel.
Moreover, to protect users' computer systems if the setting is not
appropriate when testing and results in system fail or hang,
[WarpSpeeder™] technology assures the system stability by automatically
rebooting the computer and then restart to a speed that is either the original
system speed or a suitable one.
5.2 SYSTEM REQUIREMENT
OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operating system includes
DirectX 8.1. If you use Windows XP, you do not need to install DirectX 8.1.)

P
P4 4 T TG GV V- -R R
15
5.3 INSTALLATION
1. Execute the setup execution file, and then the following dialog will
pop up. Please click “Next” button and follow the default procedure to
install.
2. When you see the following dialog in setup procedure, it means setup
is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox
is checked, the Tray Icon utility and [WarpSpeeder™] utility will be
automatically and immediately launched after you click “Finish”
button.

P
P4 4 T TG GV V- -R R
16

P
P4 4 T TG GV V- -R R
17
Usage:
The following figures are just only for reference, the screen printed in
this user manual will change according to your motherboard on hand.
[WarpSpeeder™] includes 1 tray icon and 5 panels:
1. Tray Icon:
Whenever the Tray Icon utility is launched, it will display a little tray
icon on the right side of Windows Taskbar.
This utility is responsible for conveniently invoking [WarpSpeeder™]
Utility. You can use the mouse by clicking the left button in order to
invoke [WarpSpeeder™] directly from the little tray icon or you can
right-click the little tray icon to pop up a popup menu as following
figure. The “Launch Utility” item in the popup menu has the same
function as mouse left-click on tray icon and “Exit” item will close
Tray Icon utility if selected.
2. Main Panel
If you click the tray icon, [WarpSpeeder™] utility will be invoked.
Please refer to the following figure; the utility’s first window you will
see is Main Panel.
Main Panel contains features as follows:
a. Display the CPU Speed, CPU external clock, Memory clock,
AGP clock, and PCI clock information.
b. Contains About, Voltage, Overclock, and Hardware Monitor
Buttons for invoking respective panels.
c. With a user-friendly Status Animation, it can represent 3
overclock percentage stages:

P
P4 4 T TG GV V- -R R
18
Man walking→overclock percentage from 100% ~ 110 %
Panther running→overclock percentage from 110% ~ 120%
Car racing→overclock percentage from 120% ~ above
