birzman BM17-WHTS-ADAPTER User manual

Caution :
For use with Birzman Wheel Truing Stand only.
Upright Extensions increase the hub compatibility range to 0-215mm.
Callliper Upgrade Kit with additional attachment bits allow for greater rim compatibility of
19-105mm (from road to fat bikes)
Please follow the instructions carefully when installing the Truing Stand Adapter Set.
To prevent deformation and loss of accuracy, external pressure and collision should be
avoided when storing the Truing Stand Adapter Set.
Instruction Manual
Truing Stand Adapter Set
Upright Extensions
Calliper Upgrade Kit
Bits
(BM17-WHTS-ADAPTER)

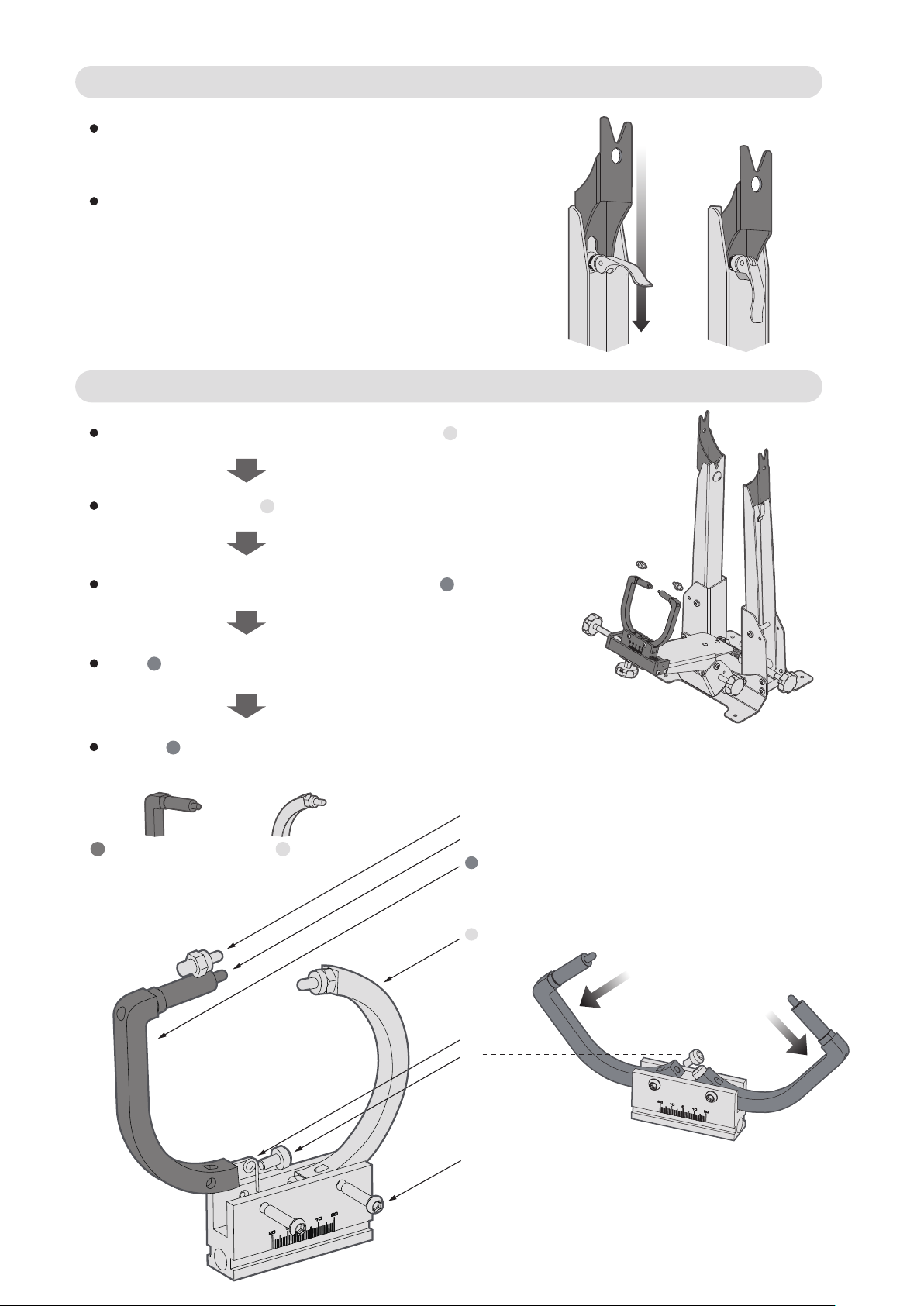

Open and loosen the QR on the truing stand.
Insert the Upright Extensions into the space between the
QR and the uprights, then tighten up and close the QR.
Upright Extensions
Remove ⑥with a 3mm hex wrench, then remove ③on both sides.
Remove ①④⑤from ③and set aside.
Screw ①(for Fat Bikes), and ②(for others) onto ③
Calliper Upgrade Kit
Place ③back onto the truing stand along with ④, then screw back ⑥.
Open up ③to the sides, then screw in ⑤on both sides to secure the callipers (refer to picture below).
Calliper Upgrade Kit
③ ③
①
②
③
③
④
⑤
⑥
