Bison Products BlueMax 950 User manual

Page 1
Bluemax 950 Warehouse fan
User Manual Version A
Mobile fan for light industrial & commercial use
Manufactured in the UK by: Bison Products Ltd, 85 Bison Place, Moss Side Industrial Estate,
Leyland. Lancashire. PR26 7QR
Tel: [phone] email: [e-mail]
www.bisonproductsltd.co.uk
MODEL NO’S:
(FAN-950-230) BLUEMAX 950 230V SINGLE SPEED
(FAN-950-230-S) BLUEMAX 950 230V VARIABLE SPEED
(FAN-950-110) BLUEMAX 950 110V SINGLE SPEED

Page 2
Thank you for purchasing a Bluemax 950 fan
CONTENTS
Page 2 Introduction
Page 3 Electrical connections
Page 3-4 General Safety
Page 4 Cleaning and Maintenance
Page 4 Operating Instructions
Page 5-6 Specification/ Technical data
Page 6 Trouble shooting
Page 7 Warranty
Page 8-9 Wiring
Page 10-12 Certification and Standards
Page 12 Recycling and disposal
Page 12 Product improvement
Page 13-16 Parts diagram and Parts lists
Page 17 Energy efficiency label
Bluemax 950 fan
INTRODUCTION
The Bluemax 950 fan is a portable fan suitable for a varied amount of applications. Before
attempting to use this equipment and to avoid personal injury, carefully read and
understand these instructions. If you are in any doubt about using this product, DO NOT use
this equipment, contact your supplier for clarification.
To ensure years of trouble-free operation we advise that the product is regularly serviced
and maintained by a qualified person.
NB: Please note that the Bluemax 950 comes in three different models. A Variable speed
drive is incorporated in model FAN-950-230-S, see below for all models:

Page 3
ELECTRICAL CONNECTIONS
Before plugging the fan into the socket, check the following:
•Make sure your hands are dry
•The socket must have an earth connection
•The socket must be able to withstand the maximum power output indicated on the
rating label
•The power cord must not be bent or crushed
•Do not use extension leads
•Do not use outdoors
•Do not change the plug for a lower rated specification
Both the Variable and single speed 230V fans are fitted
with a 13amp BS1363/A approved plug and fuse. If
your plug needs to be replaced it should be fitted with
a plug with the same standard.
The 110V model will be fitted with a 32amp 110V BS
EN 60309-2 plug and be wired according to the letters stamped on the plug: L = live
(Brown), N = Neutral (Blue), E = Earth (Green/Yellow)
The power cord and plug should be inspected regularly for damage and should be replaced
by the manufacturer or similarly qualified persons if necessary.
General Safety
THESE WARNINGS ARE GIVEN FOR SAFETY REASONS AND SHOULD BE FOLLOWED AT ALL
TIMES
1. Ensure castors are locked before the fan is switched on as not doing so will result in
the fan moving forcibly on its own
2. Never run the fan without grill guards
L W H
FAN-950-230 Bluemax 950 230V Single Speed 82Kg 1100mm 565mm 1140mm
FAN-950-230-S Bluemax 950 230V Vairable Speed 83Kg 1100mm 565mm 1140mm
FAN-950-110 Bluemax 950 110V Single Speed 82Kg 1100mm 565mm 1140mm
Model Number
Description
Weight
Unboxed Dimensions

Page 4
General Safety cont.
3. Unplug the machine before carrying out any maintenance work.
4. The fan should be free flowing, the air intake should never be obstructed.
5. IP rating is 21 making the unit suitable for indoor use.
6. Not suitable to be used with ducting.
7. Do not use in dusty environments.
8. Do not insert anything through the grill causing obstruction to the fan.
9. We recommend the use of an RCD.
10. Ear defenders should be worn when working in close proximity of the machine.
11. Not intended for use by children
12. Not designed for wall mounting
13.Do not move while the fan is switched on
Cleaning and Maintenance
Keeping your unit clean will ensure your fan is always working at its best! Any maintenance
work should be done whilst the unit is unplugged from the mains supply. Carry out regular
checks for the following:
1. Inspect the mains cable for any damage and have it replaced by a qualified person if
necessary.
2. Check the grills, fan blades and inside the case for any build up of grime and if
necessary, clean with a damp cloth using a mild detergent
Operating Instructions –Single Speed Model
1. Position the fan in the desired location taking account the safety precautions above
2. Ensure the switch is in the off position
3. Lock both swivel castors
4. Plug the unit into the power supply
5. Switch the rocker switch to the on position
Operating Instructions –Variable Speed Model
1. Position the fan in the desired location taking account the safety precautions above.
2. Ensure the switch is in the off position
3. Lock both swivel castors
4. Plug the unit in to the power supply
5. Switch the rocker switch to the on position
6. Increase the speed to the desired setting by rotating the knob in a clockwise direction

Page 5
Specification and technical data
Frequency 50Hz
Input Voltage 230
Amps (Full speed) 6.52
Amps (Low speed) 12.5
Energy consumption - Full speed KW 1.5
Energy consumption - Low speed KW 1.12
Rpm (Full Speed) 1360
Rpm (Low Speed) 710
Noise levels (Full Speed) dB 95
Noise levels (Low Speed) dB 73
Optimum efficiency flow rate (m³/h) 24,386
Maximum flow rate (m³/h) 37,000
Maximum flow rate (cfm) 20,000
Static pressure (pst) 124.7
IP rating 21
Product weight (KG) 95
Efficiency at Optimum point on a scale from A+++ (low
consumption) to D (high consumption)
A
Energy efficiency catergory Static
Overall fan efficiency (n) 40
Fan type Axial 5 blade
Capacitor 50uf 450v
Circuit breaker (amps) 15
Arctic grade cable dia (3 core blue BS6004:2012+ A1:2020) 1.5mm x 4m
Plug type 13amp BS1363/A
Model FAN-950-230-S
BLUEMAX VARIABLE SPEED
Frequency 50Hz
Input Voltage 230
Amps (Full speed) 6.52
Amps (Low speed) n/a
Energy consumption - Full speed KW 1.5
Energy consumption - Low speed KW n/a
Rpm (Full Speed) 1360
Rpm (Low Speed) n/a
Noise levels (Full Speed) dB 95
Optimum efficiency flow rate (m³/h) 24,386
Maximum flow rate (m³/h) 37,000
Maximum flow rate (cfm) 20,000
Static pressure (pst) 124.7
IP rating 21
Product weight (KG) 95
Efficiency at Optimum point on a scale from A+++ (low
consumption) to D (high consumption)
A
Energy efficiency catergory Static
Overall fan efficiency (n) 40
Fan type Axial 5 blade
Capacitor 50uf 450v
Circuit breaker (amps) 15
Arctic grade cable dia (3 core blue BS6004:2012+ A1:2020) 1.5mm x 4m
Plug type 13amp BS1363/A
BLUEMAX 230V SINGLE SPEED
Model FAN-950-230

Page 6
Trouble shooting
In the event of the fan not starting please check the following:
1. Mains supply power cut
2. Mains fuses has tripped out
3. Ensure the plug has been fully inserted into the socket
4. All models are fitted with a thermal current trip located on the side of the machine
behind the wheel, check if this has been triggered and push to reset if necessary
5. Eliminate the socket you are using
6. Check the plug fuse
7. There is a fuse in the speed control unit, this should be checked by a qualified
electrician
8. Failure for any of the above points resolving a problem, we recommend you consult
a qualified electrician for further testing
Frequency 50Hz
Input Voltage 110
Amps (Full speed) 13.64
Amps (Low speed) n/a
Energy consumption - Full speed KW 1.5
Energy consumption - Low speed KW n/a
Rpm (Full Speed) 1360
Rpm (Low Speed) n/a
Noise levels (Full Speed) dB 95
Optimum efficiency flow rate (m³/h) 24,386
Maximum flow rate (m³/h) 37,000
Maximum flow rate (cfm) 20,000
Static pressure (pst) 124.7
IP rating 21
Product weight (KG) 95
Efficiency at Optimum point on a scale from A+++ (low
consumption) to D (high consumption)
A
Energy efficiency catergory Static
Overall fan efficiency (n) 40
Fan type Axial 5 blade
Capacitor 140uf 250v
Circuit breaker (amps) 30
Arctic grade cable dia (3 core blue BS6004:2012 + A1:2020) 2.5mm x 4m
Plug type IEC 60309-2
BLUEMAX 110V SINGLE SPEED
Model FAN-950-110

Page 7
Warranty
Your Bluemax fan is covered by a 12 months warranty. The Company undertakes to replace
or repair, free of charges, any defect due to faulty workmanship or material within 12
months of the sale date, except for:
1. Defects arising from neglect, misuse or un-authorised modifications.
2. Damage caused by abuse, misuse, dropping or other similar damage caused by or as
a result of failure to follow operating instructions.
3. Alterations, additions or repairs carried out by persons other than the manufacturer
or their recognised distributors without written consent.
4. Transportation or shipment costs to and from the Manufacturer or their recognised
agents, for repair or assessment against a warranty claim, on any Bluemax 950 fan or
component.
5. Materials and/or labour costs to re-new, repair or replace components due to fair
wear and tear.
6. Faults arising from the use of non-standard or additional parts, or any consequential
damage or wear caused by the fitting or use of such parts.
IMPORTANT –Warranty, at the sole discretion of the manufacturer, may be voided if
regular maintenance/inspections are not carried out by a competent person.

Page 8

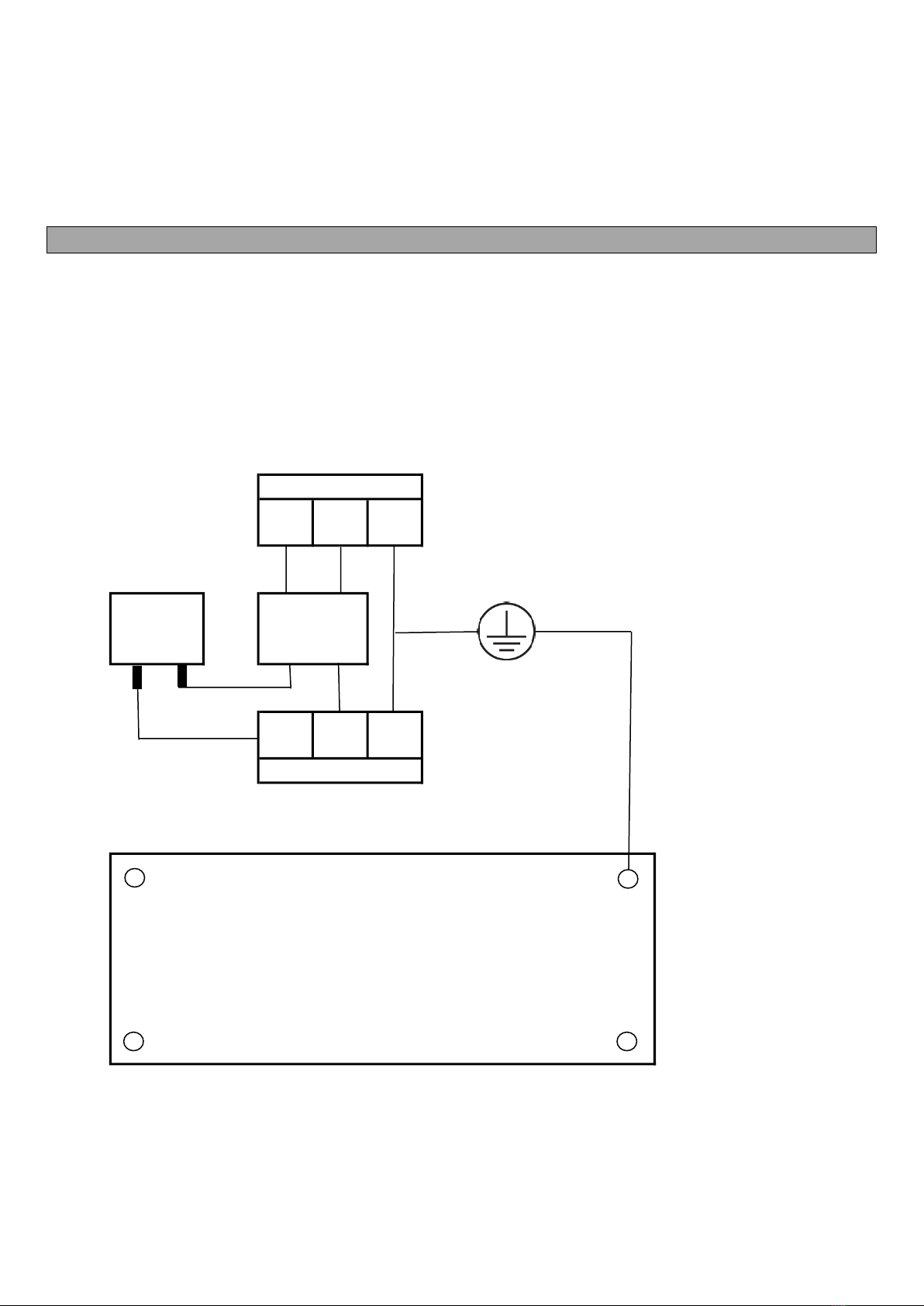

Wiring diagrams
L N E
- -
- -
L N E
SWITCH PLATE
Bluemax 950 Single speed wiring diagram
ELECTRICAL SUPPLY
MOTOR
SWITCH
RESETTABLE
FUSE

Page 9
Wiring diagrams cont.
N L E
U2
RESETTABLE FUSE
L
N
E
ELECTRICAL SUPPLY
MOTOR
AUX
U1
N
L
SPEED CONTROLLER BOX
Bluemax 950 Variable speed wiring diagram

Page 10
Certification and standards

Page 11
Certification and standards cont.

Page 12
Certification and standards cont.
We the manufacturer confirm that the Bluemax 950 fan range has been independently evaluated to ensure compliance with
all current EU regulations in the Directive 2009/125/EC and all relating eco standards and RoHS covering all 10 substances
recently updated in July 2019(Restrictions of Hazardous Substances) compliance as detailed in the above Conformity
Certificate.
Recycling and Disposal
As part of our commitment towards environmental protection, we would ask for our customers to minimise
materials wastage by disposing of packaging materials, following local regulations to allow for recycling of
packaging materials.
As a responsible manufacturer Bison Products complies to the European Directive 2012/19/EU concerning
Waste Electrical and Electronic Equipment (WEEE). All components in this product should be recycled where
possible and must not be disposed of in the household general waste. The symbols of the wheelie bin are to
remind users of their obligations when disposing of WEEE. If you are at all unsure of the correct disposal, please
contact your local waste disposal facility for further advice.
Product Improvement
Bison Products has a policy of continual improvement and reserves the right to develop, improve or alter a design without
assuming any obligation to modify any product previously manufactured.

Page 13
Item No: Part No: Description
1 MAX-GRI-010 Bluemax 950 Front Grill
2 MAX-GRI-020 Bluemax 950 Rear Grill
3 MAX-PLA-010 Bluemax 950 Motor Mounting Plate
4 MAX-PLA-020 Bluemax 950 Chassis Plate
5 MAX-PLA-060 Castor Plate
6 MAX-BOX-040 Control Box
7 SWI-MAX-950-11 Control Box Lid c/w label & Switch
8 PLA-MAX-900W 900mm Wheolite Plastic
9 FAN-MOT-MAX-2 1500W 230V High resistance motor
10 FAN-BLA-900 Bluemax impellor
11 ELE-CRI-204 M4 Blue ring crimps
12 ELE-CRI-205 M5 Blue ring crimps
13 ELE-CRI-215 Blue spade crimps
14 CAB-ARC-1.5B 1.5mm Arctic Blue Cable 2P+E
15 ELE-PLU-013 13amp Plug
16 ELE-GLA-020 20mm Black compression gland
17 ELE-TIE-120 Cable ties 120 X 4.8
18 WHE-MAX-250 Bluemax 950 wheel
19 NYL-BEA-2530 Nylon bearing 25mm
20 FAS-STA-125 25mm Starlock fastener capped
21 CAS-FAN-100 Swivel Castor wheel 100mm
22 FAS-NUT-813 M8 x 30mm Dynafix Nut
23 FAS-SCR-SOC-1060 M10 x 60mm Socket Cap screw
24 FAS-SCR-BUT-850 M8 x 50mm Button Socket
25 FAS-SCR-BUT-870 M8 x 70mm Button socket
26 FAS-SCR-SET-1035 M10 x 35mm HT Set BZP
27 FAS-SCR-NUT-110 M10 Nyloc nuts
28 FAS-WAS-SHA-10 M10 Internal Shakeproof washer
29 FAS-SCR-BUT-820 M8 x 20mm Button Socket
30 FAS-SCR-BUT-816 M8 x 16mm Button Socket
31 FAS-SCR-BUT-825 M8 x 25mm Button Socket
32 FAS-WAS-SHA-8 M8 Shakeproof washer
33 FAS-SCR-BUT-612 M6 x 12mm Button Socket
34 FAS-NUT-108 M8 Nyloc nut
35 FAS-WAS-PEN-M10 M10x 30mm x 1.5mm penny washer
36 FAS-WAS-PEN-M8 M8 x 30mm x 1.5mm penny washer
37 ELE-FUS-015 15amp Re-settable fuse
38 SWI-MAX-950-230 Speed controller 230V
39 ELE-SWI-115 Rocker Switch
Bluemax 950 (230V) Speed & Non Speed Parts List

Page 14

Page 15
Bluemax 950 (110V) Parts List
Item
Part Number
Description
1
MAX-GRI-010
Bluemax 950 Front Grill
2
MAX-GRI-020
Bluemax 950 Rear Grill
3
MAX-PLA-010
Bluemax 950 Motor Mounting Plate
4
MAX-PLA-020
Bluemax 950 Chassis Plate
5
MAX-PLA-060
Castor Plate
6
MAX-BOX-040
Control Box
7
SWI-MAX-950-11
Control Box Lid c/w label & Switch
8
ELE-SWI-115
Rocker Switch
9
PLA-MAX-900W
900mm Wheolite Plastic
10
FAN-MOT-MAX-1
1500W 110V High resistance motor
11
FAN-BLA-900
Bluemax impellor
12
ELE-CRI-504
M4 Yellow ring crimps
13
ELE-CRI-505
M5 Yellow ring crimps
14
CAB-ARC-2.5Y
2.5mm Arctic Blue Cable 2P+E
15
ELE-PLU-032
32amp Plug
16
ELE-GLA-020
20mm Black compression gland
17
ELE-TIE-120
Cable ties 120 X 4.8
18
WHE-MAX-250
Bluemax 950 wheel
19
NYL-BEA-2530
Nylon bearing 25mm
20
FAS-STA-125
25mm Starlock fastener capped
21
CAS-FAN-100
Swivel Castor wheel 100mm
22
FAS-NUT-813
M8 x 30mm Dynafix Nut
23
FAS-SCR-SOC-1060
M10 x 60mm Socket Cap screw
24
FAS-SCR-BUT-850
M8 x 50mm Button Socket
25
FAS-SCR-BUT-870
M8 x 70mm Button socket
26
FAS-SCR-SET-1035
M10 x 35mm HT Set BZP
27
FAS-SCR-NUT-110
M10 Nyloc nuts
28
FAS-WAS-SHA-10
M10 Internal Shakeproof washer
29
FAS-SCR-BUT-820
M8 x 20mm Button Socket
30
FAS-SCR-BUT-816
M8 x 16mm Button Socket
31
FAS-SCR-BUT-825
M8 x 25mm Button Socket
32
FAS-WAS-SHA-8
M8 Shakeproof washer
33
FAS-SCR-BUT-612
M6 x 12mm Button Socket
34
FAS-NUT-108
M8 Nyloc nut
35
FAS-WAS-PEN-M10
M10 x 30mm x 1.5mm penny washer
36
FAS-WAS-PEN-M8
M8 x 30mm x 1.5mm penny washer
37
ELE-FUS-025
25amp Re-settable fuse

Page 16

Page 17
Bison Products Ltd
More Efficient
Less Efficient
Energy Consumption KWh
Actual energy used will depend on how the
equipment is used.
IP Rating 21
Noise (dB(A) 90
For further product information please refer
to the user manual.
1.5
Model Number: FAN-950-230
A+++
A++
A+
A
B
C
D
A
