Intended use
Your Black & Decker hammer drill has been designed for
drilling in wood, metal, plastics and masonry as well as for
screwdriving purposes. This tool is intended for consumer
use only.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all
instructions. Failure to follow all instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below
refers to your mains operated (corded) power tool or battery
operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain orwet conditions.
Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f. If operating a power tool in a damp location is
unavoidable, use a Residual Current Device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invites accidents.
d. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
e. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust related hazards
4. Power tool use and care
a. Do not force the power tool. Use the correct power
tool for your application. Thecorrect power tool will do
the job better and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
!

6
ENGLISH
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the powertools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed.Use of the power tool for operations
different from those intended could result in a
hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will make sure that the safety of the power tool is
maintained.
Additional power tool safety warnings
Wear ear protectors with impact drills. Exposure to
noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of
control can cause personal injury.
Hold power tool by insulated gripping surfaces
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool "live" and
shock the operator.
Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body leaves it unstable
and may lead to loss of control.
Before drilling into walls, floors or ceilings, check for the
location of wiring and pipes.
Avoid touching the tip of a drill bit just after drilling, as it
may be hot.
The intended use is described in this instruction manual.
The use of any accessory or attachment or performance
of any operation with this tool other than those
recommended in this instruction manual may present a
risk of personal injury and/or damage to property.
Safety of others
This tool is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Vibration
The declared vibration emission values stated in the
technical data and the declaration of conformity have been
measured in accordance with a standard test method
provided by EN 60745 and may be used for comparing one
tool with another. The declared vibration emission value may
also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of
the power tool can differ from the declared value depending
on the ways in which the tool is used. The vibration level may
increase above the level stated.
When assessing vibration exposure to determine safety
measures required by 2002/44/EC to protect persons
regularly using power tools in employment, an estimation of
vibration exposure should consider, the actual conditions of
use and the way the tool is used, including taking account of
all parts of the operating cycle such as the times when the
tool is switched off and when it is running idle in addition to
the trigger time.
Labels on tools
The following pictograms are shown on the tool.
Electrical safety
If the supply cord is damaged, it must be replaced by the
manufacturer or an authorised Black & Decker Service
Centre in order to avoid a hazard.
Warning! Additional safety warnings for drills and
impact drills.
!
Warning! To reduce the risk of injury, the user must
read the instruction manual.
This tool is double insulated; therefore no earth wire
is required. Always check that the power supply
corresponds to the voltage on the rating plate.
b. Power to the tool should always be supplied via
residual current device with a rated residual
current of 30mA or less.

7
ENGLISH
Features
1. Variable speed switch
2. Lock-on button
3. Forward/reverse button
4. Drilling mode selector
5. Chuck
6. Depth stop (not all models)
7. Side handle (not all models)
fig. B
8. Manual spindle lock button (single sleeve keyless
chuck only)
Assembly
Warning! Before assembly, make sure that the tool is
switched off and unplugged.

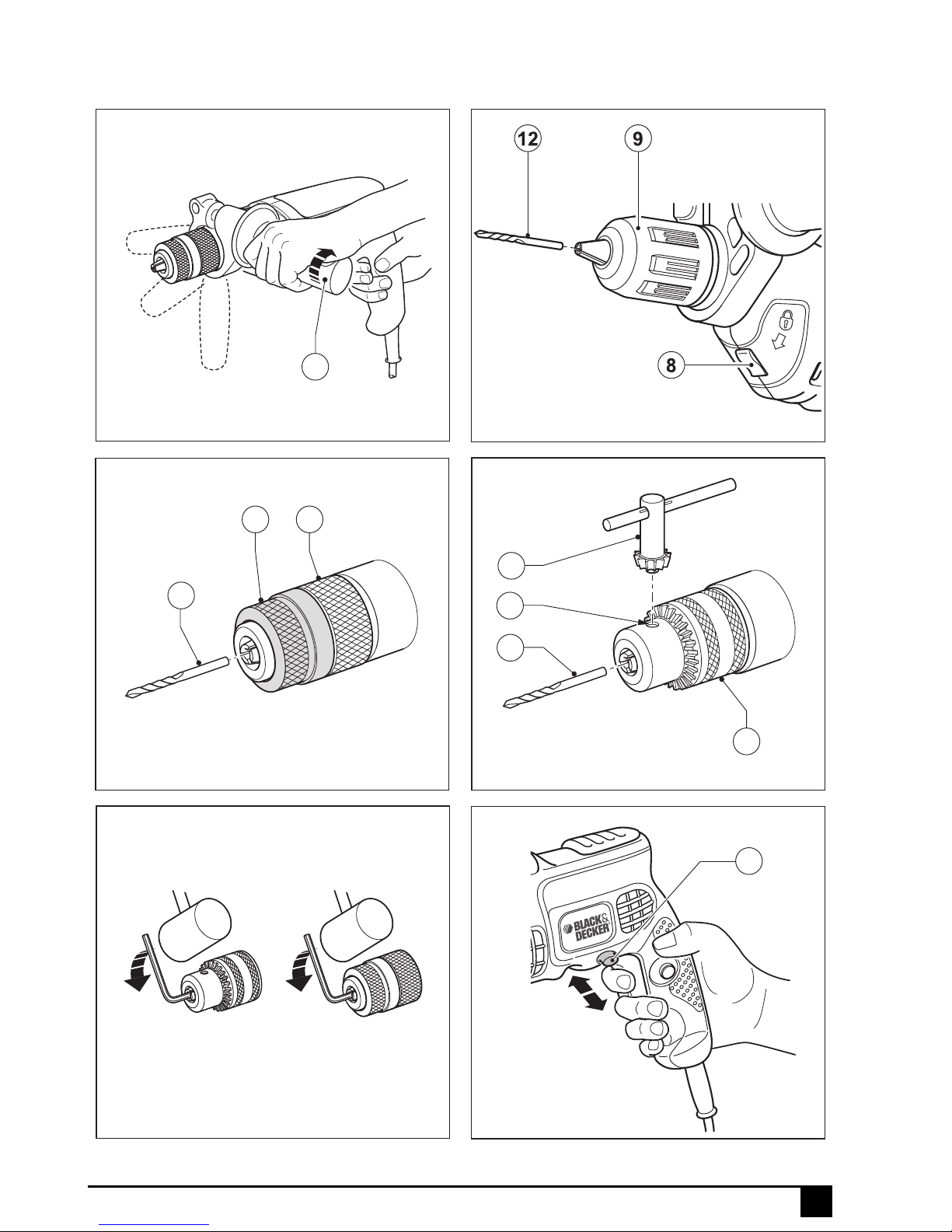

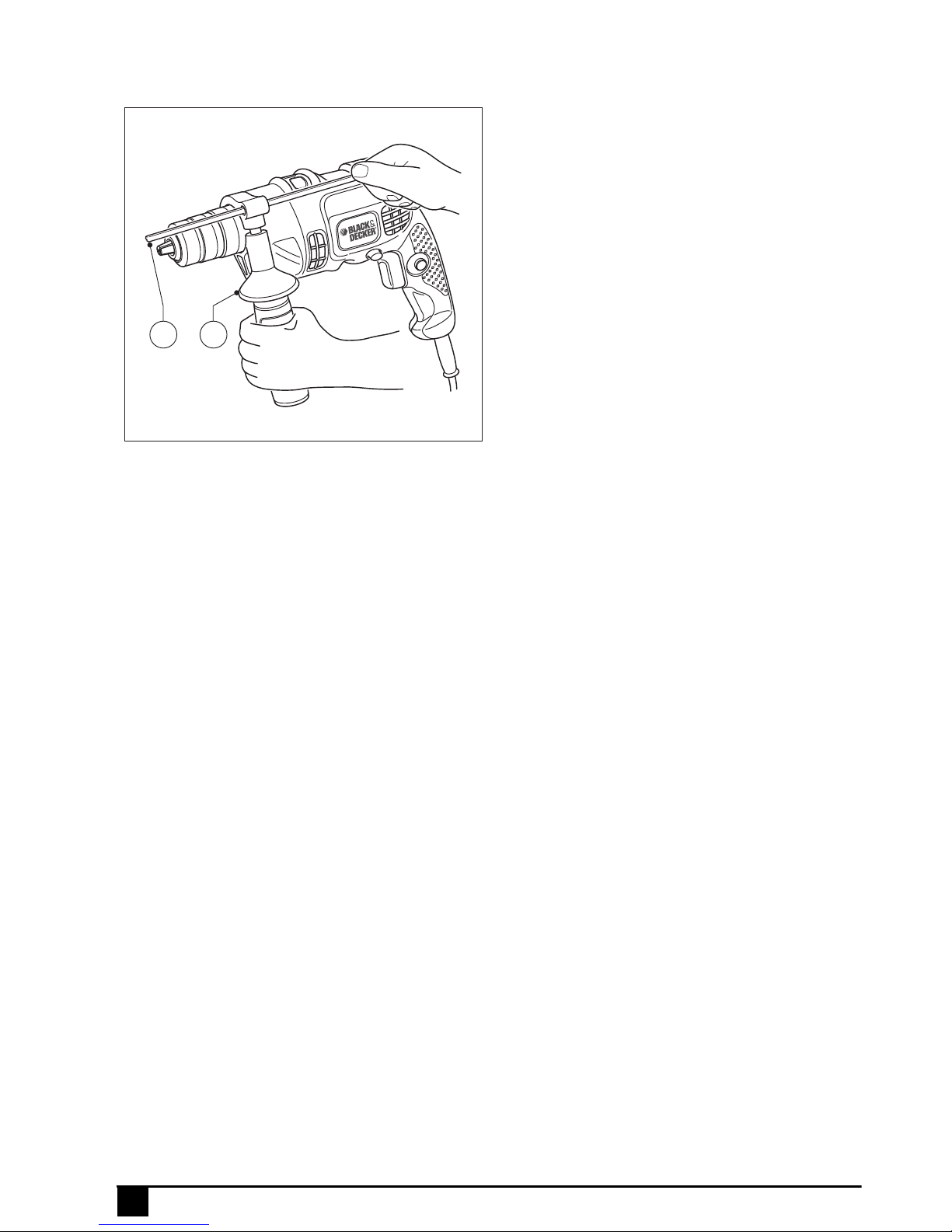

Fitting the side handle and depth stop (fig. A)
Turn the grip counter clockwise until you can slide the
side handle (7) onto the front of the tool as shown.
Rotate the side handle into the desired position.
Insert the depth stop (6) into the mounting hole as
shown.
Set the drilling depth as described below.
Tighten the side handle by turning the grip clockwise.
Fitting a drill bit
Single sleeve keyless chuck (fig. B) KR554CRESK
Open the chuck by pressing the manual spindle lock
button (8) and turning the sleeve (9) counter clockwise.
Insert the bit shaft (12) into the chuck.
Firmly tighten the chuck by pressing the manual spindle
lock button (8) and turning the sleeve clockwise until it
is tight.
Two sleeve keyless chuck (fig. C) Selected Model Only
Open the chuck by turning the front part (10) with one
hand while holding the rear part (11) with the other.
Insert the bit shaft (12) into the chuck and firmly tighten
the chuck.
Keyed chuck (fig. D) Selected Model only
Open the chuck by turning the sleeve (13) counter
clockwise.
Insert the bit shaft (12) into the chuck.
Insert the chuck key (14) into each hole (15) in the side
of the chuck and turn clockwise until tight.
Removing and refitting the chuck (fig. E)
Open the chuck as far as possible.
Remove the chuck retaining screw, located in the
chuck, by turning it clockwise using a screwdriver.
Tighten an Allen key into the chuck and strike it with a
hammer as shown.
Remove the Allen key.
Remove the chuck by turning it counter clockwise.
To refit the chuck, screw it onto the spindle and secure
it with the chuck retaining screw.
Use
Warning! Let the tool work at its own pace. Do not overload.
Warning! Before drilling into walls, floors or ceilings, check
for the location of wiring and pipes.
Selecting the direction of rotation (fig. F)
For drilling and for tightening screws, use forward
(clockwise) rotation. For loosening screws or removing a
jammed drill bit, use reverse (counter clockwise) rotation.
To select forward rotation, push the forward/reverse
button (3) to the left position.
To select reverse rotation, push the forward/reverse
button to the right.
Warning! Never change the direction of rotation while the
motor is running.
Selecting the drilling mode
For drilling in masonry, set the drilling mode selector (4)
to the position.
For drilling in other materials and for screwdriving, set
the drilling mode selector to the position.
Setting the drilling depth (fig. G)
Slacken the side handle (7) by turning the grip counter
clockwise.
Set the depth stop (6) to the desired position. The
maximum drilling depth is equal to the distance between
the tip of the drill bit and the front end of the depth stop.
Tighten the side handle by turning the grip clockwise.
Switching on and off
To switch the tool on, press the variable speed
switch (1). The tool speed depends on how far you
press the switch. As a general rule, use low speeds for
large diameter drill bits and high speeds for smaller
diameter drill bits.
For continuous operation, press the lock-on button (2)
and release the variable speed switch. This option is
available only at full speed in both forward and reverse
modes.
To switch the tool off, release the variable speed switch.
To switch the tool off when in continuous operation,
press the variable speed switch again and release it.

8
ENGLISH
Accessories
The performance of your tool depends on the accessory
used. Black & Decker and Piranha accessories are
engineered to high quality standards and designed to
enhance the performance of your tool. By using these
accessories you will get the very best from your tool.
Maintenance
Your Black & Decker tool has been designed to operate over
a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regular cleaning.
Warning! Before performing any maintenance, switch off
and unplug the tool.
Regularly clean the ventilation slots in your tool using a
soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth.
Do not use any abrasive or solvent-based cleaner.
Regularly open the chuck and tap it to remove any dust
from the interior (when fitted).
Protecting the environment
Should you find one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product
available for separate collection.
Separate collection of used products and packaging
allows materials to be recycled and used again. Re-
use of recycled materials helps prevent
environmental pollution and reduces the demand
for raw materials.
Local regulations may provide for separate collection of
electrical products from the household, at municipal waste
sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have
reached the end of their working life. To take advantage of
this service please return your product to any authorised
repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair
agent by contacting your local Black & Decker office at the
address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of
our after-sales service and contacts are available on the
Internet at: www.2helpU.com.
Technical data
Level of sound pressure according to EN 60745:
Sound pressure (LpA) 98 dB(A), uncertainty (K) 3 dB(A)
Acoustic power (LWA) 109 dB(A), uncertainty (K) 3 dB(A)
Hand/arm weighted vibration < 2.5 m/s²
Vibration total values (triax vector sum) according to
EN 60745:
Impact drilling into concrete (ah)= 17.88 m/s²,
uncertainty (K) = 1.5 m/s²
Drilling into Metal (ah)= 3.17 m/s², uncertainty (K) = 1.5 m/s²
Separate collection. This product must not be
disposed of with normal household waste.
KR504RE-XE
TYPE 1
KR504CRES-XE
TYPE 1
Input
voltage
Vac 230 230
Power input W 500 500
No load
speed
min-1 0-2800 0-2800
Max drilling
capacity
Steel/
concrete
mm 13 13
Wood mm 20 20
Weight kg 1.4 1.6
KR504CRE-XE
TYPE 1
KR554CRES-XE
TYPE 1
Input
voltage
Vac 230 230
Power input W 500 550
No load
speed
min-1 0-28000-2800
Max drilling
capacity
Steel/
concrete
mm 13 13
Wood mm 20 20
Weight kg 1.6 2.0

02/201490605971
Australia & New Zealand
Stanley Black & Decker
82 Taryn Drive, Epping, VIC 3076 Australia
Tel.[phone] (Aust) or Tel. [phone] (NZ)
