Black Ridge BR185B User manual

1
03155 03/14
03597 03/18
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457 N.Z. 0800 474 876
Recyclable
Cardboard
Portable compressor for
medium duty DIY tasks
around the home
MODEL NO.
BR185B
BELT DRIVE AIR COMPRESSOR

2
3
SUGGESTED APPLICATIONS
You may use most air tools with this compressor. Some
examples of tools are:
INFLATION
• Car and bike tires
• Sports toys
• Pool toys
• Air mattress
CLEANING
• Engine cleaning gun
• Sandblaster kit
• Air blow gun
• Abrasion kit
• Touch up spray gun
• High pressure spray gun
Always check the air requirement of the tool wishing to
be used to ensure that it is within this air compressors air
output. Attaching air tools that draw more than 185 litres
per minute, free air delivery, to this air compressor, may
cause them not to operate to the tools’ full potential. The
listed air tools and accessories above are not included with
this air compressor.
FASTENING
• Framing gun
• C-bradder
• T-nailer
PAINTING
• Gravity feed spray gun
• Low pressure spray gun
• Touch up spray gun
• High pressure spray gun
TOOLS
• Air hammer
• Air drill
• Impact wrench
• Sander
• Die grinder
Section Page
Contents 2
Suggested Applications 2
Introduction 3
Guarantee 3 – 4
General Safety Instructions 5 – 7
Electrical Information 8
Specific Safety Instructions 8

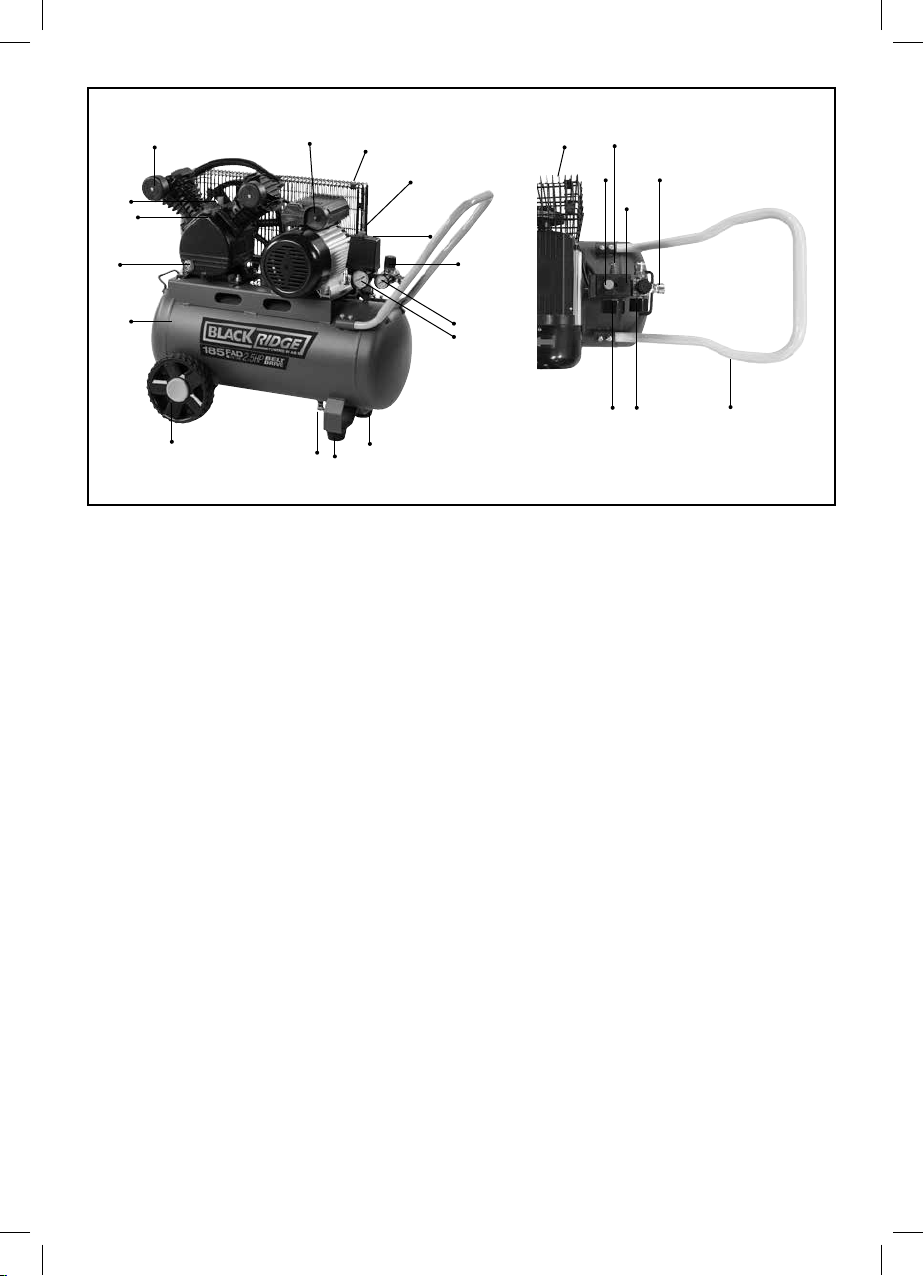

Components and Controls 9
Operating Instructions 10 – 16
Belt Tension 16
Belt Straightening 17
Maintenance 18
Parts Diagram 19
Contact Information 20
CONTENTS
Specifications
Air Compressor BR185B
Voltage 240V AC ~ 50Hz
Motor Electric 2.5 HP
Wattage 1975W
No Load Speed 850 RPM
FAD (Free Air Delivery) 190L per minute
Tank Size 40L
Duty Cycle 75%
Max Tank Pressure 115PSI (8BAR)
Outlet Pressure 1PSI - 115PSI Adjustable
Lubrication Oil Splash
Oil Type SAE30
Minimum Generator Size Pure Sine Wave 5000W
Noise Rating 70dB@5m
Motor/Pump Kicks In 85PSI
Pressure Cycle Stops 115PSI
Number Of Outlets 2

2
3
INTRODUCTION
Dear Customer,
Thank you for purchasing this compressor which has passed
through our extensive quality assurance processes. Every
care has been taken to ensure that it reaches you in perfect
condition. However, in the unlikely event that you should
experience a problem, or if you require any assistance
please do not hesitate to contact us;
If you have a problem, call customer service do not return this
compressor to the place of purchase.
Note: For convenience we suggest taking a photocopy of
your purchase receipt as the original may fade.
CUSTOMER SERVICE
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT
COMPRESSOR
You are not required to do anything to register your
compressor purchase. Please attach the purchase receipt
to this manual and ensure both are kept safe. We hope you
enjoy your new compressor, and if you have any problems
call customer service on the above phone numbers. Do not
return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that this
compressor will be free from manufacturing faults or
defects for 12 months from the date of purchase, providing
original purchase receipt is kept and shown when needed
and is subject to the terms and conditions below.
If a warranty fault appears within the warranty period, SMG
reserves the right to replace or repair the product. In the
event that SMG chooses to replace the product, this original
warranty will expire at the original date. If the product includes
various accessories or components, only the defective accessory
or component will be replaced or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by refurbished
products of the same type rather than being repaired.
Refurbished parts may be used to repair the products.
What is covered.
• Manufacturing fault or defect.
How to claim under this warranty.
• Call customer service, phone number to the left.
• Ensure you have the following: Original purchase receipt,
Model of compressor, Serial number of compressor.
• Discuss the issue.
• Customer service will advise which authorised service
agent to take the compressor to provided the issue is a
warranty one.
• Take compressor to authorised service agent for repair.
What is not covered.
• Commercial use of compressor.
• Use of compressor in a commercial premises.
• Damage caused by incorrect fuel or incorrectly mixed 2
stroke fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or accident
or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Compressors with serial number defacement, modification
or removal.
• Compressors which have been serviced by other than an
authorised SMG service agent.
• Compressors with no original purchase receipt.
• Compressors which have been on sold,
not original purchaser.
• Damage due non-servicing of compressor as is required
by this manual.
• Blockages / damage caused by dust, dirt, spiders webs
or insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading, overworking
the compressor.
• Damage to attached equipment or third party accessories.
• Damage caused by attached equipment or
third party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]

4
5
As soon as you have purchased the compressor, we
recommend that you check to make sure it is intact and that
you read the operating instructions carefully before using
it. The purchase receipt for this product is to be retained
and must be presented if making a claim under the terms of
the Smart Marketing Group (SMG) warranty. Bank account
statements are not acceptable for proof of purchase.
This warranty does not cover compressors intended for
hire or use in commercial applications or in commercial
premises. The warranty will under no circumstances extend
to reimbursement or payment of damages, whether direct,
indirect or consequential. The warranty is void if there is
evidence the compressors has been modified or tampered
with in any way or used with unauthorised accessories
without our consent.
SMG declines any responsibility or liability whatsoever
arising from misuse or abuse, negligent handling of the
compressors or if the product has not been installed or
failure to comply with the relevant safety, operating, setting
and maintenance instructions (see further in this manual).
The warranty does not extend to installation or
disconnection costs.
Any item sent freight forward/collect for repair will be
refused. Warranty repairs are free of charge, provided
the appliance is delivered to our service department or
authorised service agent. The compressor will need to be
returned, adequately protected in a box. SMG will not be
responsible for any in-transit loss or damage. Assistance
under the warranty will only be made available if the request
is made to our customer service team on the contact
numbers listed below and proof of purchase is provided.
This is a repair only warranty you will need to take
the compressor to the authorised service agent after
contacting our customer service centre.
If the product includes various accessories or components,
only the defective accessory or component will be replaced
or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by refurbished
products of the same type rather than being repaired.
Refurbished parts may be used to repair the products.
Damage caused by third party accessories is not
covered under this warranty.
Damage caused to attached equipment or third party
accessories will not be covered under this warranty.
Rust and corrosion are not covered under this warranty.
If a warranty fault is found the freight cost will be credited to
the owner. If no fault is found the product will be returned
and any costs associated with the service will be charged to
the owner.
Blockages caused by spider webs, insects, dirt, accumulated
dust, incorrect fuel or incorrectly mixed 2-stroke fuel are
not covered by warranty. SMG reserves the right to replace
or repair the appliance within the warranty period. Parts
found to be defective due to a manufacturing default will be
replaced free of charge.
In the event of SMG choosing to replace the appliance, the
warranty will expire at the original date of purchase. If no
warranty fault is found the owner will be advised and the
product will be returned and any costs associated with the
service will be charged to the owner.
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure. The
benefits of this warranty are in addition to any rights
and remedies imposed by Australian State and Federal
legislation that cannot be excluded.
In New Zealand, this SMG warranty is in addition to the
conditions and guarantees which are mandatory as implied
by the New Zealand Consumer Guarantee Act 1993. For
service, spare parts or product information please contact
customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]
COMPLETE WARRANTY STATEMENT – COMPRESSOR

4
5

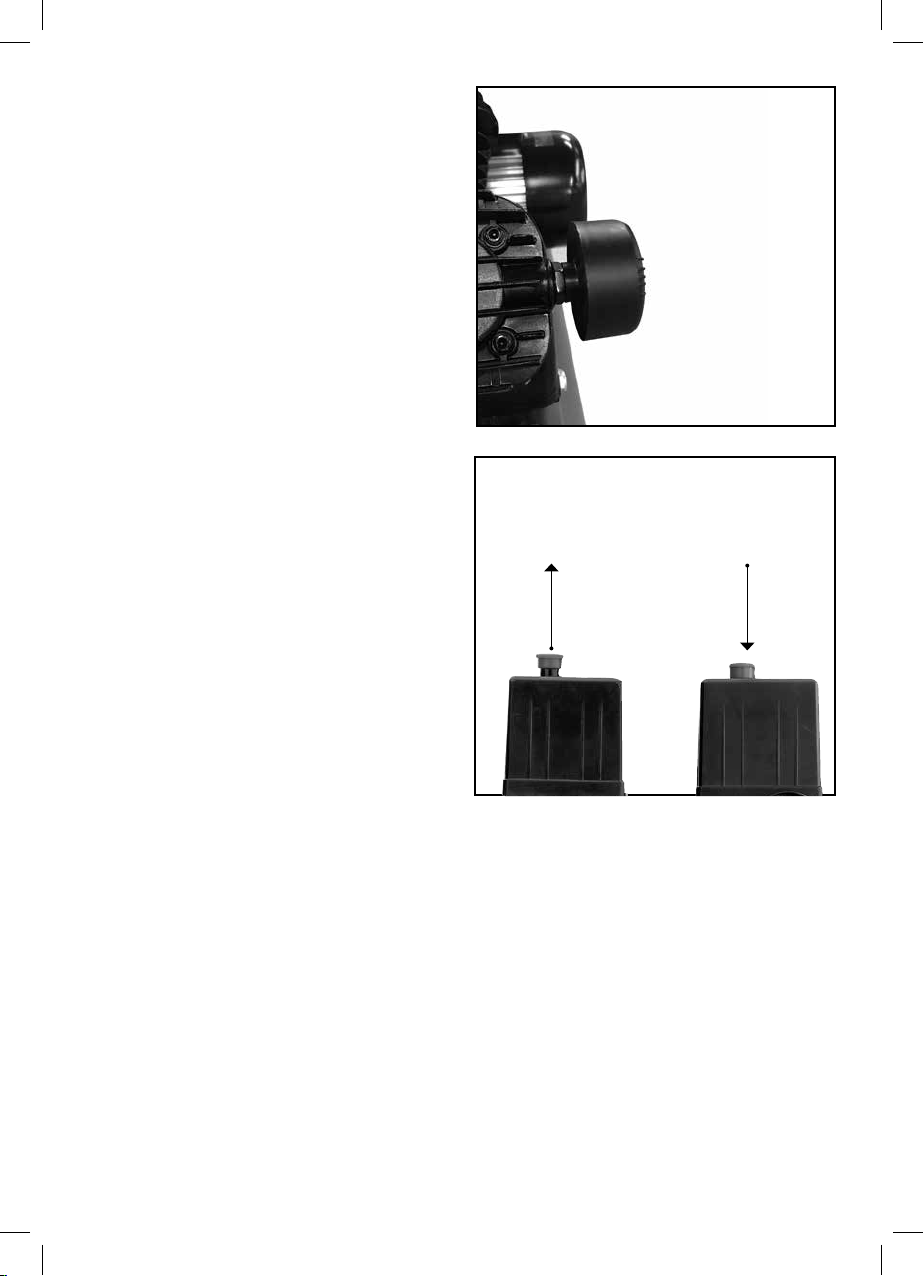

LUBRICATION OF COMPRESSOR
Before attempting to operate this air compressor the
transport plug must be removed, thrown out and replaced

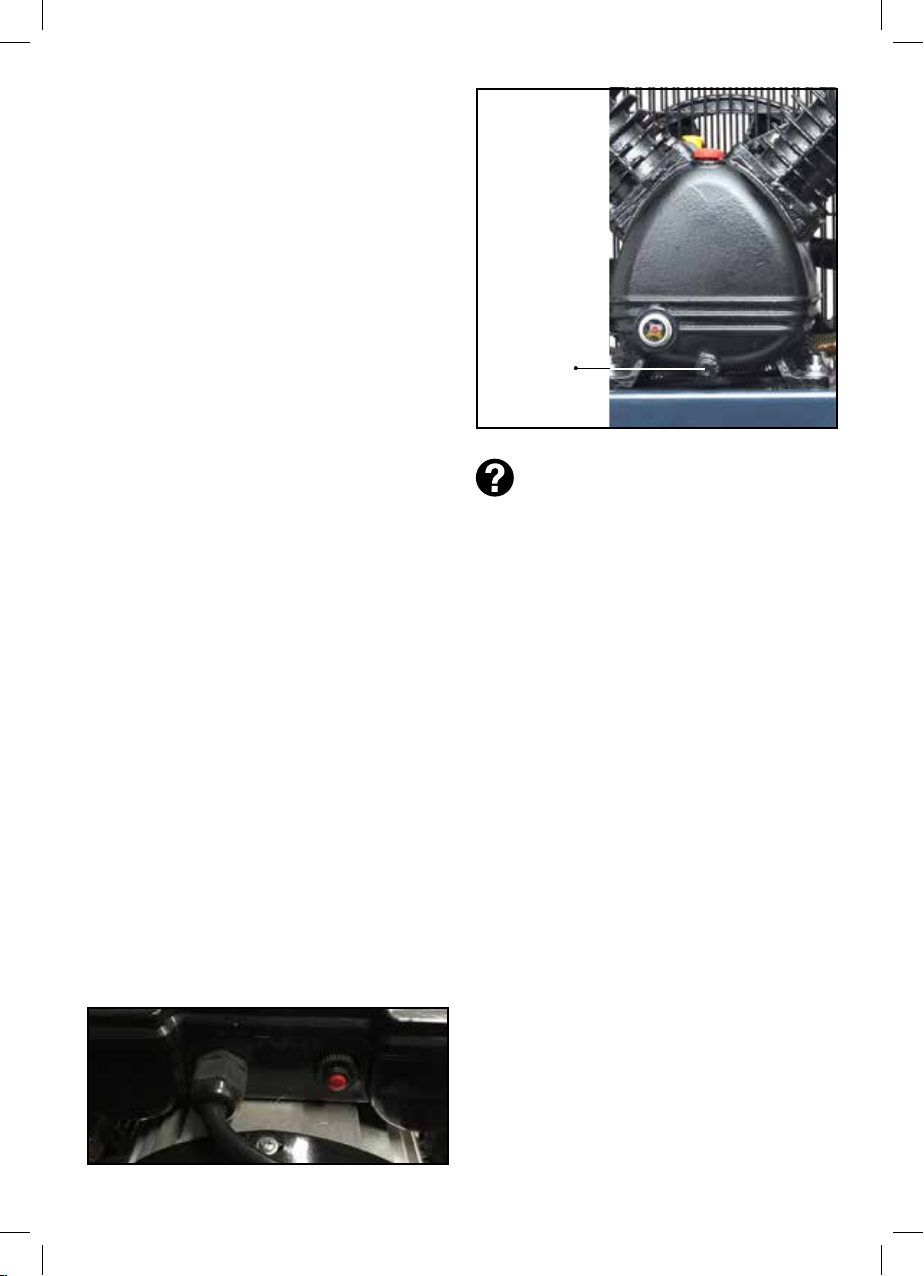

with the oil breather. Check the oil level to ensure the level
is to the top of the red dot on the sight glass; refer to page
10 for complete details and diagram. Failure to do these
may result in damage to the air compressor
and / or injury to the user.
PLEASE follow the instructions noted on page 10 on
changing the transport plug to the oil breather.
ASSEMBLY
This compressor MUST be fully assembled by you prior to
use. Failure to do so will result in the warranty being VOID.
Failure to fully assemble this compressor may also result in
personal injury.
MANOEUVRING
When moving this air compressor always use the handle to
lift slightly and pull/push using the attached wheels. If you
must lift this air compressor always use a 2 person lift due
to its weight and size. Failure to use 2 person lift may result
in personal injury.
SAFETY
Before attempting to operate this air compressor the
following basic safety precautions should be taken to
reduce the risk of fire, electric shock and personal injury.
It is important to read the instruction manual and to
understand applications, limitations and potential hazards
associated with the air compressor. This air compressor
is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
BEWARE OF CHILDREN AND PETS
Children and pets should be kept out of the work area.
Children should not be allowed to touch or operate
the air compressor, tools or extension cords. This air
compressor is not designed for use by young children or
infirm persons without supervision. The air compressor
and tools should be kept out of reach of children,
preferably stored or locked in a secure cabinet or room
when not in use.
WORK AREA
Work areas and benches should be kept tidy. Cluttered
benches and work areas can cause accidents. Floors should
be kept clean and free from rubbish. Special care should
be taken when the floor is slippery due to sawdust or wax.
Always leave sufficient distance, at least 5 metres between
the air compressor and the work area, especially when using
tools designed for sanding or spraying liquids.
WORK ENVIRONMENT
Do not expose your air compressor to rain or use in damp
or wet conditions. Keep the work area well lit. Always
ensure your compressor is level and stable. Using your
compressor on uneven or unstable ground may cause a lack
of lubrication and the pump to seize, this damage will not be
covered under warranty.
GUARD AGAINST ELECTRIC SHOCK
Avoid body contact with earthed or grounded surfaces (e.g.
pipes and refrigerators).
DO NOT OVERLOAD AIR COMPRESSORS
The air compressor will do a better, safer job and give you
much better service if it’s used at the duty cycle for which it
was designed.
The duty cycle will only take effect after the initial (1st ) tank
fill for the day.
This air compressors duty cycle is 75%.
Duty cycle is the proportion of time during which the air
compressor is operating compared with not operating. For
example a 75% duty cycle could mean after 45 seconds of
operation, motor pumping, the air compressor must be left
for 15 seconds resting, motor not pumping.
When the motor is pumping the attached air tool can
not be used. Only use the attached air tool while the
compressor is not pumping. Stop using the attached tool
as soon as the air compressor starts pumping.

6
7
DO NOT ABUSE THE POWER CORD
Never yank or pull on the power cord to disconnect it from
the mains supply socket.
Never carry or pull your air compressor by its power cord.
Keep the power cord away from heat, oil, solvents and sharp
edges. Regularly check the plug and cord and if damaged
have it replaced by an authorised service facility.
EXTENSION CORDS AND REELS
This air compressor MUST be plugged directly into a
240V AC wall socket.
This air compressor is NOT designed to be run off an
extension cord/lead. If you need extra distance do NOT
use an extension cord, USE A LONGER AIR HOSE.
The use of extension cords may cause power voltage
loss and will result in damage to the motor. This will
NOT be covered under warranty.
SECURE THE WORK PIECE
Whenever possible secure the work piece using clamps or a vice.
It is safer than using your hands or feet and leaves both hands free
to control the tool.
HOT COMPONENTS
Beware many of the components will get hot during use.
Never touch any of the metal pipes, pump or motor as these
may burn.
MAINTAIN YOUR AIR COMPRESSOR
WITH CARE
Follow the instructions for lubricating and changing
accessories. Check the air compressor power cord
periodically and if damaged have it replaced by an
authorised service facility. Keep handles clean, dry and free
from oil and grease. Ensure that ventilation slots are kept
clean and free from dust at all times. Blocked ventilation
slots or air filter can cause overheating and damage to the
motor and this will not be covered under warranty.
DISCONNECT AIR COMPRESSOR
Ensure that the air compressor is disconnected from the
mains supply when not in use, before servicing, lubricating,
making adjustments or when changing any accessories.
REMOVE ADJUSTING KEYS
AND WRENCHES
Form the habit of always checking to see that any adjusting
keys or wrenches have been removed from the air
compressor or attached air tools before operating.
AVOID UNINTENTIONAL STARTING
Ensure that the switch is in the ‘OFF’ position before
plugging the air compressor into the mains supply.
PROTECT FURNISHINGS
If using the air compressor inside your house, protect
furnishings and floors with a suitable dust sheet.
FIRE PRECAUTIONS
When using the air compressor inside your house or
workshop general fire precautions should be observed.
This means never leaving your air compressor turned on
while not in attendance, never cover the air compressor
while being used or while still hot from use, never use in
areas where a spark may cause a fire, always use in clean
areas. As a precaution it is recommended that an expert is
consulted on obtaining and using a suitable fire extinguisher.
CLEANING YOUR AIR COMPRESSOR
NEVER UN-ASSEMBLE your air compressor to clean.
Always disconnect your air compressor from the mains
power supply before you commence cleaning. Always
ensure that your air compressor has cooled, about one (1)
hour, before cleaning and storing. When cleaning your air
compressor use only a damp soft cloth. NEVER use liquid or
solvents of any type.

6
7
CHECK DAMAGED PARTS
Before using the air compressor it should be carefully
checked to determine that it will operate properly and
perform its intended function.
Check for the correct alignment of moving parts ensuring
that they do not bind. Check for broken or missing parts and
have them replaced or repaired at an authorised service
facility. Check any other condition that may affect the
operation of the air compressor. A guard or any other part
of the air compressor that is damaged should be properly
repaired or replaced by an authorised service facility unless
otherwise indicated in this instruction manual.
Any switch that does not operate correctly must be replaced
by an authorised service facility.
DO NOT use the air compressor if the ‘ON / OFF’ button
does not turn the air compressor ‘ON’ and ‘OFF’.
DO NOT use the power point switch to operate the air
compressor as this will cause damage and injury may
occur. Any damage will not be covered under warranty.
For assistance, product information, spare parts or
service please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457
N.Z. 0800 474 876
WARNING
Only use compressor with oil breather fitted.
Only use compressor when fully assembled
Do not attempt to modify the air compressor in any way; this will VOID your warranty.
The use of any attachment or accessory other than those recommended in this instruction manual could result in
damage to the air compressor and could cause injuries to the operator.
This electric air compressor complies with Australian / New Zealand and International standards and safety
requirements. Repairs should only be carried out by qualified persons using original spare parts. Failure to do so may
result in considerable danger to the operator.
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything that could
get caught in moving machinery.
Hair
Long hair should be tied back or contained in
a protective covering.
Eye Protection
The use of safety goggles is highly recommended (normal
glasses are not sufficient for eye protection) when using
an air compressor. Prescription glasses do not have
safety lenses.
Footwear
Where there is the risk of heavy objects or if there is a risk
of slipping on wet or slippery floors, suitable non–slip safety
footwear should be worn. Protect your feet from
dropping accidents.
Ear Protection
The use of ear protection is highly recommended when
using air compressors. The continual noise may damage
your ears.
Respiratory Protection
When operating any machinery that creates dust or when
spray painting, an approved dust / filter mask must be worn.
When machining concrete, man made fibres, especially
MDF (Medium Density Fibre board), the resin used in these
materials can be hazardous to your health. Use an approved
face mask with replaceable filter.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain
your balance at all times. Avoid using abnormal stances
and awkward body positions.
Stay Alert
Watch what you are doing, use common sense, and
never operate an air compressor when you are tired,
drinking alcohol, taking drugs or if taking medication
that causes drowsiness.

8
9
SPECIFIC SAFETY INSTRUCTIONS
Warning! Do not use the air compressor in areas where
there is a risk of explosion or fire from combustible
materials. The sparks generated from certain tools attached
to air compressor can ignite combustible materials as well
as flammable liquids, paint, varnish, petrol, flammable
gases and dust of an explosive nature. As a precaution it is
recommended that you consult an expert on a suitable fire
extinguisher and its use.
• Initially remove the transport plug and replace with
the oil breather BEFORE using the first time, see page
10.
• Do not attempt to modify the air compressor, guards
or the supplied accessories in any way.
• Air compressors are designed for intermittent
operation. Ideally a 75% duty cycle (Meaning: 45
seconds ON motor pumping and 15 seconds OFF,
motor not pumping). When the motor is pumping
the attached air tool can not be used. Only use
the attached air tool while the compressor is not
pumping.
• Stop using the attached tool as soon as the air
compressor starts pumping.
• Always check the oil level before use.
The oil level should be above the red dot on the sight
glass.
• Fully assemble compressor before use.
• Always ensure your compressor is level and stable.
Using your compressor on uneven or unstable ground
may cause a lack of lubrication and the pump to seize,
this damage will not be covered under warranty.

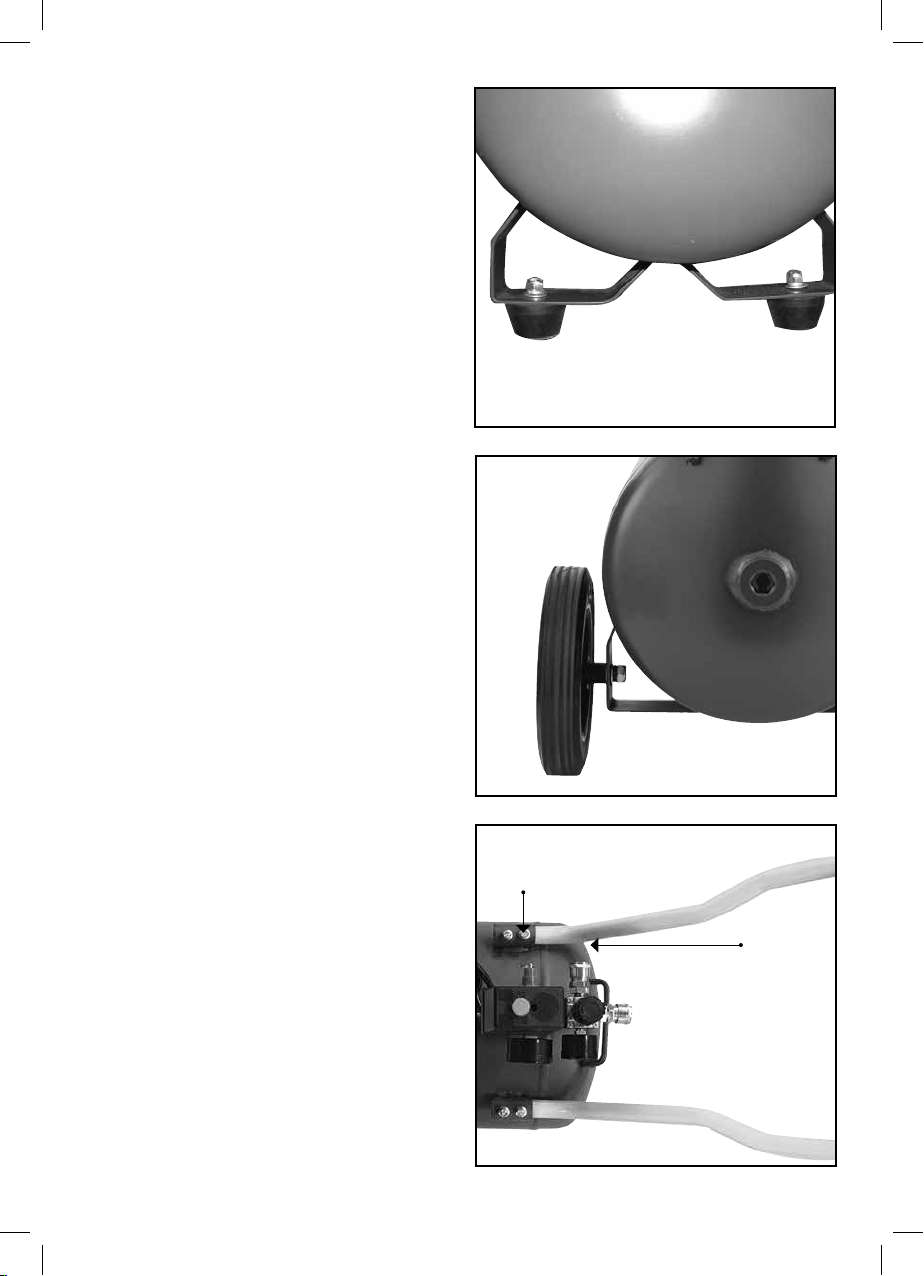

• Never run this compressor without the wheels and/
or rubber stoppers being correctly fitted.
• Never use an extension cord with this compressor
always use a longer air hose.
• Never connect to a generator which does not produce
sufficient power, at least 5000W and has pure sine wave
power output.
• Air compressors are not designed for continuous
running. Always follow duty cycle - 75%
• Avoid touching the pump area as it can become very hot
and may burn.
• Ensure that the air compressor is disconnected from the
mains supply when not in use,
before servicing, lubricating, making changes and when
changing attachments such as
air hoses / tools.
• Always use the correct type of tool for the operation to be
carried out.
• Never use the air compressor if any part of the unit is
damaged. Always have the air compressor serviced by
an authorised service agent.
• Always wear safety eye, ear and respiratory protection
when operating the air compressor.
• Allow the tank to completely fill before using
the air compressor.
• If the air compressor makes an unfamiliar sound or
vibrates excessively, switch the air compressor ‘OFF’
immediately and disconnect from the mains power
supply. Investigate the possible cause or consult your
authorised service facility.
• Always move the air compressor using the handle
and wheels.
• Always use the air compressor on stable ground.
• This air compressor is designed to compress normal air.
Never use to compress any other types of gases.
• Never direct the jet of air or other liquids / gases towards
your body, other persons or animals.
• Never direct the jet of air or other liquids / gases
towards this air compressor.
• This air compressor is not suitable for pharmaceutical,
food or sanitary purposes.
• This air compressor is not to be used to for filling scuba
or oxygen air bottles or tanks.
• Always follow the instructions relating to the tools
attached to this air compressor.
ELECTRICAL DATA
IMPORTANT
This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for
Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected
to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord
becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be
replaced by an authorised service centre. Always follow the Australian / New Zealand requirements for connection to the
mains supply. If in doubt always consult a qualified electrician.

8
9
COMPONENTS AND CONTROLS
Pic. 1
1. Pressure Switch
2. On/Off Button (Red Button)
3. Belt guard
4. Motor reset button
5. Belt (Not shown)
6. Air Filter
7. Oil Breather
8. Oil Fill Cap
9. Oil Sight Glass
10. Tank
11. Wheels
12. Drain Tap
13. Twin Rubber Stoppers
14. Handle
15. Tank pressure gauge - Large
16. Tank pressure gauge - Small
17. Air Outlet - Nitto Style fitting (female)
18. Safety valve
19. Outlet Pressure Regulator
PIC. 1
3
6
11
13 13
12
1
16
15
16
10
9
8
7
2
15 16 14
217
1
18
3
4

10
11
OPERATING INSTRUCTIONS
Unpacking
Carefully unpack your air compressor. This air compressor is
bulky and heavy, two (2) person lift required. Dispose of all
packing material in an environmentally responsible manner.
Assembly
Your air compressor requires minor assembly before initial
operation. Check that you have all required components
required for assembly and initial use.
Your compressor is filled with oil do not tip to assemble.
Oil breather
To fit the oil breather:
1. Oil breather is already fitted, see pic 2.
Lubrication
Warning: Your air compressor IS FILLED with OIL!
To check the oil level:
1. Always check the oil level when the air compressor is on
flat and level ground.
Look at the sight glass and ensure the oil is above the red
dot on the sight glass, as per the “OIL LEVEL GAUGE” label,
see Pic. 3 and Pic. 4.
To add oil, if required, additional oil not included:
1. Remove oil fill cap, see pic 2.
2. Add oil, SAE30 to at least the top of the red dot, see
Pic. 4.
3. Oil level will take about 1 minute to drain down and
settle.
4. Check oil level in sight glass, see Pic. 3. Re-check and
top up if required, until level is correct.
5. Replace oil filler cap.
WARNING
Do not attempt to operate this compressor until it is fully
assembled.
Damage caused due to incomplete assembly will not be
covered under warranty.
Ensure the air compressor is disconnected from
the power supply before carrying out any assembly,
maintenance or adjustments on the machine.
Never under fill or over fill with oil.
PIC. 2
Oil breather
Oil fill cap
Oil sight glass
Air Filter
Oil drain bolt
Oil drain bolt
Oil sight glass
PIC. 3
PIC. 4

10
11
PIC. 5
PIC. 6
PIC. 7
RUBBER STOPPER
To attach the rubber stoppers to the bracket located on the
bottom of the tank;
1. Undo the nut and remove the washers.
2. Push through the bracket and replace the washer.
3. Tighten the nut, Pic. 5.
WHEELS
1. Insert a bolt through the wheel.
2. Push through the tank wheel bracket.
3. Tighten the nut, Pic. 6.
HANDLE
1. Loosen bolts in tubes welded to the tank.
2. Push handle into tubes welded on the tank.
3. Tighten the bolts to hold handle in place, Pic. 7.
Slide handle
into tubes
Tighten bolts to hold handle

12
13
PIC. 8
STARTING AND STOPPING YOUR AIR
COMPRESSOR
Pic. 9
NOTE: Always ensure that you plug your air compressor into
a standard 240V AC power point. Never use an extension
cord as this can lead to a voltage drop which may cause
power loss and over heating. Use a longer air hose if you
need to get closer to your work area.
Always start and stop the compressor using the
ON/OFF button on the Pressure Switch (Pic. 1 Item 2 and 19
as well as Pic. 9). Damage caused by not using this switch
will not be covered by warranty.
To turn your air compressor ON;
Lift up the red ON / OFF button on top of the pressure switch
To turn your air compressor OFF;
Push down the red ON / OFF button on top of the pressure
switch
PIC. 9
Push button
down for off
Lift button
down for on
AIR FILTER
The supplied air filter must be used.
Failure to do so may result in irreparable damage and will
void the warranty, Pic. 8
To install:
1. Carefully screw supplied air filter into the
threaded hole on the top of the pump head.
This only needs to be done up by hand. Do not
use tools to tighten air filter.
NOTE: Do not OVER TIGHTEN as this may damage the
air filter or cylinder head which will NOT be covered
under warranty.

12
13
RUNNING IN YOUR NEW AIR COMPRESSOR
Before running in ensure that the following has been
completed:
1. Oil level is correct, see page 10.
2. The air compressor has been fully assembled, see pages
10 – 12.
Your new air compressor requires running in:
1. Plug the power cord into a standard 240V AC
power point
2. Open the tank drain tap
3. Start the air compressor using the ON / OFF button
4. Run the air compressor for approximately 1 minute.
This ensures that the air compressor is fully lubricated under
no load.
After the 1 minute stop the air compressor using the ON
/ OFF button. Allow to cool approximately 10 minutes.
Recheck the oil level and top up if needed, additional oil,
SAE30, not included.
Before starting your air compressor again ensure:
1. Tank drain tap is closed
NOTE: 1. Never use an extension lead. Always use a
longer air hose
2. Always position compressor on level ground
3. Always position compressor away from work
area so that the inflator does not get covered
in dust or paint - use a longer air hose to
ensure inflator is in clean air
USING THE AIR COMPRESSOR
Before starting run through this simple list:
1. Oil level – CORRECT (top of red dot).
Please refer to diagram, Pic. 4, page 10.
2. Drain tap – open and drain tank
3. Drain tap – close fully
4. Check power lead for any damage. If damaged have
replaced by an authorised service centre.
5. Plug air compressor into a standard 240V 10Amp AC
power point and turn ON.
6. Lift the air compressor button to turn ON, see page 12,
Pic. 9.
7. Allow the air compressor to fill the air tank.
8. Turn the power point OFF and disconnect the power lead
from the power point.
9. Connect your air hose and air tools.
10. Reconnect to the power lead to the power point and
turn ON.
11. Turn your air compressor ON.
12. Once turned and you begin using the connected air
tools the air compressor will start and stop without
warning. This is controlled by the pressure switch.
These pressure settings are factory set and should not
be changed.
Pumping starts at (minimum) 85PSI and stops at (maximum)
115PSI. Once the initial pump up stage has finished you
can adjust the outlet air pressure to the tools recommended
working pressure.

14
15

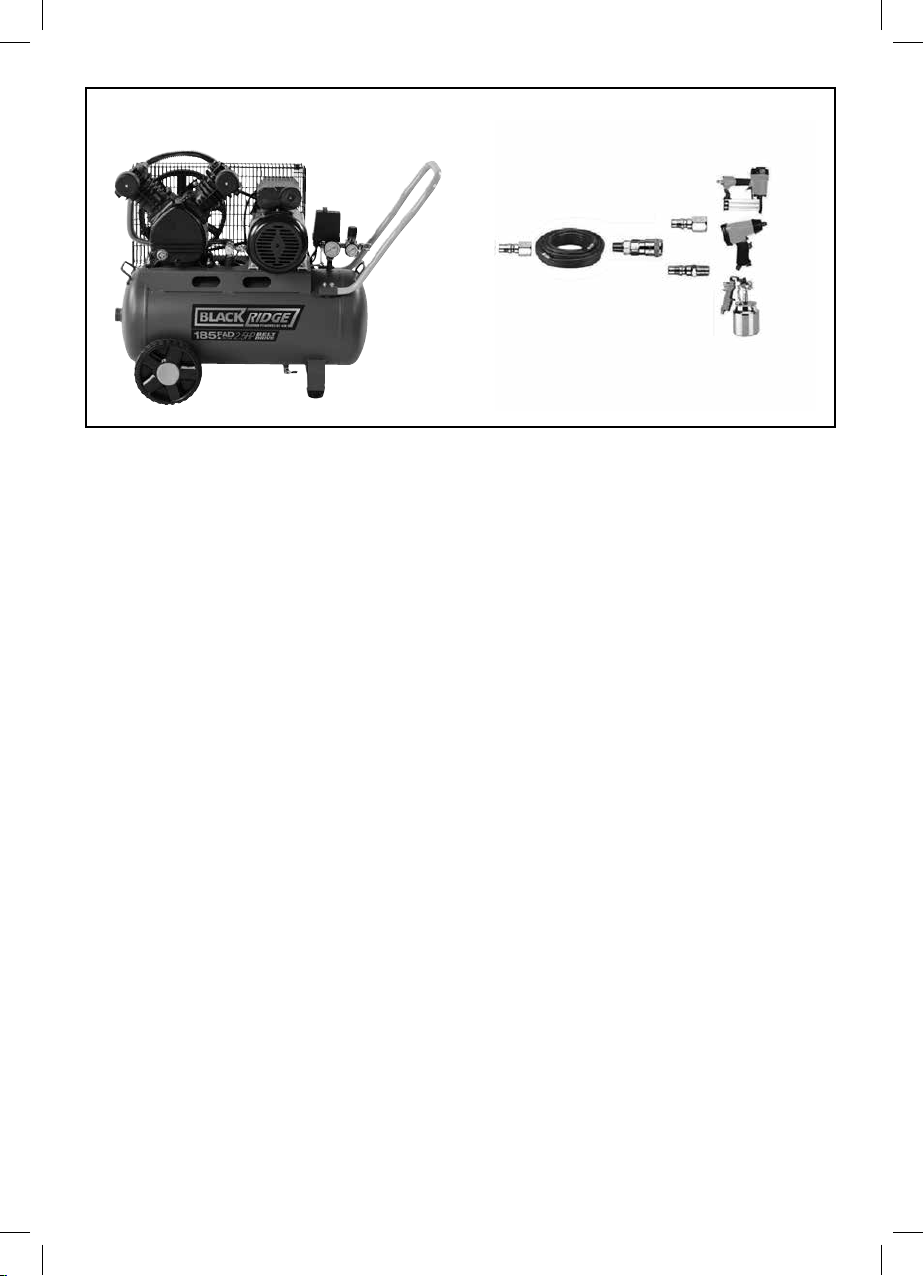

PIC. 10
The configuration of tools and accessories can be varied to
suit your particular requirements. A basic recommended set
up is shown in Pic.10
When you have finished using your air compressor
follow these simple steps:
1. Turn your air compressor OFF, using the
ON/OFF button.
2. Turn the power point OFF and disconnect the
power lead.
3. Disconnect your air tools and air hose.
4. Clean your air hose and air tools.
5. Store your air hose and air tools in a secure well
ventilated cabinet.
6. Slowly open the tank drain tap, see page 16.
This allows excess air and moisture, water,
to vent.
7. Leave the tank drain tap open. This allows any moisture
to drain while the air compressor
is stored.
NOTE: Use of a water trap may be of benefit to ensure no water or
moisture reaches your air tool.
Above accessories and tools Not supplied, purchased separately.

14
15

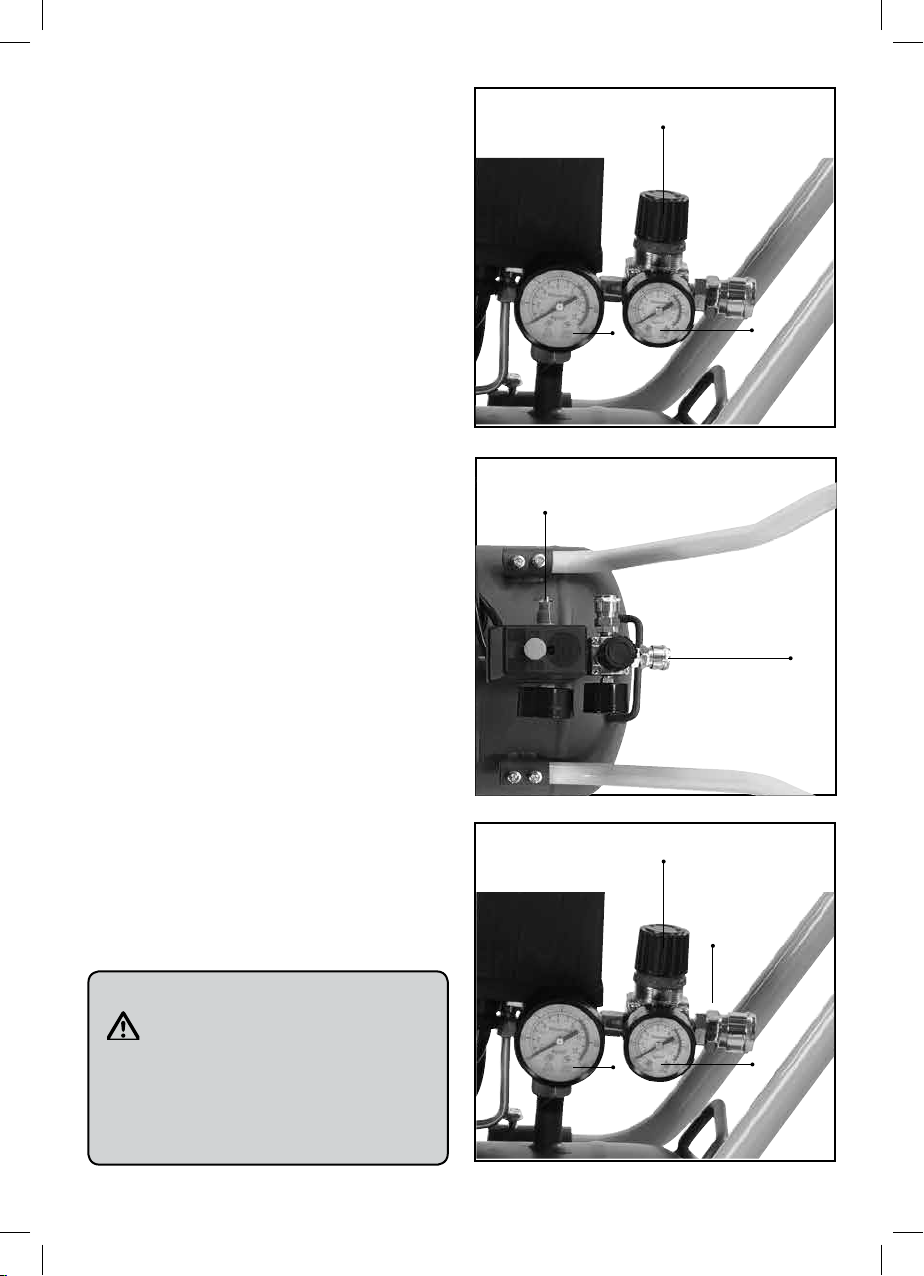

ADJUSTING THE PRESSURE
To adjust the outlet air pressure, use the outlet pressure
regulator knob and check the pressure on the outlet
pressure gauge, Pic. 11.
If the pressure needs to be lower, turn anti clockwise.
If the pressure needs to be higher, turn clockwise.
Use the gauge to ensure you set the correct working
pressure.
Note: Different air tools require different operating
pressures. Always check with the tool manufacturer if
unsure.
PIC. 11
PIC. 12
Tank
pressure
gauge
Outlet
Pressure
Regulator
Pull to check operation
Outlet pressure
gauge
SAFETY VALVE
Pic. 12
NOTE: When checking the safety valve ALWAYS wear
safety glasses.
To check the operation of the safety valve the air tank will
need to be full. Gently pull the ring outwards. This should
release air under pressure. Release the ring and this should
stop the air out flow once the tank pressure has dropped.
If the safety valve does NOT work in this manner, STOP the
air compressor immediately and have the air compressor
checked / serviced by an authorised service centre.
IMPORTANT
NOTE
This compressor has a maximum pressure of 8 bar.
Always regulate the air pressure to match your air
tool. Different air tools require different operating
pressures. Always check with the tool manufacturer
if unsure.
AIR OUTLET
Pic. 13
This air compressor is fitted with a ‘Nitto style’ (female)
socket.
1. Slide the outer collar down.
2. Push in the ‘Nitto style’ male plug (not included).
3. Release the collar.
4. Fully and completely push the ‘Nitto style’ male plug
(not included) into the ‘Nitto style’ female socket until it
clicks.
Note: This compressor has a maximum pressure of 8 bar.
Always regulate the air pressure to match your air tool.
Different air tools require different operating pressures.
Always check with the tool manufacturer if unsure.
Outlet nitto style socket
(female)
PIC. 13
Tank
pressure
gauge
Regulator
Outlet pressure
gauge
Nitto style
outlet socket
(Air Outlet)

16
17
PIC. 14
DRAIN TAP
Pic. 14
After use open the drain tap to drain excess air and any
moisture. The excess air will also help purge the moisture.
Leave the drain tap open when air compressor is not in use,
so any moisture can continue to drain
To open the drain tap pull the lever down
to vertical.
To seal the drain tap push the lever up
to horizontal.
NOTE: Remember to seal the drain tap before starting the
compressor.
BELT TENSION
Pic. 15
Correct belt tension is paramount to a safe and reliable air
compressor. Too tight a belt can cause damage to bearings
and premature motor failure. These failures will not be
covered by warranty. Too loose a belt can cause poor
performance and excess heat due to slippage which can
also lead to premature component failure. This will not be
covered by warranty. To check the belt tension, gently push
down midway between the two pulleys the belt should only
move between 10mm – 15mm, Pic. 15. If the belt moves
more that this amount then you will need to tighten the belt.
To adjust the belt tension, follow these simple steps;
1. Loosen the motor bolts, Pic. 15.
2. Slide the motor forward or backward to
correct position.
3. Tighten the motor bolts.
4. Check belt tension and repeat if needed.
5. If uncertain about attempting the above steps
please consult an authorised service agent.
Drain Tap Sealed
To close and seal push lever up Right or left
To open and drain pull lever down
Drain tap opened unsealed
PIC. 15
MOTOR BOLTS
10 - 15mm

16
17
BELT STRAIGHTNESS
Pic. 16
Belt straightness is paramount to a safe and reliable air
compressor. The belt should always run in a straight line
between the two (2) pulleys. If the belt is on an angle this
could cause excessive strain and wear on components. This
will not be covered by warranty. The belt should run parallel
to the two pulleys. If not, adjust.
To adjust the belt straightness, follow these simple steps;
1. Loosen the pump bolts, Pic. 16.
2. Slide the pump to the appropriate position.
3. Tighten the pump bolts.
4. Check belt straightness and repeat if needed.
5. Check belt tension and correct if necessary.

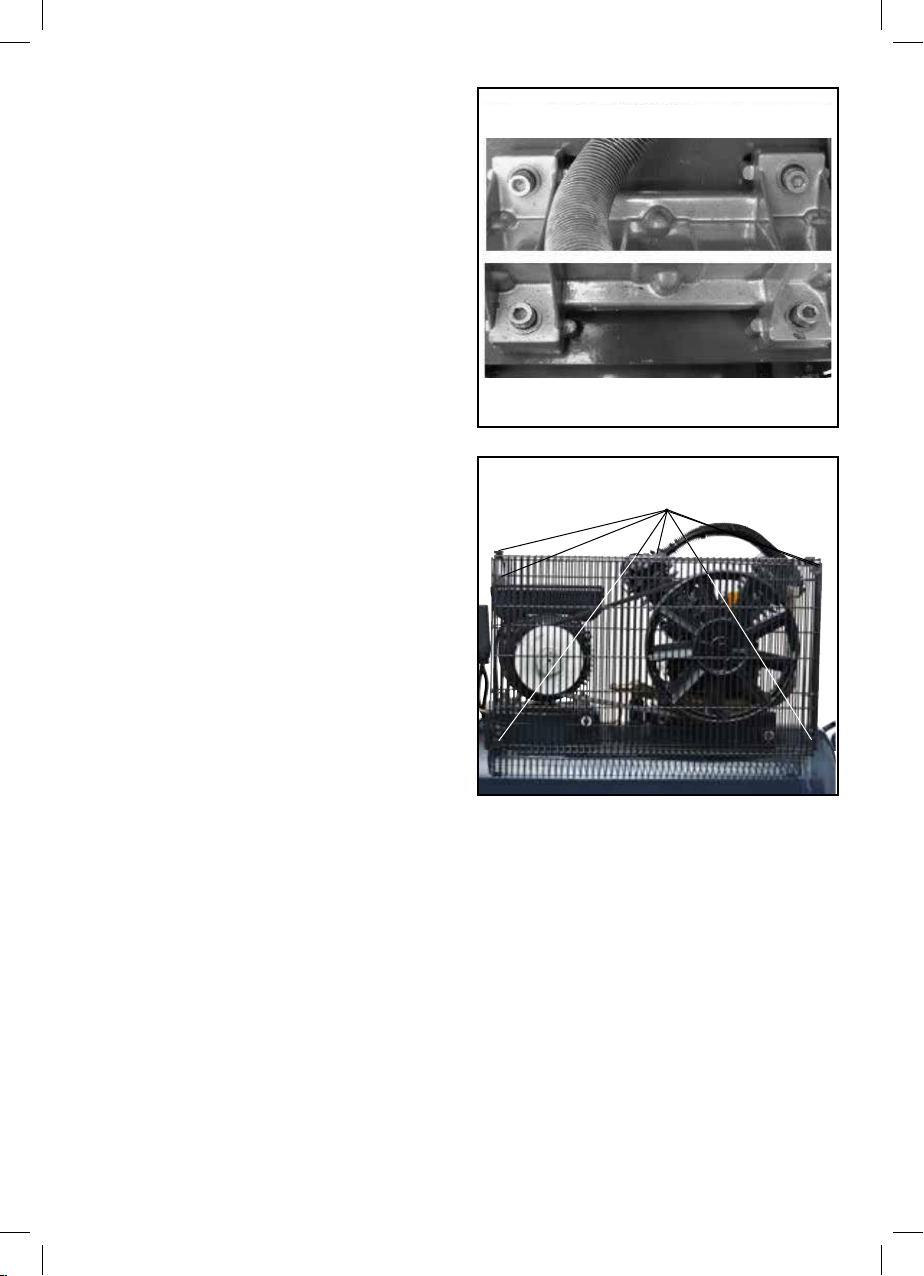

PIC. 16
PUMP BOLTS
BELT REPLACEMENT
Pic. 17
The belt will need replacing if it has been damaged, worn, or
it has reached 250 hours of use.
To replace the belt follow these steps;
1. Undo and remove the belt guard twist locks,
see Pic. 17. To remove twist locks use pliers to
rotate the twist locks by 90° then remove.
2. Remove the front of the belt guard.
3. Loosen the motor bolts Pic. 15, page 16.
4. Remove the belt.
5. Clean both pulleys with a dry soft cloth.
DO NOT USE any lubricants or solvents as this
can damage the new belt by causing slippage.
6. Fit new belt.
7. Set correct belt tension, see page 16.
8. Check the belt straightness and tension, adjust
if required, see page 16.
9. Replace the front of the belt guard.
10. Replace then tighten the belt guard twist locks.
To replace twist locks use pliers to rotate the
twist locks by 90°.
The replacement belt is similar to (Bosch Style) 13A1230
PIC. 17 2 twist locks on each side of the guard and 3
twist lock on top.
CLEANING
ENSURE the air compressor is NOT running whilst cleaning.
To keep the air compressor clean, always wipe down after
use. Wear eye protection when cleaning. Only clean the air
compressor with a damp soft cloth. NEVER use liquid or
solvents of any type. Ensure ventilation slots are kept clean
and free from dust/dirt build up.
STORAGE
When storing ensure the air tank has been emptied as
per ‘Drain Tap’ above. Always store away from children,
preferable in a locked room.

18
19
If your compressor does not start
• Check that you have plugged the power lead into a
standard 240V 10Amp power point and turned the
switch ON.
• Check that you have turned the air compressor ON/OFF
button ON.
• The air tank may be full. Use your air tool and the air
compressor should start when the pressure decreases
to 85PSI.
If your compressor does not build
up pressure
• Check that the tank drain tap is sealed.
If your compressor smells like burnt oil
• Check the oil level as it may be low
• Compressor is being used beyond its 75% duty
cycle. Allow to cool for 30 minutes before reusing
compressor. Stay within the 75% duty cycle (refer to
pages 5 and 8).
If these tips do not work please have your unit checked by
an authorised service centre.
Call Smart Marketing Group for your closest centre,
Aust. 1300 660 457 N.Z. 0800 474 876.
TROUBLE SHOOTING
PIC. 18
MAINTENANCE
Daily
Before use
1. Seal the tank drain tap, see Pic.14.
2. Check the oil level, see page 10, Pic. 4.
3. Check safety valve operation, see page 15, Pic. 12.
4. Check the belt tension, Pic 15, Page 16. Movement
should be 10-15mm. Adjust if required. Page 16.
5. Check for belt straightness. Adjust if required.
Page 16.
After use
1. Open the tank drain tap, see Pic.14.
2. Wipe down the air compressor.
3. Store safely and securely.
Every 50 Hours
1. Replace the air filter.
2. Drain oil completely and replace with fresh oil
To drain:
a. Loosen and remove the oil drain bolt,
Pic. 18 and drain oil into a funnel / bottle and dispose
of in an appropriate manner.
b. Once drained replace and tighten the oil
drain bolt.
c. Wipe up any oil spills.
d. Fill up to the top red dot on the sight glass with fresh
clean oil. Refer page 10 for “To Add Oil, if Required”
details.
Refer to diagram Pic. 4, page 10.
NOTE: Use oil type SAE30.
3. Check and replace the belt if necessary.
Reset Button
If compressor will not start and tank pressure is less than 70
PSI (5BAR) then check the motor reset button, Pic19.
1. If protruding, turn pressure switch off, turn power point
off and unplug.
2. To reset push button in.
3. Plug back into power point, turn on and restart
compressor with pressure switch.
Remove oil drain
bolt and drain used
oil into funnel.
Replace and
tighten oil drain bolt
PIC. 19

18
19
PARTS DIAGRAM
Part Description Qty SMG Part No.
2 Air Filter 2 95 BRI60AF
10 Drain Tap 1 95 BRC95DT
24 Exhaust Tube 1 95 BRC155ET
31 Oil Breather 1 95 BRC155OB
3One Way Valve 1 95 BRC1800WV
19
Outlet nitto style socket (female) 2 95 BRI40NSF
17 Pressure Gauge Small 1 95 BRC95OPG
18 Regulator Dual Tap 1 95 BRC12Ø0PRD
15-16 Connector 1 95 BRC95PTC
11 Cushion Foot 2 95 BRC95RS
Image may not match exactly. For reference only.
Part Description Qty SMG Part No.
21 Safety Valve 1 95 BRC95SPV
12 Tank Handle 1 95 BRC180TH
13 Pressure Gauge Large 1 95 BRC95TPG
23 Unloading Tube 1 95 BRC155ULT
9 Wheel 2 95 BRC120WH
33 Screw Nut 2 95 BRC120WHB
26 Belt 1 95 BRC155B
25 Belt Guard 1 95 BRC155BG
4-5 Soft Start 1 95 BRC155SS
30 Head Exhaust Tube 1 95 BRC155HET
32 Oil Fill Cap 1 95 BRC155OFC
User replaceable parts listed above. All other parts must be serviced/replaced by an authorised service agent.

20
Blackridge® is a registered trademark of Super Cheap Auto Pty Ltd
TECHNICAL INFORMATION
For any queries or assistance call Customer Service
AUST. 1300 660 457 NZ 0800 474 876
Hours of operation:
Monday to Friday 8.00am - 5.00pm AEST
Do not return to place of purchase. Keep your purchase receipt, this will
be required to make any claims under the 12 month warranty.
Specifications
Air Compressor BR185B
Voltage 240V AC ~ 50Hz
Motor Electric 2.5 HP
Wattage 1975W
No Load Speed 850 RPM
FAD (Free Air Delivery) 190L per minute*
Tank Size 40L
Duty Cycle 75%
Max Tank Pressure 115PSI (8BAR)
Outlet Pressure 1PSI - 115PSI Adjustable
Lubrication Oil Splash
Oil Type SAE30
Minimum Generator Size Pure Sine Wave 5000W
Noise Rating 70dB@5m
Motor/Pump Kicks In 85PSI
Pressure Cycle Stops 115PSI
Number Of Outlets 2
