Black Ridge BRG650 User manual

02824 08/11
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457 N.Z. 0800 474 876
650W Generators
50:1
2 Stroke

2
SUGGESTED APPLICATIONS
These are some suggestions of appliances which
could be powered by this generator. These
suggestions can not be run at the same time, please
read page 11 for full details:
• Portable televisions up to 65W
• Camping fridges up to 100W
• Lighting up to 550W
• Power tools up to 320W
Never exceed 480W in total when using
multiple devices.
Section Page
Contents 2
Suggested Applications 2
Technical Information 2
Introduction 3
Guarantee 3 – 4
General Safety Instructions 5 – 7
Specific Safety Instructions 8
Electrical Information 9
Components and Controls 10
Operating Instructions 11 – 16
Maintenance 16 – 17
Trouble Shooting 18
Parts Diagram 19
Contact Information 20
CONTENTS
TECHNICAL INFORMATION
Specifications
Generator BRG650
Output Voltage 240V AC ~ 50Hz
Continuous
Power (Rated) 650W
Maximum
Output 0.65Kva at power factor of 1
Peak Power
(Surge) 780W
Motor Single cylinder 2-stroke
Spark Arrestor Yes
Tank Capacity 4L
Noise Level 62db at 7m
Weight 18Kg
Approximate
Run Time 4 Hours at 400W
Fuel Unleaded Petrol
Oil 2 Stroke Fuel Oil
2 Stroke Mix
50 : 1
20ml 2-Stroke Oil : 1L Unleaded Fuel
Spark Plug Torch F6TC or
NGK B5ES or BR5ES

3
INTRODUCTION
Dear Customer,
Thank you for purchasing this generator which has
passed through our extensive quality assurance
processes. Every care has been taken to ensure
that it reaches you in perfect condition. However,
in the unlikely event that you should experience
a problem, or if you require any assistance please
do not hesitate to contact us;
If you have a problem, call customer service do
not return this generator to the place of purchase.
CUSTOMER SERVICE
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.30am - 5.30 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT
GENERATOR GROUP
You are not required to do anything to register
your generator purchase. Please attach the
purchase receipt to this manual and ensure both
are kept safe. We hope you enjoy your new
generator, and if you have any problems call
customer service on the above phone numbers.
Do not return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants
that this generator will be free from manufacturing
faults or defects for 12 months from the date of
purchase, providing original purchase receipt is
kept and shown when needed and is subject to the
terms and conditions below.
If a warranty fault appears within the warranty
period, SMG reserves the right to replace or repair
the product. In the event that SMG chooses to
replace the product, this original warranty will
expire at the original date. If the product includes
various accessories or components, only the
defective accessory or component will be replaced
or repaired.
SMG reserves the right to replace defective parts
of the product with parts and components of
similar quality, grade and composition where an
identical part or component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than
being repaired. Refurbished parts may be used to
repair the products.
What is covered
• Manufacturing fault or defect.
How to claim under this warranty.
• Call customer service, phone number at the top.
• Ensure you have the following: Original purchase
receipt, Model of generator, Serial number of
generator.
• Discuss the issue.
• Customer service will advise which authorised
service agent to take the generator to provided
the issue is a warranty one.
• Take generator to authorised service agent
for repair.
What is not covered
• Commercial use of generator.
• Use of generator in a commercial premises.
• Damage caused by incorrectly mixed
2 stroke fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse
or accident or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and
start up.
• Replacement parts due to general wear
and tear.
• Generators with serial number defacement,
modification or removal.
• Generators which have been serviced by other
than an authorised SMG service agent.
• Generators with no original purchase receipt.
• Generators which have been on sold, not
original purchaser.
• Damage due non-servicing of generator as is
required by this manual.
• Blockages / damage caused by dust, dirt,
spiders webs or insects.
• Damage caused by the incorrect fitting of
accessories.
• Damage caused by overloading, overworking
the generator.
• Damage to attached equipment or third party
accessories.
• Damage caused by attached equipment or third
party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]

4
As soon as you have purchased the generator,
we recommend that you check to make sure
it is intact and that you read the operating
instructions carefully before using it. The
purchase receipt for this product is to be retained
and must be presented if making a claim under
the terms of the Smart Marketing Group (SMG)
warranty. Bank account statements are not
acceptable for proof of purchase.
This warranty does not cover generators intended
for hire or use in commercial applications or in
commercial premises. The warranty will under
no circumstances extend to reimbursement or
payment of damages, whether direct, indirect
or consequential. The warranty is void if there
is evidence the generators has been modified
or tampered with in any way or used with
unauthorised accessories without our consent.
SMG declines any responsibility or liability
whatsoever arising from misuse or abuse,
negligent handling of the generators or if the
product has not been installed or failure to
comply with the relevant safety, operating,
setting and maintenance instructions (see further
in this manual).
The warranty does not extend to installation or
disconnection costs.
Any item sent freight forward/collect for repair will
be refused. Warranty repairs are free of charge,
provided the appliance is delivered to our service
department or authorised service agent. The
generator will need to be returned, adequately
protected in a box. SMG will not be responsible
for any in-transit loss or damage. Assistance
under the warranty will only be made available if
the request is made to our customer service team
on the contact numbers listed below and proof of
purchase is provided.
This is a repair only warranty you will need to take
the generator to the authorised service agent after
contacting our customer service centre.
If the product includes various accessories or
components, only the defective accessory or
component will be replaced or repaired.
SMG reserves the right to replace defective parts
of the product with parts and components of
similar quality, grade and composition where an
identical part or component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than
being repaired. Refurbished parts may be used to
repair the products.
Damage caused by third party accessories is not
covered under this warranty.
Damage caused to attached equipment or third
party accessories will not be covered under
this warranty.
Rust and corrosion are not covered under this
warranty.
If a warranty fault is found the freight cost will
be credited to the owner. If no fault is found the
product will be returned and any costs associated
with the service will be charged to the owner.
Blockages caused by spider webs, insects, dirt, or
accumulated dust and incorrectly mixed 2-stroke
fuel are not covered by warranty. SMG reserves
the right to replace or repair the appliance within
the warranty period. Parts found to be defective
due to a manufacturing default will be replaced
free of charge.
In the event of SMG choosing to replace the
appliance, the warranty will expire at the original
date of purchase. If no warranty fault is found
the owner will be advised and the product will be
returned and any costs associated with the service
will be charged to the owner.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for
a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure. The benefits of this warranty are
in addition to any rights and remedies imposed
by Australian State and Federal legislation that
cannot be excluded.
In New Zealand, this SMG warranty is in addition
to the conditions and guarantees which are
mandatory as implied by the New Zealand
Consumer Guarantee Act 1993.For service, spare
parts or product information please contact
customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]
COMPLETE WARRANTY STATEMENT – GENERATOR GROUP

5
SAFETY
Before attempting to operate this generator
the following basic safety precautions should
be taken to reduce the risk of fire, electric
shock and personal injury. It is important to
read the instruction manual and to understand
applications, limitations and potential hazards
associated with this generator. It is important
that you read, understand and follow these
instructions very carefully. They are designed
for the safety of yourself and others ensuring
a long and trouble free service life from your
generator. This generator is not intended for
use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
the use of the appliance by a person responsible
for their safety.
OPERATING ENVIRONMENT
ALWAYS use your generator in an open well
ventilated area. Do not expose your generator
to rain or use in damp or wet locations. Do not
expose your generator to direct sunlight. Keep
the work area well lit. Do not use your generator
in areas where there is a risk of explosion or fire
from combustible materials, flammable liquids,
paint, varnish, petrol, etc flammable gases and
dust of an explosive nature. As a precaution it
is recommended that you consult an expert on
selecting and using a suitable fire extinguisher and
have it available for use in an emergency when
operating the generator.
GUARD AGAINST ELECTRIC SHOCK
Never touch the generator with wet or damp
hands as electric shock may occur. Always ensure
your generator is connected to ground, i.e.
earthed with the supplied earth stake,
see page 12.
BEWARE OF CHILDREN & PETS
Children and pets should be kept out of the
operating area. Children should not be allowed
to touch or operate generators or touch
extension cords. All generators should be kept
out of reach of children. When NOT in use keep
the generator preferably stored or locked in a
secure well ventilated cabinet or room with the
fuel tank empty.
SELECT A GENERATOR WITH A
SUFFICIENT RATING
Select the right generator for the job. Do not
use a generator to do a job for which it was not
designed. Do not force a small generator to do
the job of a heavy duty generator. Any damage
caused by overloading will void the warranty. Do
not use generators for purposes not intended.
PROTECT POWER LEADS
FROM DAMAGE
Always disconnect power cords from a power
supply socket by pulling the plug. Never pull
on the cord. Keep the power lead away from
heat, oil, solvents and sharp edges. If a power
lead becomes damaged have it replaced by an
authorised service facility.
OIL
This generator has a 2 stroke motor. Always use
good quality 2 stroke motor oil to mix with the fuel.
FUEL
This generator requires pre-mixed 2 stroke fuel.
Ensure unleaded fuel is mixed with 2 stroke oil
before being decanted into the generator fuel tank.
Fuel used in this generator is poisonous. Always
wear approved breathing protection when
decanting fuel. If you get any fuel on your skin
or clothes wash the affected area immediately
with soap and water and change your clothes. If
you get fuel in your eyes wash immediately with
clean water and seek medical attention. If any
fuel is swallowed DO NOT induce vomiting, seek
immediate medical attention.
HOT COMPONENTS
Beware many of the components will get hot
during use. Never touch any of the metal pipes,
pump or motor as these may burn.

6
MAINTAIN YOUR GENERATOR
WITH CARE
When not using your generator ensure the fuel
cock is ‘OFF’. Never leave the fuel cock ‘ON’
as this can damage the carburettor. Follow
the instructions for lubricating and changing
accessories. Keep handles clean, dry and free
from oil and grease. Ensure that ventilation slots
are kept clean and free from dust at all times.
Blocked ventilation slots can cause overheating
and damage to the motor. Ensure that the air and
fuel filters are kept clean at all times.
REMOVE ADJUSTING KEYS
AND WRENCHES
Form the habit of always checking to see that any
adjusting keys or wrenches have been removed
from the generator before operating.
FIRE PRECAUTIONS
Always contact your fire authority before using
the generator on fire restricted days. It is not
recommended to use your generator when a total
fire ban is in force. Never refuel your generator
while it is still running. Never connect your
generator to a commercial or domestic power
outlet. As a precaution it is recommended that
an expert is consulted on obtaining and using a
suitable fire extinguisher.
CLEANING YOUR GENERATOR
Always stop your generator before you commence
cleaning. Always ensure that your generator has
cooled, about one (1) hour, before cleaning and
storing. When cleaning your generator use only a
damp soft cloth. NEVER use liquid or solvents of
any type.
EXTENSION CORDS & REELS
Inspect extension cords periodically and replace
if damaged. Never use damaged extension cord
as these may cause injury. Always unwind any
extension cords fully before plugging into mains
power supply. Protect your extension cord or
reel from sharp objects, excessive heat, damp
conditions or wet locations. Always use a ‘3’ core
extension cord or reel with this generator. Only
extension cords intended for and marked ‘outdoor’
use, which are no longer than 10m.
GENERATOR ‘EARTHING’
Always ensure that this generator is “Earthed”
correctly before using. “Earthing” stake and wire
has been supplied with this generator ensure it is
used to ensure your safety, see page 12.
CHECK DAMAGED PARTS
Before using the generator it should be carefully
checked to determine that it will operate properly
and perform its intended function.
Check for broken or missing parts and have them
replaced or repaired at an authorised service
facility. Check any other condition that may affect
the operation of the generator. A guard or any
other part of the generator that is damaged should
be properly repaired or replaced by an authorised
service facility unless otherwise indicated in this
instruction manual.
Any switch that does not operate correctly must
be replaced by an authorised service facility.
DO NOT use the generator if the ‘ON / OFF’
motor switch does not turn the generator ‘ON’
and ‘OFF’.

7
WARNING
Do not attempt to modify the generator in any way; this will VOID your warranty.
The use of any attachment or accessory other than those recommended in this instruction manual
could result in damage to the generator and could cause injuries to the operator.
This petrol generator complies with Australian / New Zealand and International standards and safety
requirements. Repairs should only be carried out by qualified persons using original spare parts.
Failure to do so may result in considerable danger to the operator.
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything
that could get caught in moving machinery.
Hair
Long hair should be tied back or contained in a
protective covering.
Eye Protection
The use of safety goggles is highly recommended
(normal glasses are not sufficient for eye
protection) when using or refuelling generators.
Prescription glasses do not have safety lenses.
Footwear
Where there is the risk of heavy objects or if
there is a risk of slipping on wet or slippery floors,
suitable non–slip safety footwear should be worn.
Protect your feet from dropping accidents.
Ear Protection
The use of ear protection is highly recommended
when using generators. The continual noise may
damage your ears.
Respiratory Protection
Always wear approved breathing protection when
decanting fuel. ALWAYS use this generator in well
ventilated area. Never use indoors.
WARNING: Do not breathe in exhaust fumes.
Exhaust fumes are poisonous and may cause
drowsiness, unconsciousness and even death.
Do Not Over Reach
Do not over reach. Keep a proper footing and
maintain your balance at all times. Avoid using
abnormal stances and awkward body positions.
Stay Alert
Watch what you are doing, use common sense,
and never operate a generator when you are
tired, drinking alcohol, taking drugs or if taking
medication that causes drowsiness.

8
SPECIFIC SAFETY
INSTRUCTIONS
Warning! Do not use the generator in areas
where there is a risk of explosion or fire from
combustible materials. The sparks possibly
caused when using this generator may ignite
combustible materials as well as flammable
liquids, paint, varnish, petrol, flammable gases
and dust of an explosive nature. As a precaution
it is recommended that you consult an expert on
a suitable fire extinguisher and its use. Ensure
that the work area is kept clear of combustible
materials.
Warning! Do not use the generator indoors or in
confined spaces where exhaust gases, smoke or
fumes could reach dangerous concentrations.
• Never connect this generator to a second
generator.
• Never connect this generator to Commercial or
Domestic power supply.
• Only use 2 stroke motor oil to mix with
unleaded fuel.
• Premix 2 Stroke fuel before decanting into
generator fuel tank.
• Always use the generator in an open well
ventilated area.
• Unit will become hot during use. Please keep
generator at least one metre (1m) away from
buildings, other equipment, pedestrian areas or
flammable materials.
• Never pull the re-coil starter once the generator
engine has started. Any damage caused will
not be covered by warranty.
• Never start or stop the generator with any
appliances attached.
• Ensure the generator has stopped before
servicing, or fuelling etc.
• Do not attempt to modify the generator, guards
or the supplied accessories in any way.
• Do not touch the exhaust. This can become
very hot during operation and can cause serious
burns.
• Always check the generator for damaged parts
or fuel leaks, ensure these are fixed before
using it.
• Never refuel while smoking or in the vicinity of
an open flame.
• Always wear safety eye wear, ear and breathing
protection when operating or refuelling the
generator.
• To avoid a fire if you spill fuel while refuelling,
clean up before starting the generator.
• Never operate or store the generator on its
side, ALWAYS operate or store in an upright
manner on firm, solid ground.
• Your generator is factory set, NEVER attempt
to speed it up as this could endanger the user
and damage the generator and/or attached
appliances.
• Never operate the generator in damp, wet or
flooded conditions.
• Before plugging appliances into the generator
allow it to run up to full speed.
• If the generator makes an unfamiliar sound or
vibrates excessively, switch the generator ‘OFF’
immediately. Investigate the possible cause or
consult your authorised service agent.
• Do not use ANY type of coolant on the
generator as a fatal electric shock could occur.
• Never use coolant in the generator as damage
may occur.
• Do not touch the generator with wet hands as
this may cause electrocution.
• Never use your generator on highly conductive
surfaces e.g. steel walk ways, metal roof or
metal bench, as this could cause an electric
shock.
• Always operate your generator at least two (2)
metres away from conductive surfaces.
• Locate this generator in a convenient place,
avoid using long extension leads.
• If an extension lead is used, avoid leaving it
where it may be damaged by pedestrian or
vehicular traffic or cause a trip and fall hazard.
• Always observe normal safety precautions with
ALL appliances used with this generator.
• Never transport the generator with fuel in the
tank. ALWAYS empty the fuel tank.
• All loads must be kept within the ratings stated
on the name plate. Overloading the generator
will damage the unit or shorten its life. This will
not be covered under warranty.
• Do not tamper or alter any parts as this may
cause personal injury or damage the generator.
• Always disconnect any loads before starting or
stopping the generator.
• When storing the generator always store in a
secure well ventilated area.
• Requires a minimum load of 200W to operate
correctly.

9
IMPORTANT
ELECTRICAL DATA
This generator is fitted with a sealed electrical connection socket that is compatible with the
generator. If the electrical connection socket becomes damaged it must be replaced with a complete
assembly that is identical to the original, and this must be replaced by an authorised service agent.
Never connect to an external power supply. If in doubt always consult a qualified electrician.
FUEL - ONLY USE UNLEADED PETROL (ULP)
Fuel tank capacity – 4 litres (4 L)
Use of incorrect fuel and/or oil may damage the generator and will not be covered under warranty.
Do not use E10 or any type of ethanol fuel as this will damage the generator and will not be covered
under warranty.
Do not use high octane fuels (greater than 91%) as this will damage the generator and will not be
covered under warranty.
• Ensure you use clean fresh unleaded petrol (ULP).
• Use a clean approved container to store and mix your unleaded petrol (ULP) 2 stroke fuel mix in
before decanting into the fuel tank.
• If contaminated (dirty) or old (stale) fuel is used any damage caused will not be covered
under warranty.
OIL
To operate, this generator requires 2 stroke oil to be mixed with the unleaded fuel, not supplied. If
the generator does not have the correct amount of oil mixed into the fuel the motor will be damaged
and not covered under warranty.
Oil type — 2 stroke motor oil
Oil to fuel mix — 50:1
20ml 2 Stroke oil : 1 Litre Unleaded Fuel
• Always use fresh clean 2 stroke oil.
• If contaminated (dirty) or old (stale) 2 stroke oil is used any damage caused will not be covered
under warranty.
NOTE: This generator is fitted with an oil cut out switch and red warning light. If the oil level is
empty or low then the generator WILL NOT start or run and the low oil light will glow when the recoil
is pulled.
2-STROKE

10

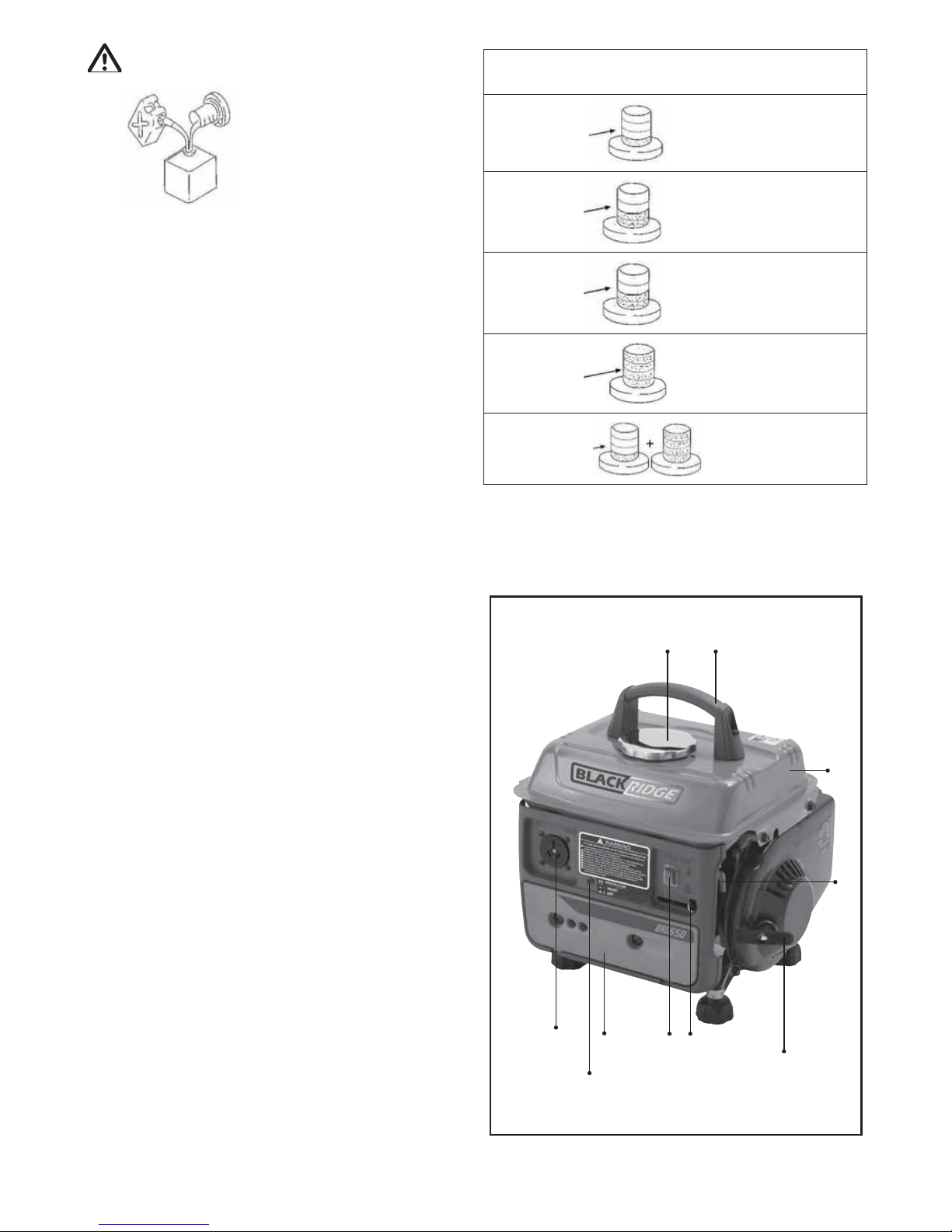

COMPONENTS AND CONTROLS
Pic. 1
1. Fuel tank
2. Fuel cap
3. Air filter cover
4. Carry handle
5. Fuel tap
6. Choke lever
7. Recoil start handle
8. Engine ON/OFF switch
9. 240V AC power outlet socket
10. “Earth” connection nut (not shown)
11. AC output circuit breaker
12. “Earth” stake and wire (not shown)
PIC. 1
3
7
68
11
9
24
1
5
MIXING 2-STROKE FUEL 50 : 1
Unleaded Petrol (ULP) : Two (2) Stroke Oil
1 litre:20ml
2 litre:40ml
3 litre:60ml
4 litre:80ml
5 litre:100ml
1. Use only unleaded petrol (ULP) and 2 stroke
oil. Ratio 50:1
2. Ensure you use clean fresh unleaded petrol
(ULP) + 2 stroke oil.
3. Always wear approved breathing protection
when mixing fuel. Always mix fuel in a well
ventilated area, never indoors.
4. Use a clean approved container to mix and
store your 2 stroke petrol before decanting
into the fuel tank.
5. Use the fuel tank oil cup, supplied under the
fuel tank cap, to measure the 2 stroke oil. The
fuel tank cup has 20ml graduation lines
marked on the outside.
6. Ensure fuel / oil is mixed well.

11
OPERATING INSTRUCTIONS
Unpacking
Carefully unpack your generator. This generator
is bulky and heavy, two (2) person lift required.
Dispose of all packing material in an environmentally
responsible manner.
Open carton, gently lift the generator clear of the
carton and packaging, this may require 2 people.
Remove from plastic bag.
NOTE: Plastic bags can be a danger to young
children, dispose of immediately.
Always dispose of packaging in a responsible
manner.
Pre - Operation Preparation
Note: If unit has previously been used, the motor,
muffler and exhaust may still be hot enough to
burn. Always exercise caution when checking the
generator.
1. Check that the fuel/engine switch is OFF
2. Check that the spark plug lead is firmly
attached to the top of the spark plug.
3. Ensure that NO appliances are connected to the
generator.
4. Holding on to the handle gently rock the
generator and listen for any noise which may
indicate loose items. If anything appears to be
loose either tighten or consult a service agent
Filling the Fuel Tank
Always use clean fresh fuel mixed to the
specifications detailed on page 7, Fuel mix. Stale
fuel can cause the generator to run rough and
damage the engine. This is not covered by warranty.
1. Ensure that engine is OFF.
2. Always ensure that the fuel tap is turned OFF.
3. Pre mix your fuel as detailed on page 7, Fuel mix.
4. Ensure fuel/oil is well mixed before pouring into
fuel tank.
5. Do not fill fuel tank above the top of the fuel filter,
(Pic.2)
6. Ensure that the fuel tank cap is screwed on tightly
before attempting to start the generator.
PIC. 2

12
PIC. 3
PIC.4
Generator ‘Earthing’
Always ensure that this generator is “Earthed”
BEFORE starting and using.
1. Ensure that engine is OFF when fitting the
“Earth” stake and wire.
2. Attach the wire to the “Earth” point on the
generator, see Pic. 3.
3. Push the attached stake into the ground.
Ensure that this is not a trip hazard when near
the generator.
4. Ensure the generator is OFF and cool before
removing the “Earth” stake and wire.
Starting Your Generator
Warning: Never start your generator without
“earth” attached.
1. Ensure the ”Earth” stake and wire are attached,
see Pic. 3.
2. Turn the engine switch on by pushing to ‘l’, see
pic 4.
3. Turn choke to start by sliding the choke lever
to the left, see Pic. 5.
4. Turn the fuel to ON by turning the fuel tap
lever, see Pic. 5.
5. Pull the recoil starter slowly until engaged,
then pull briskly. This step may need to be
repeated until generator engine starts, this is
can take up to about 12 pulls.
Warning: Never pull the recoil once the
engine has started. Any damage caused will
not be covered under warranty.
6. Allow engine to run up to speed, this usually
takes up to about 20 seconds.
7. Turn choke to RUN by sliding the choke lever to
the right.
8. The generator will now be idling and ready
for use.
‘Earth’ point attach the
‘Earth’ wire here
PIC. 5
Turn choke
to start
Turn fuel to ON
Turn engine switch to on ‘|’

13
PIC. 6

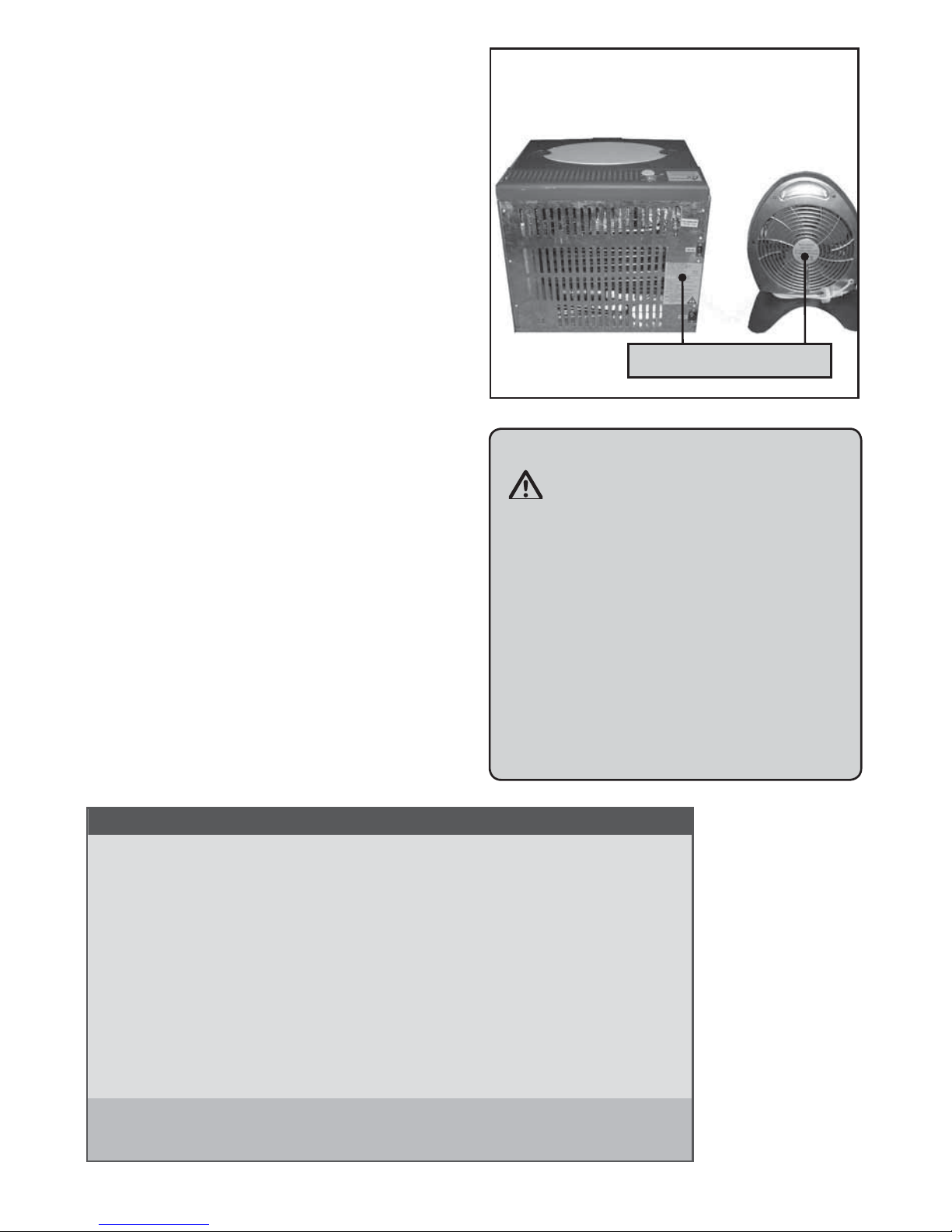

USING YOUR GENERATOR
AC Outlet
Your generator is equipped with dual 240V AC power
sockets this will run a range of devices providing they
are with in the limits of the generators output.
NOTE: The peak (surge) power requirements of
some devices e.g. Fridges, Televisions, etc; can
be up to seven (7) times greater than their rated
(continuous) power. Do not over load your generator.
The devices wattage can be found on the data label,
see Pic. 6.
You can use any combination of items provided that
you do not exceed the limits of your generator. Never
exceed 480W in total when using multiple devices.
NOTE: When using multiple devices only start one
device at a time.
Your Generator AC Limits:
Rated (continuous) power 650W
Peak (surge) power 780W
Note: Long extension leads may reduce the
effectiveness of your generators supply power.
To use the 240V AC outlet:
1. Check that AC output circuit breaker is ON. If not
ON or can not be turned ON go to page 14 and fix
the problem before using the generator.
2. Lift the flap and plug your appliance into the outlet
socket on the face plate.
3. Turn the appliance on and use as per the
manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect appliance from the generator and the
flap should close automatically.
NEVER leave any appliances plugged into your
generator, always disconnect when appliance is not
in use.
WARNING
IMPORTANT
This generator is not designed for use with
sensitive electronic products. This means this
generator CAN NOT be used with laptops,
computers, DVD’s Videos or any product with
a remote control, key pad or circuit board.
NOTE: The use of a surge protector is highly
recommended. Ensure the “Earth” stake and
wire are attached. This generator requires a
minimum load of 400W to operate correctly.
Suggested Device Maximum Suggested Wattage
Bayonet/Screw in globes (home use) Up to 580W Maximum of 11 x 50W globes
Florescent tubes Up to 480W Maximum of 24 x 20W globes
Halogen lights Up to 500W
Power tools Up to 320W
AC/DC camping fridge Up to 100W
Cooling fans (no remote) Up to 320W
Heating (no remote Up to 300W
Kettle Up to 300W
Toaster Up to 300W
Water pump (sump and transfer) Up to 70W
Requires a minimum load of 200W to operate correctly. You can use any combination of items
provided that you do not exceed the limits of your generator.
Never exceed 480W in total when using multiple devices.
Data label

14
Output Power Circuit
Breaker AC
The AC output power circuit breaker, Pic. 7, will
only turn OFF if the attached device is faulty or
if the devices required power is greater than the
generators ability. If this circuit breaker does turn
OFF;
1. Turn the attached appliance OFF.
2. Disconnect the appliance.
3. Wait for 2 minutes for the circuit breaker to
cool down.
4. Re-connect the appliance and turn it ON. If the
circuit breaker trips again;
Check the appliances wattage on the data
label, as it may require more power than this
generator can supply.
Have the appliance checked as it may be faulty.
PIC. 7
AC circuit break out is ON

15
PIC. 8
STOPPING YOUR GENERATOR
Important: Before stopping the engine ensure
ALL electrical appliances or power leads are
unplugged from the generator.
Cooling Down
Allow your generator to idle, CHOKE OFF,
NO LOAD or 1-2 minutes. This will allow all
components to cool gradually and prolong the life
of the generator.
To Stop
1. Turn off the appliance and disconnect from
your generator.
2. Allow to cool down, see above.
3. Turn fuel tap left to OFF.
4. Turn the engine switch to OFF.
5. Remove the “Earth” stake and wire.
TRANSPORTING/STORING
YOUR GENERATOR
Allow the generator to cool before
transporting or storing.
The fuel cap will leak fuel if transported with fuel in
the fuel tank, this is NOT a fault.
During use there will appear a, misting, layer of
fuel on the fuel tank this is normal as the fuel cap
“vents” while the generator is running. This misting
is not a fault.

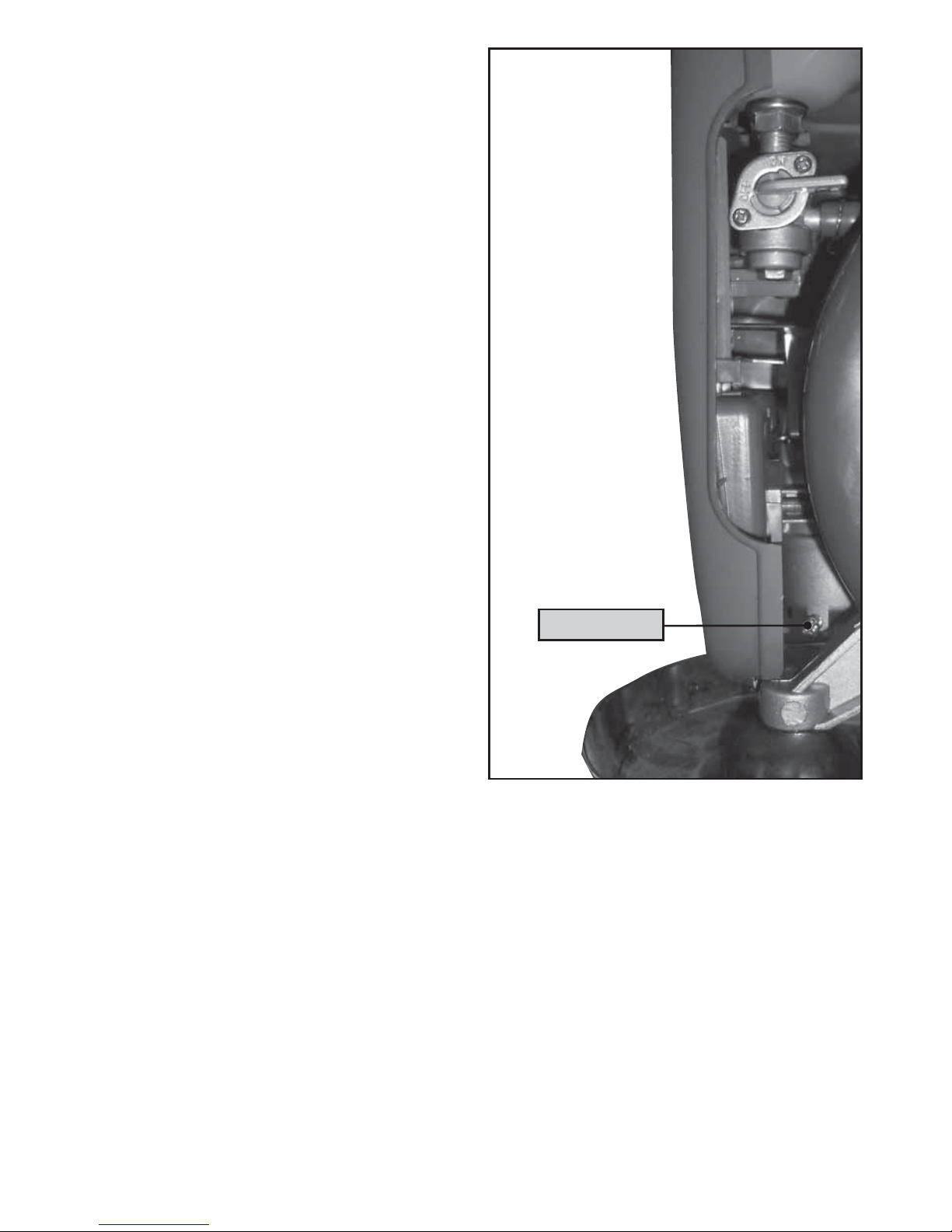

1. Warning: Empty the carburettor bowl and drain
fuel tank before transporting or storing.
2. To empty carburettor bowl place a fuel resistant
container under the bowl screw, see Pic. 8.
3. Loosen the bowl screw, see Pic. 8.
4. Allow the fuel to drain into the container.
5. Tighten the bowl screw.
6. Appropriately dispose of the fuel.
To drain fuel tank;
7. Place a fuel resistant container under the bowl
screw, see Pic. 8.
8. Turn the fuel tap ON.
9. Do steps 3 to 6.
Bowl Screw

16
SAFETY DEVICES
AC Outlet
Your generator is equipped with an AC circuit
breaker, see page 14. If this is OFF, then the
generator will produce NO POWER.
To restart the power supply;
1. Remove the appliance.
2. Stop the generator, see page 14.
3. Wait 2 minutes.
4. Turn the AC circuit breaker ON.
5. Start generator.
6. Appropriately dispose of the fuel.
7. If the AC circuit breaker trips the attached
appliance is either faulty or the appliances
required power is greater than the
generators output.
MAINTENANCE INFORMATION
If scheduled maintenance is NOT carried out then
this will void your warranty. Use the Service Log
on page 20 to keep track of the regular servicing.
Ensure that the authorised service agent has
dated, signed and stamped this log to ensure your
warranty is not void.
Fuel Tank Filter, Pic. 9
The fuel tank filter should be checked every time
you fill up the fuel tank. If dirty, replace. Your
fuel tank filter should be replaced every 50 hours
(operation) or every 3 months, which ever occurs
first or whenever considered necessary.
To check or replace the fuel tank filter;
1. Remove the fuel tank cap.
2. Remove the fuel tank filter.
3. If dirty replace fuel tank filter before using the
generator.
4. Push new fuel tank filter into the top of the fuel
tank.
5. Replace the fuel tank cap.
Fuel Line Filter
The fuel line filter should be replaced every 50
hours (operation) or every 3 months, which ever
occurs first or whenever considered necessary.
This must be replaced by an authorised service
agent. This servicing must be carried out as noted
above or your warranty will be void.
PIC. 9
Fuel tank filter under
fuel tank cap

17
Spark Plug
Spark plug should be checked every 50 hours
(operation) or every 3 months and replaced every
100 hours (operation) or every 6 months, which
ever occurs first or whenever
considered necessary.
1. Unplug the spark plug lead off the spark plug.
Pic 10.
2. To clean use a wire brush/nail file and remove
the carbon deposits on spark plug base
3. Check the spark plug gap using a feeler gauge.
The gap should be 0.7mm ≈0.8mm (0.028” ≈
0.031”)
4. The replacement spark plug is Torch F6TC or
NGK B5ES or BR5ES.
Air Filter
Air filter should be checked daily and replaced every 50 hours (operation) or every 3 months which ever
occurs first or whenever considered necessary.
To check or replace the air filter;
1. Remove the air filter cover, see Pic. 11.
2. Remove air filter element.
3. If dirty clean or replace air filter element before using the generator.
4. Slide new air filter element onto the air filter box.
5. Replace air filter element.
6. Replace the air filter cover.
PIC. 10
PIC. 11
Lift plug cap off
the spark plug
Use supplied spanner to
remove the spark plug
Air filter cover
Air filter
in side

18
Cleaning
ENSURE the generator is NOT running whilst
cleaning. To keep the generator clean, always
wipe down after use. Wear eye protection when
cleaning. Only clean the generator with a damp
soft cloth. NEVER use liquid or solvents of any
type. Ensure ventilation slots are kept clean and
free from dust/dirt build up.
Repairs
Repairs to your generator should only be carried
out by an authorised service agent.
Call BLACKRIDGE for your closest centre, Aust.
Aust. 1300 660 457 N.Z. 0800 474 876.
TROUBLE SHOOTING
Engine will not start
Possible Cause Suggested Fix
No or low fuel in the fuel tank Fill fuel tank
Fuel/Engine lever is ‘OFF’ Turn fuel/engine lever ‘ON’
Choke is set to ‘RUN’ Slide choke to ‘START’
Possible no spark Check/replace spark plug
Generator is loaded on start up Remove appliance from generator
No AC electrical output
Possible Cause Suggested Fix
Output power overload activated Stop generator, refer to page 16
Faulty power cord on device used Replace cord on device being used
Faulty power socket Have service agent replace socket
Generator overheating
Possible Cause Suggested Fix
Insufficient ventilation Check and clean ventilation slots. Move
to a more adequate supply of fresh air

19
PARTS DIAGRAM
Part Description SMG Part No.
1 Tank Handle 84 BRG650TH
Tank Handle Screw 84 BRG650HS
2 Tank 84 BRG650FT
3 Recoil Starter 84 BRG650RS
User replaceable parts listed below. All other
parts must be serviced/replaced by an authorised
service agent.
1
2
3

20
SERVICE LOG
Purchase Date
Place of Purchase
This Service is to be complete within 50 hours or
3 months of purchase, which ever comes first.
Replace Check & Adjust
Fuel tank filter Spark plug
Fuel line filter
Air filter
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 150 hours or
9 months of purchase, which ever comes first.
Replace Check & Adjust
Fuel tank filter Spark plug
Fuel line filter
Air filter
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 100 hours or
6 months of purchase, which ever comes first.
Replace
Fuel tank filter
Fuel line filter
Air filter
Spark Plug
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 200 hours or
12 months of purchase, which ever comes first.
Replace
Fuel tank filter
Fuel line filter
Air filter
Spark Plug
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
For any queries or assistance call Customer Service
AUST. 1300 660 457 NZ 0800 474 876
Hours of operation: Monday to Friday 8.30am - 5.30pm AEST
Do not return to place of purchase.
Keep your purchase receipt, this will be required
to make any claims under the 12 month warranty.
