Blackboxav Desktop Heavy Duty Handset User manual

Desktop Heavy Duty Handset
2
Product Code: A/DHDH / DHDH
1
3
1
2
3
4
4
5
5
6
6
Heavy Duty Handset
Combining simple design
with high-grade, impact-
resistant plastic to produce
an extremely rugged
handset, ideal for busy
visitor attractions and
public spaces. It boasts
a superb quality speaker,
which offers great dynamic
range, and is able to
reproduce music of high
clarity or narrative text
clearly for the listener.
Desktop Mount
Easily installed onto a flat
surface, the desktop mount
is designed specifically for
the Heavy Duty Handset.
Armoured Cable
The audio cable is
protected by a 1.35m
stainless steel armoured
conduit cable. With a
heavy duty strain relief
offering further protection.
Support Weight
The Armoured Cable is
counterbalanced by a
0.5Kg weight that retracts
it after use.
Anchor Bracket
Allows you to adjust the
hang length of the
Armoured Cable.
3.5mm Jack
Simply connect to your
audio playback device via
the 3.5mm jack.
Material
Constructed from high
grade impact resistant
plastic.
Options
Standard
Operates like any other
Handset.
AutoPlay
Content is triggered upon
pickup and playback stops
when replaced (Requires
a compatible device such
as our SoundClip range of
audio players).
Optional Branding Labels
Customise your handset
with optional branding
labels.

Installation Guide / Technical Information
Related Products
Package Weight 525g
Package Dimensions 180 x 160 x 80mm
Nominal Impedance 100Ω
Frequency Range 50Hz - 20KHz
Sound Pressure Level 123 dB
Input Power (W) Rated: 30mW - Max: 50mW
Input Power (V) Rated: 1.7V - Max: 2.25V
Colour Silver
Armoured Cable Length 1350mm
3.5mm Cable Length
(from Knuckle)
500mm (+/- 10mm)
Screw Sizes Wood Screws (Driver bit No.2, 3.5 x
30mm), Machine Screws (M4 x 30mm)
Operating Temperature -25°C to 60°C
Hearing Aid Compatible ADA/DDA
Included
1 x Heavy Duty Handset, 1 x Desktop Mount, 4 x Wood Screws,
4 x Machine Screws, 1 x Gland Plastic, 1 x 0.5Kg Weight & 1 x L
Anchor Bracket.
Installation Guide
1. Choose a suitable flat surface to mount the unit.
2. Drill a 25mm diameter hole through the desk in the position
decided above.
3. Drill four holes of 4.5mm diameter in a square pattern at 35mm
centres and mount the handset base using M4 machine screws
(Fig 1).
4. Choose a suitable location under the desk to mount the angle
bracket ensuring that the cable between the handset mount and the
angle bracket is allowed to move freely and will not encounter any
obstructions. The weight must not touch the ground when the
handset is stored on the mount.
5. Attach the angle bracket to the underside of the desk using
suitable fixings (Fig 2).
6. Thread the armoured cable through the handset mount then thread
through the centre of the counterbalance weight.
7. Attach the plastic gland to the end of the armoured cable and
secure to the angle bracket.
8. Test the operation of the handset to ensure all parts are moving
freely and not obstructed in any way.

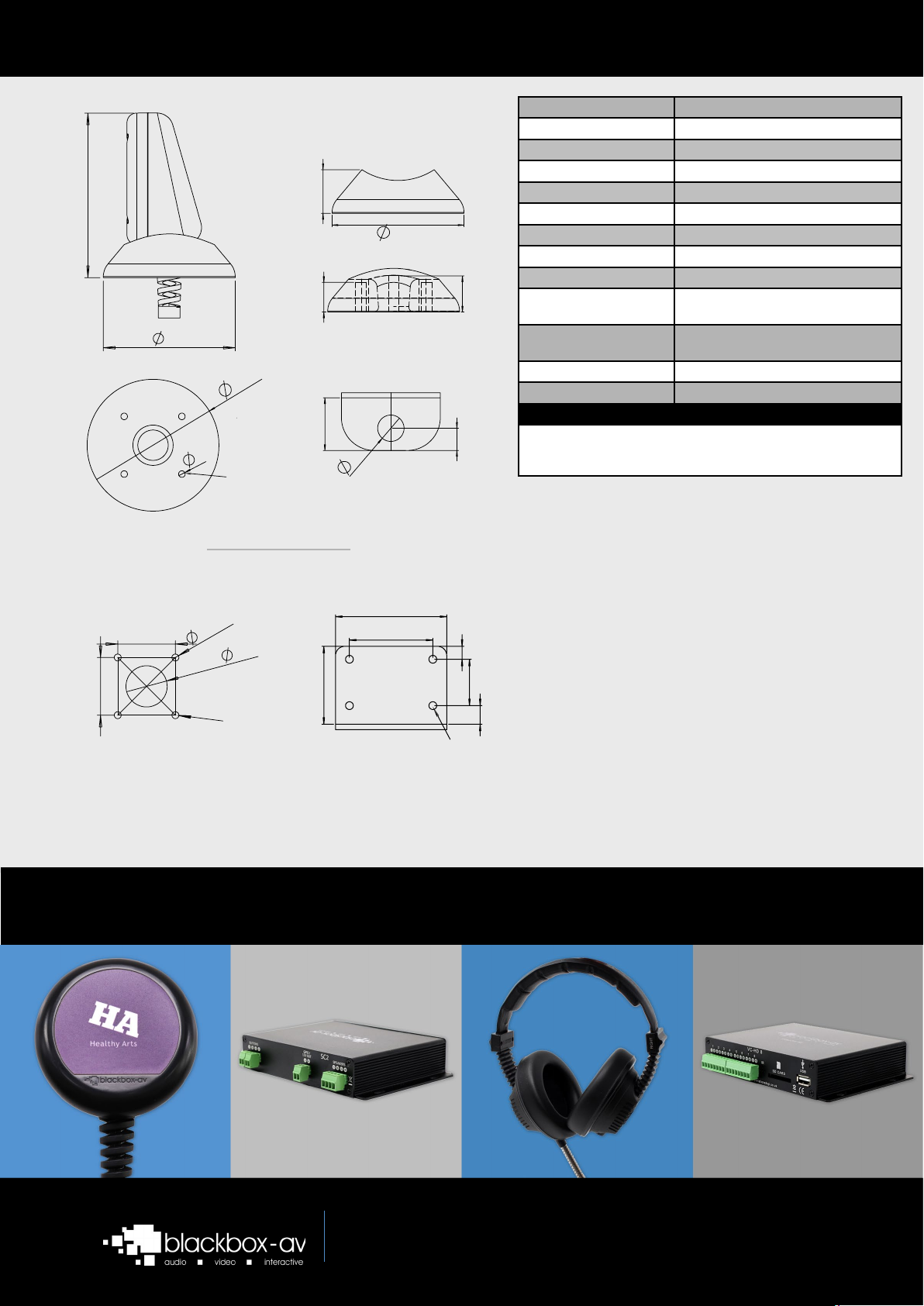

99.86
80
35
35
4.5
25
M4 Machine
Screws x 4
32
13.50
16
60
45
42
725 10
26.54
80
18
22
80
4
M4 Thread
18mm Deep
Fitting Holes
3.5 x 20mm
Wood Screws
Fig 1 Fig 2
(drawings not to scale)
