BJW-2118PBT Portable and Amplified PA Speaker
Introduction:
The BJW-2118PBT is an amplified, portable loudspeaker with built in audio playback function and PA capabilities. This
unit has USB, SD Card input, Analog RCA Audio-XLR-1/4” line in, Dual ¼” Microphone and Dual XLR inputs as well as
Bluetooth connectivity for wireless music streaming. The system is expandable via its XLR and ¼” Stereo out and 8-
ohm Speakon connections for passive satellite monitors. Sound is reproduced via its dual 15” Subwoofer driver and
Titanium domed tweeter matched to the pre-molded horn of the cabinet producing a total of 3900W. Sound
Frequency can be fine-tuned via its built in 5 band EQ. This unit boasts modern styling with LED illuminated
subwoofers and aggressive metal mesh grill guards.
•Features:
•Bluetooth
•MP3 Player
•LED Lights
•Dual 15” Woofer
•3900W MAX
•5 band EQ
Caution:
• Please read All Operating Instructions before using this product
• Avoid electrical shock, DO NOT OPEN THIS UNIT, THERE ARE NO REPLACEABLE PARTS INSIDE. Please
refer to your warranty information for service.
• Do not Expose this product to Moisture, Water, Rain or Snow. Keep away from direct heat sources. Damaged
items will not be accepted for warranty
• Do not clean this unit with solvents or chemicals
• Insure that all volume and gain controls are set to “0”when connecting source units

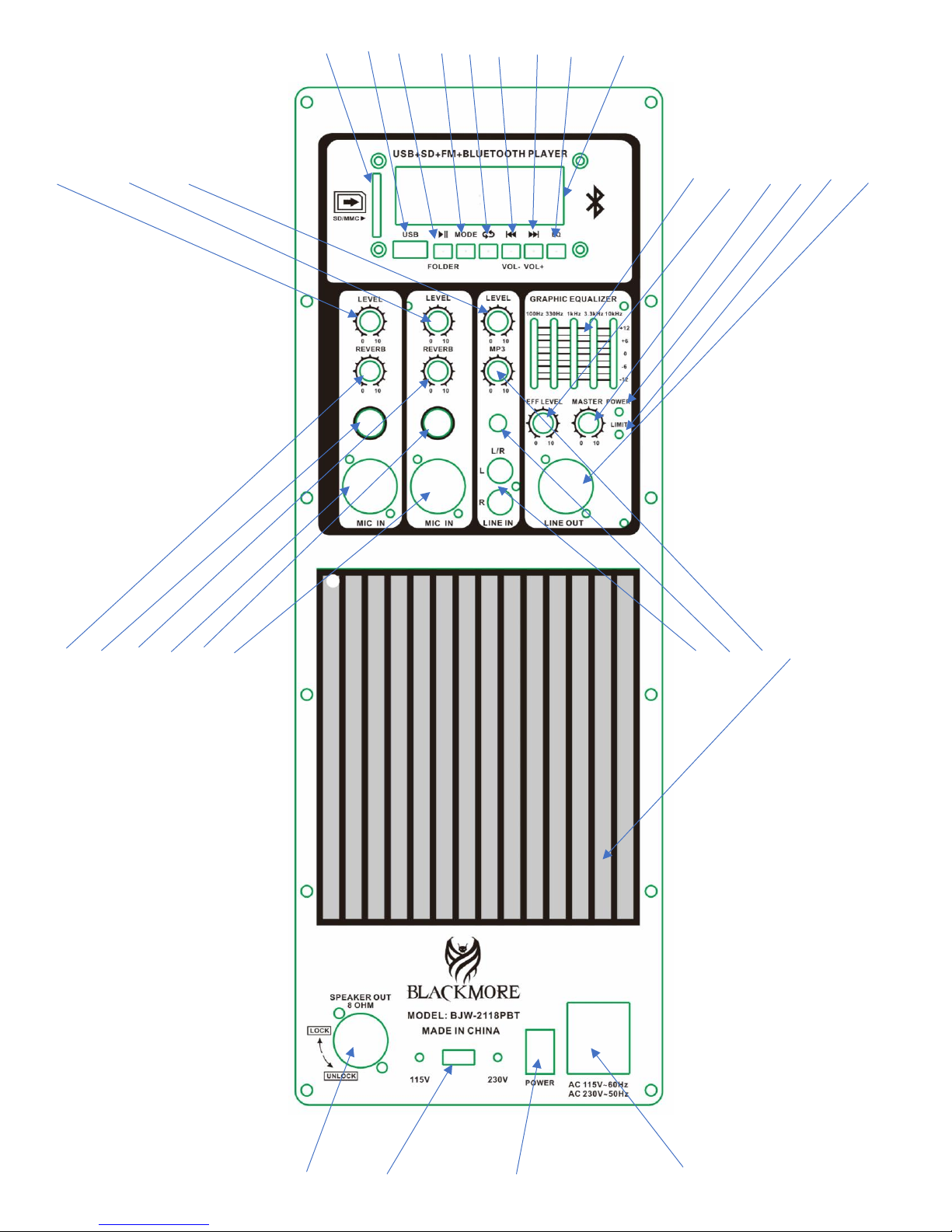

1. 2. 3. 4. 5. 6. 7. 8. 9.
10. 11. 12. 13. 14. 15. 16. 17. 18.
19. 20. 21. 22. 23. 24. 25. 26. 27. 28.
29. 30. 31. 32.

Func tio ns:
1. SD Card Input: This is a standard size SD card input. Capable of reading cards up to 4GB.
Music files must be formatted as MP3 to be played via SD card
2. USB input: This is a full size USB2.0 female input. It has a read capacity of 4GB. Music files
must be formatted as MP3 to be played via USB.
3. Play/Pause/Scan/Folder: Press to start an MP3 track or to pause it. Press to scan and
program FM stations in FM mode. Press and hold to access MP3 folders
4. Mode: Press to scroll between Bluetooth, MP3, line in and FM mode
5. Repeat/Shuffle: Press to repeat a track, shuffle all tracks, or repeat all tracks
6. Previous track/FM station: Press this to go back 1 track on the mp3 player or back 1 FM
station
7. Next track/FM station: Press this to go forward 1 track on the mp3 player or forward 1 FM
station
8. Equalizer: press and repeat to scroll between EQ Presets that provide different
tone settings for mp3 playback
9. LED Screen that displays track and mode information
10. Line in 1 gain control.
11. Line in 2 gain control.
12. Stereo Line in gain control.
13. 5 Band EQ. Controls overall sound played on all input channels.
14. Effect level: controls echo/reverb effect
15. Master Volume control: This controls the overall volume of the speaker and supersedes all
volume controls.
16. Power status indicator
17. Limit –Will illuminate when speakers are over driven. If Limit light illuminates
lower your gain control.
18. XLR Line Out –Provides an output for system integration and expansion.
19. Reverb –Provides reverb effect to devices connected to Line in 1
20. MIC input: ¼” Jack. Can be used with a wide range of professional microphones
and equipment.
21. Reverb –Provides reverb effect to devices connected to Line in 2
22. MIC input: XLR, can be used with a wide range of professional microphones and
equipment.
23. MIC input: ¼” Jack. Can be used with a wide range of professional microphones
and equipment.
24. MIC input: XLR, can be used with a wide range of professional microphones and
equipment.
25. RCA Stereo Line in: This provides a 2CH. RCA Stereo input.
26. AUX Audio in: 3.5mm AUX audio input for external audio sources.
27. MP3 Volume control: Controls output level of MP3 player
28. Amplifier heatsink

29. 8ohm Speakon output –Provides power (75w 8ohm) for passive speakers.
30. Input voltage selector. Allows for use with 115V or 230V AC
31. Master Power Switch: This turns the unit on or off.
Operation:
Setup:
1. Ensure that the unit is connected to the appropriate power source using the provided power cable.
2. Plug in the power cable and choose your input method.
3. Ensure that the master volume is turned to the “0”position before connecting any audio source.
4. Place the speaker in a location that is away from any direct heat source, moisture, or extreme humidity.
Playback:
1. Using a USB storage device: The player can accept thumb drives and storage devices in USB 2.0 or less
format. Files can be played back formatted as MP3 only. The USB connection can read devices up to 4GB.
2. Using a SD card: The player can accept standard SD cards formatted as MP3 only. The TF Card input can read
devices up to 4GB.
3. Using Bluetooth: Ensure that your audio source has bluetooth enabled/discoverable, next turn your speaker
on and select bluetooth mode. Search for available Bluetooth devices on your source unit and select BJP-
198BT. Once connected you can play audio from your device when the unit is in Bluetooth Mode.
4. Using Microphones: Ensure that the Microphone volume is set to “0”. Connect your microphone to the ¼”
Jacks. Ensure that your microphone is turned on. Adjust the volume control to desired volume.
5. Using line in: Ensure that you are in line in source mode. Ensure that your line in source gain control is not
set to 0 and that your source unit volume is not set to 0.
Maintenance and care:
• Store and use in a dry environment away from direct heat sources and moisture.
• Do not clean with solvents or detergents. Only use a mildly damp cloth to dust or clean.
• Use on a flat stable surface. This unit will vibrate when played at high volume and will shift position.
Please use caution when placing this on any surface
• Use only the correct power source and cable provided
• Maintain all gain controls at correct levels. Excessive gain controls coupled with high volume can
damage the speaker drivers.
• Collapse all antennas and disconnect all cables before moving the unit.
Troubleshooting:
• Music files not read: Ensure that your music files are encoded as MP3 Audio Files.
• No Sound: Please ensure that all volume and gain controls are not in the “0”position and that all
source units are on and producing volume. Check volume controls at source units
• Bluetooth not connecting: Ensure that the Bluetooth devise you are connecting has Bluetooth on
and is discoverable.
• No Power: please ensure that your power connection is fully engaged and connected to a non
surging power source.
• Sound is distorted: Please ensure that your source volume and input gains on the speaker are even
and balanced. Also check that your connecting cables from source units are not damaged or broken.
• No sound from Microphone: Ensure that the MIC gain control is not set to “0”ensure that the
microphone is turned on and that all connecting cables are fully engaged and working properly.
If you are still having technical issues with your product and could use some assistance please contact us at
[e-mail]
