THIS PACKAGE CONTAINS
1 - PATV85 All-Terrain Speaker System
1 - Bluetooth Multi-Function Controller
1 - Handlebar Mounting Kit
1 - Quick Connect Power Extension Adaptor
4 - Hi-strength Nylon Mounting Straps
1 - User Manual
1 - Warranty Card
Thank you for purchasing this
PATV85 Bluetooth All-Terrain Sound System
Please read through these instructions carefully so you will know how to
operate your model properly.
After you have nished reading the instructions, keep this document in a
safe place for future reference.
All trademarks and trade names are those of their respective owners.
BEFORE YOU START
IMPORTANT SAFETY PRECAUTIONS
■ BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
- Do not turn up the volume so high that you can’t hear what’s around you.
- Use caution or temporarily discontinue use in potentially hazardous situations.
■ Do not operate mobile video equipment while driving a motorized vehicle – safe
driving and safety consideration of others should always be your highest priority.
■ Set your volume control at a low setting, then slowly increase the sound until you
can hear it comfortably without distortion, or ear discomfort.
■ In the event you should notice smoke, strange noises or odor from this
product, or any other abnormal signs, immediately turn o󰀨 the power and consult
your dealer or the nearest authorized PLANET AUDIO Service Center. Using this
product in this condition may result in permanent damage to the system.
INSTALLATION PRECAUTIONS
WARNING - Always consult with a professional installer
■ Do not attempt to install or service this product by yourself. Installation or
servicing of this product by persons without professional training and experience in
electronic equipment and motorized vehicle accessories may be dangerous and
could expose you to the risk of electric shock, injury or other hazards
■ Refer any repairs to a qualied PLANET AUDIO Service Center
■ The PATV85 should be powered directly to a vehicles battery
■ When wiring directly to the vehicles battery, be sure to disconnect the batteries
negative terminal wire before starting any wiring procedures,if extending the main
power wire, it is suggested that an optional fuse and fuse holder (not included) with
minimum rating of 20 Amperes be in-line with the positive battery terminal
■ The ground cable length should not exceed 18-inches (See wiring diagram pg 3)
■ The PATV85 has a weather resistant design, it should not be submerged in or
under water under any circumstances
■ Use only the installation parts provided with the PATV85
CAUTION!! Using other mounting methods may void this warranty
USER MANUAL
QUICK START GUIDE
WARRANTY
CARD
PATV85-UM-FINALv1.0.indd 2-2 5/31/2016 6:06:09 PM

34
ENGLISH
ENGLISH
WIRE DIAGRAM BEFORE INSTALLING THIS PRODUCT
When replacing the fuse, be sure to only use a fuse of the
rating specied on this product.
To avoid short-circuiting, cover any disconnected leads with insulating tape. It is
especially important to insulate any unused wires, which if left uncovered may
cause a short circuit. When connecting other devices to this product, refer to the
manual for the product to be connected. The black cable is ground, make sure to
connect the ground wire rst.
Ensure that the ground cable is properly connected to metal parts of the vehicles
body frame or direct to the battery if your vehicle does not have a grounded
chassis frame The ground cable of this units power amp and a second powered
system must be connected to the frame separately with di󰀨erent screws. If the
screw for the ground wire loosens or falls out, it could result in re or malfunction.
To avoid potential shorts in the
electrical system, be sure to disconnect
the (–) battery cable before installation.
Use this unit with a 12-volt battery and
negative grounding only. Failure to do so
may result in a re or malfunction.
TOOLS NEEDED:
- Wrench and/or Pliers
- #2 Phillips screwdriver
- Crimp tool
- Electrical tape
TECHNICAL SUPPORT
1.805.322.8794
www.planetaudiousa.com/technical-support
15A
Fuse and fuse holder
(not included)
Chassis
ground
point
BATTERY
Fuse is located inside the power adaptor
Turn counter clockwise to open
Replace with
10A AGC Fuse type only
Normally open switch
(not included)
INSERT
OPTIONAL DIRECT BATTERY WIRING CIRCUIT
RED
BLACK
Chassis
ground
point
QUICK RELEASE
POWER ADAPTOR
(INCLUDED)
POWER ADAPTOR
15A
Ground wire
Metal frame
Recommended 14 ~ 16ga Wire
(not included)
Mini-DIN
Connector
INSERT
MFC
Align arrows
INSERT
Your cable
3.5mm to 3.5mm
(not included)
SLIDE TO OPEN
SPEAKER MOUNTING SUGGESTIONS
Route strap
through the hole
and to vehicle
frame
Route straps
around the speaker body to vehicle frame
Route strap
through the hole
and to vehicle
frame
CAUTION!!
Mounting straps should be double checked to be sure they are
pulled tight and secure before each use of the vehicle.
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
USB CHARGING
INSIDE COMPARTMENT
ALWAYS
CLOSE AND
LOCK DOOR
BEFORE USE
PATV85-UM-FINALv1.0.indd 3-4 5/31/2016 6:06:10 PM

56
ENGLISH
ENGLISH
To surface mount use double
sided tape or velcro.
(not included)
Use the provided handlebar
clamp kit, try the best method
for your application, securely
tighten all components.
SUGGESTED MOUNTING METHODS
LEFT CENTER RIGHT
FOR ILLUSTRATION PURPOSES
YOUR VEHICLE MAY VARY
MULTI-FUNCTION
CONTROLLER
UNIT
HANDLEBAR
CLAMP
SLOT
RUBBER
SHIM
WASHER
LOCK NUT
ALLEN HEAD
LOCK NUT
ALLEN HEAD
BOLT
SNAP
BRACKET
Z-BRACKET
HANDLEBAR
CLAMP
BOLT
SURFACE MOUNT
2
1
To release the PATV85 MFC controller from the mounting clamp,
insert a small jewellers screwdriver into the release tab.
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
The MFC can be mounted in two di󰀨erent congurations: GETTING TO KNOW YOUR
PATV85 MULTIFUNCTION CONTROLLER (MFC)
GETTING STARTED
A
1
2
3
4
5
6
7
8
9
10
1
4
6
52 3 A
MFC - MULTIFUNCTION CONTROLLER
VOLUME DOWN
VOLUME UP
LED DRIVING LAMP - ON/OFF
PLAY/PAUSE
NEXT TRACK
PREVIOUS TRACK
SYSTEM POWER - ON/OFF
POWER / SOURCE - RED = AUX-IN MODE / BLUE = BT MODE
BLUETOOTH PAIRING INDICATOR - BLUE COLOR
3.5mm AUX INPUT
10
7
89
HANDLEBAR MOUNT
PATV85-UM-FINALv1.0.indd 5-6 5/31/2016 6:06:12 PM

78
ENGLISH
ENGLISH

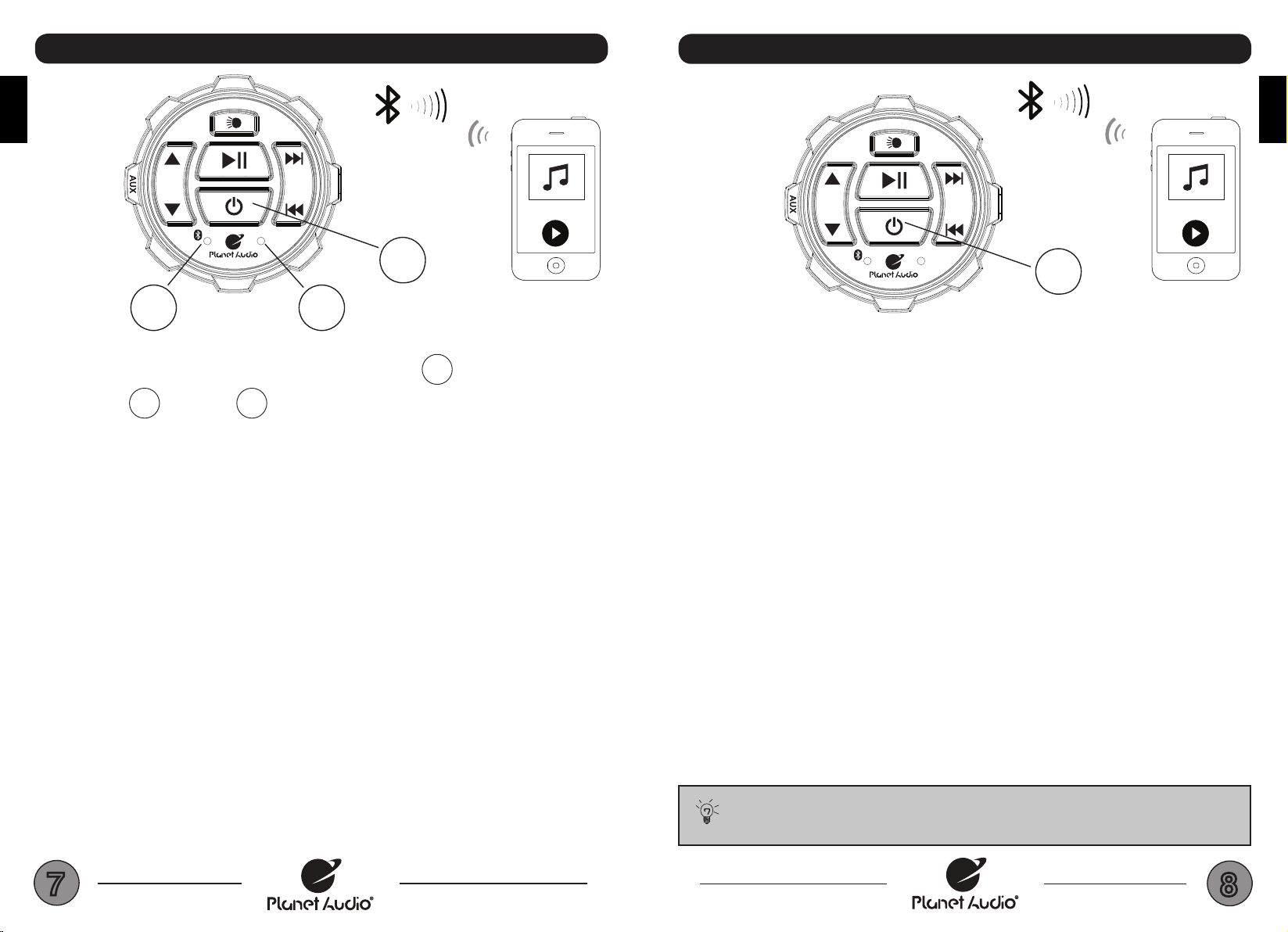

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION
1) Power on the MFC by pressing and holding down the 7 Power button for 3
seconds, the 9BLUE and 8RED LEDs will start to alternately ash,
signalling that the MFC is now ready for Bluetooth pairing
NOTE: You have 2 minutes before you must restart this procedure over again
2) Now that the MFC is in pairing mode:
ANDROID users:
a. Go into the Settings Menu of your device
b. Enter the Bluetooth Menu and press SCAN
c. “Planet Audio” will now be display under AVAILABLE DEVICES
d. If prompted, enter passcode: “0000”
iOS users:
a. Go into the Settings Menu of your iOS device
b. Enter the Bluetooth Menu
c. “Planet Audio” will now be displayed
d. If prompted, enter passcode: “0000”
3) If Planet Audio is not seen, repeat the above steps to refresh the “Device List”
4) When the connection is successful the BLUE LED will be ON, you are now ready to
stream music from your devices favorite media player to the MFC
BLUETOOTH OPERATION
7
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
To avoid battery exhaustion be sure to run the vehicles engine
while using this product. Using this product without running the
engine can drain the battery
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
BLUETOOTH OPERATION
RECONNECTION
1) Power on the MFC and your last paired device Bluetooth
2) The unit will now automatically reconnect, the BLUE LED will be ON
3) If your device was previously paired with the MFC, but it wasn’t the last paired device:
a. Ensure no other devices are currently paired
b. Enter the Bluetooth Menu on your device being paired
c. “Planet Audio” will display under AVAILABLE DEVICES
d. Choose “Planet Audio” to reconnect
4) If the device is out of range from the MFC, it will disconnect automatically:
a. Once device is back in range, it will automatically reconnect to the last device
b. The BLUE LED will be ON
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
89 7
PATV85-UM-FINALv1.0.indd 7-8 5/31/2016 6:06:13 PM

910
ENGLISH
ENGLISH
MULTIFUNCTION CONTROLLER BLUETOOTH OPERATION
1) Press the 4 PLAY/PAUSE once to start playing music or press the PLAY button from
your device touch screen, press again to PAUSE
2) To skip songs or advance, press the NEXT TRACK 5
3) To select the previous song, press the PREVIOUS TRACK 6
VOLUME CONTROL
1) To raise the VOLUME press UP 2 button
2) To lower the VOLUME press DOWN 1 button
STREAMING MUSIC
1
2
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
6
5
4
YOUR DEVICE
Turn the BLUETOOTH volume level on your device to it’s 100% level
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
AUX-IN OPERATION
PATV85 can play audio from any device that has a 3.5mm headphone audio jack.
1) Power on the PATV85 by pressing and holding down the MFC POWER 7button for
2 seconds
2) Connect the 3.5mm AUX-IN on the MFU to a 3.5mm adaptor 10
(3.5mm adaptor is not included)
3) The controller LED lighting will automatically change to RED, indicating the system is in
AUX-IN mode
4) Bluetooth devices will remain paired even in AUX-IN MODE
5) Route the audio wires back to a convenient stowage place, secure your device
VOLUME CONTROL
1) To raise the VOLUME press UP 2 button
2) To lower the VOLUME press DOWN 1 button
3) To MUTE / UN-MUTE the VOLUME press PLAY/PAUSE 4 button
AUX-INPUT
YOUR DEVICE
Turn the HEADPHONE volume level on your device to it’s 100% level
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
YOUR CABLE
10
7
1
2
6
5
4
PATV85-UM-FINALv1.0.indd 9-10 5/31/2016 6:06:14 PM

11 12
ENGLISH
ENGLISH
INFORMATION TO THE USER
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of this device.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by
user. This equipment complies with FCC/ IC radiation exposure limits set forth for
an uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply without
maximum permissive exposure evaluation (MPE). But it is desirable that it should
be installed and operated keeping the radiator at least 20 cm or more away from
person’s body (excluding extremities: hands, wrists, feet and ankles). Alteration
or modications carried out without appropriate authorization may invalidate the
user’s right to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o󰀨 and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
□ Relocate or reorient the receiving antenna.
□ Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit di󰀨erent from that to which the
receiver is connected.
□ Consult the dealer or an experienced radio/TV technician for help.
CAUTION!!
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
TROUBLE SHOOTING GUIDE
TROUBLE CAUSE SOLUTION
Unit will not turn on
The fuse is blown Check / replace the fuse
Bad accessory power
connection
Check accessory power port for
proper operational voltage
No sound is heard
Blown speaker Replace faulty speaker
Volume is low / muted Press the volume level up
Device is paused or muted
Check your devices playing /
volume status
Cannot pair Bluetooth
The Bluetooth function of your
device is not enabled
Refer to the user manual of the
your device for how to enable
the Bluetooth function
The MFC memory is full
Turn o󰀨 the last paired device
BLUETOOTH
The audio quality is poor
after connection with a
Bluetooth enabled device The Bluetooth reception is poor
Move the device closer to the
audio system or remove any
obstacle between the device
and the systems antenna
Unit has become
unresponsive Power glitch or interference
Disconnect power for
10 seconds to reset
SPECIFICATIONS
BLUETOOTH
• Version: 3.0 w/ EDR
• A2DP
• Range: 33ft (10m) Class 2
SPEAKERS
• Dimensions: 8”
• Impedance: 4Ω + 4Ω
• Cone Type: PP CARBON + RUBBER SURROUND
• Tweeter Size: 1” PEI SOFT DOME
AMPLIFIER
• Maximum Output Power: 700 Watts
• Input impedance: 10kΩ
• Frequency Response: 45Hz-25kHz
CHASSIS
• Weight: 20.5lbs / 9.31Kg
• Unit Dimensions cm HxDxW: 23.3 x 37.5 x 83.3
• Unit Dimensions Inches HxDxW: 9.17 x 14.78 x 32.79
• Controller Dimensions HxDxW:
1.00”x3.22”x3.22” / 25.2mm x 80.1mm x 80.1mm
• Controller cable length: 6ft / 2m
• MFC Quick Connect DIN Harness
GENERAL
• Operational Power: 14.4VDC (10.8V ~ 16V allowable)
• Grounding System: Negative type
• MAX Current Draw: 9.7A
• Replacement Fuse: 10A AGC TYPE
• USB MAX Current: 1A
• Color: Black
• Storage Temperature: 5oF to 113oF / -15oC to 45oC
• Operation Temperature: 14oF to 140oF / -10oC to 60oC
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PATV85-UM-FINALv1.0.indd 11-12 5/31/2016 6:06:14 PM
