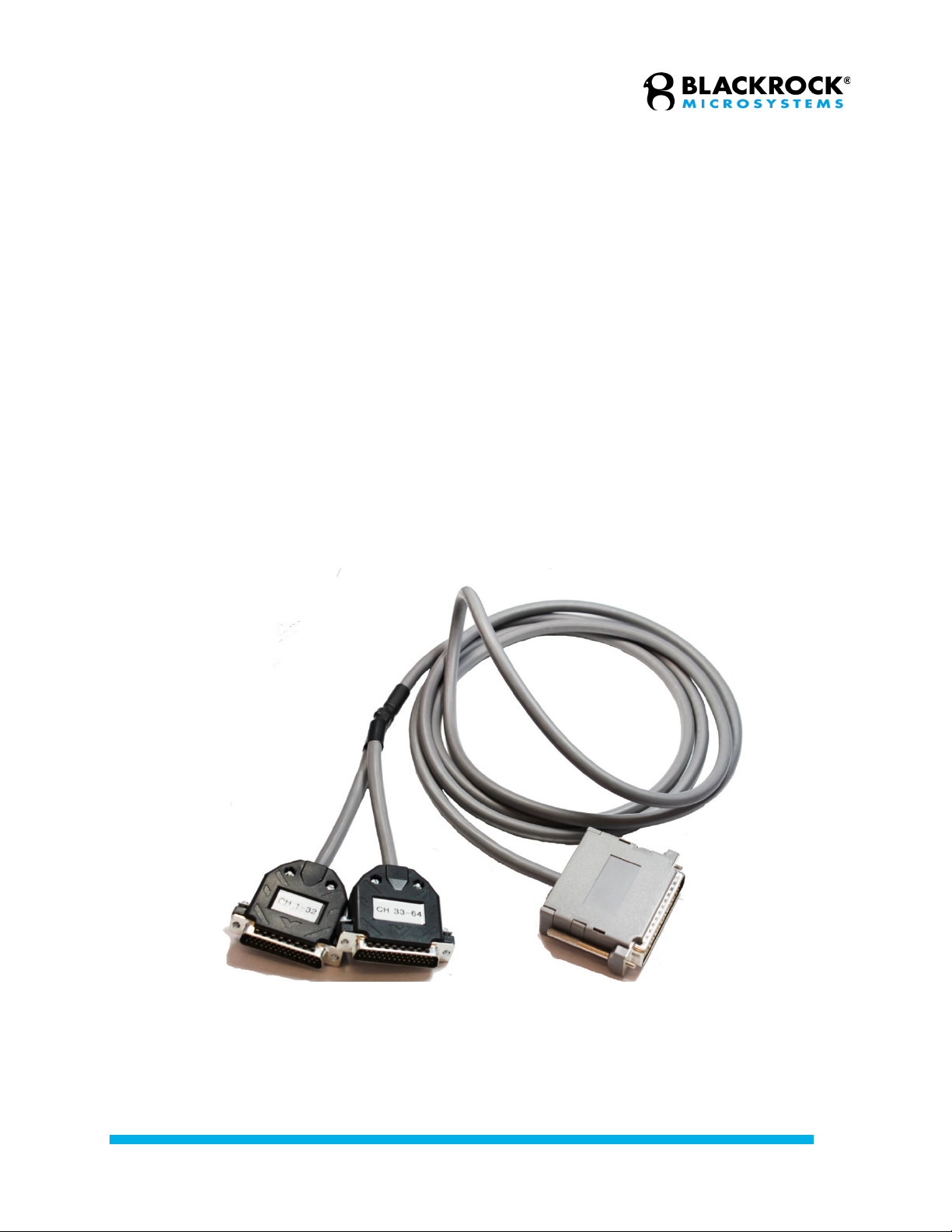

Blackrock 64-CH SR

Splitter Box Cable

PN-9545, 10989

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

2

Table of Contents

What This Manual Covers............................................................. 3

Intended Use and Indications for Use ........................................... 3

Contradictions, Warnings, Precautions ......................................... 3

Symbols ........................................................................................ 3

Product Specific Content............................................................... 4

Specifications ................................................................................ 5

Cleaning, Disinfection, and Disposal........................................... 10

Magnetic Resonance .................................................................. 10

Troubleshooting .......................................................................... 10

Return Merchandise Authorization.............................................. 10

Warranty...................................................................................... 11

Support........................................................................................ 11

Complaints ....................................................................................11

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

3

What This Manual Covers

This manual covers the instructions on how to connect a Nihon Kohden cable to the Blackrock

Jackbox.

Intended Use and Indications for Use

The 64-CH SR Splitter Box Cable is designed to allow simultaneous connection of the Blackrock

NeuroPort BioPotential Monitoring System and The CereStim Neural Stimulator System with a

Nihon Kohden recording systems to EEG and ECoG electrodes.

Contradictions, Warnings,

Precautions

When using this cable, do not pull on the cable to disconnect it from the system. Use the

connector housing to disconnect the cable. If the cable is pulled to disconnect the connector,

you may tear wires from their contacts.

Symbols

IEC60101-

0102

Danger of Electrostatic Discharge (ESD)

In order to reduce the likelihood of ESD, use antistatic or electrostatic discharge (ESD) safe

gloves when connecting the Adapter

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

4

Product Specific Content

A system level connection diagram for all of the components in the systems is shown in the

figure below.

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

5

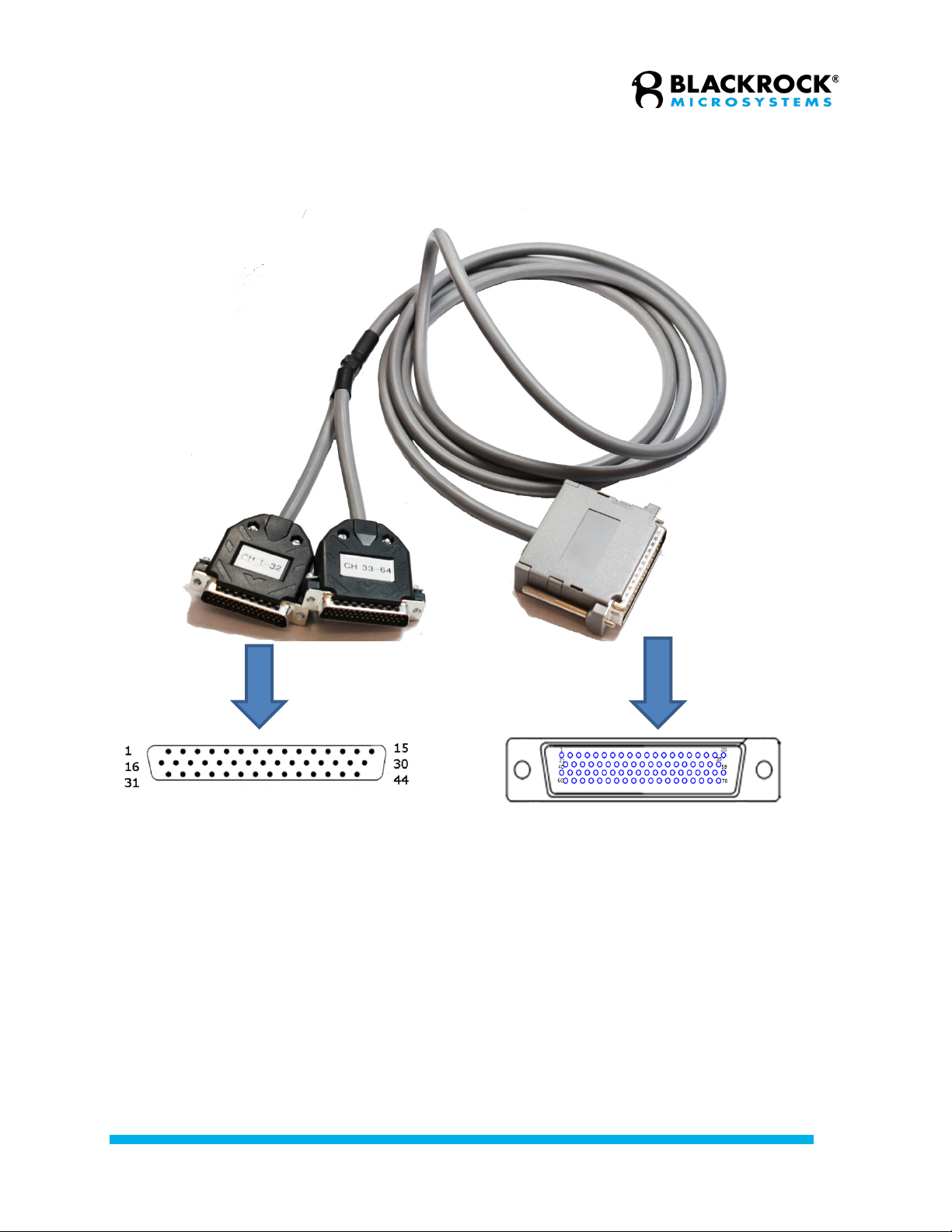

Specifications

PN-9545 64-CH SR Splitter Box Cable

Male DB78 connector pinout

Male DB44 connector pinout

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

6

64-CH SR Splitter Box Cable Pinout Pins 1-32

For PN – 9545

Male DB78 Connector

For pn 9545

Male DB44 Connector

(1-32) For pn 9545

Blackrock Signal Nihon Kohden Signal

56

36

Gnd

Z

56

35

Gnd

Z

36

34

Ref

CH-5

36

33

Ref

CH-5

9

32

CH-32

10

31

CH-31

11

30

CH-30

12

29

CH-29

13

28

CH-28

14

27

CH-27

15

26

CH-26

16

25

CH-25

17

24

CH-24

18

23

CH-23

19

22

CH-22

20

21

CH-21

21

20

CH-20

22

19

CH-19

23

18

CH-18

24

17

CH-17

25

16

CH-16

26

15

CH-15

27

14

CH-14

28

13

CH-13

29

12

CH-12

30

11

CH-11

31

10

CH-10

32

9

CH-9

33

8

CH-8

34

7

CH-7

35

6

CH-6

36

5

CH-5

37

4

CH-4

38

3

CH-3

39

2

CH-2

40

1

CH-1

1

-

N/C

A GND

2

-

N/C

A GND

43

37,38

N/C

SHIELD

44

37,38

N/C

SHIELD

45

-

N/C

BIP 4CH-

46

-

N/C

BIP 4CH+

47

-

N/C

BIP 3CH-

48

-

N/C

BIP 3CH-

AGND = Analog Ground

Ref = Reference

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

7

64-CH SR Splitter Box Cable Pinout Pins 33-64

For PN - 9545

Male DB78 Connector

For PN 9545

Male DB44 Connector

(33-64) For PN 9545 Blackrock Signal Nihon Kohden Signal

56

36

Gnd

Z

56

35

Gnd

Z

35

34

Ref

CH-6

35

33

Ref

CH-6

57

32

CH-64

58

31

CH-63

59

30

CH-62

60

29

CH-61

61

28

CH-60

62

27

CH-59

63

26

CH-58

64

25

CH-57

65

24

CH-56

66

23

CH-55

67

22

CH-54

68

21

CH-53

69

20

CH-52

70

19

CH-51

71

18

CH-50

72

17

CH-49

73

16

CH-48

74

15

CH-47

75

14

CH-46

76

13

CH-45

77

12

CH-44

78

11

CH-43

53

10

CH-42

54

9

CH-41

41

8

CH-40

42

7

CH-39

3

6

CH-38

4

5

CH-37

5

4

CH-36

6

3

CH-35

7

2

CH-34

8

1

CH-33

49

-

N/C

BIP 2CH-

50

-

N/C

BIP 2CH+

43

37,38

N/C

SHIELD

44

37,38

N/C

SHIELD

51

-

N/C

BIP 1CH-

52

-

N/C

BIP 1CH+

55

-

N/C

COM

AGND = Analog Ground

Ref = Reference

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

8

64-CH SR Splitter Box Cable Pinout Pins 1-32

For PN - 10989

Male DB78 Connector

For PN-10989

Male DB44 Connector

(1-32) For PN-10989

Blackrock Signal Nihon Kohden Signal

56

36

Gnd

Z

56

35

Gnd

Z

36

34

Ref

COM

36

33

Ref

COM

9

32

CH-32

10

31

CH-31

11

30

CH-30

12

29

CH-29

13

28

CH-28

14

27

CH-27

15

26

CH-26

16

25

CH-25

17

24

CH-24

18

23

CH-23

19

22

CH-22

20

21

CH-21

21

20

CH-20

22

19

CH-19

23

18

CH-18

24

17

CH-17

25

16

CH-16

26

15

CH-15

27

14

CH-14

28

13

CH-13

29

12

CH-12

30

11

CH-11

31

10

CH-10

32

9

CH-9

33

8

CH-8

34

7

CH-7

35,36

33,34

REF

COM

35,36

33,34

REF

COM

37

4

CH-4

38

3

CH-3

39

2

CH-2

40

1

CH-1

1

-

N/C

A GND

2

-

N/C

A GND

43

37,38

N/C

SHIELD

44

37,38

N/C

SHIELD

45

-

N/C

BIP 4CH-

46

-

N/C

BIP 4CH+

47

-

N/C

BIP 3CH-

48

-

N/C

BIP 3CH-

AGND = Analog Ground

Gnd = Ground

Ref = Reference

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

9

64-CH SR Splitter Box Cable Pinout Pins 33-64

For PN - 10989

Male DB78 Connector

For PN 10989

Male DB44 Connector

(33-64) For PN 10989 Blackrock Signal Nihon Kohden Signal

56

36

Gnd

Z

56

35

Gnd

Z

35,36

33,34

Ref

COM

35,36

33,34

Ref

COM

57

32

CH-64

58

31

CH-63

59

30

CH-62

60

29

CH-61

61

28

CH-60

62

27

CH-59

63

26

CH-58

64

25

CH-57

65

24

CH-56

66

23

CH-55

67

22

CH-54

68

21

CH-53

69

20

CH-52

70

19

CH-51

71

18

CH-50

72

17

CH-49

73

16

CH-48

74

15

CH-47

75

14

CH-46

76

13

CH-45

77

12

CH-44

78

11

CH-43

53

10

CH-42

54

9

CH-41

41

8

CH-40

42

7

CH-39

3

6

CH-38

4

5

CH-37

5

4

CH-36

6

3

CH-35

7

2

CH-34

8

1

CH-33

49

-

N/C

BIP 2CH-

50

-

N/C

BIP 2CH+

43

37,38

N/C

SHIELD

44

37,38

N/C

SHIELD

51

-

N/C

BIP 1CH-

52

-

N/C

BIP 1CH+

55

-

N/C

COM

AGND = Analog Ground

Gnd = Ground

Ref = Reference

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

10

Cleaning, Disinfection, and Disposal

The case of the Splitter Box Cable may be cleaned with distilled water, isopropyl alcohol (70%),

or 96% ethanol. The connectors of the cable may be cleaned using isopropyl alcohol (70%). If

cleaning the connectors, ensure that the connector has dried completely before connecting the

it to the system.

All devices, both used and unused, should not be disposed with household waste. Return to a

recycling point for electric and electronic devices.

Magnetic Resonance

64-CH SR Splitter Box Cable has not been evaluated for safety and compatibility in the MR

environment. 64-CH SR Splitter Box Cable has not been tested for heating, migration, or image

artifact in the MR environment.

Troubleshooting

If the signal from the cable is noisy, make sure the system is properly grounded or the

connections are secure.

If the system is not giving the correct signal or there is signal loss, try using a different Jack Box

with the Splitter cable. If there is still no signal or noisy signal, please contact our support team

for a RMA.

Try using a different jackbox with the splitter cable. If the there is still no signal, contact our

support for an RMA.

Return Merchandise Authorization

In the unlikely event that your adapter needs to be returned to Blackrock for repair or

maintenance, do not send any equipment back without a Return Merchandise Authorization

Number. An RMA number will be issued to you by a Blackrock representative. If you need to

obtain an RMA number, you may contact a product support representative at (866) 806-3692, or

by emailing [email protected].

Once an RMA number has been issued, it is important to safely pack the returned item for

shipping back to Blackrock. It is preferred that you save the original boxes and packing

materials that your system arrived in for return shipment. Please address the package as

follows:

Blackrock Microsystems

ATTN: RMA#

630 Komas Drive, Suite 200

Salt Lake City, UT 84108 USA

Tel: +1 (801) 582-5533

Revision 3.00 / LB-0780– 64-Channel SR Splitter Box Cable IFU

11

Warranty

Blackrock Microsystems warrants that its products are free from defects in materials and

manufacturing for a period of one-year from the date of shipment. Blackrock will, at its option,

repair or replace any product that does not comply with this warranty. This warranty is voided

by:

•Any modification or attempted modification to the product done by anyone other

than an authorized Blackrock employee

•Any abuse, negligent handling or misapplication of the product.

This constitutes the sole warranty made by Blackrock. There are no other warranties, expressed

or implied, which extend beyond those described herein or to anyone other than the original

purchaser, including the implied warranties of merchantability and fitness for a particular

purpose. In no event shall Blackrock Microsystems, be liable for any incidental or consequential

damages, or for the infringement of any patent rights or third-party rights due to the use of its

products.

Support

Blackrock prides itself in its customer support. For additional information on this product or

any of our products, you can contact our Support team through the contact information below:

Manuals, Software Downloads, and Application Notes

www.blackrockmicro.com/technical-support

Complaints

When filing a complaint, please provide the product description, product number,

software version, lot number, complainant's name and address, and the nature of the

complaint.

Issues or Questions

www.blackrockmicro.com/technical-support

[email protected]

U.S.: +1 (801) 582-5533

Notice to the user and/or patient that any serious incident that has occurred in relation to the

device should be reported to the manufacturer and the competent authority of the member state

in which the user and/or patient is established.

CAUTION--Investigational device. Limited by Federal (or United States) law to investigational use.
