Blamsoft Polymodular System User manual

1.0.1 User Manual

2
© 2014 Blamsoft, Inc. All rights reserved.
Overview
Audio Splitter provides eight channels of splitting in a 1U device. Each splitter has four outputs.
In order to do this kind of splitting with a Spider splitter, it would take four devices and 2U of
rack space. Audio Splitter is perfect for the Polymodular System, which supports 8 channels.
And it has a cool Polymodular System logo.

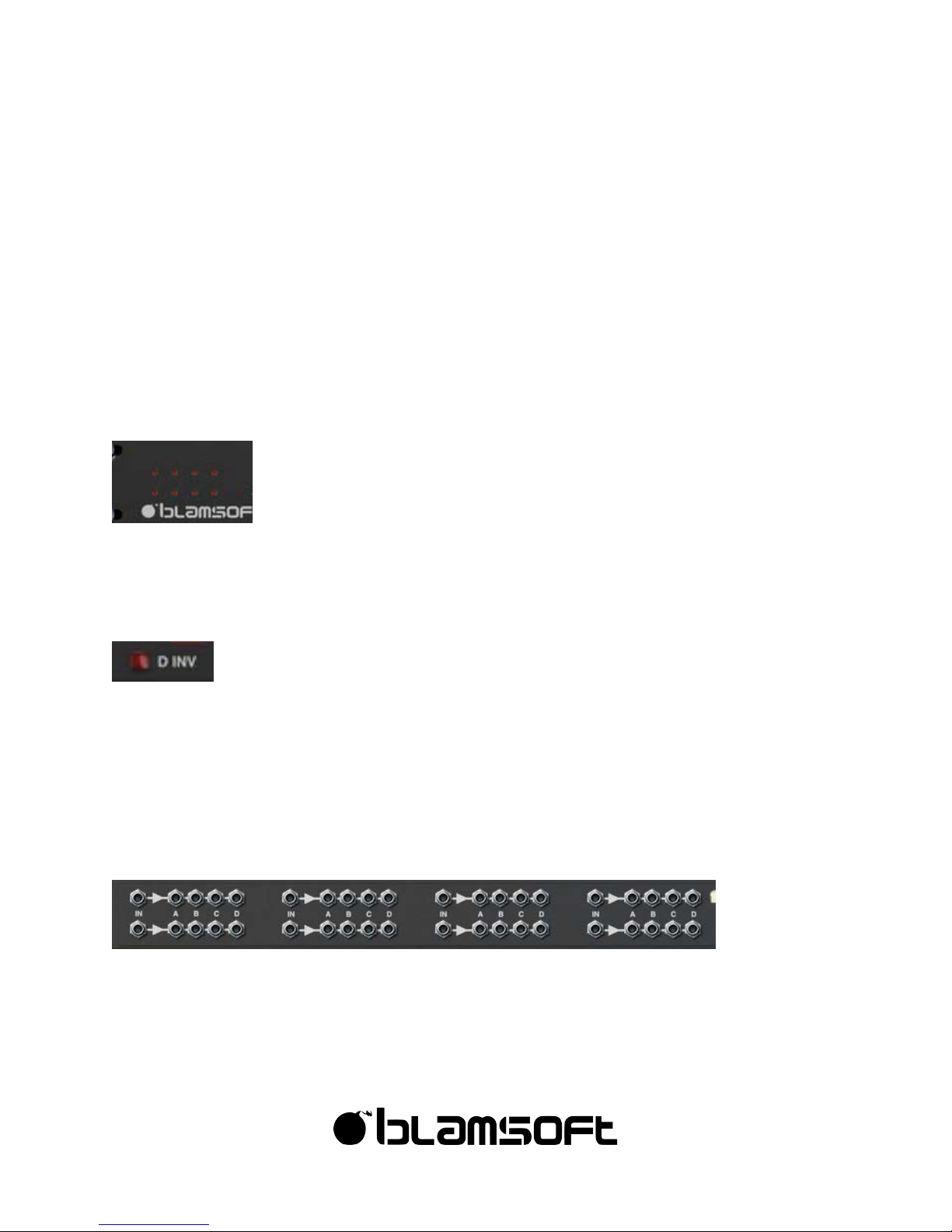

Front Panel
LEDs
The LEDs show when an audio output has an active signal. There is an LED for each audio
output.
D Inverted Button
This button controls whether the D output is normal or inverted. This controls the polarity of
the audio signal.
Back Panel
Audio Splitters
The splitters route the input signal into four identical output jacks. There are eight splitters
available.
